INSTRUCTION MANUAL

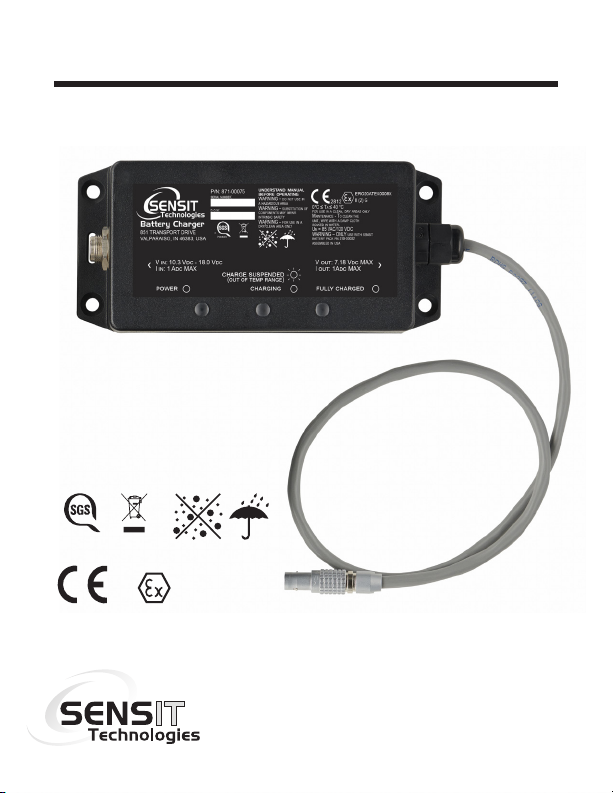

SENSIT®BATTERY CHARGER

Read and understand

instructions before use.

P/N: 871-00075

II (2) G

US

710183

ERO20ATEX0008X

2812

WARNINGS

⚠ WARNING: Charger shall only be used in a non-hazardous

area.

⚠ WARNING: Use only SENSIT Charger (871-00075) for

PowerStick (310-00022)

⚠ WARNING: Charge only in a temperature range of 0° to

40° C (32° to 104° F).

⚠ WARNING: To prevent risk of ignition of a ammable

atmosphere, battery pack must only be charged in an area

known to be non-hazardous.

⚠ WARNING: Charger must be used and stored in a

clean, dry area.

The appliance is not to be used by persons (including children)

with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given

supervision or instruction.

Only use the detachable power supply unit supplied by

SENSIT Technologies (PhoHong, PN PSAC12R-120).

The house symbol on the power supply, indicates “for indoor

use only”.

2

3

POWERSTICK (310-00022)

INSTALLATION / REPLACEMENT

⚠ WARNING: Intrinsically Safe for Use in Class I, Groups C and

D, T3 Hazardous Locations when used in a SENSIT Technologies

Gas Leak Detector 911-00000-XX.

⚠ WARNING: Use only SENSIT Charger (871-00075).

⚠ WARNING: Charge only in a temperature range of 0° to 40° C

(32° to 104° F).

⚠ WARNING: To prevent risk of ignition of a ammable

atmosphere, battery pack must only be charged in an area known

to be non-hazardous.

⚠ WARNING:To prevent ignition of a ammable or combustible

atmosphere, disconnect power before servicing.

⚠ WARNING:: Charging must be done in a dry/dust free

environment.

⚠ WARNING:: Inspect vent cover of the PowerStick for damage

or separation from the housing. If any damage is observed or

separation, the PowerStick must be removed from service.

⚠ WARNING: To reduce the risk of ignition of a ammable

atmosphere, battery pack must only be changed in an area known

to be non-ammable.

4

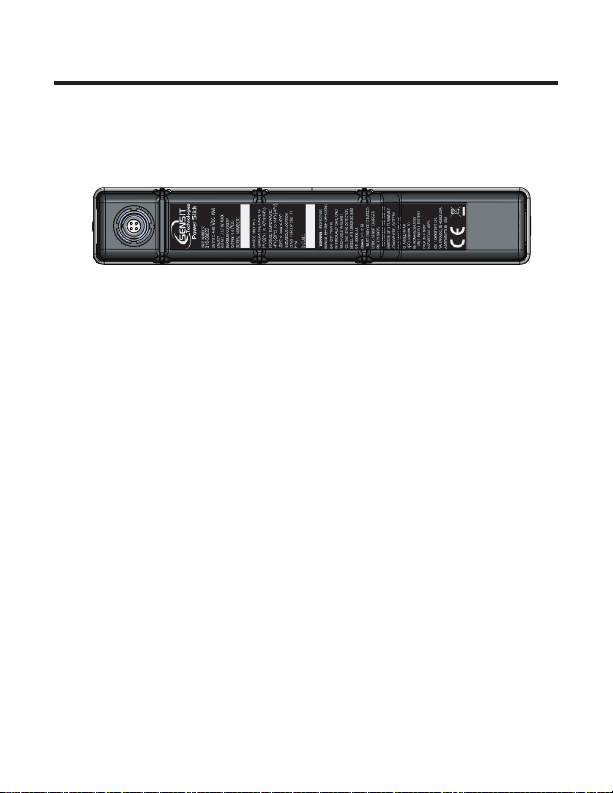

POWERSTICK (310-00022)

INSTALLATION

+-

Positive Side Negative Side

Recharging the PowerStick is necessary when the display icon displays

an empty battery silhouette and ashes a countdown timer in seconds

indicating the maximum time before instrument shut down. This can be

done while the PowerStick is installed in the instrument or independently.

Remove the battery sleeve cover by removing the retaining screw (#10

Torx). Depressing the locking tab on the front of the handle with a coin

or at object and pull the handle away from the top or display area of

the instrument.

With the charging port facing up, insert the negative side of the

PowerStick at an angle, from the top side while in a downward motion,

until the positive side makes a connection.

Replace the battery sleeve and allow the locking tab to snap into position.

Replace and secure the retaining screw. Check to be sure the handle is

secure to the instrument body by rmly pulling the handle away.

NOTE: Battery sleeve and screw MUST be installed before use in a

hazardous environment.

5

POWERSTICK

REMOVAL

Remove the battery sleeve cover by removing the retaining screw (#10

Torx). Depressing the locking tab on the front of the handle with a coin

or at object and pull the handle away from the top or display area of

the instrument.

To remove the powerstick, push in the upward direction from the bottom

side of the battery compartment until the positive clears the plastic

housing. Slide out at an angle to clear the battery sleeve tab and remove.

POWERSTICK CHARGING

6

POWERSTICK CHARGING

SENSIT PowerStick:

* SENSIT PN: 310-00022

Intrinsic Safety Control Drawing DWG. # 750-00089-DWG-A

AD/DC Adapter Assembly:

* Mfg pn: PhiHong PSAC12R-120

* SENSIT PN:

871-00077 (International adapters)

871-00078 (North American adapter)

* Input: 100-240VAC, 0.5A, 50/60Hz

* Output: 12VDC

SENSIT Battery Charger:

* SENSIT PN: 871-00075

POWERSTICK CHARGING

⚠ WARNING: Use only SENSIT Charger (871-00075).

⚠ WARNING: To prevent risk of ignition of a ammable atmosphere,

battery pack must only be charged in an area known to be non-

hazardous.

⚠ WARNING:: Charging must be done in a dry/dust free

environment.

⚠ WARNING: Charge only in a temperature range of 0° to 40° C

(32° to 104° F).

Locate the “Red” indexing tab on both the charger plug and the

PowerStick jack. Align and plug in until it locks in and a red or green light

activates on the charger. The light scheme is represented below.

YELLOW (solid) = Power Connected to Charger

RED (solid) = Charging

RED (blinking) = Charge Suspended

(outside allowable charging temperature range)

GREEN (solid) = Fully Charged

Once charging is complete (typically <6 hours), remove the charger plug

by sliding the collar of the plug away from the PowerStick to disengage

the locking mechanism. Reinstall the battery sleeve and retaining screw.

7

8

NOTES

________________________________________________________

9

NOTES

________________________________________________________

10

NOTES

________________________________________________________

EU WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT (WEEE)DIRECTIVE

In August of 2005, the European Union (EU)

implemented the EU WEEE Directive 2002/96/EC and

later the WEEE Recast Directive 2012/19/EU requiring

Producers of electronic and electrical equipment (EEE)

to manage and nance the collection, reuse, recycling

and to appropriately treat WEEE that the Producer places on the

EU market after August 13, 2005. The goal of this directive is to

minimize the volume of electrical and electronic waste disposal

and to encourage re-use and recycling at the end of life.

Sensit Technologies LLC has met its national obligations to the

EU WEEE Directive. Sensit Technologies LLC has also elected

to join WEEE Compliance Schemes in some countries to help

manage customer returns at end-of-life. If you have purchased.

Sensit Technologies LLC branded electrical or electronic products

in the EU and are intending to discard these products at the end

of their useful life, please do not dispose of them with your other

household or municipal waste. Sensit Technologies LLC has

labeled its branded electronic products with the WEEE Symbol

(gure above) to alert our customers that products bearing this

label should not be disposed of in a landll or with municipal or

household waste in the EU.

11

SENSIT Battery Charger Instruction Manual

DWG. # 750-00089-DWG-ATEX

Part # 750-00089

WARRANTY

Your SENSIT® Battery Charger is warranted to be free from defects

in materials and workmanship for a period of one year after purchase.

If within the warranty period, your charger should become inoperative

from such defects, the unit will be repaired or replaced at our option.

This warranty covers normal use and does not cover damage which

occurs in shipment or failure which results from alteration, tampering,

accident, misuse, abuse, neglect or improper maintenance. Proof of

purchase may be required before warranty is rendered. Chargers out

of warranty will be repaired for a service charge. Internal repair or

maintenance must be completed by a SENSIT Technologies authorized

technician. Violation will void warranty. Units must be returned postpaid,

insured and to the attention of the Service Dept. for warranty or repair.

This warranty gives you specic legal rights and you may have other

rights which vary from state to state.

SENSIT Technologies

851 Transport Drive

Valparaiso, IN 46383 USA

Phone: (219) 465-2700

888 4 SENSIT (473-6748)

Fax: (219) 465-2701

Revision 6-26-2020

MADE IN THE USA

WITH GLOBALLY SOURCED COMPONENTS
