Addendum to the Operating
Instructions
Drive Unit
MGF..-DSM
on MOVITRAC®LTP-B Frequency Inverter
Edition 12/2014 21354995/EN

SEW-EURODRIVE—Driving the world

Contents
Addendum to the Operating Instructions – MGF..-DSM 3
Contents
1General information .................................................................................................................. 4
1.1 How to use this documentation ...................................................................................... 4
1.2 Structure of the warning notes ....................................................................................... 4
1.3 Rights to claim under limited warranty ........................................................................... 5
1.4 Exclusion of liability ........................................................................................................ 6
1.5 Applicable documents .................................................................................................... 6
1.6 Product names and trademarks ..................................................................................... 6
1.7 Copyright notice ............................................................................................................. 6
2System description ................................................................................................................... 7
2.1 Description ..................................................................................................................... 7
2.2 Application areas ............................................................................................................ 7
3Configuration............................................................................................................................. 8
3.1 Input voltage range ........................................................................................................ 8
3.2 Overload capacity .......................................................................................................... 9
3.3 Torque curves .............................................................................................................. 10
3.4 Controller / fieldbus gateway ........................................................................................ 15
4 Startup...................................................................................................................................... 16
4.1 Simple startup .............................................................................................................. 16
4.2 Startup with PC ............................................................................................................ 20
5Parameters............................................................................................................................... 26
5.1 Parameter group 2: Extended parameter setting (level 2) ........................................... 26
5.2 Parameter group 4: Motor control (level 2) .................................................................. 26
5.3 Parameter group 6: Extended parameters (level 3) ..................................................... 27
5.4 Parameter group 7: Motor control parameters (level 3) ............................................... 27
6Technical data.......................................................................................................................... 28
6.1 MOVITRAC® LTP‑B ...................................................................................................... 28
6.2 MGF..-DSM drive unit .................................................................................................. 30
7Address list.............................................................................................................................. 31
Index ......................................................................................................................................... 41
21354995/EN – 12/2014

1General information
How to use this documentation
Addendum to the Operating Instructions – MGF..-DSM
4
1General information
1.1 How to use this documentation
This documentation is an integral part of the product. The documentation is intended
for all employees who perform assembly, installation, startup, and service work on the
product.
The documentation must be provided in a legible format. Ensure that persons respon-
sible for the machinery and its operation as well as persons who work on the unit inde-
pendently have read through the documentation carefully and understood it. If you are
unclear about any of the information in this documentation or require further informa-
tion, please contact SEW-EURODRIVE.
1.2 Structure of the warning notes
1.2.1 Meaning of signal words
The following table shows the grading and meaning of the signal words for safety
notes.
Signal word Meaning Consequences if disregarded
DANGER Imminent hazard Severe or fatal injuries
WARNING Possible dangerous situation Severe or fatal injuries
CAUTION Possible dangerous situation Minor injuries
NOTICE Possible damage to property Damage to the drive system or its
environment
INFORMATION Useful information or tip: Simplifies
handling of the drive system.
1.2.2 Structure of section-specific warning instructions
Section-specific warning instructions do not apply to a specific action, but to several
actions pertaining to the one area. The hazard symbols used either indicate a general
hazard or a specific hazard.
Section-specific warning messages are structured as follows:
SIGNAL WORD
Type and source of hazard.
Possible consequence(s) if disregarded.
• Measure(s) to prevent hazard.
21354995/EN – 12/2014

1
General information
Rights to claim under limited warranty
Addendum to the Operating Instructions – MGF..-DSM 5
Meaning of the hazard symbols
The hazard symbols in the safety notes have the following meaning:
Hazard symbol Meaning
General hazard
Warning of dangerous electrical voltage
DANGER! HOT SURFACES
Warning of risk of crushing
Warning of suspended load
Warning of automatic restart
1.2.3 Structure of embedded warning instructions
Embedded warning notes are included in the instructions directly just before the de-
scription of the dangerous action.
Embedded warning instructions are structured as follows:
• SIGNAL WORD Type and source of hazard.
Possible consequence(s) if disregarded.
– Measure(s) to prevent hazard.
1.3 Rights to claim under limited warranty
A requirement of fault-free operation and fulfillment of any rights to claim under limited
warranty is that you adhere to the instructions in the documentation. Read the docu-
mentation before you start working with the product.
21354995/EN – 12/2014

1General information
Exclusion of liability
Addendum to the Operating Instructions – MGF..-DSM
6
1.4 Exclusion of liability
You must comply with the information contained in this documentation to ensure safe
operation and to achieve the specified product characteristics and performance fea-
tures. SEW-EURODRIVE assumes no liability for injury to persons or damage to
equipment or property resulting from non-observance of these operating instructions.
In such cases, any liability for defects is excluded.
1.5 Applicable documents
This information does not replace the detailed operating instructions!
Also observe the following publications:
• "MGF..-DSM drive unit" operating instructions
• MOVITRAC® LTP B operating instructions
• Documentation of the controller or fieldbus gateway used
• "Application Configurator for CCU" manual
1.6 Product names and trademarks
All product names included in this documentation are trademarks or registered trade-
marks of the respective titleholders.
1.7 Copyright notice
© 2014 – SEW‑EURODRIVE. All rights reserved.
Unauthorized reproduction, modification, distribution or any other use of the whole or
any part of this documentation is strictly prohibited.
21354995/EN – 12/2014

2
System description
Description
Addendum to the Operating Instructions – MGF..-DSM 7
2System description
2.1 Description
This document describes the MGF..-DSM drive unit in connection with the
MOVITRAC® LTP-B frequency inverter on a configurable application controller CCU or
on a fieldbus gateway.
It is the addition to the MOVIGEAR® mechatronic drive system for centralized installa-
tion topologies with frequency inverter in the control cabinet.
The following figure shows the system consisting of the MGF..-DSM drive unit and
MOVITRAC® LTP-B frequency inverter on the application controller / fieldbus gateway:
CCU controller /
fieldbus gateway
PLC
SBus SBus SBus
Line Line Line
Line
Control cabinet level
Field level
MGF..-DSM
drive unit
MGF..-DSM
drive unit
MGF..-DSM
drive unit
2
2
2
2
2
2
2
MOVITRAC®
LTP-B
MOVITRAC®
LTP-B
MOVITRAC®
LTP-B
X30
2
2
2
2
0
1
2
3
2
2
2
4
5
6
MOVITRAC
®LTP-B
L1/L L2/N L3
MOVITRAC
®LTP-B
L1/L L2/N L3
MOVITRAC
®LTP-B
L1/L L2/N L3
12572105355
We recommend the following combinations:
• MOVITRAC® LTP-B 1.5 kW (400 V) + MGF..2-DSM drive unit
• MOVITRAC® LTP-B 2.2 kW (400 V) + MGF..4-DSM drive unit
2.2 Application areas
Target applications for this system include transporting bottles, packaging units and
containers in the food and beverage industry.
A design for wet areas (Option /WA) is optionally available, refer to the "MGF..-DSM
drive unit" operating instructions for further information.
21354995/EN – 12/2014

3Configuration
Input voltage range
Addendum to the Operating Instructions – MGF..-DSM
8
3Configuration
3.1 Input voltage range
We recommend the following MOVITRAC® LTP-B frequency inverters in combination
with the MGF..-DSM drive unit:
3.1.1 400 V, 3-phase
Frequency inverter Assigned drive unit Input voltage range
MOVITRAC® LTP-B
1.5 kW (MC LTP-B
0015-5A3-4-00)
MGF..2-DSM 380 V – 480 V ± 10%
3-phase
50 – 60 Hz ± 5%
MOVITRAC® LTP-B
2.2 kW (MC LTP-B
0022-5A3-4-00)
MGF..4-DSM 380 V – 480 V ± 10%
3-phase
50 – 60 Hz ± 5%
3.1.2 575 V, 3-phase (in preparation)
Frequency inverter Assigned drive unit Input voltage range
MOVITRAC® LTP-B
2.2 kW (MC LTP-B
0022-603-4-10)
MGF..2-DSM 500 V – 600 V ± 10%
3-phase
50 – 60 Hz ± 5%
MOVITRAC® LTP-B
4 kW (MC LTP-B
0040-603-4-10)
MGF..4-DSM 500 V – 600 V ± 10%
3-phase
50 – 60 Hz ± 5%
21354995/EN – 12/2014

3
Configuration
Overload capacity
Addendum to the Operating Instructions – MGF..-DSM 9
3.2 Overload capacity
3.2.1 Inverter overload
The following table shows the default setting for the inverter overload capacity on the
MOVITRAC® LTP-B relative to the nominal inverter current:
MOVITRAC® LTP-B 400 V
Inverter overload capacity
relative to the nominal in-
verter current
Time
150% 60 s (any time when Inom_eff previously ≤ 100%)
175% 2 s (any time when Inom_eff previously ≤ 100%)
3.2.2 System overload
INFORMATION
You have to set the adjustment of the system overload in parameter "P4-07 Upper
torque limit".
The table below shows the adjusted system overload for the combination of
MOVITRAC® LTP‑B and MGF..‑DSM drive unit based on the rated motor current:
MGF..‑DSM drive unit + MOVITRAC® LTP‑B 400 V
System overload based on
nominal motor current
60 seconds 2 seconds
MGF..2-DSM
with
0015-5A3-4-00
200%
(with Imot = 3.7 A)
220%
(with Imot = 4.1 A)
MGF..4-DSM
with
0022-5A3-4-00
190%
(with Imot = 8.4 A)
220%
(with Imot = 9.7 A)
21354995/EN – 12/2014

3Configuration
Torque curves
Addendum to the Operating Instructions – MGF..-DSM
10
3.3 Torque curves
NOTICE
Damage to the MGF..-DSM drive unit
Possible damage to property
• For the drive units marked with *, and in order to protect the gear unit, the system
overload may be set to a maximum of the percentage values specified using the
parameter "P4-07 Max. motor torque limit" on the MOVITRAC® LTP-B.
INFORMATION
In order to ensure the full output torque across the entire speed range, the parameter
"P4-07 Max. motor torque limit" must be adapted to the corresponding value per ratio
for drive units not marked with *.
21354995/EN – 12/2014

3
Configuration
Torque curves
Addendum to the Operating Instructions – MGF..-DSM 11

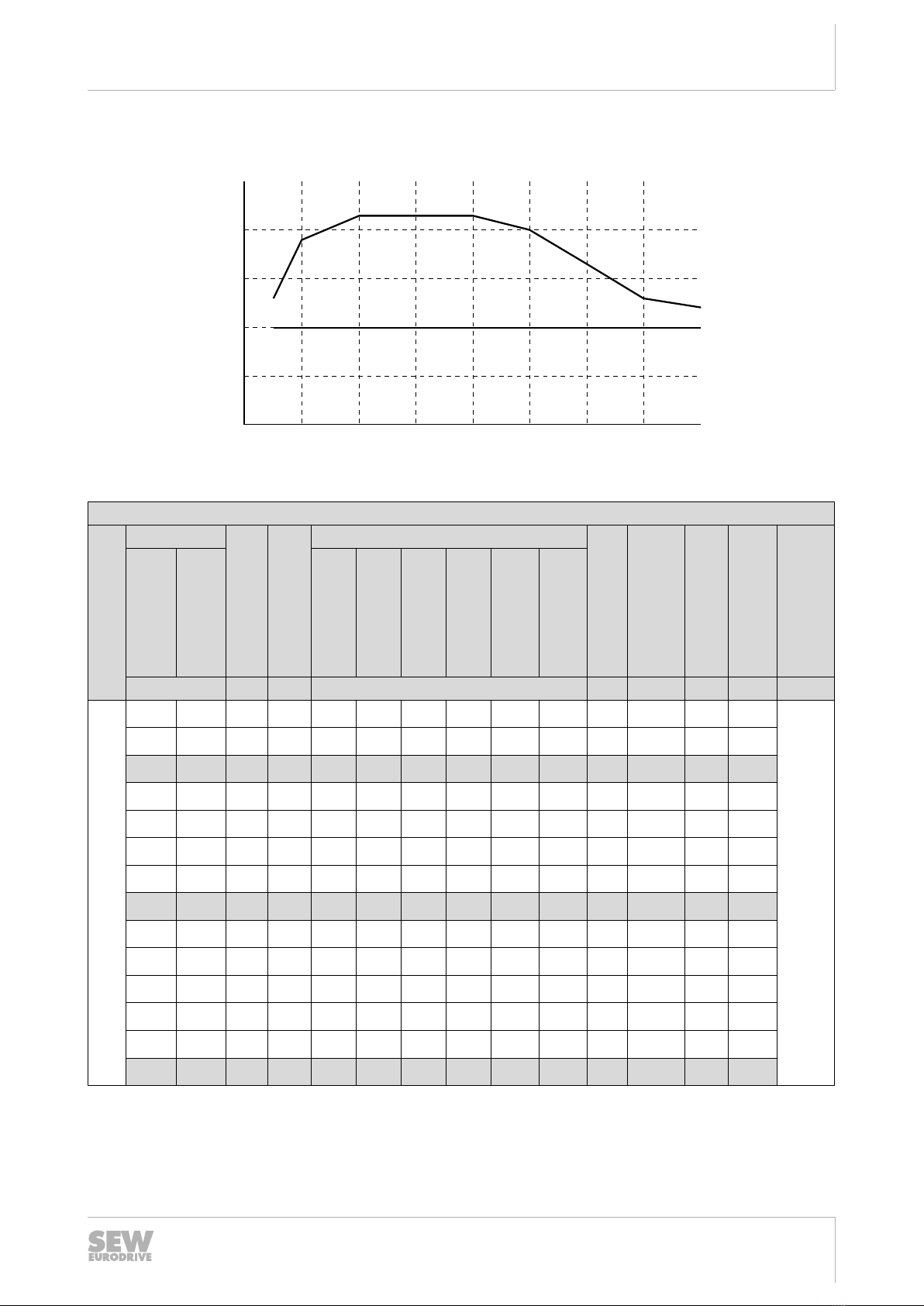

3.3.1 MGF..2-DSM with MOVITRAC® LTP-B 1.5 kW (400 V)
0
50
100
150
200
250
0 250 500 750 1000 1250 1500 1750 2000
Torque [%]
Ma
Motor speed n [min ]
e–1
Mapk
9007211856944651
MGF..2-DSM
naMaI
duration
Mapk Imax Upper
limit
Tor-
que
P 4-07
Ma
Em
Off
itotal Weight
at
ne =
100
rpm
at
ne=
2000
rpm
at
ne =
100
rpm
at
ne =
250
rpm
at
ne =
500/
1000
rpm
at
ne =
1250
rpm
at
ne =
1500/
1750/
2000
rpm
[rpm] [Nm] [A] [Nm] [A] [%] [Nm] [kg]
2-
sta
ge
20.0 400.0 20 1.85 28 40 44 35 28 4.10 220 210 5.00 15.7
18.7 374.5 21 1.85 29 42 46 37 29 4.10 220 215 5.34
16.0 320.0 25 1.85 35 50 55 44 35 4.10 220 225 6.25
14.3 285.7 28 1.85 39 56 62 49 39 4.10 220 235 7.00
12.1 242.7 33 1.85 46 66 73 58 46 4.10 220 245 8.24
10.3 206.0 39 1.85 55 78 86 68 55 4.10 220 330 9.71
9.6 192.9 42 1.85 59 84 92 74 59 4.10 220 330 10.37
8.2 164.7 49 1.85 69 98 108 86 69 4.10 220 330 12.14
7.4 147.1 55 1.85 77 110 121 96 77 4.10 220 330 13.60
6.3 125.0 64 1.85 90 128 141 112 90 4.10 220 330 16.00
5.4 108.0 74 1.85 104 148 163 130 104 4.10 220 330 18.52
5.1 101.0 80 1.85 112 160 176 140 112 4.10 220 330 19.81
4.4 87.5 92 1.85 129 184 202 161 129 4.10 220 330 22.86
21354995/EN – 12/2014

3Configuration
Torque curves
Addendum to the Operating Instructions – MGF..-DSM
12
MGF..2-DSM
naMaI
duration
Mapk Imax Upper
limit
Tor-
que
P 4-07
Ma
Em
Off
itotal Weight
at
ne =
100
rpm
at
ne=
2000
rpm
at
ne =
100
rpm
at
ne =
250
rpm
at
ne =
500/
1000
rpm
at
ne =
1250
rpm
at
ne =
1500/
1750/
2000
rpm
[rpm] [Nm] [A] [Nm] [A] [%] [Nm] [kg]
3-
sta
ge
3.6 71.3 113 1.85 158 219* 219* 198 158 3.60 195 330 28.07 16.0
3.0 60.6 133 1.85 186 218* 218* 218* 186 3.05 165 330 33.02
2.7 53.7 149 1.85 209 217* 217* 217* 209 2.70 146 330 37.24
2.4 47.4 169 1.85 219* 219* 219* 219* 219* 2.40 130 330 42.19
2.2 44.4 181 1.85 218* 218* 218* 218* 218* 2.25 121 330 45.03
1.9 38.8 200 1.80 218* 218* 218* 218* 218* 1.95 106 330 51.51
1.8 36.2 200 1.65 219* 219* 219* 219* 219* 1.85 99 330 55.25
= Preferred gear ratio
* = For the drive units marked with *, and in order to protect the gear unit, the system overload
may be set to a maximum of the percentage values specified using the parameter "P4-07
Upper torque limit" on MOVITRAC® LTP‑B.
Mapk = Maximum permitted torque for short-time duty
If Mapk occurs more often than 10 times per hour, a detailed project planning must be carried
out using the SEW Workbench.
MaEmOff = = Maximum permitted torque for non-cyclical special loads, maximum 1000 cycles
Ma= MGF..-DSM continuous output torque
na= Output speed
ne= Motor speed
21354995/EN – 12/2014

3
Configuration
Torque curves
Addendum to the Operating Instructions – MGF..-DSM 13
3.3.2 MGF..4-DSM with LTP-B 2.2 kW (400 V)
0
50
100
150
200
250
0 250 500 750 1000 1250 1500 1750 2000
Motor speed n [rpm]
Torque [%]
Ma
Mapk
9007211859404939
MGF..4-DSM
naMaI
duration
Mapk Imax Upper
limit
Torque
P 4-07
Ma
Em
Off
itotal Weight
at
ne =
100
rpm
at
ne=
2000
rpm
at
ne =
100
rpm
at
ne =
250
rpm
at
ne =
500/
1000
rpm
at
ne =
1500
rpm
at
ne =
1750
rpm
at
ne =
2000
rpm
[rpm] [Nm] [A] [Nm] [A] [%] [Nm] [kg]
2-
sta
ge
20.0 400.8 50 4.40 65 95 108 83 65 60 9.70 220 420 4.99 23.6
17.4 347.2 57 4.40 74 108 123 94 74 68 9.70 220 450 5.76
15.8 315.5 63 4.40 82 120 135 104 82 76 9.70 220 470 6.34
13.4 268.8 74 4.40 96 141 159 122 96 89 9.70 220 515 7.44
12.7 253.8 78 4.40 101 148 168 129 101 94 9.70 220 525 7.88
11.2 223.2 89 4.40 116 169 191 147 116 107 9.70 220 560 8.96
9.1 182.3 109 4.40 142 207 234 180 142 131 9.70 220 675 10.97
7.9 158 126 4.40 164 239 271 208 164 151 9.70 220 710 12.66
7.2 143.6 139 4.40 181 264 299 229 181 167 9.70 220 710 13.93
6.1 122.2 163 4.40 212 310 350 269 212 196 9.70 220 710 16.36
5.8 115.4 173 4.40 225 329 372 285 225 208 9.70 220 710 17.33
5.1 101.5 197 4.40 256 374 424 325 256 236 9.70 220 710 19.70
4.6 91.7 218 4.40 371 473* 473* 360 283 262 9.60 217 710 21.82
3.9 77.8 257 4.40 437 473* 473* 424 334 308 8.15 184 710 25.72
21354995/EN – 12/2014

3Configuration
Torque curves
Addendum to the Operating Instructions – MGF..-DSM
14
MGF..4-DSM
naMaI
duration
Mapk Imax Upper
limit
Torque
P 4-07
Ma
Em
Off
itotal Weight
at
ne =
100
rpm
at
ne=
2000
rpm
at
ne =
100
rpm
at
ne =
250
rpm
at
ne =
500/
1000
rpm
at
ne =
1500
rpm
at
ne =
1750
rpm
at
ne =
2000
rpm
[rpm] [Nm] [A] [Nm] [A] [%] [Nm] [kg]
3-
sta
ge
3.5 69.3 288 4.40 474* 474* 474* 474* 374 346 7.25 164 710 28.88 24.0
2.9 58.3 342 4.40 473* 473* 473* 473* 473* 473* 6.10 138 710 34.29
2.7 54.6 366 4.40 472* 472* 472* 472* 472* 472* 5.70 129 710 36.61
2.3 46.7 400 4.10 471* 471* 471* 471* 471* 471* 4.85 110 710 42.86
2.1 41.7 400 3.65 475* 475* 475* 475* 475* 475* 4.35 99 710 48.00
1.8 35.4 400 3.10 475* 475* 475* 475* 475* 475* 3.70 84 710 56.49
= Preferred gear ratio
* = For the drive units marked with *, and in order to protect the gear unit, the system overload
may be set to a maximum of the percentage values specified using the parameter "P4-07
Upper torque limit" on MOVITRAC® LTP‑B.
Mapk = Maximum permitted torque for short-time duty
If Mapk occurs more often than 10 times per hour, a detailed project planning must be carried
out using the SEW Workbench.
MaEmOff = = Maximum permitted torque for non-cyclical special loads, maximum 1000 cycles
Ma= MGF..-DSM continuous output torque
na= Output speed
ne= Motor speed
21354995/EN – 12/2014

3
Configuration
Controller / fieldbus gateway
Addendum to the Operating Instructions – MGF..-DSM 15
3.4 Controller / fieldbus gateway
The following chapter describes application controllers or fieldbus gateways suitable
for the MGF..-DSM drive unit and MOVITRAC® LTP-B frequency inverter system.
3.4.1 Configurable application controller CCU
The following controllers in the "CCU standard" performance class are supported:
DH.21B / 41B de-
vice type
+ SD card Bus system / Industrial Ethernet Number of
stations
DHF21B OMC41B Ethernet TCP/IP
UDP
PROFIBUS DP-V1
DeviceNet
16
DHR21B OMC41B Ethernet TCP/IP
UDP, PROFINET
EtherNet/IP™
Modbus TCP/IP
16
The controller can be used as configurable application controller (CCU) by using an
OMC41B type SD card. You can then only execute standardized application modules
created by SEW-EURODRIVE.
The application modules can be started up quickly and conveniently by graphical con-
figuration. A defined process data interface provides this functionality to a higher-level
controller.
A process data monitor with control mode is available to support the startup proce-
dure.
The "CCU standard" performance class is intended for application modules with sin-
gle-axis functionality and medium response times. A maximum of 16 axes can be con-
nected to a configurable application controller.
For further information, refer to the "Controller DHE21B / DHF21B / DHR21B (stand-
ard), DHE41B / DHF41B / DHR41B (advanced)" manual.
3.4.2 Fieldbus gateways
The following fieldbus gateways are supported for connecting the MGF..-DSM drive
unit and MOVITRAC® LTP-B frequency inverter system to a fieldbus or Ethernet sys-
tem:
Bus system / Industrial Ethernet Design Number of stations
PROFIBUS DFP21B/UOH 8
DeviceNet DFD11B/UOH
PROFINET DFE32B/UOH
EtherNet/IP™ DFE33B/UOH
Modbus TCP DFE33B/UOH
EtherCAT® slave DFE24B/UOH
21354995/EN – 12/2014

4Startup
Simple startup
Addendum to the Operating Instructions – MGF..-DSM
16
4 Startup
4.1 Simple startup
INFORMATION
Additionally you must observe the following publications, especially the safety and
warning instructions.
• "MGF..-DSM drive unit" operating instructions
• MOVITRAC® LTP-B operating instructions
INFORMATION
The temperature sensor KTY integrated in the MGF..-DSM drive unit can be optional-
ly evaluated via an external connection.
2 parameters are used for simple startup of an MGF..-DSM drive unit on a
MOVITRAC® LTP-B frequency inverter. All other required parameters, e.g. motor data,
speed ramps, controller settings are set automatically.
4.1.1 Startup procedure
1. Check the connection and startup of the MGF..‑DSM drive unit and the
MOVITRAC® LTP‑B frequency inverter. Observe the corresponding operating in-
structions.
2. For information on how to operate the frequency inverter, refer to the
MOVITRAC® LTP‑B operating instructions.
3. Set parameter P1-14 to "201" for access to specific parameters.
4. Set parameter P1-16 to the preset motor, see the display format. All the required
parameters (voltage, current, etc.) are set automatically.

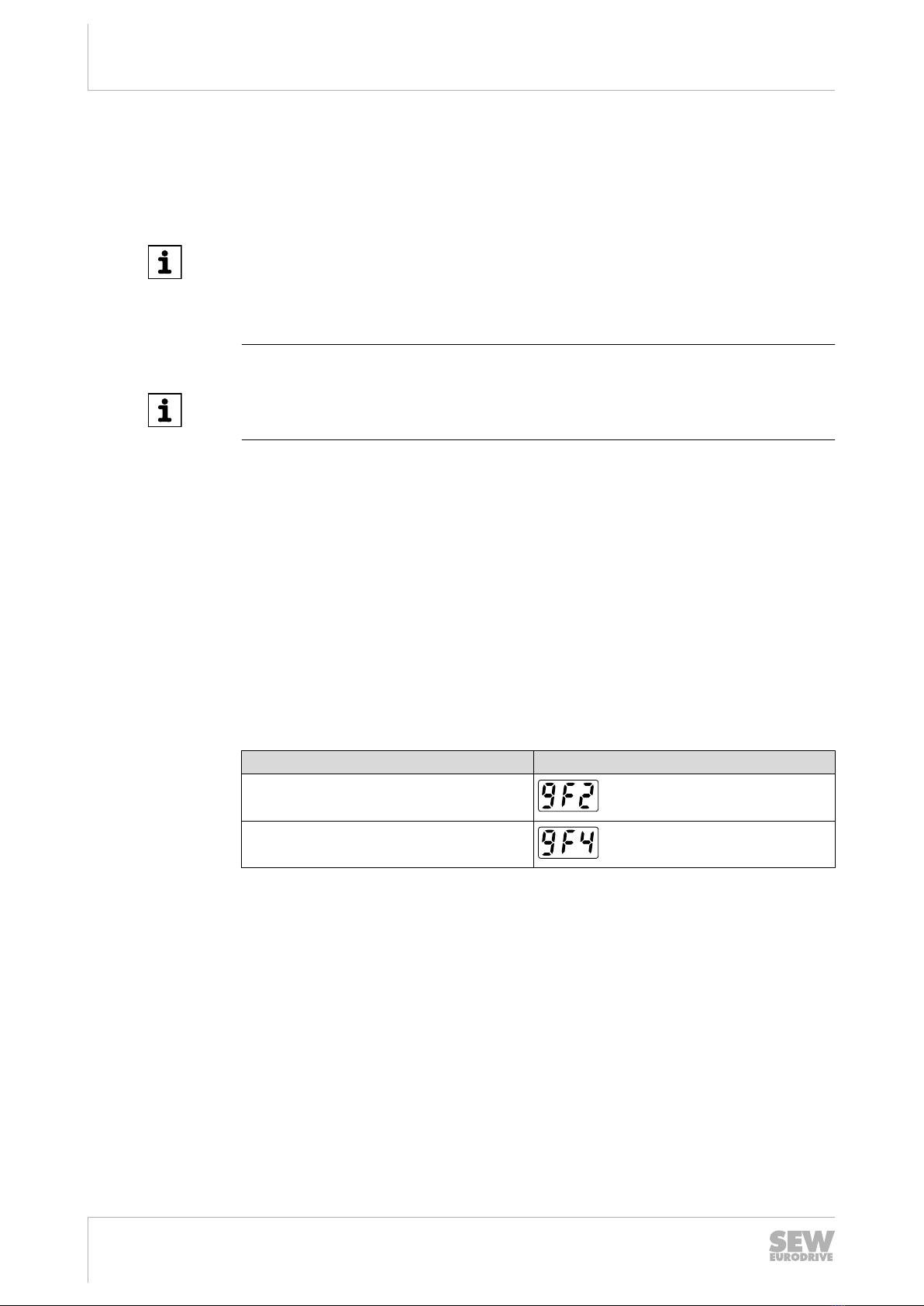

Motor type Display format
MGF..-DSM, size 2
MGF..-DSM, size 4
21354995/EN – 12/2014

4
Startup
Simple startup
Addendum to the Operating Instructions – MGF..-DSM 17
4.1.2 Terminal mode (factory setting) P1-12 = 0
Prerequisite
The following prerequisites must be met for operation in terminal mode (factory set-
ting):
• P1-12 must be set to "0" (factory setting).
• Connect a switch between terminals 1 and 2 on the user terminal block.
• Connect a potentiometer (1 kΩ – 10 kΩ) between terminals 5, 6 and 7, the sliding
contact is connected to pin 6.
• Supply terminal 12 (STO+) with 24 V, and terminal 13 (STO-) with 0 V to enable
the output stage of the inverter.
• Enable the drive by establishing a connection between terminals 1 and 2.
• Set the speed using the potentiometer.
Assignment
WARNING
If terminal 12 is permanently supplied with 24 V, and terminal 13 is permanently con-
nected to GND, then the "STO" function is permanently disabled.
Severe or fatal injuries
• Terminal 12 may only be permanently supplied with 24 V, and terminal 13 may
only be permanently connected to GND if MOVITRAC® LTP-B is not going to per-
form any safety functions.
CAUTION
Applying voltages of more than 30 V to the signal terminals can damage the control-
ler.
Possible damage to property
• The voltage applied to the signal terminals must not exceed 30 V.
INFORMATION
Terminals 7 and 9 can be used as GND reference potential if MOVITRAC® LTP-B is
to be controlled by a PLC. Connect STO+ to +24 V and STO- to 0 V to enable the
power output stage; the inverter will otherwise indicate "inhibited". If STO is to act as
a safety function, observe the information in the "MOVITRAC® LTP-B Functional
Safety" manual.
21354995/EN – 12/2014

4Startup
Simple startup
Addendum to the Operating Instructions – MGF..-DSM
18

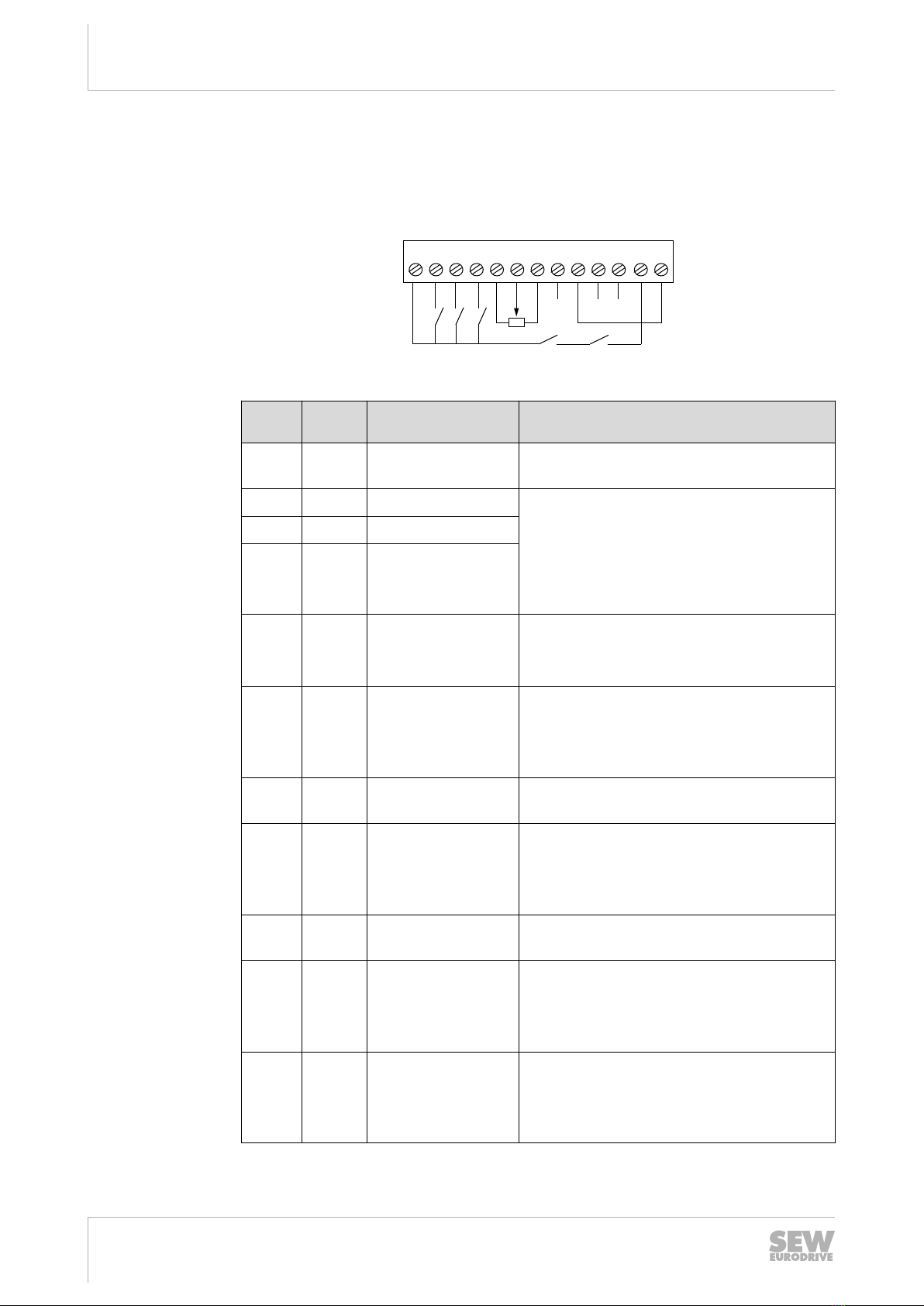

Signal terminal block
+24 VIO DI 1 DI 2 DI 3 +10 V AI 1 / DI 4 0 V AO 1 / DO 1 0 V AO 2 / DO 2 STO+ STO– AI 2 / DI 5
1 2 3 4 5 6 7 8 9 10 11 12 13
12745191051
The signal terminal block is equipped with the following signal connections:
Termi-
nal no.
Signal Connection Description
1+24
VIO
+24 V reference
voltage
Ref. for the activation of DI1 – DI3
(max. 100 mA)
2DI 1 Digital input 1 Positive logic
"Logic 1" input voltage range: DC 8 – 30 V
"Logic 0" input voltage range: DC 0 – 2 V
Compatible with PLC requirement if 0 V is
connected to terminal 7 or 9.
3DI 2 Digital input 2
4DI 3 Digital input 3
5+10 V Output +10 V refer-
ence voltage
10 V reference voltage for analog input
(potential supply +, 10 mA max.,
1 kΩ – 10 kΩ)
6AI 1 / DI
4
Analog input 1
(12 bit)
Digital input 4
Analog: 0 – 10 V, 10 – 0 V, -10 – 10 V,
0 – 20 mA, 4 – 20 mA, 20 – 4 mA
"Logic 1" input voltage range:
DC 8 – 30 V
70 V 0 V reference poten-
tial
0 V reference potential
8AO 1 /
DO 1
Analog output 1
(10 bit)
Digital output 1
Analog: 0 – 10 V, 10 – 0 V, 0 – 20 mA,
20 – 0 mA, 4 – 20 mA, 20 – 4 mA
Digital: 0 / 24 V maximum output current:
20 mA
90 V 0 V reference poten-
tial
0 V reference potential
10 AI 2 /
DIO 5
Analog input 2
(12 bit)
Digital input 5 / ther-
mistor contact
Analog: 0 – 10 V, 10 – 0 V, PTC-th,
0 – 20 mA, 4 – 20 mA, 20 – 4 mA
"Logic 1" input voltage range: DC 8 – 30 V
11 AO 2 /
DO 2
Analog output 2
(10 bit)
Digital output 2
Analog: 0 – 10 V, 10 – 0 V, 0 – 20 mA,
20 – 0 mA, 4 – 20 mA, 20 – 4 mA
Digital: 0 / 24 V maximum output current:
20 mA
21354995/EN – 12/2014

4
Startup
Simple startup
Addendum to the Operating Instructions – MGF..-DSM 19
Termi-
nal no.
Signal Connection Description
12 STO+ Output stage enable DC +24 V input, max. 100 mA current con-
sumption
STO safety contact,
high = DC 18 – 30 V
13 STO- GND reference potential for DC +24 V input
STO safety contact
All digital inputs are enabled with an input voltage in the range of 8 – 30 V. This
means they are +24 V compatible.
The response time of the digital and analog inputs is less than 4 ms. The resolution of
the analog inputs is 12 bit at an accuracy of ±2% in reference to the set maximum
scaling.
21354995/EN – 12/2014

4Startup
Startup with PC
Addendum to the Operating Instructions – MGF..-DSM
20
4.2 Startup with PC
INFORMATION
Additionally you must observe the following publications, especially the safety and
warning instructions.
• "MGF..-DSM drive unit" operating instructions
• MOVITRAC® LTP-B operating instructions
• Documentation of the controller or fieldbus gateway used
• "Application Configurator for CCU" manual
4.2.1 Startup procedure
1. Check the connection and startup of the MGF..‑DSM drive unit, the
MOVITRAC® LTP‑B frequency inverter, and of the controller/fieldbus gateway
used. Observe the corresponding operating instructions and manual.
2. For information on how to operate the frequency inverter, refer to the
MOVITRAC® LTP‑B operating instructions.
3. Set a unique SBus address and SBus baud rate for each frequency inverter in the
network. To do so, manually access P1‑14 = 201 (extended parameter access)
and set the SBus address using mirror parameter P1‑19, and the SBus baud rate
using P1‑20.
4. The remaining startup procedure is described in the following chapters.
4.2.2 Software
The following table provides an overview of the available software:
Required software Further informa-
tion
Function Connection be-
tween PC and fre-
quency inverter
LT Shell Contact
SEW‑EURODRIVE
• Data backup
• Switching lan-
guages
• Firmware update
• Parameter
changes
• Export parame-
ters
• Manual mode
• Scope (in prepa-
ration)
• USB11A + cable
set C
or
• Bluetooth® pa-
rameter module
(LTBP-C)
MOVITOOLS®
MotionStudio
Following chapters • Data backup
• Parameter
changes
• Gateway or
MOVI-PLC®
21354995/EN – 12/2014
