Shannon HR 220-300 User manual

User’s guide
English
Plastic bending machine
HR 220-300

User´s Guide
HR 220/300
-1-
HS
User’s Guide
Plastic bending machine
HR 220-300
1995 SHANNON BV. All rights reserved.
No part of this User's Guide may be photocopied, altered
or translated without prior written consent.
Information contained in this User's Guide is subject
to change without notice.

User´s Guide
HR 220/300
-2-
HS
Contents
Contents 2
Introduction 3
1 Description of the device 4
2 Technical data 5
3 Safety instructions 6
4 Legend 7
4.1 View 7
5 Installation 8
5.1 Assembly 8
5.2 Connecting main voltage 8
6 Operation 9
6.1 Preparation 9
6.2 Switching on heating element 9
6.3 Setting temperature 10
6.4Trouble shooting 10
7 Adjustment 11
7.1 Safety precautions 11
7.2 Filament height 11
8 Maintenance 12
8.1 Safety precautions 12
8.2 Profiles 12
9 Tensioning and changing filament 13
9.1 Safety precautions 13
9.2Tensioning 13
9.3 Changing 14
10 Fuses 16
10.1Safety precautions 16
10.2Control unit fuses 16
Annexes 17
A Options 17
Accessories 18
Equipment 18
B Service and warranty 20

User´s Guide
HR 220/300
-3-
HS
Introduction
Congratulations on purchasing the Shannon HR 200-300 plastic line heater.
Read this Guide completely before installing and using the device.
We want to keep in contact and to know how you find the
HR 200-300 plastic line heater. We are always willing to advise on the use of the
device and its accessories.
SHANNON BV
Turfschipper 11-13
2292 JC WATERINGEN
P.O. box 84
2290 AB WATERINGEN
the Netherlands (EC)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.shannon.nl

User´s Guide
HR 220/300
-4-
HS
Description of the device
The Shannon HR line heater is a device for the production of items for the
plastic sheet processing industry.
The device has one adjustable heating element as standard. The temperature
of which can be adjusted by an electronic control.
The filament of the heating element on the working surface is adjustable in
height.
The piece of work can be heated from one side and it is possible to bend
sheet up to 5 mm thickness.
The working surface is made of scratch-resistant solid core material, to
support the plastic sheet.

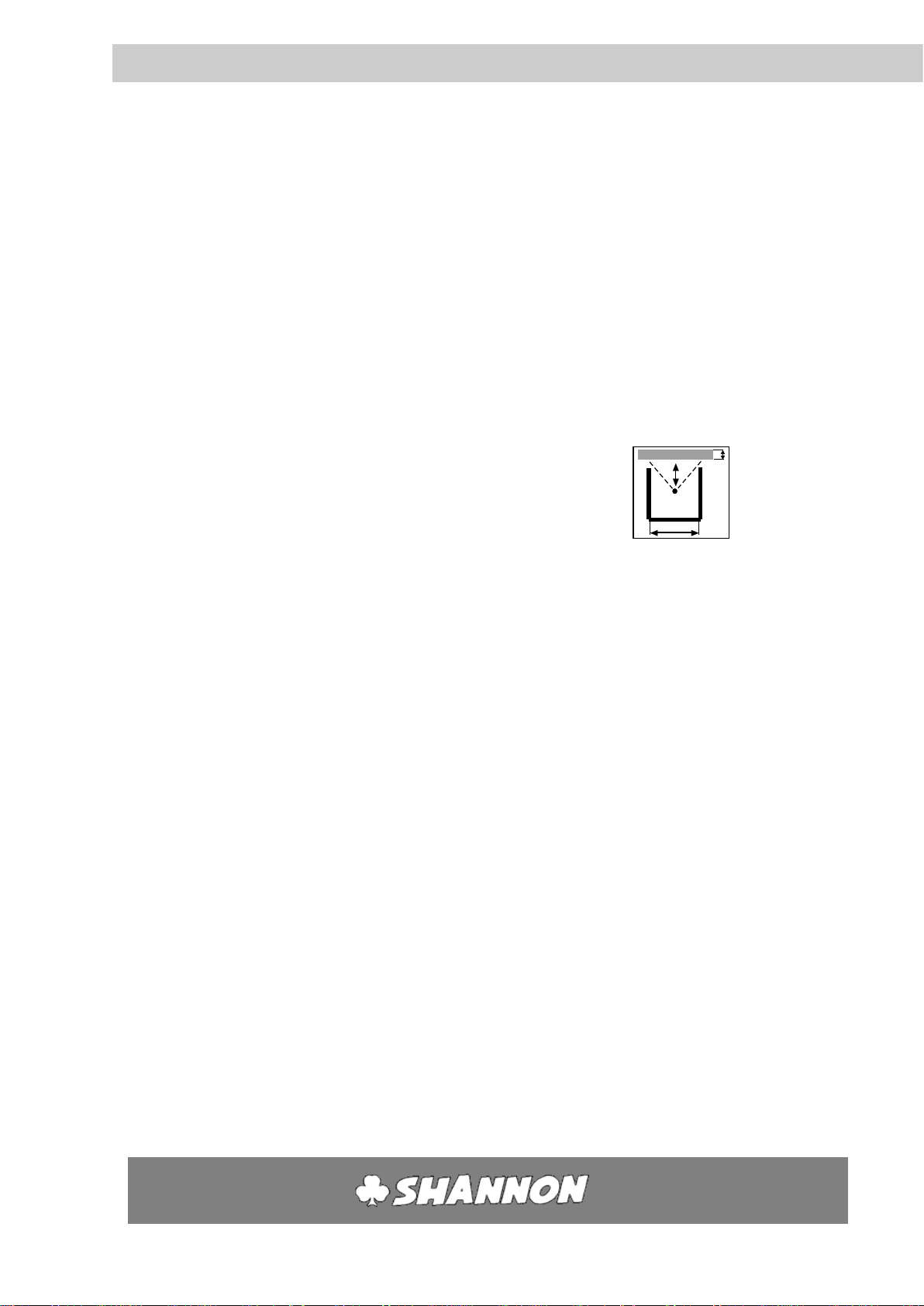

When heated, thermoplastics become so flexible that they can
be shaped. When a plastic sheet is heated to its softening point
in a narrow zone, if can be bent to any angle desired.
The bending radius is determined by the width of the heated
zone. The zone is determined by the thickness of the material,
the type of heating element and the distance between the plastic and the
filament.
Every plastic has its specific softening point. By co-ordinating the temperature,
heated zone and heating time all kinds of thermoplastic can be processed.
1

User´s Guide
HR 220/300
-5-
HS
Technical data
type
HR 220
HR 300
Assembly
Control unit
1
Heating element
1
Electrical
Control unit
Voltage
220/240 V~
Power
1000 VA
Fuses
5 AT x2
Connection
CEE 7/4 16A 2P+A
Filament
Voltage
0-30 V ~
0-45 V~
Current
0-16 A ~
Network connection
CEE 7/4 16A 2P+A
Network circuit breaker
16 A
Mechanical
Dimensions
Length
2250 mm
3050 mm
Depth
440 mm
Height
120 mm
Weigth
30 Kg
50 Kg
Lifetime filament
±500 uur
Functional
Bending with
2250 mm
3050 mm
Sheet thickness
1 - 5 mm
Temperature range Filament
20-550 C
Filament height adjustment
1 - 6 mm
Ambient
Temperature
18-30 ºC
Humidity of the air
50-80 % (niet condenserend)
Miscellaneous
Set of socket screw keys
1 x 2 mm
Spare fuses
4 x 6.3x32 5 AT
Spare filament
2 x 1,6x 2350 mm
2 x 1,6x 3150 mm
2

User´s Guide
HR 220/300
-6-
HS
Safety instructions
SAFETY INSTRUCTIONS:
To ensure safety when using the device you should read this User's Guide
carefully and follow the safety instructions closely.
Attention!
The device contains parts which are hot. Touching them will cause burns.
Allow hot parts to cool sufficiently (at least 10 minutes) before touching them.
Never touch the filament or the reflector when the device is in operation.
Always wear close-fitting clothing.
Be particularly careful of sleeves and always tie back long hair.
Never leave objects on the working surface.
The device may only be used for heating narrow zones in flat plastic sheet.
Any other use could lead to very hazardous situations or cause damage to the
device!
Before commissioning and servicing always check the connection cable and
plug for defects.
When servicing switch off the device and remove the plug from the socket.
Never leave the device unattended without switching it off.
10 minutes
3

User´s Guide
HR 220/300
-7-
HS

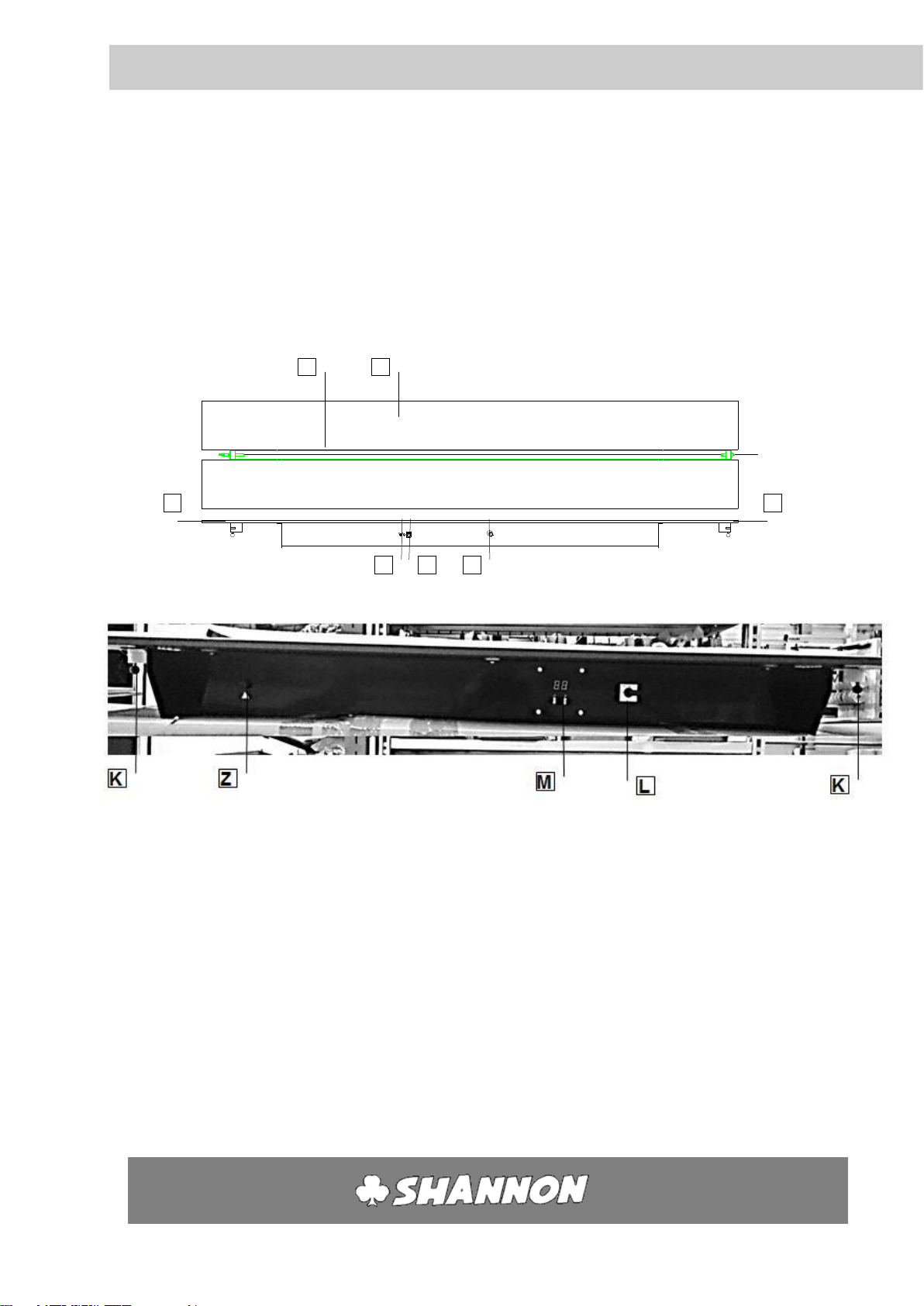

Legend
4.1 VIEW
KMoving knob.
LSwitch on/off.
MTemperature setting.
RHeating element.
WWorking surface.
ZFuses (at the back or front).
The device contains an electronic control with which the temperature of a
filament is set (M). This setting is displayed in % (0%-99%)
4
L
K
M
K
R
Z
W

User´s Guide
HR 220/300
-8-
HS
Installation
5.1 ASSEMBLY
1. Place the device on a level floor with sufficient space around and above the
device.
2. Ensure there is adequate ventilation and lighting at the workplace.
3. Avoid draughts, in order to prevent uneven heating.
5.2 CONNECTING MAINS VOLTAGE
1. Check that control unit are in position O(switch L).
2. Plug in the device.
5

User´s Guide
HR 220/300
-9-
HS
Operation
6.1 PREPARATION
1. Clear the working surface (W).
2. Check that the heating element is connected to the control unit.
3. Check that no scraps of material remain in the reflector.
4. Turn the potentiometer (M) in the control units to "0".
6.2 SWITCHING ON HEATING ELEMENT
1. Switch on control unit with switch (L).
6

User´s Guide
HR 220/300
-10-
HS
Operation 6

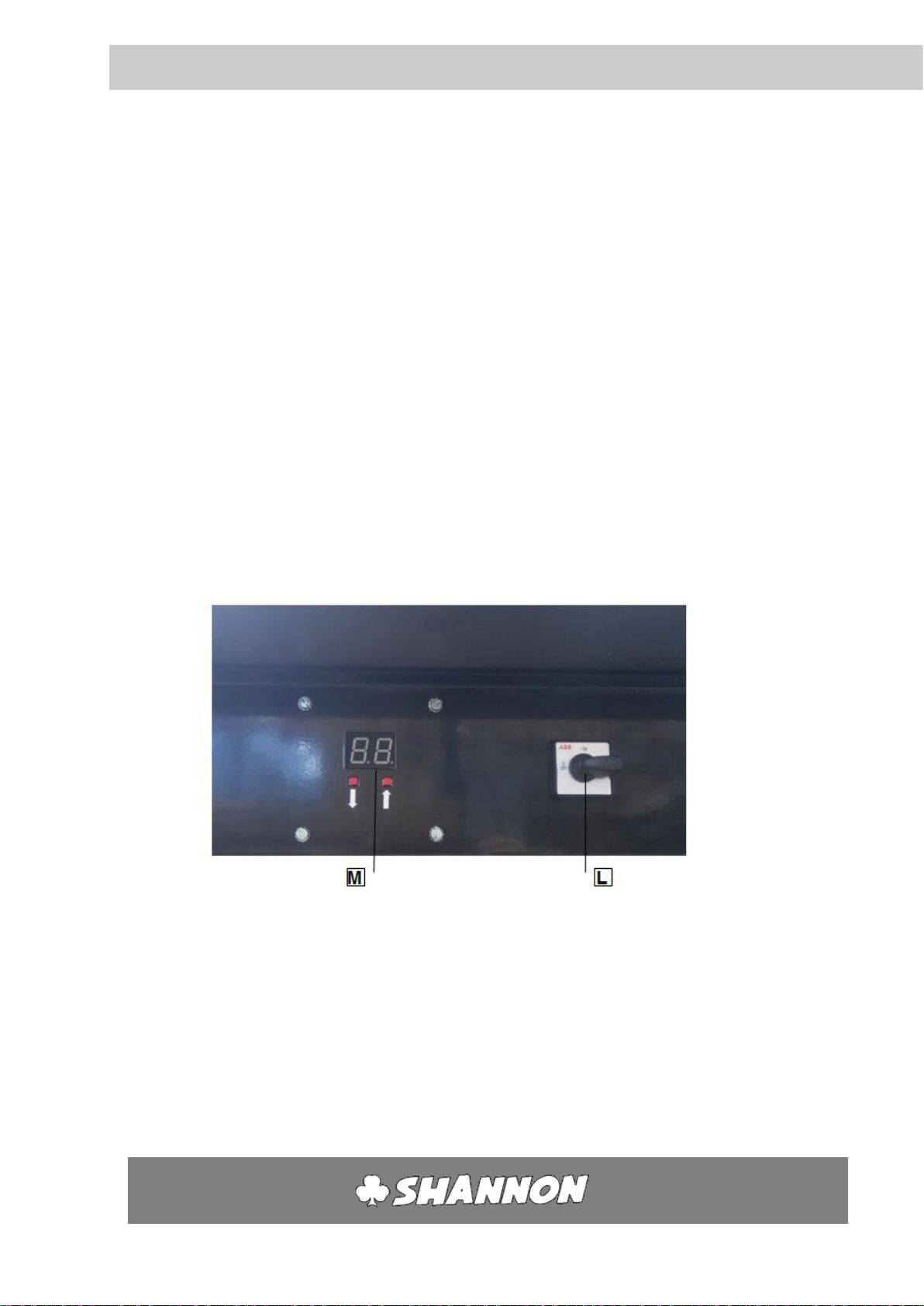

6.3 SETTING TEMPERATURE
The temperature of the filament can be set using the temperature control.
1. When turning on the on/off switch, the display will show the value that was
last saved (keeping the machine on a certain value for >20 seconds will
make it remember this value).
2. Press the right button (arrow up) to increase the value, up to 99 (keeping
this pressed in will make the value cycle much faster)
3. Press the left button (arrow down) to decrease the value, down to 00
(keeping this pressed in will make the value cycle much faster)
4. Press both buttons at the same time to go directly to 00. Doing this also
resets the machine.
6.4 TROUBLE SHOOTING
This machine does not cause for a lot of problems.
The display will give an error message if something is wrong.
Error message
Meaning
Solution
E1
The wire is loose (not connected)
Turn off the machine, check the filament, and reset the
machine
(see §9.1 for changing filament)
Note: Between the values 00 and 04, this fault cannot be
detected
E2
The wire is loose (spark detection)
Check the connection of the filament
Check the filament, and reset the machine
This fault can also be reset by the arrow down button
(see §9.1 for changing filament)
E9
Broken circuit board
Contact the supplier for a new circuit board
Empty display
No power
Alert a maintenance engineer
Check the fuse (see §10.1)
Check the power supply cable
Contact the supplier if necessary

User´s Guide
HR 220/300
-11-
HS
Adjustment
7.1 SAFETY PRECAUTIONS
Always take the following safety precautions before adjusting the heating
element:
1. Switch off the heating element (Switch L).
2. Clear the working surface (W).
3. Allow the heating element to cool for at least 10 minutes.

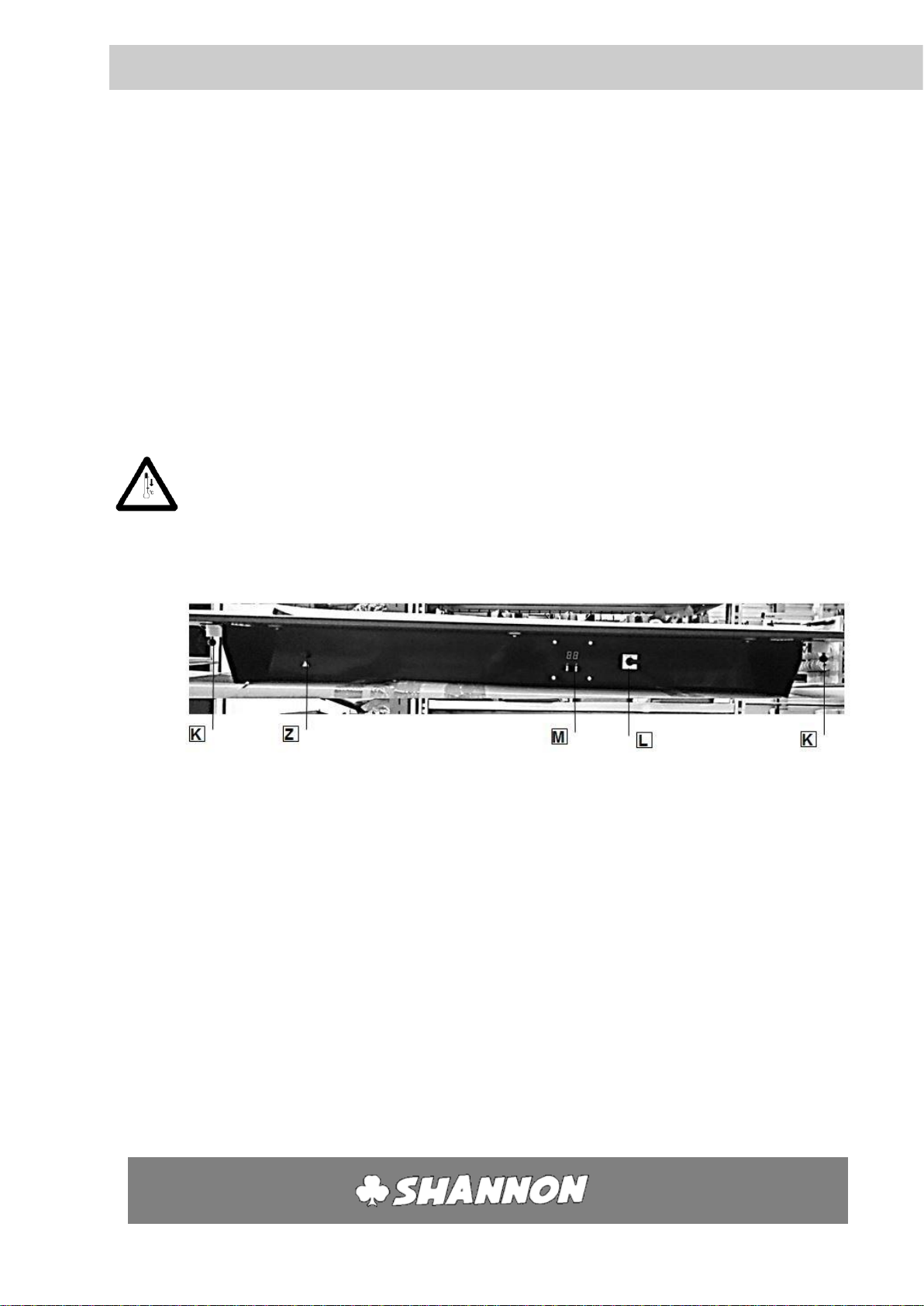

7.2 FILAMENT HEIGHT
1. Adjust the height of the filament using the knurled nut (K).
These can be reached from the sides. Make sure that the filament height is
the same on both sides.
2. Start up the device again as in Section 6.
10 minutes
7
K

User´s Guide
HR 220/300
-12-
HS
Maintenance
This device needs little maintenance. Remove loose dirt from the device once in a
while.
8.1 SAFETY PRECAUTIONS
1. Switch of the device (switch L).
2. Clear the working surface (W).
3. Remove the plug from the socket.
8.2 PROFILES
The heating element works more effectively when they are clean. Remove dirt
and deposits from the heating element regularly. Blow away loose dirt and
brush them clean.
8

User´s Guide
HR 220/300
-13-
HS
Tensioning and changing filament
9.1 SAFETY PRECAUTIONS
Before tensioning and changing the filament always take the
following safety precautions:
1. Clear the working surface (W).
2. Switch off the control units one at a time (switch L).
3. Allow the heating elements to cool for at least 10 minutes.

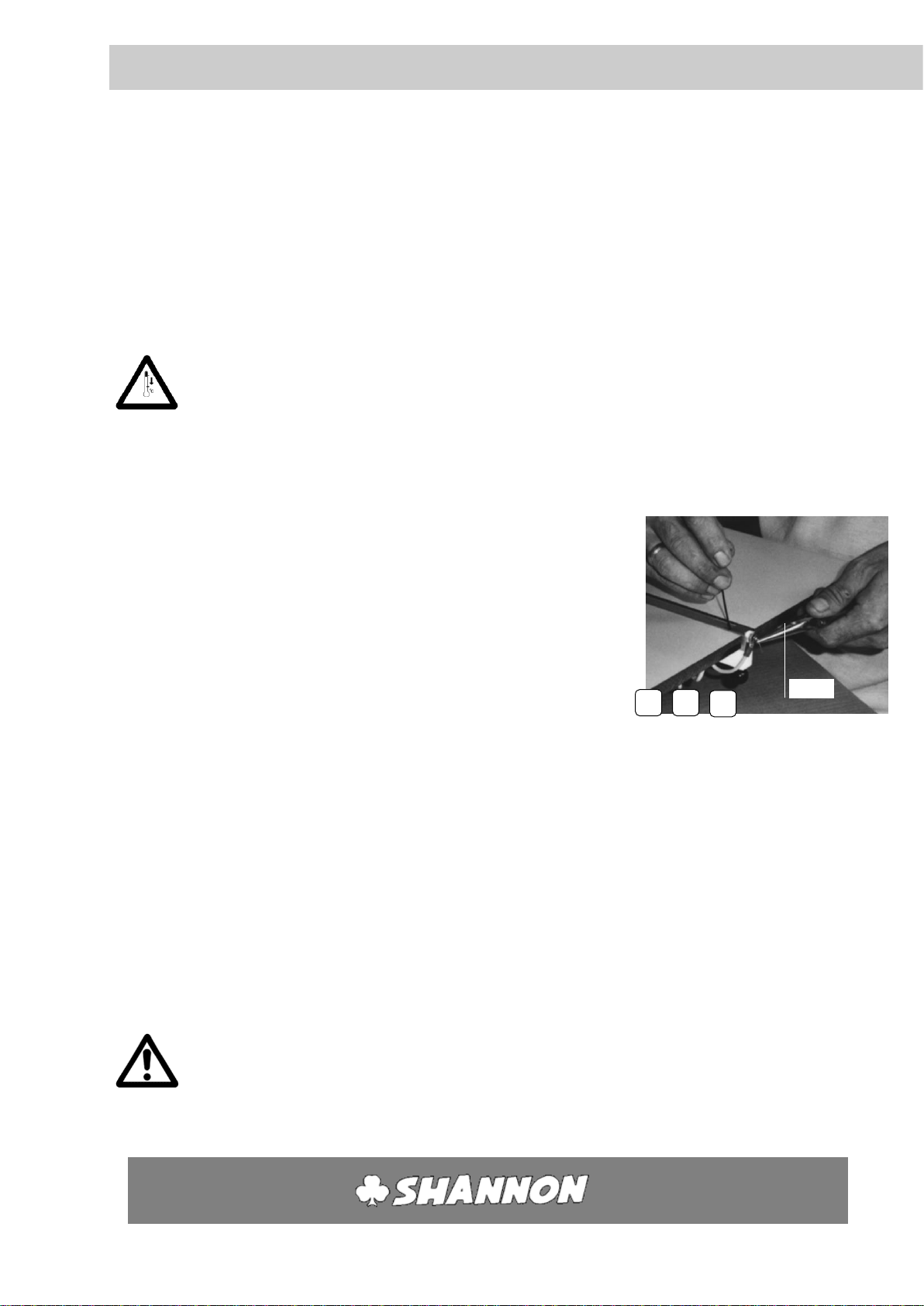

9.2 TENSIONING
1. Move the filament to the lowest position (K).
2. Hold the end of the wire on the right with pliers and undo screw in the wire
pin.
(Use socket screw key no. 2)
3. Pull the wire taut with pliers and tension the spring.
4. Tighten the socket head screw firmly again.
5. Cut off the end of the filament. Always leave 8-10 mm projecting in order to
be able to tension the filament again. Bend the projecting piece down.
Attention! The end of the filament is sharp.
9
10 minutes
2
3
4
pliers

User´s Guide
HR 220/300
-14-
HS
Tensioning and changing the filament 9
9.3 CHANGING
1. Move the filament to the lowest position (K).
2. Unscrew socket head screw in the wire pin on the right.
(Use socket screw key no. 2).
3. On the left side slide the expanding pin with the spring out of the pin block.
4. Slide the spring off the expanding pin.
5. Unscrew the expanding pin from the connection screw
(incl. connection wire).
6. Remove filament from the expanding pin and the wire pin.
7. Slide a new filament into the expanding pin and make sure
that the eye is pulled well into the pin.
8. Screw the expanding pin onto the connection screw (incl. connection wire)
and attach firmly.
Take care not to damage the expanding pin. Tightening firmly by hand is
sufficient.
5
Connection screw
Expanding pin
7
Eye
2

User´s Guide
HR 220/300
-15-
HS
Tensioning and changing filament 9
9. Slide the spring over the filament and slide the filament through to the
expanding pin.
10. Slide the filament with expanding pin through the white insulation sleeve
of the pin block and pull it through as far as possible.
11. Then insert the end of the filament in the wire pin.
Pull it taut and tension the spring with pliers.
12. Tighten the socket head screw.
(Use socket screw key no. 2).
13. Switch on the device and the control unit corresponding to
the replaced filament (switch L).
Then turn the temperature control display (M) to the highest position
(position 99).
The filament will then glow red.
Never touch the filament and the reflector when the device is in operation.
14. Take hold of the end of the filament with pliers and loosen the socket head
screw one turn.(Use socket screw no. 2).
15. Pull the filament taut and tighten the socket head screw. Check that the
filament is straight. If not, repeat this operation.
11
13
pliers
wire pin

User´s Guide
HR 220/300
-16-
HS
Fuses
A maintenance engineer should always be alerted when a fuse blows. Do not
replace the fuse until the short circuit has been corrected.
10.1 SAFETY PRECAUTIONS
Before replacing a fuse always take the following safety precautions:
1. Clear the working surface (W).
2. Switch the device off (switch L).
3. Remove plug from socket.
4. Allow the heating element to cool for at least 10 minutes.
10.2 CONTROL UNIT FUSE
1. The fuses are at the back or front of the device.
2. Open the fuse holder (Z). Turn to the left. The fuse will come out.
3. Replace the fuse, in the reverse order.
N.B. Fuse 6,3x32mm; 1 pieces a control unit. (see
chapter 2).
10
10 minutes

User´s Guide
HR 220/300
-17-
HS
Annex
OPTIONS
Service Contract
Shannon offers you an opportunity to take out a service contract. Let us tell you
about it.
Spares
HR 220
HR 300
Part
Size/value
Size/value
Filament
1,6 x 2.350 mm
1,6 x 3.250 mm
Fuse
5 AT
Wire tensioning set
1.6 mm
A

User´s Guide
HR 220/300
-18-
HS
Annex A
ACCESSORIES
Shannon BV can supply various accessories and production equipment for
the processing of plastic sheet.
Working width of reducing set
Working width of reducing set for heating one or more zones per bending line.
Foil bending profile
A contact profile with anti-stick coating suitable for bending thin sheets from
0.3 - 2 mm.
Profile lengths: 500, 650, 1000 en 1250 mm
Ridge widths: 1 to 10mm
Number of ridge widths: single and double
Special versions: on request
Mould
In which to allow the bent product to cool. Adjustable to any desired angle.
Available lengths: 650, 1.250, 2.200 and 3.000 mm.
EQUIPMENT
FLAME POLISHING EQUIPMENT
To provide a glossy finish to edges, holes and slots in clear acrylic sheet up to 12
mm. thickness.
DIAMOND POLISHING MACHINES
To professionally provide a glossy finish to edges of acrylic sheet
up to 20 mm. and 100 mm. thickness.

User´s Guide
HR 220/300
-19-
HS
Annex A
Bending machines
Type HR Standard; 1 regulating unit and 1 underreflector with heating
wire that is adjustable in height
Working lengths; 500, 1.250, 2.200 and 3.000 mm.
Type HRT Standard; 2 regulating units and 2 underreflectors with heating
wire that is adjustable in height.
Reflectors and stop adjustable with scale calibration.
Easily extendable up to 4 regulating units with 4
underreflectors.
Working lengths; 650, 1.250, 2.200 and 3.000 mm.
Type HRK Standard; 4 regulating units and 4 adjustable under reflectors
with heating wire that's adjustable in height.
2 upperreflectors, pneumatic pressuresystem and stop, all
adjustable.
Easily extendable up to 4 regulating units with 4 under- and 4
upperreflectors.
Working lengths; 650 and 1.250 mm.
Type HRP Standard; 4 regulating units and 2 adjustable under reflectors
with heating wire that is adjustable in height.
2 upperreflectors, pneumatic pressuresystem and stop, all
adjustable.
Easily extendable up to 4 regulating units with 4 under- and 2
upperreflectors.
Working lengths; 2.200 and 3.000 mm.
Type HRP Standard; 4 regulating units and 2 adjustable under reflectors
with heating wire that is adjustable in height.
2 upperreflectors, pneumatic pressuresystem and stop, all
adjustable.
Easily extendable up to 8 regulating units with 4 under- and 4
upperreflectors.
Working lengths; 2.200 and 3.000 mm.
Type HRT/D Standard; automatic feed- and transport system for equal
heating of big productions.
2 regulating units and 2 adjustable underreflectors with heating
wire that is adjustable in height.
2 adjustable parallel stops.
Can also be used as a normal HRT machine.
Easily extendable up to 4 regulating units and 4
underreflectors.
Working length; 3.000 mm.
Type HRP/D Standard; automatic feed- and transport system for equal
heating of big productions.
4 regulating units and 2 adjustable underreflectors with heating
wire that is adjustable in height.
2 upperreflectors, pneumatic pressure system, rollers and
parallel stops, all adjustable.
Can also be used as a normal HRP machine
Easily extendable up to 8 regulating units with 4 under- and 4
upperreflectors.
Working length; 3.000 under and 2.000 mm. upper.
Type FBM Standard; automatic bending- and transportsystem for big
productions of thin foils (0,4 tot 1 mm.)
2 regulating units with 2 upperreflectors with an adjustable
distance between from 45 mm. up to 420 mm.
Also provided with a vacuum feed system
