Please read before operating your new Air Purifier
Some odour ingredients absorbed by the filters may become separated and may be
discharged through the air outlet and result in additional odour. Depending on the
usage environment, especially when the product is used in a condition significantly
more severe than household use, this odour may become strong in a shorter period
than expected.
The air purifier is designed to remove air-suspended dust and odour, but not harm-
ful gases (for example, carbon monoxide contained in cigarette smoke). If the odour
sources still exist, it cannot completely remove the odour (for example, odours from
construction materials and pet odours).
It is suggested to open the window a bit when you are smoking in order to facilitate
ventilation.
In this case we recommend purchasing the optional replacement.
HEPA filter (white)
Deodorizing Pre filter (black)
Dust
pollen, dust, particles of cigarette
smoke, pet dander
Odour
cigarette smoke odour,household odour
OP_FU-A80Y-EN+IND.indb 2OP_FU-A80Y-EN+IND.indb 2 5/8/13 2:47:25 PM5/8/13 2:47:25 PM

E-1
ENGLISH
ENGLISH
FEATURES
Exclusive Combination of Air Treatment
Technologies
Filtration System + Plasmacluster Ion
DECREASES ODOURS
Deodorizing Pre filter absorbs many com-
mon household odours.
REDUCES DUST, POLLEN, DANDER &
MOULD*
HEPA filter traps 99.97% of particles as
small as 0.3 microns.*
REFRESHES
Plasmacluster refreshes the air similar to
the way nature cleans the environment by
emitting a balance of positive and negative
ions.
*From that air is drawn through the filter
system.
Room size : 62m2
Thank you for purchasing the SHARP Air Pu-
rifier. Please read this manual carefully. Be-
fore using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a conven-
ient location for future reference.
For your reference, we recommend to keep
this manual in the place where you can read
at any time.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
.....E-2
PART NAMES...........................................E-4
FILTER INSTALLATION ...........................E-6
OPERATION .............................................E-7
MAINTENANCE........................................E-8
TROUBLESHOOTING............................E-10
SPECIFICATIONS...................................E-11
OP_FU-A80Y-EN+IND.indb 1OP_FU-A80Y-EN+IND.indb 1 5/8/13 2:47:26 PM5/8/13 2:47:26 PM

E-2
Read all instructions before using the unit.
When using electrical appliances, basic safety precautions should be followed, including the
following:
WARNING - To reduce the risk of electrical shock, fire or injury to persons:
•Connect the power plug to a dedicated electrical outlet for 220V,50Hz.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is
loosened.
•Periodically remove dust from the power plug.
•Do not use an extension cord.
•Do not insert fingers or any objects into the air inlet or air outlet.
•Do not unplug by pulling on cord. To unplug, grasp the plug.
• Do not handle plug or unit with wet hands.
•Unplug the electrical cord before performing any maintenance.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp
authorized Service Centre or similarly qualified person in order to avoid a hazard.
•Do not use near flammable gases and material such as insecticides, fragrances, and lit cigarettes.
•Do not use in humid place such as bathrooms.
• Contact the nearest Sharp Approved Service Centre for any problems, adjustments, or repairs.
•This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given su-
pervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
NOTE - Radio or TV Interference
If this air purifier should cause interference to radio or television reception, try to correct the interfer-
ence by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the unit and radio/TV receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
•Contact the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS
OP_FU-A80Y-EN+IND.indb 2OP_FU-A80Y-EN+IND.indb 2 5/8/13 2:47:27 PM5/8/13 2:47:27 PM

E-3
ENGLISH
CAUTIONS CONCERNING OPERATION
•Do not block any opening.
•Do not use the unit near or on hot objects, such as stoves or heaters or radiators.
•Do not use the unit with the wrong position.
• Always hold the handle on both sides of the unit when moving it.
Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting
in bodily injury.
• Do not use without filters inside the unit.
• Do not wash and reuse the filter.
Not only does it not improve filter performance, but also may cause electrical shock or malfunction.
• Clean the exterior with a soft cloth only.
Do not use corrosive cleansers, volatile fluids and/or detergents when cleaning the unit.
The unit surface may be damaged or cracked.
In addition, the sensor may malfunction as a result.
INSTALLATION GUIDELINES
• Avoid locations where curtains, etc., come into contact with any opening.
It may become dirty or a malfunction may occur.
• Avoid locations where the unit is exposed to condensation, due to rapid temperature changes.
(If it is unavoidable please allow unit to stand for 1 hour before switching on.)
(Use under appropriate conditions between 0 - 35˚C room temperature.)
• Place on a stable surface with sufficient air circulation.
When placing the unit on a heavily carpeted area, it may cause the unit to vibrate slightly.
• Avoid use in locations where greasy or oily smoke is generated (such as in a kitchen, etc.).
The unit surface may crack or the sensor may malfunction as a result.
FILTER GUIDELINES
• Follow the instructions to handle carefully and keep maintenance.
Do not install any other type of filters.
OP_FU-A80Y-EN+IND.indb 3OP_FU-A80Y-EN+IND.indb 3 5/8/13 2:47:28 PM5/8/13 2:47:28 PM

E-4
PART NAMES
ILLUSTRATIVE DIAGRAM
INCLUDED
• Operation manual
BACK
1
3
4
2
7
5
6
8
9
10
1 Air Outlet
2 Air Inlet
3 Handle
4 Main Unit
5 HEPA Filter
6 Deodorizing Pre Filter
7 Dust Sensor
8 Date Label
9 Power Cord
10 Plug
OP_FU-A80Y-EN+IND.indb 4OP_FU-A80Y-EN+IND.indb 4 5/8/13 2:47:29 PM5/8/13 2:47:29 PM

E-5
ENGLISH
MAIN UNIT DISPLAY
11 12 14 15 16 17 18
11 SHOWER Button /
SHOWER Indicator Light (green)
12 Plasmacluster ON / OFF Button /
Plasmacluster ON / OFF Indicator Light (green)
13 CHILD LOCK Button / CHILD LOCK Indicator Light (green)
14 CLEAN SIGN
The colour changes according to the air condition.
15 Plasmacluster Sign (blue)
16 FAN SPEED Indicator Light (green)
17 FAN SPEED Button
18 POWER Button
Green Yellow Red
Clean VeryImpure
13
OP_FU-A80Y-EN+IND.indb 5OP_FU-A80Y-EN+IND.indb 5 5/8/13 2:47:31 PM5/8/13 2:47:31 PM

E-6
FILTER INSTALLATION Unplug the electrical cord before
performing any maintenance.
To maintain the quality of the filters, they are installed in the main unit and packed in plas-
tic bags. Be sure to remove the filters from the plastic bags before using the unit.
1

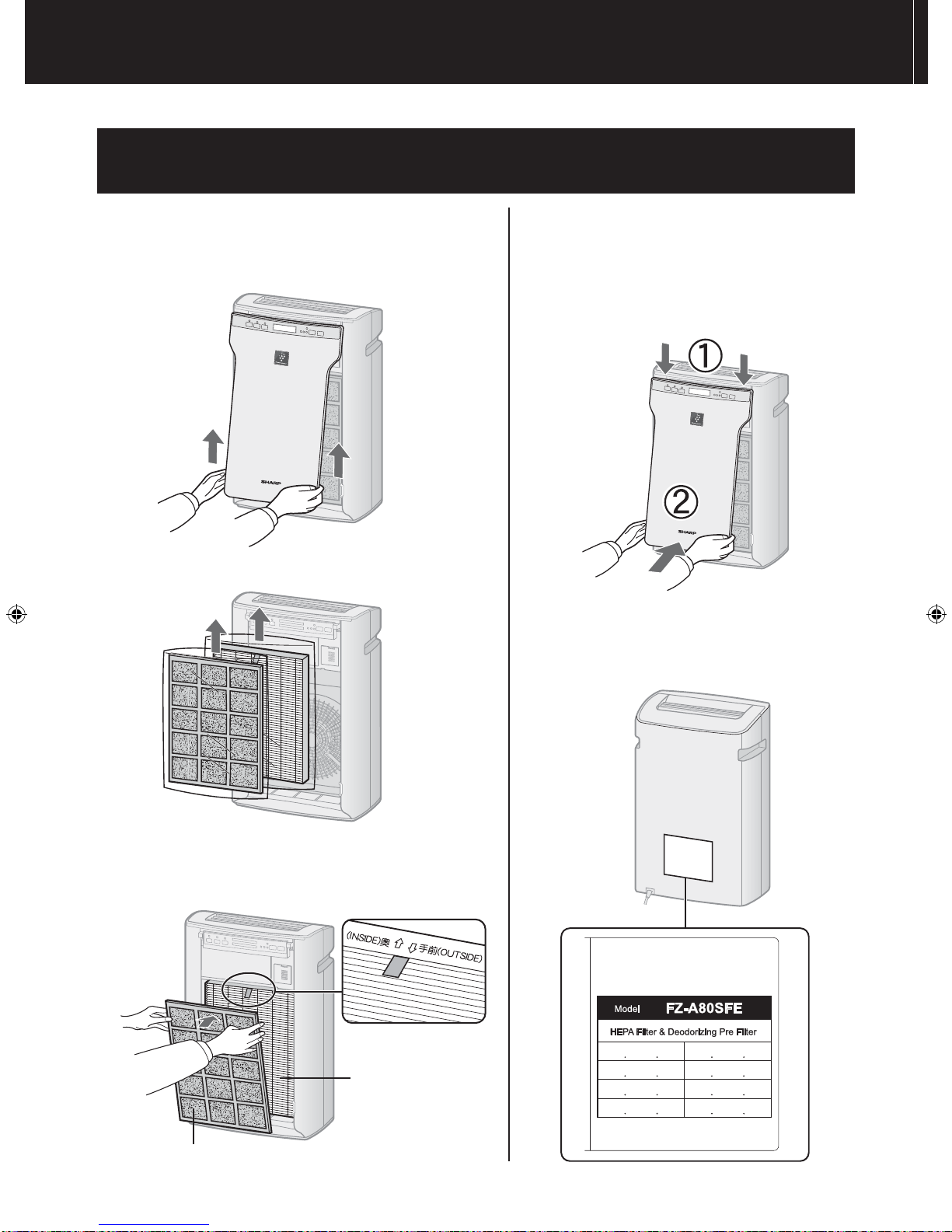

Remove the front Panel.
Gently grip the bottom of the front panel
and remove it by pulling the bottom gently
towards you.
2
Remove the plastic bags.
3
Place the filters accordingly.
Keep the order of filters.
4
Fix the Front Panel.
Fix the Front Panel by hooking it into
the top of the unit. Swing panel in by
pushing gently until the panel snaps
into place.
5
Record the date when you
start or replace the filters.
HEPA filter (white)
Deodorizing Pre filter (black)
Starting date of use
Replacement Filters
Replace the filters when they are no
longer removing odour or dust.
OP_FU-A80Y-EN+IND.indb 6OP_FU-A80Y-EN+IND.indb 6 5/8/13 2:47:32 PM5/8/13 2:47:32 PM

E-7
ENGLISH
OPERATION
1
Press to start / stop.
Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
2
Press to select fan speed.
3
Press to turn Plasmacluster
Ion Mode ON and OFF.
Press to start SHOWER Mode..
The unit will operate at HIGH fan speed for
one hour, then will return to the prior opera-
tion.
"SHOWER" mode is effective when you
would like to clean quickly.
The Dust Sensor automatically moni-
tors dust pollution level and adjusts
fan speed accordingly.
Yellow Red
Clean Very Impure
ON OFF
321
SHOWER Operation
Light Control
Press for 3 seconds to se-
lect ON/OFF of the Plusmaclus-
ter SIGN and the CLEAN SIGN.
AUTO mode
*The air purifier operates the airflow speed
automatically according to the interior
pollution level detected by the sensor.
CHILD LOCK
Press for 3 seconds to select
CHILD LOCK.
Operation of the unit display will be
locked. It is the same method as start-
ing operation.
To cancel the CHILD LOCK mode,
press again for 3 seconds.
CLEAN SIGN
Green
OP_FU-A80Y-EN+IND.indb 7OP_FU-A80Y-EN+IND.indb 7 5/8/13 2:47:35 PM5/8/13 2:47:35 PM

E-8
CLEANING THE FILTERS
1
Turn off the unit, and unplug the
power cord.
2
Remove the Front Panel.
(Refer to E-6)
3

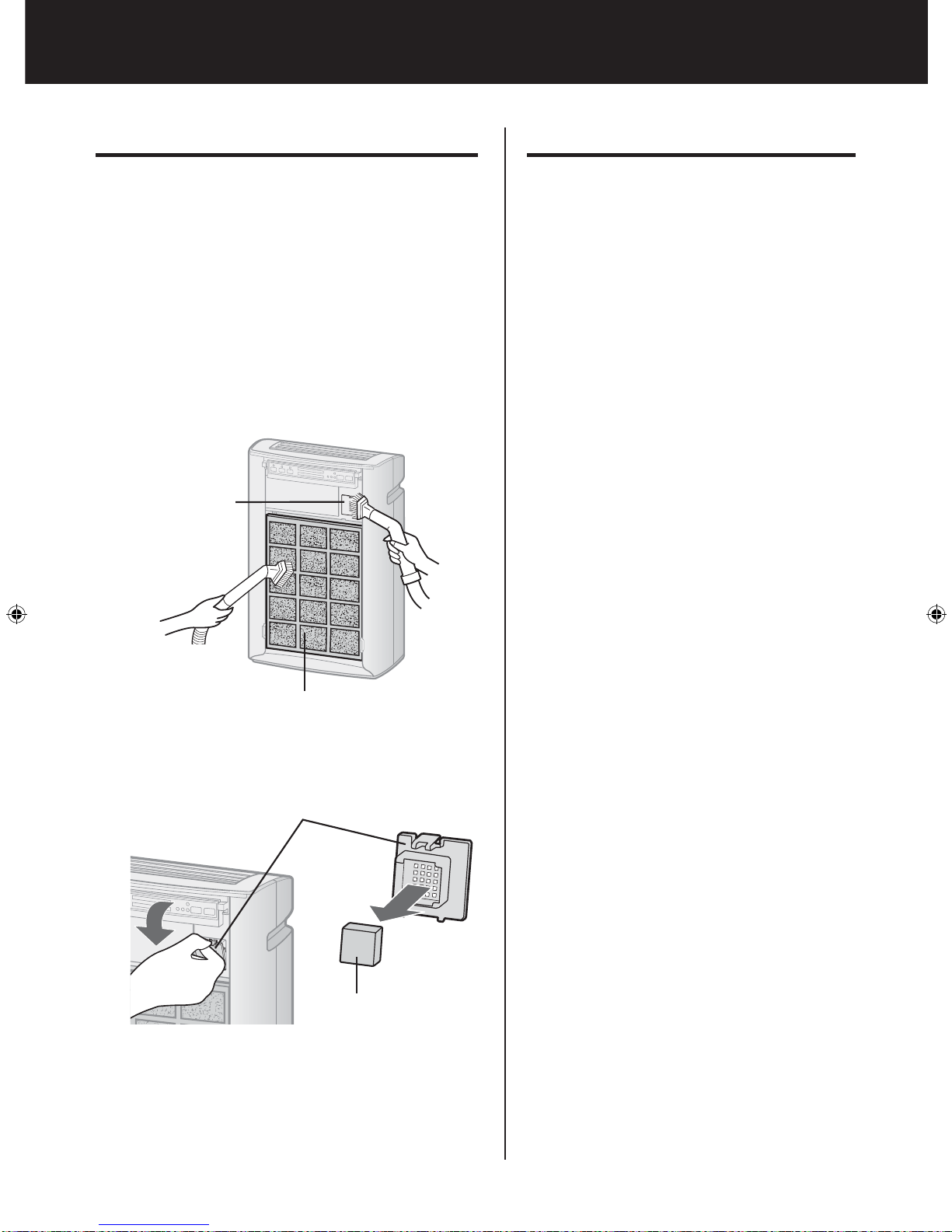

Clean the filter and Dust sensor.
Gently remove dust from the filter, using a
vacuum cleaner with attachment or similar tool.
Dust Sensor
Remove the Sensor cover, and remove the
dust on the Sensor filter.
If it is very dirty, wash it with water and dry it
thoroughly.
CLEANING THE UNIT
Dust sensor
Deodorizing Pre filter
Sensor cover
Sensor filter
MAINTENANCE
Wipe with a dry, soft cloth.
For stubborn stains or dirt, use a soft cloth
dampened with warm water.
Do not use volatile fluids and deter-
gents.
Benzene, paint thinner, polishing powder,
detergent ingredients etc., may damage
the unit.
Care Cycle :
Whenever dust accumulates on the unit or every 1 month.
OP_FU-A80Y-EN+IND.indb 8OP_FU-A80Y-EN+IND.indb 8 5/8/13 2:47:37 PM5/8/13 2:47:37 PM

E-9
ENGLISH
FILTER REPLACEMENT GUIDELINES
Filter life varies depending on the room environment, usage, and location
of the unit.
If dust or odour persists, replace the filter.
(Refer to “Please read before operating your new Air Purifier”)
Replacement timing
Replacement Filters
Model : FZ-A80SFE
• HEPAfilter : 1 unit
• Deodorizing Pre filter : 1 unit

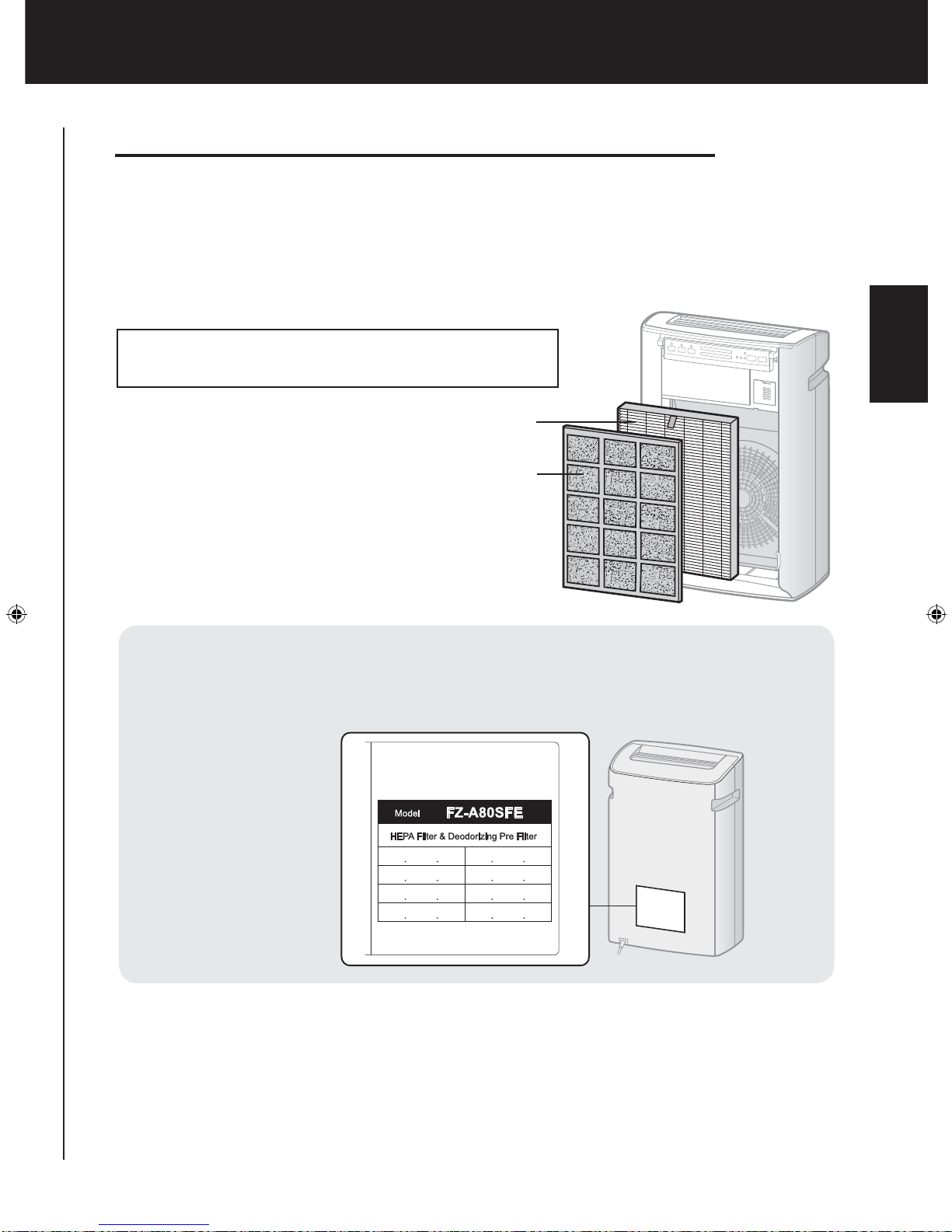

Replace the filters
(Refer to E-6)
Disposal of Filters
Please dispose the filters according to the local disposal laws and regulations.
HEPA filter material:
• Filter : Polypropylene
• Frame : Polyester
HEPA filter
Deodorizing Pre filter
Record the date when you replace the filters.
Deodorizing Pre filter material:
• Deodorizer : Activated charcoal
• Filter : Polyurethane foam
• Frame : Paper
Starting date of use
Replacement Filters
Replace the filters when they are no
longer removing odour or dust.
• HEPAfilter About 2 years after opening
• Deodorizing Pre filter About 2 years after opening
OP_FU-A80Y-EN+IND.indb 9OP_FU-A80Y-EN+IND.indb 9 5/8/13 2:47:38 PM5/8/13 2:47:38 PM

E-10
TROUBLESHOOTING
Before calling for service, please review the Troubleshooting chart below, since the problem may not
be a unit malfunctions.
PROBLEM SOLUTION (not a malfunction)
The unit leaves smoke and
odours in the air. • Clean or replace the filters as needed. (Refer to E-9)
• Is the unit installed in a location that is difficult for the
sensor to detect cigarette smoke?
• Are the dust sensor openings blocked or clogged?
(In this case, clean the openings.) (Refer to E-8)
A clicking or ticking sound is
heard from the unit. • Clicking or ticking sounds may be audible when the unit
is generating ions.
A bad odour comes out of the air
outlet. • Check to see if the filters are heavily soiled. Replace the
filters. (Refer to E-9)
• Plasmacluster Air Purifiers may produce a slight odour.
This is normal and is a result of the Plasmacluster Ions
refreshing the air.
The Clean Sign is green, but
there is still odour in the air. •
The air could be impure at the time the unit was plugged in.
Unplug the unit, wait one minute, and plug the unit in again.
The Clean Sign illuminates yellow
or red, but the air seems clean.
• Clean the dust sensor with a vacuum cleaner, as it may
be blocked or clogged.(Refer to E-8)
The Clean Sign doesn’t light on. • The Light Control is selected.
Press for 3 seconds to light on.
The Clean Sign lights change
colour frequently. • The Clean Sign lights automatically change colours as
impurities are detected by the dust sensor.
The unit does not turn on. • The CHILD LOCK mode is selected.
Press for 3seconds
AUTO RESTART
After a power failure, automatically
resume the operation when the
power recovers.
Auto Restart can be set.
• Even when the plug is unplugged or the breaker is thrown
during the operation, the operation resumes at the previous
operation mode and settings if the power recovers.
(with the unit OFF)
ON
(with the unit OFF)
CANCELLATION
(simultaneously for more 3 sec.)
If the , , lamp lights up for
10 seconds, the setting is complete.
(simultaneously for more 3 sec.)
OP_FU-A80Y-EN+IND.indb 10OP_FU-A80Y-EN+IND.indb 10 5/8/13 2:47:39 PM5/8/13 2:47:39 PM

E-11
ENGLISH
SPECIFICATIONS
Model FU-A80Y
Power supply 220 V 50 Hz
Fan
Speed
Operation
Fan Speed Adjustment MAX MED LOW
Rated Power (W) 75 20 5
Fan Speed (m3/hour) 480 300 120
Noise Level (dBA) 53 41 23
Recommended Room Size *1 62m2
Sensor Dust
Filter type HEPA filter / Deodorizing Pre filter
Cord Length 2.0m
Dimensions 402mm (W) × 245mm (D) × 620mm (H)
Weight 8.1 kg
*1 Size of a room which is appropriate for operating the unit at maximum fan speed.
Standby Power
In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this
product consumes about 0.75W of standby power.
For energy saving, unplug the power cord when the unit is not in use.
OP_FU-A80Y-EN+IND.indb 11OP_FU-A80Y-EN+IND.indb 11 5/8/13 2:47:41 PM5/8/13 2:47:41 PM

Harap dibaca sebelum mengoperasikan Pemurni Udara Anda
Sebagian bahan berbau yang diserap oleh filter mungkin terlepas dan mungkin ter-
buang melalui saluran keluar udara dan menyebabkan bau tambahan. Tergantung
faktor lingkungan, khususnya bila produk digunakan dalam kondisi yang intensitas
debu atau baunya lebih besar sehingga bau yang menempel menjadi lebih kuat
dalam waktu yang lebih singkat dari yang diperkirakan.
Pemurni Udara dirancang untuk menyaring debu dan bau di udara, bukan gas-gas
berbahaya (contohnya karbon monoksida yang terkandung pada asap rokok). Bila
sumber bau tetap ada, unit tidak bisa menghilangkan bau sepenuhnya (misalnya,
bau dari bahan konstruksi dan bau hewan peliharaan).
Sebaiknya buka sedikit jendela saat Anda merokok untuk memperlancar ventilasi.
Dalam hal ini, Anda sebaiknya membeli pengganti opsional.
Filter HEPA (putih)
Deodorizing Pre filter (hitam)
Debu
serbuk, debu, partikel asap rokok,
rambut hewan piaraan
Bau
bau asap rokok, bau rumah tangga
OP_FU-A80Y-EN+IND.indb 12OP_FU-A80Y-EN+IND.indb 12 5/8/13 2:47:42 PM5/8/13 2:47:42 PM

IND-1
INDONESIA
INDONESIA
Kombinasi unik dari Penjernih Udara
Sistem Penyaringan + Ion Plasmacluster
MENGURANGI BAU
Deodorizing Pre filter menyerap banyak
bau rumah tangga yang umum.
MENGURANGI DEBU, SERBUK, SISIK
& JAMUR*
Filter HEPA filter menangkap 99.97% par-
tikel seukuran 0.3 mikron.*
MENYEGARKAN
Plasmacluster memperlakukan udara sama
halnya membersihkan lingkungan secara
alami dengan mengeluarkan ion-ion positif
dan negatif secara seimbang.
*Dari sana, udara mengalir melalui sistem
penyaringan.
Ukuran ruangan : 62m2
Terima kasih Anda telah membeli Pemurni
Udara SHARP. Bacalah panduan ini secara
seksama. Sebelum menggunakan produk
ini, yakinlah untuk membaca bagian ini: “Pe-
tunjuk Penting Keselamatan.”
Setelah membaca manual ini, letakkan di
lokasi yang mudah dijangkau untuk referensi
di masa mendatang.
Simpan panduan ini di tempat yang
mudah dijangkau setiap kali Anda ingin
membacanya untuk referensi.
DAFTAR ISI
PETUNJUK PENTING KESELAMATAN
.IND-2
NAMA-NAMA BAGIAN.........................IND-4
PEMASANGAN FILTER .......................IND-6
PENGOPERASIAN...............................IND-7
PEMELIHARAAN..................................IND-8
PEMECAHAN MASALAH ..................IND-10
SPESIFIKASI......................................IND-11
FITUR
OP_FU-A80Y-EN+IND.indb 1OP_FU-A80Y-EN+IND.indb 1 5/8/13 2:47:43 PM5/8/13 2:47:43 PM

IND-2
Baca semua petunjuk sebelum menggunakan unit ini.
Saat menggunakan alat listrik, peringatan keselamatan dasar harus diikuti, termasuk yang
berikut ini:
PERINGATAN -
Untuk mengurangi risiko kejutan listrik, kebakaran atau cedera pada orang-orang:
•Colokkan steker daya ke stopkontak listrik khusus untuk 220V, 50Hz.
• Jangan gunakan unit bila kabel atau steker listrik rusak atau penyambungan ke stopkontak kendor.
• Bersihkan debu dari colokan secara berkala.
•Jangan gunakan kabel ekstensi.
•Jangan memasukkan jari atau benda lain ke dalam saluran masuk atau keluar udara.
•Jangan mencabut steker dengan menarik kabelnya. Untuk mencabut, pegang steker daya.
• Jangan memegang steker atau unit dengan tangan yang basah.
•Cabut kabel listrik sebelum melakukan perawatan apa pun.
• Bila steker listrik rusak, harus diganti oleh pabrik pembuatnya, agen service-nya, Pusat Service
resmi Sharp atau orang yang memiliki kualifikasi untuk mencegah bahaya kecelakaan.
•Jangan menggunakan unit di dekat gas dan bahan yang mudah terbakar, seperti insektisida, we-
wangian, dan rokok yang menyala.
•Jangan gunakan di tempat yang lembab, seperti kamar mandi.
• Hubungi Pusat Servis Resmi Sharp terdekat bila ada masalah, diperlukan pengaturan atau perbaikan.
•Perangkat ini tidak diperuntukan untuk digunakan oleh orang (termasuk anak-anak) yang memiliki
keterbatasan fisik, panca indera atau kapabilitas mental, atau kurang berpengalaman dan penge-
tahuan, kecuali mereka mendapat pengawasan atau pengarahan penggunaan oleh orang yang
bertanggung jawab te.rhadap keselamatannya.
Anak-anak harus diawasi untuk memastikan mereka tidak bermain-main dengan perangkat ini.
CATATAN - Gangguan gelombang Radio atau TV
Bila air purifier ini mengakibatkan gangguan penerimaan radio atau TV, cobalah perbaiki dengan
salah satu atau lebih cara pencegahan berikut:
•Pindahkan arah atau lokasi antena penerima.
•Jauhkan jarak antara unit dengan penerima radio/TV.
•Sambungkan peralatan ke stopkontak yang berbeda jalur arusnya dimana penerima dihubungkan.
•Konsultasi ke dealer atau teknisi Radio/TV yang berpengalaman untuk membantu Anda.
PETUNJUK PENTING KESELAMATAN
OP_FU-A80Y-EN+IND.indb 2OP_FU-A80Y-EN+IND.indb 2 5/8/13 2:47:44 PM5/8/13 2:47:44 PM

IND-3
INDONESIA
PERHATIAN SAAT MENGOPERASIKAN
•Jangan menghalangi bukaan apa pun.
•Jangan menggunakan unit di dekat atau di atas benda yang panas, seperti kompor, pemanas
atau radiator.
•Jangan menggunakan unit dengan posisi yang salah.
• Selalu pegang pegangan di kedua sisi unit saat memindahkannya.
Memegang panel depan saat mengangkat unit dapat menyebabkan panel terlepas, sehingga unit
terjatuh dan menyebabkan cedera fisik.
•Jangan digunakan tanpa ada filter di dalam unit.
• Jangan mencuci dan menggunakan kembali filter
Bukan hanya tidak mampu memperbaiki kinerja filter, juga bisa berakibat tersengat listrik atau ke-
gagalan fungsi.
• Bersihkan kabinet luar dengan kain lembut.
Jangan menggunakan pembersih yang korosif, cairan yang mudah menguap dan/atau detergen
saat membersihkan unit.
Permukaan unit mungkin rusak atau retak.
Selain itu, sensor-sensor bisa tidak berfungsi.
PEDOMAN PEMASANGAN
• Hindari lokasi jika ada kelambu, dll., yang menyentuh bukaan apa pun.
Jika ini terjadi, unit bisa menjadi kotor atau mengalami kerusakan.
• Hindari lokasi di mana unit dapat terkena kondensasi, karena perubahan suhu yang cepat.
(Apabila kondisi ini tidak bisa dihindari, biarkan unit selama satu jam sebelum menghidupkannya.)
(Gunakan pada kondisi yang ideal bila suhu ruang antara 0 - 35˚C.)
• Tempatkan di permukaan yang rata dengan sirkulasi udara yang cukup.
Saat menempatkan unit di tempat yang berkarpet, ini dapat menyebabkan unit sedikit bergetar.
• Jangan digunakan di tempat yang berlemak atau berasap minyak (seperti di dapur, dll.).
Permukaan unit bisa rusak atau sensor mungkin tidak berfungsi.
PEDOMAN FILTER
• Ikuti petunjuk penanganan dengan hati-hati dan rawat unit.
Jangan memasang jenis filter lainnya.
OP_FU-A80Y-EN+IND.indb 3OP_FU-A80Y-EN+IND.indb 3 5/8/13 2:47:45 PM5/8/13 2:47:45 PM

IND-4
NAMA-NAMA BAGIAN
DIAGRAM ILUSTRASI
DISERTAKAN
BERSAMA PRODUK
• Petunjuk Pengoperasian
BELAKANG
1
3
4
2
7
5
6
8
9
10
1 Saluran keluar udara
2 Saluran Masuk Udara
3 Handel
4 Unit Utama
5 Filter HEPA
6 Deodorizing Pre Filter
7 Sensor debu
8 Label Tanggal
9 Kabel Listrik
10 Colokan
OP_FU-A80Y-EN+IND.indb 4OP_FU-A80Y-EN+IND.indb 4 5/8/13 2:47:46 PM5/8/13 2:47:46 PM

IND-5
INDONESIA
TAMPILAN UNIT UTAMA
11 12 14 15 16 17 18
11 Tombol SHOWER /
Lampu Indikator SHOWER (hijau)
12 Tombol Plasmacluster ON / OFF
Lampu Indikator Plasmacluster ON / OFF (hijau)
13 Tombol CHILD LOCK / Lampu Indikator CHILD LOCK (hijau)
14 CLEAN SIGN
Warna berubah sesuai kondisi udara.
15 Plasmacluster Sign (biru)
16 Lampu Indikator FAN SPEED (hijau)
17 Tombol FAN SPEED
18 Tombol POWER
Hijau Kuning Merah
Bersih Sangat Tidak Murni
13
OP_FU-A80Y-EN+IND.indb 5OP_FU-A80Y-EN+IND.indb 5 5/8/13 2:47:48 PM5/8/13 2:47:48 PM

IND-6
PEMASANGAN FILTER Cabut kabel listrik sebelum
melakukan perawatan apa pun.
Untuk mempertahankan kualitas filter, filter dipasang di unit utama dan dikemas dalam tas plastik.
Pastikan untuk mengeluarkan filter dari pembungkus plastik sebelum menggunakan unit.
1
Lepaskan Panel depan.
Pegang perlahan bagian bawah panel
depan dan lepaskan dengan menariknya
perlahan ke arah Anda.
2
Lepaskan pembungkus plastik.
3
Pasang filter sebagaimana mestinya.
Pertahankan susunan filter.
4
Kencangkan Panel Depan.
Kencangkan Panel Depan dengan
mengaitkannya ke bagian atas unit.
Ayunkan panel dengan menekannya
perlahan hingga panel terkunci di
tempatnya.
5
Catat tanggal saat Anda mulai
menggunakan atau mengganti
filter.
Filter HEPA (putih)
Deodorizing Pre filter (hitam)
Starting date of use
Replacement Filters
Replace the filters when they are no
longer removing odour or dust.
OP_FU-A80Y-EN+IND.indb 6OP_FU-A80Y-EN+IND.indb 6 5/8/13 2:47:49 PM5/8/13 2:47:49 PM
