Sharp Plasmacluster FP-N60CX User manual

ENGLISH
FP-N60CX
AIR PURIFIER
OPERATION MANUAL
PURIFICATEUR D’AIR
MANUEL D’UTILISATION
R
ENGLISH
FRANÇAIS
Free Standing
Type mobile
*Plasmacluster is a trademark of
Sharp Corporation.
*Plasmaclusterestunemarquede
commercedeSharpCorporation.

HOW SHARP AIR PURIFIER WORKS
An air purifier draws in room air from its air intake, lets the air pass through
a Washable Active Carbon Filter (deodorization filter) and a True HEPA Fil-
ter (dust collection filter) inside of the unit, then discharges the air from its air
outlet. The air purifier unit repeats this process by moving its internal fan.
As air passes through, the True HEPA Filter can remove 99.97% of dust
particles, of as small as 0.3 microns. The Washable Active Carbon Filter
gradually absorbs odor elements as they repeatedly pass through the filter.
(Odor elements are absorbed by True HEPA Filter as well.)
Some odor ingredients absorbed by the filters may become separated and
may be discharged through the air outlet and result in additional odor. De-
pending on the usage environment, especially when the product is used in a
condition significantly severer than household use, this odor may become
strong in a shorter period than expected. In this case, clean the Washable
Active Carbon Filter. (Refer to E-16)
If the odor persists, this is because the odor components absorbed by the
HEPAFilter have come off the filter. Purchase the optional filter FZ-N60HFU
and replace the original filters.

ENGLISH
FEATURES
Plasmacluster Ion Control
Theunit controls theratioofnegativeions
and positive ions depending on the con-
dition of the room.
•Clean Mode
Approximatelythesame numbersofposi-
tive and negative ions are discharged.
•Ion Control Mode
Plenty of negative ions exist in natural
surroundingssuchaswaterfallsorforests.
In this mode, negative ions will be re-
leased in an increased rate, in order to
bring the room air close to this natural
environment.
•AUTO Plasmacluster Ion Mode
The unit will switch between Clean Mode
and Ion Control Mode automatically de-
pendingonthe amountofimpurities inthe
airdetectedby the dustandodor sensors.
•Filters
1) Pre-Filter
It collects large particles.
2) Washable Active Carbon Filter
Its deodorizing performance can be
maintained by washing.
3) True HEPA (High Efficiency
Particulate Air) Filter with anti-
bacterial Apatite Filter
High-efficiency particle collection in-
cluding pollen and dust.
CONTENTS
•FOR CUSTOMERASSISTANCE (U.S.) ......E-2
•CONSUMER LIMITED WARRANTY (U.S.) .E-3
• FOR CUSTOMERASSISTANCE (CANADA) . E-4
•LIMITED WARRANTY (CANADA) ...............E-5
IMPORTANT SAFETY INSTRUCTIONS .... E-6
•WARNING....................................................E-6
•CAUTIONS CONCERNING OPERATION ...E-7
•REMOTE CONTROLLIMITATIONS.............E-7
•INSTALLATIONGUIDELINES......................E-7
•FILTER GUIDELINES ..................................E-7

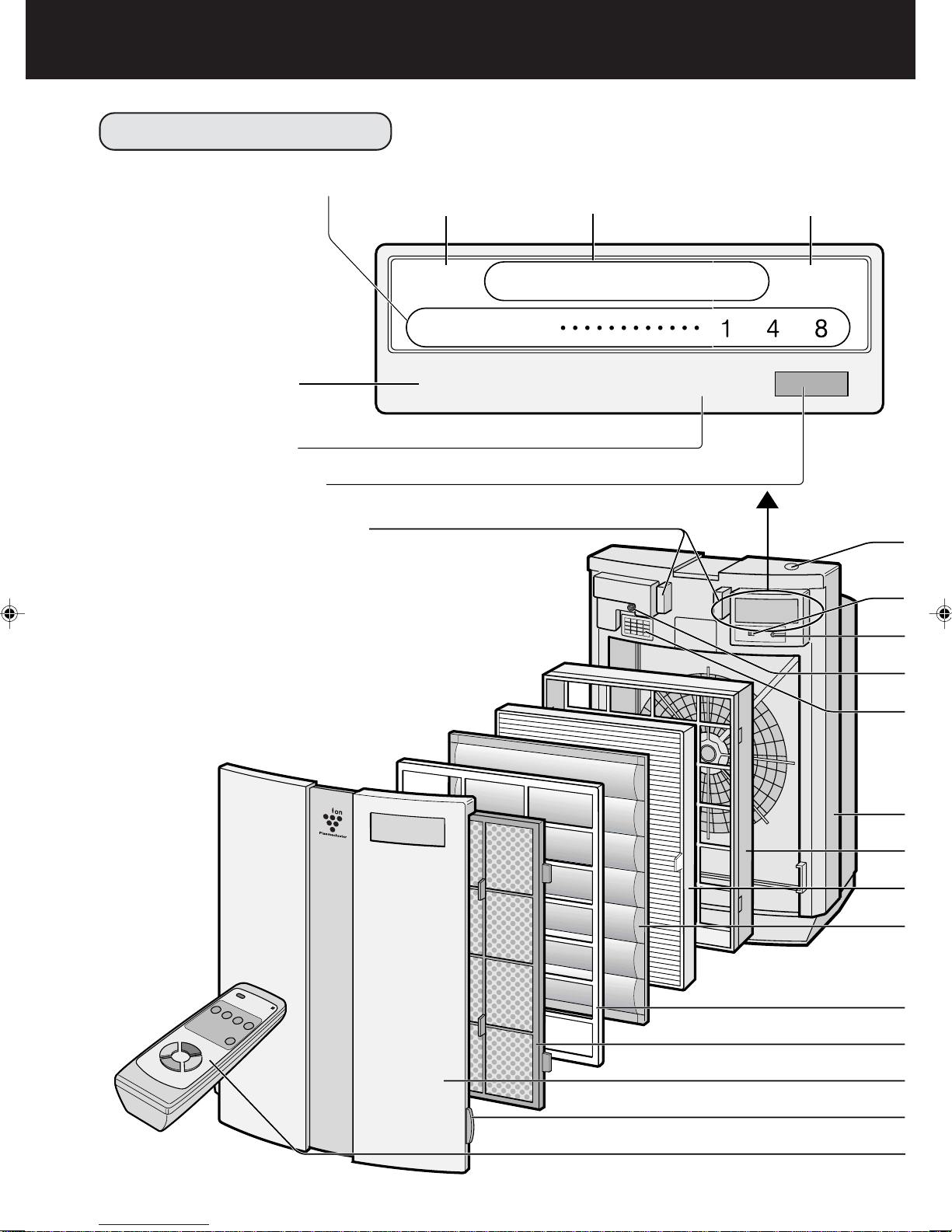

PART NAMES .......................................... E-8
•MAIN UNIT DISPLAY ...................................E-8
•BACK ...........................................................E-9
• INCLUDED...................................................E-9
PREPARATION...................................... E-10
•FILTER INSTALLATION ............................ E-10
•INSERTING BATTERIES
IN THE REMOTE CONTROL.................... E-10
OPERATION ..........................................E-12
•MAIN UNIT OPERATION .......................... E-12

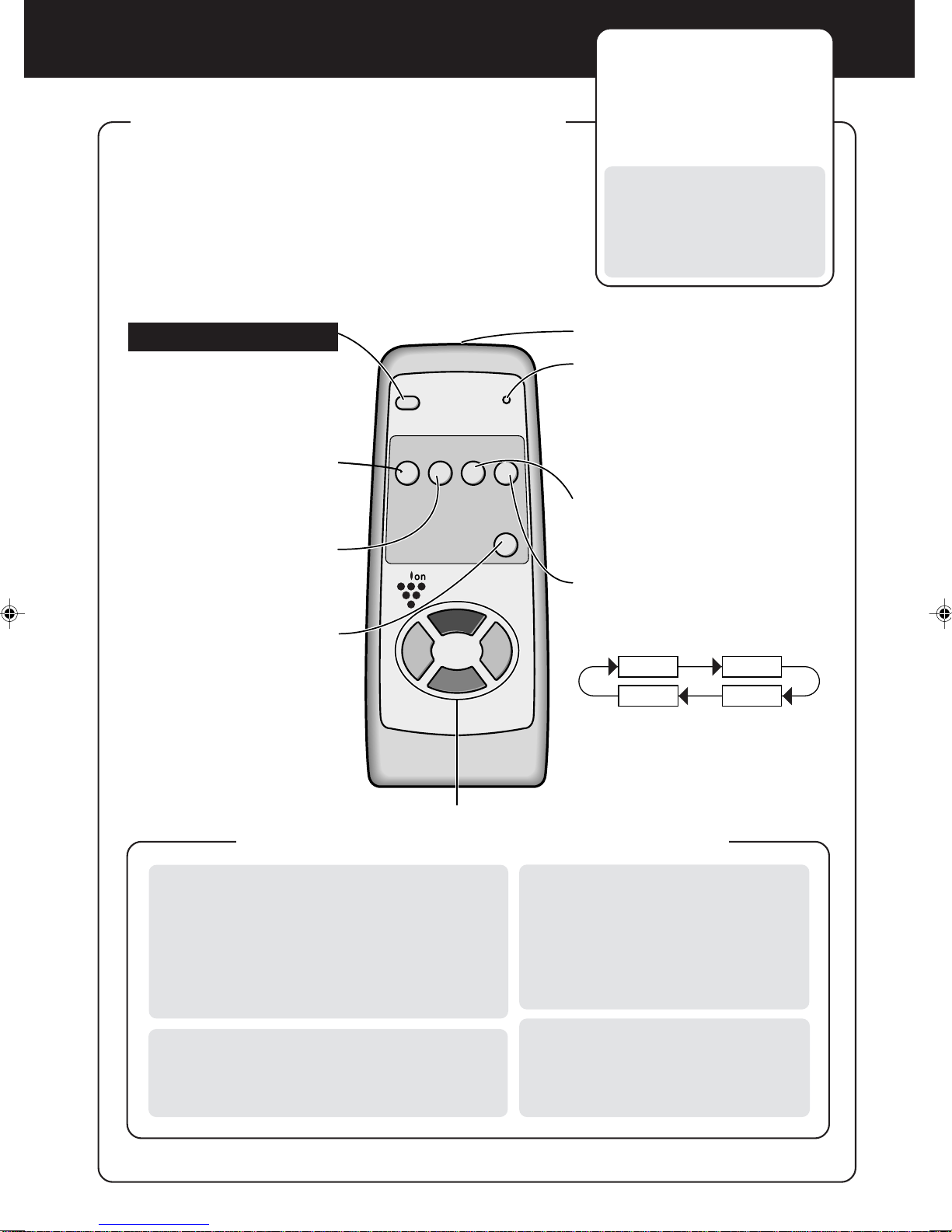

•REMOTE CONTROL USE ........................ E-13
•REMOTE CONTROLOPERATION........... E-14
CARE AND MAINTENANCE................. E-15
•MAIN UNIT................................................ E-15
•FILTER CLEANING................................... E-15
•DUST SENSOR,ODOR SENSOR ............ E-15
•WASHABLE ACTIVE CARBON
FILTER CARE ........................................... E-16
•FILTER REPLACEMENT
GUIDELINES ............................................ E-18
TROUBLE SHOOTING..........................E-19
SPECIFICATIONS ................................. E-20
E-1
ENGLISH
ThankyouforpurchasingtheSHARPFP-N60CX.Pleasereadthismanualcarefullyforthecorrect
usage information. Before using this product, be sure to read the section: “Important Safety In-
structions.”
After reading this manual, retain it in a convenient location for future reference.

E-2
FORCUSTOMERASSISTANCE (the United States)
To aid in answering questions if you call for service or for reporting loss or theft, please
record below the model and serial number located on the back side of the unit.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Dealer Name
Address
City
State
Zip
Telephone
TO PHONE: Dial 1-800-BE-SHARP (237-4277) for:
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your Authorized Parts Distributor)
ACCESSORIES
ADDITIONAL CUSTOMER INFORMATION
TO WRITE: For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
TO ACCESS THE INTERNET: www.sharpusa.com
Please provide the following information when you write or call: model number, serial number,
date of purchase, your complete mailing address (including zip code), your daytime telephone
number (including area code) and description of the problem.

ENGLISH
CONSUMER LIMITED WARRANTY
CONSUMER LIMITED WARRANTY FOR THE U.S. USERS
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the
“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that
it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured
equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or
other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide
proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.
ALLIMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITYAND FITNESS FOR USE ARE
LIMITED TO THE PERIOD(S) FROMTHE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limita-
tions on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those
described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and
exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described
herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or other-
wise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were
caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable
or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFlC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
Your Product Model Number & Description:
Warranty Period for this Product:
Additional Item(s) Excluded From Warranty
Coverage (If any):
Where to Obtain Service:
What to Do to Obtain Service:
FP-N60CXAir Purifier. Be sure to have this information available when
you need service for your Product.
One (1) year parts and labor from date of purchase.
Appearance items of the Product, filters, or accessories, or any printed
materials.
From a SharpAuthorized Servicer located in the United States. To find
the location of the nearest Sharp Authorized Servicer, call Sharp Toll
Free at 1-800-BE-SHARP.
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
TO OBTAIN SUPPLY,ACCESSORY OR PRODUCTINFORMATION, CALL1-800-BE-SHARP, OR VISIT OUR WEBSITEAT
www.sharpusa.com
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
R
E-3

FOR CUSTOMERASSISTANCE (Canada)
To aid in answering questions if you call for service or for reporting loss or theft, please
record below the model and serial number located on the back side of the unit.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Dealer Name
Address
City
Province
Postal Code
Telephone
TO PHONE: Dial 1-905-568-7140 for:
SERVICE (for your nearest SharpAuthorized Servicer)
PARTS (for your Authorized Parts Distributor)
ACCESSORIES
ADDITIONAL CUSTOMER INFORMATION
TO WRITE: For service problems, warranty information, missing items and other assistance:
Sharp Electronics of Canada Ltd.
Customer Care
335 Britannia Road East
Mississauga, Ontario L4Z 1W9
TO ACCESS THE INTERNET: www.sharp.ca
Please provide the following information when you write or call: model number, serial number,
date of purchase, your complete mailing address (including Postal Code), your daytime tel-
ephone number (including area code) and description of the problem.
E-4

ENGLISH
E-5
LIMITED WARRANTY
Consumer Electronics Products
Congratulations on your purchase!
Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first con-
sumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada
by Sharp or by anAuthorized Sharp Dealer:
Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and work-
manship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its
option, repair or replace the product as specified herein.
This warranty shall not apply to:
(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installa-
tion or inappropriate use as outlined in the owner’s manual.
(b) Any Sharp product tampered with modified, adjusted or repaired by any party other than Sharp, Sharp’s Author-
ized Service Centres or Sharp’s Authorized Servicing Dealers.
(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including
but not limited to head cleaning tapes and chemical cleaning agents.
(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the
product including but not limited to earphones, remote controls,AC adapters, batteries, temperature probe, stylus,
trays, filters, belts, ribbons, cables and paper.
(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power
line voltage or liquid spillage.
(g) Any product received without appropriate model, serial number and CSA/cUL markings.
(h) Any products used for rental or commercial purposes.
(i) Any installation, setup and/or programming charges.
Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery
of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to anAuthor-
ized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at
Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range
Microwave Oven.
This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their
agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law
permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or
consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product,
including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be
responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the
manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of
Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on
contract, negligence, strict liability or otherwise.
WARRANTY PERIODS: Parts & Labour (exceptions noted)
Audio Products 1 year
Camcorder 1 year
DVD Products 1 year
LCD Projector 1 year (lamp 90 days)
LCD TV 1 year
Microwave Oven 2 years (magnetron component-3 additional years)
Television Products 1 year (picture tube component-1 additional year)
VCR Products 1 year
Vacuum Cleaner 1 year
Air Purifier 1 year (filters)
R
To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:
SHARP ELECTRONICS OF CANADALTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9
For more information on this Warranty, Sharp Canada Products,
Accessory Sales, Dealer or Service Locations, please call (905)
568-7140
Visit our Web site: www.sharp.ca
T
O
B
E
T
H
E
B
E
S
T
T
H
R
O
U
G
H
C
U
S
T
O
M
E
R
S
A
T
I
S
F
A
C
T
I
O
N
SERVICE

IMPORTANT SAFETY INSTRUCTIONS
E-6
When using electrical appliances, basic safety precautions should be followed, including the
following:
WARNING - To reduce the risk of electrical shock, fire or injury to persons:
•Read all instructions before using the air purifier.
• Use only a 120-volt outlet with a polarized receptacle.
•The air purifier has a polarized plug (one blade is wider than the other is). This plug will fit in a
polarizedoutlet only oneway. Initially, if theplug does notfit into theoutlet, reverse it.If it still does not
fit, contact a qualified electrical or service person.
•Do not use the air purifier if the power cord or plug is damaged or the connection to the wall
outlet is loose.
•Periodically remove dust from the power plug.
•Do not insert fingers or foreign objects into the intake or air outlet.
When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or fire from short circuit may occur as result.
•Ventilate when using the unit along with a heating appliance.
•Remove the power plug from the wall outlet before cleaning the unit and when not using the
unit.
Electrical shock from bad insulation and / or fire from short circuit may occur as a result.
•If the power cord is damaged, it must be replaced by the manufacturer, its service agent,
Sharp authorized service or similarly qualified person in order to avoid a hazard.
•Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense,
sparks from lit cigarettes, chemical fumes in the air or a humidity condition.
•Use care when cleaning the air purifier. Strong corrosive cleansers may damage the exterior.
•Only SharpAuthorized Servicers should service this air purifier. Contact the nearest Servicer for any
problems, adjustments, or repairs.
•The batteries must be removed from the remote control before disposal, and the batteries must be
disposed of safely.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursu-
ant to 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
•Consult the dealer or an experienced radio/TV technician for help.

ENGLISH
CAUTIONS CONCERNING OPERATION
• Do not block the intake and air outlet.
•Do not use the unit near or on hot objects, such as range or where it may come into contact with
steam.
•Do not use the unit on its side. See page E-6
• Always hold the handle on the back of the unit when moving it.
•Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in
bodily injury.
•Do not operate the unit without the filter.
•Allow Washable Active Carbon Filter to dry thoroughly before reinserting into the air purifier.
•Do not wash and reuse HEPA filter.
•Clean outside with a damp cloth only.
The unit surface may become damaged or cracked.
In addition, the sensor may malfunction as a result.
REMOTE CONTROL LIMITATIONS
DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS:
•Any location where there is inverter lighting equipment or electronic spontaneous lighting
equipment
The remote control may become inoperative. In this case, move away from such lighting equipment
or change direction.
• Location exposed to direct sunlight
The unit may not receive signals from the remote control.
Theunit may not respond to the signals of the remote control if there is a problem with the fluorescent
lighting.
INSTALLATION GUIDELINES
•Leave at least 7 feet (2m) of space from equipments which involve electric wave such as
televisions, radios or wave clocks.
Electrical interference may occur.
•Leave at least 2 feet (60cm) of space from the wall.
The motor may overheat, causing a malfunction.
•Avoid a location where the sensor is exposed to direct wind.
The unit may not operate properly.
•Avoid a location where curtains, etc., come into contact with the intake or air outlet.
Curtains, etc., may become dirty or a malfunction may occur.
•The wall behind the air outlet may become dirty as time passes. When using the unit for extensive
period in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addi-
tion, periodically clean the wall, etc.
•Place on a stable surface with sufficient air circulation.
FILTER GUIDELINES
•Follow the instructions in this manual for correct care and maintenance of the filters.
E-7
IMPORTANT SAFETY INSTRUCTIONS

E-8

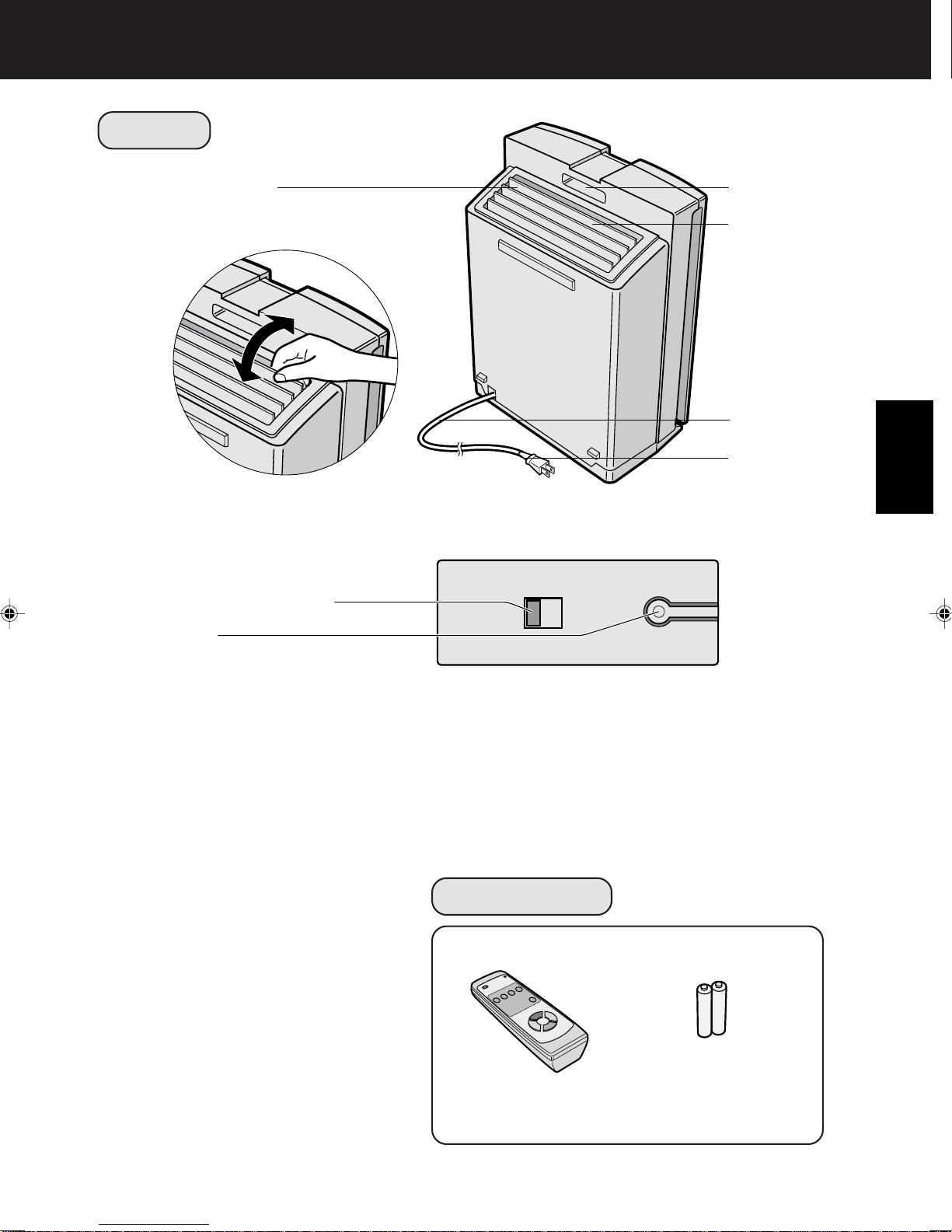

PART NAMES
MAIN UNIT DISPLAY
OFFTimerDisplay Indicator Lights
(set using remote control)
Filter Indicator Light
AUTO Operation
Indicator Light FanSpeed Indicator
Lights Pollen Mode
Indicator Light
MAX
h
POLLEN
AUTO SILENT HIGHMED
CLEAN-SIGN
OFF TIMER
FILTER
Remote Control Receiver
CLEAN-SIGN Light
Plasmacluster Indicator Light

ENGLISH
E-9
MODE-ON / OFF button See Page E-12
Sensor sensitivity select switch
Filter Reset Button
Odor Sensor
Sensor Cover
Dust Sensor
Main Unit
Filter Frame
True HEPA Filter (white) See Page E-18
Washable Active Carbon Filter (black)
See Page E-16
Filter Separator
Pre-Filter
Front Panel
Tab
Remote Control See Page E-14
SENSOR
NORMAL SENSITIVE
FILTER RESET
Handle
Air Outlet
Power Cord
Power Plug
BACK
Purified Air Louver
•The purified air discharge can be changed
to the directions indicated by the arrows as
desired.
INCLUDED
Remote Control (1 unit) Battery (AA battery X 2)
• Operation Manual
PART NAMES

E-10
Be sure to remove the power plug from the wall outlet.
PREPARATION •Be sure to remove the power plug from the wall outlet.
Table Soft cloth
Front Panel
Filter Frame
Pre-Filter
Filter Separator
Washable Active Carbon Filter
True HEPA Filter
Filter Frame

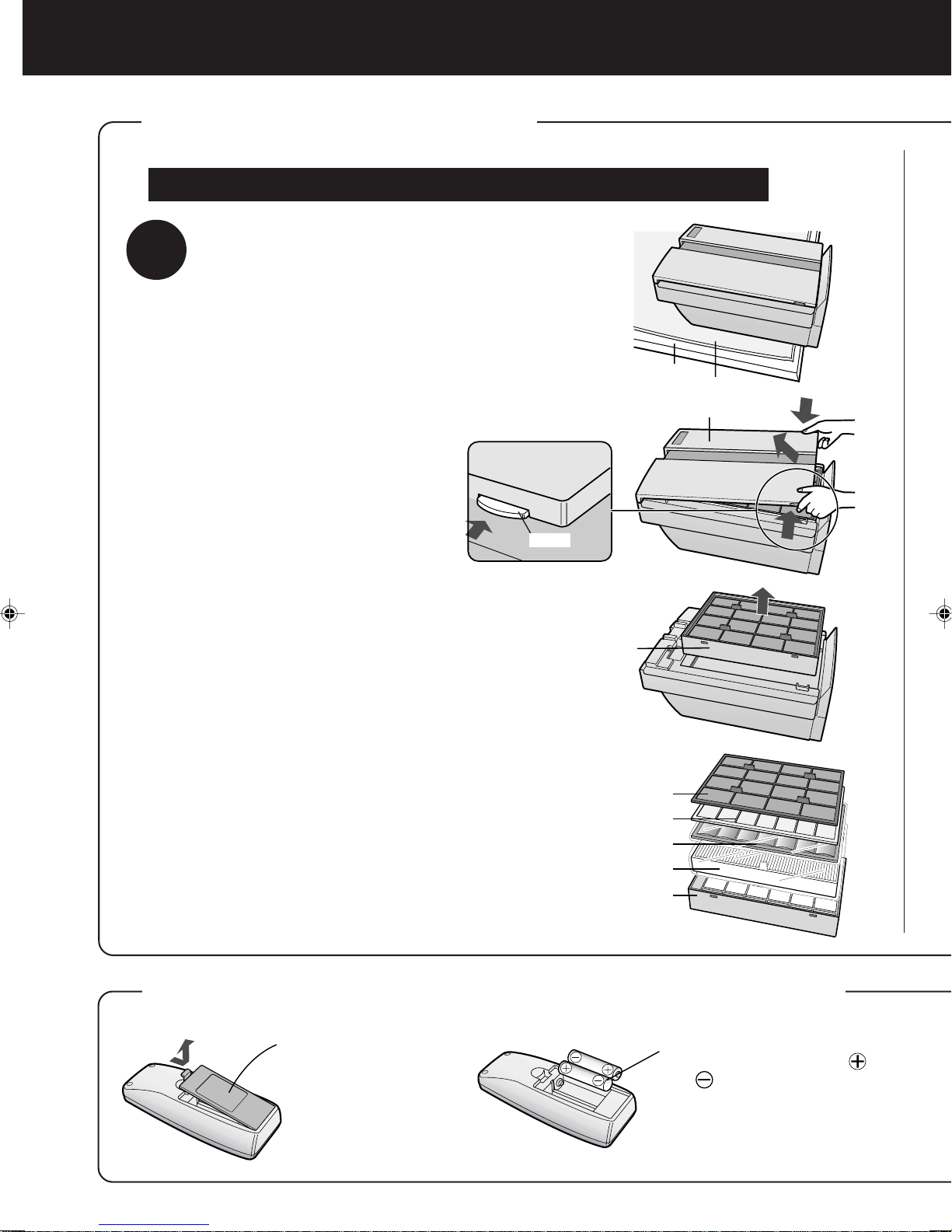

FILTER INSTALLATION
Be sure to remove the filters from the plastic bags before using the unit.
1
Filter Removal
1
Place the unit facing up.
Place on a flat surface making
sure not to pinch the power cord
on the rear of the unit.
2
Remove the Front Panel.
Depress the tabs on the bottom
of the Front Panel and lift to re-
move.
3
Pull out the Filter Frame
and remove the Pre-Filter
and Filter Separator.
4
Remove the Washable
Active Carbon Filter
(black) and True HEPA
Filter (white) from the
plastic bags.
Tab
INSERTING BATTERIES IN THE REMOTE CONTROL
2
Insert batteries
Insertbatterieswith and
as shown below.
3
Close the back cover
1
Remove the
back cover
Pressandslidethe
back cover to re-
move.

ENGLISH
E-11
outlet.
2Filter Installation
1
After the True HEPA Filter is removed
from the plastic bag, place it within the
Filter Frame with the tabs facing up.
Do not install the filter backwards or the unit will
not operate properly.
2
After removing the Washable Active
Carbon Filter from the plastic bag,
place it within the Filter Frame on top
of the True HEPA Filter.
3
Next, place the Filter Separator and
then the Pre-Filter within the Filter
Frame.
•Placethe FilterSeparator sothat
the ribs are facing down.
•Insert the tabs of the Pre-Filter
into the associated holes found
on the Filter Frame.
•Mountthe FilterFrame asshown
in the diagram to the right to the
main unit.
4
Fill in the usage start date on the Date
Label, which can be found on upper left
cornerof the Main unit.Mount the Front
Panel to the Main Unit.
Use the date as a guide for the
Filter Replacement schedule.
Tabs
True HEPA Filter
Filter Frame
Washable Active
Carbon Filter
True HEPA Filter
Filter Frame
Pre-Filter
Tabs (4 places)
Filter Separator
Washable Active
Carbon Filter
Holes
Filter Frame
Filter Frame
Date Label
Rib of the Filter Separator
•The batteries for this remote control are for initial use only . Change the batteries when necessary.
• Incorrect usage of the batteries may cause battery fluid leakage and/or damage.
Take care of the following when handling:
•When replacing the batteries, replace both batteries with new ones of the same type. (Use 2 AA
manganese batteries.)
•When not using the unit or remote control for an extended period, remove the batteries.
• The batteries are for initial use only and may be depleted within 1 year.
Battery Information
PREPARATION

OPERATION
MAIN UNIT OPERATION
DETERMINING THE BASE IMPURITY RATE
For the first 30 seconds after the power plug is inserted into the wall outlet, the unit
will check the conditions of the air. If operation is set to ON during this time, the
CLEAN-SIGN LIGHT will alternately flash in green, orange and red.
The unit will start operating when the MODE-ON / OFF Button is pressed.
To change operating modes, press the MODE-ON/OFF Button until the desired control
is activated.
Plasmacluster Indicator Light
Main Unit Controls
E-12
MODE-ON/OFF Button
• AUTO
•SILENT
• MEDIUM
• HIGH
•MAX
•POLLEN
AUTO operation
The fan speed is automati-
cally switched (HIGH, ME-
DIUM, SILENT) depending
on the amount of impurities
in the air. The sensors detect
the impurities for efficient air
purification.
SILENT operation
The unit will operate quietly
using minimal air intake.
Stop
POLLEN mode operation
The unit will operate at High fan
speed for 10 minutes, then will al-
ternate between MEDIUM and
HIGH.
10 minutes: High fan speed
20 minutes: Medium fan speed
20 minutes: High fan speed
MEDIUM to MAX operation
The unit will operate at a fan
speed of MEDIUM, HIGH or MAX.
Plasmacluster
AUTO
SILENT
MED
HIGH
MAX
POLLEN
h
OFF TIMER
FILTER
CLEAN-SIGN

ENGLISH

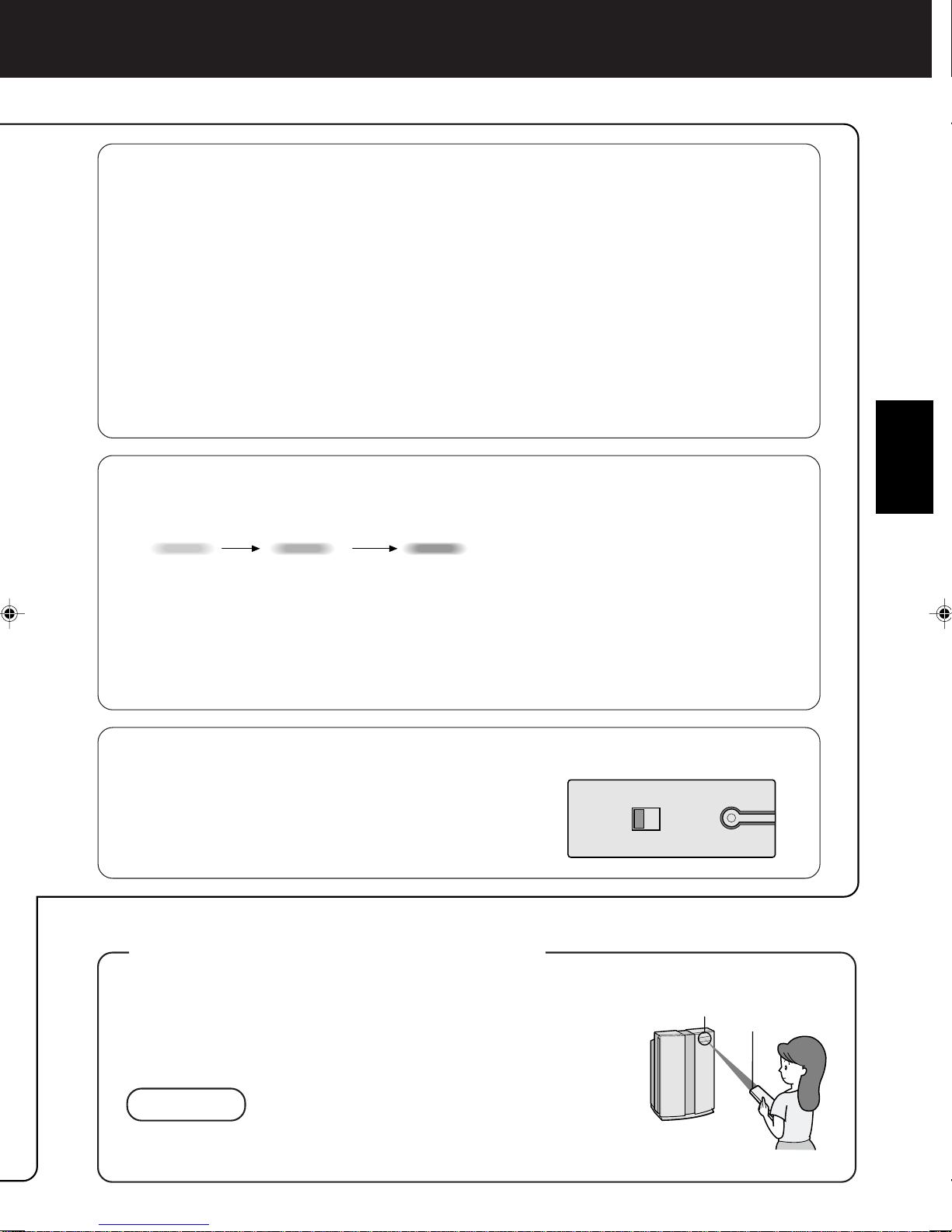

PLASMACLUSTER INDICATOR LIGHT
Plasmacluster ion operation is selected using the remote control.
Blue light
When the Plasmacluster ion operation is in Clean Mode, or inAUTO Plasmacluster Ion Mode
and the air in the room is impure, the light will activate and the unit will operate in Clean Mode.
Green light
When the Plasmacluster ion operation is in the Ion Control Mode, or inAUTO Plasmacluster
Ion Mode and the air in the room is clean, this light will activate and the unit will operate in Ion
Control Mode.
Light off
There are no Plasmacluster ions being generated.
•The light can be turned off by using the ‘Display ON/OFF Button’ on the Remote Control.
(Please turn off the light when not required.)
E-13
CLEAN-SIGN LIGHT
The color changes according to the air condition.
Clean (Green) Slightly Impure (Orange) Very Impure (Red)
ABOUT THE CLEAN-SIGN
•The condition of the CLEAN-SIGN depends on the Dust Sensor and the Odor Sensor’s read-
ing of the room environment when the plug is inserted into the wall outlet.
•It is possible to have a green CLEAN-SIGN with impurities in the air if the air purifier was just
introduced to the room environment. After a while, however, the base impurity rate will be
adjusted to read room environment correctly.
•Using the Display ON/OFF Button on the remote control can turn off the Indicator light.
CLEAN-SIGN CLEAN-SIGN CLEAN-SIGN
OPERATION
REMOTE CONTROL USE
•Operate with the remote control facing the main unit receiver.
•The signal range is about 23 feet (7m).
•Make sure there are no objects blocking the path of the signal.
•Abeep sound will be heard from the main unit when a signal is
received.
NOTE
•Avoid dropping or damaging the remote control, using in a high
humidity condition, in direct sunlight or near a heat source.
Receiver Transmitter
SENSOR SENSITIVITY SELECT SWITCH
The unit’s sensitivity to odor and dust detection can be
adjusted. This setting is factory set to “NORMAL”, and it
is recommended that you use the unit in this setting. Set
the sensitivity to “SENSITIVE” if the sensitivity seems
too low depending on the room condition.
SENSOR
NORMAL SENSITIVE
FILTER RESET

Plasmacluster
AUTO
MANUAL
Fan Control
POLLEN
OFF
TIMER
DISPLAY
ON/OFF
POWER ON/OFF FILTER RESET
CLEAN
ION CONTROL
OFF AUTO
Plasmacluster Ion mode Selections
Auto
When pressed, the unit will switch between
Clean Mode and the Ion Control Mode auto-
matically depending on the amount of impuri-
ties in the air as detected by the dust sensor
andthe odor sensor. Clean Mode willoperate
for 1 minute when the Auto function is se-
lected.
Ion Control
When pressed, the unit will constantly oper-
ate in Ion Control Mode.
ThePlasmaclusterIonIndicatorLightisgreen.
Clean
When pressed, the unit will con-
stantly operate in the Clean Mode,
inwhich the samenumbers ofposi-
tive and negative ions are dis-
charged.ThePlasmaclusterIndica-
tor Light is blue.
Off
The generation of ions will cease
and the Plasmacluster Indicator
Light will go out.
E-14
REMOTE CONTROL OPERATION
OPERATION
Operations available with
the Remote Control
• AUTO
•MANUAL
•POLLEN
•OFF TIMER
•DISPLAY ON/OFF
Plasmacluster Ion mode
selections
• AUTO
•CLEAN
•ION CONTROL
•OFF
•When you press the POWER ON/OFF Button, a short
beep will sound and operation will start in AUTO Mode.
Transmitter
Filter Reset Button
When the Washable Active Car-
bon Filter is cleaned and
reinserted into the main unit,
pressthe FilterReset Buttonwith
a pointed instrument such as a
pen.
Pollen Mode Operation
Button
See Page E-12
Off Timer Button
The set time switches every time
the button is pressed as shown
below.
1 hour 4 hours
Cancel 8 hours
•Theindicator lightshows there-
maining time.
POWER ON/OFF Button
To stop, press the POWER
ON/OFF Button again.
A long beep will sound and
operation will stop.
Auto (Fan Speed) Button
The fan speed switches au-
tomatically depending on the
amountofimpuritiesintheair.
Manual (Fan Speed) Button
The fan speed can be
switched among Silent, Me-
dium,Highand Maxsettings.
Display ON/OFF Button
Switches the Plasmacluster
Indicator Light and CLEAN-
SIGNLighteitherONor OFF.

ENGLISH
FILTER CLEANING
Clean the top surface of the Pre-
Filterlightlywith a vacuumcleaner.
NOTE
•TheTrueHEPAFilteris damaged
easily. Do not bring it into direct
contact with the nozzle of a
vacuum cleaner or wash it with
water. The True HEPA Filter
should never be washed or
cleaned. Pre-Filter
CARE AND MAINTENANCE
To maintain optimum performance of this air purifier, please clean the unit including the
sensors and filters periodically.
When cleaning the unit, be sure to unplug the power cord, and never handle the plug
with wet hands. Electrical shock and/or bodily injury may occur as a result.
MAIN UNIT
To prevent dirt or stains on the
main unit, clean as often as nec-
essary. If stains are allowed to re-
main, they may become hard to
clean.
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a
soft cloth dampened with warm
water.
Do not use volatile fluids
Benzene, paint thinner, polishing
powder,etc.,may damagethesur-
face.
Do not use detergents
Detergent ingredients may dam-
age the unit.
Keep the unit away from
water
E-15
DUST SENSOR
ODOR SENSOR
The maintenancecyclefor both theOdorand Dust
sensors is every 3 months.
The sensitivity of the sensors will become unsta-
ble if the odor or dust sensor is dirty or blocked.
Please clean the parts as outlined below.
DUST SENSOR
1
Remove the front
panel and detach the
sensor filter
•Remove the sensor fil-
ter while pulling the tab
on the sensor cover.
2
Remove any dust
from the sensor filter.
•Detach the sensor filter
and tap it lightly with
yourhandtoremove the
dust.
If it is very dirty, wash it
with water and then al-
low it to dry thoroughly.
3
Insertthesensorfilter
into the cover, install
it in the main unit and
attach the front panel.
•The sensor filter can be
inserted either way
round.
CAUTION
•Do not forget to reinstall the
sensor cover before restart-
ing the unit.
•Do not insert any foreign
objects into the filter. This
may result in a malfunction
or damage to the unit.
ODOR SENSOR
Removedustfromthesurface
of the sensor opening with a
vacuum cleaner.
Sensor cover
Sensor filter
Sensor cover
Sensor
opening

CARE AND MAINTENANCE
WASHABLE ACTIVE CARBON FILTER CARE
Care Cycle
When the Filter Indicator Light
comes on, this indicates that the fil-
ter needs to be cleaned. If the unit
is kept on 24 hours a day then the
Filter Indicator Light will activate in
about 2 months.
The Filter Indicator Light is for ref-
erence. Clean the filter as often as
necessary when odor persists.
1
Remove visible dirt with a
vacuum cleaner.
2
Fill a large container with
warm water, add a mild kitchen
detergent and stir.
Dilute as indicated on the detergent
container.
3
Allow the filter
to soak approxi-
mately 30 min-
utes before
washing.
If the filter surface is
very dirty, scrub with
an old toothbrush.
CAUTION
Handle with care to
prevent damage to
the activated carbon
particles.
4
Rinse thoroughly with
clean water
CAUTION
If rinsing in a con-
tainer, be sure to
rinse 3 to 4 times so
thattheodorisrinsed
thoroughly from the
filter.
5
Remove excess water
The filter will be saturated with water af-
terrinsing.To decrease drying time,wrap
the filter in an old thick hand towel so
that excess water can be removed.
CAUTION
Some carbon may
adhere to the towel.
It is harmless, but
you may want to use
an old towel.
E-16
HAND WASH ONLY!
DO NOT TUMBLE DRY!

ENGLISH
6
Dry the filter outdoors
if possible in a well
ventilated area.
CAUTION
•The wet filter is heavy. Fix it securely for drying to make
sure it does not fall down.
•The filter takes longer to dry in winter, on rainy days.
Wash it on a day when the weather is good and dry it in
the sun.
Move it indoors at night to prevent freezing.
•Dry the filter outdoors in a well ventilated area. If dried
indoors, the water dripping off the filter may soil your
floor.
•Make sure that the activated carbon has not shifted to
one side inside the filter. If it has, distribute it evenly with
your fingers.
•Let the filter dry thoroughly.
If used while the filter is still moist, then the air that is
exhausted from the main unit will have an odor. It may
take 1 or 2 days to dry.
7
Reinstalling the Filter and Restart
Reinstall the filter as shown on Page E-10.
8
Once the Washable Active Carbon Filter has
been cleaned, connect the power cord to the
outlet and use a pointed instrument to acti-
vate the Filter Reset Button on either the Re-
mote Control or the Main Unit.
(Refer to page E-8,E-9,E-14)
•OncetheFilter ResetButton
hasbeen activated,you will
hear a beep sound that
means that the unit has
been reset.
•The Filter indicator light will
then go out automatically.
•If you press the Filter Reset
Button on the main unit, re-
move the front panel first.
E-17
FILTER RESET
OFF
TIMER
POWER ON/OFF
Filter Reset Button
CARE AND MAINTENANCE

FILTER REPLACEMENT GUIDELINES
Depending on the usage environment, air outlet odor may become strong
after several months.
If dust or odors cannot be removed easily, replace the filters.
(Refer to HOW SHARPAIR PURIFIER WORKS)
Guide for filter replacement timing
•The following filter life and replacement period is based on the condition of smoking 10 ciga-
rettes per day and the dust collection/deodorization power is reduced being half compared
with that of new filters.
The replacement period differs depending on the usage hours and location of installation.
We recommend to replace the filters more frequently if the product is used in a condition
significantly severer than normal household use.
•True HEPA Filter About 5 years after opening
•Washable Active Carbon Filter About 5 years after opening
REPLACING THE FILTERS
1
See page E-10 for directions on how to install the filters when
replacing.
2
After replacing the filters:
Be sure to press the Filter Reset Button on either the Remote Control or the main unit with
the power cord connected to the outlet.
A short beep will be heard and the operation hours stored in the memory will be reset.
The Filter Indicator Light will then go out automatically.
3
Fill in the usage start date of the filters on the Date Label, which
can be found near the upper edge of the Pre-Filter.
Replacement Filters
•True HEPA Filter: 1 unit
•Washable Active Carbon Filter: 1 unit
Model: FZ-N60HFU
In case you need either True HEPA Filter or Washable Active Filter only:
•True HEPA Filter: PFIL-A053KKEZ
•WashableActive Carbon Filter: PFIL-A064KKEZ
For replacement filters contact Sharp for information
(U.S.A.) 1-800-BE-SHARP or website at www.sharpusa.com
(Canada) [phone] or website at www.sharp.ca
Disposal of Filters
Please dispose of replaced filters according to the local disposal laws and regulations.
True HEPA Filter materials:
•Filter: Polypropylene
•Frame: Polyester
Washable Active Carbon Filter Materials:
•Deodorizer: Activated charcoal
•Net: Polypropylene 60% Polyester 40%
E-18
CARE AND MAINTENANCE
