Sharp IG-A20A? IG-A40A User manual

中文
Plasmacluster Ion Generator
OPERATION MANUAL
IG-A20A
IG-A40A
IG-A20A
IG-A40A
HD 離子簇抗 菌機
使用說明書
Plasmacluster and Plasmacluster HD are
trademarks of SHARP Corporation.
   
 󰂯󰏲
Read and keep this manual carefully.
󰒏󰓚󰥑
ENGLISH
A20A.ch-9.indd1A20A.ch-9.indd1 2009/05/2818:21:282009/05/2818:21:28

FEATURES
SHARP’s Original Air Disinfecting Technology.
Plasmacluster HD helps to improve the air quality by inactivating
airborne mold*1, viruses*2, allergens*3,and adhering odor*4 .
Release Plasmacluster Ions.
1
Plasmacluster Ions are the
same positive and negative
ions found in nature. The
ions are surrounded by
water molecules, and are
released into the air.
2
Attack Airborne microbes.
The ions form hydroxide
radicals that are highly
oxidizing only when they
adhere to the surfaces of
mold and viruses. They
instantly remove the
hydrogen from the surface
proteins, breaking them
down.
3
Return to the air as water.
The hydroxide (OH) radicals
combine with hydrogen (H)
to form water (H2O) which
returns to the air.
Testing and verification Organization.
*1 Ishikawa Health Service Association.
*2 Retroscreen Virology Ltd, UK.
*3 Hiroshima University.
*4 Japan Spinners Inspecting Foundation.
GLP*5-compliant test facilities have gathered highly
reliable safety data on Sharp's Plasmacluster
technology.
•Skin irritation/corrosion test
•Eye irritation/corrosion test
• Inhalation toxicity test (lung tissue genetic impact assessment)
Tested by: Mitsubishi Chemical Safety Institute
*5 GLP(Good Laboratory Practice) is a system of
management controls for test facilities and test
procedures designed to ensure the reliability of
chemical safety assessment tests.
Hydroxide (OH) radical
Protein
Hydrogen(H)
water (H2O)
A20A.en.indd2A20A.en.indd2 2009/05/2818:20:302009/05/2818:20:30

ENGLISH
ENGLISH
Thank you for purchasing this SHARP Plasmacluster Ion Generator. Please
read this manual carefully before using Plasmacluster Ion Generator.
After reading, keep the manual in a convenient location for future reference.
E-1
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ..................E-2
• WARNING............................................................................E-2
• CAUTIONS CONCERNING OPERATION...........................E-2
• INSTALLATION GUIDELINES ............................................. E-2
PARTS NAME .........................................................E-3
• CONTROL PANEL ............................................................... E-3
• FIX THE OPERATION COVER BY SCREW ....................... E-3
INSTALLATION POSITION .............................................E-4
ACCESSARIES..................................................................E-4
HOW TO INSTALL THE UNIT ........................................ E-5
OPERATION .......................................................................E-6

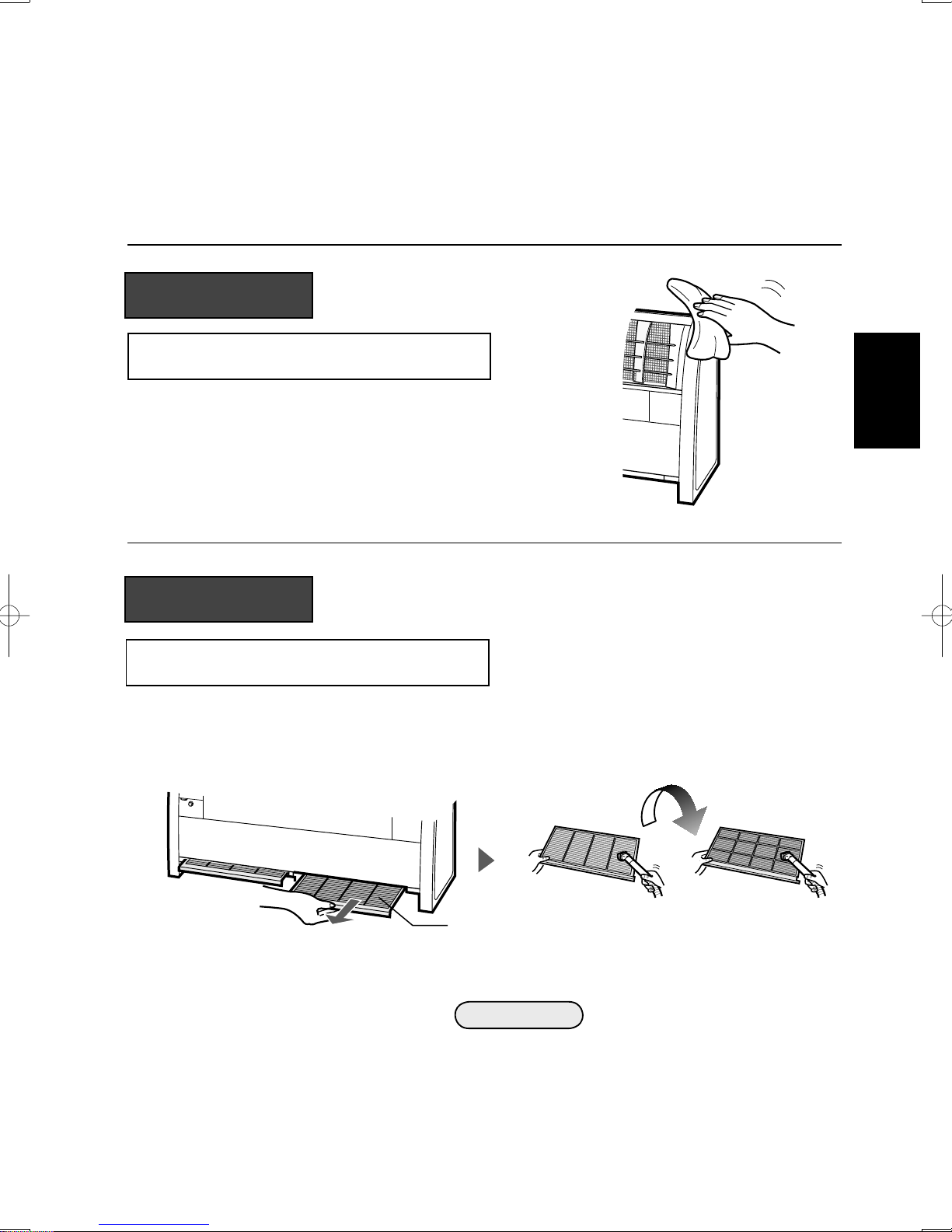

CLEANING AND MAINTENANCE.................................E-7
• MAIN UNIT...........................................................................E-7
• FILTER .................................................................................E-7
PLASMACLUSTER ION GENERATING UNIT REPLACEMENT
... E-8
HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT
... E-9
SPECIFICATIONS ........................................................... E-11
TROUBLESHOOTING....................................................E-12
• While IG-A20A and IG-A40A can inactivate suspended viruses and
other contaminants, it cannot create a completely sterile environ-
ment. SHARP does not guarantee its ability to prevent microbial in-
fection.
• To enable stable emission of high-density Plasmacluster ions, the
Plasmacluster Ion Generating Unit mounted in IG-A20A and IG-A40A
have to be replaced periodically*.
* Replacement is required approximately every 2 years (17,500 hours) when operated
24 hours a day. IG-A20A and IG-A40A will stop operating after about 26 months
(19,000 hours) if the Plasmacluster Ion Generating Unit is not replaced.
A20A.en.indd3A20A.en.indd3 2009/05/2818:20:302009/05/2818:20:30

E-2
CAUTIONS CONCERNING OPERATION:
• DO NOT block the air intake and/or air outlet.
• DO NOT use the unit near or on hot objects, such as stoves or heaters or where it may come into
contact with steam.
• Always operate the main unit in an upright position.
• Clean the exterior with a soft cloth only, otherwise the main unit surface may be damaged or
cracked.
• Keep the main unit away from water.
INSTALLATION GUIDELINES:
• Place at least 2m away from equipment utilizing electric waves such as televisions or radios to
avoid electrical interference when using the unit.
• Avoid using in locations where the unit is exposed to condensation or drastic temperature changes.
Appropriate room temperature is between 0-35ºC.
• Avoid locations where grease or oily smoke is generated, otherwise the main unit surface may
crack as a result.
NOTE - Radio or TV Interference:
If this Plasmacluster Ion Generator may cause interference to radio or television reception,
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the unit and radio/TV receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of electric shock, fire, or injury :
• Read all instructions before using the unit.
• Use only a 220 volt outlet.
• DO NOT use the unit if the power cord or plug is damaged, or the connection to the wall outlet is
loosened.
• Periodically remove dust from the plug.
• DO NOT insert fingers or foreign objects into the air intake or air outlet.
• Always hold the plug and never pull on the cord when removing the power plug.
Electric shock and/or fire from a short circuit may result.
• DO NOT remove the plug when your hands are wet.
• DO NOT use the unit near gas appliances or fireplaces.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp
authorized Service Center or qualified person in order to avoid a hazard.
• Be cautious when cleaning the unit.
Strong corrosive cleansers may damage the exterior.
• DO NOT use it in the areas where the unit may get wet.
• DO NOT use spray products near the unit.
• DO NOT use in the rooms, containing oil component, incense, cigarettes’ sparks, and chemical
fumes.
• DO NOT operate when using aerosol insecticides or in rooms where there is oily residue, incense,
sparks from lit cigarettes, chemical fumes in the air, or in locations where the unit may get wet,
such as bathroom.
• Only a Sharp authorized Service Center should service this Plasmacluster Ion Generator.
Contact the nearest Service Center for any problems, adjustments, or repairs.
• This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given su-
pervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not ride on the main unit and do not sit on or lean it, it may cause injury or malfunction.
A20A.en.indd4A20A.en.indd4 2009/05/2818:20:302009/05/2818:20:30

ENGLISH
E-3
PARTS NAME
Louvers
(Air outlet of Plasmacluster Ion)
High density Plasmacluster Ion is discharged
forward.(Do not put anything in front of the unit.)
Plasmacluster Ion Generating Unit
(Inside)
Please open the cover only when replacing the
Plasmacluster Ion Generating Unit.
(See page E-9)
Filter (Air Intake)
* Clean the filter periodically.
* Do not block the air intake or do not put
anything into the unit.
Power cord
Plug
CONTROL PANEL FILTER CLEAN Light
(yellow)
UNIT REPLACEMENT Light (red)
HIGH
MED
LOW
OPERATION Button
UNIT RESET Button
FILTER RESET Button
AUTO RESTART Switch
FIX THE OPERATION COVER BY SCREW
If necessary, operation cover can be fixed by accessary screw.
washer
screw
gum cover
After cleaning the filter, plug the power cord and
press the FILTER RESET button for 3 seconds.
Press this button for 3 seconds after replacing
the Plasmacluster Ion Gennerating Unit.
Don't press it for any other purposes.
Fan Speed
Indicator (blue)
A20A.en.indd5A20A.en.indd5 2009/05/2818:20:312009/05/2818:20:31

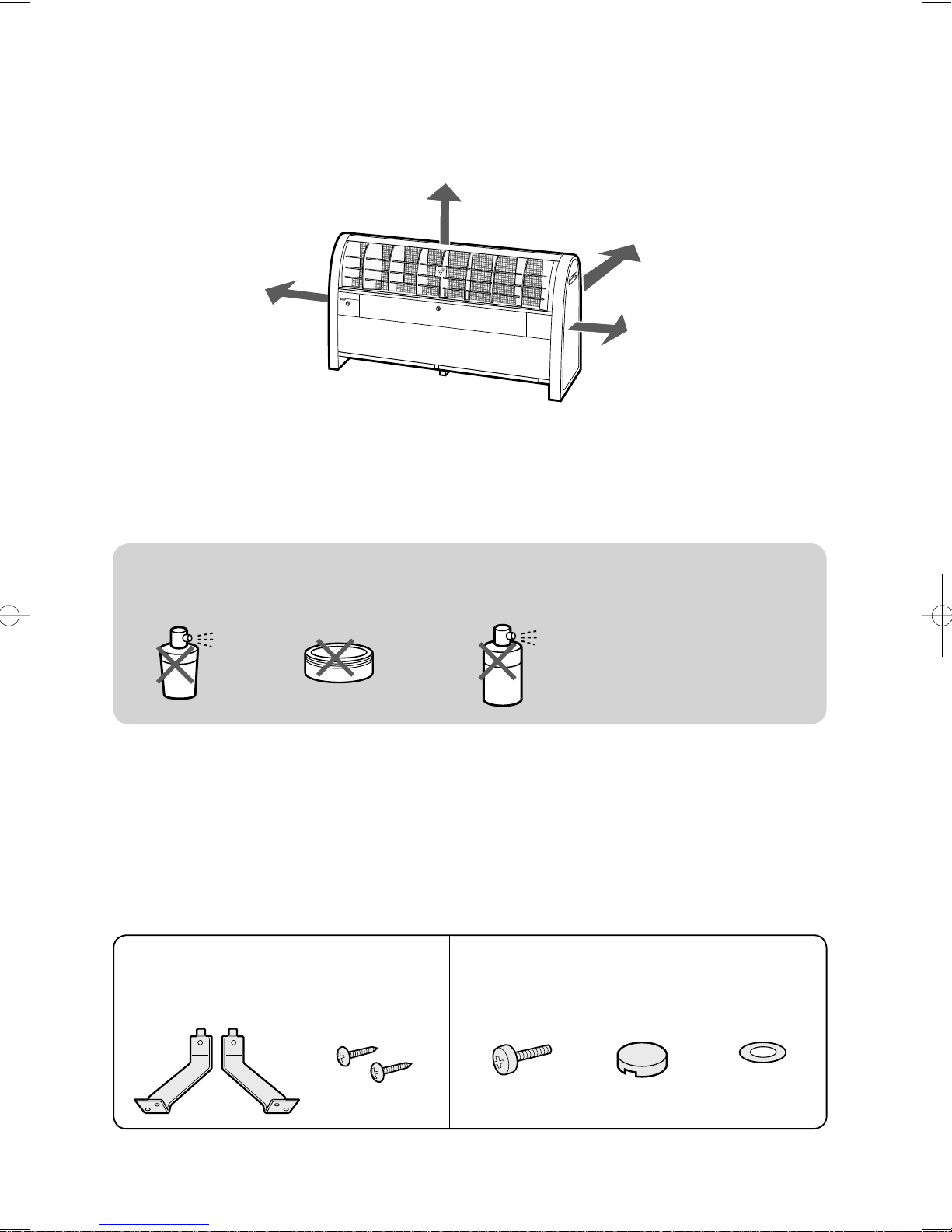

INSTALLATION POSITION
Place the main unit on a smooth, stable surface in a room, and insert the plug into an outlet.
SIDE more than 60cm
UPSIDE more than 60cm
BACKSIDE more than 6cm
SIDE more than 60cm
Installation Guidance
• To secure the performance,do not put anything in front of the unit.
• To secure the performance,do not block the air intake or do not put anything into the unit.
• If necessary,unit is fixed to the wall using accessary parts or fixed by anchor bolt see page E-5.
ACCESSARIES
• Operation manual
• Tip-resistant kit
• Screw kit
E-4
Tip-resistant kit
(In case of fixing the main unit to the wall)
Screw kit for operation cover
mounting parts for wall
(2pcs)
screw for the
main unit (2pcs)
screw (1pc) gum cover (1pc) washer (1pc)
silicone-containing products*
DO NOT USE the below items near the unit.
SPRAY WAX PESTICIDE *Hair care products, cosmetic
products, water proof sprays,
polish glass cleaner, wipe and wax.
Anchor bolt, nut, and washer for fixing to the floor and screw for the wall for fixing to the wall are not included
as accessory parts.
A20A.en.indd6A20A.en.indd6 2009/05/2818:20:312009/05/2818:20:31

ENGLISH
over 180mm
wall
552mm(IG-A20A)
898mm(IG-A40A)
E-5

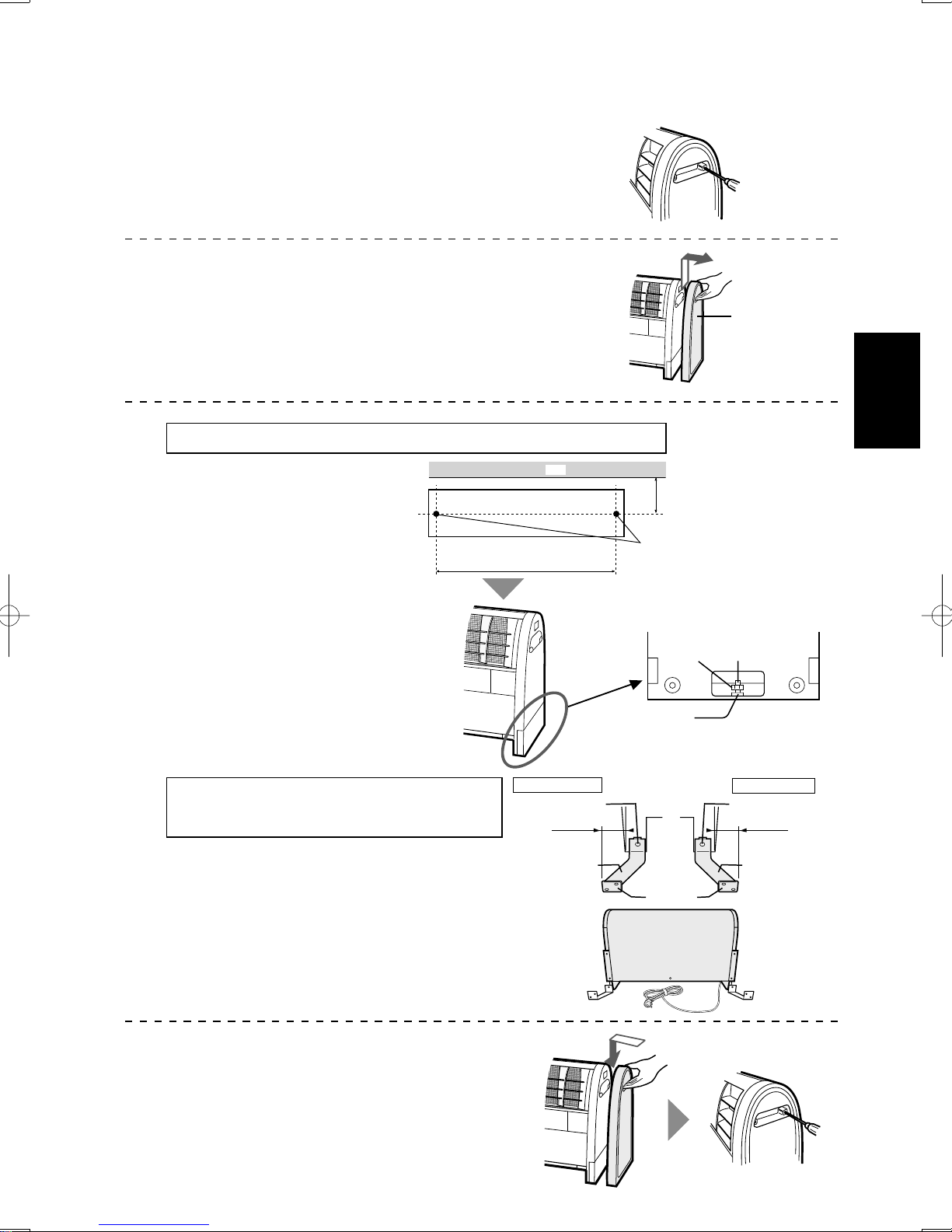

HOW TO INSTALL THE UNIT
Unscrew the painted screws
(2 pcs on each side ).
1
2
Lift up the Side Panel and remove
it outward.
3
In case of fixing the main unit to the floor by anchor bolts.
Measure the position of the anchor
bolts and fix them to the floor. *The height of the anchor
bolt is 25mm or less.
* Size of anchor bolt
diameter is 8mm or less.
nut anchor bolt
Put the main unit on the anchor
bolts and tighten surely with washer
and nut.
In case of fixing the main unit to the
wall with the mounting parts.
Fix the mounting parts to the main unit
by screws.(Right and left side)
The mounting parts and screws are
accessary parts.(Each 2 pcs)
Screws are to be surely tightened.
*Depending on the material of the wall, it may
not be able to tighten.
Attach the Side Panel and screw
the painted screws on both sides.
right side of rear
28mm
wall side
28mm
screwscrew
left side of rear
mounting part(right) mounting part(left)
Side Panel
4
anchor bolts
washer
A20A.en.indd7A20A.en.indd7 2009/05/2818:20:312009/05/2818:20:31

E-6
OPERATION
*This operation manual is based on IG-A40A.
The operation is same as IG-A20A.

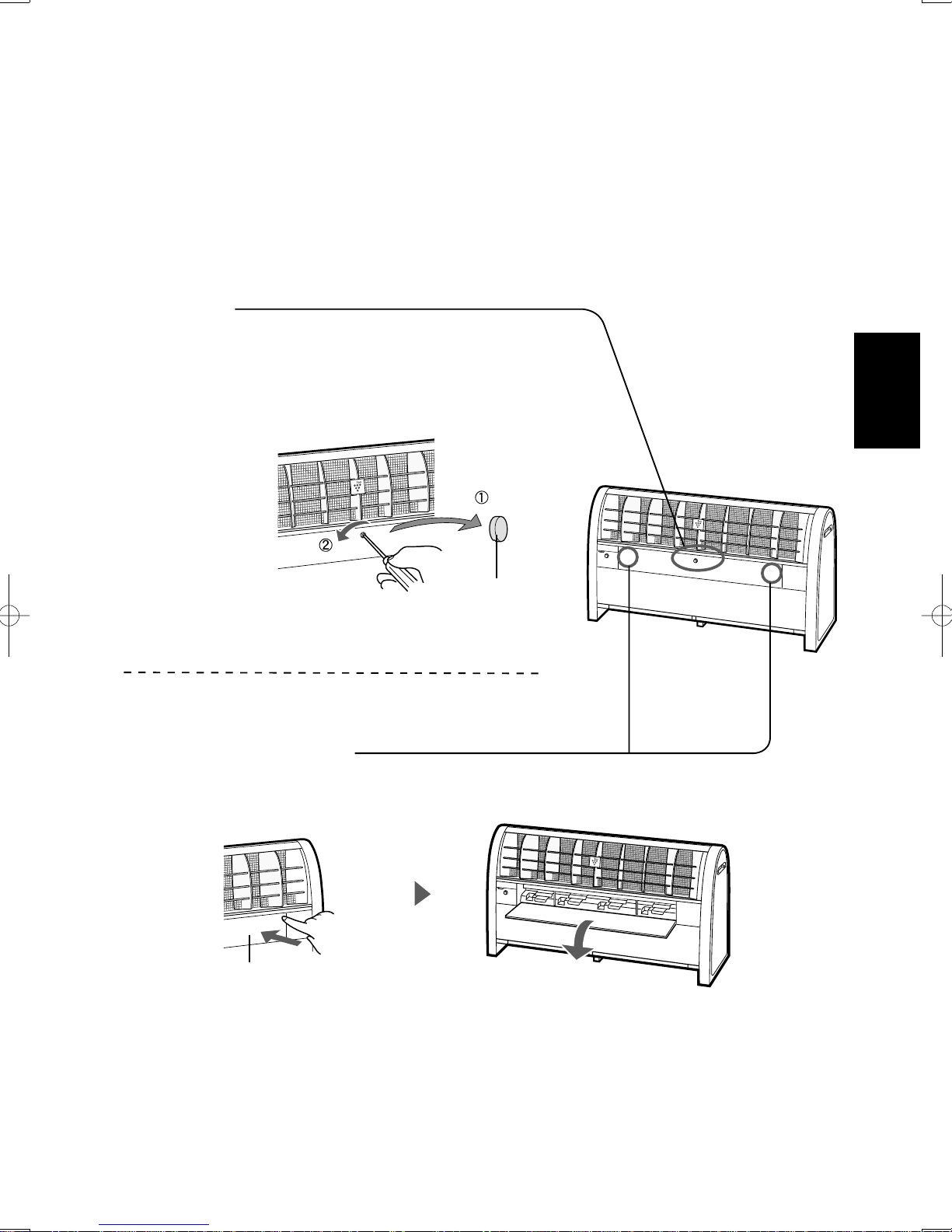

Open the cover of Control Panel.
In case that the cover is fixed by a screw, take out the
gum cover and a screw, and open the cover of control
panel.
Fix the cover of Control Panel.
As necessary, screw down the cover with the provided
screw and the washer and fit in the gum cover.
(Please see Page E-3)
Control
panel
Press the Operation Button to select the preferred mode.
LOW Release high-density
Plasmacluster ions quietly.
MED Release high-density
Plasmacluster ions at medium fan
speed.
HIGH Increase the volume of high-
density Plasmacluster ions to
increase the purifiying capacity.
Power 'OFF'
OPERATION BUTTON
AUTO RESTART
If the AUTO RESTART switch sets "ON" and
then the product is accidentally unplugged or
the breaker trips during use,it automatically
starts operating with previous mode after
electric reset.
AUTO RESTART
Switch
A20A.en.indd8A20A.en.indd8 2009/05/2818:20:322009/05/2818:20:32

ENGLISH
CAUTION
E-7
CLEANING AND MAINTENANCE
WARNING:
When cleaning the unit, be sure to first unplug the power cord, and never handle the
plug with wet hands.
Electric shock and/or bodily injury may occur as a result.
Main Unit
Every month or more often if necessary.
Wipe with a dry soft cloth.
<For Stubborn Dirt>
Use water and a mild detergent.
And then, wipe with a wet cloth.
Make sure to dry out .
FILTER
Every 2 weeks or more often if necessary.
FILTER CLEAN Light will be lit after approx. 1 month(approx.720 hours), when operated 24 hours a
day.
Pull out the filter from bottom of the main unit and remove dust by using a vacuum cleaner or similar
tools.
IG-A20A Filter (1pc)
IG-A40A Filter (2pcs)
*A filter is not disposable item, often
clean the filter.
Filter
• When the filter is very dirty, please wash with water
or using mild kitchen detergent.
• Do not rub with a hard sponge and do not bend it
when washing.
• Avoid drying filters outdoors under sunlight or using
near a stove.
FILTER RESET Button
After cleaning, insert the plug and press RESET
Button for 3 seconds.
A20A.en.indd9A20A.en.indd9 2009/05/2818:20:322009/05/2818:20:32

E-8
PLASMACLUSTER ION GENERATING UNIT REPLACEMENT
In order to release Plasmacluster Ion stably, periodical replacement of Plasmacluster
Ion Generating Unit is necessary. The Unit Replacement Light will be ON as a reminder
for replacement.
Elapsed Time
Beginning to use.
Approx. 2 years.
(approx. 17,500hours)
Approx. 2 years and
2 months.
(approx.19,000hours)
Plasmacluster Ions
are not released.
Display
Lighting(blue)
flashing (red) Lighting(blue)
flashing faster (red)
flashing (red) flashing (blue)
Message
Suggest replacing
• Stop working
• Replace the
Plasmacluster
Ion Generating
Unit.
Error*
*Usage environment affects the lifetime of the Plasmacluster Ion Generator.
The Plasmacluster Ion Generator may stop working before estimated lifetime.
In this case, press Operation Button again and restart.
If this does not help, replace with a new Plasmacluster Ion Generating Unit.
Plasmacluster Ion Generating Unit for Replacement
Plasmacluster Ion Generating Unit
Model
Number
IZ-CA40E(for IG-A40A)
IZ-CA20E(for IG-A20A)
<For Disposal>
Please dispose the used Plasmacluster Ion
Generating Unit according to any local laws and
regulations.
-materials-
• Case:Acrylonitrile Butadiene Styrene (ABS)
•Unit:Polybuthylene Terephthalate(PBT),Electric
parts.
Operate normally
A20A.en.indd10A20A.en.indd10 2009/05/2818:20:332009/05/2818:20:33

ENGLISH
E-9
HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT
*When replacing the Plasmacluster Ion Generating Unit, be sure to turn off the main
unit, unplug the power cord, and never handle the plug with wet hands.
1
Remove the gum cover and unscrew
the center screw of the Ion Generator
Cover.
gum cover
2
Push the both corner of Ion Generator
Cover and open it.
(IG-A40A only)
Ion Generator Cover
(see next page)
A20A.en.indd11A20A.en.indd11 2009/05/2818:20:332009/05/2818:20:33

E-10
HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT
3
Pull up the lever in the direction of
the arrow to unlock it.
Unit
Pull the lever in the direction
of the arrow and take out the
Plasmacluster Ion Generating Unit.
Remove the connector cover.
(IG-A40A only : 4 pcs)
Disconnect the connector of
Plasmacluster Ion Generating Unit.
Push and unlock the
connector, take out the
connector in the direction
of the arrow.
IG-A20A
without sensor(1pc)
with sensor(1pc)
Plasmacluster Ion Generating Unit without sensor.
IG-A20A : 1pc
IG-A40A : 3pcs
IG-A40A
without sensor(3pcs)
with sensor(1pc)
Plasmacluster Ion Generating Unit with sensor.
IG-A20A : 1pc
IG-A40A : 1pc
Pull up the lever
Reset button for Plasmacluster Ion Generating Unit
After replacing the Plasmacluster Ion Generating Unit, insert the plug and
press the UNIT RESET Button for 3 seconds.
A20A.en.indd12A20A.en.indd12 2009/05/2818:20:332009/05/2818:20:33

ENGLISH
7,000
E-11
SPECIFICATIONS
Model
Power supply
Fan speed
Power consumption(W)
Operating noise level(dBA)
Airflow volume(m3/hour)
Applicable floor surface area(m2)
*1
Ion density(ions/cm3)*2
Power cord(m)
Outer dimensions(mm)
Weight(kg)
IG-A20A IG-A40A
220V, 50Hz
HIGH MED. LOW HIGH MED. LOW
45 40 34 47 40 34
468 390 306 840 648 510
23 50
25,000 25,000 12,000 7,000
2.0
594(W) 480(H) 230(D)
12,000
22 14 939 20 10
940(W) 480(H) 230(D)
10.5 15.0
*1 The target floor surface area for which an emitted airborne ion density of about 25,000
ions/cm3can be measured at a point near the center of the room (at a height of about 1.2m
from the floor), during operation at the HIGH mode when the main unit is placed near a
wall.
*2 Ions, counted per cm3, blown into air near the center of the room (at a height of approx.
1.2m from the floor) during operation at each airstream setting when the main unit is
placed near the wall.
•
The number of ions will vary according to the room conditions and operation mode.
Standby Power
In order to operate the electrical circuits while the power plug is inserted in the wall
outlet, this product consumes about 0.8W of standby power.
For energy conservation, unplug the power cord when the unit is not in use.
A20A.en.indd13A20A.en.indd13 2009/05/2818:20:342009/05/2818:20:34

TROUBLESHOOTING
Before calling for service, please review the TROUBLESHOOTING chart below.
Since the problem may not be unit malfunction.
Problem
The Plasmacluster Ion Generator does
not work.
flashing faster (red)
flashing (red) flashing (blue)
flashing (blue)
flashing (blue)
The discharged air has odor.
WHAT TO DO
Make sure to put in the plug.
Approx 2 years and 2 months (approx.
19,000 hours) has been passed.
Replace with a new Plasmacluster Ion
Generating Unit. See page E-8,9.10.
If all lights keep flashing, replace with new
Plasmacluster Ion Generating Unit. See page E-8,9.10.
• Dust may block the filter, clean the filter.
Failure
Unplug and ask the store you purchased or
Sharp Sevice Center.
The Plasmacluster Ion Generator releases
a small trace of ozone which may produce
odor. This is not detrimental to health.
E-12
A clicking or ticking sound comes from the
unit while operating the Plasmacluster Ion
Generator.
Lighting (yellow)
A discontinuous noise is heard.
The air flow decreases.
Plasmacluster Ions are not released.
Press the Operation Button and restart.
Loudness can be changed depending on
a room humidity, but the effectiveness is
the same. Relocate the Plasmacluster Ion
Generator if necessary.
Filter cleaning time. See page E-7. After
cleaning the filter, press FILTER RESET
Button for 3 seconds.
Filter is getting dirty.
Clean the filter.
After cleaning the filter, press FILTER
RESET Button for 3 seconds.
A20A.en.indd14A20A.en.indd14 2009/05/2818:20:342009/05/2818:20:34

中文
中文
󰂃󰛵󰛽󰛃󰢋  󰟇󰚡󰕓  󰟇󰚡󰕓
󰒏󰆂󰓚󰥑
󰓚󰥑󰒏󰓚
C-1
目錄
重要安全事項 ...........................................................C-2
• 󰢿......................................................................................C-2
• 󰔺󰂁󰀩 .......................................................................C-2
• 󰅹...............................................................................C-2
各部分名稱 ..............................................................C-3
• 󰔺...............................................................................C-3
• 󰛦󰋚󰔺󰌃.............................................................C-3
安裝位置 ...............................................................................C-4
附件 .......................................................................................C-4
如何安裝主機.......................................................................C-5
主機操作 ...............................................................................C-6
保養與清潔...........................................................................C-7
• 󰕓......................................................................................C-7
• 󰆹󰝡󰋜..................................................................................C-7
HD 離子產生器的更換 .........................................................C-8
如何更換 HD 離子產生器 ....................................................C-9
規格 ..................................................................................... C-11
故障時的解決方法.............................................................C-12
󰜩    󰢍
󰙽󰚊󰈝󰛃󰢋󰈺󰆁󰁿
󰂃󰠿
󰠚󰣊󰟇󰚡󰍢󰅹   
  󰟇󰔕 
*  󰣼󰆯   󰍢
󰈺  󰟇󰔕      
󰆯
A20A.ch-9.indd3A20A.ch-9.indd3 2009/05/2818:21:282009/05/2818:21:28

C-2
操作注意事項
󰁟
󰃖󰦐󰢘󰂫󰢘󰂯󰢼󰌄󰕓
󰙉󰐵󰉋
󴞻󰐆󰕓󰔥󰕓󰂟󰟰
󰐵󰕓󰌼󰟇󰃎
安裝指南
󰕓󰝎󰄽󰙉󰋷󰇞󰕓󰕓󰙉󰇞󰊷󰟇  󰜊󰕓
󰇞󰝌
󰒏󰅹󰃖
󰎄󰦃󰔥󰕓󰏫󰤜󰔊󰚊󰈝 󰒿  󰀕󰃖

󰜊󰂯󲵘󰃠󰡧󰕓󰔥󰕓󰂟󰟰
注意：收音機或電視機干擾
󰕓󰈺󰕓󰇞󰕓󰅧󰝌󰒏󰈌󰆃󰀩󰀩󰝌
󰦃󰑖󰝎󰄽
󰎛󰕓󰋷󰕓  󰇞󰕓󰔕󰀕󰟇
󰕓󰋷󰔕󰇞󰃎󰇞󰑖󰆢
󰄷󰓎󰄷󰦎󰕓  󰇞󰕓󰗍󰆍󰒏󰙆
重要安全事項
󰇞󰔕󰀫󰗦󰇤
警告 - 為減少觸電、火災或受傷等危險：
󰕓󰆂󰓚󰥑󰂁󰀩
  󰇞󰃎
󰇞󰃎󰑖󰇞󰃎󰘑󰂟󰟰󰚆󰔜󰇞󰃎󰟟󰕓
󴞻󰇞󰃎󰘑󰈛

󰇞󰃎󰘑󰀫󰋚󰘑󰇞󰃎󰑖
󰂯󰆢󰔥󰢼󰇞  
󰙹󰒏󰇞󰃎󰘑
󰦐󰔜󰢘󰕓
󰇞󰃎󰑖󰂟󰟰󰀫󰌚󰎸󰛃󰢋󰤿󰏭󰆘
󰜊󰘁
󴞻󰐆󰕓󰙉󰞤󰂉
󰋮󰌒󴞻󰐆󰔋󰂯󰈺󰕓󰂟
󰂯󰔥󰕓󰐋
󰕓󰎕󰡧
󰃠󰡧󰃠󰔣󰃠󰡧󰀕󰕓
󰃾󰎕󰡧󰞞󰔋󰒏󰕓
󰛃󰢋󰤿󰈺󰕓󰋣
󰆷󰟓󰍢󰈺󰒔󰔿󰒏󰋷󰛅󰠡

  󰊲󰤉󰒿󰃾󰊲󰄏󰔥    󰕓󰒿󰦐 
󰔺󰄷󰦎󰠾
󰙉󰒿󰃾󰊲󰋆󰐵󰂯󰕓󰔕 
󰟺󰕓󰀽󰂯󰔥󰀿󰍞
A20A.ch-9.indd4A20A.ch-9.indd4 2009/05/2818:21:292009/05/2818:21:29

中文
C-3
各部分名稱
葉窗
（離子簇釋放口）
󰟇󰚡󰣊󰕓󰝎

HD 離子產生器 ( 內部 )
󰒏󰀼  󰟇󰔕󰀓󰄾
  
過濾網（空氣吸入口）
󰒏󰐵󰈺󰆹󰝡󰋜󴞻
󰁟󰕓

電源線
電源插頭
操作面板 過濾網清潔指示燈 (黃色)
離子產生器更換指示燈
(紅色)
高速
中速
低速
操作按鈕
離子產生器重設按鈕
過濾網重設按鈕
自動重新啟動功能開關
用螺絲緊固操作蓋板
󰛦󰈺󰔺󰌃󰋚
󰈟
󰛦
󰑥
󰆹󰝡󰋜󴞻󰕓󰇞󰃎󰢼󰆹
󰝡󰋜󰀉  󰣋
  󰟇󰔕󰢼󰀉
 󰣋󰀉
風速指示燈 (藍色)
A20A.ch-9.indd5A20A.ch-9.indd5 2009/05/2818:21:292009/05/2818:21:29

安裝位置
󰝎󰕓󰀕󰃗󰠚󰘑󰇞󰃎
側面60 厘米以上
上面 60 厘米以上
背面 6 厘米以上
側面60 厘米以上
安裝指南
• 󰐵󰕓󰄽
• 󰐵󰕓󰁟󰕓
• 󰍢󰇠󰕓󰚆󰔜󰅍󰛦󰒏  
附件
• 使用說明書
• 套裝防傾倒工具
• 套裝螺絲
C-4
套裝防傾倒工具
󰕓󰚆󰔜
用於操作蓋板的螺絲工具
󰚆󰔜󰅹    󰕓󰛦
󰜮 󰛦  󰜮  󰑥    󰈟   
含有矽樹脂的產品 
󰎕󰡧󰔋 󰤄󰞞󰔋  󰘑󰓴󰤉󲵘󰎕
󰡧󰔋󰐠󴞻󰐆󰔋󰤄
在本機附近切勿使用下列物品。
󰅍󰛦󰛦󰈟󰚆󰔜󰛦
A20A.ch-9.indd6A20A.ch-9.indd6 2009/05/2818:21:302009/05/2818:21:30

中文
over 180mm
wall
552mm(IG-A20A)
898mm(IG-A40A)
C-5
如何安裝主機
鬆開著色的螺絲
（兩側各有 2 顆）
1
2
提起側面板並將其取出。
3
需要使用地腳螺栓將主機固定至地板時
󰅍󰛦󰄽
 󰅍󰛦
 
󰅍󰛦
 
󰛦 󰅍󰛦
󰕓󰄽󰅍󰛦
󰈟󰛦󰈵󰠡󰠚
需要使用牆壁安裝組件將主機固定
至牆壁時
󰛦󰚆󰔜󰅹󰕓

󰚆󰔜󰅹󰛦󰇠
󰚆󰔜󰅹  󰜮󰛦
󰒏󰐵󰛦󰠡󰠚
 󰔶󰚆󰔜󰒧󰂯󰠡󰠚
將側面板裝回，並扭緊兩側的螺絲。
right side of rear
28mm
wall side
28mm
screwscrew
left side of rear
mounting part(right) mounting part(left)

4
󰅍󰛦
󰈟
󰚆󰔜
 
󰓟󰚆
󰚆󰔜󰅹

󰚆󰔜󰅹

 
螺絲
螺絲
A20A.ch-9.indd7A20A.ch-9.indd7 2009/05/2818:21:302009/05/2818:21:30

C-6
主機操作
󰌦󰔶  󰑔󰎫
 󰦐󰔺󰋷  
打開操作面板蓋板。
󰌃󰛦󰋚󰒏󰑥󰟟󰀓󰛦󰀓󰔺
󰌃
緊固操作面板蓋板。
󰛦󰈟󰌃󰠡󰠚󰅹
󰑥󰒏  
󰔺
觸按操作按鈕以選擇所需的模式。
低速 󰘊󰣊󰟇󰚡
中速 󰣊󰟇󰚡
高速 󰎛󰟇󰚡󰏨󰀇

關閉電源
󰔺󰀉
自動重新啟動功能
󰂦󰀓󰡣󰄽󰀓
󰃾󰕓󰇞󰃎󰘑󰂁󰅖󰝑󰆢󰔕
󰆹󰍞󰇞󰕓󰂯
󰝑󰇞󰔺󰏴󰢪󰣼󰔺
󰂦
󰀓󰡣
A20A.ch-9.indd8A20A.ch-9.indd8 2009/05/2818:21:312009/05/2818:21:31
