SERVICE MANUAL
Page
SPECIFICATIONS ............................................................................................................................. 1-1-1
LASER BEAM SAFETY PRECAUTIONS .......................................................................................... 1-2-1
IMPORTANT SAFEGUARDS AND PRECAUTIONS......................................................................... 1-3-1
STANDARD NOTES FOR SERVICING............................................................................................. 1-4-1
OPERATING CONTROLS AND FUNCTIONS .................................................................................. 1-5-1
CABINET DISASSEMBLY INSTRUCTIONS ..................................................................................... 1-6-1
TEST MODE ...................................................................................................................................... 1-7-1
TROUBLESHOOTING ....................................................................................................................... 1-8-1
BLOCK DIAGRAMS........................................................................................................................... 1-9-1
SCHEMATIC DIAGRAMS/ CBA’S AND TEST POINTS .................................................................. 1-10-1
WAVEFORMS.................................................................................................................................. 1-11-1
WIRING DIAGRAM .......................................................................................................................... 1-12-1
SYSTEM CONTROL TIMING CHARTS .......................................................................................... 1-13-1
IC PIN FUNCTION DESCRIPTIONS ............................................................................................... 1-14-1
LEAD IDENTIFICATIONS................................................................................................................ 1-15-1
EXPLODED VIEWS ......................................................................................................................... 1-16-1
MECHANICAL PARTS LIST ............................................................................................................ 1-17-1
ELECTRICAL PARTS LIST ............................................................................................................. 1-18-1
CONTENTS
In the interests of user-safety (Required by safety regula-
tions in some countries) the set should be restored to its
original condition and only parts identical to those specified
be used.
MODELS
DV-SL10H
DV-SL10S(Y)
DV-SL10S(R)
SERVICE MANUAL DVD VIDEO PLAYER MODELS DV-SL10H/DV-SL10S(Y)/DV-SL10S(R)
DVD VIDEO PLAYER
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
OPERATE
OPEN/CLOSE PLAY STOP SKIP
REW FWD

1-1-1 E5752SP
SPECIFICATIONS
[ DV-SL10H ]
[ DV-SL10S(Y)/DV-SL10S(R) ]

1-2-1 DVD_LASER
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against
your skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your
eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
D
rive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable

1-3-1 E5752IMP
1. IMPORTANT SERVICE NOTES
BEFORE RETURNING THE DVD VIDEO PLAYER
Before returning the DVD video player to the user,
perform the following safety checks.
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the DVD video
player.
2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields, isola-
tion resistor/capacitor networks, mechanical insula-
tors etc.
3. To be sure that no shock hazard exists, check for
current in the following manner.
Plug the AC line cord directly into a 230 volt AC outlet
(Do not use an isolation transformer for this test).
Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as a water pipe or conduit.
UseanDVM or VOMwith1000 ohmper volt, or higher,
sensitivity or measure the AC voltage drop across the
resistor (See Diagram).
Move the resistor connection to earth exposed metal
part having a return path to the chassis (metal cabinet,
screw heads, knobs and control shafts, etc.) and
measure the AC voltage drop across the resistor.
Reverse the AC plug on the set and repeat AC voltage
measurements for each exposed part. Any reading of
1.4Vrms (thiscorresponds to 0.7mArms AC.)or more
is excessive and indicates a potential shock hazard
which must be corrected before returning the DVD
video player to the owner.
1. NOTES DE SERVICE IMPORTANTES
AVANT DE RENDRE LE REPRODUCTOR DE VíDEO
DVD
AvantderendrelereproductordevídeoDVDàl’utilisateur,
effectuer les vérifications de sécurité suivantes.
1. Vérifier toutes les gaines de fil pour être sûr que les fils
ne sont pas pincés ou que le matériel n’est pas coincé
entre le châssis et les autres pièces métalliques dans le
reproductor de vídeo DVD.
2. Vérifier tous les dispositifs de protection tels que les
boutons de commande non métalliques, les matériaux
d’isolement, le dos du coffret, les couvercles de
compartiment et ajustement ou les boucliers, les
réseaux de résistance / condensateur d’isolement, Ies
isolateurs mécaniques, etc.
3. Pourêtresûrqu’iln’yaaucunrisquedechocélectrique,
vérifier le courant de fuite de la maniére suivante.
Brancher le cordon d’alimentation secteur directement
dans une prise de courant de 230 volts. (Ne pas utiliser
de transformateur d’isolement pour cet essai).
Utiliser deux fils à pinces et connecter une résistance
de10watts1,5kohmenparallèleavecuncondensateur
de0,15µFensérieavecdespiècesducoffretmétallique
exposées et une masse de terre connue telle qu’un
tuyau ou un conduit d’eau.
Utiliser un DVM ou VOM avec une sensibilité de 1000
ohms par volt ou plus ou mesurer la chute de tension
CA entre la résistance (voir diagramme).
Déposer la connexion de la résistance à toutes les
pièces métalliques exposées ayant un parcours de
retour au châssis (coffret métallique, tétes de vis, bou-
tons et arbres de commande, etc.) et mesurer la chute
de tension CA entre la résistance. Inverser la fiche CA
(une fiche intermédiaire non polarisée doit être utilisée
à seule fin de faire ces vérifications.) sur l’appareil et
répéter les mesures de tension CA pour chaque piéce
métallique exposée. Toute lecture de 1,4 V rms (ceci
correspond à 0,7 mA rms CA) ou plus est excessive et
signale un danger de choc qui doit être corrigé avant de
rendre le reproductor de vídeo DVD à son utilisateur.
IMPORTANT SAFEGUARDS AND PRECAUTIONS
SSVM
AC SCALE
2k ohms.
10W
0.15
TEST PROBE
T
O EXPOSED
M
ETAL PARTS
CONNECT TO
KNOWN EARTH
GROUNG
F
SSVM
AC SCALE
2k ohms.
10W
0.15
TEST PROBE
T
O EXPOSED
M
ETAL PARTS
CONNECT TO
KNOWN EARTH
GROUNG
F

1-4-1 DVD_NOTE
Circuit Board Indications
a. The output pin of the 3 pin Regulator ICs is indicated
as shown.
Top View
Out In
Bottom View
Input
b. For other ICs, pin 1 and every fifth pin are indicated
as shown.
5
10
Pin 1
c. The 1st pin of every male connector is indicated as
shown.
Pin 1
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect the
AC cord.
2. FFC (Flexible Foil Connector) cable should be in-
serted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
(1)Prepare the hot-air flat pack-IC desoldering ma-
chine, then apply hot air to the Flat Pack-IC (about 5
to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
(2)Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. Do not supply hot air to the chip parts around the flat
pack-IC for over 6 seconds because damage to the
chip parts may occur. Put masking tape around the
flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each pin
or the solder lands under the IC when removing it.
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
STANDARD NOTES FOR SERVICING

1-4-2 DVD_NOTE
With Soldering Iron:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you can
remove it easily. (Fig. S-1-3)
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
(2)Lift each lead of the flat pack-IC upward one by one,
using a sharp pin or wire to which solder will not
adhere (iron wire). When heating the pins, use a fine
tip soldering iron or a hot air desoldering machine.
(Fig. S-1-4)
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
(3)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you can
remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting point,
as shown in Fig. S-1-5.
(3)While heating the pins using a fine tip soldering iron
or hot air blower, pull up the wire as the solder melts
so as to lift the IC leads from the CBA contact pads
as shown in Fig. S-1-5.
(4)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by glue.
When the flat pack-IC is removed from the CBA,
handle it gently because it may be damaged if force
is applied.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldeing Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6

1-4-3 DVD_NOTE
2. Installation
(1)Using desoldering braid, remove the solder from the
foil of each pin of the flat pack-IC on the CBA so you
can install a replacement flat pack-IC more easily.
(2) The “ ” mark on the flat pack-IC indicates pin 1. (See
Fig. S-1-7.) Be sure this mark matches the 1 on the
PCB when positioning for installation. Then presol-
der the four corners of the flat pack-IC. (See Fig. S-
1-8.)
(3)Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occurduetoapotentialdifferencecausedbyelectrostatic
charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is properly
grounded to remove any static electricity that may be
charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate with
proper grounding (1MΩ) on the workbench or other
surface, where the semi-conductors are to be placed.
Because the static electricity charge on clothing will not
escape through the body grounding band, be careful to
avoid contacting semi-conductors with your clothing.
CBA
< Incorrect >
CBA
Grounding Band
Conductive Sheet or
Copper Plate
< Correct >

1-5-1 E5752IB

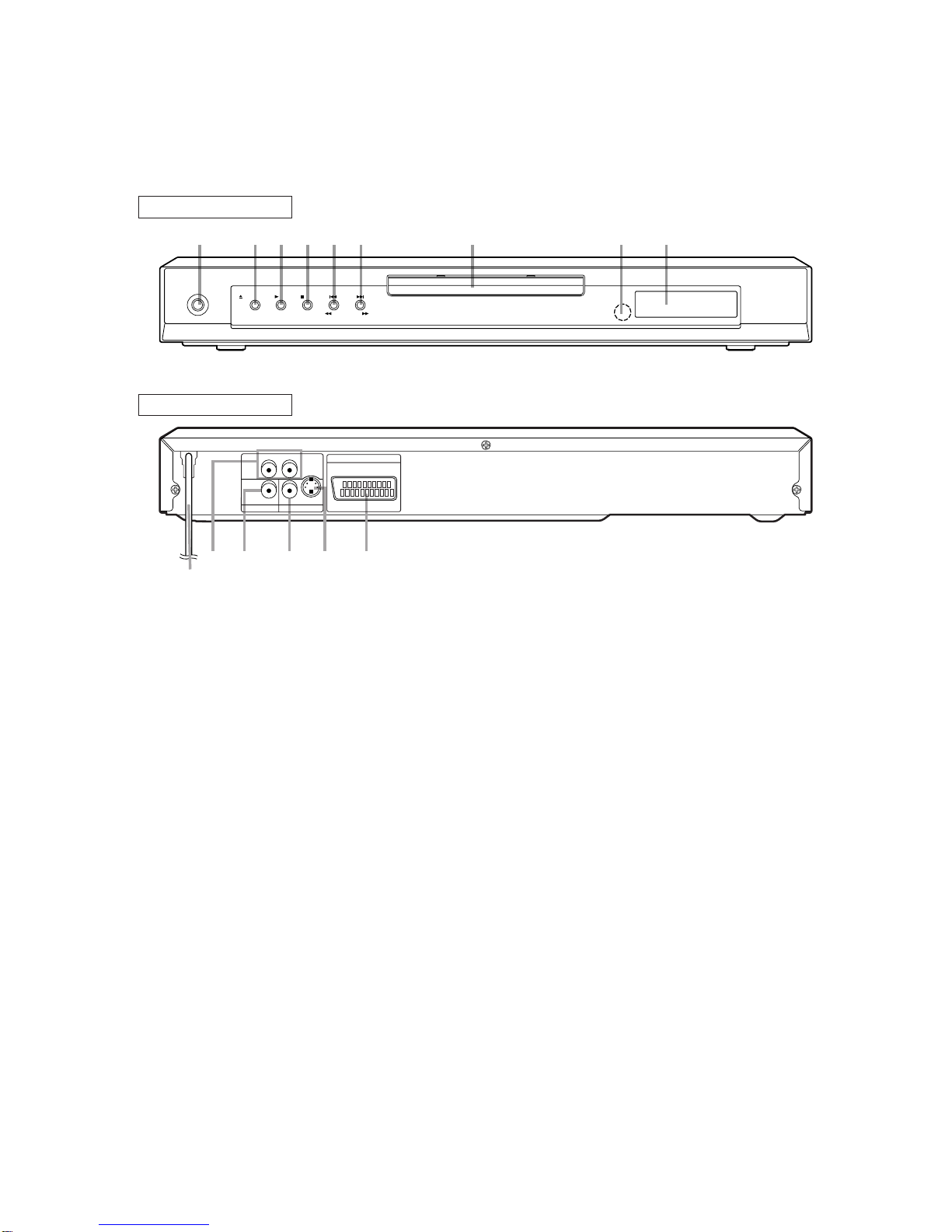

OPERATING CONTROLS AND FUNCTIONS
12 13 14 1511
10
AV (TV)
AUDIO OUT VIDEO OUT
S-VIDEOVIDEODIGITAL
RL
REAR VIEW
243519876
OPERATE
OPEN/CLOSE PLAY STOP SKIP
REW FWD
FRONT PANEL
1. OPERATE
to switch the player to ON or OFF
2. OPEN/CLOSE
to open/close the disc tray
3. PLAY
to start or resume disc playback
4. STOP
to stop playback
5. SKIP H/ SEARCH h
goes to previous chapter or track during playback; press
and hold for 1.5 seconds for a reverse search
6. SKIP G/ SEARCH g
goes to next chapter or track during playback; press and
hold for 1.5 seconds for a forward search
7. Disc tray
8. Remote sensor window
9. Display
10. MAIN (AC Power Cord)
connect to a standard AC outlet
11. AUDIO OUT (Left/Right)
connect to AUDIO inputs of an amplifier, receiver or
stereo system
12. DIGITAL (Digital audio out)
connect to AUDIO inputs of a digital (coaxial) audio
equipment
13. VIDEO OUT
connect to the Video Input of a TV
14. S-VIDEO OUT
connect to a TV with S-Video inputs
15. AV (TV)
connect SCART cable to a TV
Caution: Do not touch the inner pins of the jacks on the
rear
damage to the player.
panel. Electrostatic discharge may cause permanen
t
[ DV-SL10H ]

1-5-2 E5752IB
REMOTE CONTROL
STILL/PAUSEDIRECT SKIP
RETURN
ZOOM
MODE
SUBTITLE
MARKER
MENU
SKIP
REPEAT
A-B REPEAT
ANGLE AUDIO
CLEAR
TITLE
STOP
PLAY
FWD
REV
SETUP
DIMMER
ENTER
OPEN/
CLOSE
GAMMA
ON
SCREEN
OPERATE
1 2 3
6
54
7
C 0
+ 10
8 9
1
2
3
5
7
9
10
11
12
13
8
4
6
14 29
28
26
27
25
24
23
22
21
19
17
16
15
18
20
1. OPERATE Button
Press to turn the power on and off.
2. ON SCREEN Button
Displays the current status on the TV screen for checking purpose
s.
3. DIMMER Button
Press to change the Panel Display settings.
4. GAMMA Button
Press to adjust the black parts of the picture brighter.
5. ZOOM Button
Enlarges part of a DVD-reproduced image.
6. SUBTITLE Button
Press to select a desired subtitle language.
7. TITLE Button
Displays the title menu.
8. RETURN Button
Returns to the previous operation.
9. Numeric Buttons
10. CLEAR Button
Resets a setting.
11. REV Button
Fast reverse playback to a desired point.
12. PLAY Button
Starts playback of the disc contents.
13. DIRECT SKIP Button
Press to locate a desired point.
14. STOP Button
Stops operation of the disc.
15. OPEN/CLOSE Button
Press to insert discs into or remove them from the tray.
16. SETUP Button
Press to enter the setup mode or to change setup items.
17. MARKER Button
Press to call back the Marker display.
18. MODE Button
Activates programme playback or random playbac
k
mode.(CD/MP3) Activates the 3D sound.(DVD)
19. AUDIO Button
Press to select a desired audio language or sound mode.
20. ANGLE Button
Press to change the camera angle to see the sequenc
e
being played back from a different angle.
21.
MENU Button
Displays the DVD menus.
22. Arrow Buttons
Use when making settings while watching the display o
n
a TV screen.
23. ENTER Button
Press to accept a setting.
24. REPEAT Button
Repeats playback of the current disc, title, chapter or track
.
25. A-B REPEAT Button
Repeats playback of a selected section.
26. SKIP UP Button
Plays back from the beginning of the next chapter
or
track.
27. SKIP DOWN Button
Plays back from the beginning of the current chapter
or
track.
28. FWD Button
Fast
Pause playback temporarily/frame-by-frame playback.
forwards playback to a desired point.
29. STILL/PAUSE Button

1-5-3 E5752IB
1. Open the battery compartment cover.
2. Insert two AA batteries, with each one
oriented correctly.
3. Close the cover.
NOTES
Do not mix alkaline and manganese batteries.
Do not mix old and new batteries.

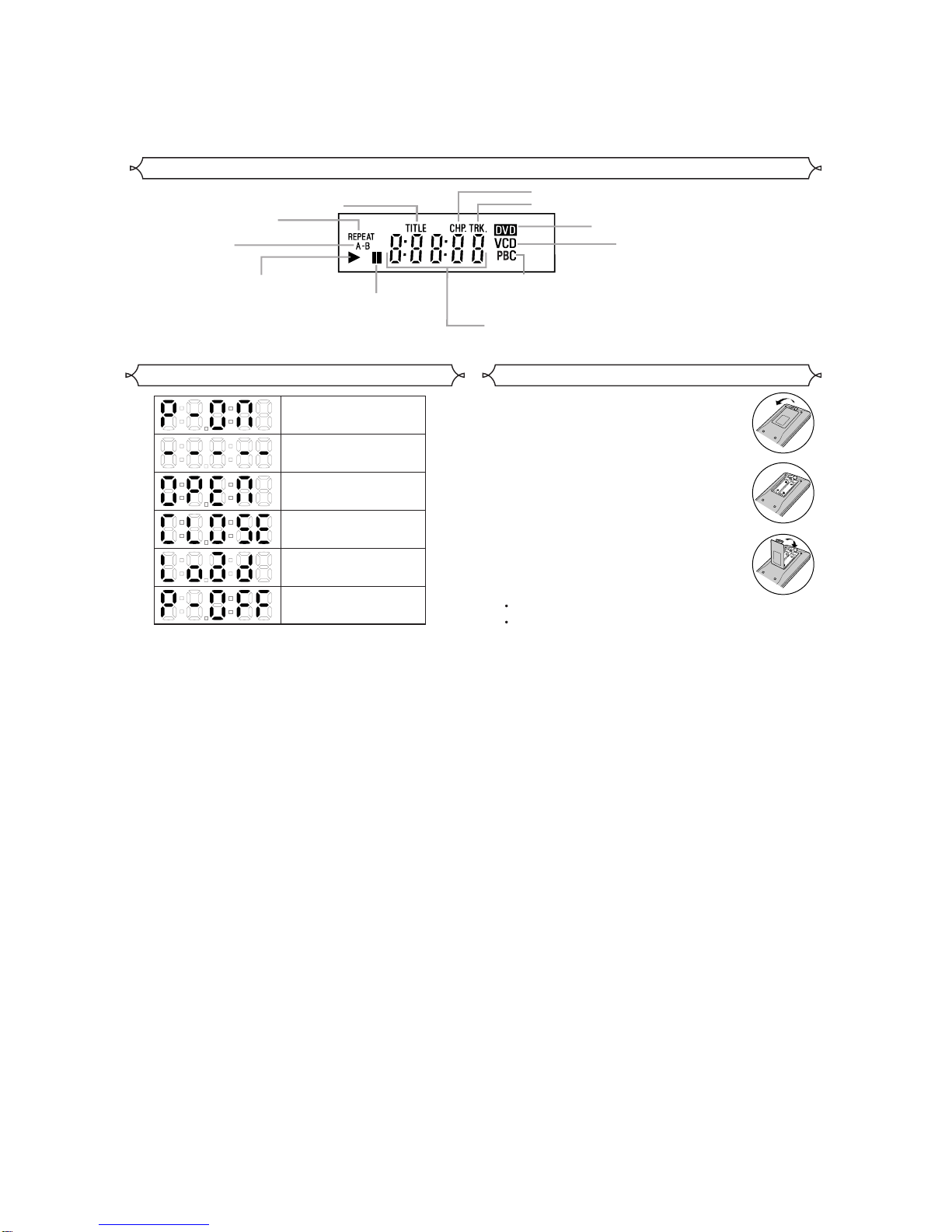

Loading the Batteries
Display
Displays During Operation
Stays on when the inserted
disc is being played back.
Lights up when a DVD
is inserted on the tray.
Lights up when the
inserted disc comes
to a pause.
Stays on when repeat chapter function is on.
Stays on when repeat track function is on.
Stays on when
the A-B repeat
function is on.
Stays on when
the repeat function is on.
Stays on when repeat
title function is on.
Displays how long a current title or track has been
played back.When a chapter or track has switched,
the number of a new title, chapter or track is displayed.
CD:
Lights up when a
CD is inserted on
the tray.
VCD:
Lights up when a
Video CD is
inserted on the tray.
Lights up when a
playback control is
activated.
Power on
No disc inserted or
playing DVD Menu
Tray open
Tray closed
Loading the Disc
Power off
[Fig.
4]

1-5-4 E5752IB
[ DV-SL10S(Y)/DV-SL10S(R) ]
12 13 14 1511
10
AV (TV)
AUDIO OUT VIDEO OUT
S-VIDEOVIDEODIGITAL
RL
REAR VIEW
243519876
OPERATE
OPEN/CLOSE PLAY STOP SKIP
REW FWD
FRONT PANEL
REMOTE CONTROL
STILL/PAUSEDIRECT SKIP
RETURN
ZOOM
MODE
SUBTITLE
MARKER
MENU
SKIP
REPEAT
A-B REPEAT
ANGLE AUDIO
CLEAR
TITLE
STOP
PLAY
FWD
REV
SETUP
DIMMER
ENTER
OPEN/
CLOSE
GAMMA
ON
SCREEN
OPERATE
1 2 3
6
54
7
C 0
+ 10
8 9
1
2
3
5
7
9
10
11
12
13
8
4
6
14 29
28
26
27
25
24
23
22
21
19
17
16
15
18
20
1. OPERATE
to switch the player to ON or OFF
2. OPEN/CLOSE
to open/close the disc tray
3. PLAY
to start or resume disc playback
4. STOP
to stop playback
5. SKIP H/ SEARCH h
goes to previous chapter or track during playback; press
and hold for 1.5 seconds for a reverse search
6. SKIP G/ SEARCH g
goes to next chapter or track during playback; press and
hold for 1.5 seconds for a forward search
7. Disc tray
8. Remote sensor window
9. Display
10. MAIN (AC Power Cord)
connect to a standard AC outlet
11. AUDIO OUT (Left/Right)
connect to AUDIO inputs of an amplifier, receiver or
stereo system
12. DIGITAL (Digital audio out)
connect to AUDIO inputs of a digital (coaxial) audio
equipment
13. VIDEO OUT
connect to the Video Input of a TV
14. S-VIDEO OUT
connect to a TV with S-Video inputs
15. AV (TV)
connect SCART cable to a TV
Caution: Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause permanen
t
damage to the player.
12. PLAY Button
Starts playback of the disc contents.
13. DIRECT SKIP Button
Press to locate a desired point.
14. STOP Button
Stops operation of the disc.
15. OPEN/CLOSE Button
Press to insert discs into or remove them from the tray.
16. SETUP Button
Press to enter the setup mode or to change setup items.
17. MARKER Button
Press to call back the Marker display.
18. MODE Button
Activates programme playback or random playbac
k
mode.(CD/MP3) Activates the 3D sound.(DVD)
19. AUDIO Button
Press to select a desired audio language or sound mode.
20. ANGLE Button
Press to change the camera angle to see the sequenc
e
being played back from a different angle.
21.
MENU Button
Displays the DVD menus.
22. Arrow Buttons
Use when making settings while watching the display o
n
a TV screen.
23. ENTER Button
Press to accept a setting.
24. REPEAT Button
Repeats playback of the current disc, title, chapter or track
.
25. A-B REPEAT Button
Repeats playback of a selected section.
26. SKIP UP Button
Plays back from the beginning of the next chapter
or
track.
27. SKIP DOWN Button
Plays back from the beginning of the current chapter
or
track.
28. FWD Button
Fast forwards playback to a desired point.
29. STILL/PAUSE Button
Pause playback temporarily/frame-by-frame playback.
1. OPERATE Button
Press to turn the power on and off.
2. ON SCREEN Button
Displays the current status on the TV screen for checking purposes.
3. DIMMER Button
Press to change the Panel Display settings.
4. GAMMA Button
Press to adjust the black parts of the picture brighter.
5. ZOOM Button
Enlarges part of a DVD-reproduced image.
6. SUBTITLE Button
Press to select a desired subtitle language.
7. TITLE Button
Displays the title menu.
8. RETURN Button
Returns to the previous operation.
9. Numeric Buttons
1
0. CLEAR Button
Resets a setting.
1
1. REV Button
Fast reverse playback to a desired point.

1-5-5 E5752IB
1. Open the battery compartment cover.
2. Insert two AA batteries, with each one
oriented correctly.
3. Close the cover.
NOTES
Do not mix alkaline and manganese batteries.
Do not mix old and new batteries.
Loading the Batteries
Display
Displays During Operation
Stays on when the inserted
disc is being played back.
Lights up when a DVD
is inserted on the tray.
Lights up when the
inserted disc comes
to a pause.
Stays on when repeat chapter function is on.
Stays on when repeat track function is on.
Stays on when
the A-B repeat
function is on.
Stays on when
the repeat function is on.
Stays on when repeat
title function is on.
Displays how long a current title or track has been
played back.When a chapter or track has switched,
the number of a new title, chapter or track is displayed.
CD:
Lights up when a
CD is inserted on
the tray.
VCD:
Lights up when a
Video CD is
inserted on the tray.
Lights up when a
playback control is
activated.
Power on
No disc inserted or
playing DVD Menu
Tray open
Tray closed
Loading the Disc
Power off

1-6-1 E5752DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and dress
the cables as they were originally.
1: Identification (location) No. of parts in the figures
2: Name of the part
3: Figure Number for reference
4: Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or de-
soldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector,
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g.5(S-1) = five Screws (S-1),
2(L-2) = two Locking Tabs (L-2)
5: Refer to "Reference Notes."
Reference Notes
CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and (L-4)
are fragile. Be careful not to break them.
1-1. Connect the wall plug to an AC outlet and press the
OPEN/CLOSE button to open the Tray.
1-2. Remove the Tray Panel by releasing two Locking
Tabs (L-1).
1-3. Press the OPEN/CLOSE button again to close the
Tray.
1-4. Press the POWER button to turn the power off.
1-5. Unplug an AC Cord.
1-6. Release two Locking Tabs (L-2). Then, release
five Locking Tabs (L-3) (to do this, first release two
Locking Tabs (A) at the side, and then three
Locking Tabs (B) at the bottom.) (Fig. 2)
1-7. Release three Locking Tabs (L-4). Then remove
the Front Assembly.
CAUTION 2: Electrostatic breakdown of the laser diode
in the optical system block may occur as a potential
difference caused by electrostatic charge accumulated
on cloth, human body etc., during unpacking or repair
work.
To avoid damage of pickup follow next procedures.
2-1. Disconnect Connector (CN301). Remove three
Screws (S-2) and lift the DVD Mecha. (Fig. 3)
2-2. Slide the pickup unit front.
2-3. Short the three short lands with solder before
removing the FFC cable (CN201) from it. If you
disconnect the FFC cable (CN201), the laser diode
of pickup will be destroyed. (Fig. 4)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. 4)
2. Disassembly Method
REMOVAL
ID/
LOC.
No.
Fig.
No.
REMOVE/
*UNHOOK/UNLOCK/
RELEASE/UNPLUG/
DESOLDER
Note
PART
[1] Top Cover 1 5(S-1) -
[2] Front 2 *2(L-1), Tray Panel, 1-1
Assembly *2(L-2), *5(L-3), 1-2
*3(L-4) 1-3
1-4
1-5
1-6
1-7
[3] DVD 3,4 3(S-2) 2
Mecha *CN301, *CN201 2-1
2-2
2-3
3
[4] AV CBA 5 3(S-3), 3(S-4), -
*CN1001, *CN1601
[5] DVD Main 5 2(S-5) -
CBA Unit
[6] Function 5 Desolder -
CBA
[7] Main CBA 6 (S-6) -
Holder
[8] Rear 6 (S-7) -
Panel
↑↑↑ ↑ ↑
123 4 5
[1] Top Cover
[2] Front Assembly
[3] DVD Mecha
[5] DVD Main CBA Unit[4] AV CBA
[7] Main CBA Holder[6] Function CBA
[8] Rear Panel

1-6-2 E5752DC
View for B
Pickup Unit
C
B
Short the three short
lands by soldering
Short the three short lands by soldering
FPC Cable
Connector
Slide
DVD Mecha
View for C
View for A
OR
A
Fig. 1
Fig. 2
Fig. 3
Fig. 4
(S-1)
(S-1)
[1] Top Cover
(S-1)
[2] Front Assembly
Tray Panel
(A)
(A)
(L-3)
(L-3)
(L-1)
(L-1)
(B)
(L-2)
(L-4) (L-4)
[3] DVD Mecha
(S-2) (S-2)
CN201
CN301

1-6-3 E5752DC
Fig. 6
HOW TO MANUAL EJECT
1. Remove the Top Cover.
2. Rotate the roulette in the direction of the arrow as
shown below.
(S-7)
[8] Rear
Panel
(S-6)
[7] Main CBA
Holder
Rotate this roulette in
the direction of the arrow
A
View for A
Fig. 5
[4] AV CBA
[5] DVD Main
CBA
(S-5)
(S-3
)
(S-4)
CN1601
CN1001
(S-4)
[6] Function CBA
Desolder
from
bottom

1-7-1 TESTMODE
TEST MODE
Test Mode
ROM Renewal Mode
A power source is put, and [1], [2], [3], [4], and [ON SCREEN] buttons on the remote
control unit are pushed in that order while the tray is opening or after the “NO DISC”
display at the same time.
A power source is put, and [9], [8], [7], [6], and [DIRECT SKIP] buttons on the remote
control unit are pushed in that order while the tray is opening or after the “NO DISC”
display at the same time.
[TEST MODE] Test Mode Flow Chart
Test Mode Initial Display (Fig.T-1)
Displaying F/W Ver.
Displaying VFD F/W Ver.
< Press 1 button on the remote control unit. >
< Press 1 button on the remote control unit.
>
< Press 2 button on the remote control unit.
>
< Press 3 button on the remote control unit. >
< Press RETURN button on
the remote control unit. >
Returning to Test Mode Initial Display
All VFD ON/OFF
Menu Display (Fig. T-2)
Cearing FLASH MEMORY (Fig. T-3)
All VFD ON
All VFD OFF
Displaying VFD "TEST1"
Displaying VFD "TEST3"

1-7-2 TESTMODE
Fig. T-1: Test Mode Initial Display
Fig. T-2: All VFD ON/OFF Menu Display
Fig. T-3: Clearing FLASH MEMORY Display
(model name) VERSION REGION
1. TEST1-VFD
2. TEST2-REPEAT PLAY
3. TEST3-EEPROM CLEAR
4. TEST4-MEASUREMENT SERVO
5. TEST5-DISC READ CHECK
6. TEST6-MECHA CHECK
7. TEST7-DISC INFO
8. TEST8-ERROR RATE
EXIT:
.
(model name) VERSION REGION
TEST1-VFD
1. ON
2. OFF
VFD STATUS [---]
RETURN:
.
POWER
(model name) VERSION REGION
TEST3-EEPROM CLEAR
EEPROM CLEAR : OK
EXIT:
.
POWER
EXIT: POWERRETURN

1-7-3 TESTMODE
[ROM RENEWAL MODE]
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [DIRECT SKIP] buttons on the
remote control unit in that order. The tray will open
automatically.
Fig. a appears on the screen and Fig. b appears on
the VFD.
F/W Version Up Mode
Please insert a DISC
for F/W Version Up.
EXIT: POWER
Fig. a Version Up Mode Screen
F
ig. b VFD in Version Up Mod
e
The DVD player can also enter the version up mode
with the tray open. In this case, Fig. a will be shown
on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD.
F/W Version Up Mode
VERSION : ********
Reading...(*2)
EXIT: POWER
Fig. c Programming Mode Screen
F
ig. d VFD in Programming Mode (Exampl
e)
The appearance shown in (*2) of Fig. c is described
as follows:
AppearanceNo. State
Reading... Sending files into the memory
Erasing... Erasing previous version data
Programming...
1
2
3 Writing new version data
5. After programming is finished, the tray opens auto-
matically. Fig. e appears on the screen and the
checksumin(*3)of Fig. eappearsontheVFD. (Fig. f)
F/W Version Up Mode
VERSION : ********
Completed
SUM : 7abc (*3)
Fig. e Completed Program Mode Screen
F
ig. f VFD upon Finishing the Programing Mode (Exampl
e)
At this time, no buttons are available.
6. Unplug the AC cord from the AC outlet. Then plug it
again.
7. Turn the power on by pressing the power button and
the tray will close.
8. Press [1], [2], [3], [4], and [DIRECT SKIP] buttons on
the remote control unit in that order.
Fig. g appears on the screen.
model: ****** Ver: **** Region: **
1: VFD TEST
2: TT REPEAT PLAY
3: EEPROM CLEAR
4: MEASUREMENT SERVO
5: DISC READ CHECK
6: MECHA CHECK
7: DISC INFO
8: ERROR RATE
EXIT: POWERRETURN: -----
Fig. g
9. Press [3] button on the remote control unit.
Fig. h appears on the screen.
model: ****** Ver: **** Region: **
TEST 3: EEPROM CLEAR
EEPROM CLEAR: OK
EXIT: POWERRETURN: -----
Fig. H
10.To finish this mode, press [POWER] button.

1-7-4 TESTMODE
[ ERROR RATE MEASUREMENT]
1. Turn on the power to the player, remove the disk
from the tray, and close the tray.
2. To put the DVD player into test mode, press [1], [2],
[3], [4], and [ON SCREEN] buttons on the remote
control unit in that order.
The unit will switch to Test Mode and Fig. a will be
displayed. For VFD, the current F/W version will be
displayed. (Fig. b)
(model name) VERSION REGION
1. TEST1-VFD
2. TEST2-REPEAT PLAY
3. TEST3-EEPROM CLEAR
4. TEST4-MEASUREMENT SERVO
5. TEST5-DISC READ CHECK
6. TEST6-MECHA CHECK
7. TEST7-DISC INFO
8. TEST8-ERROR RATE
EXIT:
.
POWER
Fig. a Test Mode Screen
Fig. b Sample VFD in Test Mode
3. Press the [8] button to select "8. TEST 8 - ERROR
RATE." The on-screen display will change to the
screen shown in Fig. c. The VDF display will change
to the display shown in Fig. d.
(model name) VERSION REGION
TEST8-ERROR RATE
DISC:DVD-V / DUAL LAYER / OPPOSITE
STA:
STATUS:
CHECK : OK
NOW MEASURE : L
RETURN:
.
EXIT: POWERRETURN
1
5
H/
2
H
H
/
3
H/
4
H
PO1st
00000 00000 00000 00000 00000
00000 00000 00000 00000 00000
Correct
Uncorrect
PI1st PO2nd PO3rdPI2nd
(I) With a DVD inserted.
(model name) VERSION REGION
TEST8-ERROR RATE
DISC: CD
STA:
STATUS:
CHECK : OK
NOW MEASURE :
RETURN:
.
EXIT: POWERRETURN
5
HTRK : :
00000
00000
C1 Correct
C2 Uncorrect
: :
(II) With a CD/VCD inserted.
Fig. c TEST8-ERROR RATE MODE
Fig. d Sample VFD in TEST8-ERROR RATE MODE
4. Put disk to be checked into the tray. Close the tray
using either the [OPEN/CLOSE] or [PLAY] button on
the unit or on the remote. The disk will automatically
be distinguished and error rate measurement will
begin.
Fig. c will display:
1
Inserted disk’s inner parameter (For DVD, Layer
0, initial address)
2
Inserted disk’s outer parameter (For DVD, Layer
0, final address)
3
Inserted disk’s Layer 1, initial address.
4
Inserted disk’s Layer 1, final address.
Depending on the contents of the inserted disk, 3
and 4 above may not be displayed.
Once the error rate measurement has started, if the
largest value resulting from the first three measure-
ments has a value of 2000 or less, and all values in
the "Uncorrect" row are 0, the message "CHECK :
OK" will be displayed on area
5
.
If the largest value is greater than 2000, the mes-
sage "CHECK : NG" will be displayed on area
5
.
The message "OK" or "NG" will continue to be
displayed without change until the measurement is
stopped. The error rate measurement will continue
to be updated.
5. "Correct" and "Uncorrect" in Fig. c:
(1)For DVDs the following will be displayed:
PO1st-Correct count; PO1st-Uncorrect count;
PI1st-Correct count; PI1st-Uncorrect count;
PO2nd-Correct; PO2nd-Uncorrect count;
PI2nd-Correct count; PI2nd-Uncorrect count;
PO3rd-Correct count; PO3rd-Uncorrect count.
The above ten numerical values will be displayed for
each 80 ECC block.
(2)For CD/VCDs the following will be displayed:
C1-Correct count; C2-Uncorrect count.
The values for these two items will be displayed
every 7350x4 frames.
For VFD, the following will be displayed:
PO1st-Correct count; (C1-Correct count for CDs).
(Fig. e)
Fig. e: Sample VFD display of ERROR RATE
measurement
6. To end the ERROR RATE measurement, press the
[OPEN/CLOSE] button on either the unit or the
remote. After the display has ceased, press the
[POWER] button on either the unit or the remote to
shut off the power.

1-8-1 E5752TS
TROUBLESHOOTING
FLOW CHART NO.2
The fuse blows out.
After servicing, replace the fuse.
Check the presence that the primary component
is leaking or shorted and service it if defective. Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
FLOW CHART NO.3
When the output voltage fluctuates.
Yes
No
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of power circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side,
and service it if defective. (D1003, D1006, D1008, D1016, D1030, IC1002, Q1002, Q1004, Q1010, Q1011, Q1014, Q1050)
Does the photo coupler circuit on the secondary
side operate normally?
Check IC1001, D1012, D1024 and their periphery,
and service it if defective.
Check IC1001, IC1006, D1015, D1048 and their
periphery, and service it if defective.
FLOW CHART NO.5
-FL is not outputted.
Is -24V voltage supplied to the anode of D1003? Check D1003 and periphery circuit, and service it
if defective.
Check if there is any leak or short-circuit
on the loaded circuit, and service it if defective.
Yes
No
FLOW CHART NO.1
The power cannot be turned on.
Is the fuse normal?
Is normal state restored when once unplugged
power cord is plugged again after several seconds?
Is each voltage of the secondary side normal?
See FLOW CHART No.2 <The fuse blows out.>
Check if there is any leak or shor-circuiting on the
primary circuit component.
(Q1001, Q1003, T1001, D1001, D1002, D1004,
D1005, D1011, C1003, C1005)
Check each rectifying circuit of the secondary circui
t
and service it if defective.
Yes
Yes
Is the voltage of 5V supplied to pin(1) of IC2002?
Is the voltage of 3.3V outputted to pin(19) of CN1001?
Yes
When pressing POWER button (SW2001), is the
voltage of 0V supplied to pin(8) of IC2002?
Yes
Yes
Is the voltage of 0V supplied to pin(18) of IC2002?
Replace IC2002.
Yes
Yes
No
No
Check POWER button (SW2001) and their
periphery, and service it if defective.
No
Check EV+5V line and service it if defective.
No
Replace DVD Main CBA unit.
No
Check Q2007 and their periphery, and service it if
defective.
No
