Sharp UX-A450 User manual

MODEL
UX-A450
OPERATION MANUAL
FACSIMILE
1. Installation
2. Using the Answering Machine
3. Sending Faxes
4. Receiving Faxes
5. Making Copies
6. Special Functions
7. Printing Lists
8. Maintenance
9. Troubleshooting
IMPORTANT
PLEASE KEEP THE EXTERNAL & INTERNAL PACKAGING SAFE.
PLEASE DO NOTTHROW IT AWAY.
IN THE UNLIKELY EVENT OF A HARDWARE FAILURE, OUR
REPAIR CENTRE WILL ASKYOU TO PUTYOUR SHARP
FACSIMILE IN THIS BOX.
THANKYOU FORYOUR ASSISTANCE.

MAINS PLUG WIRING INSTRUCTIONS
This equipment is fitted witha moulded type mains plug which incorporates a detachable
fuse cover, under no circumstances should the plug be used without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug
supplied, cut off the mains plug and fit an appropriate type observing the wiring code
below.
DANGER: The fuse from the cut-off plug should be removed and the plug should be
disposed of in a safe manner. Under no circumstances should the cut-off plug be
inserted into a socket outlet as a serious electric shock may occur.
If you are not sure how to do this, get help from a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
GREEN-AND-YELLOW: Earth
BLUE: Neutral
BROWN: Live
As the colours of the wires in the mains lead of this apparatus may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:The wire
which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug
which is marked by the letter E, or by the safety earth symbol or coloured green or
green-and-yellow.The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter Nor coloured black.The wire which is coloured BROWN
must be connected to the terminal which is marked with the letter Lor coloured red.
This apparatus must be protected by a 13A fuse in the mains plug or distribution board.
"WARNING: THIS APPARATUS MUST BE EARTHED"
This equipment complies with the requirements of Directive 1999/5/EC.
Dieses Gerät entspricht den Anforderungen der EU-Richtlinie 1999/5/EG.
Cet appareil est conforme aux exigences de la directive 1999/5/CE.
Este aparato satisface las exigencias de las Directiva 1999/5/CE.
Quest’apparecchio è conforme ai requisiti delle direttiva 1999/5/CE.
Dit apparaat voldoet aan de eisen van de richtlijn 1999/5/EG.
Este equipamento obedece às exigências da directiva 1999/5/CE.
Η συσκευή αυτή ανταποκρίνεται στις απαιτήσεις των οδηγια 1999/5/ΕK.
Denna utrustning uppfyller kraven enligt direktiv 1999/5/EC.
Dette udstyr overholder kravene i direktiv 1999/5/EF.
Dette produktet oppfyller kravene i direktiv 1999/5/EC.
Tämä laite täyttää direktiivi 1999/5/EY.
This is a facsimile product operating in British and Irish analogue public switched telephone networks which
follow the CTR21 Standard.
The Declaration of Conformity can be viewed at the following URL address.
http://www.sharp.de/doc/UX-A450.pdf
all.bookPage1Wednesday,January30,20022:32PM

1
Introduction
*Based on Sharp Standard No. 1 Chart at standard resolution is Sharp special mode,
excluding time for protocol signals (i.e., ITU-T phase C time only).
Automatic dialling 30 numbers
Imaging film Initial starter roll (included with machine):
10 m (approx. 30 A4 pages)
Replacement roll (not included):
UX-6CR 50 m (one roll yields
approx. 150 A4 pages)
Memory size* 448 KB (approx. 24 average pages with no
voice messages recorded and ECM turned
off, or 20 minutes of voice messages
(including OGMs) with no documents in
memory)
Modem speed 14,400 bps with automatic fallback to lower
speeds.
Transmission time* Approx. 6 seconds (only when ECM is on)
Resolution Horizontal: 8 pels/mm
Vertical:
Standard: 3.85 lines/mm
Fine /Halftone: 7.7 lines/mm
Super fine: 15.4 lines/mm
Automatic document
feeder 10 pages max. (A4, 80 g/m2paper)
Recording system Thermal transfer recording
Halftone (grayscale) 64 levels
Display 16-digit LCD display
Compression scheme MR, MH, MMR
Welcome, andthank you for
choosing a Sharp fax
machine! The features and
specifications of your new
Sharp fax are shown below.
all.bookPage1Wednesday,January30,20022:32PM

2
As a part of our policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Paper tray capacity
(60 to 80-g/m2paper) Approx. 50 A4-size sheets
(at room temperature; maximum stack height
should not be higher than the line on the tray)
Applicable telephone line Analog public switched telephone network
(CTR21) / PBX
Compatibility ITU-T (CCITT) G3 mode
Input document size Automatic feeding:
Width: 148 to 210 mm
Length: 140 to 297 mm
Manual feeding:
Width: 148 to 210 mm
Length: 140 to 600 mm
Effective scanning width 210 mm max.
Effective printing width 204 mm max.
Contrast control Automatic/Dark selectable
Reception modes TEL/FAX,TEL, FAX, A.M.
Copy function Single / Multi (99 copies/page)
Telephone function Yes (cannot be used if power fails)
Power requirements 230 V AC, 50 Hz
Operating temperature 5 - 35°C
Humidity 25 - 85% RH
Power consumption Standby: 2.5 W
Maximum: 110 W
Dimensions (without
attachments) Width: 327 mm
Depth: 193 mm
Height: 163 mm
Weight (without
attachments) Approx. 2.8 kg
all.bookPage2Wednesday,January30,20022:32PM

3
Important safety information
Do not disassemble this machine or attempt any procedures not described in this manual.
Refer all servicing to qualified service personnel.
Do not install or use the machine near water, or when you are wet. For example, do not use the
machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool. Take care not to spill any liquids on the machine.
Unplug the machine from the telephone socket and then the power outlet and consult a
qualified service representative if any of the following situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
Do not allow anything to rest on the power cord, and do not install the machine where people
may walk on the power cord.
This machine must only be connected to a 230 V, 50 Hz, earthed (3-prong) outlet. Connecting
it to any other kind of outlet will damage the machine and invalidate the warranty.
Never insert objects of any kind into slots or openings on the machine. This could create a risk
of fire or electric shock. If an object falls into the machine that you cannot remove, unplug the
machine and consult a qualified service representative.
Do not place this machine on an unstable cart, stand or table. The machine could be seriously
damaged if it falls.
Never install telephone wiring during a lightning storm.
Never install telephone sockets in wet locations unless the socket is specifically designed for
wet locations.
Never touch bare telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be
a remote risk of electric shock from lightning.
Do not use a telephone to report a gas leak in the vicinity of the leak.
The power outlet must be installed near the equipment and must be easily accessible.
Important:
This facsimile is only designed for use in the country where approved.
all.bookPage3Wednesday,January30,20022:32PM

4
Table of Contents
A Look at the Operation Panel 6
1. Installation 9
Unpacking Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Loading the Imaging Film. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Loading Printing Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Entering Your Name and Fax Number. . . . . . . . . . . . . . . . . . . . . . . 17
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the Reception Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Flash Select Setting for PBX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2. Using the Answering Machine 25
Recording an Outgoing Message. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operating the Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Optional Answering Machine Settings . . . . . . . . . . . . . . . . . . . . . . . 30
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Override Ringing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Remote Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3. Sending Faxes 43
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Adjusting the Resolution and Contrast. . . . . . . . . . . . . . . . . . . . . . . 45
Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Sending a Fax by Automatic Dialling . . . . . . . . . . . . . . . . . . . . . . . . 49
Sending a Fax From Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
4. Receiving Faxes 58
Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Optional Reception Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
all.bookPage4Wednesday,January30,20022:32PM

Table of Contents
5
5. Making Copies 67
6. Special Functions 69
Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . .69
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . .74
Polling (Requesting a Fax Transmission) . . . . . . . . . . . . . . . . . . . . .75
PBX operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
7. Printing Lists 77
8. Maintenance 80
9. Troubleshooting 83
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Quick Reference Guide 92
Index 93
all.bookPage5Wednesday,January30,20022:32PM

6
Display
This displays messages and prompts to help you operate the machine.
REC/MEMO key
Press this key to record an outgoing message, phone conversation, or memo.
PLAY key
Press this key to play recorded messages.
Left and right arrow keys
Auto-dial numbers: When sending a fax or making a phone call, press these
keys to scroll through your auto-dial numbers, the “REVIEW CALLS”list (only
available if you have Caller ID), and the last number dialled (redial).
FUNCTION key settings: Press the right arrow key after scrolling with the up
and down arrow keys to select a FUNCTION key setting.
Number keys
Use these keys to dial numbers, and enter numbers and letters when storing
auto-dial numbers.
Panel release
Press this release to open the operation panel.
STOP key
Press this key to cancel an operation before it is completed.
A Look at the Operation Panel
1
2
3
4
5
6
REC/
MEMO
PLAY
JKL
DELETE
REPEAT
ABC
1DEF
WXYZ9
GHI 45MNO 6
PQRS
STOP COPY/HELP START/MEMORY
RESOLUTION/
RECEPTION MODE
FUNCTION
REDIAL
Z A
7TUV 8
SKIP
0
2 3
TEL FAX
R
POLL
TEL/FAX A.M.
1
7 8 9 11 12 14
4 5 6
D
O
W
N
U
P
10 15 16 17
2 3
13
7
all.bookPage6Wednesday,January30,20022:32PM

7
COPY/HELP/POLL key
When a document is in the feeder, press this key to make a copy of a
document. When a document is not in the feeder, press this key to print out
the Help List, a quick reference guide to the operation of your fax machine.
This key is also used after dialling to poll (request fax transmission from)
another machine.
START/MEMORY key
Press this key after dialling to begin fax transmission. Press this key before
dialling to send a fax through memory.
RESOLUTION / RECEPTION MODE key
When a document is in the feeder, press this key to adjust the resolution for
faxing or copying. At any other time, press this key to select the reception
mode (an arrow in the display will point to the currently selected reception
mode).
FUNCTION key
Press this key followed by the arrow keys to select special functions and
settings.
R key
If you are on a Flash-type PBX, use this key to dial out (first press the Rkey
and then dial the number).
UP and DOWN arrow keys
Enlarge/reduce setting: When making a copy of a document, press these
keys to select an enlarge/reduce setting.
Volume setting: When a document is not in the feeder, press these keys to
change the speaker volume when the key has been pressed, or the ringer
volume at any other time.
FUNCTION key settings: Press these keys after pressing the FUNCTION
key to scroll through the FUNCTION MODE settings.
key
Press this key to listen to the line and fax tones through the speaker when
faxing a document.
REPEAT key
Press this key while listening to a message to play it again.
SKIP key
Press this key while listening to a message to skip to the next message.
DELETE key
Press this key to erase recorded messages.
11
10
9
8
12
13
14
15
16
17
all.bookPage7Wednesday,January30,20022:32PM

8
Monitoring phone conversations
When speaking through the handset, you can press to allow a third
person to listen to the conversation through the speaker. (To turn off the
speaker, press the key again.)
To adjust the volume of the speaker when monitoring a conversation, press
or (the volume reverts to the lowest setting each time the handset is
replaced).
Note that the speaker cannot be used for speaking; it is only for listening.
To avoid feedback (a loud howling sound), be sure to turn off the speaker
(press once again) before you replace the handset.
all.bookPage8Wednesday,January30,20022:32PM

9
1. Installation
Unpacking Checklist
Points to keep in mind when setting up
Do not place the
machine in direct
sunlight.
Do not place the
machine near
heaters or air
conditioners.
Keep dust away from
the machine. Keep the area around the
machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper scanning of
documents for transmission. To remove the condensation, turn on the power
and wait approximately two hours before using the machine.
Paper tray Paper tray
extension Operation
manual Gears (2)
Handset Handset cord Telephone
line cord Imaging film (initial starter roll)
If any are missing,
contact your
dealer or retailer.
Before setting up,
make sure you
have all of the
following items.
Extension
telephone
adapter
all.bookPage9Wednesday,January30,20022:32PM

Connections
10
Connections

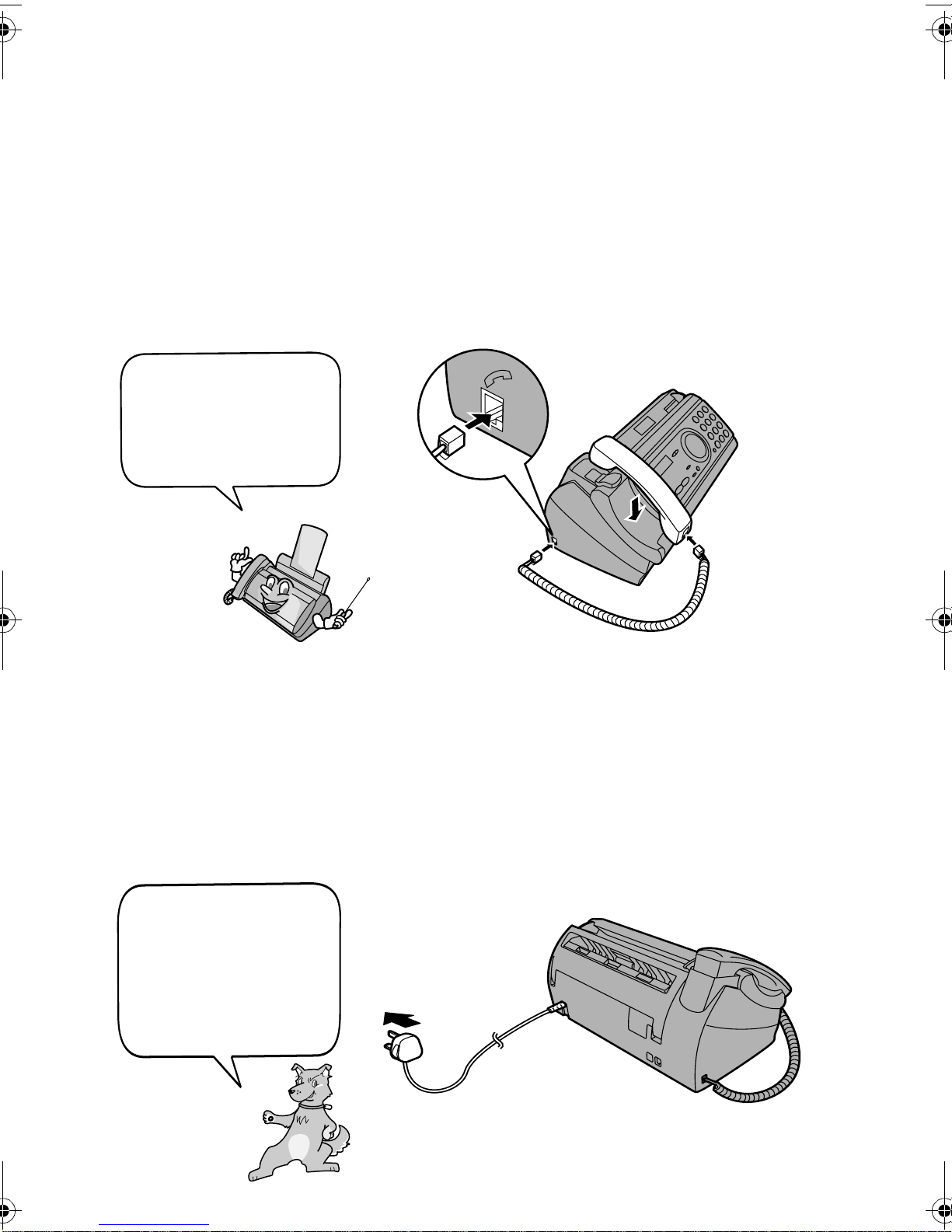

Connecting the handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into either
socket.
Make sure the handset
cord goes into the
socket marked with a
handset symbol on the
side of the machine!
Use the handsetto make ordinary phone calls,
or to transmit and receive faxes manually.
Connecting the power cord
Plug the power cord into a 230 V, 50 Hz, earthed (3-prong) AC outlet.
Caution!
The power outlet must be installed near the equipment and must be easily
accessible.
The machine does not
have a power on/off
switch, so the power is
turned on and off by
simply plugging in or
unplugging the power
cord.
all.bookPage10Wednesday,January30,20022:32PM

Connections
11
1. Installation
Connecting the telephone line cord
Insert one end of the line cord into the socket on the back of the machine
marked TEL. LINE. Insert the other end into a wall telephone socket.
TEL.SET TEL.LINE
Comments:
♦The fax machine is not designed for use on a line which has call waiting,
call forwarding, or certain other special services offered by your telephone
company. If you attempt to use the fax machine in conjunction with any of
these services, you may experience errors during transmission and
reception of facsimile messages.
♦The fax machine is not compatible with digital telephone systems.
♦If your area experiences a high incidence of lightning or power surges, we
recommend that you install surge protectors for the power and telephone
lines. Surge protectors can be purchased from your dealer or at most
electronics shops.
Be sure to insert
the line into the
TEL. LINE socket.
Do not insert it
into the TEL. SET
socket!
all.bookPage11Wednesday,January30,20022:32PM

Connections
12

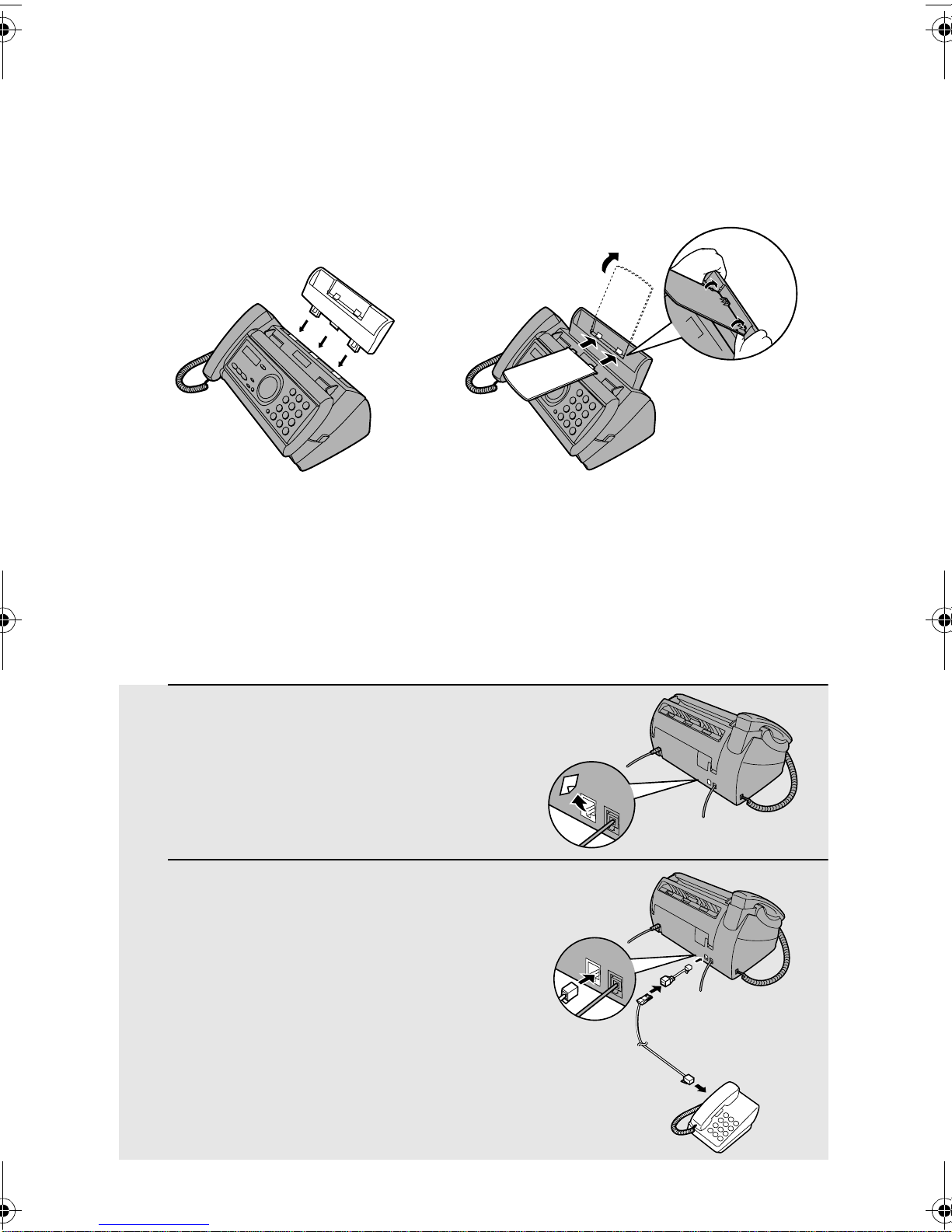

Attach the paper tray and paper tray extension
Attach the paper tray and paper tray extension.
Note: The paper tray extension has a top side
and a bottom side. If you cannot insert the
tabs into the holes, turn the support over.
Click!
Insert
horizontally
and rotate up
Extension phone (optional)
If desired, you can connect an extension phone tothe TEL. SET socket onthe
fax.
1Remove the seal covering the TEL. SET
socket.
2Connect the extension phone line to
the TEL. SET socket using the
provided adapter.
•Eire: Insert the extension phone line
directly into the TEL. SET socket.
TEL.SETTEL.LINE
TEL.LINE
TEL.SET
all.bookPage12Wednesday,January30,20022:32PM

Loading the Imaging Film
13
1. Installation
Loading the Imaging Film
Your fax uses a roll of imaging film to create printed text and images. The print
head in the fax applies heat to the imaging film to transfer ink to the paper.
Follow the steps below to load or replace the film.
1Remove the paper from the paper tray
and open the operation panel (press
➊).
2Remove the used film and
empty spool.
3Remove the two green gears from the
spools.
DO NOT DISCARD THE TWO GREEN
GEARS!
1
2
When replacing the film,
use a roll of Sharp UX-
6CR imaging film. One
roll can print about 150
A4-size pages.
The initial starter roll of
imagingfilmincludedwith
your fax can print about
30 A4-size pages.
If you are loading the imaging film for
the first time, go to Step 4.
all.bookPage13Wednesday,January30,20022:32PM

Loading the Imaging Film
14
4Remove the new roll of imaging film
from its packaging.
•Cut the band that holds the rolls
together.
5Insert the green gears.
6Insert the film into the print
compartment.
7Rotate the front gear as shown until
the film is taut.
8Close the operation panel (press down
on both sides to make sure it clicks
into place).
Fit ends of rolls
onto hubs
Make sure the
gears fit into the
slots in the ends
of the rolls.
1 slot
2 slots
Thick roll
to rear
all.bookPage14Wednesday,January30,20022:32PM

Loading Printing Paper
15
1. Installation
1Fan the paper, and then tap the edge
against a flat surface to even the stack.
2Insert the stack of paper into the tray,
PRINT SIDE DOWN.
•If paper remains in the tray, take it out and combine it into a single stack
with the new paper.
•Be sure to load the paper so that printing takes place on the print side of
the paper. Printing on the reverse side may result in poor print quality.
•GENTLY LOAD THE PAPER IN THE PAPER TRAY.
•DO NOT FORCE THE PAPER DOWN INTO THE FEED SLOT.
Note: Do not use paper that has already been printed on, or paper that is curled.
Loading Printing Paper
You can load up to 50 sheets of A4-size, 60 - 80 g/m2paper in the paper tray
(at room temperature; maximum stack height should not be higher than the
line on the tray).
Note: If at any time the display shows the
alternating messages at right, check the printing
paper. If the tray is empty, add paper. If there is
paper in the tray, take it out and then reinsert it.
When you are finished, press .
START/MEMORY
ADD PAPER &
PRESS START KEY
The stack should not be
higher than this line.
(This line is the reference
position for the maximum
number of sheets. If sheets
are above this line, press
down with your finger. If
some sheets remain above
this line after this, please
remove.)
Correct Incorrect
all.bookPage15Wednesday,January30,20022:32PM

Loading Printing Paper
16
Print contrast setting
Your fax has been set at the factory to print at normal contrast. If desired, you
can change the print contrast setting to LIGHT or DARK.
1Press once and once.
2Press once and twice.
3Press once.
4Select the print contrast:
NORMAL: LIGHT: DARK:
5Press to return to the date and time display.
FUNCTION
12 3
STOP
Display:
The display briefly shows
your selection, then:
OPTION SETTING
PRINT CONTRAST
COPY CUT-OFF
1:NORMAL
all.bookPage16Wednesday,January30,20022:32PM

Entering Your Name and Fax Number
17
1. Installation
Entering Your Name and Fax Number
Once you enter this
information, it will
automatically appear at
the top of each fax page
you send.
Before you can begin sending
faxes, you must enter your
name and fax (telephone)
number. You also need to set
the date and time.
FUNCTION
START/MEMORY
STOP
1Press once and 3 times.
2Press once.
3Press once.
FUNCTION
1
9
45 6
78
0
2 3
Display:
ENTER FAX #
ENTRY MODE
OWN NUMBER SET
all.bookPage17Wednesday,January30,20022:32PM

Entering Your Name and Fax Number
18
4Enter your fax number by pressing the number keys (max. 20 digits).
•To insert a space between digits, press . To enter a “+”, press .
•To clear a mistake, press .
5Press to enter the fax number in memory.
6Enter your name by pressing number keys for each letter as shown in
the chart below. Up to 24 characters can be entered.
Example: SHARP = 7777 44 2 777 7
♦To enter two letters in succession that require the same key, press
after entering the first letter.
♦To clear a mistake, press .
♦To enter a lower case letter, continue pressing the key for the letter until the
lower case letter appears. To enter one of the following symbols, press
or repeatedly: . / ! " # $ % & ’( ) ++ , - : ; < = > ? @ [ ¥] ^ _ ' { | } ) (
7Press
8Press to return to the date and time display.
START/MEMORY
START/MEMORY
STOP
Display:
DATE&TIME SET
A =
B =
C =
D =
E =
F =
G =
H =
I =
J =
K =
L =
M =
N =
O =
P =
Q =
R =
S =
T =
U =
V =
W =
X =
Y =
Z =
SPACE =
all.bookPage18Wednesday,January30,20022:32PM
