Sharp UX-B800A User manual

SERVICE MANUAL
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] Caution........................................................... 1-1
[2] Specifications ................................................. 1-2
[3] Operation panel.............................................. 1-3
[4] Transmittable documents ............................... 1-5
[5] Installation ...................................................... 1-6
[6] Scan to E-mail.............................................. 1-10
[7] Clearing paper jams ..................................... 1-12
[8] Quick reference guide .................................. 1-13
CHAPTER 2. ADJUSTMENTS
[1] Adjustments ................................................... 2-1
[2] Diagnostics and service soft switch ............... 2-2
[3] Troubleshooting ........................................... 2-40
[4] Error code table............................................ 2-41
CHAPTER 3. MECHANISM BLOCKS
[1] General description ........................................ 3-1
[2] Ink jet printer .................................................. 3-3
[3] Disassembly and assembly procedures......... 3-5
CHAPTER 4. DIAGRAMS
[1] Block diagram ................................................ 4-1
[2] Wiring diagram ............................................... 4-2
[3] Point-to-point diagram.................................... 4-3
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Circuit description ..........................................5-1
[2] Circuit description of control PWB ................5-2
[3] Circuit description of LIU PWB ....................5-13
[4] Circuit description of power supply PWB......5-15
[5] Circuit description of CIS unit ......................5-15
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT
[1] Control PWB circuit .......................................6-1
[2] LIU PWB circuit ...........................................6-14
[3] Power Supply PWB circuit...........................6-19
[4] Operation Panel PWB circuit .......................6-21
CHAPTER 7. OTHER
[1] Protocol .........................................................7-1
[2] Power on sequence.......................................7-2
[3] Service tools ..................................................7-3
[4] Rewriting version up the FLASH ROM ..........7-6
Parts Guide
TopPage
CONTENTS
UX-B800A
No. 00ZUXB800ASME
FACSIMILE
UX-B800A
MODEL
MODEL SELECTION CODE DESTINATION
UX-B800 AAustralia

UX-B800A
1 – 1
UX-B800A Service Manual
CHAPTER 1. GENERAL DESCRIPTION
[1] Caution
1. Caution for Battery replacement
2. Precautions for using Lead-Free Solder
(Danish) ADVARSEL !
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandoren.
(English) Caution !
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the equipment manufacturer.
Discard used batteries according to manufacturer's instructions.
(Finnish) VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
(French) ATTENTION
Il y a danger d'explosion s' il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
même type ou d'un type recommandé par le constructeur.
Mettre au rébut les batteries usagées conformément aux
instructions du fabricant.
(Swedish) VARNING
Explosionsfare vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens
instruktion.
(German) Achtung
Explosionsgefahr bei Verwendung inkorrekter Batterien.
Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder
vom Hersteller empfohlene Batterien verwendet werden.
Entsorgung der gebrauchten Batterien nur nach den vom
Hersteller angegebenen Anweisungen.
1. Employing lead-free solder
The Control PWB, LIU PWB, Power Supply PWB and Operation Panel PWB of this model employs lead-free solder.
This is indicated by the "LF" symbol printed on the PWB and in the service manual.
The suffix letter indicates the alloy type of the solder.
Example:
Indicates lead-free solder of tin, silver and copper.
2. Using lead-free solder
When repairing a PWB with the "LF" symbol, only lead-free solder should be used. (Using normal tin/lead alloy solder may
result in cold soldered joints and damage to printed patterns.)
As the melting point of lead-free solder is approximately 40°C higher than tin/lead alloy solder, it is recommended that a
dedicated bit is used, and that the iron temperature is adjusted accordingly.
3. Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is higher and has poorer melting point (flow), to prevent damage to the
land of the PWB, extreme care should be taken not to leave the bit in contact with the PWB for an extended period of time.
Remove the bit as soon as a good flow is achieved.
The high content of tin in lead free solder will cause premature corrosion of the bit.
To reduce wear on the bit, reduce the temperature or turn off the iron when it is not required.
Leaving different types of solder on the bit will cause contamination of the different alloys, which will alter their
characteristics, making good soldering more difficult.
It will be necessary to clean and replace bits more often when using lead-free solder. To reduce bit wear, care should be
taken to clean the bit thoroughly after each use.

UX-B800A
1 – 2
[2] Specifications
Print cartridge yield1, 2:Replacement cartridge: SHARP UX-C80B
Ink Save mode ON: Approx. 800 A4 pages
Ink Save mode OFF: Approx. 480 A4 pages
(The initial cartridge has the same yield as the above replacement cartridge.)
Paper tray capacity: Approx. 200 A4 sheets (60 to 80 g/cm2) (At room temperature; maximum stack height should not be
higher than the line on the tray)
Recording system: Thermal inkjet
Print resolution: 600 x 600 dpi
Effective printing width: 203 mm max.
Scan to E-mail: Yes; requires an Internet connection and a router, switch, or hub to connect the machine. LAN cable
(10Base-T straight-through cable) must be purchased separately.
LAN interface: 10Base-T IEEE802.3
File formats: Tiff (G4), PDF (G4)
Memory capacity2:Approx. 100 average pages
Modem speed: 14,400 bps with auto fallback to lower speeds.
Transmission time2:Approx. 6 seconds
Compatibility: ITU-T (CCITT) G3 mode
Compression scheme: MR, MH, MMR
Storable transmission destinations: Rapid Keys: 36 A, B, C keys: 3(e-mail only)
Speed Dial numbers: 63
Telephone function: Yes (cannot be used if power fails)
Effective scanning width: 208 mm max.
Applicable telephone line: Public switched telephone network
Reception modes: AUTO, MANUAL, TEL/FAX
Automatic document feeder: A4: 20 sheets max. (60 - 80 g/cm2. paper; temperature: 18 - 28°C; humidity: 45 - 65% RH)
Input document size: Automatic feeding:
Width: 148 to 210 mm
Length: 140 to 297 mm
Manual feeding:
Width: 70 to 210 mm
Length: 140 to 356 mm
Scanning Resolution: Standard: 203 x 98 dpi
Fine: 203 x 196 dpi
Super fine: 203 x 391 dpi
Halftone: 203 x 196 dpi
Halftone (grayscale): 64 levels
Contrast control: Automatic/Dark selectable
Copy function: Single/Multi/Sort (99 copies/page)
Display: LCD display, 20 digits x 2 lines
Power requirements: 230-240 V AC, 50 Hz
Power consumption: Standby: 6.0 W, Maximum: 40 W
Operating temperature: 15 - 32°C
Humidity: 25 - 80% RH
Dimensions (without attachments): Width: 380 mm
Depth: 280 mm
Height: 156 mm
Weight (without attachments): Approx. 4.5 kg
1lnk Save mode is initially turned off. To turn on Ink Save mode.
2Based on Sharp Standard Chart at standard resolution, excluding time for protocol signals (i.e., ITU-T phase C time only).
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.

UX-B800A
1 – 3
[3] Operation panel
1. Number key: Use to dial numbers.
2. SCAN TO E-MAIL key: Press to send a document
to an e-mail recipient.
3. Display: This displays messages to help
you operate the machine.
4. A, B, C keys: An e-mail address can be stored in
each key for one-touch selection.
5. RESOLUTION/RECEPTION key: When a document
is in the feeder, press to adjust the scanning resolution.
At any other time, press to select the reception mode.
6. FUNCTION key: Press this key followed by the arrow
keys to select special functions and settings.
7. COPY/HELP key: When a document is in the feeder,
press to make a copy. At any other time, press to print the
Help List.
8. STOP key: Press to cancel an operation before it is
completed.
9. Group keys: Multiple fax or e-mail destinations can be
stored in each key for one-touch selection.
10. Rapid keys/Letter keys: A fax number or e-mail address
can be stored in each of these keys for one-touch selection
(attach the Rapid Key labels). When entering text, the keys
are used as letter keys.
11. BROADCAST key: Press to send to multiple fax or e-mail
destinations.
12. SECURE key: Press to use the fax secure receive function.
13. DUPLEX key: Use to scan two-sided documents
for transmission and copying.
14. SPEED DIAL key: Press to select a fax or e-mail
destination stored in a 2-digit Speed Dial number.
15. HOLD key: Press to put a phone call on hold.
16. SPEAKER key: Press to listen to the line and fax tones
through the speaker when faxing.
Note: This is not a speakerphone. It cannot be used for
speaking.
17. START/MEMORY key: Press after dialing to send a fax.
Press before dialing to send a fax through memory. Press in
the date and time display to show the percentage of memory
currently used.
18. Arrow key: Use to scroll through and select settings, and
to search for stored destinations.
145 2376
1110 13 14 15 9 12
8
16 17 18
Note: Affix the Rapid Key labels as shown above.
FUNCTION
UP
COPY/HELP STOP
DOWN
SPEED DIAL
HOLD
ZA
SPEAKER
REDIAL
RESOLUTION/
RECEPTION MODE
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21
22 23 24 25 26 27 28 29 30 31
32 35 36
DEFABC
JKLGHI
PQRS TUV
MNO
WXYZ
33/G1 34/G2
DEL
B'CAST SECURE DUPLEX

UX-B800A
1 – 4

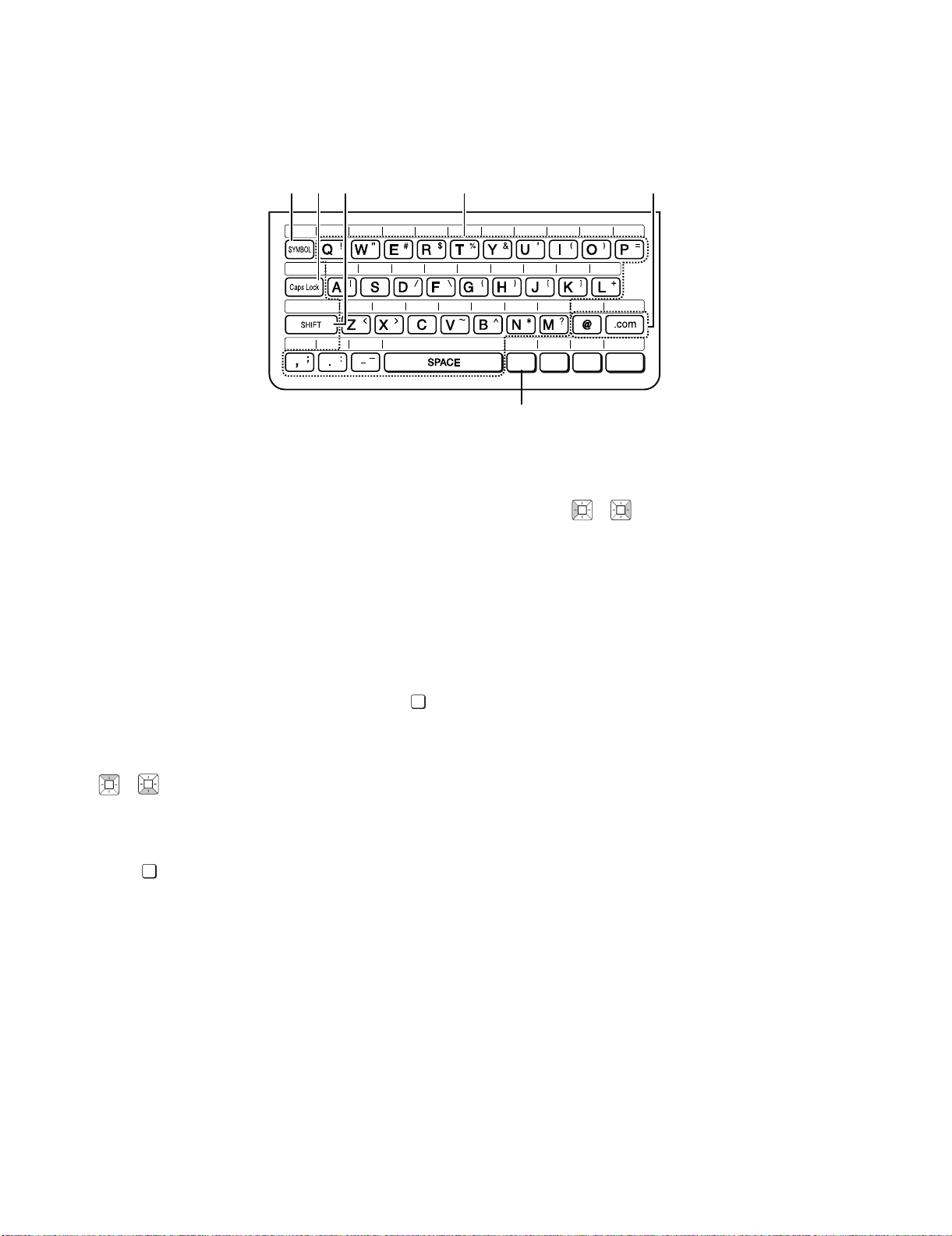

1. SYMBOL key: Press to enter a symbol (the character
appearing on the right side of each letter key). Press again
to return to normal letter entry mode.
2. Caps Lock key: Press to enter upper case letters.
Press again to return to lower case letter entry.
3. SHIFT key: Hold down to temporarily change case.
4. Letter keys: Use to enter letters.
5. @ key, .com key: Press to enter "@" and ".com" when
entering an e-mail address.
6. DEL key: Press to delete the character marked by the
cursor. When the cursor is to the right of a line of text, press
to backspace and clear characters. (The cursor can be moved
by pressing or .) To delete all entered characters, hold
down until all characters are cleared.
14 523
6
Letter keys
Use these keys when the display prompts you to enter
a name, e-mail address, or other text.
When speaking through the handset, you can press to allow a third
person to listen to the conversation through the speaker. (To turn off the
speaker, press the key again.)
To adjust the volume of the speaker when monitoring a conversation, press
or (the volume reverts to the lowest setting each time the handset
is replaced).
Note that the speaker cannot be used for speaking; it is only for listening.
To avoid feedback (a loud howling sound), be sure to turn off the speaker
(press once again) before you replace the handset.
Monitoring phone conversations
DEL
B'CAST SECURE DUPLEX
SPEAKER
SPEAKER

UX-B800A
1 – 5
[4] Transmittable documents
1. Document Sizes
Use document carrier sheet for smaller documents.
• With special sizes, only one sheet can be fed into the machine at a
time. Insert next page into feeder as current page is being scanned.
2. Paper Thickness & Weight
3. Document Types
• Normal paper
Documents handwritten in pencil (No. 2 lead or softer), fountain
pen, ball-point pen, or felt-tipped pen can be transmitted.
Documents of normal contrast duplicated by a copying machine
can also be transmitted.
• Diazo copy (blue print)
• Diazo copy documents of a normal contrast may be transmitted.
• Carbon copy
A carbon copy may be transmitted if its contrast is normal.
4. Cautions on Transmitting Documents
• Documents written in yellow, greenish yellow, or light blue ink can-
not be transmitted.
• Ink, glue, and correcting fluid on documents must be dry before the
documents can be transmitted.
• All clips, staples and pins must be removed from documents before
transmission.
• Patched (taped) documents should be copied first on a copier and
then the copies used for transmission.
• All documents should be fanned before insertion into the feeder to
prevent possible double feeds.
5. Automatic Document Feeder Capacity
Number of pages that can be placed into the feeder at as follows:
Normal size: max. ADF 20 pages
• Temperature: 18 ~ 28°C
• Humidity: 45 ~ 65%
Special size: single sheet only (manual feed)
NOTE
• When you need to send or copy more pages than the feeder
limit, place additional pages in feeder when last page in feeder is
being scanned.
• Place additional pages carefully and gently in feeder. If force is
used, double-feeding or a document jam may result.
6. Readable Width & Length
The readable width and length of a document are slightly smaller than
the actual document size.
Note that characters or graphics outside the effective document scan-
ning range will not be read.
•Readable width
208mm, max
•Readable length
This is the length of the document sent minus 4mm from the top
and bottom edges.
Normal size Width 148 - 210 mm
Length 140 - 297 mm
10 sheets 1 sheet (Manual)
Paper weight 20 lbs.
(74.3 g/m2)
at the environment
23 ±5°C
55 ±10%
14 lbs. ~ 42 lbs.
(52 g/m2~ 157g/m2)
Paper thickness (ref.) 0.09 mm 0.06 mm ~ 0.18mm
Paper size A4 (210 mm x 297 mm)
Feeder capacity A4: 10 sheets max.
(Min.)
(Max.)
A4 size
(Max.)
140mm
297mm
356mm
70mm
[Special size]
210mm
[Normal size]
210mm
[Special size]
Readable widt
h
4mm
4mm
Readable length

UX-B800A
1 – 6
[5] Installation
1. Site selection
Take the following points into consideration when selecting a site for
this model.
ENVIRONMENT
• The machine must be installed on a level surface.
• Keep the machine away from air conditioners, heaters, direct sun-
light, and dust.
• Provide easy access to the front, back, and sides of the machine.
In particular, keep the area in front of the machine clear, or the orig-
inal document may jam as it comes out after scanning.
• The temperature should be between 15 - 32°C.
• The humidity should be between 25% and 80% (without conden-
sation).
ELECTRICITY
AC 230-240 V, 50 Hz, earthed AC outlet is required.
Caution!
• Connection to a power source other than that specified will cause
damage to the equipment and is not covered under the warranty.
• If your area experiences a high incidence of lightning or power
surges, we recommend that you install a surge protector for the
power and telephone lines. Surge protectors can be purchased at
most telephone specialty stores.
If the machine is moved from a cold to a warm place...
Condensation may form on the reading glass if machine is moved from
a cold to a warm place, this will prevent proper scanning of documents
for transmission. Turn on the power and wait approximately 2 hours
before using machine.
TELEPHONE JACK
A standard telephone jack must be located near the machine. This is
the telephone jack commonly used in most homes and offices.
• Plugging the fax machine into a jack which is not a standard analog
telephone jack, may result in damage to the machine or your tele-
phone system.
2. Removing the packing tape
1) Open the cover ( ) and remove the tape ( ). (Do not install
the print cartridge yet.)
2) Close the cover.
3. Connect the handset
4. Attaching the tray
1) Attach the received document tray
2) Attach the paper tray
1 2
1
2
Attach the document exit tray and
flip out the extension.
Pull the received document tray extension
all the way out.

UX-B800A
1 – 7
5. Loading Paper
Approximately 200 sheets of A4-size paper (60 - 80 g/m2) can be
loaded in the paper tray (at room temperature; maximum stack height
should not be higher than the line on the tray).
1) Fan the paper, and then tap the edges against a flat surface to
even the stack.
2) Pull the paper plate forward and insert the stack of paper into the
tray, print side up.
• If paper remains in the tray, take it out and combine it into a sin-
gle stack with the new paper.
• Printing on the reverse side of the paper may result in poor print
quality.
• Do not use paper that has already been printed on or is curled.
• Remove received faxes and other printed output before about
50 sheets accumulate in the received document tray (otherwise
the sheets may scatter).
6. Connecting the power cord
Caution! Remove all packing tape before plugging in the power
cord, or machine to the machine may result.
• The power outlet must be installed near the equipment and must be
easily accessible.
Plug the plug adapter into a 230-240 V, 50 Hz, earthed (3-prong) AC
outlet.
• The display will show [CHECK CARTRIDGE] until you install the
print cartridge.
7. Installing the print cartridge
Caution! Do not open the cover while the machine is printing.
Note: Keep ink cartridges sealed in their packages until you are ready
to install them. It is recommended that you do not use a cartridge that
has been left unused for a long time after opening, as the print quality
may be considerably degraded.
• Make sure the machine's power cord is plugged in and paper is
loaded in the paper tray.
1) Open the cover (grasp the finger grip).
If at any time the display shows [ADD PAPER &] / [PRESS START
KEY], check the paper tray. If the tray is empty, add paper. If there is
paper in the tray, take it out and then reinsert it.
When finished, press .
The stack must not be
higher than this line.
When disconnecting the machine, always disconnect the phone line
before you disconnect the power cord. When re-connecting the
machine, always connect the power cord before connecting the
phone line.
It is recommended that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most tele-
phone specialty sotres.
Print cartridge yield
SHARP UX-C80B replacement cartridge
Ink Save mode OFF: Approx. 480 A4 pages
Ink Save mode ON: Approx. 800 A4 pages (The initial cartridge has
the same yield as the replacement cartridge.)
• Ink Save mode is initially turned off. To turn on Ink Save mode.
If the display shows [PRINTER ERROR] or [PRINTER ERROR/
CHECK PAPER], open the cover and check for jammed paper.
Remove any jammed paper and close the cover.

UX-B800A
1 – 8
2) Remove only the tape from the new cartridge.
•Make sure all tape is removed.
•CAUTION! DO NOT touch the gold contact area on the car-
tridge.
3) Make sure the cartridge holder is in the position shown. Place your
fingers on top of the holder and open the holder release.
•CAUTION! DO NOT touch the gold contact area or pull on the
cable.
• If you are replacing the cartridge, remove the old cartridge. If
you are going to use the old cartridge again, place it in an air-
tight container (containers for this purpose can be purchased at
most office supply stores).
4) Insert the new print cartridge ( ). Close the holder ( ), mak-
ing sure it clicks into place.
5) Close the cover, pressing firmly on both front corners.
Display: [CHANGE CARTRIDGE]/[1=NEW, 2=OLD].
6) Press (NEW) if the cartridge you installed is new.
Display: [NEW CARTRIDGE?] / [OK:PRESS START]
Press (OLD) if the cartridge you installed is old.
7) Press .
If you selected "OLD" in the previous step, this completes the
installation procedure. (Note: If you find that print quality is not sat-
isfactory, align the print cartridge.)
If you selected "NEW", the machine will print an alignment page.
Continue with the steps below.
8) In the alignment page, locate the line that is closest to a straight
line.
In this example, "15" is closest to a straight line.
9) Enter the number of the straightest line with the number keys.
• To clear a mistake, press .
10)Press .
12
1
2
The machine is initially set to print high quality images, which require
more ink. If you prefer to use less ink and speed up drying time,
change the "INK SAVE MODE" setting to "ON".

UX-B800A
1 – 9
8. Connecting the Phone Line
Connect the phone line cord to the TEL. LINE socket and a wall tele-
phone socket (use the provided adapter if needed).
The machine is initially set for tone dialing. If you are on a pulse dial
line, change the "DIAL MODE" setting.
It is recommended that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most tele-
phone specialty stores.
TEL.
LINE
TEL.
SET
TEL. LINE
socket
Wall phone socket

UX-B800A
1 – 10
[6] Scan to E-mail
The Scan to E-mail feature lets you scan a document and directly send
the image to an e-mail recipient.
• This saves you the trouble of scanning the document into a com-
puter and sending the scanned file using an e-mail program.
• The scanned document is sent as an attachment to an e-mail mes-
sage. The attached file can be in TIFF or PDF format.
Requirements
To use Scan to E-mail, you must.
• Have an Internet connection.
• Have a broadband router or LAN switch/hub through which you can
connect the machine to the Internet (the router is usually connected
to a cable modem or DSL modem).
A typical setup is shown below.
Note: The Scan to E-mail function is not compatible with mail serv-
ers that require security protection (SSL).
1. Connecting the Machine
The machine is connected using an Ethernet cable (not included).
Please purchase a 10Base-T straight-through (regular) cable that sup-
ports 10Base-T.
Connect one end of the cable to the LAN port on the machine.
Connect the other end to a LAN port on your router, switch, or hub.
• If you are uncertain which port to connect the cable to, see the
manual for the router, switch or hub.
• The connections can be made with all devices powered on.
• For other questions about how the machine should be connected,
consult your Internet service provider.
1. IP address
The machine requires an IP address to communicate on the Internet.
If your network is set up to automatically assign IP addresses, you do
not need to do anything; the machine will automatically receive an IP
address when it is connected.
If your network requires that a static (permanent) IP address be
assigned to the machine, see Network Settings to enter the IP address
and related information.
2. Checking your IP address and the connection
To check the machine's IP address and verify that the machine is able
to communicate on the network, follow these steps.
1) Press , then until [NETWORK SETTING] appears.
2) 2 Press , then to show [NETWORK INFORMA-
TION]
3) 3 Press .
• If the machine has automatically received an IP address and is
able to communicate, [IP ADDRESS/DHCP: ON] will appear on
the top line of the display, followed by the IP address on the bot-
tom line. To show the machine's host name, press .
• If a static IP address has been entered in the machine and the
machine is able to communicate, [IP ADDRESS/DHCP: OFF]
will appear on the top line of the display, followed by the IP
address on the bottom line. To show the machine's host name,
press .
• If the machine was unable to receive an IP address automati-
cally, or if the router locked up after the machine received an IP
address, [IP ADDRESS/DHCP: FAIL] / [192.168. 1 .201] will
appear. "192.168. 1 .201" is an IP address that is assigned to
the machine for diagnostic purposes when connection fails (it
cannot be used for regular communication).
• If [NOW CONNECTING/CHECK LATER] appears, press
to exit. Make sure the cable is connected correctly, wait briefly,
and then repeat the procedure again.
3. If the machine is unable to communicate...
• Check the Ethernet cable. Are the connections secure? Are you
using straight-through (not crossover) cable for 10Base-T?
• There may be a problem in the router or other device to which
the machine is connected. Try removing and then restoring the
power to the router (see the manual for the router).
• If [IP ADDRESS/DHCP: FAIL] appears, remove and then rein-
sert the Ethernet cable plug, and repeat the procedure to check
the machine’s IP address. If the same message appears, check
the device that acts as the DHCP server on your network (try
removing and restoring the power). If your router is your DHCP
server, make sure that DHCP is enabled in the router settings. If
your network does not have a DHCP server, set a static IP
address as explained.
• If a static IP address has been set, make sure that the network
settings are correct.
Cable/DSL
modem
Router
LAN ports
(Hub/Switch)
LAN cable LAN cable
LAN cable
LAN cable
WAN port
Internet
Automatic assignment of IP addresses is normally performed by a
DHCP server, which may be a computer, router, or other device on
the network. (Most routers used on home networks contain a DHCP
server.)
FUNCTION
STOP

UX-B800A
1 – 11
2. E-mail Settings
Before the Scan to E-mail function can be used, you must configure
the e-mail settings.
The e-mail settings specify your outgoing mail server, as well as your
sender name, sender address, and other items that appear in the e-
mail message to which scanned image files are attached.
• It is easiest to configure the e-mail settings in the machine's Web
page. The machine's Web page can be accessed from any com-
puter on the same network as the machine.
• The e-mail settings can also be configured using the machine's
operation panel.
Note: If your Internet service provider requires that you configure
"SMTP Authentication" or "POP before SMTP" settings, you must use
the Web page.
If you do not know your SMTP server name or the settings that are
required, ask your Internet service provider.
1. Accessing the machine's Web page
To access the Web page, you will need to know the machine's host
name or IP address (usually it is most convenient to use the host
name).
To check the machine's host name or IP address, follow the procedure
in Checking your IP address and the connection, or print the Network
Settings List.
Type in the host name or IP address of the machine in the Address bar
of the Web browser on your computer.
The Web page menu will appear. Select E-mail Setup and configure
the settings. For explanations of the settings, click Help in the Web
page menu.
Note: If the Web page is used while the machine is in operation
(except for voice calls using the handset), machine operation may
become unstable.
2. Using the machine's operation panel to configure the settings
Follow the steps below to display the e-mail settings, and then config-
ure each setting as explained in the table on the next page.
1) Press , then until [E-MAIL SETTING] appears.
2) Press , then repeatedly until the setting that you
wish to configure appears.
3) Press . (Note: This step is not necessary for the "FILE
FORMAT" setting.)
4) Enter the required information for the setting as explained in the
table on the next page.
5) After configuring the setting, the next e-mail setting will appear in
the display. You can configure the next setting, or press to
exit.
3. E-mail settings
Enter the required information for each setting as explained below.
This is done in step 4 of the procedure on the previous page.
• The sender address and SMTP server settings are required. The
other settings are optional.
• Use the letter keys to enter text. For information on using the letter
keys.
• The e-mail subject, e-mail message, and file format that you enter
below are default settings. They will be used if you do not specify
these items at the time of transmission.
FUNCTION
STOP
Setting Description
SENDER
NAME
Enter the sender name that will appear in the e-mail message
(max. of 50 characters). When finished, press .
SENDER
ADDRESS
Enter your sender e-mail address (max. of 128 characters). When
finished, press . (Note: Be sure to enter your actual e-mail
address. Return e-mail and undelivered mail reports will be sent to
this address. In addition, some STMP servers reject outgoing e-
mail if a valid sender e-mail address is not entered.)
E-MAIL
SUBJECT
Enter a default subject (max. of 128 characters). When finished,
press .
E-MAIL
MESSAGE
Enter a default message (max. of 256 characters). When finished,
press .
FILE FORMAT This sets the default format of the file that is created when you
scan a document. Press for TIFF or for PDF.
Initial setting: TIFF
SMTP SERVER Enter the host name or IP address of your outgoing (SMTP) mail
server (max. of 60 characters). When finished, press .

UX-B800A
1 – 12
[7] Clearing paper jams
1. Clearing a jammed document
If the original document doesn't feed properly during transmission or
copying, or [DOCUMENT JAMMED] appears in the display, first try
pressing . If the document doesn't feed out, remove it as
explained below.
Important: Do not try to remove a jammed document without releas-
ing it as explained below. This may damage the feeder mechanism.
1) Open the cover ( ). Rotate the lever so that points straight up
( ), and pull it up ( ). Pull the roller out to the right, and
remove the document ( ).
2) Replace the white roller, inserting the left end first. Push the lever
down and rotate it back down ( ). Close the cover, pressing
firmly on both front corners ( ).
2. Clearing jammed printing paper
1) Open the cover ( ). Pull the jammed paper forward or backward
out of the machine as appropriate ( ), taking care not to tear it.
2) Close the cover, pressing down firmly on both front corners.
COPY/HELP
1
2 3
4
3
2
4
1
1
2
2
1
1
2
2
1
2

UX-B800A
1 – 13
[8] Quick reference guide
1. Fax / Scan to E-mail Transmission
Place your document (up to 20 pages) face down in the document
feeder.
2. Sending a Fax by Normal Dialing
1. Lift the handset or press .
2. Dial the fax number.
3. Wait for the reception tone (if a person answers, ask them to press
their Start key).
4. Press .
3. Using a Rapid Key (fax/e-mail)
Press the Rapid Key for the destination.
4. Using a Speed Dial number (fax/e-mail)
1. Press .
2. Enter the appropriate 2-digit Speed Dial number and press
.
5. Searching for a destination (fax/e-mail)
1. Press or until the desired destination appears.
2. Press .
6. Receiving Faxes
Press until the desired reception mode appears in the dis-
play.
AUTO mode: The machine automatically answers and receives faxes.
MANUAL mode: Answer all calls (even faxes) by picking up the hand-
set. To begin fax reception, press .
TEL/FAX mode: The machine automatically answers and receives
faxes. Voice calls are signalled by a special ringing sound.
7. Storing Destinations
1. Press , , then .
2. Press an unused Rapid Key, or press and enter an
unused 2-digit Speed Dial number (01 to 63). (For an e-mail desti-
nation, you can also press the A, Bor Ckey and go to Step 4.)
3. Press for fax or for e-mail.
4. Enter the fax number or the e-mail address.
5. Press .
6. Enter a name with the letter keys.
7. Press and then .
1
2
SPEAKER
SPEED DIAL
RESOLUTION/
RECEPTION MODE
FUNCTION
SPEED DIAL
STOP

UX-B800A
2 – 1
UX-B800A Service Manual
CHAPTER 2. ADJUSTMENTS
[1] Adjustments
1. General description
Since the following adjustments and settings are provided for this
model, make adjustments and/or setup as necessary.
2. Adjustments of output voltage (FACTORY ONLY)
1. Install the power supply unit in the machine.
2. Set the recording paper and document.
3. When the document is loaded, power is supplied to the output
lines. Confirm that outputs are within the limits below.
2.1. Output voltage settings
3. IC protectors replacement
ICPs (IC Protectors) are installed to protect the CIS and Ope amp. cir-
cuit. ICPs protect various ICs and electronic circuits from an overcur-
rent condition.
The location of ICPs are shown below:
1) FU900 (KAB5002) is installed in order to protect overcurrent +24V
supply. If FU900 is open, replace it with a new one.
4. Settings
4.1. Dial mode selector
DIAL mode (Soft Switch No. SW-9 Data No. 8)
Use this to set the fax machine to the type of telephone line you are
on.
•The factory setting is “TONE”.
5. Volume adjustments
5.1. Speaker volume
5.2. Ringer volume
Output Voltage limits
+5V 4.75 - 5.25V
+30V 27.0 - 33.0V
Pin No. CNPW
1 +30V
2 +30V
3MG
4MG
5DG
6DG
7+5V
8+5V
CONTROL PWB
POWER SUPPLY PWB LIU PWB
CNPN CNSCANMT CNCIS CNLIU CNSP
CNPRT1 CNPRT2
CNCRMT
CNLIU
CNPW
CNPW
1
1
18
8
15
115
CNENC CNFDMT
CNLAN
CONTROL PWB
(TOP VIEW)
CNPN CNSCANMT CNCIS CNLIU CNSP
CNPRT1 CNPRT2
CNCRMT
CNPW
IC600
FU900
CNENC CNFDMT
CNLAN
(step 1) Select "OPTION SETTING".
KEY : FUNCTION , , ,
DISPLAY: OPTION SETTING PRESS KEY
(step 2) Select "DIAL MODE".
KEY: , , , ,
DISPLAY: DIAL MODE
1: TONE, 2: PULSE
(step 3) Select, using "1" or "2".
KEY:
DISPLAY: TONE
KEY:
DISPLAY: PULSE
(step 4) End, using the "STOP" key.
(Press the STOP key three times.)
KEY:
1
2
STOP
1 Press .
2 Press or to select
HIGH,MIDDLE,orLOW.
• Press again to turn off the
speaker.
SPEAKER
SPEAKER
1 Press or to select
HIGH , MIDDLE , LOW ,or OFF .
(Make sure has not been
pressed, the handset is not lifted,
and a document is not loaded in the
feeder.)
• The ringer will ring once at the
selected level.
2 If you selected " OFF OK ? "toturn
off the ringer, press .
SPEAKER
START/
MEMORY

UX-B800A
2 – 2
[2] Diagnostics and service soft switch
1. Entering the diagnostic mode 2. Diagnostic items description
2.1. SOFT SWITCH MODE
In this mode, the soft switches are set and the soft switch list is printed.
2.1.1 Operation
Soft switch mode screen
2.1.2 Switch number selection and data setting
1. Enter three digits of a soft switch number to set the switch number.
Of a switch number of unexacting soft switch is entered, key error
buzzer sounds to reject the input.
2. Press [START/MEMORY] key moves the cursor to the data number
1 of the former soft switch. If the switch number is the final, press-
ing [START/MEMORY] key will exit the soft switch mode.
3. Data number selection
a) Pressing [>] or [#] key moves the cursor to the right. If the cursor
is on data number 8, pressing [>] or [#] key shifts the cursor to data
number 1 of the next switch number. If the switch number is the
final, pressing [>] or [#] key will exit the soft switch mode.
b) Pressing [<] or [ ] key moves the cursor to the left. If the cursor
is on data number 1, pressing [<] or [ ] key shifts the cursor to
data number 8 of the former switch number. If the switch number is
001, pressing [<] or [ ] key do not move the cursor.
c) Pressing [UP] or [4] key moves the cursor to the data number 1
of the next soft switch. If the switch number is 001, pressing [UP] or
[4] key shifts the cursor to data number 1.
d) Pressing [DOWN] or [6] key moves the cursor to the data num-
ber 1 of the former soft switch. If the switch number is the final,
pressing [down] or [6] key will exit the soft switch mode.
FUNCTION
9 8
START/MEMORY SOFT SWITCH MODE
START/MEMORY ROM & RAM CHECK
START/MEMORY AGING MODE
START/MEMORY PANEL CHECK MODE
START/MEMORY CHECK PATTERN MODE
START/MEMORY SIGNAL SEND MODE
START/MEMORY MEMORY CLEAR
START/MEMORY SHADING MODE
START/MEMORY AUTO FEEDER MODE
START/MEMORY FLASH MEMORY CHECK
START/MEMORY MEMORY SET MODE
START/MEMORY CIS ADJUSTING MODE
START/MEMORY SHARP CHART AGING
ROM: TF64
FUNCTION 9 8
Press , and the following
display will appear
ROM:TF64
Select the desired item with the key and the key or select
with the rapid key.
Enter the mode with the START/MEMORY key.
(Diag
• specifications)
: ROM version
START/MEMORY ASF AGING
UP DOWN
alternately.
UP
DOWN
START/MEMORY IJP LIST MODE
START/MEMORY LIFE MODE
START/MEMORY LIFE CLEAR MODE
7
Then press the START/MEMORY key.
COUNTRY NAMEDIAG MODE START/MEMORY
7
START/MEMORY SECURE PASS LIST
SOFT SWITCH MODE
SW123=00100100
Switch No.
12345678:DataNo.
SW = SW1 =
[1] key
SW12 =
[2] key
SW123=00100100
[3] key Cursor position
SW124=00000000
[START/MEMORY] key
SW125=00000000
SW123=00100100
[START/MEMORY] key
SW123=00100100 SW123=00100100
[>] or [#] key
SW124=00000000
With the cursor on data 8
[>] or [#] key
SW124=00000000
[>] or [#] key
SW124=00000000 SW124=00000000
[<] or [ ] key
SW123=00100100
With the cursor on data 1
[<] or [ ] key
SW123=00100100
[<] or [ ] key
SW124=00000000
[UP] or [4] key
SW123=00100100
SW125=00000000
[UP] or [4] key
SW124=00000000
[DOWN] or [6] key
SW125=00000000
SW123=00100100
[DOWN] or [6] key

UX-B800A
2 – 3
e) Pressing [8] key moves the cursor to the data number 1 of the
10th former soft switch.
f) Pressing [2] key moves the cursor to the data number 1 of the
10th next soft switch.
2.1.3 Data setting
Press the [1] key, and the data to the position of the cursor will be
changed to 1.
Press the [0] key, and the data to the position of the cursor will be
changed to 0.
2.1.4 Outputting method of soft switch list
In the soft switch mode, press [COPY/HELP] key, and the soft switch
list will be printed.
2.1.5 Storage of data
In the following cases, the data if the soft switches set will be stored.
• It is shifted to set the next soft switch by pressing [START/MEM-
ORY] key.
• If is shifted to set the former soft switch with the [<] or [UP] or [4]
key.
• It is shifted to set the next soft switch with the [>] or [DOWN] or [6]
key.
• If is shifted to set the 10th former soft switch with the [8] key.
• It is shifted to set the 10th next soft switch with the [2] key.
2.2. ROM & RAM check
To check the sum value of Firmware or RAM.
2.2.1 Display
2.2.2 Result printing
After checking, the results print starts.
2.3. AGING MODE
A total of 10 sheets of check patterns are printed at 1-hour intervals.
This mode is exited when executed to the end (after 9 hours) or by
pressing the [STOP] key.
2.4. PANEL CHECK MODE
This is used to check whether each key is normally operated or not.
After the test, the test result will be printed.
2.4.1 Flow
Press any key except [STOP] key. At this time, the name of each key
will be displayed every push of the key.
a) When all keys can be inputted, the following message will be dis-
played.
Then the screen will be all displayed in black (refer to (2))and the test
result will be printed.
b) If any key skipped, the following message will be displayed.
A key name that is not pressed yet is displayed so that this test can be
continued.
At that time, pressing the [STOP] key will exit this mode. And the result
will be printed.
2.4.2 Black screen
2.5. CHECK PATTERN MODE
Printing the pattern.
No. Device Alarm Buzzer Remarks
1
Main
ROM
(PROGRAM FLASH)
1 time <Short
sound>
2 SDRAM 3 times <Short
sounds>
SW113=00000000
[8] key
SW103=00000000
SW123=00100100
[8] key
SW133=00000000
[2] key
SW143=00000000
SW123=00100100
[2] key
WAITING
Start checking by pressing
[START/MEMORY] key
SDRAM : OK
PRINTING
DIAG MODE
02:ROM & RAM CHECK
Start by pressing the
[START/MEMORY] key
PRINTING
03:AGING MODE
DIAG MODE
03:AGING MODE
Display during the aging
mode interval
To finish this mode, press [STOP] key
04:PANEL KEY TEST 1
[1] key [2]Key
2SPEAKER
Go to a) or b).
..... (other key)
[SPEAKER] key
ALL KEY OK !!
KEY ERROR !!
Start by pressing the
[START/MEMORY] key
PRINTING
DIAG MODE
05:CHECK PATTERN

UX-B800A
2 – 4
2.6. SIGNAL SEND MODE
The specified signals are transmitted in the following sequence to
check the modem.
1. Press the [START/MEMORY] key, and no signals with the loop
state starts.
2. Pressing the [START/MEMORY] key during transmitting CNG sig-
nal, or pressing the [STOP] key will stop the output of signal and
exit the mode.
2.7. MEMORY CLEAR
Clear the back-up memory including the soft switches, registration
data. After executing this mode, the memory clear report is printed.
Note: The following data is not cleared. Values for Printer life including
the adjusted value of printing void.
2.8. SHADING MODE
Shading waveforms are stored.
Set a shading sheet and press the [START/MEMORY] key to start
shading.
2.9. AUTO FEEDER MODE
Inserting and discharging the document can check the auto feeder.
1. The information of document sensor (A4 sensor) and ORG sensor
is displayed when the documents are inserted to the Auto Feeder.
Press the [START/MEMORY] key, and feeding documents is
started.
2. Press [STOP] key to exit the mode.
2.10. FLASH MEMORY CHECK
Read/write of the flash memory is checked.
The result is printed after completion of check.
Be sure to clear the memory after execution.
2.11. MEMORY SET MODE
It is possible to read or write the memory contents.
When 8 digits of physical address are entered, the data of that address
is displayed.
When 2 digits of data are entered after entering 8 digits of address and
a key is pressed, the contents can be rewritten.
Rewriting is enabled only in the range of addresses 00000000 to
007FFFFF.
If the memory is rewritten, the machine may malfunction.
Press the [STOP] key on the address entry screen to exit the mode.
[1] No signals (making the loop)
[2] 14400BPS (V.17)
[3] 12000BPS (V.17)
[4] 9600BPS (V.17)
[5] 7200BPS (V.17)
[6] 9600BPS (V.29)
[7] 7200BPS (V.29)
[8] 4800BPS (V.27ter)
[9] 2400BPS (V.27ter)
[10] 300BPS (FLAG)
[11] 2100Hz (CED)
[12] 1100Hz (CNG)
SIG SEND MODE CML ON
[START/MEMORY] Key
V.17 14400bps
V.17 7200bps V.17 9600bps
[START/MEMORY] Key
V.17 12000bps
V.29 9600bps V.29 7200bps
[START/MEMORY] Key
V.27ter 4800bps
2100 Hz (CED TONE) FLAG (300bps)
[ENTER]Key
V.27ter 2400bps
1100 Hz (CNG)
[START/MEMORY] Key
[START/MEMORY] Key
[START/MEMORY] Key
[START/MEMORY] Key
[START/MEMORY] Key
[START/MEMORY] Key
[START/MEMORY] Key
[ENTER]Key
DIAG MODE
06:SIGNAL SEND MODE
[START/MEMORY] Key
Start by pressing the
[START/MEMORY] key
MEMORY CLEARD
PRINTING
DIAG MODE
07:MEMORY CLEAR
Start by pressing the
[START/MEMORY] key
TOTAL SHADING
DIAG MODE
08:SHADING MODE
AUTO FEEDER
[START/MEMORY] key
without document
DIAG MODE
09:AUTO FEEDER MODE
Only the sensor that is activated is displayed
DIAG MODE
A4 (A4 )
DIAG MODE
A4 (A4 ORG)
DIAG MODE
()
Set document
[START/MEMORY] key
without document
WAIT A MOMENT
DIAG MODE
10:FLASH MEM. CHECK
FLASH CHECK
PRESS START OR STOP
[START/MEMORY] key
[STOP] key
Next daig mode
[START/MEMORY] key
PRINTING
Start
DIAG MODE
11:MEMORY SET MODE
MEMORY SET MODE
xxxxxxxx= [ ]
[START/MEMORY] key
Address entry screen
Entry of memory address (8 digits)
MEMORY SET MODE
1234ABCD=4C [L]
Hex
number Character
code
• Change of memory contents: 2-digit entry in hex number
• Move down the address of the referenced memory by one: [<] or [UP] key
• Move up the address of the referenced memory by one: [>] or [DOWN] key
• Dump list print: [COPY/HELP] key
• Back to the address entry screen: [STOP] key
The contents of the memory are displayed
in hex number and character code.

UX-B800A
2 – 5
2.12. CIS ADJUSTING MODE
In this mode, the position of Scanner motor is moved from the home
position up to the specified value. And document reading lamp is
turned on.
Press the [STOP] key to exit the mode.
2.13. SHARP CHART AGING
SHARP CHART is printed continuously.
Press the [STOP] key for interruption.
2.14. ASF AGING
The recording paper is fed continuously.
Press the [STOP] key for interruption.
2.15. IJP LIST MODE
Maintenance data of the printer is output.
2.16. LIFE MODE
MACHINE PAGE COUNT is displayed.
Press the [STOP] key to exit the mode.
•LIFE MODE can also be checked by the following operation.
2.17. LIFE CLEAR MODE
MACHINE DOT COUNT and MACHINE PAGE COUNT are cleared.
2.18. SECURE PASS LIST
Print the SECURE PASS LIST.
MACHINE DOT COUNT Machine total dot count
MACHINE PAGE COUNT Machine total page count
CARTRIDGE DOT COUNT Cartridge-by-cartridge dot count
IDLE MAINTENANCE COUNT Maintenance information
INSTALL MAINTENANCE
COUNT
Maintenance information
BEGIN OF JOB MAINTENANCE
COUNT
Maintenance information
THRESHOLD MAINTENANCE
COUNT
Maintenance information
POJ MAINTENANCE COUNT Maintenance information
SWATH START TEMPERA-
TURE
Temperature control information
FUSE MEMORY VALUE Cartridge information
VPH ON TIME Cartridge information
CARTRIDGE CHANGE COUNT Cartridge replacement count
JAM COUNT Jam count
NOZZLE CLEAN COUNT Nozzle cleaning count
CALIBRATION ENVIRONMENT
TEMPERATURE
Environmental temperature infor-
mation
CALIBRATION PRINT HEAD
TEMPERATURE
Cartridge temperature informa-
tion
TEMPERATURE MODE Temperature control information
DIAG MODE
12:CIS ADJUST
[START/MEMORY] key
[START/MEMORY] key
The motor will move to the specified position and the reading lamp is lit on.
CIS ADJUST MODE
Start by pressing the
[START/MEMORY] key
DIAG MODE
13:SHARP CHART AGING
SHARP CHART AGING
PRINTING P.1
Start by pressing the
[START/MEMORY] key
DIAG MODE
14:ASF AGING
ASF AGING
Start by pressing the
[START/MEMORY] key
PRINTING
DIAG MODE
15:IJP LIST MODE
Start by pressing the
[START/MEMORY] key
MACH.COUNT=0123456789
DIAG MODE
16:LIFE MODE
STAND-BY state Press
FUNKTION
Start by pressing the
[START/MEMORY] key
DIAG MODE
17:LIFE CLEAR MODE
Start by pressing the
[START/MEMORY] key
DIAG MODE
18:SECURE PASS LIST

UX-B800A
2 – 6
3. How to make soft switch setting
To enter the soft switch mode, press the following key entries in sequence.
Press FUNCTION 9 8 START/MEMORYSTART/MEMORY
Press 1 or key.
Press or key.
Press or key.
Bit1 - 8 are set.
Soft SW002 - SW300 are set.
SW001 = 1 0 0 0 0 0 0 0
SW001 = 1 0 0 0 0 0 0 0
SW001 = 1 0 0 0 0 0 0 0
SW001 = 1 0 0 0 0 0 0 0
SW002 = 0 0 0 0 0 0 0 0
SW300 = 0 0 0 0 0 0 0 0
Press key during setting.
To finish the settings halfway between
SW001 and SW300, press the STOP
key. In this case, the setting being done
to the SW No. on display will be nullified
while settings done to the preceding
SW No. remain in effect.
The soft switch mode is terminated.
SW001 = 0 0 0 0 0 0 0 0
START/MEMORY
DATA No. 1 2 3 4 5 6 7 8
When the COPY/HELP key is pressed, the
contents of soft switches are printed.
7001
0
<
>
