Sharp FO-785 User manual

MODEL
FO-785
OPERATION MANUAL
FACSIMILE
1. Installation
2. Sending Documents
3. Receiving Documents
4. Making Copies
5. Making Telephone Calls
6. Answering Machine Connection
7. Special Functions
8. Option Settings
9. Printing Reports and Lists
10. Maintenance
11. Troubleshooting
SHARP CORPORATION
泰國印刷
PRINTED IN THAILAND
(TINSQ4164XHTZ)
香港電器安全規格
（國際電工委員會規格適合）
FO-785 FACSIMILE 傳真機
型號
傳真機
使用手冊
1. 安 裝
2. 發送文件
3. 接收文件
4. 影 印
5. 打電話
6. 應答機的連接
7. 特殊功能
8. 可選設定
9. 打印報告和一覽表
10.保養
11.故障檢修

FO785HK-INBU
<P=001>
Introduction
Welcome, and thank you for
choosing a Sharp facsimile!
The features and
specifications of your new
Sharp fax are shown below.
Automatic dialling Rapid Key Dialling: 8 numbers
Speed Dialling: 80 numbers
Imaging film Initial starter film (included with fax machine):
10 m roll (approx. 30 A4 pages)
Replacement film:
FO-3CR 30 m roll (two rolls in
package, one roll yields approx. 95 A4
pages)
Automatic document
feeder
10 sheets max.
Memory size*: 512 KB (approx. 30 average pages with ECM
turned off)
Modem speed 14400 bps with automatic fallback to lower speeds.
Transmission time* Approx. 6 seconds (only when ECM is on)
Reception modes FAX, TEL, TEL/FAX, A.M.
Resolution Horizontal:
8 lines/mm
Vertical:
Standard: 3.85 lines/mm
Fine/Halftone: 7.7 lines/mm
Super fine: 15.4 lines/mm
* Based on ITU-T Test Chart #1 at standard resolution, excluding time for
protocol signals (i.e., ITU-T phase C time only).
1

<P=002>
Display 16-digit LCD display
Recording system Thermal transfer recording
Halftone (greyscale) 64 levels
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Compression scheme MH, MR, MMR
Scanning method Sheet-feeder CIS (Contact Image Sensor)
Effective printing width 204 mm max.
Input document size Automatic feeding:
Width: 148 to 210 mm
Length: 140 to 297 mm
Manual feeding:
Width: 148 to 210 mm
Length: 140 to 600 mm
Effective scanning width 210 mm max.
Contrast control Automatic/Dark selectable
Copy function Single/Multi-copy/Sort-copy (99 copies/page)
Telephone function Standard (Cannot be used for incoming/outgoing
if power fails)
Power requirements 220-240 V AC, 50/60 Hz
Operating temperature 5 to 35°C
Humidity Maximum: 85 %
Power consumption Stand-by: 2.3 W
Maximum: 115 W
Dimensions Width: 343 mm
Depth: 313 mm
Height: 312 mm
Weight Approx. 3.4 kg
As a part of our policy of continuous improvement, SHARP reserves the right
to make design and specification changes for product improvement without
prior notice. The performance specification figures indicated are nominal
values of production units. There may be some deviations from these values
in individual units.
2

<P=003>
Important safety information
•Do not disassemble this machine or attempt any procedures not described
in this manual. Refer all servicing to qualified service personnel.
•This machine must only be connected to a 220-240 V, 50-60 Hz, earthed
(3-prong) outlet. Connecting it to any other kind of outlet may damage
the machine.
•Do not install or use the machine near water, or when you are wet. Take
care not to spill any liquids on the machine.
•Unplug the machine from the telephone socket and then the power outlet
and consult a qualified service representative if any of the following
situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
•Do not allow anything to rest on the power cord, and do not install the
machine where people may walk on the power lead.
•Never insert objects of any kind into slots or openings on the machine.
This could create a risk of fire or electric shock. If an object falls into the
machine that you cannot safely remove, unplug the machine and consult
a qualified service representative.
•Do not place this machine on an unstable cart, stand or table. The machine
could be seriously damaged if it falls.
3

<P=004>
•Never install telephone wiring during a lightning storm.
•Never install telephone sockets in wet locations unless the socket is
specifically designed for wet locations.
•Never touch uninsulated telephone wires or terminals unless the tele-
phone line has been disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
•Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
•Do not use a telephone to report a gas leak in the vicinity of the leak.
•The socket-outlet must be installed near the equipment and must be easily
accessible.
Important:
•
••
•This facsimile machine is not designed for use on a line which has call
waiting, call forwarding, or certain other special services offered by
your telephone company. If you attempt to use the fax machine on a
telephone line using any of these services, you may experience errors
during transmission and reception of facsimile messages.
•
••
•This facsimile machine is not compatible with digital telephone
systems.
4

FO785HK-TCTC
Table of Contents
1 Installation 7
Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
A Look at the Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Loading the Imaging Film. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2 Sending Documents 33
Transmittable Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sending a Fax by Automatic Dialling. . . . . . . . . . . . . . . . . . . . . . . . . . 41
3 Receiving Documents 50
Using TEL/FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Substitute Reception to Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
4 Making Copies 58
5 Making Telephone Calls 61
6 Answering Machine Connection 64
Connecting an Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Activating the Answering Machine Connection. . . . . . . . . . . . . . . . . . 66
5

7 Special Functions 67
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Duplex Ringing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cover Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . . . 80
Sending Documents From Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Polling (Requesting a Fax Transmission). . . . . . . . . . . . . . . . . . . . . . . 84
Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
8 Option Settings 89
9 Printing Reports and Lists 97
10 Maintenance 103
11 Troubleshooting 107
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Quick Reference Guide 118
Index 120
6

FO785HK-ISUN
RT <P=001>
Chapter
1Installation
Unpacking Checklist
1. Installation
Before setting up,
make sure you have
all of the following
items.
If any are missing,
contact your dealer
or retailer.
Handset
Handset
lead
Telephone
line cord
Imaging film
(initial starter
roll)
Rapid key
labels
Operation
manual
Imaging
film
cartridge
Paper tray
extension
Original
document
support
Gears (4)
7

FO785HK-IPOP
DD <P=001>
A Look at the Operation Panel
JKL
SPEED
DIAL
REDIAL
SPEAKER
HOLD/
SEARCH
STOP
COPY/HELP
START / MEMORY
VOLUME
DOWN UP
RECEPTION
MODE
RESOLUTION FUNCTION
TEL FAX
A.M.
ABC
2
1
DEF
3
WXYZ
9
GHI
45
MNO
6
PQRS
7
TUV
8
0
12345 6 7
910 11 12 13 14 15
TEL/FAX
8
08/POLL07060504
03
0201
FACE DOWN
(MAX 10 SHEETS)
SPEED DIAL key
Press this key to dial a 2-digit Speed Dial number.
REDIAL key
Press this key to automatically redial the last number dialled.
Display
This displays messages and prompts during operation and
programming.
RECEPTION MODE key
Press this key to select the reception mode. An arrow in the display
will point to the currently selected reception mode.
RESOLUTION key
Press this key to adjust the resolution and contrast before sending or
copying a document.
1
2
3
4
5
A Look at the Operation Panel
8

<P=002>
VOLUME keys
Press these keys to adjust the volume of the speaker when the
SPEAKER key has been pressed, or the volume of the ringer at all
other times.
FUNCTION key
Press this key to select various special functions.
Panel release
Grasp this finger hold and pull toward you to open the operation panel.
Number keys
Use these keys to dial numbers, and enter numbers and letters during
number/name storing procedures.
HOLD/SEARCH key
Press this key to search for an automatic dialling number, or, during a
phone conversation, press this key to put the other party on hold.
SPEAKER key
Press this key to hear the line and fax tones through the speaker before
sending a document, or dialling a voice number.
Note: This is not a speakerphone. You must pick up the handset to
talk with the other party.
Rapid Dial Keys
Press one of these keys to dial a fax or voice number automatically.
(Note that you must attach the Rapid Key labels.)
STOP key
Press this key to cancel operations before they are completed.
START/MEMORY key
Press this key to send or receive a document, or to scan a document
into memory before sending it.
COPY/HELP key
When a document is in the feeder, press this key to make a copy. At
any other time, press this key to print out the Help List, a quick
reference guide to the operation of your fax.
12
13
14
11
6
7
8
9
10
15
1. Installation
A Look at the Operation Panel
9

FO785HK-ISCO
DD <P=001>

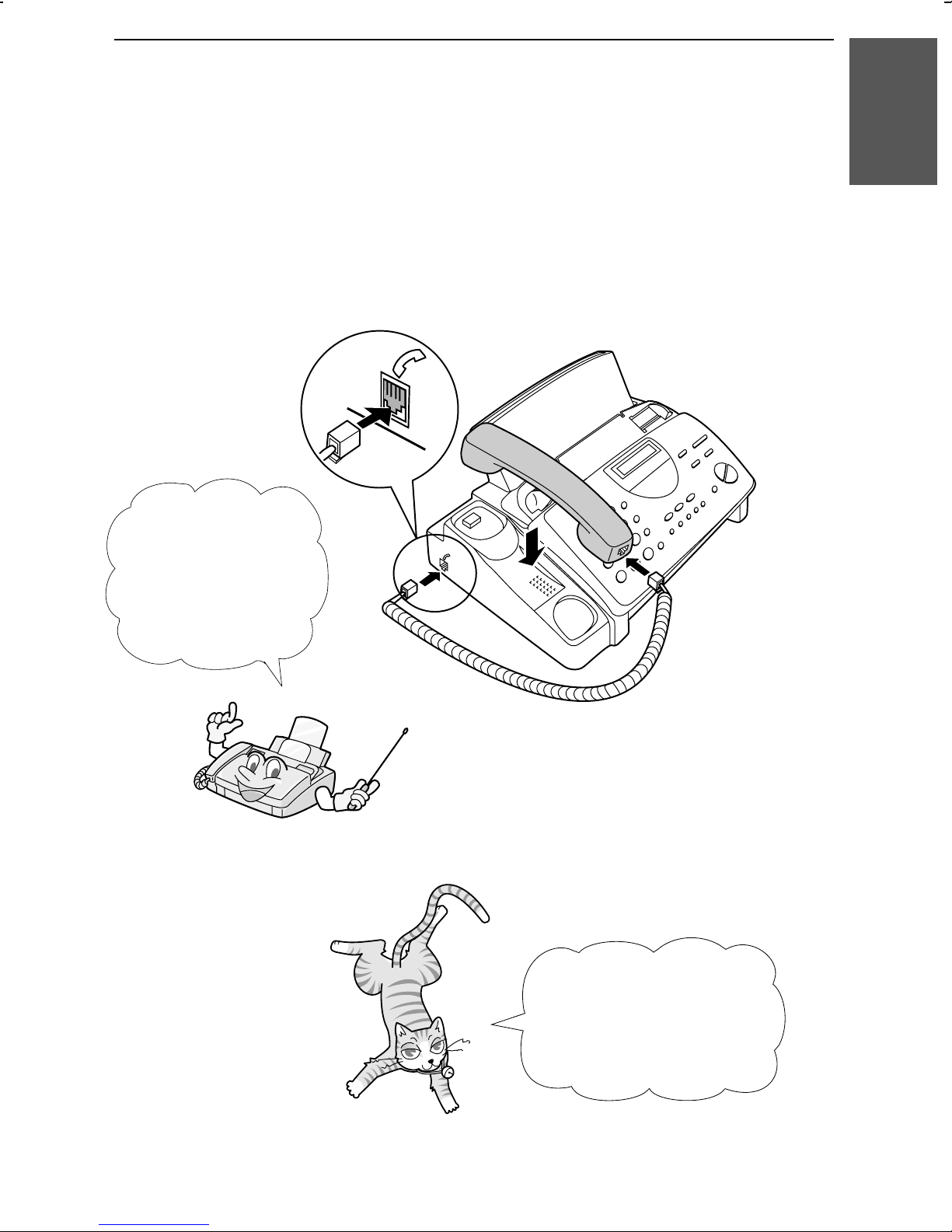

Connections

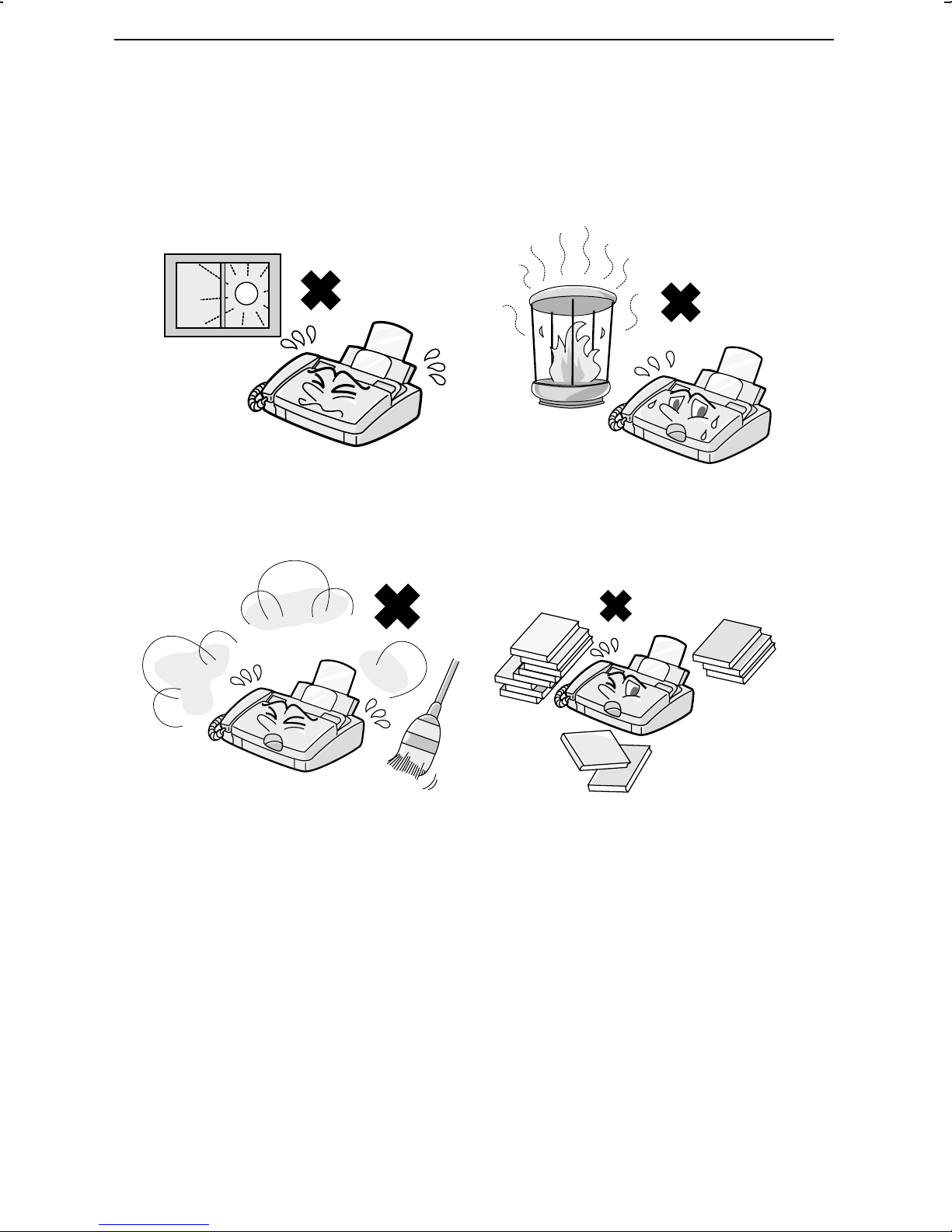

Points to keep in mind when setting up
Do not place the machine in
direct sunlight.
Do not place the machine near
heaters or air conditioners.
Keep dust away from the
machine.
Keep the area around the
machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper
scanning of documents for transmission. To remove the condensation,
turn on the power and wait approximately two hours before using the
machine.
Connections
10

<P=002>
Handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset lead are identical, so they will go into
either socket.
Make sure the
handset cord goes
into the socket
marked with a
handset symbol on
the side of the
machine!
Use the handset to
make ordinary phone
calls, or to transmit
and receive
documents manually.
1. Installation
Connections
11

<P=003>
Power lead
Plug the power lead into a 220-240 V, 50-60 Hz, earthed (3-prong) AC
outlet.
Caution!
Do not plug the power lead into any other kind of outlet. This will
damage the machine and is not covered under the warranty.
The machine does not
have a power on/off switch,
so the power is turned on
and off by simply plugging
or unplugging the power
lead.
Note: If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most telephone
specialty stores.
Connections
12

<P=004>
Telephone line cord
Insert one end of the line cord into the socket on the back of the
machine marked TEL. LINE. Insert the other end into a wall
telephone socket.
Be sure to insert the
telephone line cord into
the TEL. LINE socket.
Do not insert it into the
TEL. SET socket.
Comments:
•
••
•Your fax is set for tone dialling. If you are on a pulse only dial line, you must
set the fax for pulse dialling by changing Option Setting 9. This procedure is
described in Chapter 8, Option Settings.
•
••
•If you intend to use a computer fax modem on the same phone line, you must
reset Option Setting 14 (Fax Signal Receive) to NO in order to prevent
transmission and reception errors. This procedure is described in Chapter 8,
Option Settings.
TEL.
SET
TEL.
LINE
1. Installation
Connections
13

<P=005>
Trays
Attach the paper tray extension.
♦Pull the paper release plate forward. Insert the paper tray
extension horizontally into the notches in the paper tray. Rotate
the paper tray extension up until it snaps into place.
Attach the original document support.
Note: The original
document support
has a top side and a
bottom side. If you
cannot insert the tabs
on the support into
the holes, turn the
support over.
Connections
14

<P=006>

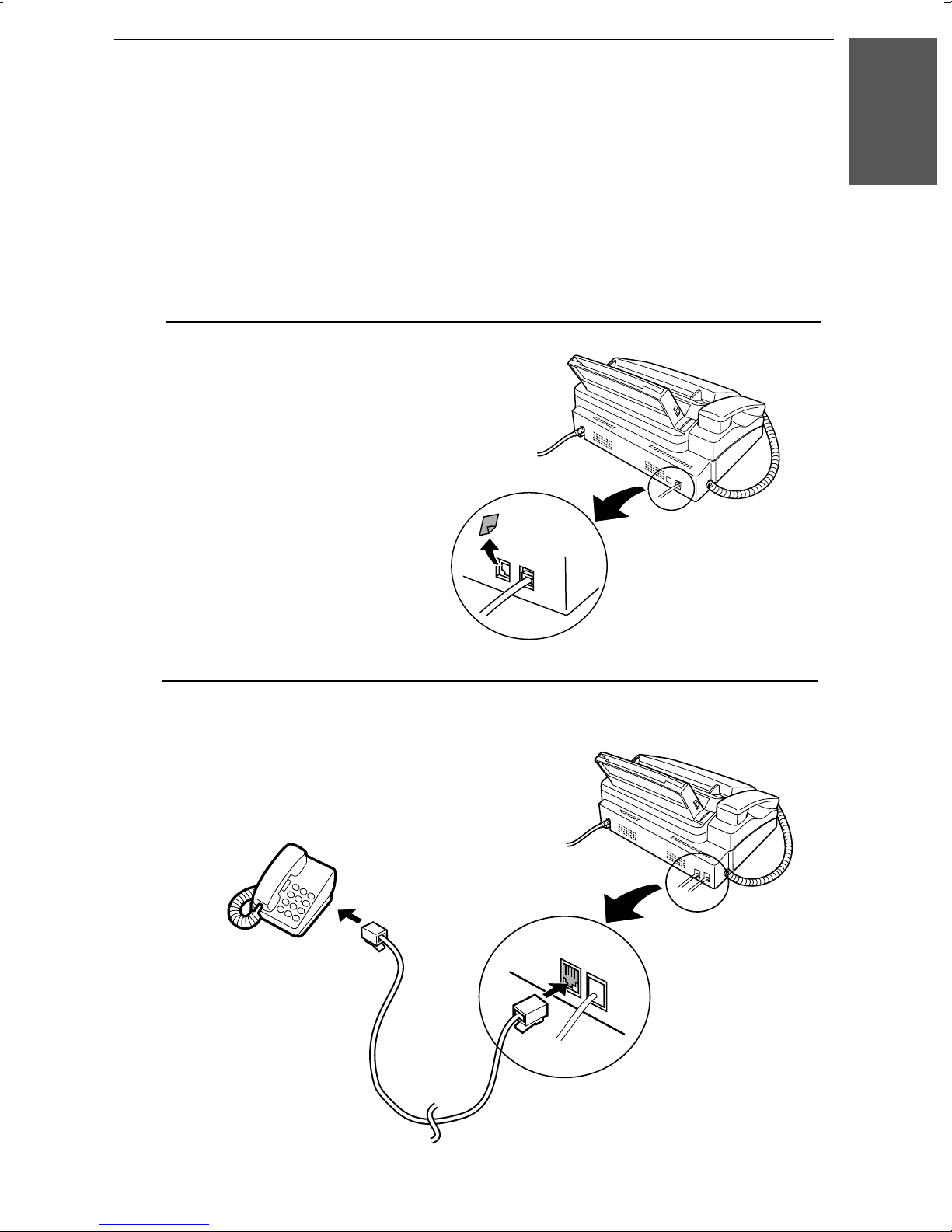

Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET
socket on the fax.
♦To connect an answering machine to your fax, see Chapter 6,
Answering Machine Connection.
1Remove the seal covering the TEL.
SET socket.
2Connect the extension phone line to
the TEL. SET socket .
TEL.
SET
TEL.
LINE
1. Installation
Connections
15

FO785HK-ISIF
<P=001>

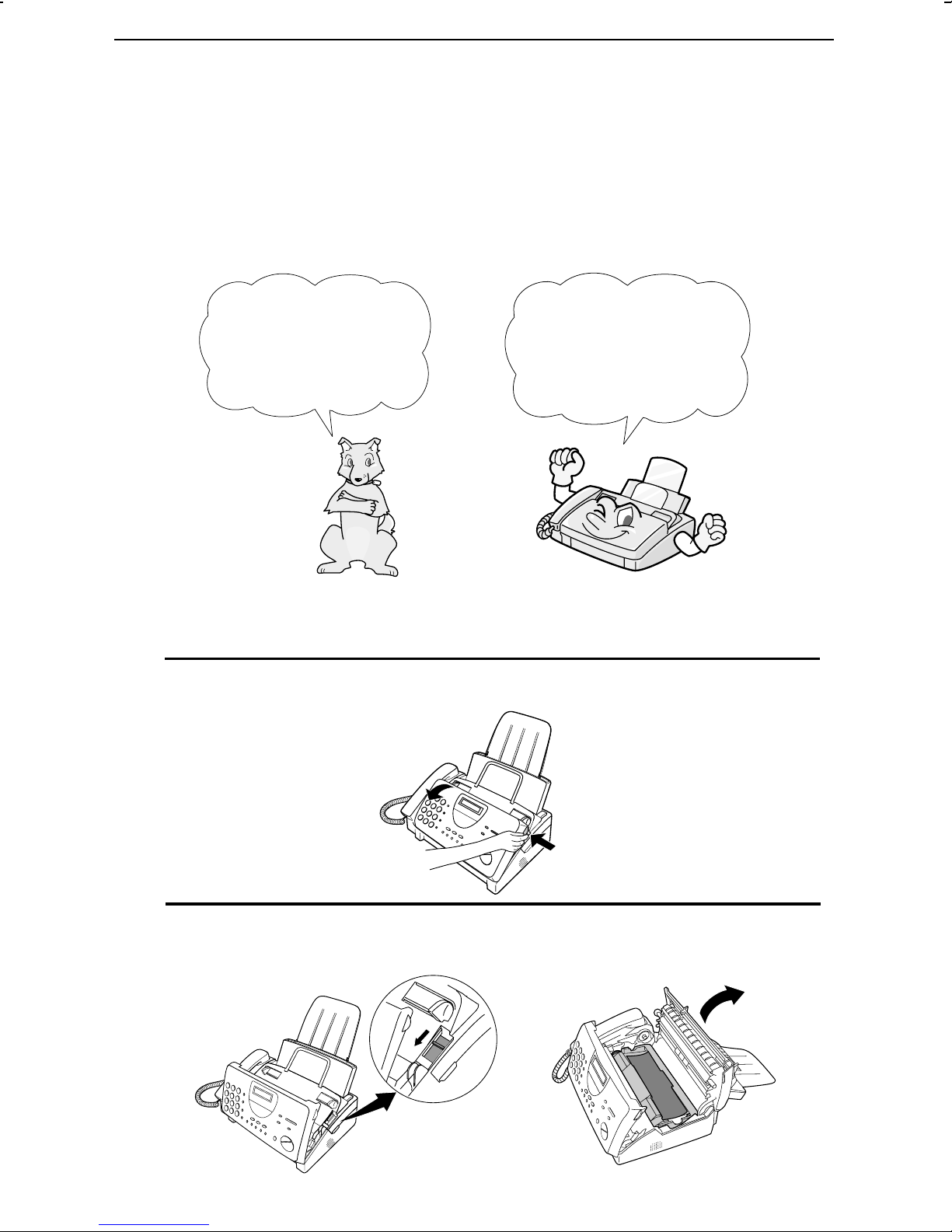

Loading the Imaging Film
Your fax uses a roll of imaging film to create printed text and images.
The print head in the fax applies heat to the imaging film to transfer
ink to the paper. Follow the steps below to load or replace the film.
The initial starter roll
of imaging film
included with your
fax can print about
30 A4 pages.
When replacing the
film, use a roll of Sharp
FO-3CR imaging film.
One roll can print about
95 A4 pages.
Note: If there is paper in the paper tray, pull the paper release plate
forward and remove the paper before loading the imaging film.
1Open the operation panel by grasping the finger hold and pulling up.
2Pull the green release on the right side of the machine forward, and
open the print compartment cover.
Loading the Imaging Film
16

<P=002>
If you are installing the imaging film for the first
time, go to Step 6.

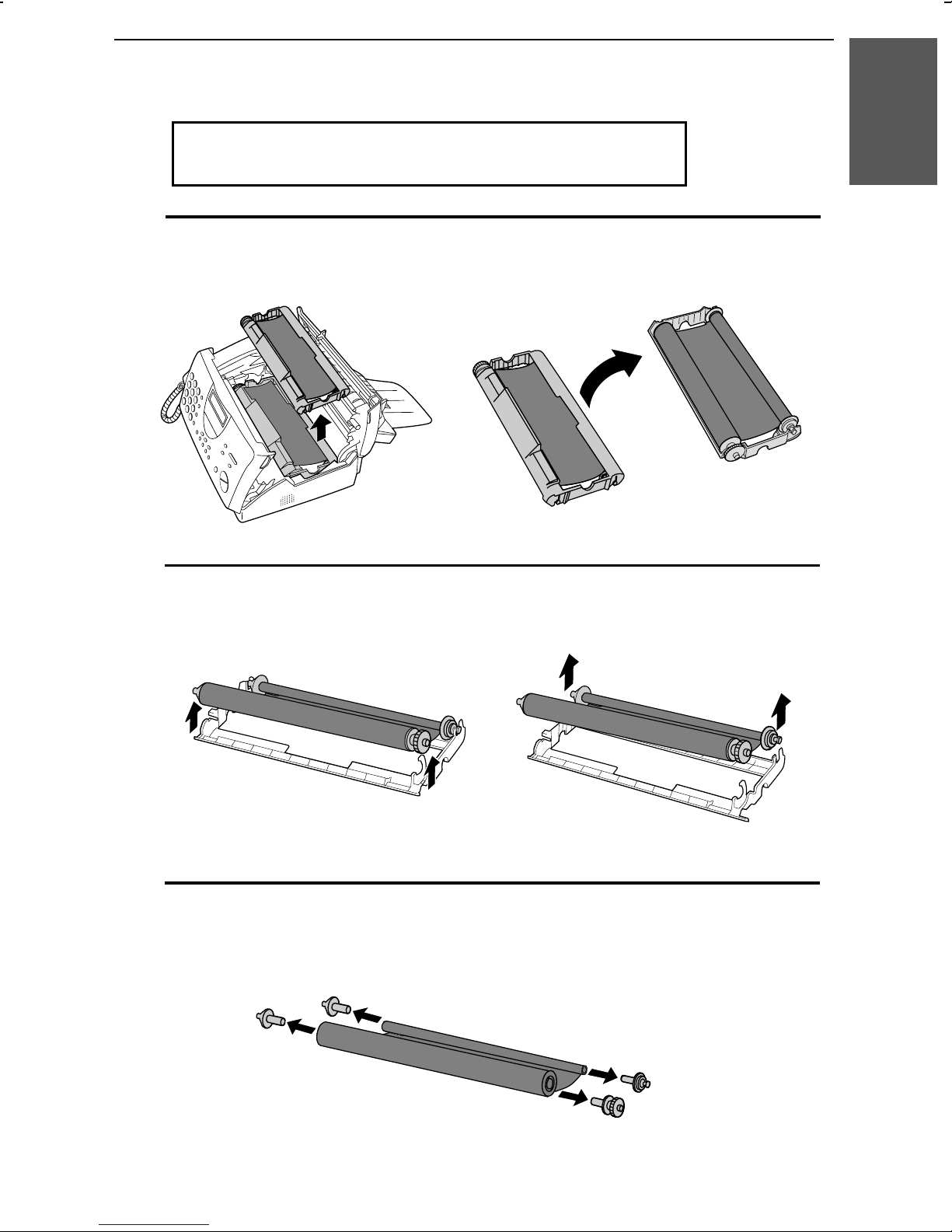

3Remove the imaging film cartridge from the print compartment
(grasp the handle at the front of the cartridge) and turn it over.
4Remove the used film from the cartridge.
5Remove the four green gears from the used film.
DO NOT DISCARD THE FOUR GREEN GEARS!
1. Installation
Loading the Imaging Film
17

<P=003>

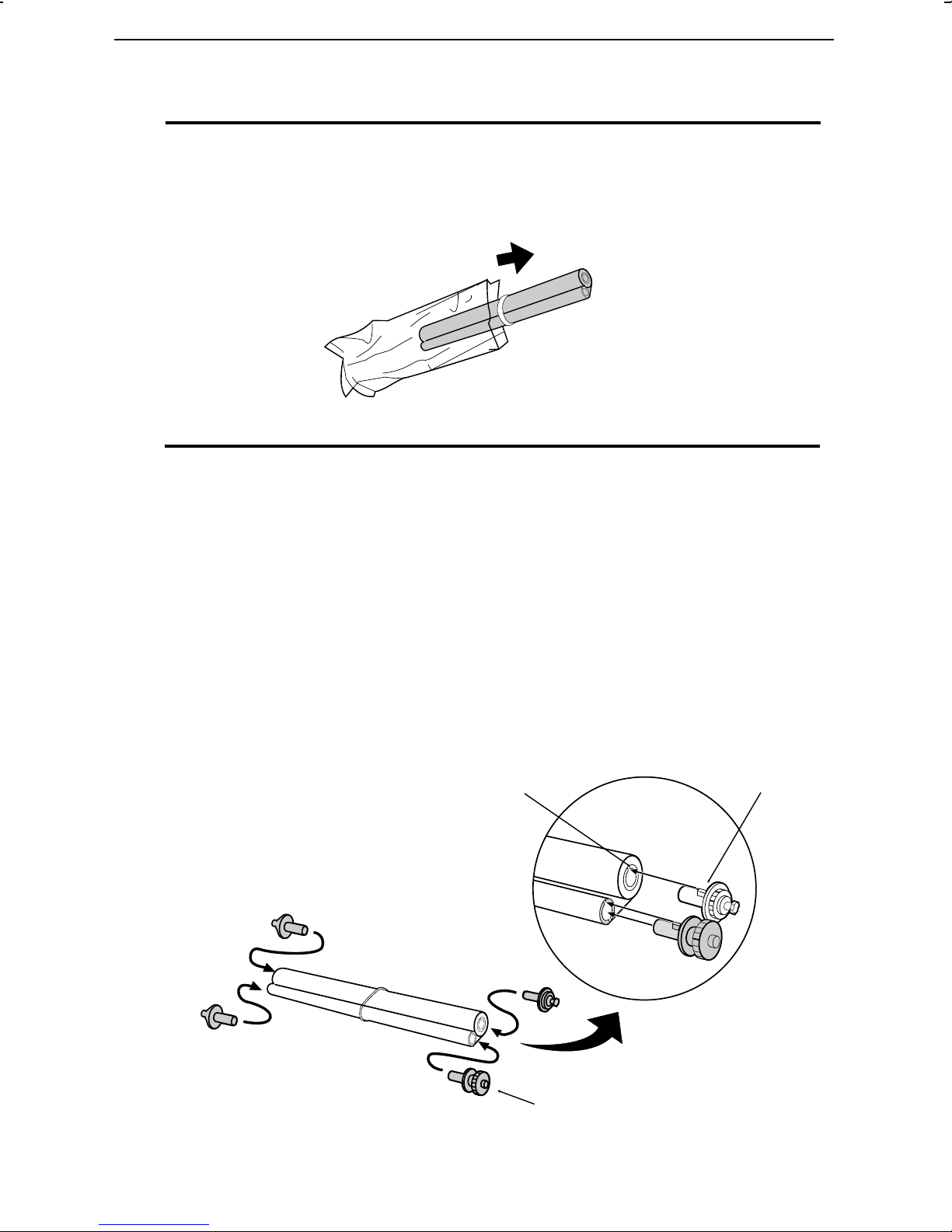

6Remove the new roll of imaging film from its packaging.
•
••
•Do not yet remove the band that holds the rolls together.
7Insert the large gear into the green end of the empty spool. Make
sure the two protrusions on the large gear fit firmly into the slots in
the end of the spool.
Insert the remaining three gears into the spools, making sure the
protrusion on each gear fits firmly into one of the slots in the end of
each spool.
•
••
•If needed, pull the spools apart slightly to allow the gears to fit (the
band will stretch).
Protrusion
Slot
Large gear
Loading the Imaging Film
18

<P=004>
8Insert the large gear into the large holder on the imaging film
cartridge (make sure it clicks into place), and then insert the small
gear on the other end of the spool into its holder.
9Cut the band that holds the two spools together. Unroll the film
slightly and insert the small gears into their holders.
10 Turn the cartridge over, grasp the handle, and insert the cartridge
into the print compartment.
1. Installation
Loading the Imaging Film
19
