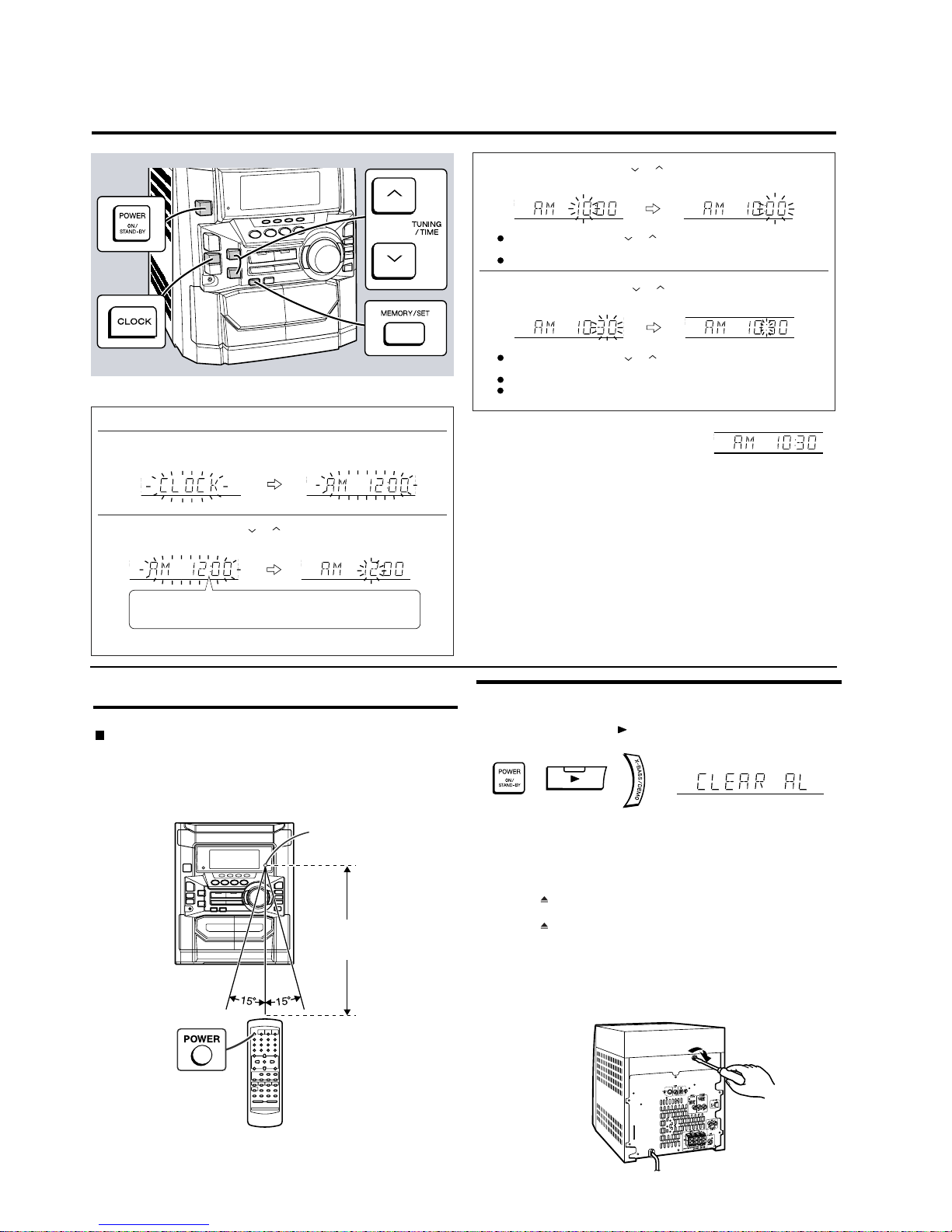

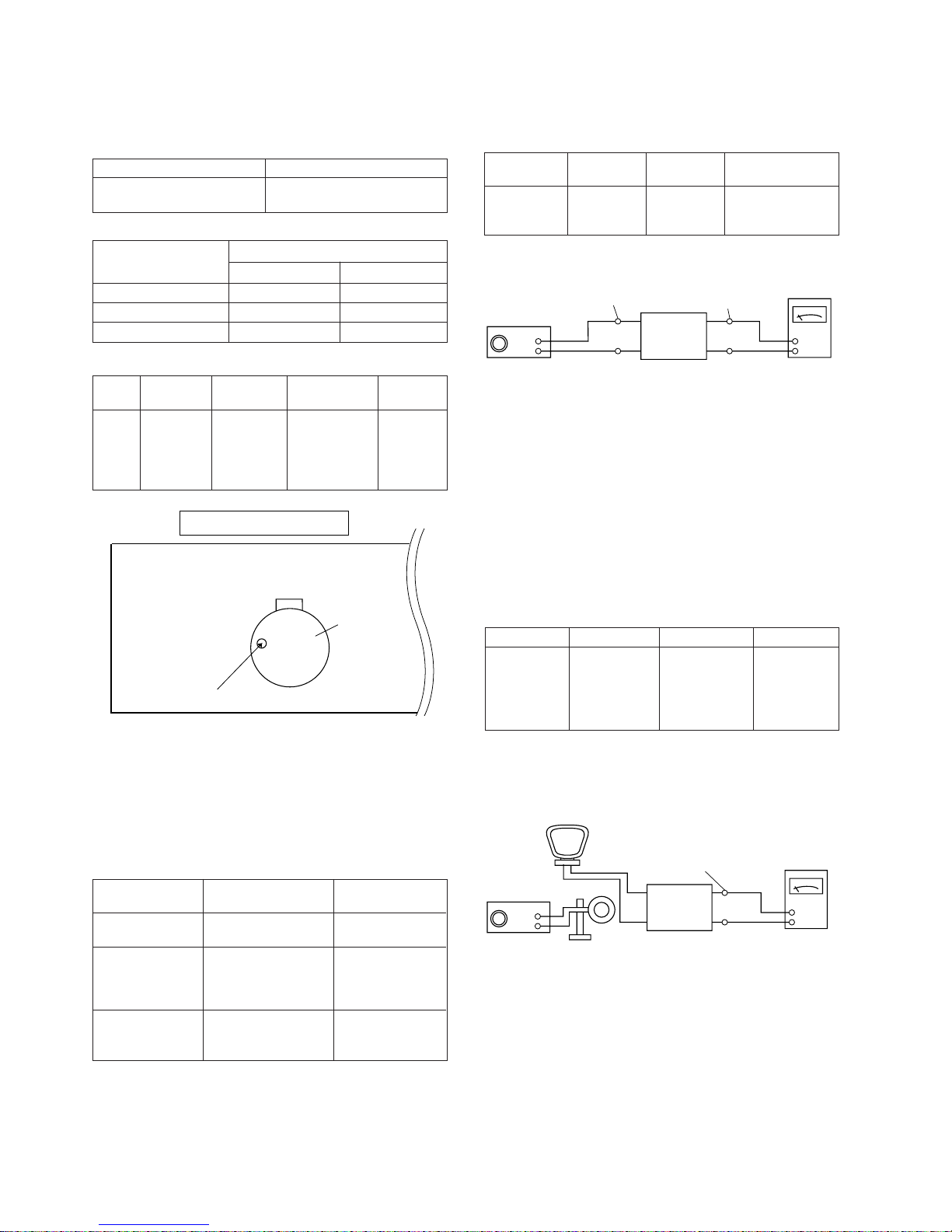

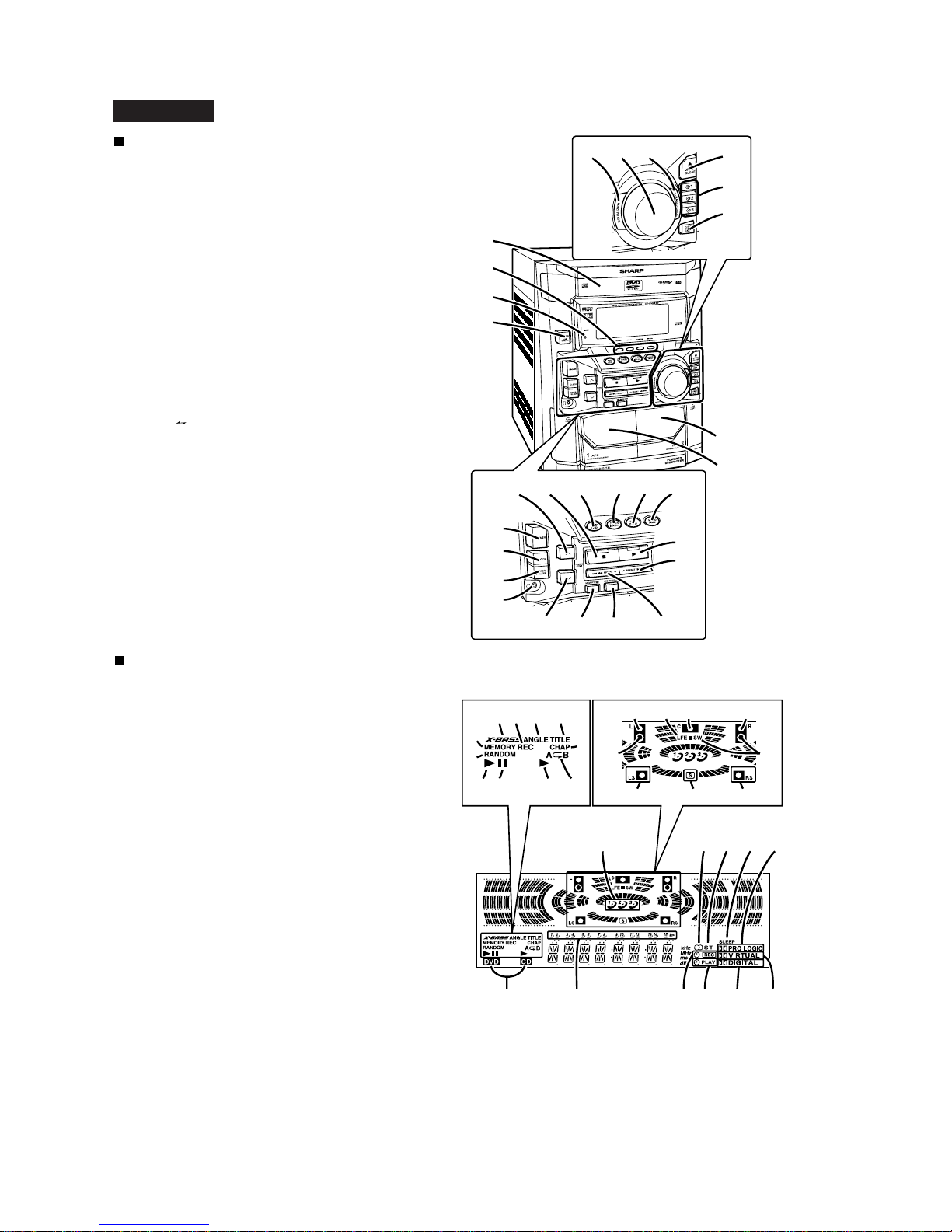

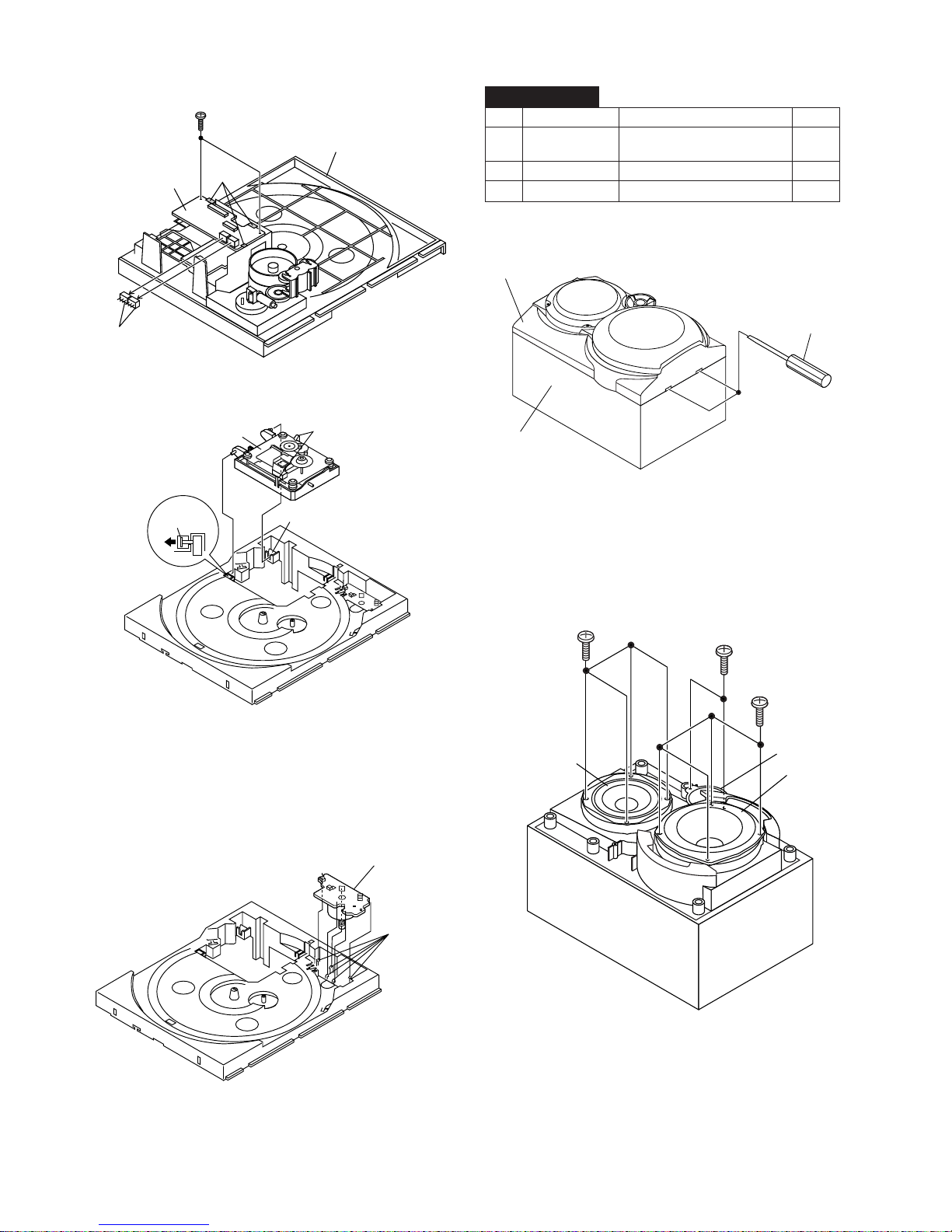

CD-DVD500
– 2 –
DVD/CD player
Signal system NTSC/PAL
Supported disc types
DVD (Region number 1, ALL), audio CD, CD-R, CD-RW

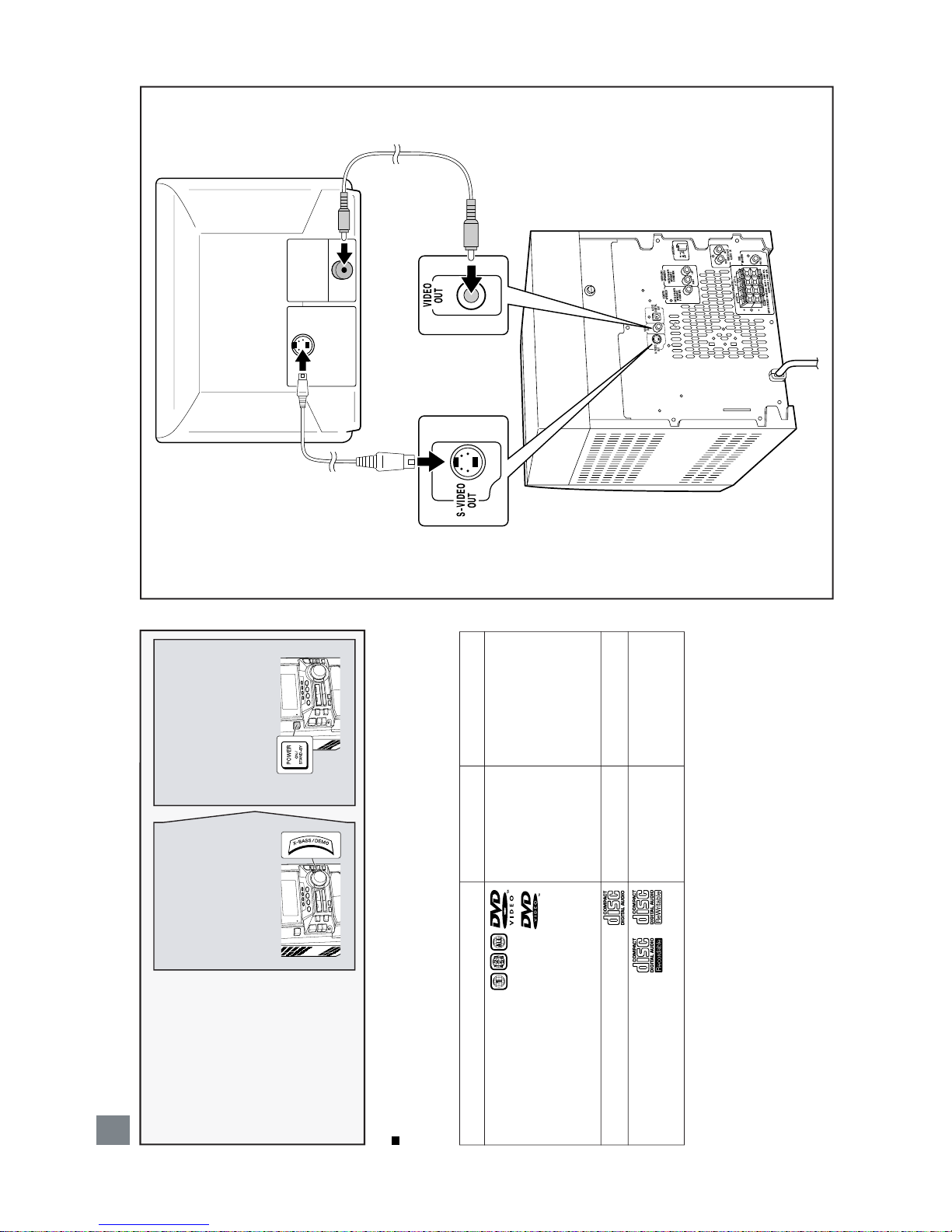

Video output Output socket: Pin socket ×1
Output levels: 1 Vp-p (75 ohms)
S-video output Y output level: 1 Vp-p (75 ohms)
C output level: 0.286 Vp-p (75 ohms)
Output socket: S-video connector ×1
Video signal Horizontal resolution: 500 lines
S/N ratio: 60 dB
Audio signals Frequency characteristics:
Linear PCM DVD: 4 Hz to 22 kHz (48 kHz sampling)/
4 Hz to 44 kHz (96 kHz sampling)
CD: 4 Hz to 20 kHz
S/N ratio: 96 dB 1 kHz (CD)
Dynamic range: 96 dB (Linear PCM DVD)
96 dB (CD)
Total harmonic distortion ratio:0.006 % maximum

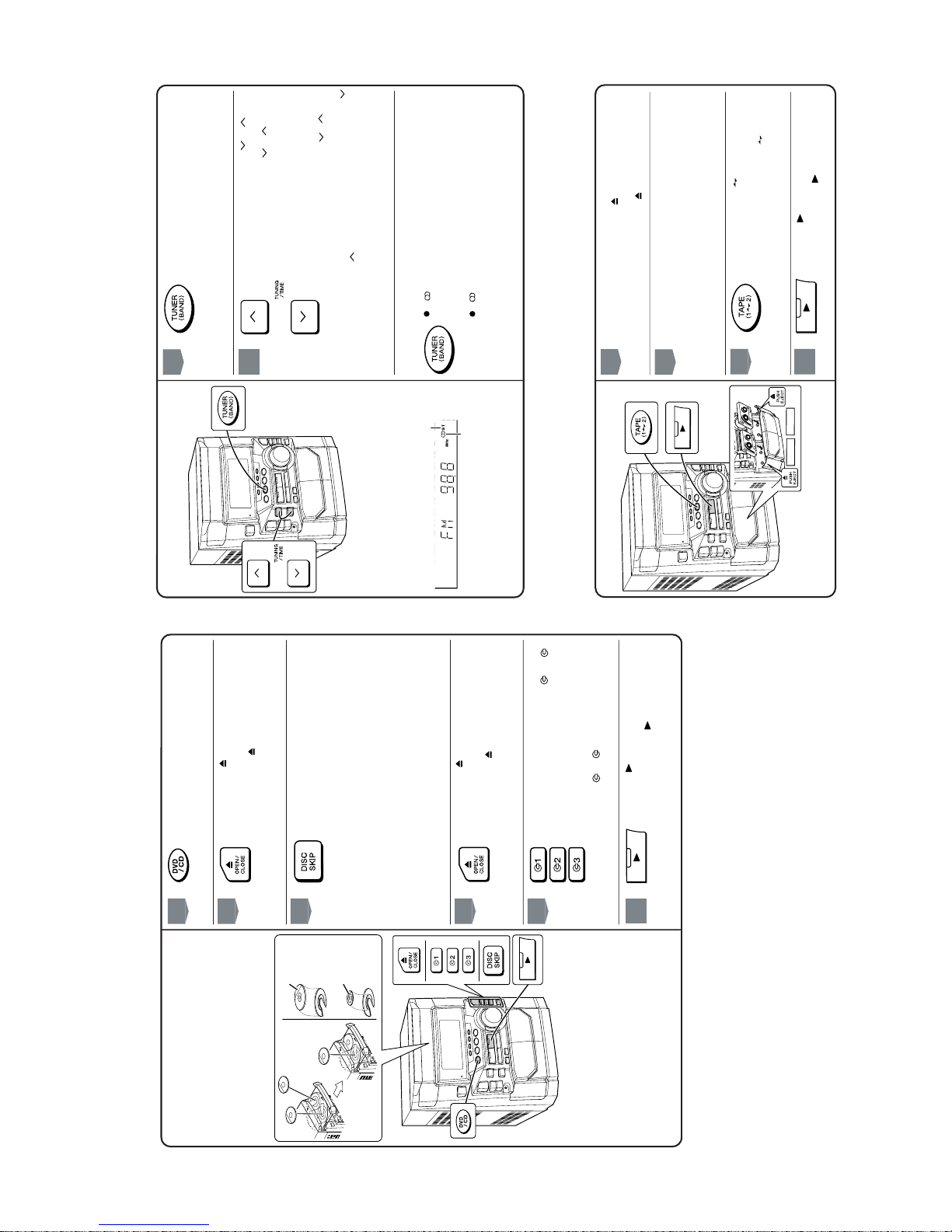

Tuner
Frequency range FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
Cassette deck
Frequency response 50 -14,000 Hz (Normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.25 % (WRMS)
General
Power source AC 120 V, 60 Hz
Power consumption 255 W
Dimensions Width: 270 mm (10-11/16")
Height: 330 mm (13")
Depth: 372 mm (14-11/16")
Weight 8.8 kg (19.4 lbs)
Amplifier
Output power RMS : 210 W (Total) (10 % T.H.D.)
Front speakers (Main) : 60 W (30 W + 30 W)
Front speakers (Subwoofer) : 80 W (40 W + 40 W)
Centre speaker : 30 W
Surround speakers : 40 W (20 W + 20 W)
Output terminals Front speakers (Main) : 8 ohms
Front speakers (Subwoofer) : 6 ohms
Centre speaker : 6 ohms
Surround speakers : 8 ohms
Subwoofer(Pre-out) : 10 kohms
Headphones : 16 - 50 ohms (recommended; 32 ohms)
Audio Digital Out: Optical
Input terminals Video/auxiliary (Audio Input) : 500 mV/47 kohms
Type 3-way, 130 mm (5-1/8") subwoofer, 100 mm (4")
woofer and 50 mm (2") tweeter
Maximum input power
Subwoofer:
80 W
Main:
60 W
Impedance Subwoofer: 6 ohms/ Main: 8 ohms
Dimensions Width: 220 mm (8-5/8")
Height: 330 mm (13")
Depth: 245 mm (9-5/8")
Weight 4.1 kg (9.0 lbs.)/each
Type Full range, 100 mm (4")
Maximum input power
60 W
Impedance 6 ohms
Dimensions Width: 260 mm (10-1/4")
Height: 142 mm (5-5/8")
Depth: 170 mm (6-11/16")
Weight 1.0 kg (2.2 lbs.)
Type Full range, 100 mm (4")
Maximum input power
40 W
Impedance 8 ohms
Dimensions Width: 200 mm (7-7/8")
Height: 172 mm (6-3/4")
Depth: 95 mm (3-3/4")
Weight 0.6 kg (1.3 lbs.)/each
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-DVD500
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinchedorthathardwareisnotlodgedbetweenthechassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet,terminalboard,adjustmentandcompartmentcovers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
havingareturnpathtothechassis(antenna,metalcabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
AllcheckmustberepeatedwiththeAClinecordplugconnection
reversed.
Anyreadingof0.3voltRMS(thiscorrespondsto0.2milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µF
1.5k ohms
10W
VTVM
AC SCALE
GBOXS0064AWM4
GBOXS2008AWM4
GBOXS4008AWM4
CP-DVD500
