HT-M700H
SERVICE MANUAL
In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
(Except for U.K.)
No. S6539HTM700H/
HOME CINEMA WITH DVD
HT-M700H
MODEL
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications.................................................1-1
[2] Names of parts...............................................1-2
CHAPTER 2. ADJUSTMENTS
[1] TEST Mode.................................................... 2-1
CHAPTER 3. MECHANISM BLOCKS

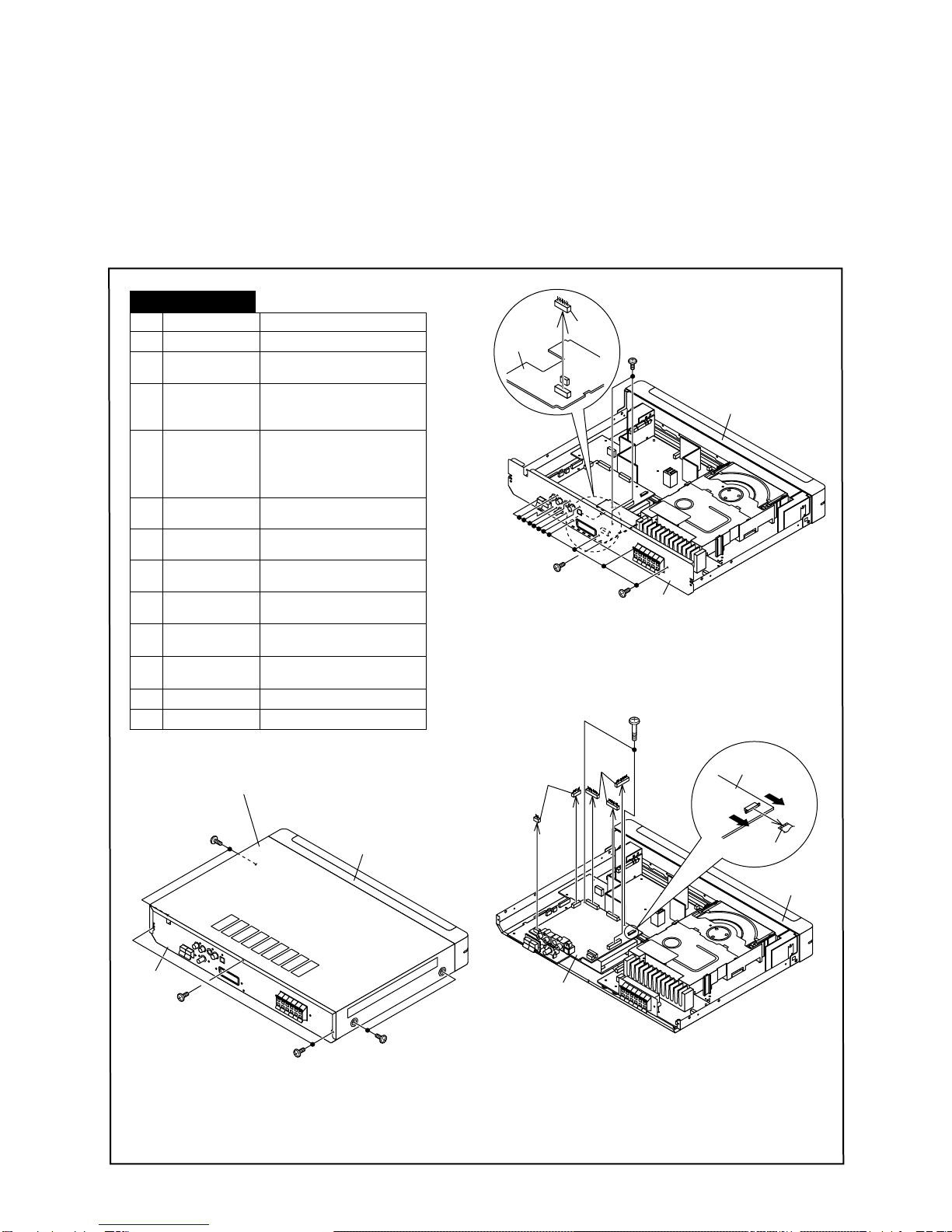

[1] Caution on disassembly.................................3-1
CHAPTER 4. DIAGRAMS
[1] Block diagram ................................................4-1
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram.......................... 5-1
[2] Types of transistor and LED...........................5-1
[3] Waveforms of circuit.......................................5-2
[4] Voltage...........................................................5-3
CHAPTER 6. PARTS LAYOUT AND CIRCUIT SCHE-
MATICS

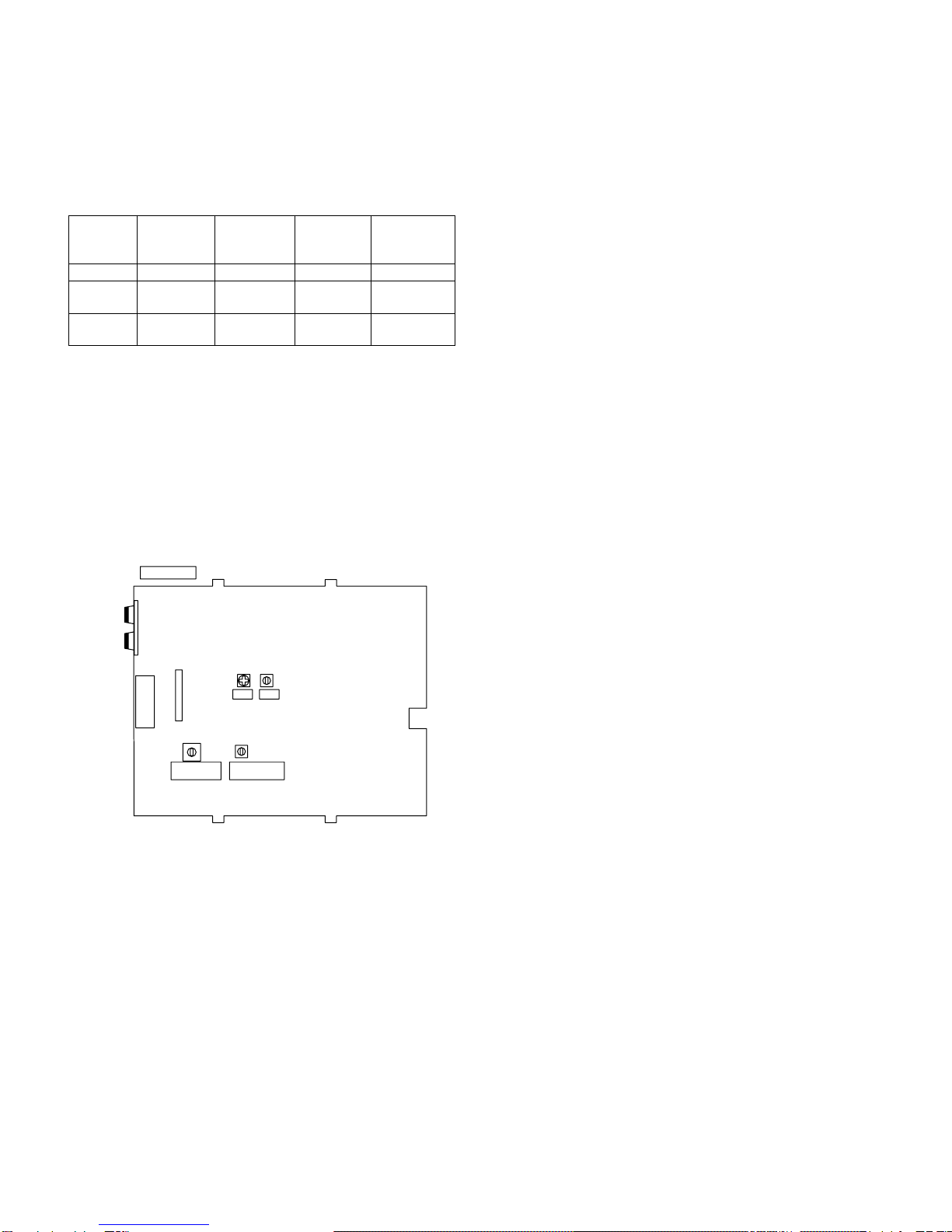

[1] Wiring side of PWB........................................6-1

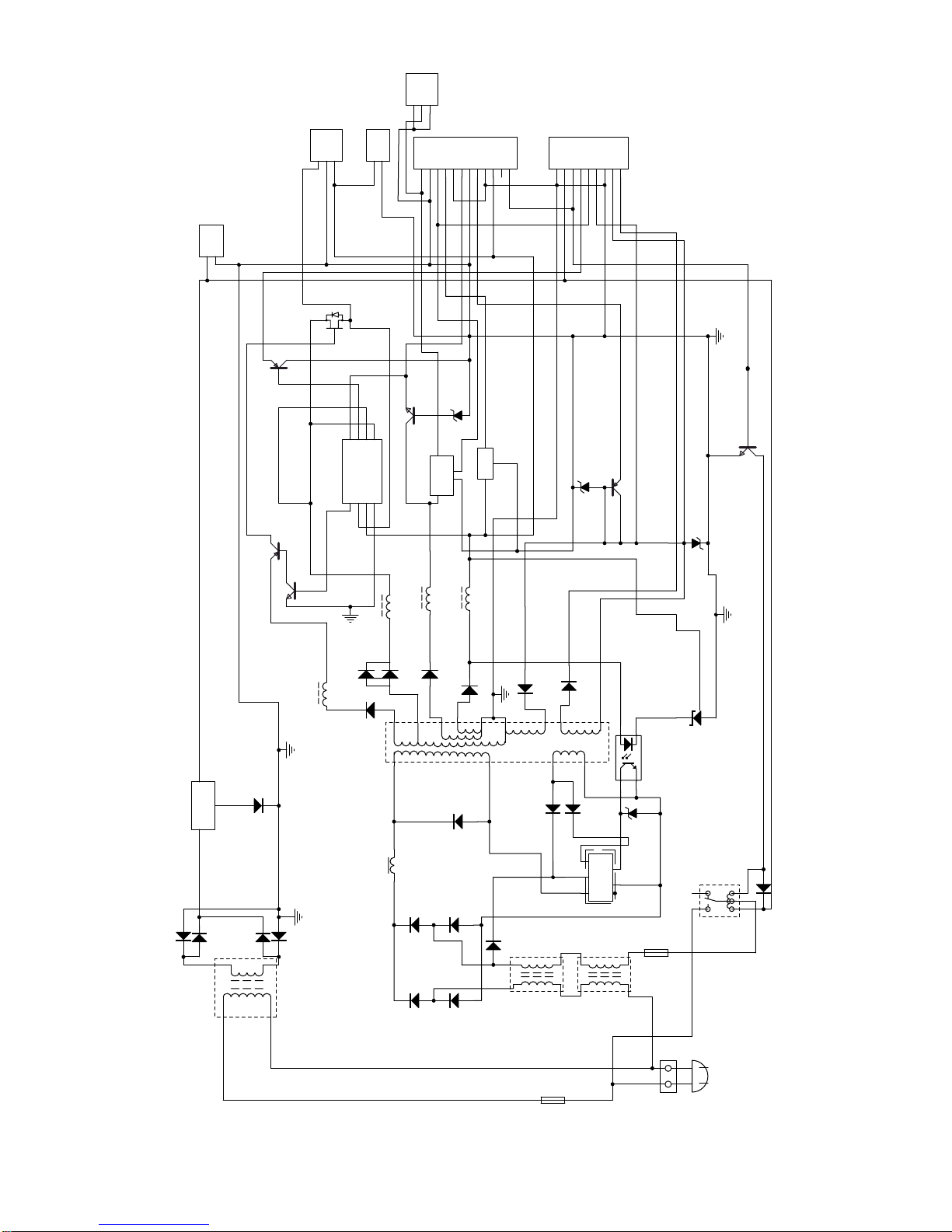

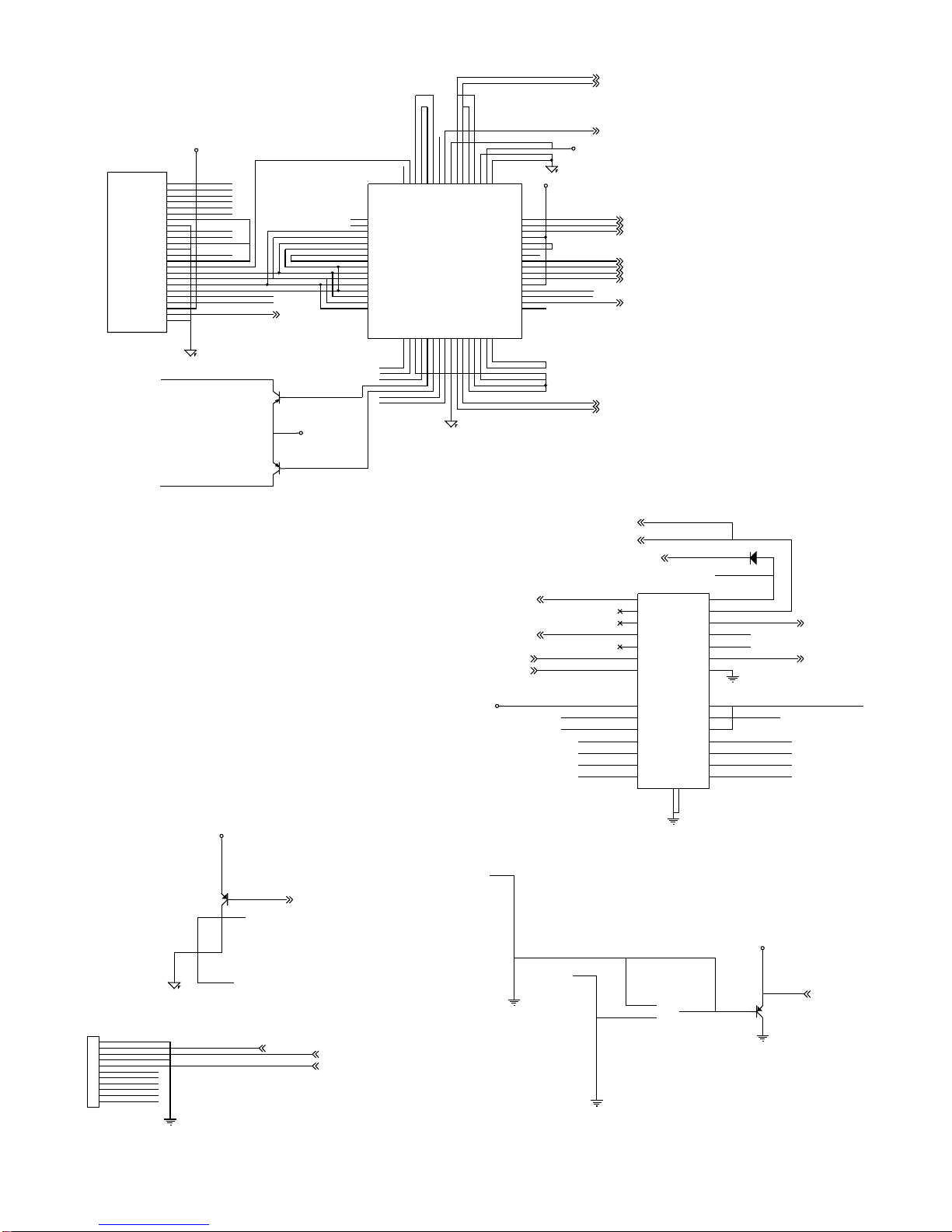

[2] Schematic diagram........................................6-9
CHAPTER 7. FLOWCHART
[1] Troubleshooting.............................................7-1
CHAPTER 8. OTHER
[1] Function table of IC .......................................8-1
Parts Guide
HT-M700H Home Cinema with DVD consisting of
HT-M700H (main unit), CP-M700HF (front speak-
ers), CP-M700HC (centre speaker), CP-M700HS
(Surround speaker) and CP-M700HSW (subwoof-
er).

HT-M700H
– i –

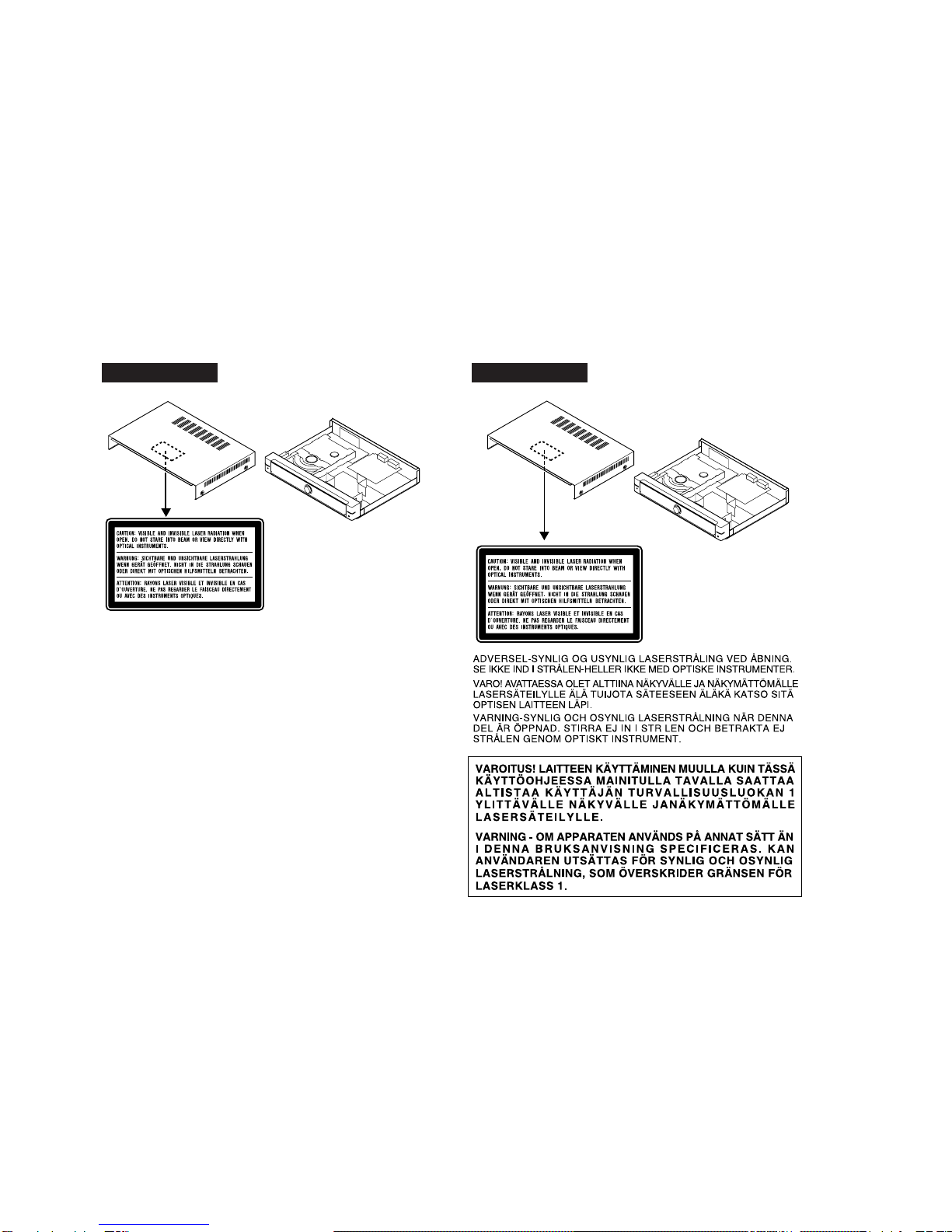

[1] Safety precaution for service manual
Precaution to be taken when replacing and servicing the Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class 1 Requirements. How-
ever, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser beam.
(1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the
lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping.
(3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens at any time.
(5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous
radiation exposure.
Material: AlGaAs/AlGalnP
Wavelength: 785 nm/650 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Laser Diode Properties
Material: AlGaAs/AlGalnP
Wavelength: 785 nm/650 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Laser Diode Properties
For U.K. Except for U.K.

HT-M700H
Set name set value
Withstanding Voltage Tester
Test voltage 4.7 kV DC
Set time 3 secs
Set current (Cutoff current) 3 mA
Unit
Judgment
OK: The "GOOD" lamp lights.
NG: The "NG" lamp lights and the buzzer sounds.
PROBE
AC
OUT
UNIT
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW
WITHSTANDING
VOLTAGE TESTER
[2] Important service notes (For U.K. only)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the cus-
tomer to use.
Setting of Withstanding Voltage Tester and set.
PRECAUTIONS FOR USING LEAD-FREE SOLDER
1. Employing lead-free solder
"All PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Indicates lead-free solder of tin, silver and copper.
2. Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage
or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering bit,
if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
3. Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady
soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corrected. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Ref No. Parts No. Description
PWB-A DCEKSV594SJ03 Decode
PWB-B DCYONV594SJ01 Display
PWB-C DCEKAV594SJ03 Power
PWB-D DCEKMV594SJ03 Speaker Terminal
PWB-E DCYOLV594SJ01 Tuner/SCART/Remote Control/Headphones/Motor Driver/Motor Control/Motor
– ii –

HT-M700H
1 – 1
HT-M700H Service Manual
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
Main unit
Power source AC230V,50Hz
Power consumption Power on: 66 W
Power stand-by: 0.6 W
Dimensions Width: 430 mm
Height: 70 mm
Depth: 310 mm
Weight 4.0 kg
Speaker terminals Front speakers, centre speaker,
surround speakers and subwoofer:
more than 8 ohms
Rated power output Front speakers:
RMS: 100 W
(50 W + 50 W, 10 % T.H.D., 1 kHz)
Centre speaker:
RMS: 50 W (10 % T.H.D., 1 kHz)
Surround speakers:
RMS: 100 W
(50 W + 50 W, 10 % T.H.D., 1 kHz)
Subwoofer:
RMS: 50 W (10 % T.H.D., 100 Hz)
Frequency range FM: 87.5 - 108.0 MHz
AM: 522 - 1,620 kHz
Video output terminals SCART output: SCART terminal 1
Video output: RCA type 1
S-video output: S-terminal 1
Audio output terminal Headphones: 16 - 50 ohms (recom-
mended: 32 ohms)
Audio input terminals Audio input (AUX): RCA type 2
Optical digital input: Square type 1
Signal system PAL
Supported disc types DVD (region number 2 or ALL),
DVD-R/RW (video mode), DVD+R/RW
(video mode), super video CD, video
CD, audio CD, CD-R, CD-RW, JPEG,
DivX
Video signal Horizontal resolution: 500 lines
S/N ratio: 70 dB
Audio
signal
Frequency
characteris-
tics
Linear PCM DVD:
4 Hz to 22 kHz (sampling rate: 48 kHz)
4 Hz to 44 kHz (sampling rate: 96 kHz)
CD: 4 Hz to 20 kHz
S/N ratio CD: 96 dB (1 kHz)
Dynamic
range
Linear PCM DVD: 95 dB
CD: 94 dB
Total har-
monic distor-
tion ratio
0.006 % (max.)
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
HT-M700H CP-M700HF
CP-M700HS
CP-M700HC
CP-M700HSW
Type Full range system (magnetic shield)
8 cm speaker 1
Maximum input power 100 W
Rated input power 50 W
Impedance 8 ohms
Dimensions Width: 105 mm
Height: 120 mm
Depth: 105 mm
Weight 0.78 kg/each
Type Full range system
8 cm speaker 1
Maximum input power 100 W
Rated input power 50 W
Impedance 8 ohms
Dimensions Width: 105 mm
Height: 120 mm
Depth: 105 mm
Weight 0.66 kg/each
Type Full range system (magnetic shield)
8 cm speaker 1
Maximum input power 100 W
Rated input power 50 W
Impedance 8 ohms
Dimensions Width: 105 mm
Height: 120 mm
Depth: 105 mm
Weight 0.78 kg
Type Bass reflex, 1 way system
16 cm woofer 1
Maximum input power 100 W
Rated input power 50 W
Impedance 8 ohms
Dimensions Width: 170 mm
Height: 300 mm
Depth: 300 mm
Weight 4.9 kg

HT-M700H
1 – 2
[2] Names of parts
Front panel
1. On/Stand-by Button
2. Volume Control
3. Front Panel Open/Close Button
4. Remote Sensor
5. Motorised Front Panel
6. Headphone Socket
7. Disc Compartment
8. Disc Tray Open/Close Button
9. Tuner (Band) Button
10. Chapter (Track) Skip Down or Fast Reverse Button
11. Chapter (Track) Skip Up or Fast Forward Button
12. Function Selector Button
13. Play Button
14. Stop Button
4
12 3
65
7 8 109 11
1312 14
HT-M700H
Display
1. DTS Signal Indicator
2. Dolby Digital Signal Indicator
3. Dolby Pro Logic Indicator
4. RDS Indicator
5. Traffic Programme Indicator
6. Traffic Announcement Indicator
7. Dynamic PTY Indicator
8. Programme Indicator
9. Random Play Indicator
10. Repeat/One Track Repeat/A - B Repeat Indicators
11. Play Indicator
12. Pause Indicator
13. Title Indicator
14. Video CD Playback Control Indicator
15. Chapter Indicator
16. Track Indicator
17. Total Indicator
18. Angle Indicator
19. Sleep Indicator
20. FM Stereo Mode Indicator
21. FM Stereo Receiving Indicator
Opening the front panel
Opening:
Press the OPEN/CLOSE button to open the front panel.
Closing:
With the panel open, press the OPEN/CLOSE button.
Notes:
Do not force the front panel open by hand. Damage may result.
When you press the DISC OPEN/CLOSE button on the remote
control, the front panel and the disc tray open.
1
11
2 3 4 5 76 108 9
18 1913 14 15
Front panel
16 17 20 2112

HT-M700H
1 – 3
Remote control
1. Remote Control Transmitter
2. Direct Number Buttons
3. On/Stand-by Button
4. Sleep Button
5. Clear Button
6. Random or Programme Button
7.A-BRepeatorRepeatButton
8. Unit Display Select or Dimmer Button
9. On Screen Display On/Off Button
10. Top Menu or Menu Button
11. Chapter (Track) Skip Down or Fast Reverse Button
12. Front Panel Open/Close Button
13. Multi Channel Select Button
14. Return Button
15. Stereo (2 channel) Select Button
16. Chapter (Track) Skip Up or Fast Forward Button
17. Angle Button
18. DVD Audio Language Select or
CD Audio Output Select Button
19. Gamma Button
20. RDS Programme Type/
Traffic Information Search Button
21. RDS Display Mode Select Button
22. Direct Button
23. Subtitle Button
24. Super Picture Button
25. Zoom Button
26. RDS ASPM (Auto Station Programme Memory) Button
27. Tuner Preset Down or Cursor Button
28. Tuning Up or Cursor Button
29. Tuner Preset Up or Cursor Button
30. Tuning Down or Cursor Button
31. Enter Button
1
3
13
4
5
6
7
8
9
11
2
15
16
14
12
10
17
18
19
21
22
23
25
26
24
20
29
30 31
2827
HT-M700H
1. Mute Button
2. Tuner (Band) Button
3. Auxiliary Button
4. Frame Advance or Pause Button
5. DVD Initial Setting Button
6. Amplifier Initial Setting Button
7. Shift Button
8. Volume Up and Down Buttons
9. Play Button
10. Disc Tray Open/Close Button
11. Stop Button
4
3
5
6
7
8
9
11
1
2
10
TV Operation Buttons
You can operate some functions of SHARP' TVs with the remote
control of this system.
However, some models cannot be operated.
TV Channel Up Button TV Channel Down Button
Switches the TV channel
up.
Switches the TV channel
down.
TV On/Stand-by Button TV Volume Up Button
Sets the TV power to "ON"
or "STAND-BY".
Turns up the TV volume.
TV/VCR Input Select But-
ton
TV Volume Down Button
Turns down the TV volume.
Switches the input to TV or
VCR.
1
2
3
4
5
6

HT-M700H
1 – 4
1 2
79810
3 5 64
1
1
2
3
3
2
4
Rear panel
1. AC Power Lead
2. Auxiliary (Audio Signal) Input Sockets
3. S-video Output Socket
4. Video Output Socket
5. Optical Digital Audio Input Socket
6. Speaker Terminals
7. Aerial Earth Terminal
8. AM Aerial Terminal
9. FM 75 Ohm Aerial Socket
10. SCART Output Socket
1. Speaker
2. Speaker Terminals
3. Colour Label
1. Bass Reflex Duct
2. Woofer
3. Speaker Terminals
4. Colour Label: Purple
White ... Left Front Speaker
Red ... Right Front Speaker
Blue ... Left Surround Speaker
Grey ... Right Surround Speaker
Green ... Centre Speaker
HT-M700H
CP-M700HSW
CP-M700HF/CP-M700HS/CP-M700HC

HT-M700H
2 – 1
HT-M700H Service Manual
CHAPTER 2. ADJUSTMENTS
[1] Tuner section
fL: Low-range frequency
fH: High-range frequency
•AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
NOTE:
1. Description of the “FM IF Adjustment” is not carried on this manual.
It is Because the IF coil in the FM FRONT END section has been
best adjusted in the factory so that its further adjustment is not
needed at the field. When replacing the FM FRONT END assem-
bly, no adjustment is needed either.
2. The parts in the FM FRONT END section are prepared in a com-
plate unit, so you can’t obtain each part individually.
[2] TEST Mode
Before enter TEST MODE, please do ‘PANEL DOOR OPEN POWER
OFF’: hold down ‘PANEL DOOR CLOSE’, then press ‘ON/STAND-BY’
button to turn on the power of unit.
After aboveoperation, panel door will open and enter stand-by mode
automatically.
1. TUNER TEST (“TUNER” + “STOP” + ‘ON/
STANDBY’)
INITIAL SETTINGS:
VOLUME = 20
FUNCTION = FM ST 87.50 MHz (P-01)
P-01: FM ST 87.50 MHz
P-02: FM ST 108.00 MHz
P-03: FM ST 98.00 MHz
P-04: FM ST 90.00 MHz
P-05: FM ST 106.00 MHz
P-06: AM 522 kHz
P-07: AM 1620 kHz
P-08: AM 990 kHz
P-09: AM 603 kHz
P-10: AM 1404 kHz
P-36: FM MONO 106.00 MHz
P-37: FM MONO 90.00 MHz
P-38: FM MONO 98.00 MHz
P-39: FM MONO 108.00 MHz
P-40: FM MONO 87.50 MHz
“STOP” BUTTON: TUNING DOWN
“PLAY” BUTTON: TUNING UP
“SKIP DOWN” BUTTON: TUNER PRESET DOWN
“SKIP UP” BUTTON: TUNER PRESET UP
2. VOLUME TEST (“SKIP DOWN” + “STOP” + ‘ON/
STAND-BY’)
INITIAL SETTINGS:
VOLUME = 23
FUNCTION = AUX DISITAL
FM ST FREQUENCY = 87.50 MHz
FM MONO FREQUENCY = 87.50 MHz
AM FREQUENCY = 522 kHz
VOLUME 0 >> VOLUME 1 >> VOLUME 23 >> VOLUME 40 >> VOL-
UME MAX
3. KEY TEST (“SKIP UP” + “PLAY” + ‘ON/STANDBY’)
Press each button of main unit except “ON/STAND-BY” button, and
then press “ON/STAND-BY” button.
KEY OK: ‘OK’ SHOWN ON VFD
KEY NG: ‘ERROR’ SHOWN OF VFD
Every press of key, VFD will display name of pressed button.
4. VFD TEST (“SKIP UP” + “STOP” + ‘ON/STANDBY’)
Use “SKIP UP” button to change VFD display mode.
Test
Stage Frequency Frequency Display Setting/ Adjusting
Point
Instrument
Connection
AM IF 450 kHz 1,620 kHz T351 *1
AM Band
Coverage – 522 kHz (fL): T306 1.1 ±0.1 V *2
AM
Tracking 990 kHz 990 kHz (fL): T302 *1
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
Figure 1 Adjustment Points
SO302
AM ANTENNA
TERMINAL
IC301
SO301
FM ANTENNA
TERMINAL
VR351 T351
T306
T302
TUNER PWB
VCO AM IF
AM BAND
COVERANGE fL
AM
TORACKING fL

HT-M700H
2 – 2
5. DVD RESTORE (“PLAY” + “FUNCTION” + ‘ON/
STAND-BY’)
DVD SETUP SETTINGS RESTORE
AMP SETUP SETTINGS RESTORE
SOUND MODE SETTING RESTORE
ERRASE ALL OF CONTENTS OF PROGRAM PLAYBACK LIST
SHOW DVD ROM DATA VERSION NUMBER ON VFD
6. SYSTEM RESTORE (“STOP” + “FUNCTION” +’ON/
STAND-BY’)
ERRASE ALL OF CONTENTS OF TUNER MEMORY
RESET TUNER PRESET FLAG
SET INITIAL VOLUME TO 20
SET INITIAL FUNCTION TO DVD/CD
SET FM ST FREQUENCY TO 87.50 MHz
SET FM MONO FREQUENCY TO 87.50 MHz
SET AM FREQUENCY TO 522 kHz
7. DVD MECHA + PANEL DOOR TEST (“SKIP
DOWN” + “PLAY” + ‘ON/STAND-BY’)
PANEL DOOR OPEN →MECHA OPEN →MECHA CLOSE →
PANEL DOOR CLOSE
ABOVE OP OK
VFD WILL DISPLAY TIMES TO DO THIS OPERATION.

HT-M700H
3 – 1
HT-M700H Service Manual
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on disassembly
Caution on disassembly
Follow the below-mentioned notes disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take DVD and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling thr unit. After servicing the unit, be sure to rearrange the
leads where they were before disassembling.
1 Top Cabinet 1. Screw ....................... (A1) x7
1. Screw ...................... (C1) x2
2 Rear Panel/
SCART PWB
1. Screw ..................... (B1) x14
2. Socket ...................... (B2) x1
3 Decode PWB
Tuner PWB
2. Socket ..................... (C2) x5
3. Flat Cable ................ (C3) x1
41. Screw ...................... (D1) x5
2. Screw ...................... (D2) x3
3. Shield, B
.....................
2. Socket .....................
(D3) x1
4. Shield, A ..................
..................
(D4) x1
5. Socket (D5) x1
......................
5 Power PWB 1. Screw ...................... (E1) x5
6 Motor Driver
PWB
1. Screw ...................... (F1) x2
(F2) x3
2. Socket ..................... (E2) x4
7 DVD Mechanism
Ass'y
1. Screw ...................... (G1) x4
2. Screw ...................... (H2) x2
8 Speaker Terminal
PWB
1. Screw (H1) x5
......................
2. Hook ........................ (J2) x2
9 Front Panel 1. Screw (J1) x5
....................
2. Socket ..................... (K2) x2
10 Display PWB 1. Screw (K1) x10
......................
11 Headphones PWB 1. Screw (L1) x2
......................
12 Remote Control PWB 1. Screw (M1) x2
STEP REMOVAL PROCEDURE
HT-M700H
(A1)x1
φ3x6mm
(A1)x2
φ3x6mm
(A1)x2
φ3x6mm
(A1)x2
φ3x6mm
Top Cabinet
Front Panel
Rear Panel
(C1)x2
φ3x40mm
(C2)x2
(C3)x1
(C2)x3
Pull
Pull
Decode PWB
Decode PWB
Front Panel
Front Panel
(B1)x1
φ3x6mm
(B1)x11
φ3x8mm
(B1)x2
φ3x10mm
(B2)x1
Rear Panel
SCART
PWB

HT-M700H
3 – 2
1 Woofer 1. Net Frame Ass'y ....... (A1) x1
2. Screw ....................... (A2) x4
STEP REMOVAL PROCEDURE
CP-M700HSW
Front
Panel
DVD Mechanism
Ass'y
(D1)x3
φ3x10mm
(D1)x1
φ3x6mm
(D2)x1
φ2x3mm
(D2)x1
φ2x3mm
(D2)x1
φ2x3mm
(D1)x1
φ3x6mm
(D5)x1
Tuner PWB
Bracket
(D3)x1
(D4)x1 (G1)x4
φ3x16mm
(F2)x3
(H2)x2
(E2)x2
Pull
(E2)x1
(J2)x1
(J2)x1
Pull
(J1)x1
φ3x6mm
(J1)x1
φ3x6mm
(H1)x5
φ3x16mm
(E1)x5
φ3x16mm
(F1)x2
φ3x8mm
(E2)x1
(J1)x3
φ3x6mm
Front Panel
Power
PWB
Motor Driver
PWB
(L1)x2
φ3x8mm
(M1)x2
φ3x8mm
(K1)x10
φ3x8mm
(K2)x1
(K2)x1
Headphones PWB
Front Panel
Display PWB
Remote Control
PWB
(A2)x4
φ4x16mm
(A1)x1
Speaker Box
Woofer
Speaker
Terminal
PWB

HT-M700H
4 – 1
HT-M700H Service Manual
CHAPTER 4. DIAGRAMS
[1] Block diagram
LC87F67C8A
MCU
ESS 6698
MP3
WMA
DVD-RW
DVD+RW
CD-RW / R
DivX
VIDEO CD
SVCD
JPEG
PHOTO CD
LC72131 + LA1832S
TUNER
DDX-8001
DIGITAL
AUDIO
PROCESSOR
VOLUME
CONTROL
DDX-2100
DIGITAL
AMPLIFIER
AD1181
CD4053M+
LC72723M
RDS
RLBR G
AUX ANALOG INPUT TERMINAL
AUX DIGITAL INPUT TERMINAL
MCLK/BCLK/LRCK/ SCL/SDA/ DAT0/DAT1/DAT2
VIDEO OUTPUT TERMINAL
VFD
DISC MECHANISM
DECORATED DOOR
KEY
REMOTE CONTROL
PROTECT
DATA CONTROL
SI
FL FR C SL SR SW
PWM AUDIO SIGNALS
DA1132
HEADPHONE OUTPUT
SWITCHING
POWER SUPPLY
PCM AUDIO SIGNALS
HEADPHONE DETECT
AMPLIFY
MUTE CONTROL
HP_MUTE
P_CON
USED AS POWER CONSUMPTION CONTROL (<0.6W) UNDER STAND BY

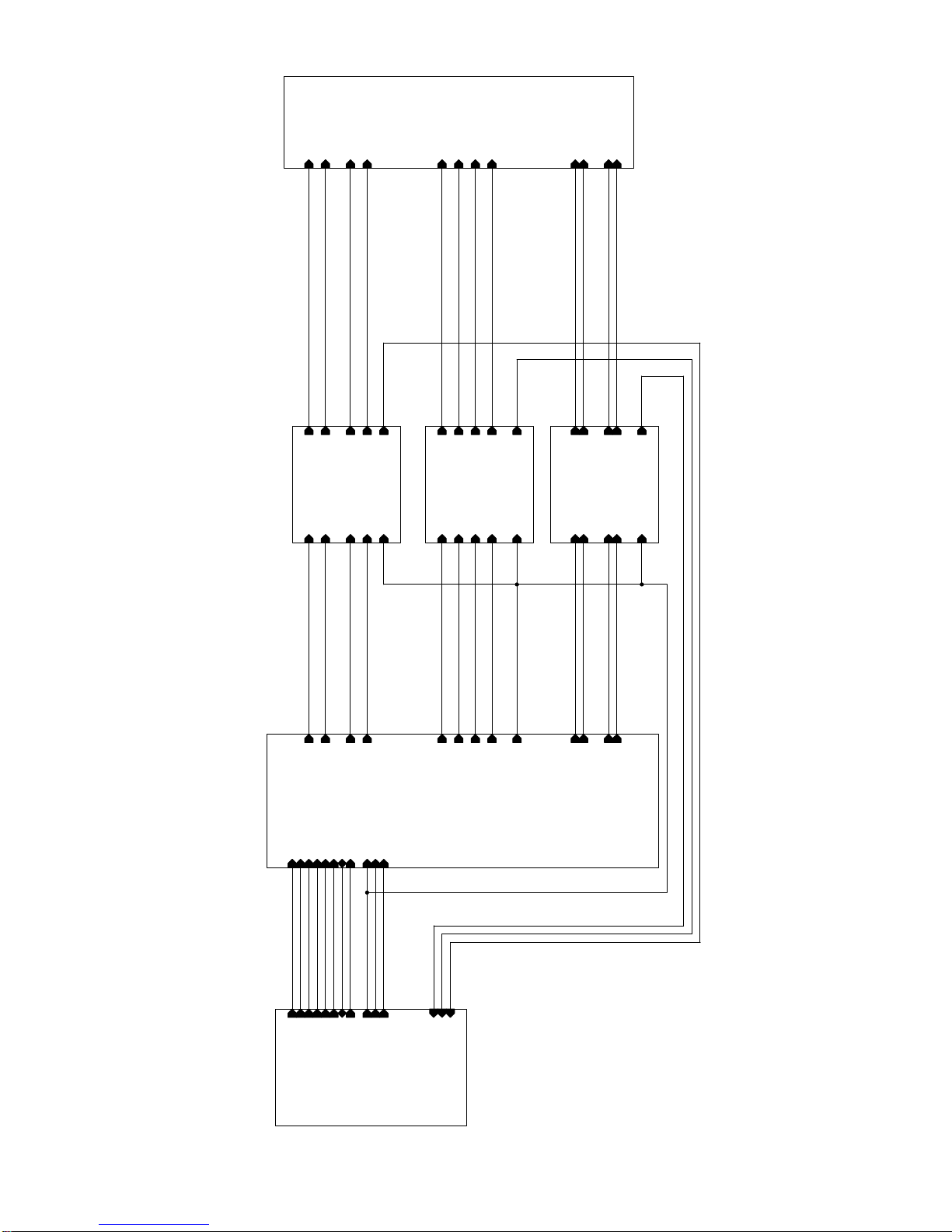

Figure 4-1 BLOCK DIAGRAM (1/14)

HT-M700H
4 – 2
NC
1
NC
2
PROG1
3
PROG2
4
PROG3
5
IRQ_UP
6
HP_DETECT
7
HP_MUTE
8
OPTICAL_ON
9
VIDEO_MUTE
10
RESET
11
XT1
12
XT2
13
VSS1
14
CF1
15
CF2
16
VDD1
17
KEY1
18
KEY2
19
POWER_KEY
20
RDS_VSM
21
RDS_DATA
22
SIGNAL_LVL
23
PATCH
24
MODEL
25
SYS_STOP
26
DVD_STB
27
RDS_CLK
28
IRQ_FRT
29
1G
30
2G 31
3G 32
4G 33
5G 34
6G 35
7G 36
8G 37
9G 38
10G 39
P1 40
P2 41
P3 42
P4 43
P5 44
P6 45
VDD3 46
P7 47
P8 48
P9 49
P10 50
51
P11 52 P12 53 P13 54 P14 55 P15 56 P16 57 P17 58 P18 59 P19 60 P20 61 P21 62 P22 63 P23 64 P24 65 P25 66 P26 67 P27 68 P28 69 P29 70 P30 71
VDD4 72
SD 73
MM+ 74
MM- 75
FAN_PRO 76
JOG_UP 77
JOG_DOWN 78
FM_ST 79
4094_STB 80
P_CON
81
FUNC_TUNER
82
LED
83
NC
84
CE
85
DI
86
CLK
87
PROTECT
88
VSS2
89
VDD2
90
TUNER_DO
91
SW1
92
SW2
93
SW3
94
DVD_DI
95
DVD_DO
96
DVD_CLK
97
DVD_BUSY
98
CLID_OUT
99
NC
100
U701
IX0058SJ
SYSTEM
NICROCOMPUTER
X701
32.768 kHz
8MHz
DGND
X702
Q701
Q702
D711
DGND
D701
VCC_STBY
+5.6V
SYS_STOP
Q704
D702
D703
RESET
L701
SYS_STOP
RESET
IRQ
XT1 XT2
STB
BUSY
CLK
DI
DO
1
2
3
4
5
6
7
8
9
10
CNW701
TUNER_DI
TUNER_CE
DGND
TUNER_CLK
TUNER_DO
SD
FM_ST
RDS_CLK
RDS_DATA
RDS_VSM
TUNER_DI
TUNER_CE
TUNER_CLK
TUNER_DO
SD FM_ST
RDS_CLK RDS_DATA RDS_VSM
MM+ MM- FAN_PRO
A1
C2
B3
4
5
SW709
(JOG)
DGND
JOG_UP
JOG_UP
JOG_DOWN
JOG_DOWN
P-CON
I_DETECT HP_MUTE
DC_PRO
VDD
SW701
KEY1 KEY2 POWER_KEY
SW702
SW703
SW705
SW706
SW707
SW708
DGND
KEY1
KEY2
PLAY
STOP
TRAY OPEN/CLOSE
TUNER
FUNCTION
PRESET UP
PRESET DOWN
F1
1
F1
2
1G
4
2G
5
3G
6
4G
7
5G
8
6G
9
7G
10
8G
11
9G
12
10G
13
P1
16
P2
17
P3
18
P4
19
P5
20
P6
21
P7
22
P8
23
P9
24
P10
25
P11
26
P12
27
P13
28
P14
29
P15
30
P16
31
F2
33
F2
34
VFD701
AC3.8V-1
AC3.8V-2
DGND
VDD
SW_OPEN
FAN_START
LED_BACK
AMP_MUTE HP_DETECT
IIC_SCL
IIC_SDA
1
2
3
4
CNW702
XP20/4P-B
VDD
DGND
IRQ
POWER_KEY
1
2
3
4
5
6
7
8
9
CNW704
AC3.8V-1
AC3.8V-2
-30V
DGND
VCC_STBY
P-CON
DGND
I_DETECT
1
2
3
4
5
6
7
8
CNW705
STB
BUSY
CLK
DI
DO
1
2
3
4
5
6
7
CNW706
DGND
1
2
3
CNW707
OPEN/CLOSE
DGND
1
2
3
4
CNW703
DGND
DC_PRO
HP_MUTE
AMP_MUTE
D704
VCC_STBY +5.6V
D705
VCC_STBY
+5.6V
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
D708
LED
D710
LED
DGND
MVCC +5.6V
Q703
LED_BACK
DOOR OPEN/CLOSE
1
2
3
4
5
6
CNW708
DGND
RESET
DGND
MM+
MM-
SW_CLOSE
SW_OPEN
FAN_START
FAN_PRO
MVCC
HP_DETECT
RADIO_SLT
RADIO_SLT
DGND
VDD
PROG1
PROG2
PROG3
(Only use for on board program)
To power unitTo DVD unitTo tuner unit
To AMP unit
TUNER
TUNER
D721
VDD1
VDD1
DGND
GND
CFW701
DGND
Figure 4-2 BLOCK DIAGRAM (2/14)

HT-M700H
4 – 3
Q502
Q501
1234
5678
NJM4558D
IC502
BUUFER AMP.
OUTR +RIN -RIN VSS +LIN
-LIN OUTL VCC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
R
L
GND
GND
GND
GND
GND
GND
GND
GND
CVBS
R
G
B
AVHV
L504
L502
L503
L501
1
2
3
4
5
6
7
8
S501
CNP501
Q503
MUTE
L
GND
R
+5V
GND
-5V
CNW504
CNW506
1
2
3
41
2
3
1
2
5.6V
GND
CNP505
1 2 3
U801
DGND
IRQ
1
2
3
4
CNP801
DGND
IRQ
POWER_KEY
SW801
POWER
VDD
MM+
Q901
MGND
Q904
MVCC
B
C
E
Q906
+5V 1
2
CNP901
1
2
3
CNP903
SW_CLOSE
SW_OPEN
MGND
MM-
Q903
MGND
Q905
Q907
1
2
3
4
5
6
7
8
CNP904
MGND
MM+
MM-
SW_CLOSE
SW_OPEN
FAN_START
FAN_PRO
MVCC
MGND
1
2
CNW901
MVCC
M+
M-
1
2
3
CNW601
SW_CLOSE
SW_OPEN
MGND
1
2
3
4
5
SW601
M601
DOOR MOTOR
1
2
CNP601
MM+ DRV
MM- DRV
R
1
L
2
3
4
5
6
7
JK501
1
2
3
CNW508
R_OUT
L_OUT
HP_DETECT
D501
D502
AGND
1
2
3
CNP508
OPEN/CLOSE
DGND
SW501
OPEN/CLOSE
HP_DETECT
DGND
To power unit
To AMP unit
D904 D905
D902 D903
REMOTE SENSOR

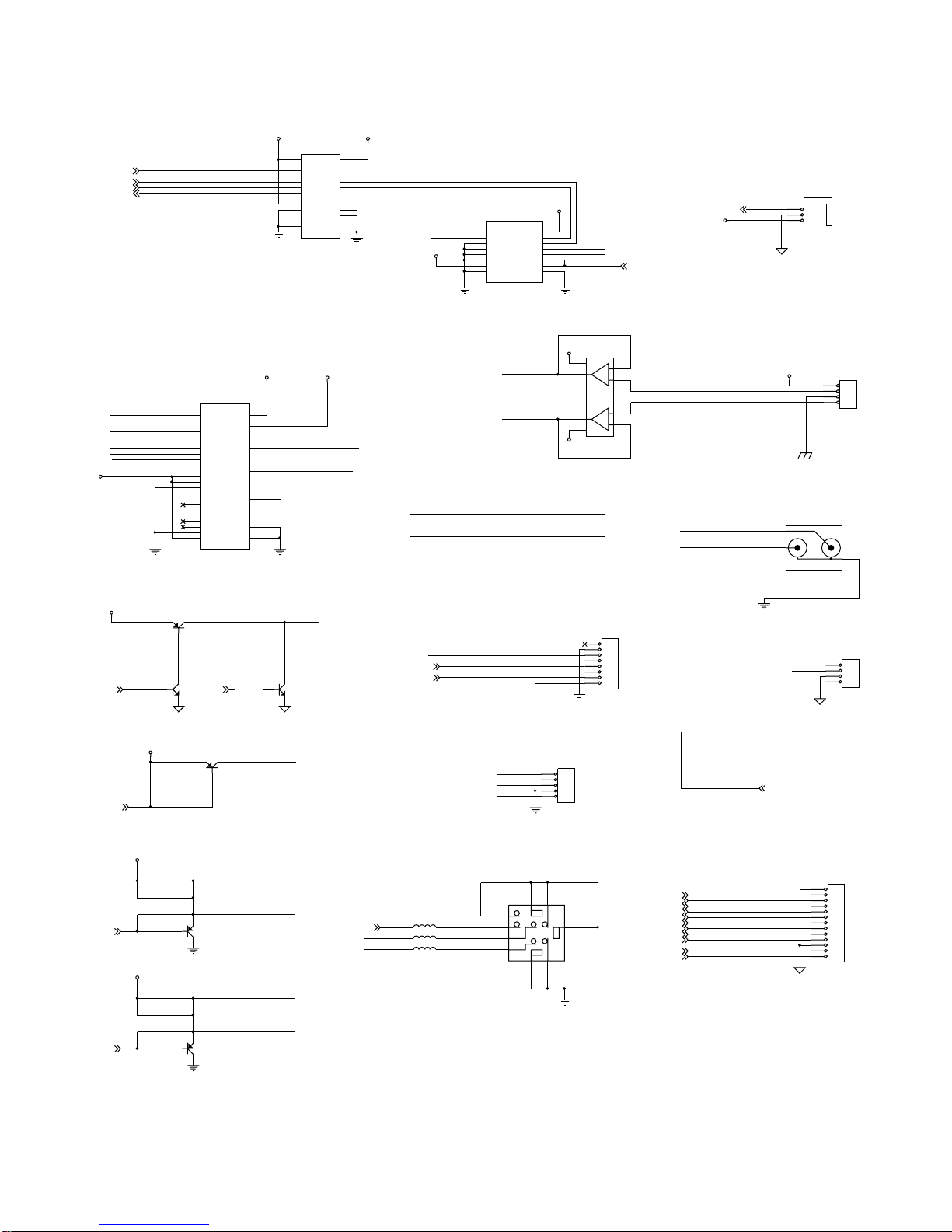

Figure 4-3 BLOCK DIAGRAM (3/14)

HT-M700H
4 – 4
MX29LV16
FLASH
U16400B
SD-RAM
SERIAL
EEPROM
ES6698FD
DECODER
SLDC
DEFCT
SVREF21
RFO
DB6 DB1
LD1
LA12
TESTAD
DOE# MA8
LD6
LA4 LA18SCLK XSC L K
DB11
MA2
LA3
SCSJ XSC S J
MA5 MA11
MA4 DMA4
LA17
LA2
SDATA XSD A T A OPEN
DB3
LA6 LA7 LA19 WRLL# LA14
MA0 DMA0
LA1
TRACK
DB9 DB13 DB5
LA0
LA5 LA11
DSCK MA10
LD5 LD2
LA10SPINDLE
AUX0
RAS2# MA9 MA0 RAS0# DQM
DB8 DB10 DB14
MA6
RFRP
CAS# RAS1#
LD7
RESET#
SVREF15
DB12
LA9
DWE#
DB15
MA3
DB4 DB0
LD3
MA4
DB2
LD4
TEI
SLEGN
CS0# MA7
MA3 DMA3
LCE#
LA8
MA1
DB7
MA11 DMA1 1
LA13 LA15 LA16
FOCUS
RFRP
LA13
DSCK
SLEGP
WRLL# LA4
DB15
RESET#
DEFCT
LD4 LCS3#
CEI
FDAC1
SLDC
TR1
TBCK
LA0 LA3 LA6 LA10 LA11 LA17
DB1
DB3
DB0
SPDIF
FDAC1
DQM
TSD0
COMP
LD1 LD0 LCS2# LA21
DB10
DB6
RBCK
UDA C 1
VS33_PL2
RSD LOE# LA7
DB8
TR2
SVREF15
LD7 LA15
DB12
DB5
DWE#
SVREF15
UDAC1
LA5 LA12
DB11
TSD1
TWS
GNDV
RSET
VREF
VD33_PL1 RWS LD3
VDAC1
DCLK
AUX0
TESTAD
LA14
DB14
RAS1#
LA2 LA18 LA19
DB13
DB4
CS0#
SBAD FEI
XIN
SVREF09
SVREF21
CDAC1
LD5 LA8
DB2
CDAC1
VDAC1
LA1
DB9
XOUT
MCLK
VCC33V
LA9 LA16
DB7
DMA8MA8
DMA10MA10
TSD2
LD6 LD2 LA20
LA20 LCS3# LCS2#
YDAC1
YDAC1
DMA2MA2
CAS#
RAS0#
RAS2#
DOE#
LD0 LOE#
DA DA
EAUX03 EAUX02 EAUX01 EAUX00 AUX2 AUX3 AUX4 AUX5 AUX6 AUX7 AUX1
SPDIF_IN
FLASHVCC
RFGND
TWS TBCK
AUX1
DMA1MA1
DMA5MA5
DMA6MA6
DMA7MA7
MA9 DMA9
VCC33V
DIP
TR1 TR2
SPINDLE3
SDEFCT3
OPEN3
SLDC3
FOCUS3
SVREF213
SVREF153
TRACK3
SLEGN3
MIRR3
TEI3
RFO3
CEI3 FEI3 DIP3
SBAD3
SCSJ3
SDATA3
SCLK3
INSW3
HOMESW3
OUTSW3 DRVSB3
UDA C CDAC YDAC VDAC
FDAC
SPDIF TBCK MCLK TSD2 TSD1 TSD0 TWS
RWS RBCK RSD
RESET#
MOCTL
LD7 LD6 LD5 LD4 LD3 LD2 LD1 LD0
3 MOCTL
3CLOSE
HFMVSW3
BIAS3
EAUX03 EAUX02 EAUX01 EAUX00 AUX0 AUX1 AUX2 AUX3 AUX4 AUX5 AUX6 AUX7
SPDIF_IN
PLL33V
RF33V
VCC33
VCC
GND
VCC33
GND
GNDV
GND
GND
VCC20
VCC33V
RFGND VCC33
GND
GND
PLLGNDRFGND
VCC20
VCC
GND
FLASHVCC
GND
VCC33
VCC33
U1A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208
VD33
XIN
XOUT
DCLK
DMA0
DMA1
DMA2
DMA3
VS33
VD33
DMA4
DMA5
DMA6
DMA7
DMA8
DMA9
DMA10
VS33
VD33
DMA11
DCAS
DCS0
DCS1
DRAS0
DBANK0/ DRAS1
VSS
VDD
DBANK1/ DRAS2
DCKE/DOE/TDMTSC
DWE
DB0
DB1
DB2
VS33
VD33
DB3
DB4
DB5
DB6
DB7
DB15
DB14
VS33
VD33
DB13
DB12
DB11
DB10
DB9
DB8
DSCK
VS33
VD33
DQM
LA21 LA20 LA19 LA18 LA17 LA16
VS33
VD33
LA15 LA14 LA13 LA12 LA11 LA10
LA9
VSS
VDD
LA8 LA7 LA6 LA5 LA4 LA3
VS33
VD33
LA2 LA1 LA0
LCS0
LCS1 LCS2
VSS
VDD
LCS3
LWRLL
LOE
LD0 LD1 LD2 LD3
VS33
VD33
LD4 LD5 LD6 LD7
RSD/TDMDR
RBCK/TDMCLK
RWS/TDMFS
VD33_PLL
VS33_PL
YUV1/VREF
YUV3/COMP
YUV4/RSET
YUV7/FDAC
YUV6/VDAC
VD33_DA
VS33_DA
YUV5/YDAC
YUV2/CDAC
YUV0/UDAC
TWS/SEL_PLL2
TSD0/SEL_PLL0
TSD1/SEL_PLL1
VS33
TSD2
TSD3
MCLK
TBCK
SPDIF/SEL_PLL3
SPDIFIN
VD33
VS33
XSWBLCLK
XSWBL
XSLG
XSIP2
XSIP1
XSFLAG[0]
XSFLAG[1]
XSFLAG[2]
XSFLAG[3]
VSS
VDD
XSTEXI
XSTESTAD
XSSBAD
XSFEI
AVSS_AD
XSCEI
XSTEI
XSRFRP
AVDD3_AD
XSVREF[21]
XSVREF[09]
XSVREF[15]
XSIREF
AVDD3_DS
XSIPIN
XSRFIN
XSRFIP
XSDSSLV
AVSS_DS AVSS_PL XS PDO F T R1 XSF D O XSF T R OP I AVDD3_PL XS PL L F T R 1 XS PL L F T R 2 XSVR E F 0 XSAW R C AVSS_DA XSRFRPCTR XST R A Y AVDD3_DA XSSPINDLE XSF O C U S XSSL EGP XSSL EGN XST R A CK XST E S T DA XSF G I N XSPHO I SXCSJ XSD A T A XSC L K XSD F C T XSL DC XSSPD O N VD33 VS33 XGPIO [ 9 ] XGPIO [ 8 ] XGPIO [ 7 ] XGPIO [ 6 ] XGPIO [ 5 ] XGPIO [ 4 ] EAUX03 EAUX02 EAUX01 EAUX00 VSS VDD AUX0 AUX1 AUX2/ HSYNC AUX3/ VSYNC AUX4 AUX5 AUX6 AUX7 RESET VS33
U3
24C02
12
3
4
567 8
S0 S1 S2 GND SDA
SCL
WC
VCC
Y1
27 MHz
TP2
U5A
1 2 4 6 5 7 3 8 10 12 11 13 9
15 16 17 18 19 35 22 23 24 25 26
14 28
29 30 31 32 33 34 36 37 38 39 40
43 42 44 46 45 47 49 48 50 52 51 53 41
20 21
27 54
VCC DQ0 DQ1
VSSQ
DQ2 DQ3
VCCQ
DQ4 DQ5
VSSQ
DQ6 DQ7
VCCQ
DQML WE
CAS RAS CS A11 A10 A0 A1 A2 A3
VCC
VSS
A4 A5 A6 A7 A8 A9 NC CKE CLK DQMH NC
VCCQ
DQ8 DQ9
VSSQ
DQ10 DQ11
VCCQ
DQ12 DQ13
VSSQ
DQ14 DQ15
VSS
BA0 BA1
VCC
VSS
U6A
V6300C
RESET
1 2 3 4
5
NC GND NC RE S
VDD
U2A
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
A15 A14 A13 A12 A11 A10 A9 A8 NC NC W
RP VPP DU/WP NC NC A17 A7 A6 A5 A4 A3 A2 A1 A0
E
GND
G
DQ0 DQ8 DQ1 DQ9 DQ2
DQ10
DQ3
DQ11
VCC DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A_1
GND
BYTE
A16
TP1
Figure 4-4 BLOCK DIAGRAM (4/14)

HT-M700H
4 – 5
SLED+
SLED-
TRACK-
CDMDI
TRACK+
FOCUS+
CDLDO
FOCUS-
DVDMDI
DVDLDO
SBA
SVREF15
SCLK
CDMDI
SCSJ
PVC
F
CE
RF50V
FE
E
SDATA
DVDMDI
TE
CDLD
DVDLD
DVDLDO
RF50V
RF50V
MEVO
OPIN+
OPIN-
LOAD+/DCMO+
LOAD-/DCMO-
DCLOAD-
DCLOAD+
HOMESW
SLED+
SLED-
LOAD+/DCMO+
LOAD-/DCMO-
CDLDO
HFMVCC
DVDLDO
OPIN-
OPIN+
DCLOAD-
LOAD+/DCMO+
TRACK-
OPOUT
LOAD-/DCMO-
TRACK+
DCLOAD+
FOCUS-
FOCUS+
OPOUT
HFMVCC
MVCC
MVCC
MVCC
F
E
PVC
RF50V
SLEGN2
TRACK2
FOCUS2
SDATA2
DIN 2
MIRR2
SCSJ2
SLDC2
SCLK2
SDEFCT2
DIP2
RFO2
SVREF212
TEI2
FEI2
CEI2
SBAD2
MOCTL
SPINDLE2
SVREF152
DRVSB2
INSW 2
OUTSW2
HOMESW2
HFMVSW 2
BIAS2
OPEN2
CLOSE2
RF50V
RF33V
RF50V
RF50V
RFGND
RFGND
RFGND
MGND
MGND
MGND
MGND
RFGND
RF33V
MVCC
MGND
MGND
QQ1 1
2 3
QQ2
1
23
U9
ES6603S
64M SD-RAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
DVDFRP
DVDRFN
A2
B2
C2
D2
CP
CN
D
C
B
A
CD_D
CD_C
CD_B
CD_A
CD_F CD_E VPB VC DVDLD CDLD DVDPD CDPD VNB LDON MIRR MP MB MLPF MIN MEVO
RFDC
RFSIN
ATOP
ATON
AIN
AIP
VPA
RFAC
BYP
DIN
DIP
FNP
FNN VNA
MEV
RX
SDEN
SDATA
SCLK
V33
LCP
LCN
MNTR
CE
FE
TE
PI
V25
V125
TPH
DFT
LINK
QQ3
1
23
JP1
1
2
3
4
5
6
7
8
9
10
11
U10A
AM5868S
DRIVER IC
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
29 30
VINFC
VOTR-
VOTR+
VOSL-
OP2IN+
OP2IN-
VOTK+
REV
VOFC+
VOFC-
VCTL
VCC2
OP1OUT
OP1IN-
BIAS
FWD
VINSL
OP2OUT
MUTE
VCC1
VOSL+
VOLD+
VOLD-
VOTK-
VINLD
GND
OP1IN+
VINTK
gnd gnd
JJ1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
TR-
TR+
FO-
FO+
PD(MONITOR)
VCC
VR
GND
LD(DVD)
LD(CD)
VR
GND(NC)
PD
GND
RFOUT
C
B
A
D
F
E
VCC
VS(VCC)
GND
QQ4
1
23
DD1
1
Figure 4-5 BLOCK DIAGRAM (5/14)

HT-M700H
4 – 6
2-CHANNEL
AUDIO OUT
FDAC_V
RGB_S
AVTV_MODE
SC-R
SC-B
SC-G
AVTV_MODE
RGB_S
YDAC_G
CVBS
SV-C
SV-Y
FDAC_C
YDAC_Y
FDAC_C
SC-R
ADC_R
AUX_R
TUN_L
RADIO_R
RADIO_L
TUN_R
+12VR
TBCK-
TBCK
TWS TWS
MCLK-
MCLK
AUX2 DDX_RST
AUX1 DDX_SCL
TSD0-
TSD0
AUX3 MUTE_2062
RSDD
ADC_L
TUN_LLTUN_L
TBCK
TWS
AUX2
R
LAOUTL
R
L
QUIET
QUIET
YDAC_G SC-G
SC-B
FDAC_V
YDAC_Y
TSD1-
TSD1
TSD2-
TSD2
DDX_SDA
AUX0
AUX5
RWSS
RBCKK
MCLKK
TUN_RR
TUN_LL
AUX_L
AUX_L
AUX_R
TUN_R TUN_RR
AOUTR
MCLK
TSD0
EAUX02
EAUX03
CDAC
UDA C
FDAC
YDAC VDAC
SPDIF_IN
TSD1
MCLK
TWS
TBCK
TSD2
AUX0
AUX1
TSD0
STANDBY
RADIO_SEL
AUX3
AUX2
AUX5
RWS
RSD
MCLK
RBCK
AUX5
VCCV
GNDV
+12V
VCCV
VCCV
GNDA
VCCADC
GNDA
VCCADC
GNDA
+5VA
GNDA -5VA
GNDT
-5VA
+5VA
VCC
GNDA
VA5
VA5VA5
GND
12VR
Q6
1
23
JP2
1
2
3
4
JP3
1
2
3
4
5
6
7
8
9
10
11
12
13
Q2
1
23
JP4
1
2
3
4
5
6
7
8
P2
6
5
4
3
2 1
7 9
8
6
5
4
3
21
79
8
U14
1
2
3
VCC
GND
VOUT
JR1
1
2
3
4
JP5
1
2
3
4
5
L13 1 2
Q5
1
2 3
L14 1 2
L15 1 2
P1
2
3
1
V+
V-
-
+
+
-
U12
NJM4558D
BUFFER AMP.
1
2
3
7
5
6
8
4
Q4
1
2 3
Q1
1
2 3
U500
DA1132F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NC
SCKI
NC
ML/ I2S
MC/IWL
MD/DM
RSTB
ZERO
VOUTR
AGND
AVCC
VOUTL
CAP
BCKIN
DIN
LRCIN
MUTE
MODE
VDD
DGND
Q3
1
2 3
U11
AD1181
AD
4
5
6
7
8
10
9
3
12
13
14
2
1
11
VDD
SCKI
BCKIN
LRCIN
DOUT
FMT
BYPAS
GND
AGND
VERF2
VERF1
VINR
VINL
VCC
U13
HEF4053BT
SWITCH IC
1
2
4
5
6
7
8
14
15
12
16
9
10
11
13
3
BY
BX
CIO
CX
INH
VEE
GND
AIO
BIO
AX
VCC
C
B
A
AY
CY
Figure 4-6 BLOCK DIAGRAM (6/14)

HT-M700H
4 – 7
MCU Communication
COM_STB
COM_DI
COM_DO
COM_BUSY
COM_CLK
RADIO_SEL
STANDBY
EAUX00
AUX4
EAUX01
AUX7
AUX6
STANDBY
VCC33V
VCC33 VCC33
RF50V
MVCC
PLL33V
RF33V
RFGND
VCC
VCC
12VR VCC33 VCC
+5VA
+12V -12V
GND GNDA
VCC20VCC33
+12V
GNDA
VCCADC
-12V
GNDA
-5VA
VCC VCCV
GND
GND
+5VA
-5VA
VA5
VCC
JP6
1
2
3
4
5
6
7
8
9
10
11
12
U15
KA78L05B
VOLTAGE REGULATOR
U16
KA79L05
VOLTAGE REGULATOR
3 1
2
IN OUT
GND
LL7
12
Q7
3 2
1
IN OUT
ADJ
R104
CC76
JP7
1
2
3
4
5
6
7
LL3
1 2
CC77
2 1
3
IN OUT
GND
JR2
1
2
3
LL5
12
Figure 4-7 BLOCK DIAGRAM (7/14)

HT-M700H
4 – 8
1 2 3
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
10 11 12
3
21
AC POWER SUPPLY CORD AC 230 V, 50 Hz
3.3Vac
-28V
5V
33V
14V
GND
Feb
SS
Vcc
Drain
3
1
2
12V(R) 3.3V +12VA
AGND
-12VA
DGND 5VD
P-CON P-CON(L)
5V
33V_
AGND
KA
33V
12V (R)
-12V(S)
5V
3.4V
-28V
3.3VacA
3.3VacB
-28V DGND 3.3VacA 3.3VacB
DGND AGND
DGND
38V
GND 3
C4
OUT
2
IN
1
5.6V
Out-A
1
Inv-In-A
2
Non-Inv-A Inv-In-B
3
Gnd
4Non-Inv-B 5
6
Out-B 7
Vcc 8
5V6_
Vin
3
GND 2
Vout 1
I-DETEC(L)
Over current-Con
RADIO-SL T(H) RADIO-SL T(H)
1 2MVCC
MGND
1 2
1 2 3
5.6V GND
GND 12V GND
U01
KA78L05B
VOLTAGE
REGULATOR
L001L002
IC001
KA10880
SWITCH POWER IC
T1
MAIN POWER
TRANSFORMER
Q3B
Q2B
Q6B ZD3
T01
SUB POWER
TRANSFORMER
IC002
KP1010
PJOTOTUBE
IC003
AZ431BZ or
LM431SG
MANOSTAT
Q5B
Q4B
ZD2
U1B
AZ1084
TRANSFORM
U2B
KA78L12
TRANSFORM
IC1
LA358
BUFFER AMP.
Q1B
Q7B
Figure 4-8 BLOCK DIAGRAM (8/14)

HT-M700H
4 – 9
SL+ SL- FL+ FL- SUB+ SUB- CN+ CN- FR+ FR- SR+ SR-
Sch_CH_1/2_Out
CH2_A CH1_A CH2_B CH1_B EAPD TWARN1
CH2-
CH1+ CH2+
CH1-
Sch_CH_3/4_Out
CH4_A CH3_A CH4_B CH3_B EAPD TWARN2
CH4-
CH3+ CH4+
CH3-
SPEAKER OUTPUT
CH3+ CH4+ CH4- CH3- CH5+ CH6+ CH6- CH5-
CH1+ CH1- CH2+ CH2-
Sch_CH_5/6_Out
CH5_A CH6_A CH6_B EAPD
CH5+
CH6+
CH6-
TWARN3
CH5_B CH5-
SCH_A_INPUT
PWRDWN
TWARN2
POWER_ON_RST
LRCK
SCL
SDATA2
SDA
SDATA1
MCLK
SDATA0
BICK
TWARN3 TWARN3
EAPD
Sch_B_Processin g
LRCK BICK SDATA0 POWER_ON_RST PWRDWN
CH5_A CH4_A
SDATA2 SDA SCL
EAPD
CH6_A CH6_B CH3_A CH3_B CH4_B
SDATA1 MCLK EAPD
CH1_A CH1_B
CH2_A CH2_B CH5_B
SDATA1 POWER_ON_RST SDA SCL SDATA2 PWRDWN LRCK SDATA0 BICK MCLK TWARN3
EAPD CH5_A
CH6_A CH6_B
CH5+
CH3-
TWARN2(N)
CH3_B CH4_A CH4+ CH4_B CH3_A CH3+
TWARN3(N)
TWARN2 EAPD
CH1_A CH1_B CH2_A CH2_B CH5_B
TWARN1
TWARN1(N) CH4-
CH6+ CH6- CH5- CH2+ CH2- CH1+ CH1-
Figure 4-9 BLOCK DIAGRAM (9/14)
