Sharp CD-BA3100H User manual

– 1 –
CD-BA3100H
No. S5134CDBA310H
CONTENTS
Page
SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2
IMPORTANT SERVICE NOTES (FOR U.K. ONLY) .......................................................................................................... 3
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
OPERATION MANUAL ...................................................................................................................................................... 6
DISASSEMBLY................................................................................................................................................................ 11
REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 14
ADJUSTMENT ................................................................................................................................................................. 15
CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING PROCEDURE................................... 18
BLOCK DIAGRAM ........................................................................................................................................................... 25
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 28
VOLTAGE ........................................................................................................................................................................ 47
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 48
TYPES OF TRANSISTOR AND LED............................................................................................................................... 48
WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 49
TROUBLESHOOTING ..................................................................................................................................................... 50
FUNCTION TABLE OF IC................................................................................................................................................ 54
WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY) ....................................................................................... 60
FL DISPLAY..................................................................................................................................................................... 61
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING METHOD (FOR U.K. ONLY)
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
• Note for users in U.K.
Recording and playback of any material may require consent
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
MINI COMPONENT SYSTEM
MODEL CD-BA3100H
CD-BA3100H Mini Component System consisting of
CD-BA3100H(mainunit)andCP-BA3100H(speakersystem).
All manuals and user guides at all-guides.com
all-guides.com

CD-BA3100H
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
for this model is specified to be lower than Class 1
Requirements. However, the following precautions must be
observedduringservicingtoprotectyoureyesagainstexposure
to the Laser beam.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outerthanthelead-inposition,theLaserwilllightforseveral
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacementservicepartshavealreadybeenadjustedprior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5)CAUTION -Useofcontrolsor adjustments,orperformance
of procedures other than those specified herein may result
in hazardous radiation exposure.
(For U.K.)
(Except for U.K.)
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA
KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLENÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA
BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR
OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR
LASERKLASS 1.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
All manuals and user guides at all-guides.com

– 3 –
CD-BA3100H
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA3100H
CP-BA3100H

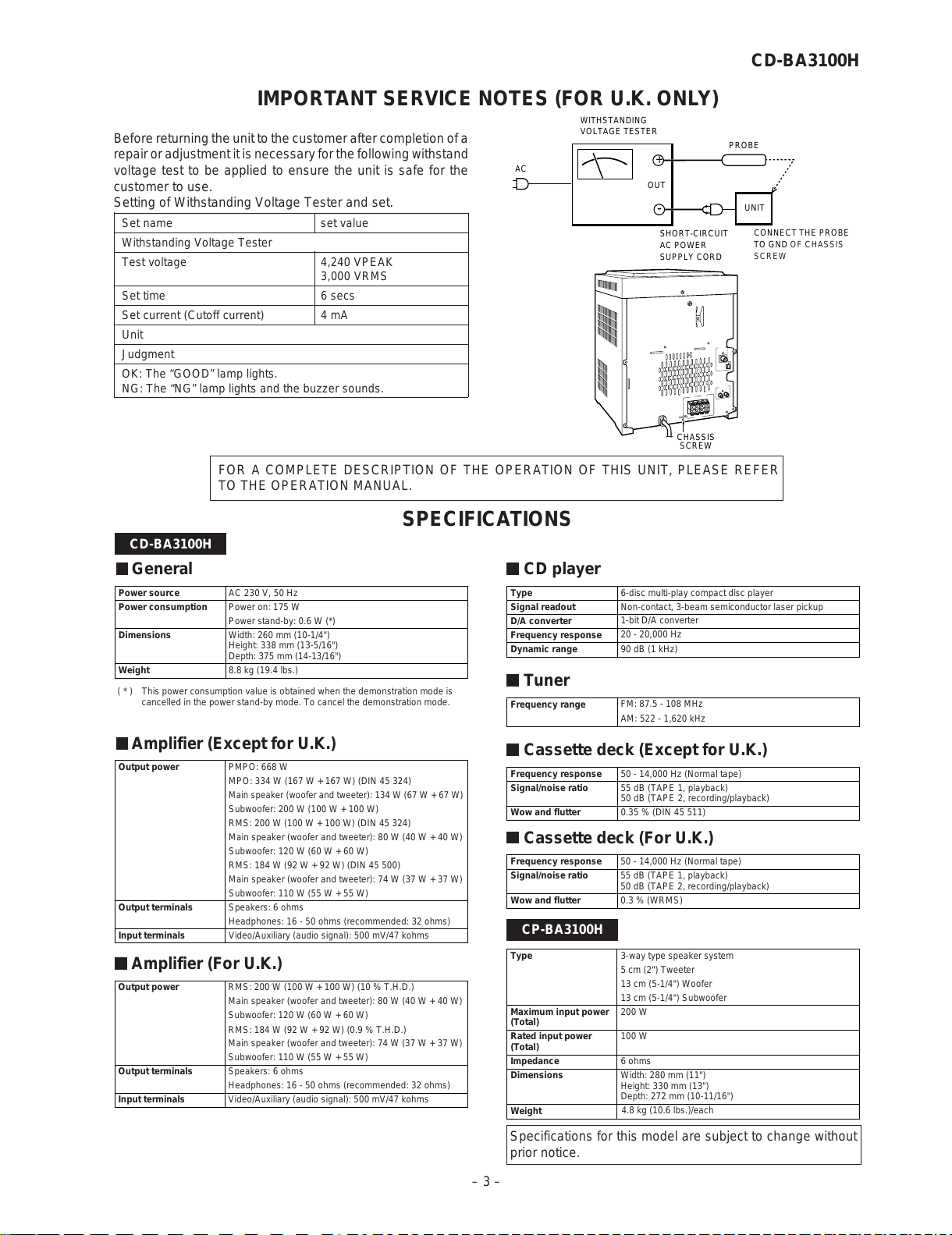

IMPORTANT SERVICE NOTES (FOR U.K. ONLY)
Beforereturningthe unit tothecustomer aftercompletionof a
repairor adjustmentit isnecessaryforthefollowingwithstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current (Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
General
Amplifier (Except for U.K.)
CD player
Tuner
Cassette deck (Except for U.K.)
Power source AC 230 V, 50 Hz
Power consumption Power on: 175 W
Power stand-by: 0.6 W (*)
Dimensions Width: 260 mm (10-1/4")
Height: 338 mm (13-5/16")
Depth: 375 mm (14-13/16")
Weight 8.8 kg (19.4 lbs.)
( * ) This power consumption value is obtained when the demonstration mode is
cancelled in the power stand-by mode. To cancel the demonstration mode.
Output power PMPO: 668 W
MPO: 334 W (167 W + 167 W) (DIN 45 324)
Main speaker (woofer and tweeter): 134 W (67 W + 67 W)
Subwoofer: 200 W (100 W + 100 W)
RMS: 200 W (100 W + 100 W) (DIN 45 324)
Main speaker (woofer and tweeter): 80 W (40 W + 40 W)
Subwoofer: 120 W (60 W + 60 W)
RMS: 184 W (92 W + 92 W) (DIN 45 500)
Main speaker (woofer and tweeter): 74 W (37 W + 37 W)
Subwoofer: 110 W (55 W + 55 W)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 kohms
Type 6-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser pickup
D/A converter 1-bit D/A converter
Frequency response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Frequency range FM: 87.5 - 108 MHz
AM: 522 - 1,620 kHz
Frequency response 50 - 14,000 Hz (Normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.35 % (DIN 45 511)
Type 3-way type speaker system
5 cm (2") Tweeter
13 cm (5-1/4") Woofer
13 cm (5-1/4") Subwoofer
Maximum input power
(Total) 200 W
Rated input power
(Total) 100 W
Impedance 6 ohms
Dimensions Width: 280 mm (11")
Height: 330 mm (13")
Depth: 272 mm (10-11/16")
Weight 4.8 kg (10.6 lbs.)/each
Amplifier (For U.K.)
Cassette deck (For U.K.)
Output power RMS: 200 W (100 W + 100 W) (10 % T.H.D.)
Main speaker (woofer and tweeter): 80 W (40 W + 40 W)
Subwoofer: 120 W (60 W + 60 W)
RMS: 184 W (92 W + 92 W) (0.9 % T.H.D.)
Main speaker (woofer and tweeter): 74 W (37 W + 37 W)
Subwoofer: 110 W (55 W + 55 W)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 kohms
Frequency response 50 - 14,000 Hz (Normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
CHASSIS
SCREW
All manuals and user guides at all-guides.com

CD-BA3100H
– 4 –
NAMES OF PARTS
CD-BA3100H
Front panel
1. Disc Trays
2. Timer Set Indicator
3. CD Direct Play Buttons
4. CD Eject Buttons
5. Memory/Set Button
6. Equalizer Mode Select Button
7. Volume Control
8. Extra Bass/Demo Mode Button
9. Tape 2 Record Pause Button
10. Tape 2 Cassette Compartment
11. Tape 1 Cassette Compartment
12. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button
13. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button
14. CD Button
15. RDS Programme Type/Traffic Information Search Button
16. RDS EON Button
17. RDS ASPM (Auto Station Programme Memory) Button
18. RDS Display Mode Selector Button
19. Tuner (Band) Button
20. Tape (1 2) Button
21. Video/Auxiliary Button
22. On/Stand-by Button
23. Dimmer Button
24. Headphone Socket
25. CD or Tape Stop Button (with Indicator)
26. CD Play or Repeat, Tape Play Button (with Indicator)
27. Clock Button
28. Timer/Sleep Button
29. Tuning and Time Down Button
30. Tuning and Time Up Button
25
26
12
30292827
13 14 1917 181516 20 21
22
23
24
1
2
34
5
6
7
8
9
10
11
Display
1. CD Music Schedule Indicators
2. CD Play Indicator
3. CD Pause Indicator
4. Tape Play Indicator
5. CD Repeat Play Indicator
6. CD Indicators
7. Memory Indicator
8. CD Random Play Indicator
9. Tape 2 Record Indicator
10. FM Stereo Receiving Indicator
11. FM Stereo Mode Indicator
12. Extra Bass Indicator
13. Timer Recording Indicator
14. Timer Play Indicator
15. Sleep Indicator
16. Spectrum Analyser/Volume Level Indicator
17. Dynamic PTY Indicator
18. RDS Indicator
19. Traffic Information Indicator
20. EON Indicator
21. Programme Type Indicator
22. Radio Text Indicator
23. Traffic Programme Indicator
24. Traffic Announcement Indicator
7
812
11
10
13
14
15
16
9
12456 23 24
21
20
22
18
17
19
3
All manuals and user guides at all-guides.com

– 5 –
CD-BA3100H
CD-BA3100H

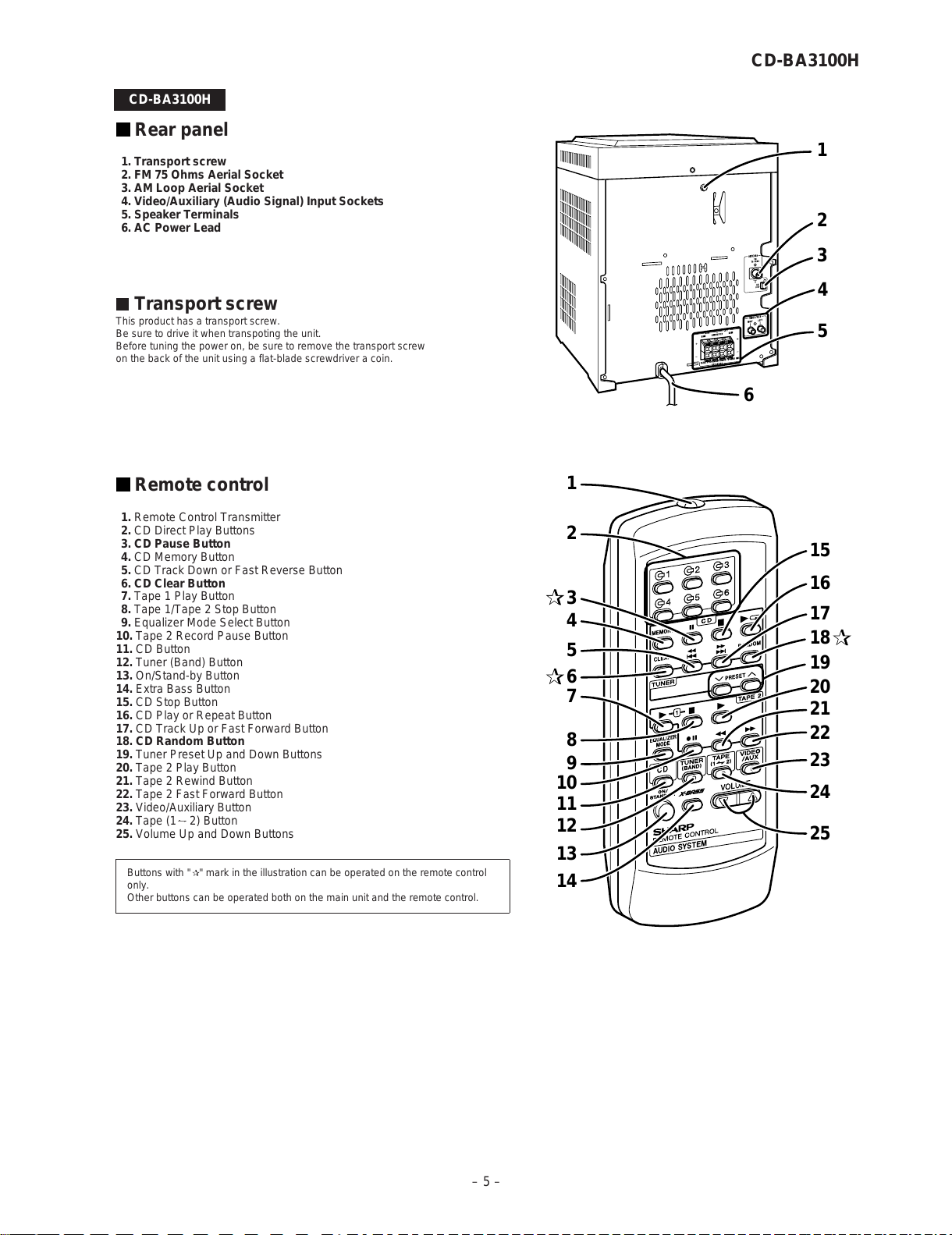

Rear panel
1. Transport screw
2. FM 75 Ohms Aerial Socket
3. AM Loop Aerial Socket
4. Video/Auxiliary (Audio Signal) Input Sockets
5. Speaker Terminals
6. AC Power Lead
3
2
1
5
4
6
Remote control
1. Remote Control Transmitter
2. CD Direct Play Buttons
3. CD Pause Button
4. CD Memory Button
5. CD Track Down or Fast Reverse Button
6. CD Clear Button
7. Tape 1 Play Button
8. Tape 1/Tape 2 Stop Button
9. Equalizer Mode Select Button
10. Tape 2 Record Pause Button
11. CD Button
12. Tuner (Band) Button
13. On/Stand-by Button
14. Extra Bass Button
15. CD Stop Button
16. CD Play or Repeat Button
17. CD Track Up or Fast Forward Button
18. CD Random Button
19. Tuner Preset Up and Down Buttons
20. Tape 2 Play Button
21. Tape 2 Rewind Button
22. Tape 2 Fast Forward Button
23. Video/Auxiliary Button
24. Tape (1 2) Button
25. Volume Up and Down Buttons
1
215
16
17
18
19
20
21
24
3
6
4
7
8
9
10
14
13
12
11
5
25
22
23
Buttons with " " mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
Transport screw
This product has a transport screw.
Be sure to drive it when transpoting the unit.
Before tuning the power on, be sure to remove the transport screw
on the back of the unit using a flat-blade screwdriver a coin.
All manuals and user guides at all-guides.com

CD-BA3100H
– 6 –
OPERATION MANUAL

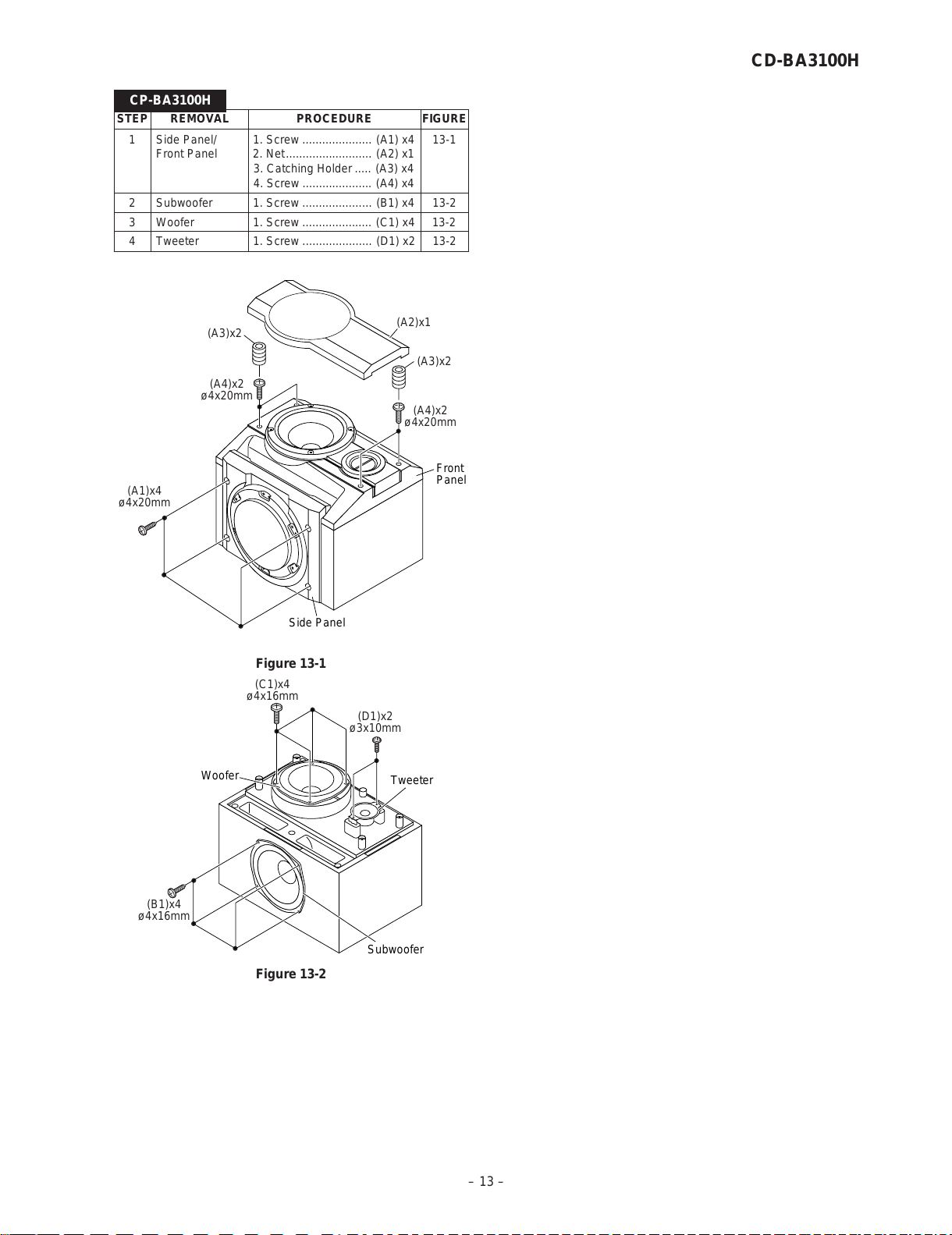

CP-BA3100H
1. Subwoofer
2. Bass Reflex Duct
3. Tweeter
4. Woofer
5. Speaker wire for SUBWOOFER terminals
6. Speaker wire for MAIN terminals 3
4
2
1
3
4
1
25
6
5
6
Right speaker
Left speaker
Setting the Clock
In this example, the clock is set for the 24-hour (0:00) display.
Note:
The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the Clock" from the beginning. If the time display is flashing, step 3
(for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CLOCK button and within 5 seconds, press the MEMO-
RY/SET button.
3
Press the TUNING/TIME ( or ) button to select 24-hour or 12-
hour display and then press the MEMORY/SET button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it has been reset.
[Refer to "Clearing all the memory (reset)".]
4
Press the TUNING/TIME ( or ) button to adjust the hour and then
press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.
When the 12-hour display is selected, "AM" will change automatically to "PM".
5
Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.
The hour will not advance even if minutes advance from "59" to "00".
The clock begins counting from "0" seconds. (Seconds are not displayed.)
The time display will disappear after a few seconds.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)".]
2 Perform "Setting the Clock" from the beginning.
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
CD-BA3100H
Using the Radio Data System (RDS)
RDS is a broadcasting service which a growing number of FM stations provide.
These FM stations send additional signals along with their regular programme
signals. They send their station names, and information about the type of pro-
gramme such as sports or music, etc.
When tuned to an RDS station, "RDS" and the station name will be displayed.
"TP" (Traffic Programme) will appear on the display when the received broadcast car-
ries traffic information, and "TA" (Traffic Announcement) will appear whilst a traffic
information is on air.
"EON" will appear whilst the EON (Enhanced Other Networks information) data is
broadcast.
"PTYI" (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is
received.
"RT" (Radio Text) will appear whilst the unit receives the Radio text data.
"CT" (Clock Time) will appear whilst the unit receives the RDS CT data.
You can control the RDS by using the buttons on the main unit only.
Information provided by RDS
Each time the DISPLAY MODE button is pressed, the display will switch as fol-
lows:
When you are tuning in to a station other than an RDS station or to an RDS station
which sends weak signal, the display will change in the following order:
Station name (PS) Frequency
Programme type (PTY) RDS clock time
(8 Languages)
Date (for 3 seconds)
Programme type (PTY) Clock-time and date (CT)
(English fixed)
Radio text (RT)
NO PS NO PTY
FM 98.80 MHz NO CT
NO RT
Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and
TA (Traffic Announcement).
You can search for and receive the following PTY, TP and TA signals.
Note:
When you select a programme in the EON stand-by mode, the unit will display "TI"
instead of "TA".
NEWS Short accounts of facts, events and publicly expressed views, report-
age and actuality.
AFFAIRS Topical programme expanding or enlarging upon the news, generally
in different presentation style or concept, including debate, or analy-
sis.
INFO Programmes whose purpose is to impart advice in the widest sense.
SPORT Programme concerned with any aspect of sport.
EDUCATE Programme intended primarily to educate, of which the formal ele-
ment is fundamental.
DRAMA All radio plays and serials.
CULTURE Programmes concerned with any aspect of national or regional cul-
ture, including language, theatre, etc.
SCIENCE Programmes about the natural sciences and technology.
VARIED Used for mainly speech-based programmes usually of light-entertain-
ment nature, not covered by other categories. Examples include:
quizzes, panel games, personality interviews.
POP M Commercial music, which would generally be considered to be of cur-
rent popular appeal, often featuring in current or recent record sales
charts.
ROCK M Contemporary modern music, usually written and performed by
young musicians.
EASY M Current contemporary music considered to be "easy-listening", as op-
posed to Pop, Rock or Classical, or one of the specialised music
styles, Jazz, Folk or Country. Music in this category is often but not
always, vocal, and usually of short duration.
LIGHT M Classical music for general, rather than specialist appreciation. Ex-
amples of music in this category are instrumental music, and vocal or
choral works.
CLASSICS Performances of major orchestral works, symphonies, chamber mu-
sic, etc., and including Grand Opera.
OTHER M Musical styles not fitting into any of the other categories. Particularly
used for specialist music of which Rhythm & Blues and Reggae are
examples.
WEATHER Weather reports and forecasts and meteorological information.
FINANCE Stock Market reports, commerce, trading, etc.
CHILDREN For programmes targeted at a young audience, primarily for entertain-
ment and interest, rather than where the objective is to educate.
SOCIAL Programmesabout people and things that influence them individually
orin groups. Includes: sociology, history, geography, psychology and
society.
RELIGION Any aspect of beliefs and faiths, involving a God or Gods, the nature
of existence and ethics.
PHONE IN Involving members of the public expressing their views either by
phone or at a public forum.
TRAVEL Features and programmes concerned with travel to near and far des-
tinations, package tours and travel ideas and opportunities. Not for
use for announcements about problems, delays, or roadworks affect-
ing immediate travel where TP/TA should be used.
LEISURE Programmesconcerned with recreational activities in which the listen-
er might participate. Examples include, Gardening, Fishing, Antique
collecting, Cooking, Food & Wine, etc.
JAZZ Polyphonic, syncopated music characterised by improvisation.
COUNTRY Songs which originate from, or continue the musical tradition of the
American Southern States. Characterised by a straightforward melo-
dy and narrative story line.
NATION M Current Popular Music of the Nation or Region in that country's lan-
guage, as opposed to International 'Pop' which is usually US or UK
inspired and in English.
OLDIES Music from the so-called "golden age" of popular music.
FOLK M Music which has its roots in the musical culture of a particular nation,
usually played on acoustic instruments. The narrative or story may be
based on historical events or people.
DOCU-
MENT Programme concerned with factual matters, presented in an investi-
gative style.
TEST Broadcast when testing emergency broadcast equipment or receiv-
ers.
ALARM ! Emergencyannouncementmadeunderexceptionalcircumstancesto
give warning of events causing danger of a general nature.
NONE No programme type (receive only).
TP Broadcasts which carry traffic announcements.
TA Traffic announcements are being broadcast.
All manuals and user guides at all-guides.com

CD-BA3100H
– 8 –

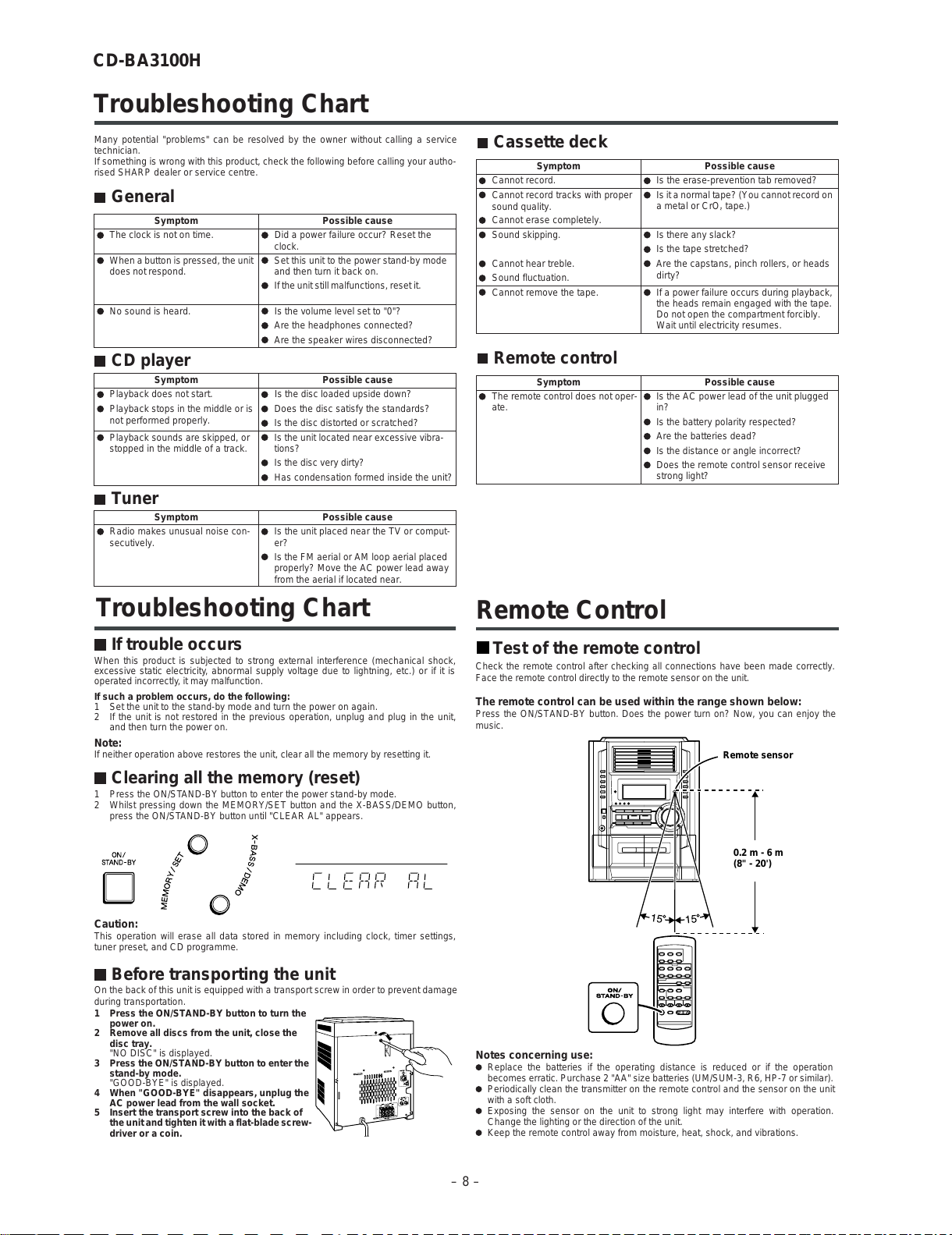

Troubleshooting Chart
Many potential "problems" can be resolved by the owner without calling a service
technician.
If something is wrong with this product, check the following before calling your autho-
rised SHARP dealer or service centre.
General
CD player
Tuner
Cassette deck
Remote control
Symptom Possible cause
The clock is not on time. Did a power failure occur? Reset the
clock.
When a button is pressed, the unit
does not respond. Set this unit to the power stand-by mode and then turn it back on.
Ifthe unit still malfunctions, reset it.
No sound is heard. Is the volume level set to "0"?
Are the headphones connected?
Are the speaker wires disconnected?
Symptom Possible cause
Playback does not start. Is the disc loaded upside down?
Playback stops in the middle or is
not performed properly. Does the disc satisfy the standards?
Is the disc distorted or scratched?
Playback sounds are skipped, or
stopped in the middle of a track. Is the unit located near excessive vibra- tions?
Is the disc very dirty?
Has condensation formed inside the unit?
Symptom Possible cause
Radio makes unusual noise con-
secutively. Is the unit placed near the TV or comput- er?
Is the FM aerial or AM loop aerial placed
properly? Move the AC power lead away
from the aerial if located near.
Symptom Possible cause
Cannot record. Is the erase-prevention tab removed?
Cannot record tracks with proper
sound quality. Is it a normal tape? (You cannot record on
a metal or CrO tape.)
Cannot erase completely.
Sound skipping. Is there any slack?
Is the tape stretched?
Cannot hear treble. Are the capstans, pinch rollers, or heads
dirty?
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during playback,
the heads remain engaged with the tape.
Do not open the compartment forcibly.
Wait until electricity resumes.
Symptom Possible cause
The remote control does not oper-
ate. Is the AC power lead of the unit plugged in?
Is the battery polarity respected?
Are the batteries dead?
Is the distance or angle incorrect?
Does the remote control sensor receive
strong light?
If trouble occurs
When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,
and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button,
press the ON/STAND-BY button until "CLEAR AL" appears.
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
Before transporting the unit
On the back of this unit is equipped with a transport screw in order to prevent damage
during transportation.
1 Press the ON/STAND-BY button to turn the
power on.
2 Remove all discs from the unit, close the
disc tray.
"NO DISC" is displayed.
3 Press the ON/STAND-BY button to enter the
stand-by mode.
"GOOD-BYE" is displayed.
4 When "GOOD-BYE" disappears, unplug the
AC power lead from the wall socket.
5 Insert the transport screw into the back of
the unit and tighten it with a flat-blade screw-
driver or a coin.
Troubleshooting Chart Remote Control
Notes concerning use:
Replace the batteries if the operating distance is reduced or if the operation
becomes erratic. Purchase 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Periodically clean the transmitter on the remote control and the sensor on the unit
with a soft cloth.
Exposing the sensor on the unit to strong light may interfere with operation.
Change the lighting or the direction of the unit.
Keep the remote control away from moisture, heat, shock, and vibrations.
Test of the remote control
Check the remote control after checking all connections have been made correctly.
Face the remote control directly to the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.
0.2 m - 6 m
(8" - 20')
Remote sensor
All manuals and user guides at all-guides.com

– 9 –
CD-BA3100H
System connections
3
3
AM loop aerial
FM aerial
Red Black
Right speaker Left speaker
Wall socket (AC 230 V, 50 Hz) (For U.K.)
Right speaker
Left speaker
RCA lead (not supplied)
To the line output sockets
VCR, DVD, etc.
TV
Blue
Before turning the power on, be sure to remove the transport screw on the back of the unit using a flat-blade screwdriver or a coin.
Wall socket
(AC 230 V, 50 Hz) (Except for U.K.)
Accessories
123
Battery installation of remote control
Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.
Remove the
Insert the batteries
Replace the cover.
battery cover.
as shown.
1
1
2
2
FM aerial × 1
Remote control × 1 AM loop aerial × 1
All manuals and user guides at all-guides.com

CD-BA3100H
– 10 –
Turn on your system
4
4
12
The first time the unit is plugged, the unit will enter the demonstra- tion mode. You will see words scroll.
Press the X-BASS/DEMO button to cancel the demon- stration mode.
Press the ON/ STAND-BY button to turn the power on.
1
Press the CD button.
2
Press the 1 button to open the disc tray 1.
3
Place the CD on the disc tray 1, label side up.
4
Press the 1 button to close the disc tray 1.
5
You can place discs on the trays 2 - 6 by following steps 2 - 4.
6
Press the button to start playback.
Listening to a CD (CDs)
FM stereo mode indicator
FM stereo receiving indicator
1
Press the TUNER (BAND) button repeat- edly to select the desired frequency band (FM or AM).
2
Press the TUNING/TIME ( or ) but- ton to tune in to the desired station. When the TUNING/TIME button is pressedfor more than 0.5 seconds, scan- ningwill start automaticallyand the tuner will stop at the first receivable broadcast station.
To receive an FM stereo transmission: Press the TUNER (BAND) button to display the “ST” indicator.
“ ” will appear when an FM broadcast is in ste- reo.
Listening to the radio
12 cm (5”) 8 cm (3”)
/
If trouble occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal sup- ply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction. If such a problem occurs, do the following:
1. Set the unit to the stand-by mode and turn the power
on again.
2.
If the unit is not restored in the previous operation, un- plug and plug in the unit, and then turn the power on.
Note: Ifneither operation above restoresthe unit, clear all thememory by resetting it.
Clearing all the memory (reset)
1. Press the ON/STAND-BY button to enter the power
stand-by mode.
2.
Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button, press the ON/STAND-BY button until “CLEAR AL” appears.
Caution: This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.
Maintenance
Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean these parts with a cotton swab moistened with commercial head/pinch roller cleaner or isopropyl alcohol. When cleaning the heads, pinch rollers, etc., unplug the unit which contains high voltages. After long use, the deck’s heads and capstans may be- come magnetised, causing poor sound. Demagenetise these parts once every 30 hours of playing/recording time by using a commercial tape head demagnetiser. Read the demagnetiser’s instructions carefully before use. Clean the dust or stain on the CD pickup lens using a com- mercial cleaning disc (brush type).
Listening to a cassette tape (TAPE 1 or TAPE 2)
TAPE 1
TAPE 2
AC
C
DE
B
B
A Playback head B Capstan
D Erase head E Recording/Playback head C Pinch roller
TAPE 1 TAPE 2
1
Open the cassette door by pushing the area marked “ PUSH EJECT”.
2
Load a cassette into the TAPE 1 or TAPE 2 cassette compartment with the side to be played facing toward you.
3
Press the TAPE (1 2) button to select the cassette you want to listen to.
4
Press the button to start playback.
/
All manuals and user guides at all-guides.com

– 11 –
CD-BA3100H
1 Top Cabinet 1. Screw ...................... (A1) x5 11-1
2 Side Panel 1. Screw .................... (B1) x10 11-1
(Left/Right) 2. Hook........................ (B2) x2
3 Rear Panel with 1. Screw ...................... (C1) x2 11-2
Fan Motor 2. Screw ...................... (C2) x6
3. Screw ...................... (C3) x2
4. Socket ..................... (C4) x1
4 CD Changer Unit 1. Socket ..................... (D1) x2 11-2
2. Hook........................ (D2) x2
3. Flat Cable ............... (D3) x1 11-3
5 Main PWB 1. Screw ...................... (E1) x1 11-2
2. Socket ..................... (E2) x3 11-3
6 Power Amp. PWB 1. Screw .......................(F1) x6 12-1
2. Socket ......................(F2) x4 11-3,12-1
3. Flat Wire...................(F3) x1 12-1
4. PWB Holder .............(F4) x2
7 Front Panel 1. Screw ...................... (G1) x2 12-1
2. Hook........................ (G2) x2
8 Eject Switch PWB 1. Screw ...................... (H1) x2 12-2
2. Socket..................... (H2) x1
9 Play Switch PWB 1. Screw ....................... (J1) x2 12-2
10 Display PWB 1. Knob........................ (K1) x1 12-2
2. Screw ...................... (K2) x9
3. Flat Cable ............... (K3) x1
11 Headphones PWB 1. Screw .......................(L1) x1 12-2
2. PWB Washer ...........(L2) x1
12 Tape Mechanism 1. Open the cassette holder. .. 12-2
2. Screw ......................(M1) x6
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoff nylonbandsor wireholderswhere theyneedto
beremovedwhendisassemblingtheunit.Afterservicing
theunit,be suretorearrange the leadswherethey were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 11-2
Figure 11-3
STEP REMOVAL PROCEDURE FIGURE
Figure 11-1
CD-BA3100H
CD-BA3100H
(B1)x4
ø3x10mm (B1)x2
ø3x12mm
Rear
Panel
(B1)x2
ø3x12mm
(B2)x2
Side Panel
(Right)
Side Panel
(Left)
(A1)x2
ø3x16mm
(A1)x2
ø3x16mm
(B1)x1
ø3x12mm
Top Cabinet
(B1)x1
ø3x12mm
(A1)x1
ø3x10mm
(D1)x1 CD Servo
PWB
Pull
(D2)x1
(D2)x1
CD Changer
Unit
(D1)x1
CD Servo
PWB
(E1)x1
ø3x10mm
Lug Wire
(C3)x2
ø3x10mm
Main PWB
(C2)x6
ø3x10mm
Power Amp.
PWB
(C4)x1
(C1)x2
ø3x12mm
Rear
Panel
Main PWB
Main PWB
Power Amp.
PWB
Power B PWB
(D3)x1
Power A PWB
(F2)x1
(F2)x1
(E2)x1
(E2)x2
All manuals and user guides at all-guides.com
all-guides.com

CD-BA3100H
– 12 –
1 Top Cabinet 1. Screw ................. (A1) x5 11-1
2 Side Panel 1. Screw ............... (B1) x10 11-1
(Left/Right) 2. Hook ................... (B2) x2
3 Rear Panel with 1. Screw ................. (C1) x2 11-2
Fan Motor 2. Screw ................. (C2) x6
3. Screw ................. (C3) x2
4. Socket ................ (C4) x1
4 CD Changer Unit 1. Socket ................ (D1) x2 11-2
2. Hook ...................(D2) x2
3. Flat Cable........... (D3) x1 11-3
5 CD Servo PWB 1. Screw ................. (N1) x4 12-3
(Note) 2. Screw ................. (N2) x4
3. Socket ................ (N3) x4
4. Flat Wire............. (N4) x2
6 CD Mechanism 1. Screw ................. (P1) x4 12-3
Figure 12-1
Figure 12-2
Figure 12-3
STEP REMOVAL PROCEDURE FIGURE
CD-BA3100H (CD CHANGER MECHANISM UNIT)
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.
Power Amp.
PWB
(F1)x2
ø3x8mm
(F1)x2
ø3x10mm
(F2)x1
(F2)x1
(F2)x1
Front Panel
(F4)x1
(F1)x1
ø3x10mm(G1)x2
ø3x8mm
Push (F4)x1
Push
(F1)x1
ø3x10mm Pull
(G2)x1
Pull
(G2)x1
Headphones
PWB
(F3)x1
(N2)x4
ø3x10mm
(N1)x4
ø3x14mm
(N4)x1
(N3)x1
(N3)x1
(N4)x1
(N3)x2
(P1)x4
ø2.6x10mm
CD Servo PWB
CD Changer
Mechanism
Unit
CD Changer
Bracket
CD Mechanism
(K3)x1 (K1)x1
Display PWB
Play Switch
PWB
Open
Cassette
Holder
(H2)x1
(M1)x6
ø3x10mm
Tape
Mechanism
(H1)x2
ø3x10mm (J1)x2
ø3x10mm
(K2)x9
ø3x10mm
Eject Switch
PWB
Lug Wire
Headphones
PWB
(L1)x1
ø3x10mm
(L2)x1
All manuals and user guides at all-guides.com

– 13 –
CD-BA3100H
CP-BA3100H
1 Side Panel/ 1. Screw ..................... (A1) x4 13-1
Front Panel 2. Net.......................... (A2) x1
3. Catching Holder ..... (A3) x4
4. Screw ..................... (A4) x4
2 Subwoofer 1. Screw ..................... (B1) x4 13-2
3 Woofer 1. Screw ..................... (C1) x4 13-2
4 Tweeter 1. Screw ..................... (D1) x2 13-2
STEP REMOVAL PROCEDURE FIGURE
Figure 13-1
Figure 13-2
(A1)x4
ø4x20mm
(A4)x2
ø4x20mm
(A3)x2
(A3)x2
(A2)x1
(A4)x2
ø4x20mm
Front
Panel
Side Panel
(C1)x4
ø4x16mm
(B1)x4
ø4x16mm
(D1)x2
ø3x10mm
Tweeter
Woofer
Subwoofer
All manuals and user guides at all-guides.com

CD-BA3100H
– 14 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 3 and 7, 12 of the disassembly method to
remove the tape mechanism. (See page 11.)
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 14-1)
1. When you remove the screws (A1) x 2 pcs., the record/
playback head and three-dimensional head of the erase
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 14-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 14-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2) (See Fig. 14-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1) (See Fig. 14-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 14-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 14-1
Figure 14-2
Figure 14-3
Figure 14-4Figure 14-5
(A1)x2
Ø2x9mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1)x2
Ø2x9mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1)x1 <A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 2 TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
Main Belt
(D1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Main Belt
(E1)x1
Motor
Motor
(F1)x2
Ø2.6x5mm
Motor
Clutch Ass'y
All manuals and user guides at all-guides.com

– 15 –
CD-BA3100H
Figure 15-2
Figure 15-1
ADJUSTMENT
MECHANISM SECTION
•Driving Force Check
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ±30 Hz Speaker
speed Resistor in Terminal
motor. (Load
resistance:
6 ohms)
•Tape Speed
Figure 15-3
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
CD MECHANISM SECTION
Performsteps1to6ofthedisassemblymethodtoremovethe
CD mechanism. (See page 12.)
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.
How to Remove the pickup (See Fig. 15-1)
1. Remove the screws (A1)x 2 pcs., to remove shaft (A2)x 1
pc.
2.Removestopwasher(A3)x1pc.,toremovegear(A4)x1pc.
3. Remove the pickup.
How to Remove the tray motor/main cam motor
(See Fig. 15-2)
1. Remove the screws (B1)x 4 pcs., to remove the CD Servo
PWB.
2. Remove the (1) front top plate, (2) changer box, left/right
and (3) disc trays 1~6. After that, disassemble as shown in
the figure.
3. Remove the screws (B2)x 4 pcs.
4. Remove the tray motor and main cam motor.
CD CHANGER MECHANISM SECTION
Performsteps1to4ofthedisassemblymethodtoremovethe
CD changer mechanism. (See page 11.)
Note:
The parts of (1), (2) and (3) correspond to the drawing Nos.
117, 102, 103 and 108 to 113 of the CD change mechanism
disassembly drawing.
Remove the screws of 117, 102 and 103, and the parts of (1),
(2)and(3) willbeready forremovaland thescrews ofthetray
motor and main cam motor will be visible.
(A1)x1
ø2.6x6mm
CD
Mechanism
Stop Washer
(A3)x1
Gear
(A4)x1
Shaft
(A2)x1
Pickup
(A1)x1
ø2.6x6mm
Main Cam Motor
Tray Motor
CD Servo
PWB
(1)Front Top Plate
(2)Changer Box,
Left
(2)Changer Box,
Right
(3)Disc Tray,1~6
CD Changer Mechanism
(B1)x4
ø3x10mm
(B2)x4
ø2.6x4mm
All manuals and user guides at all-guides.com

CD-BA3100H
– 16 –
CD SECTION
Figure 16-1 ADJUSTMENT POINTS
Figure 16-2
CD ERROR CODE DESCRIPTION
Error State Code
[Pickup Mechanism Error]
ER-CD00 Pickup mechanism error
ER-CD01 Pu-in SW detection NG
[CD Changer Mechanism Error]
ER-CD10 Changer error
ER-CD11 Initial error
ER-CD20 Tray error
Items adjusted automatically
(1)Offsetadjustment(The offset voltagebetweenthe head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing
Fig.16-2 EFBL)
(3)Gainadjustment(Thegainis compensatedinsidetheIC
sothatthe loopgainat the gaincrossoverfrequency will
be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
•Adjustment
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Eachtimeadiscischanged,theseadjustmentsareperformed
automatically. Therefore, playback of each disc can be
performed under optimum conditions.
T
T
EFBL
FDO
TE
Stopped
CH1=500 mV
DC 10:1 CH2=200 mV DC 10:1 CH3=1 V DC 10:1 500 ms/div
(500 ms/div)
NORM: 20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V Main : 100 K Zoom : 2 K Mode : SINGLE Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200 mV
1999/04/05 20:26:47
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,620 kHz T351 *1
AM Band — 522 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually.
R336
TP301
T306
R357
T351
CNP302
AM LOOP
ANTENNA
T303
MAIN PWB-A
1
SO301A
FM ANTENNA
TERMINAL
FE301
AM IF
AM BAND
COVERAGE fL AM
TRACKING fL
TP302
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
CD-BA3100H
TEST MODE
During POWER OFF mode, push below each 2 keys and [POWER] key. Then go to each Test Mode.
KEY TEST MODE CONTENTS
[CD] [X-BASS] + [POWER] TEST 1 CD Test mode
[TAPE] [X-BASS] + [POWER] TEST 2 Tape test mode
[TUNER] [X-BASS] + [POWER] TEST 3 Tuner preset memory clear
[VIDEO/AUX] [X-BASS] + [POWER] TEST 4 Tuner preset for production
[MEMORY/SET] [X-BASS] + [POWER] TEST 5 All clear (reset)
[EQUALIZER] [X-BASS] + [POWER] TEST 6 Audio test
[ ] [DIMMER] + [POWER] TEST 7 Key and display test
[TUN UP] [DIMMER] + [POWER] TEST 8 RDS Test1
[TUN DOWN] [DIMMER] + [POWER] TEST 9 RDS Test2
[ ] [CD] + [POWER] TEST 10 CD Changer test
[ ] [CD] + [POWER] TEST 11 Production initialize for changer
[EQUALIZER] [TUN UP] + [POWER] TEST 12 Graphic equalizer test
CD TEST MODE
• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST: CD operation test.
Enter test 1 mode key. C D T E S T
OPEN/CLOSE operation is using manual.
Do TOC IL. Do normal play.
When these following key is input into PLAY key,
track number can be appoint directly.
<<PLAY>> key input. <<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that specific point.
<<MEMORY>> key input.
<< 1>> key: Track 1
<< 2>> key: Track 3
<< 3>> key: Track 7
<< 4>> key: Track 11
<< 5>> key: Track 13
<< 6>> key: Track 15 Tracking ON play from that specific point.
<<MEMORY>>keyinput
a) Display "FOFF_XX"
b) Display "TOFF_XX"
c) Display "TBAL_XX"
d) Display "TGAN_XX"
e) Display "FGAN_XX"
f) Display "RFLS_XX"
<< >>, << >> buttons make pick's slide possible.
<<STOP>> key input.
STOP
<<MEMORY>> key input.
a) Display "FOFF_XX"
b) Display "TOFF_XX"
c) Display "TBAL_XX"
d) Display "TGAN_XX"
e) Display "FGAN_XX"
f) Display "RFLS_XX"
Display every auto setting result for every 2 sec.
<<STOP>> key input.
STOP
VOL –– Last memory
BAL –– CENTER
P.GEQ –– FLAT
X-BASS –– OFF Sliding the PICKUP with
<< >>, << >> button
must only be in STOP mode.
Display each step for 2 sec. XX: HEX VALUE
a) "FOFF_XX" Focus off set
b) "TOFF_XX" Tracking off set
c) "TBAL_XX" Tracking balance
d) "TGAN_XX" Tracking gain
e) "FGAN_XX" Focus gain
f ) "RFLS_XX" RF level shift
To cancel : Power OFF
All manuals and user guides at all-guides.com

CD-BA3100H
– 18 –
1. Motor assembly (x 2) mounting (screw x 4) 01/29 Fig.19
2. MT idle gear mounting (screw x 1) 25 Fig.19
3. MT system gear assembly 23/24/26/27 Fig.19
4. STB/tray drive system gear and others assembling/ 37/38/45/46 (53)/47/48 Fig.19
mounting (screw x 3)
5. Tray big gear assembly 31 Fig.19 Gear positioning
6. T.M SW PWB mounting (screw x 3) Fig.20
7. STB holder assembling 03 Fig.19
8. STB drive gear L/R assembly mounting (screw x 2) 11 (10)/12 (10) Fig.19
9. Tray joint gear R/tray drive gear R assembling 34/36 Fig.20 Gear positioning
10. Tray gear A/B assembling 32/33 Fig.20 Gear positioning
11. Lift gear B/C assembling 43/44 Fig.21 Gear positioning
12. MT idler gear F assembling, mode big gear 28/42 Fig.21
mounting (screw x 1)
13. Change box R mounting (screw x 4) 04 Fig.21
14. Lift gear A assembling 42 Fig.21 Gear positioning
15. Change box L assembly mounting (screw x 4) 02/30/35 Fig.22
16. Lift cam assembling (shaft inserting) 44 Fig.22 Gear positioning
17. STB holder height adjusting Fig.23 Check/adjustment
18. Top plate F/disc OB LEV. Mounting (screw x 6) 80 Fig.23
19. Trays 1 - 6 assembling 91/92/93/94/95/96 Fig.24
20. Top plate R mounting (screw x 6) ––
Applied Part No.
Work Content Assembly Fig. No. Remarks
CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING
PROCEDURE
01 (101) MAIN BASE
02 (102) CHANGE BOX L
03 (147) STB HOLDER
04 (103) CHANGE BOX R
10 (119) STB DRIVE GEAR A
11 (120) STB DRIVE GEAR L
12 (122) STB DRIVE GEAR R
20 (149) STABILIZER FH
23 (141) MT IDLER GEAR A
24 (138) MT IDLER GEAR B
25 (137) MT IDLER GEAR C
26 (140) MT IDLER GEAR D
27 (139) MT IDLER GEAR E
28 (131) MT IDLER GEAR F
29 (MOB1,2) MOTOR GEAR
30 (143) TRAY DRIVE GEAR F
31 (134) TRAY BIG GEAR
32 (135) TRAY GEAR A
33 (136) TRAY GEAR B
34 (124) TRAY DRIVE GEAR R
35 (144) TRAY JOINT GEAR F
36 (125) TRAY JOINT GEAR R
37 (142) TRAY GEAR C
38 (130) TRAY IDLER GEAR
Part Name
No.
40 (115) LIFT CAM
41 (126) MODE BIG GEAR
42 (127) LIFT GEAR A
43 (128) LIFT GEAR B
44 (129) LIFT GEAR C
45 (132) STB GEAR A
46 (104) STB GEAR B
47 (133-1) STB GEAR C
48 (133-3) STB GEAR D
50 (145) LIFT LEVER
51 (106) TRAY LOCK LEVER
52 (118) DISC OB LEVER
53 (105) STB GEAR ANG.
80 (117) TOP PLATE F
81 (114) TOP PLATE R
91 (108) TRAY 1
92 (109) TRAY 2
93 (110) TRAY 3
94 (111) TRAY 4
95 (112) TRAY 5
96 (113) TRAY 6
Part NameNo.
CD CHANGER MECHANISM PARTS LIST
The number of ( ) is the number of the parts guide.
All manuals and user guides at all-guides.com

– 19 –
CD-BA3100H
Figure 19
03
STB HOLDER
48
STB GEAR D
12
STB DRIVE GEAR R
(ASSY)
10
STB DRIVE GEAR A
29
29 23
23
24
25
26
27
01
MAIN BASE
Mark position
After assembling TRAY BIG GEAR, turn it in the arrow direction.
TRAY BIG GEAR ASSEMBLING POSITION
31
TRAY BIG GEAR
37
TRAY GEAR C
38
TRAY IDLER GEAR
47
STB GEAR C
46
STB GEAR B
10
STB DRIVE GEAR A
11
STB DRIVE GEAR L
(ASSY)
53
STB GEAR ANG. 45
STB GEAR A
11(/12) (10)
STB DRIVE GEAR L(/R)
(ASS'Y)
46
STB GEAR B
37
TRAY GEAR C
47
STB GEAR C
31
TRAY BIG GEAR
38
TRAY IDLER GEAR
45
STB GEAR A
53
STB GEAR ANG.
L
All manuals and user guides at all-guides.com

CD-BA3100H
– 20 –
31
M T SW PWB
33
TRAY
GEAR B
32
TRAY GEAR A
33
TRAY GEAR B
37
32
TRAY GEAR A
38
34
TRAY DRIVE GEAR R
36
TRAY JOINT GEAR R
47
46
34
TRAY DRIVE GEAR R
36
TRAY JOINT GEAR R
10
29
29 23
23
24
25
26
27 Mark position
11
45
TRAY BIG GEAR SET POSITION
33
32
Direct the recess part
(trapezoidal side) of the axis
35 in this direction.
* This position becomes the
reference (stock) position
of the tray.
These holes must align.
It must not rotate in contact
with the peripheral (hatched)
part of 31.
These holes must align.
After assembling 32,
assemble 33.
*1: To position the axis part of 36, engage it with 38.
*2: When it is aligned as described in *1, the hatched part
(low gear-height part of gear) will be positioned in this position.
Note: After positioning the tray big gear in the set position, engage these gears.
*1
*2
Scale: 2 magnifications Scale: 2 magnifications
LL
< Importance >
< Importance >
Figure 20
All manuals and user guides at all-guides.com
