Sharp CD-E700 User manual

CD-E700/CD-E77
No. S1301CDE700//
CONTENTS
Page
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
DISASSEMBLY.................................................................................................................................................................. 6

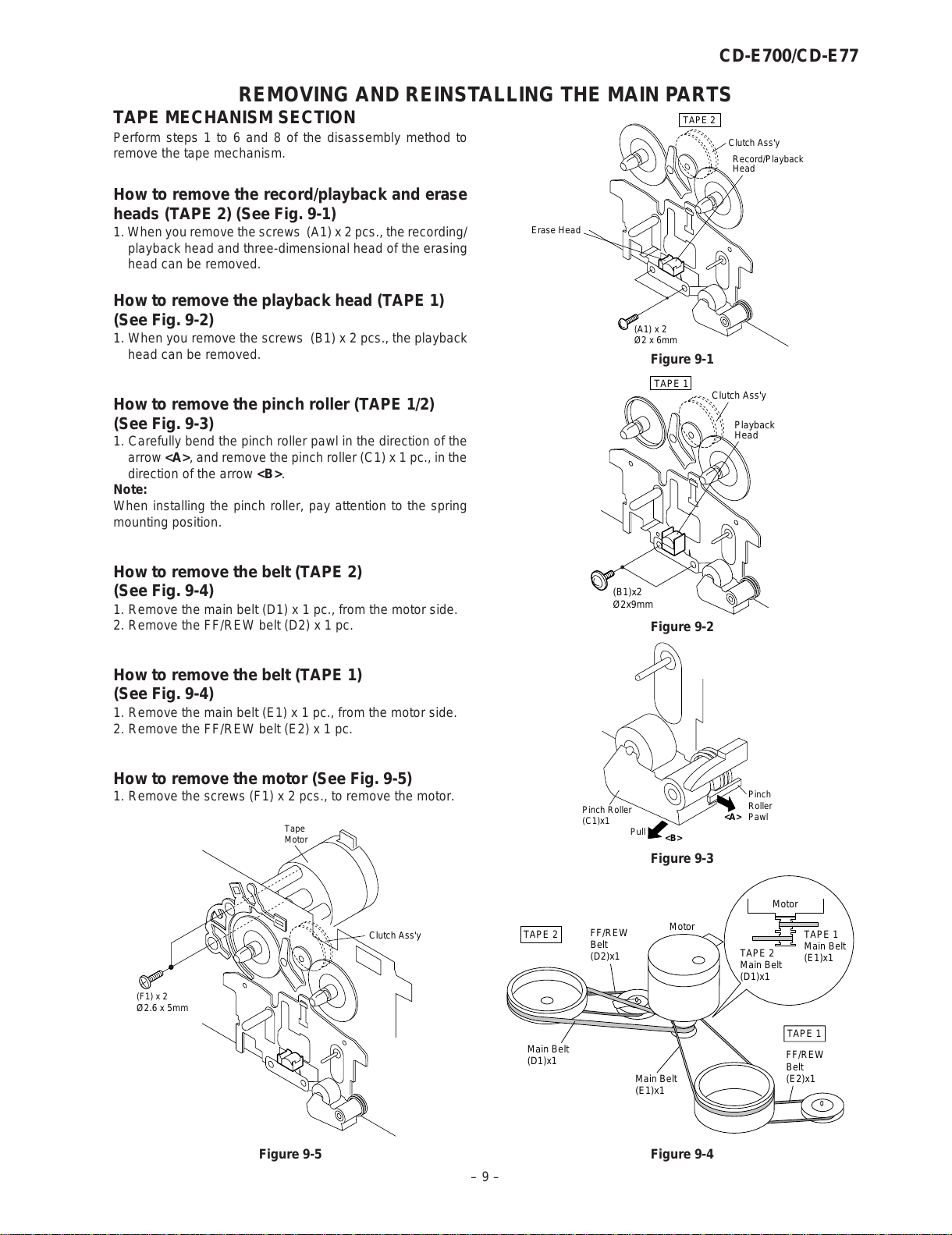

REMOVING AND REINSTALLING THE MAIN PARTS..................................................................................................... 9

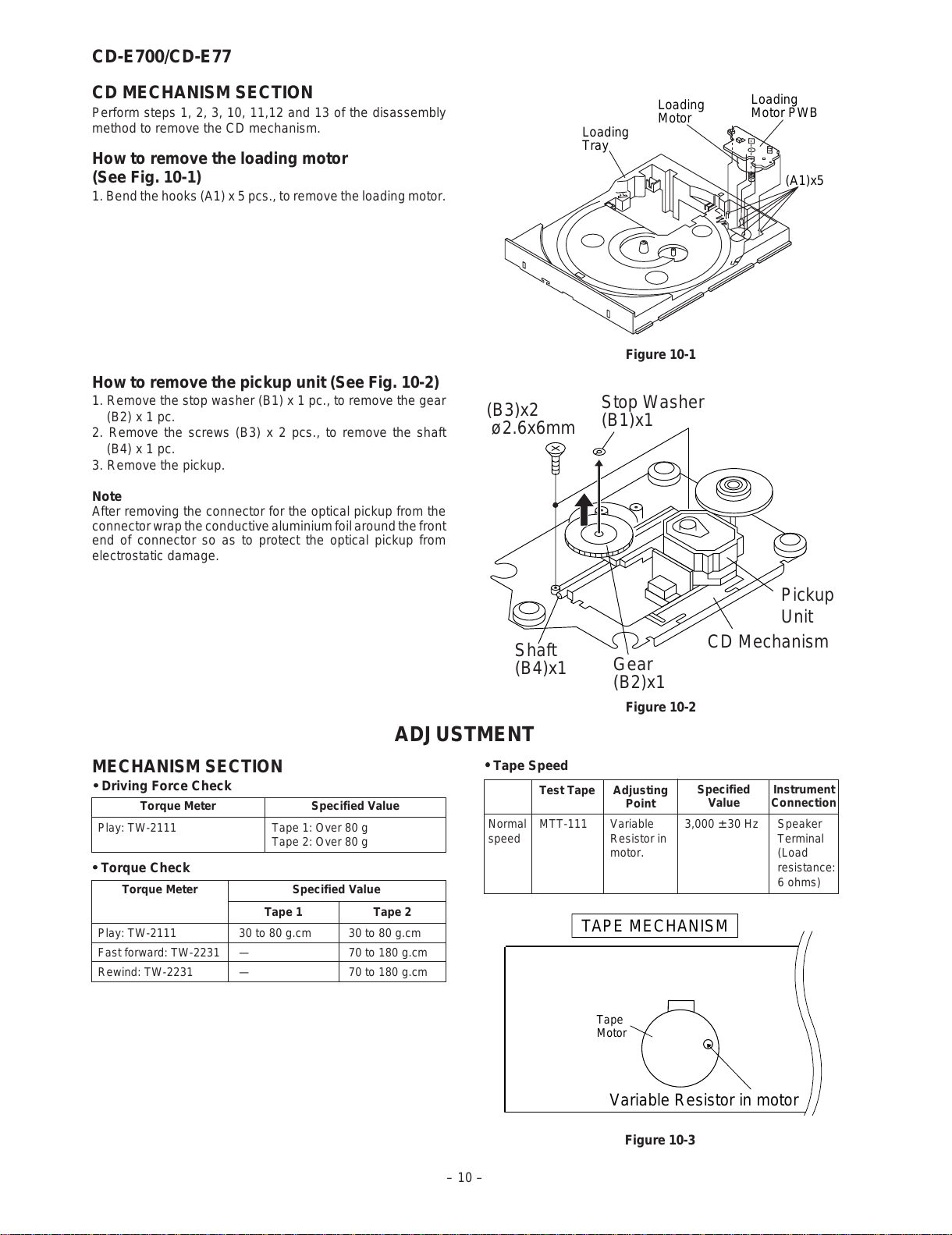

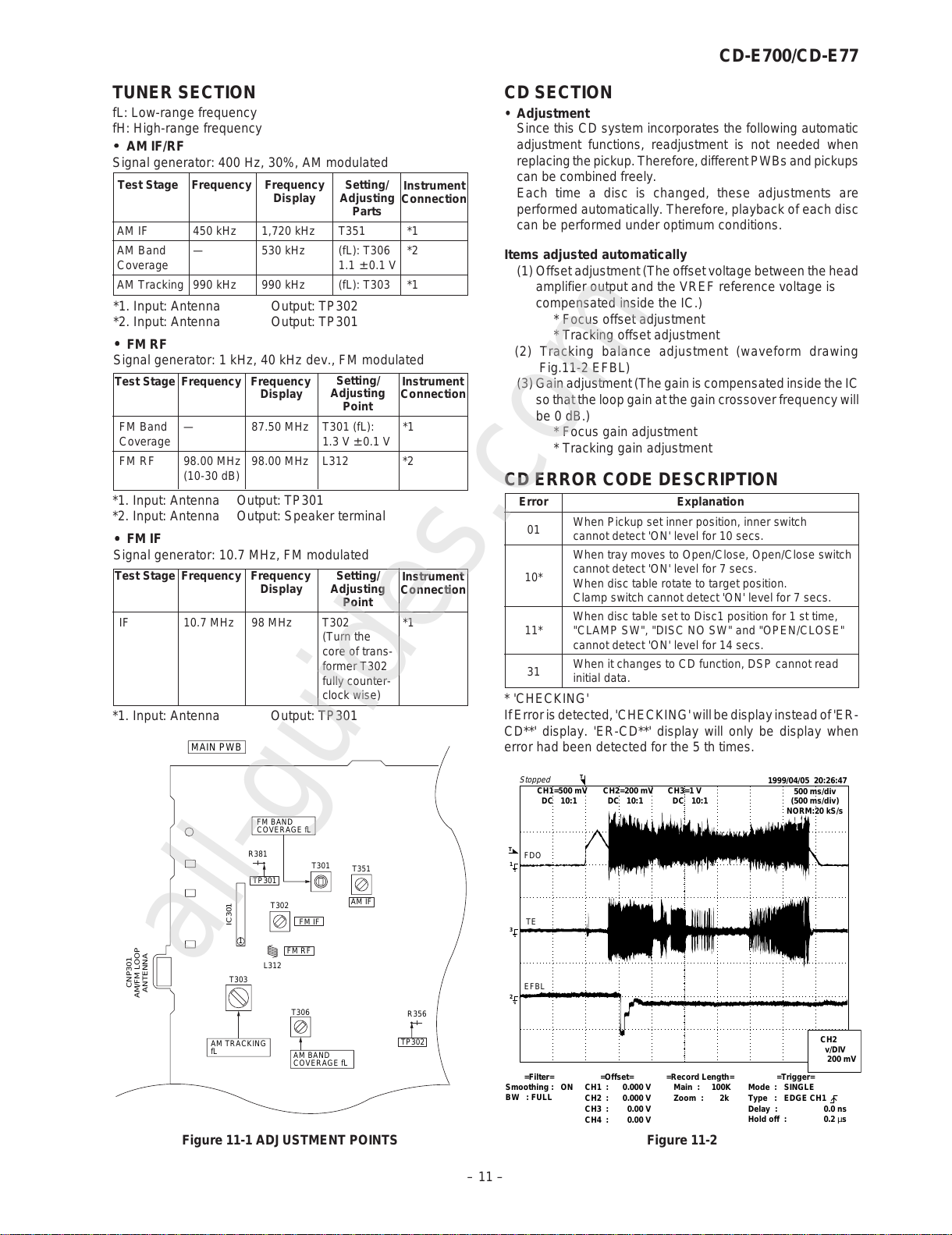

ADJUSTMENT ................................................................................................................................................................. 10

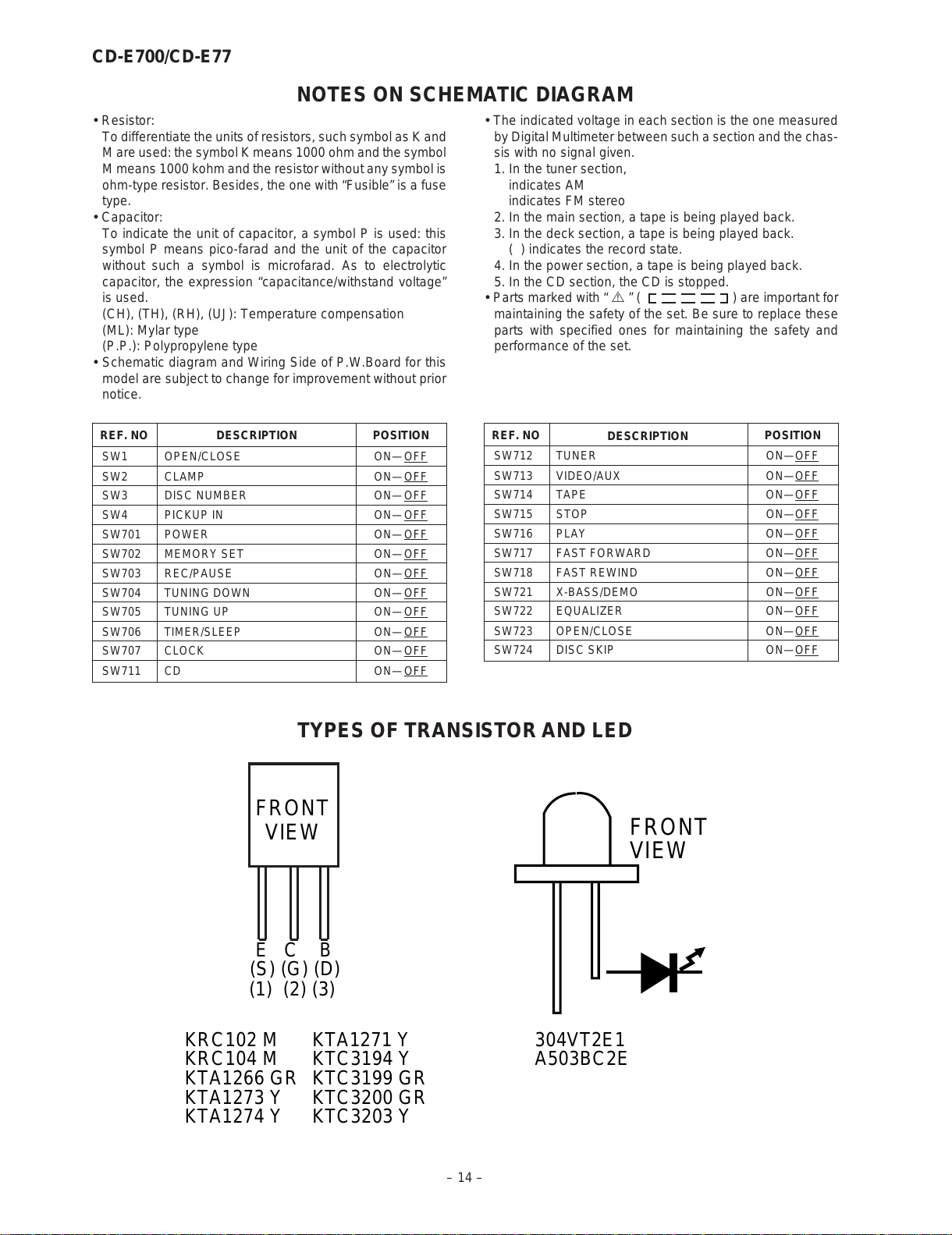

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 14
TYPES OF TRANSISTOR AND LED............................................................................................................................... 14

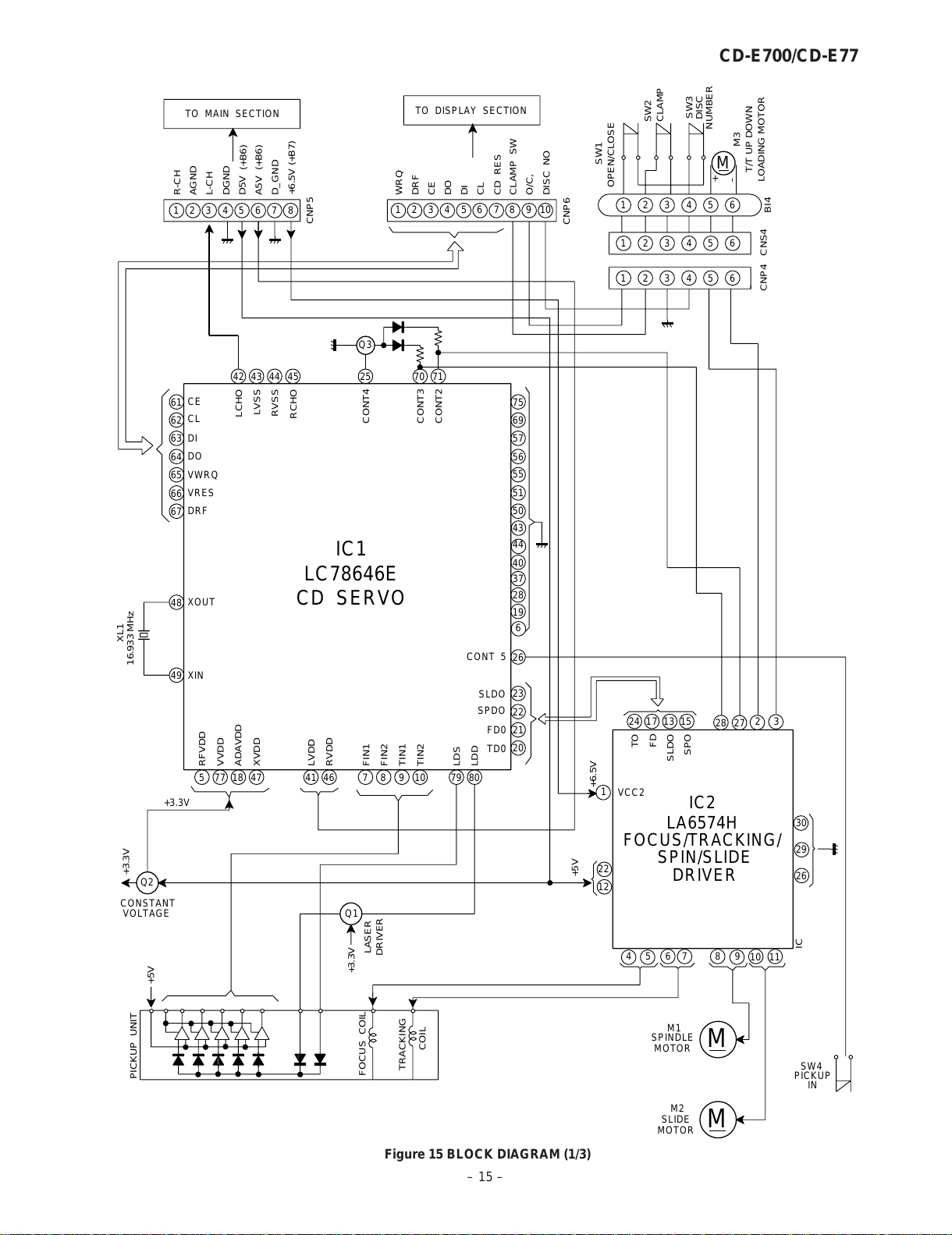

BLOCK DIAGRAM ........................................................................................................................................................... 15

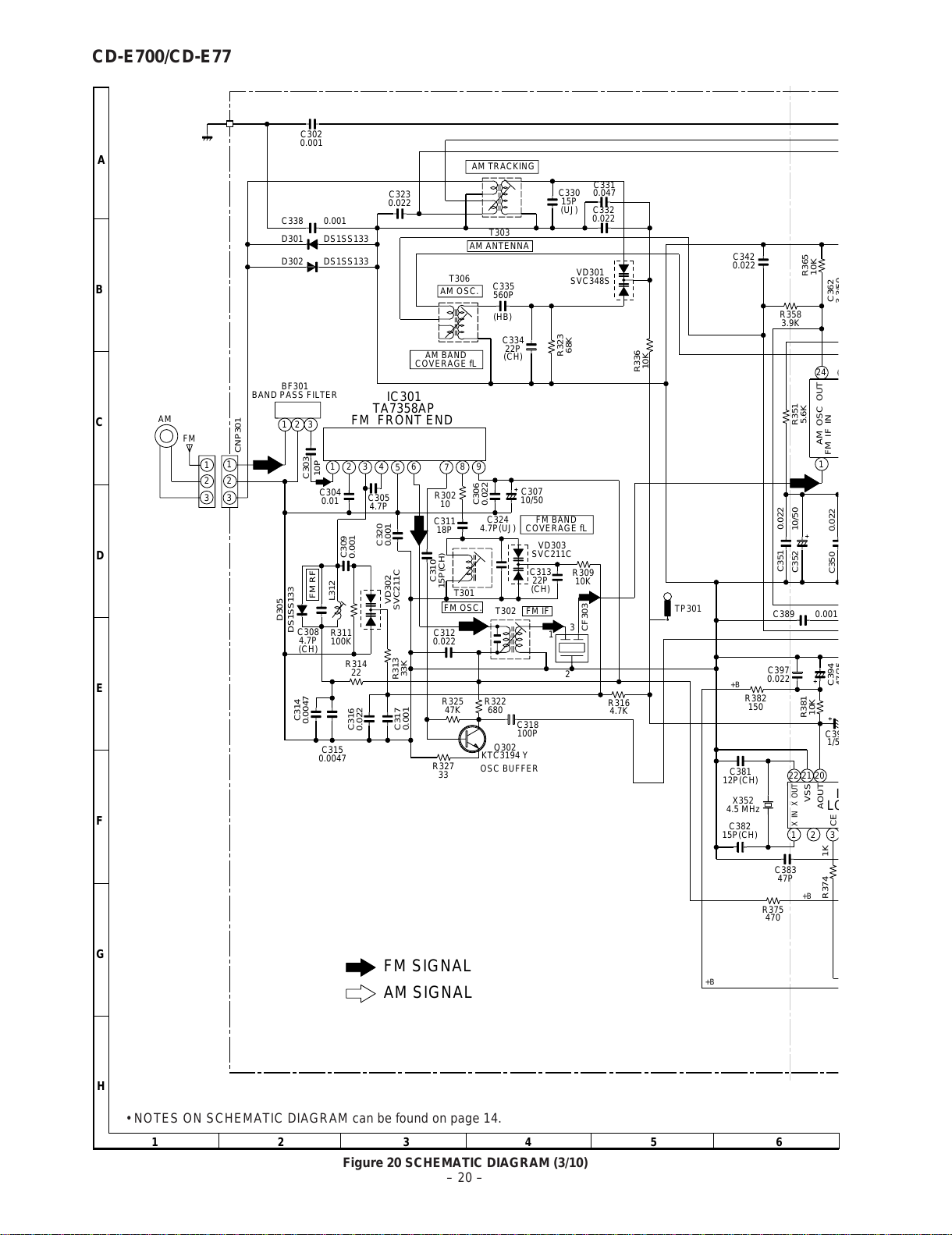

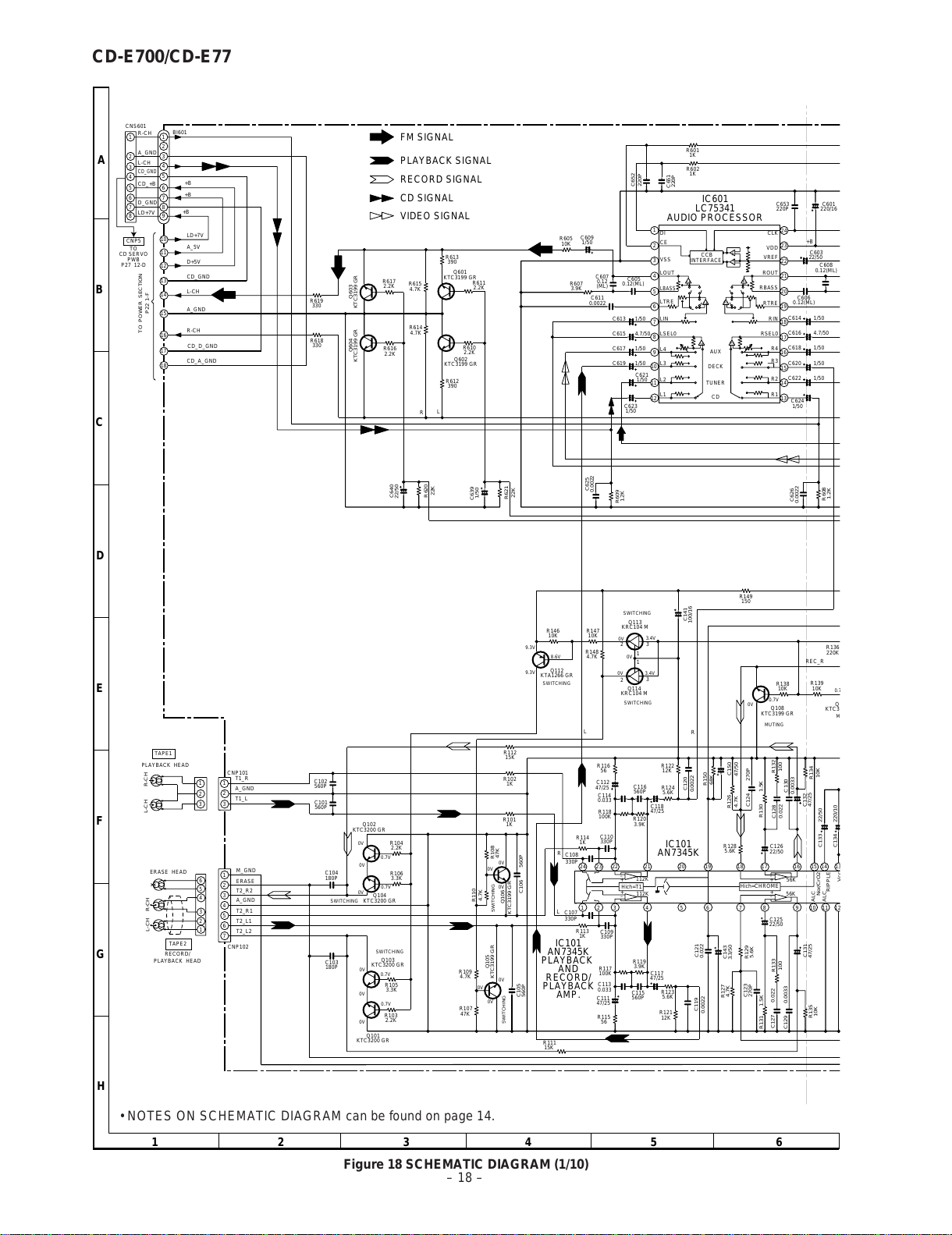

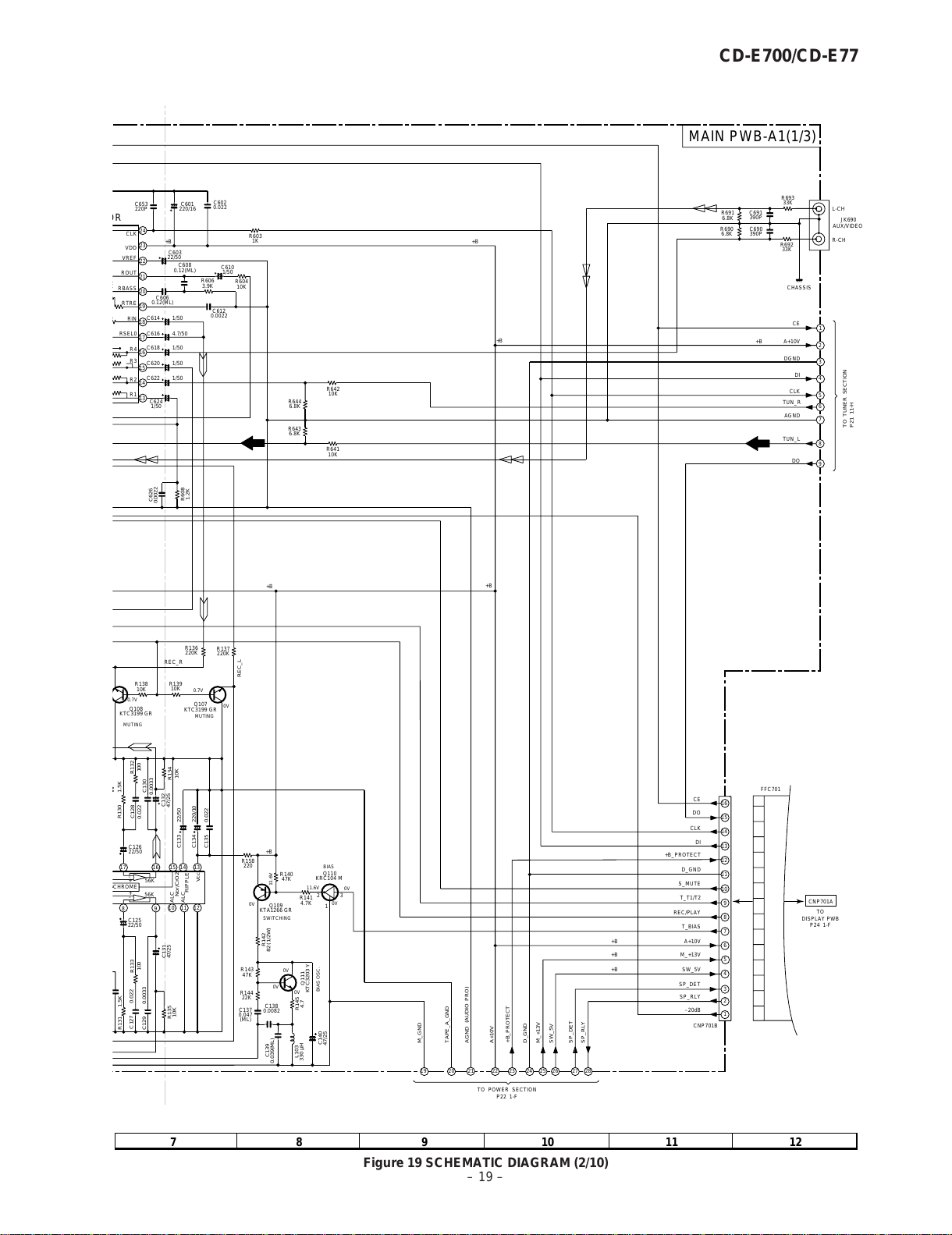

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 18
VOLTAGE ........................................................................................................................................................................ 35
WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 36
TROUBLESHOOTING ..................................................................................................................................................... 37
FUNCTION TABLE OF IC................................................................................................................................................ 41
FL DISPLAY..................................................................................................................................................................... 47
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.A. ONLY)
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
Illustration: CD-E700/CD-E77
MINI COMPONENT SYSTEM
MODEL CD-E700
CD-E700 Mini Component System consisting of CD-E700
(main unit) and CP-E700 (speaker system).
MINI COMPONENT SYSTEM
MODEL CD-E77
CD-E77MiniComponentSystemconsistingofCD-E77(main
unit) and CP-E77 (speaker system).
All manuals and user guides at all-guides.com
all-guides.com

CD-E700/CD-E77
– 2 –
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinchedorthathardwareisnotlodgedbetweenthechassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet,terminalboard,adjustmentandcompartmentcovers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5 kohm, 10 watt resistor
paralleled by a 0.15 µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
havingareturnpathtothechassis(antenna,metalcabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
AllcheckmustberepeatedwiththeAClinecordplugconnection
reversed.
Anyreading of0.3 voltRMS (thiscorresponds to0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µF
1.5 kohms
10 W
VTVM
AC SCALE
All manuals and user guides at all-guides.com

– 3 –
CD-E700/CD-E77
General
Amplifier
Power source AC 120 V, 60 Hz
Power
consumption 110 W
Dimensions Width: 10-5/8" (270 mm)
Height: 13" (330 mm)
Depth: 13-15/16" (355 mm)
Weight 16.1 lbs. (7.3 kg)
Output power 125 watts minimum RMS per channel into 6
ohms from 60 Hz to 20 kHz, 10% total har-
monic distortion
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 k
ohms
CD player
Tuner
Cassette deck
Type 3-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Frequency range FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
Frequency
response 50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
Type 3-way 4-speaker system with passive radia-
tor
Super tweeter 2
2" (5 cm) Tweeter
6-1/2" (16 cm) Woofer
6-1/2" (16 cm) Passive radiator
Maximum input
power 250 W
Rated input power 125 W
Impedance 6 ohms
Dimensions Width: 10-7/8" (277 mm)
Height: 13" (330 mm)
Depth: 10-3/4" (273 mm)
Weight 9.9 lbs. (4.5 kg)/each
General
Amplifier
Power source AC 120 V, 60 Hz
Power
consumption 110 W
Dimensions Width: 270 mm (10-5/8")
Height: 330 mm (13")
Depth: 355 mm (13-15/16")
Weight 7.3 kg (16.1 lbs.)
Output power RMS: 250 W (125 W + 125 W) (10 % T.H.D.)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 k
ohms
CD player
Tuner
Cassette deck
Type 3-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Frequency range FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
Frequency
response 50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
Type 3-way 4-speaker system with passive radia-
tor
Super tweeter 2
5 cm (2") Tweeter
16 cm (6-1/2") Woofer
16 cm (6-1/2") Passive radiator
Maximum input
power 250 W
Rated input power 125 W
Impedance 6 ohms
Dimensions Width: 277 mm (10-7/8")
Height: 330 mm (13")
Depth: 273 mm (10-3/4")
Weight 4.5 kg (9.9 lbs.)/each

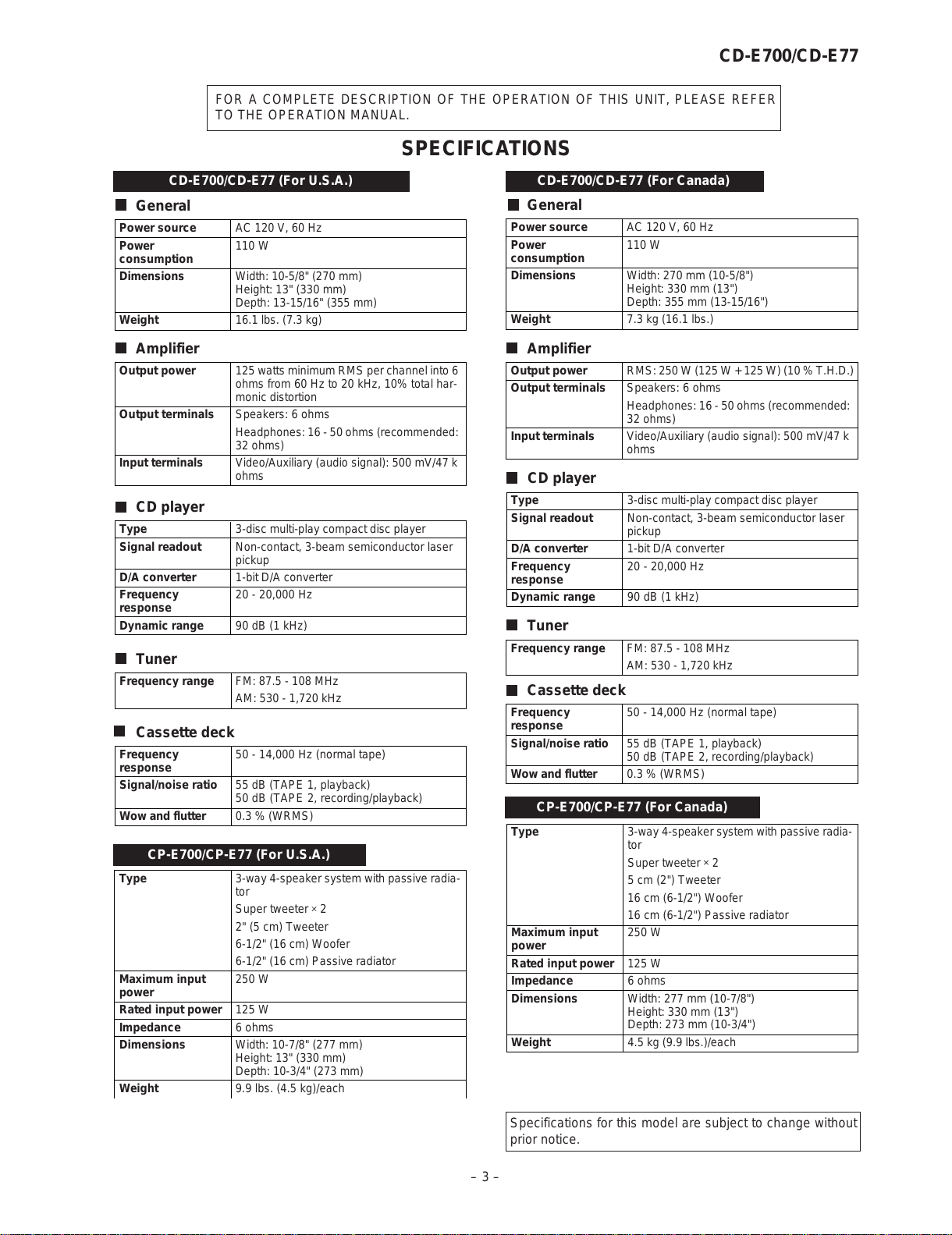

SPECIFICATIONS
CD-E700/CD-E77 (For U.S.A.)
CP-E700/CP-E77 (For U.S.A.)
Specifications for this model are subject to change without
prior notice.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
CD-E700/CD-E77 (For Canada)
CP-E700/CP-E77 (For Canada)
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 4 –

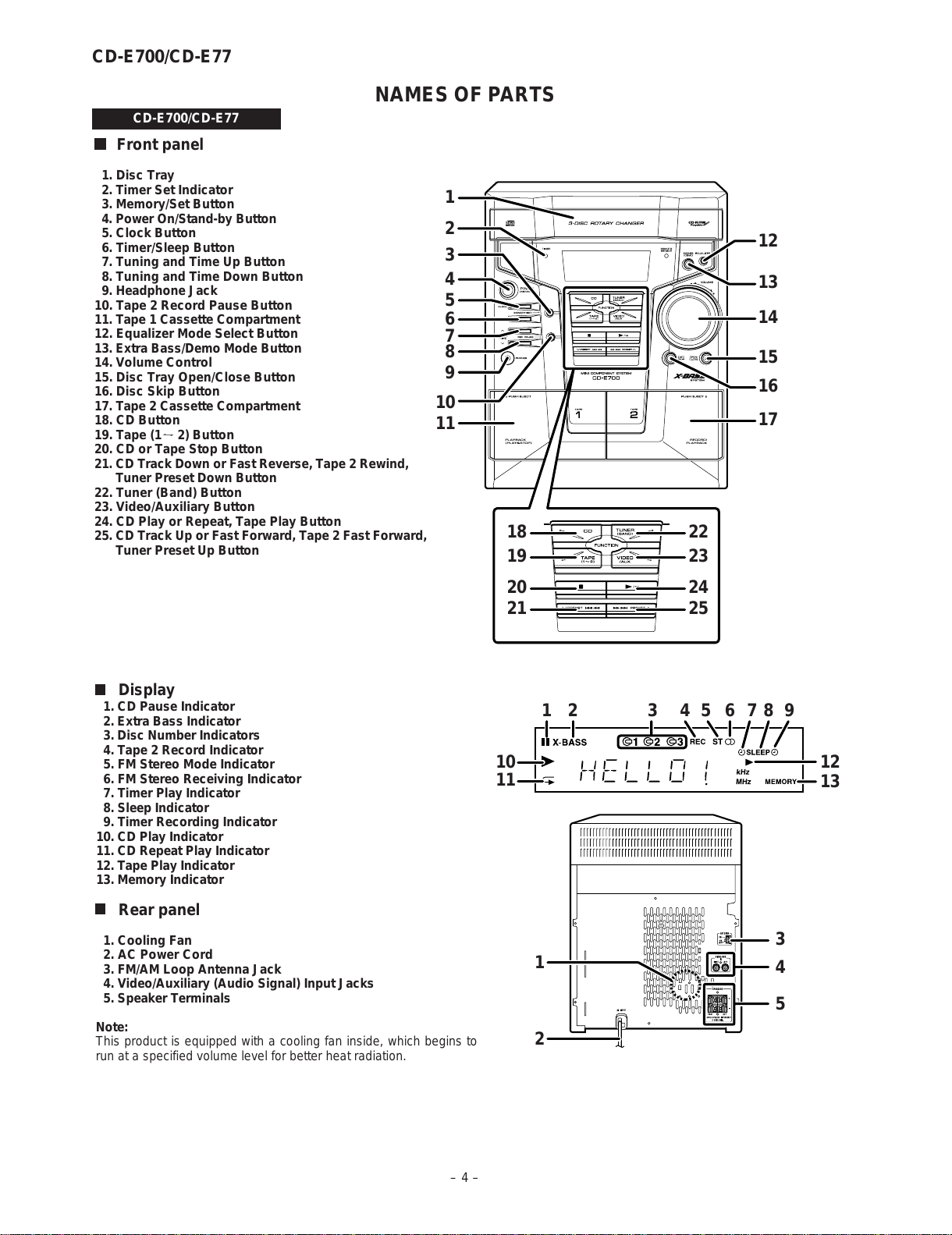

NAMES OF PARTS
CD-E700/CD-E77
Front panel
1. Disc Tray
2. Timer Set Indicator
3. Memory/Set Button
4. Power On/Stand-by Button
5. Clock Button
6. Timer/Sleep Button
7. Tuning and Time Up Button
8. Tuning and Time Down Button
9. Headphone Jack
10. Tape 2 Record Pause Button
11. Tape 1 Cassette Compartment
12. Equalizer Mode Select Button
13. Extra Bass/Demo Mode Button
14. Volume Control
15. Disc Tray Open/Close Button
16. Disc Skip Button
17. Tape 2 Cassette Compartment
18. CD Button
19. Tape (1 2) Button
20. CD or Tape Stop Button
21. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button
22. Tuner (Band) Button
23. Video/Auxiliary Button
24. CD Play or Repeat, Tape Play Button
25. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button
3
4
5
2
1
6
11
9
7
8
10
12
16
14
15
17
13
22
23
24
25
18
19
20
21
Display
1. CD Pause Indicator
2. Extra Bass Indicator
3. Disc Number Indicators
4. Tape 2 Record Indicator
5. FM Stereo Mode Indicator
6. FM Stereo Receiving Indicator
7. Timer Play Indicator
8. Sleep Indicator
9. Timer Recording Indicator
10. CD Play Indicator
11. CD Repeat Play Indicator
12. Tape Play Indicator
13. Memory Indicator
Rear panel
1. Cooling Fan
2. AC Power Cord
3. FM/AM Loop Antenna Jack
4. Video/Auxiliary (Audio Signal) Input Jacks
5. Speaker Terminals
Note:
This product is equipped with a cooling fan inside, which begins to
run at a specified volume level for better heat radiation.
2
13
4
5
13
23456791 8
12
10
11
All manuals and user guides at all-guides.com

– 5 –
CD-E700/CD-E77

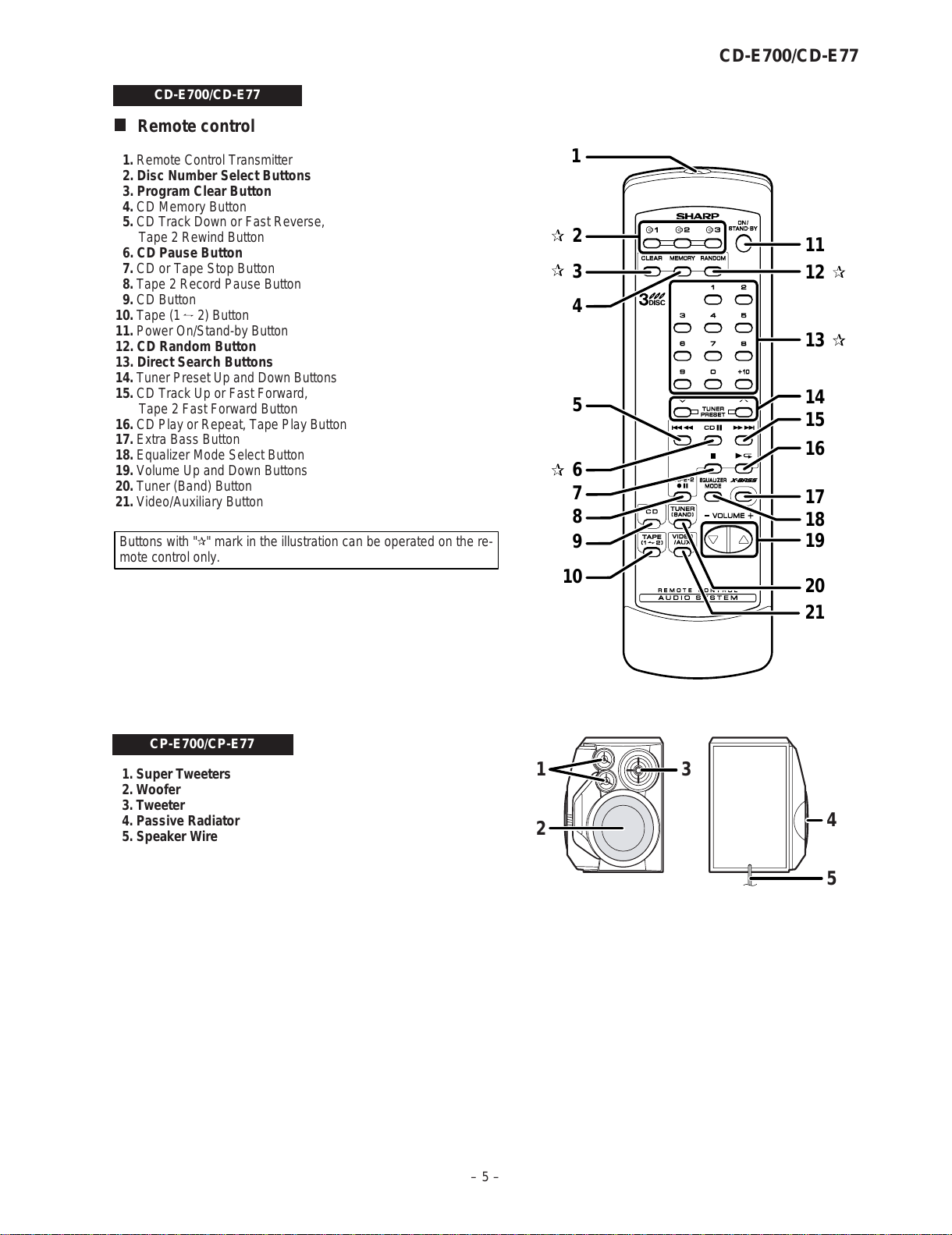

Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. Program Clear Button
4. CD Memory Button
5. CD Track Down or Fast Reverse,
Tape 2 Rewind Button
6. CD Pause Button
7. CD or Tape Stop Button
8. Tape 2 Record Pause Button
9. CD Button
10. Tape (1 2) Button
11. Power On/Stand-by Button
12. CD Random Button
13. Direct Search Buttons
14. Tuner Preset Up and Down Buttons
15. CD Track Up or Fast Forward,
Tape 2 Fast Forward Button
16. CD Play or Repeat, Tape Play Button
17. Extra Bass Button
18. Equalizer Mode Select Button
19. Volume Up and Down Buttons
20. Tuner (Band) Button
21. Video/Auxiliary Button
1
2
4
5
6
7
8
9
10
14
11
312
13
17
18
19
20
21
15
16
Buttons with " " mark in the illustration can be operated on the re-
mote control only.
1. Super Tweeters
2. Woofer
3. Tweeter
4. Passive Radiator
5. Speaker Wire
1
4
3
5
2
CD-E700/CD-E77
CP-E700/CP-E77
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 6 –
1 Top Cabinet 1. Screw ...................... (A1) x4 6-1
2 Side Panel 1. Screw ...................... (B1) x8 6-1
(Left/Right)
3 CD Tray Cover/ 1. Turn on the power supply,.. 6-2
CD Player Unit open the disc tray, take out
the CD tray cover, and close.
(Note 1)
2. Screw ...................... (C1) x1
3. Hook........................ (C2) x3
4. Hook........................ (C3) x2
5. Socket ..................... (C4) x2
4 Rear Panel with 1. Screw ...................... (D1) x7 6-2
Fan Motor 2. Socket ..................... (D2) x1
5 Main PWB 1. Screw ...................... (E1) x3 6-2, 7-1
2. Socket ..................... (E2) x3 7-1
3. Flat Cable ............... (E3) x1
4. Flat Wire.................. (E4) x1
6 Front Panel 1. Screw .......................(F1) x1 7-1
2. Hook.........................(F2) x2
3. Flat Wire...................(F3) x1
7 Display PWB 1. Knob........................ (G1) x1 7-2
2. Screw ....................(G2) x10
3. Flat Cable ............... (G3) x1
8 Tape Mechanism 1. Open the cassette holder. .. 7-2
2. Screw...................... (H1) x5
9 Headphones PWB 1. Screw ....................... (J1) x1 7-2
10 Turntable 1. Hook........................ (K1) x2 7-3
2. Cover ...................... (K2) x1
11 Loading Tray 1. Turn fully the lock lever in the . 6-3
arrow direction .
2. Push the loading tray backward 7-4
to engage the claw with the
groove and remove it in the
direction of the arrow ... (L1) x6
12 CD Servo PWB 1. Screw ......................(M1) x2 7-5
(Note 2) 2. Hook........................(M2) x1
3. Socket ..................... (M3) x4
13 CD Mechanism 1. Hook........................ (N1) x2 7-6
2. Hook........................ (N2) x2

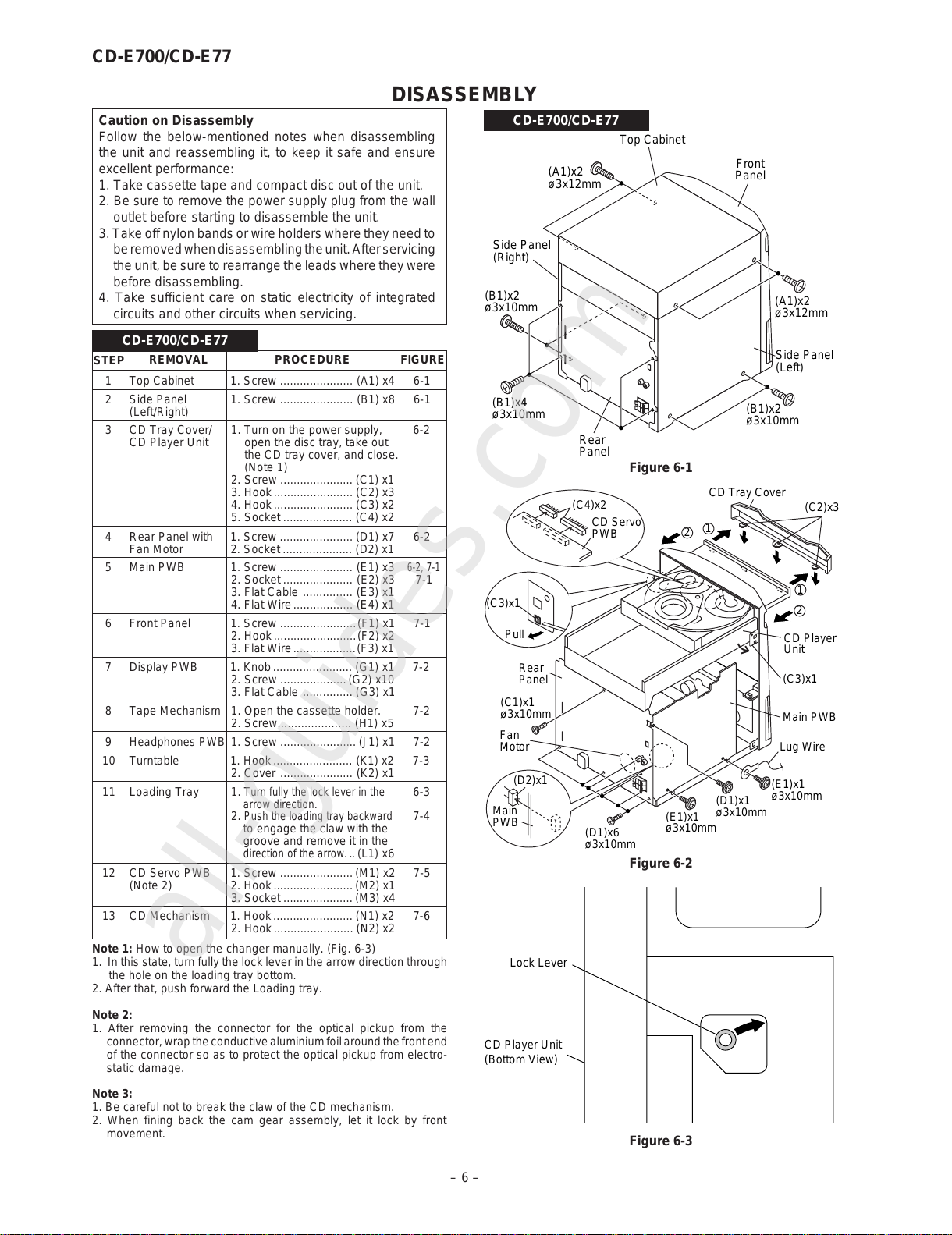

DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylon bands orwireholderswhere they need to
beremovedwhendisassemblingtheunit.Afterservicing
theunit,besure to rearrange theleadswherethey were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 6-2
STEP REMOVAL PROCEDURE FIGURE
Figure 6-1
Note 1: How to open the changer manually. (Fig. 6-3)
1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading tray bottom.
2. After that, push forward the Loading tray.
Note 2:
1. After removing the connector for the optical pickup from the
connector,wraptheconductivealuminiumfoilaroundthefrontend
of the connector so as to protect the optical pickup from electro-
static damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
CD-E700/CD-E77
CD-E700/CD-E77
(B1)x2
ø3x10mm
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
(B1)x2
ø3x10mm
(B1)x4
ø3x10mm
Rear
Panel
Side Panel
(Right)
Side Panel
(Left)
Top Cabinet
Front
Panel
(C3)x1
CD Player
Unit
CD Tray Cover (C2)x3
1
1
2
2
(E1)x1
ø3x10mm
(C1)x1
ø3x10mm
(E1)x1
ø3x10mm
(D1)x1
ø3x10mm
Lug Wire
Main PWB
Rear
Panel
Fan
Motor
Pull
(C3)x1
(C4)x2
CD Servo
PWB
Main
PWB
(D2)x1
(D1)x6
ø3x10mm
Figure 6-3
Lock Lever
CD Player Unit
(Bottom View)
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
CD-E700/CD-E77
Figure 7-1
Figure 7-2
Figure 7-3
Figure 7-4
Figure 7-5
Figure 7-6
(F1)x1
ø3x10mm
Headphones
PWB
(E4)x1
Front
Panel
(E1)x1
ø3x6mm
(F2)x1
(F2)x1
(E2)x1
(F3)x1
(E3)x1
(E2)x2
Main PWB
Transformer
PWB
Power PWB
(G3)x1
Display PWB
Open
Cassette
Holder
Tape
Mechanism
(H1)x5
ø3x10mm
Lug Wire
Front Panel
Headphones
PWB
(J1)x1
ø3x10mm
(G2)x10
ø3x10mm
(G1)x1
CD Player Unit
Loading
Tray
(K2)x1
(K1)x2
Turntable
(L1)x3
3
(L1)x3 Loading Tray
1
2
Loading
Tray
(M1)x2
ø3x10mm
(M3)x2
CD Servo
PWB
(M2)x1
(M3)x2
CD
Mechanism (N2)x2
(N1)x1
(N1)x1 Loading Tray
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 8 –
Figure 8-1
Figure 8-3
1 Passive Radiator 1. Screw ...................... (A1) x4 8-1
2. Side Panel .............. (A2) x1
3. Screw ...................... (A3) x4 8-3
2 Woofer 1. Front Panel ............. (B1) x1 8-2
2. Screw ...................... (B2) x4 8-3
3 Tweeter 1. Screw ...................... (C1) x2 8-3
4 Super Tweeter 1. Screw ...................... (D1) x4 8-3
STEP REMOVAL PROCEDURE FIGURE
CP-E700/CP-E77
(A3)x4
ø4x16mm
(B2)x4
ø4x16mm
(D1)x2
ø3x12mm
(C1)x2
ø3x12mm
(D1)x2
ø3x12mm
Speaker Box
Woofer
Tweeter
Super Tweeter
Super Tweeter
Passive
Radiator
(A1)x4
ø4x40mm
Speaker Box
(A2)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
(B1)x1
Speaker Box
Figure 8-2
All manuals and user guides at all-guides.com

– 9 –
CD-E700/CD-E77
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 6 and 8 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 9-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 9-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 9-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2)
(See Fig. 9-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1)
(See Fig. 9-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 9-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 9-1
Figure 9-2
Figure 9-3
Figure 9-4Figure 9-5
(A1) x 2
Ø2 x 6mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1)x2
Ø2x9mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1)x1 <A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 2 TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
Main Belt
(D1)x1
Main Belt
(E1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Motor
Motor
(F1) x 2
Ø2.6 x 5mm
Tape
Motor
Clutch Ass'y
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 10 –
How to remove the pickup unit (See Fig. 10-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2) x 1 pc.
2. Remove the screws (B3) x 2 pcs., to remove the shaft
(B4) x 1 pc.
3. Remove the pickup.
Note
After removing the connector for the optical pickup from the
connectorwraptheconductivealuminiumfoilaroundthefront
end of connector so as to protect the optical pickup from
electrostatic damage.
Figure 10-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 10, 11,12 and 13 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 10-1)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
Figure 10-1
ADJUSTMENT
MECHANISM SECTION
••
••
•Driving Force Check
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
••
••
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ±30 Hz Speaker
speed Resistor in Terminal
motor. (Load
resistance:
6 ohms)
••
••
•Tape Speed
Figure 10-3
(B3)x2
ø2.6x6mm
Shaft
(B4)x1
Stop Washer
(B1)x1
Gear
(B2)x1
CD Mechanism
Pickup
Unit
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
(A1)x5
Loading
Motor PWB
Loading
Motor
Loading
Tray
All manuals and user guides at all-guides.com

– 11 –
CD-E700/CD-E77
Figure 11-2
CD ERROR CODE DESCRIPTION
Error Explanation
01 When Pickup set inner position, inner switch
cannot detect 'ON' level for 10 secs.
When tray moves to Open/Close, Open/Close switch
10* cannot detect 'ON' level for 7 secs.
When disc table rotate to target position.
Clamp switch cannot detect 'ON' level for 7 secs.
When disc table set to Disc1 position for 1 st time,
11* "CLAMP SW", "DISC NO SW" and "OPEN/CLOSE"
cannot detect 'ON' level for 14 secs.
31 When it changes to CD function, DSP cannot read
initial data.
T
T
EFBL
FDO
TE
Stopped
CH1=500 mV
DC 10:1 CH2=200 mV DC 10:1 CH3=1 V DC 10:1 500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V Main : 100K Zoom : 2k Mode : SINGLE Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200 mV
1999/04/05 20:26:47
Test Stage Frequency Frequency
Display Setting/ Adjusting
Parts
Instrument
Connection
CD SECTION
••
••
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,720 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
••
••
•FM RF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
FM Band — 87.50 MHz T301 (fL): *1
Coverage 1.3 V ±0.1 V
FM RF 98.00 MHz 98.00 MHz L312 *2
(10-30 dB)
Test Stage Instrument
Connection
Frequency Frequency
Display Setting/
Adjusting
Point
Figure 11-1 ADJUSTMENT POINTS
Items adjusted automatically
(1)Offsetadjustment(Theoffsetvoltagebetween the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing
Fig.11-2 EFBL)
(3)Gainadjustment(ThegainiscompensatedinsidetheIC
sothattheloop gain at thegaincrossoverfrequency will
be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
•Adjustment
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacingthepickup.Therefore,differentPWBsandpickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
••
••
•FM IF
Signal generator: 10.7 MHz, FM modulated
IF 10.7 MHz 98 MHz T302 *1
(Turn the
core of trans-
former T302
fully counter-
clock wise)
Test Stage Instrument
Connection
Frequency Frequency
Display Setting/ Adjusting
Point
*1. Input: Antenna Output: TP301
AM IF
FM RF
TP301
TP302
FM IF
T301
T302
R356
T303
T306
IC301
L312
T351
CNP301
AM/FM LOOP
ANTENNA
FM BAND
COVERAGE fL
AM BAND
COVERAGE fL
AM TRACKING
fL
MAIN PWB
1
R381

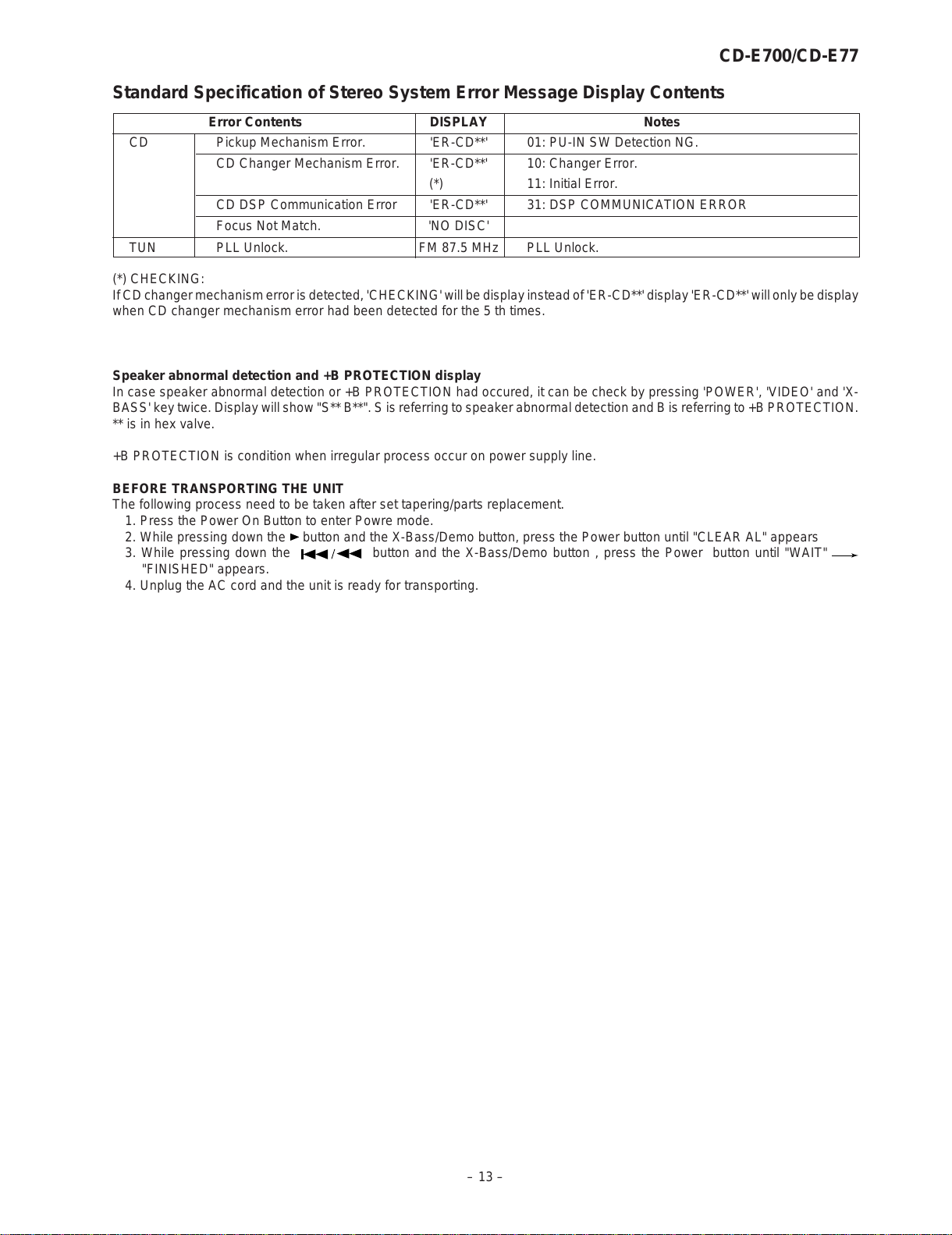

* 'CHECKING'
IfErrorisdetected,'CHECKING'willbedisplayinsteadof'ER-
CD**' display. 'ER-CD**' display will only be display when
error had been detected for the 5 th times.
All manuals and user guides at all-guides.com
all-guides.com

CD-E700/CD-E77
– 12 –
TEST MODE
•Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST: CD operation test.
Function: -CD test mode.
-Enter test mode.
C D T E S T
OPEN/CLOSE operation is using manual.
<< >>,<< >>buttonsmakepick'sslidepossible.
Do TOC IL. Do normal play.
When these following key is input
into PLAY key, track number can
be appoint directly.
<<PLAY>> key input. <<MEMORY>> key input.
<< 1 >> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15
<<STOP>> key input.
STOP
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that
specific point.
<<MEMORY>> key input.
Tracking ON play from
that specific point.
<<STOP>> key input.
STOP
IL isn't done
VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
Sliding the PICKUP with
<< >>, << >> button
must only be in STOP mode.
<<MEMORY>>
key input.
Adjustment result
automatically will
display as below.
for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
explanation:
a) Focus off set = "FOFF_XX"
b) Tracking off set = "TOFF_XX"
c) Tracking balance = "TBAL_XX"
d) Tracking Gain = "TGAN_XX"
f) Focus Gain = "FGAN_XX"
g) RF level shift = "RFLS_XX"
Adjustmentresultautomaticallywill
display as below for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
<<MEMORY>> key input.
All manuals and user guides at all-guides.com

– 13 –
CD-E700/CD-E77
Standard Specification of Stereo System Error Message Display Contents
Error Contents DISPLAY Notes
CD Pickup Mechanism Error. 'ER-CD**' 01: PU-IN SW Detection NG.
CD Changer Mechanism Error. 'ER-CD**' 10: Changer Error.
(*) 11: Initial Error.
CD DSP Communication Error 'ER-CD**' 31: DSP COMMUNICATION ERROR
Focus Not Match. 'NO DISC'
TUN PLL Unlock. FM 87.5 MHz PLL Unlock.
(*) CHECKING:
IfCD changermechanism erroris detected,'CHECKING' willbe displayinstead of'ER-CD**' display'ER-CD**' willonly bedisplay
when CD changer mechanism error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had occured, it can be check by pressing 'POWER', 'VIDEO' and 'X-
BASS' key twice. Display will show "S** B**". S is referring to speaker abnormal detection and B is referring to +B PROTECTION.
** is in hex valve.
+B PROTECTION is condition when irregular process occur on power supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts replacement.
1. Press the Power On Button to enter Powre mode.
2. While pressing down the button and the X-Bass/Demo button, press the Power button until "CLEAR AL" appears
3. While pressing down the button and the X-Bass/Demo button , press the Power button until "WAIT"
"FINISHED" appears.
4. Unplug the AC cord and the unit is ready for transporting.
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 14 –
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ 1” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION
SW712 TUNER ON—OFF
SW713 VIDEO/AUX ON—OFF
SW714 TAPE ON—OFF
SW715 STOP ON—OFF
SW716 PLAY ON—OFF
SW717 FAST FORWARD ON—OFF
SW718 FAST REWIND ON—OFF
SW721 X-BASS/DEMO ON—OFF
SW722 EQUALIZER ON—OFF
SW723 OPEN/CLOSE ON—OFF
SW724 DISC SKIP ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW702 MEMORY SET ON—OFF
SW703 REC/PAUSE ON—OFF
SW704 TUNING DOWN ON—OFF
SW705 TUNING UP ON—OFF
SW706 TIMER/SLEEP ON—OFF
SW707 CLOCK ON—OFF
SW711 CD ON—OFF
TYPES OF TRANSISTOR AND LED
REF. NO DESCRIPTION POSITION
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
KRC102 M
KRC104 M
KTA1266 GR
KTA1273 Y
KTA1274 Y
304VT2E1
A503BC2E
FRONT
VIEW
KTA1271 Y
KTC3194 Y
KTC3199 GR
KTC3200 GR
KTC3203 Y
All manuals and user guides at all-guides.com

– 15 –
CD-E700/CD-E77
Figure 15 BLOCK DIAGRAM (1/3)
IC
807977
7170
47 46
45444342
41
25
18 109875
CNP4
19
28
37
40
26
23
22
21
20
50
51
55
75
69
57
56
49
48
67
66
65
64
63
62
61
CONT 5
DRIVER
SPIN/SLIDE
FOCUS/TRACKING/
LA6574H
IC2
SPO
SLDO
FD
TO
VCC2
IC1
LC78646E
CD SERVO
LCHO
LVSS
RVSS
RCHO
CONT4 CONT3 CONT2
SLDO
SPDO
FD0
TD0
LDD LDS TIN2 TIN1 FIN2 FIN1 RVDD LVDD XVDD ADAVDD VVDD RFVDD
XIN
XOUT
DRF
VRES
VWRQ
DO
DI
CL
CE
TO DISPLAY SECTION
TO MAIN SECTION
BI4
CNP5
CNP6
SW3
DISC
NUMBER
SW2 CLAMP
SW1
OPEN/CLOSE
M3
T/T UP DOWN
LOADING MOTOR
D_GND
PICKUP UNIT
IN
PICKUP
SW4
MOTOR
SPINDLE
M1
MOTOR
SLIDE
M2
COIL
TRACKING
FOCUS COIL
16.933 MHz
XL1
Q3
+6.5V
+5V
Q2
DRIVER
LASER
+3.3V
CONSTANT
VOLTAGE
+3.3V
+3.3V
Q1
+5V
R-CH AGND L-CH D5V
WRQ DRF CE DO CL DI CLAMP SW
A5V
O/C, CD RES DISC NO
CNS4
+
–
+6.5V
(+B6) (+B6)
(+B7)
29
12
22
1
15131724 28 27 32
30
26
9 10 11 87654
871 2 3 4 5 6 1031 987652 4 2 31 4 65
2 31 4 65
2 31 4 65
6
43
M
M
M
44
DGND
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 16 –
Figure 16 BLOCK DIAGRAM (2/3)
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
AUX
VIDEO IN
R
L
R
L
JK690
FM
+B +B4
CLK
+B4
AM IF
OSC BUFF
AM
FM IF
OSC
FM
B.P.F
BI601 ATT
–20dB
Q106
Q103-
Q108
Q107
Q602
Q601
X351
456 kHz
10.7 MHz
450 kHz
FM
REC/PLAY
CLK
CE
DI
DO DI CE
MO/ST
SWITCHING +B4
FM/AM
PLL(TUNER)
LC72131
IC302
OUT
FM/AM
L
R
BIAS
T1/T2
MUTING
P.B.
REC
AC BIAS
L
L
R
R
R
L
TAPE
TUNER
CD
PB
CNP5
FROM CD SECTION
HEAD
ERASE
SWITCHING
SWITCHING
SWITCHING
BIAS
Q113
Q114
Q112
Q110
SWITCHING
Q109
OSC
BIAS Q111
L103
Q105
Q106
REC PB HEAD
TAPE 2
PB HEAD
TAPE 1 R-CH
L-CH
AUDIO PROCESSOR
LC75341
IC601
+B4
R
L
REC
R
L
L NF
R NF
ALC
R REC
REF
L REC
POP REDUCE
R NF
L NF
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
R
L
FM/AM
MPXIN
STEREO
AM RF IN
AM OSC IN
FM
Q360
VT
OSC
X352
4.5 MHZ
COVERAGE
AM BAND
AM TRACKING
T303 T306
Q302
MO/STVCO
DET
FMFM+BGNDAM IF
CF351
FM/AM IF MPX.
IC303
LA1832S
FM IF DET./
FM MPX./AM IF
AM MIX
CF352 T351
RF
FM
OSC
FM
L312 T301
CF303T302
IC301
TA7358AP
FM FRONT END
BF301
4
22
3
24
2
1
81817
3
9
10
18
11
16
3
15
10
9
7
23
14
12
13
1
2
20
19
7
18
10
8
17
13
21
4
5
2
24
23
6
9
16
14
12
15
1
513
8432
1
21
7
9 85 17
6
21
21
20 22 11
17
15
9
6
5 7
13
14
12
5
1
16
23
4
7
H/N
P.B
REC
T1/T2
T1/T2
HIGH
NOR/
416
21
R-CH
L-CH
Q706
Q707
Q708
TAPE
MECHANISM
ASS'Y
MOTOR
DRIVER
SOLENOID
DRIVER
+B3
+B3
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
CD-E700/CD-E77
Figure 17 BLOCK DIAGRAM (3/3)
RL841
PT841
SUB POWER
TRANSFORMER
D842~
D845
IC854
AN78L05 +5.6V
+B5
+B PROTECT
+B7
+B2 D801
VL+
VL–
PT801
MAIN POWER
TRANSFORMER
F805
4A/125V
+B6 D803
M12
IC851,IC852,IC853:
VOLTAGE REGULATOR
IC855
+B3
KTC2026
Q905
KIA7812AP
KIA7810AP
D905
AC120 V, 60 Hz
–VF
VF1
VF2
Q801
+5V
KIA7805AP
IC852
+B4
+B7
+B1
–B1
–B2
+B6
+B3
+B5
+B4
Q705
R
L
T
B
+B5
RX701
SENSOR
REMOTE
D804
D802
RL914
JK701
HEADPHONES
M901
FAN MOTOR
SO901
SPEAKER
TERMINAL
M
Q906
Q709
Q904
Q901
Q903
Q902
D906
Q
602
Q
601
IC853
IC851
POWER AMP.
STK41242
IC901
A+10V
LD+7V
2A/125V
F803
2A /125V
F804
4A/125V
F801
4A/125V
F802
VH+
VH–
L-OUT
R-OUT
CLK
IX0553AW
4.194304 MHz
RESET
MAIN
AC POWER
SUPPLY CORD
REC/PLAY
VLOAD
RESET
GROUND
+B5 +B5
+B5
+B5
VDD VDD VDD
SP. DET.
-
CE DI DO
XL700
-
BIAS
T1/T2
AVDD
SW721-SW724
SW711-SW718
SW701-SW707
KEY
SECTION
TO CD
T.F.
MICROCOMPUTER
SYSTEM CONTROL
IC701
DISPLAY
FL701
4514 19131 125
79
91
86
92
85
70 38
37
34
35
36
31
33
29
87
6
1
11
7
8
25
14
18
93
1 2 4 5 6
3
2
1
100
45
11 12 1310 15 16 17 20 21 22 23 24
57 46 44 39
4127
56 48 4749505152535455 404243
- - -
VOLTAGE REGULATOR
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 18 –
Figure 18 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.
0.7V
0V
0V
0V
0.7V
0V 0V
0V
0V 0V
0V
0V 3.4V
3.4V
0V
0V
9.3V
8.6V
9.3V
0V 0.7V
0.
7
0V
0V
0V 0.7V
0.7V
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
17 16 15 14 1
3
8 9
10 11 1
2
1819
20
5 6 7
23 22 21
2 3 4
24
1
REC_R
+B
T2_R2
L
R
A_GND
L
L
R
R
TO POWER SECTION
P22 1-F
CD_+B
CD_GND
L-CH
A_GND
R-CH
CNP5
TO
CD SERVO
PWB
P27 12-D
T1_R
T1_L
A_GND
M_GND
ERASE
T2_R1
T2_L1
T2_L2
ERASE HEAD
RECORD/
PLAYBACK HEAD
TAPE2
TAPE1
PLAYBACK HEAD
R-CHL-CH
R-CH
L-CH
3
6
3
2
1
4
3
2
6
1
5
7
8
D_GND
LD+7V
LD+7V
A_5V
D+5V
CD_GND
L-CH
A_GND
R-CH
CD_A_GND
CD_D_GND
4
5
7
3
1
2
6
9
10
11
12
13
14
15
16
17
18
8
7
5
2
4
1
3
6
5
2
4
1
3
1
2
– +
– + –
+
– +
– +
– +
–
+
–
+
CCB
INTERFACE
AUX
DECK
TUNER
CD
112K 56K
112K 56K
Hich=CHROME
–
–
+
+
Hich=T1
+
–+
–
Nor/CrO2
RIPPLE
ALC ALC
Vcc
LSEL0
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
L1
L2
L3
L4
LIN
LTRE
LBASS
LOUT
VSS
CE
DI
1
1
2
23
3
+B
+B
+B
IC101
AN7345K
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
SWITCHING
SWITCHING
MUTING
M
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
BI601
CNS601
R619
330
R618
330
Q603
KTC3199 GR
R617
2.2K
R616
2.2K
R615
4.7K
R614
4.7K
Q604
KTC3199 GR
Q601
KTC3199 GR
R613
390
R611
2.2K
R610
2.2K
Q602
KTC3199 GR
R612
390
R605
10K C609
1/50
R607
3.9K
C607
0.12
(ML) C605
0.12(ML)
C611
0.0022
C613 1/50
C615 4.7/50
C617 1/50
C619 1/50
C621
1/50
IC601
LC75341
AUDIO PROCESSOR
C651
220P
C652
220P
R602
1K
R601
1K
C653
220P C601
220/16
C603
22/50
C608
0.12(ML)
C606
0.12(ML)
C624
1/50
C622 1/50
C620 1/50
C618 1/50
C616 4.7/50
C614 1/50
C626
0.0022
R608
1.2K
C625
0.0022
R609
1.2K
R620
22K
C640
22/50
R621
22K
C639
1/50
CNP101
CNP102
Q103
KTC3200 GR
Q101
KTC3200 GR
R105
3.3K
R103
2.2K
C105
560P
Q105
KTC3199 GR
R109
4.7K
R107
47K
R108
47K
R110
4.7K
C106 560P
Q106
KTC3199 GR
R112
15K
R101
1K
R102
1K
R114
1K C110
330P
C108
330P
R120
3.9K
R118
100K
C114
0.033
R124
5.6K
C118
47/25
C116
560P
C112
47/25
R122
12K
C120
0.0022
R116
56
C150
47/50
R150
68K
R126
4.7K
Q113
KRC104 M
Q114
KRC104 M
R146
10K R147
10K
R148
4.7K
Q112
KTA1266 GR
C141
100/16
R149
150
R136
220K
R138
10K R139
10K
Q108
KTC3199 GR Q
KTC3
IC101
AN7345K
PLAYBACK
AND
RECORD/
PLAYBACK
AMP.
C128
0.022
C124 270P
C132
47/25
C130
0.0033
R132
100
R130 1.5K
R134
10K
C133 22/50 C134 220/10
R128
5.6K C126
22/50
C107
330P
R113
1K C109
330P
C125
22/50
C131
47/25
C121
0.022
R129
5.6K
C143
3.3/50
R131 1.5K
R127
4.7K
R133
100
C127 0.022
C129 0.0033
C123
270P
R135
10K
R119
3.9K
R117
100K
R123
5.6K
C113
0.033 C115
560P
C117
47/25
R115
56
C111
47/25
R121
12K
C119
0.0022
R111
15K
Q104
KTC3200 GR
Q102
KTC3200 GR
R104
2.2K
R106
3.3K
C104
180P
C101
560P
C102
560P
C103
180P
C623
1/50
All manuals and user guides at all-guides.com

– 19 –
CD-E700/CD-E77
Figure 19 SCHEMATIC DIAGRAM (2/10)
78 9 10 11 12
0.7V
0.7V
0V
0V
0V 0V
0V
11.6V
11.6V
0V
0V
19 20 21 22 23 24 25 26 27 28
1
2
3
4
5
6
7
8
9
24
23
22
21
20
19
18
17
16
15
14
13
17 16 15 14 13
8 9
10 11 12
A+10V +B_PROTECT M_+13V SP_RLY SW_5V SP_DET TAPE_A_GND AGND
REC_R
A+10V+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
REC_L
(AUDIO PRO)
D_GND M_GND
SW_5V
S_MUTE
M_+13V
TO TUNER SECTION P21 11-H
+B_PROTECT
–20dB
SP_DET
D_GND
SP_RLY
REC/PLAY
T_T1/T2
T_BIAS
CLK
DI
CE
FFC701
CNP701A
TO
DISPLAY PWB
P24 1-F
DO
11
16
15
14
13
12
10
9
8
7
6
5
4
3
2
1
A+10V
DGND
DI
CLK
AGND
TUN_L
DO
TUN_R
CE
CHASSIS
R-CH
L-CH
MAIN PWB-A1(1/3)
TO POWER SECTION
P22 1-F
56K
56K
=
CHROME
–
–
+
+
Nor/CrO2
RIPPLE
ALC ALC
Vcc
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
1
23
MUTING
MUTING
SWITCHING
BIAS
BIAS OSC.
O
R
C653
220P C601
220/16 C602
0.022
R603
1K
C603
22/50
C608
0.12(ML) C610
1/50
R604
10K
C612
0.0022
R606
3.9K
C606
0.12(ML)
C624
1/50
C622 1/50
C620 1/50
C618 1/50
C616 4.7/50
C614 1/50
R642
10K
R643
6.8K
R641
10K
R644
6.8K
C626
0.0022
R608
1.2K
R137
220K
R136
220K
R138
10K R139
10K
Q108
KTC3199 GR Q107
KTC3199 GR
C128
0.022
C132
47/25
C130
0.0033
R132
100
R130 1.5K
R134
10K
C133 22/50 C134 220/10 C135 0.022
C126
22/50
C125
22/50
C131
47/25
R131 1.5K
R133
100
C127 0.022
C129 0.0033
R135
10K
C138
0.0082
C137
0.047
(ML)
C140
47/25
Q111
KTC3203 Y
R142
82 (1/2W)
C139
0.039(ML)
R143
47K
L103
330 µH
R144
22K
R145
4.7
Q110
KRC104 M
R141
4.7K
R140
47K
Q109
KTA1266 GR
R158
220
CNP701B
R690
6.8K C690 390P
R691
6.8K C691
390P
R693
33K
R692
33K
JK690
AUX/VIDEO
All manuals and user guides at all-guides.com

CD-E700/CD-E77
– 20 –
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.
Figure 20 SCHEMATIC DIAGRAM (3/10)
+B
+B
+B
FM OSC. FM IF
FM RF
24
1
21 20
1 2 3
22
1 2 3
321
1
2
3
6
5
4 7 8 9
TP301
OSC BUFFER
(HB)
VSS
AOUT
CE
X IN X OUT
AM OSC OUT
FM IF IN
FM
AM
3 3
2
1
2
1
I
L
C
FM SIGNAL
AM SIGNAL
C302
0.001
D302 DS1SS133
D301 DS1SS133
C338 0.001
C323
0.022
T303
AM ANTENNA
AM BAND
COVERAGE fL
FM BAND
COVERAGE fL
AM TRACKING
C330
15P
(UJ)
C331
0.047
C332
0.022
VD301
SVC348S
C335
560P
T306
AM OSC.
C334
22P
(CH)
R323
68K
R336
10K
IC301
TA7358AP
FM FRONT END
BF301
BAND PASS FILTER
CNP301
C303
10P
C304
0.01 C305
4.7P R302
10
C306
0.022
C307
10/50
C324
4.7P(UJ)
VD303
SVC211C
C313
22P
(CH)
R309
10K
C310
15P(CH)
T301
T302
C312
0.022
C309
0.001
C320
0.001VD302
SVC211C
D305
DS1SS133
C308
4.7P
(CH)
R311
100K
L312
R313
33K
R314
22
C316
0.022
C314
0.0047
C317
0.001
C315
0.0047 Q302
KTC3194 Y
C318
100P
R325
47K
R327
33
R322
680
CF303
R316
4.7K
C311
18P
C351 0.022
C350 0.022
C352 10/50 R351
5.6K
C389 0.001
C397
0.022
R382
150
R381
10K
C3
9
1/
5
C381
12P(CH)
C394
47/25
X352
4.5 MHz
C382
15P(CH)
R375
470
C383
47P
R374 1K C362
3 3/50
R365
10K
C342
0.022
R358
3.9K
All manuals and user guides at all-guides.com
