Sharp CD-MPX200W User manual

8/6/07 CD-
MPX200H_500W_FRONT.fm TINSZA165AWZZ
CD-MPX200W
The illustrations printed in this operation manual are for the model CD-MPX200W
.
Les illustrations utilisées dans ce mode d’emploi sont pour le modèle CD-MPX200W.
Las ilustraciones impresas en este manual de manejo son del modelo CD-MPX200W.
As ilustrações impressas neste manual de operações são para o modelo CD-MPX200W.
CD-MPX200W
CD-MPX500W
Se reporter aux pages F-1 à F-40.
Consulte las páginas S-1 a S-40.
Favor consultar as páginas P-1 a P-40.
PORTUGUÊS
FRANÇAIS
ESPAÑOL
Please refer to pages E-1 to E-40.
ENGLISH
CD-MPX500W
OPERATION MANUAL
MODE D’EMPLOI
MANUAL DE MANEJO
MANUAL DE OPERAÇÃO
MINI COMPONENT SYSTEM
MINI-CHAÎNE
SISTEMA MINI COMPONENTE
SISTEMA MINI COMPONENTE
MODEL
MODÈLE
MODELO
MODELO

03/12/17 CD-MPX200H_500W
E-1
ENGLISH
CD-MPX500W
CD-MPX200W
Special notes
WARNINGS
 When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the
ON/STAND-BY button is set at STAND-BY position, the unit may
be brought into operation by the timer mode or remote control.
 This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the socket before any service
operation and when not in use for a long period.
 To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases,
shall be placed on the apparatus.
 Do not turn the volume on to full at switch on and listen to music
at moderate levels. Excessive sound pressure from earphones
and headphones can cause hearing loss.
Note:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
NOTE
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
 Reorient or relocate the receiving aerial.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
WARNING
FCC Regulations state that any unauthorised changes or
modifications to this equipment not expressly approved by the
manufacturer could void the user's authority to operate this
equipment.
CAUTION
 This product is classified as a CLASS 1 LASER product.
 Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer
servicing to qualified personnel only.
Laser Diode Properties
Material: AIGaAs
Wavelength: 790 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Important Instruction
ENGLISH
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.
WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT
GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER
DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.
ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE.
NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES
INSTRUMENTS OPTIQUES.

03/12/17 CD-MPX200H_500W
E-2
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
General Information
Introduction
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It
will guide you in operating your SHARP product.
 CD-MPX200W Mini Component System consisting of
CD-MPX200W (main unit), CP-MPX200 (speaker system).
 CD-MPX500W Mini Component System consisting of
CD-MPX500W (main unit), CP-MPX500 (speaker system).
Special Note
Supply of this product does not convey a license nor imply any right
to distribute content created with this product in revenue-generating
broadcast systems (terrestrial, satellite, cable and/or other
distribution channels), revenue-generating streaming applications
(via Internet, intranets and/or other networks), other revenue-
generating content distribution systems (pay-audio or audio-on-
demand applications and the like) or on revenue-generating physical
media (compact discs, digital versatile discs, semiconductor chips,
hard drives, memory cards and the like). An independent license for
such use is required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.
Accessories
Please confirm that only the following accessories are included.
Contents
Page
 General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 6
 Preparation for Use
System connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
 Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

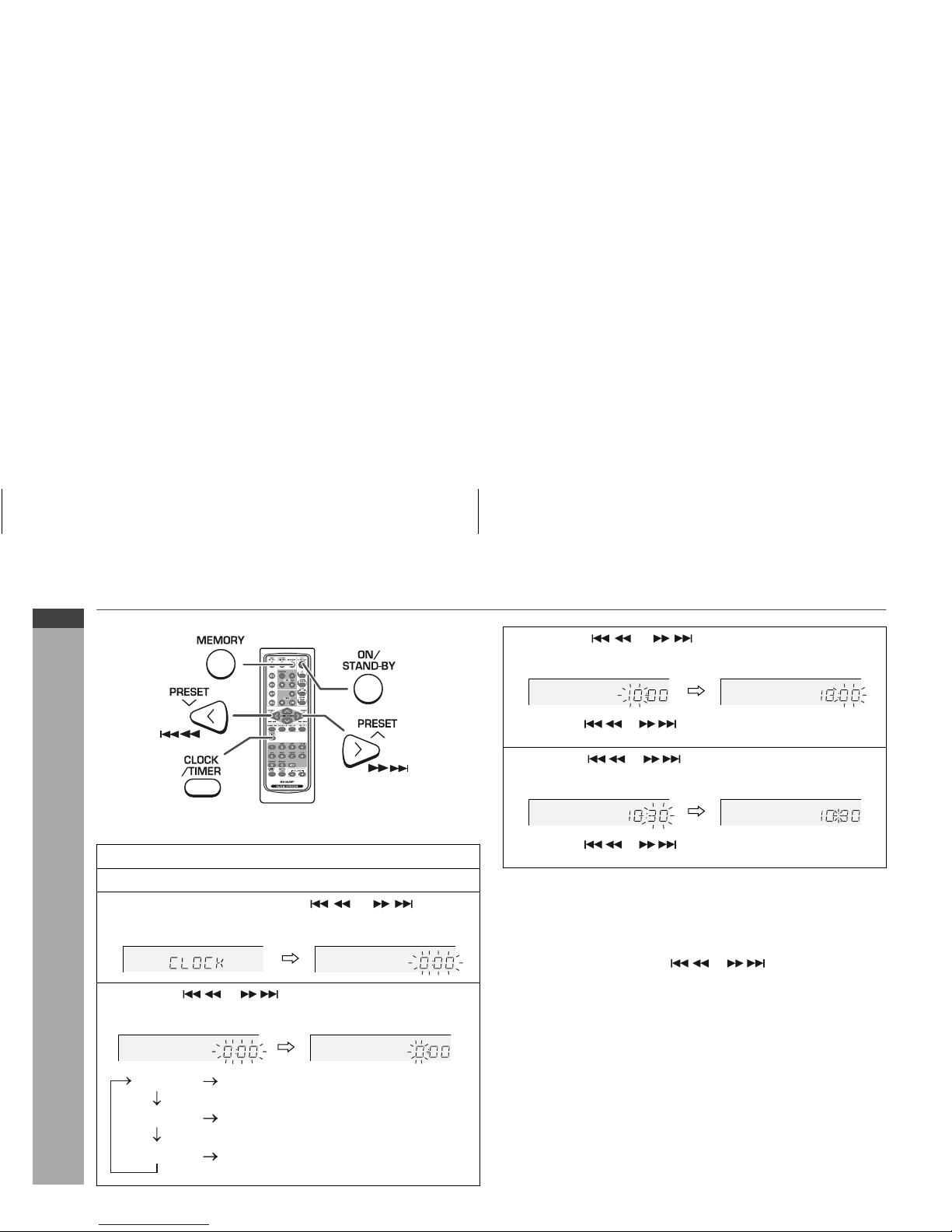

Setting the clock (Remote control only) . . . . . . . . . . . . . . . . . 13
 CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . .14 - 17
Advanced CD or MP3/WMA disc playback . . . . . . . . . . . .18 - 20
MP3/WMA navigation (only for MP3/WMA files) . . . . . . . .21 - 24
 Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 - 26
 Tape Playback
Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . .27 - 28
 Tape Recording
Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . .28 - 30
 Advanced Features
Timer and sleep operation (Remote control only) . . . . . .31 - 34
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . .35 - 36
 References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 - 38
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 - 40
Remote control 1 “AA” size battery (UM/SUM-3,
R6, HP-7 or similar) 2
AM loop aerial 1 FM aerial 1

03/12/17 CD-MPX200H_500W
E-3
ENGLISH
CD-MPX500W
CD-MPX200W
General Information
Precautions
 General
 Please ensure that the equipment is positioned in a well ventilated
area and ensure that there is at least 10 cm (4") of free space
along the sides, top and back of the equipment.
 Do not place anything on top of the unit.
 Do not expose the unit to moisture, to temperatures higher than
60 ˚
C (140
˚
F) or to extremely low temperatures.
 If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible for
any damage resulting from use of this unit with a voltage other than
that which is specified.
 Volume control
The sound level at a given volume setting depends on speaker
efficiency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels. Excessive sound
pressure from earphones and headphones can cause hearing loss.
 Use the unit on a firm, level surface free from
vibration.
 Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical
equipment (home computers,
facsimiles, etc.) which generate
electrical noise.
 In case of an electrical storm, unplug the
unit for safety.
10 cm (4")
Table
10 cm (4") 10 cm (4")
10 cm (4")
 Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
 The AC power plug is used as disconnect
device and shall always remain readily
operable.
 Do not remove the outer cover, as this
may result in electric shock. Refer
internal service to your local SHARP
service facility.
 The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
 No naked flame sources, such as lighted candles, should be
placed on the apparatus.
 Attention should be drawn to the environmental aspects of battery
disposal.
 The apparatus is designed for use in moderate climate.
 This unit should only be used within the range of 5 ˚
C - 35
˚
C
(41
˚
F - 95
˚
F).
ACINPUT

03/12/17 CD-MPX200H_500W
E-4
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
General Information
Controls and indicators
 Front panel
Reference page
1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7. Game/Aux Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8. Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 27
9. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 15
11. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 15
12. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
13. CD or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . 16, 28
14. CD Play or Repeat,Tape Play Button . . . . . . . . . . . 15, 19, 27
15. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button . . . . . . . 13, 16, 26, 28, 31
16. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down,Time Down Button . . . 13, 16, 26, 28, 31
17. Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 27
18. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

03/12/17 CD-MPX200H_500W
E-5
ENGLISH
CD-MPX500W
CD-MPX200W
General Information
Controls and indicators (continued)
 Display
Reference page
1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2. MP3/WMA Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 21
3. MP3/WMA Title Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8. Timer Recording Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9. Tape 2 Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10. MP3/WMA Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 25
14. Tape Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
15. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 26
16. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
17. Disc Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 19
18. Disc Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
19. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
 Rear panel
Reference page
1. AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. Cooling Fan (FOR CD-MPX500W ONLY) . . . . . . . . . . . . . . . 9
3. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5. AM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. AM Loop Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. Game/Aux Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9. Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
 Speaker System
9
3
2
1
4
5
6
8
7
12 3 45 6789
11 12 13
10 14
15
16 17
1819
1. Tweeter
2. Super Tweeter
3. Woofer
4. Bass Reflex Duct
5. Speaker Wire
11
2
3
4
5
6

03/12/17 CD-MPX200H_500W
E-6
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
General Information
 Remote control
Reference page
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 15
3. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 31
4. Character Input/Disc Direct Search Buttons . . . . . . . . 18, 23
5. Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . 12
6. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 12
8. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
10. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12. Game/Aux Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
13. Disc Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . 12, 20
14. Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
15. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
16. Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
17. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 20, 26, 31
18. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
19. Disc Play or Repeat Button . . . . . . . . . . . . . . . . . . . . . . 15, 19
20. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
21. Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . 29
22. Tuning Up, Cursor Up Button . . . . . . . . . . . . . . . . . . . . 21, 25
23. Disc Track Up or Fast Forward,Tape 2 Fast Forward,
Tuner Preset Up, Time Up, Cursor Right Button . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 16, 26, 28, 31
24. Disc Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down, Cursor Left Button . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 16, 26, 28, 31
25. Tuning Down, Cursor Down Button . . . . . . . . . . . . . . . 21, 25
26. MP3/WMA Navigation Mode Select Button . . . . . . . . . . . . 21
27. Character Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
28. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 17
29. Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1
2
3
5
6
4
9
10
8
7
11
12
17
19
18
13
15
14
21
20
16
25
24
22 23
26 27 2829

03/12/17 CD-MPX200H_500W
E-7
ENGLISH
CD-MPX500W
CD-MPX200W
Preparation for Use
System connections
Left speaker
Right speaker
Speaker connection
(see page 8)
Aerial connection (see page 8)
Make sure to unplug the AC power lead before any connections.
FM aerial AM loop aerial
AC power connection (see page 10)
To a Wall socket

03/12/17 CD-MPX200H_500W
E-8
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
Preparation for Use
 Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
 Speaker connection
Connect the black wire to the FRONT SPEAKERS minus (-) terminal,
and the red wire to the FRONT SPEAKERS plus (+) terminal.
Caution:
Supplied FM aerial:
Connect the FM aerial wire to the FM
75 OHMS socket and position the FM
aerial wire in the direction where the
strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM
and GND terminals. Position the AM
loop aerial for optimum reception.
Place the AM loop aerial on
a shelf,
etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
ANTENNA
FM
75 OHMS
AM
GND
AM loop
aerial
FM
aerial
 Use speakers with an impedance of 6 ohms
or more, as lower impedance speakers can
damage the unit.
 Do not mistake the right and the left
channels. The right speaker is the one on the
right side when you face the unit.
 Do not let the bare speaker wires touch
each other.
Do not stand or sit on the speakers. You may
be injured.
Do not allow any objects to fall into or to be
placed in the bass reflex duct.
Incorrect
Red
Black

03/12/17 CD-MPX200H_500W
E-9
ENGLISH
CD-MPX500W
CD-MPX200W
Preparation for Use
System connections (continued)
Demonstration mode
External FM aerial
Use an external FM aerial if you require better reception. Consult
your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM
aerial wire.
Cooling fan: (FOR CD-MPX500W ONLY)
The main unit is built with a cooling fan at the rear of the unit for
improved cooling. Please do not cover the opening of the fan with
any obstacles, as this will block proper ventilation.
The first time the unit is plugged in, the
unit will enter the demonstration mode.
You will see words scroll.
To cancel the demonstration mode:
When the unit is in the power
stand-by mode (demonstration
mode), press the X-BASS/DEMO
button. The unit will enter the low
power consumption mode.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the
X-BASS/DEMO button again.
Note:
When the power is on, the X-BASS/DEMO button can be used to
select the extra bass mode.
External
FM aerial
75 ohms
coaxial cable
ANTENNA
FM
75 OHMS
AM
GND

03/12/17 CD-MPX200H_500W
E-10
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
Preparation for Use
Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear
panel before plugging the unit into the wall socket. If necessary,
adjust the selector to correspond to the AC power voltage used in
your area.
Turn the selector with a screwdriver until the appropriate
voltage number appears in the window (110 V, 127 V, 220V or
230 V-240 V AC).
Connecting the AC power lead
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket. If you plug the unit
first, the unit will enter the demonstration mode (see page 9).
Notes:
The unit will start the tape initialisation when plugged into the wall
socket. During this process, initialising sound will be heard and
the unit cannot be turned on. Wait until the process is finished.
Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.
AC Plug Adaptor
In areas (or countries) where the wall socket as shown in illustration
2is used, connect the unit using the AC plug adaptor supplied with
the unit, as illustrated. The AC plug adaptor is not included in areas
where the and wall socket and AC power plug can be directly
connected (see illustration 1).
Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established
that member countries should maintain either a 100 kHz or a 50 kHz
interval between broadcasting frequencies of FM stations and 10
kHz or 9 kHz for AM station. The illustration shows the 50/9 kHz
zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear
panel) to the interval (span) of your area.
To change the tuning zone:
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
For 50 kHz FM interval (9 kHz in AM) →50/9
For 100 kHz FM interval (10 kHz in AM) →100/10
3 Whilst pressing down the button and the button, press the
TUNER (BAND) button until "CLEAR ALL" appears.
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD programme.

03/12/17 CD-MPX200H_500W
E-11
ENGLISH
CD-MPX500W
CD-MPX200W
Preparation for Use
Remote control
Battery installation
Precautions for battery use:
Replace all old batteries with new ones at the same time.
Do not mix old and new batteries.
Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leakage.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
Installing the batteries incorrectly may cause the unit to
malfunction.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
Battery removal:
Open the battery cover and pull up the battery to take out.
Notes concerning use:
Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 “AA” size batteries (UM/
SUM-3, R6, HP-7 or similar).
Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.
Keep the remote control away from moisture, heat, shock, and
vibrations.
Test of the remote control
Check the remote control after checking all the connections (see
pages 7 - 10).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you
can enjoy the music.
1 Open the battery cover.
2 Insert the supplied batteries according to the direction
indicated in the battery compartment.
When inserting or removing the batteries, push them towards the
battery terminals.
3 Close the battery cover.
Remote sensor

03/12/17 CD-MPX200H_500W
E-12
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
Basic Operation
General control
To turn the power on
Press the ON/STAND-BY button to turn the power on.
Display Brightness control
To dim the display brightness, hold down the CLEAR/DIMMER
button on the remote control for 2 seconds or more.
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or
higher, the volume starts at 16 and fades in to the last set level.
Volume control
Bass Control (X-BASS)
Equaliser
When the power is first turned on, the unit will enter FLAT mode.
When the EQUALIZER MODE button is pressed, the current mode
setting will be displayed. To change to a different mode, press the
EQUALIZER MODE button repeatedly until the desired sound mode
appears.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
Main unit operation:
When the VOLUME control is turned
clockwise, the volume will increase.
When it is turned anti-clockwise, the
volume will decrease.
Remote control operation:
Press the VOLUME (+ or -) button to
increase or decrease the volume.
When the X-BASS/DEMO button is
pressed, the unit will enter the extra bass
mode. To cancel this mode, press the
X-BASS/DEMO button again.
In CD/TUNER/TAPE mode In GAME/AUX mode
30 MAXIMUM0.....
POPS
VOCALS
JAZZ
FLAT
ROCK
CLASSIC
For rock music.
For pop music.
No equalisation.
For classical music.
For jazz.
Vocals are enhanced.
ACTION
SPORTS
RACING
FLAT
ROCK
CLASSIC
For rock music.
For action games.
No equalisation.
For classical music.
For car racing games.
For sports games.

03/12/17 CD-MPX200H_500W
E-13
ENGLISH
CD-MPX500W
CD-MPX200W
Basic Operation
Setting the clock (Remote control only)
In this example, the clock is set for the 24-hour (0:00) display.
To confirm the time display:
[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.
[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to display the
time.
The time display will appear for about 10 seconds.
Note:
The “CLOCK” will appear or time will flash to confirm the time
display when the AC power supply is restored after a power failure
or unplugging the unit. If incorrect, readjust the clock as follows.
To readjust the clock:
Perform “Setting the clock” from step 1. If the “CLOCK” does not
appear in step 3, step 4 (for selecting the 24-hour or 12-hour
display) will be skipped.
To change the 24-hour or 12-hour display:
1Press the ON/STAND-BY button to turn the power on.
2Press the CLOCK/TIMER button.
3Within 10 seconds, press the or button to
select “CLOCK”, and press the MEMORY button.
4Press the or button to select 24-hour or
12-hour display and then press the MEMORY button.
The 24-hour display will appear.
(0:00 - 23:59)
The 12-hour display will appear.
(AM 12:00 - PM 11:59)
The 12-hour display will appear.
(AM 0:00 - PM 11:59)
“0:00”
“AM 12:00”
“AM 0:00”
5Press the or button to adjust the hour and
then press the MEMORY button.
Press the or button once to advance the time by
1 hour. Hold it down to advance continuously.
6Press the or button to adjust the minutes and
then press the MEMORY button.
Press the or button once to advance the time by
1 minute. Hold it down to change the time in 5-minute intervals.
1 Clear all the programmed contents. [Refer to “Clearing all the
memory (reset)” on page 38 for details.]
2 Perform “Setting the clock” from step 1.

03/12/17 CD-MPX200H_500W
E-14
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc
This system can play back a standard CD, CD-R/RW in the CD format
and CD-R/RW with MP3 or WMA files, but cannot record on them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the device that was used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands
for MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant
compression from the original audio source with very little loss
in sound quality.
This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
During VBR file playback, time counter in the display may differ
from its actual playback time.
Bitrate which is supported by MP3 is 32 ~ 320 kbps.
WMA:
WMA files are Advanced System Format files that include audio
files which are compressed with Windows Media Audio codec.
WMA is developed by Microsoft as an audio format file for
Windows Media Player.
“MP3” or “WMA” indicator will light up after the unit reads
information on an MP3 or WMA disc.
Bitrate which is supported by WMA is 64 ~ 160 kbps.
Auto power on function:
When you press any of the following buttons, the unit turns on.
CD button (main unit and remote control): The unit turns on and
the “CD” function is activated.
CD / button on the remote control: The unit turns on and CD
playback starts (regardless of the last function).
/ button on the main unit: The unit turns on and playback of
the last function starts (CD,TAPE,TUNER,GAME/AUX).
Auto power off function:
In the stop mode of CD, MP3 or WMA operation, the main unit enters
the stand-by mode after 15 minutes of inactivity.

03/12/17 CD-MPX200H_500W
E-15
ENGLISH
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc (continued)
1Press the ON/STAND-BY button to turn the power on.
2Press the CD button.
3Press the 1 button and within 5 seconds, press the
button to open the disc tray 1.
4Place the disc on the disc tray 1, label side up.
Be sure to place 8 cm (3") disc in the middle of the disc trays.
5Press //
// button to close the disc tray 1.
Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20
to 90 seconds).
6You can place discs on the trays 2 - 5 by following steps
3 - 5.
7Press the / button to start playback.
12 cm (5") 8 cm (3")
[CD]
Total number of
tracks on the disc Total playing time of the disc Total number of folders Total number of files
MP3 indicator
[MP3/WMA] WMA indicator
Disc play indicator

03/12/17 CD-MPX200H_500W
E-16
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Playback will begin from track 1 on disc 1. After that disc finishes
playing, the next disc will automatically play.
After the last track on the fifth disc is played, the unit will stop
automatically.
When there is no disc in one of the disc trays (1 - 5), the empty
tray will be skipped to the next tray with a disc.
To exchange other discs whilst playing a disc:
Press one of the 1 - 5 buttons for the stopped disc and within 5
seconds, press the button and exchange discs.
To remove the discs:
In the stop mode, press the 1 - 5 buttons and within 5 seconds,
press the button.
Caution:
Do not place two discs in the same tray.
Do not play discs of special shapes (heart, octagon, etc.) as it
may cause malfunctions.
Do not push the disc tray whilst it is moving.
If the power fails whilst the tray is open, wait until the power is
restored.
If the disc tray is stopped with force, “ER-CD21” will appear on the
display for 3 seconds and the unit will not function. If this occurs,
press the ON/STAND-BY button to enter the power stand-by
mode and then turn the power on again.
If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.
If a disc is damaged, dirty, or loaded upside down, the disc will
skip or not play.
Various disc functions
Function Main unit Remote
control Operation
Play Press in the stop
mode.
Stop Press in the playback
mode.
Pause Press in the playback
mode. Press the /
button to resume play-
back from the paused
point.
Track up/
Track down Press in the playback or stop mode.
If you press the button
in the stop mode,
press the / button
to start the desired
track.
Fast
forward/
Fast
reverse
Press and hold down
in the playback mode.
Release the button to
resume playback.

03/12/17 CD-MPX200H_500W
E-17
ENGLISH
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc (continued)
Notes for CD:
Notes for MP3/WMA discs:
Track up/track down is possible only within individual discs.
The sound is heard during fast forward/fast reverse with a CD, but
not with an MP3/WMA disc. For fast forward or fast reverse of an
MP3/WMA disc, refer to playback time on the display.
Fast forward/fast reverse is possible only within individual tracks.
When the end of the track is reached during fast forward, the next
track will be played. Playback of the track will begin when its
beginning is reached during fast reverse.
To change the display (MP3/WMA discs only)
Track up/track down is possible only within individual disc.
Fast forward/fast reverse is possible only within individual disc.
When the end of the last track is reached during fast forward,
“END” will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.
Whilst a disc is playing, press the DISPLAY
button.
Each time the button is pressed, the display
will change as follows.
Folder name
File name
Track number Elapsed
playback time

03/12/17 CD-MPX200H_500W
E-18
ENGLISH
1
2
3
4
5
6
7
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Advanced CD or MP3/WMA disc playback
To specify a disc to play
You can play a disc by specifying the disc number.
Playback will begin from track 1 on the chosen disc.
After the last track on the last disc is played, the unit stops
automatically.
Note:
If a disc tray with no disc is selected, playback will not start and the
disc indicator will disappear.
To stop playback:
Press the (CD ) button.
Direct track search
By using the direct search buttons, the desired tracks on the current
disc can be played.
If the direct search buttons are pressed whilst the disc is stopped,
press the / button to start the desired track on the current disc.
Notes:
A track number higher than the number of tracks on the disc
cannot be selected.
During random play, direct search is not possible.
1Press one of the 1 - 5 buttons to select the desired disc.
Selected disc number
2Within 5 seconds, press the / button on the main unit.
Use the direct search buttons on
the remote control to select the
desired track whilst playing the
selected disc.
Selected track number
The direct search buttons allow you to select up to number 9.
When selecting number 10 or higher, use the “+10” button.
A. For example, to choose 13
1 Press the “+10” button once.
2 Press the “3” button.
B. For example, to choose 30
1 Press the “+10” button three times.
2 Press the “0” button.

03/12/17 CD-MPX200H_500W
E-19
ENGLISH
CD-MPX500W
CD-MPX200W
CD or MP3/WMA disc Playback
Advanced CD or MP3/WMA disc playback (continued)
Repeat play
Repeat play can play all 5 discs, all tracks on a chosen disc, or a
programmed sequence continuously.
To cancel repeat play:
Press the / button again.
“ ” will disappear.
Random play
The tracks on the disc(s) can be played in random order automatically.
To cancel random play:
Press the / button.
“R” will disappear.
Notes:
If you press the button during random play, you can move to
the next track by the random operation. On the other hand, the
button does not allow you to move to the previous track. The
beginning of the track being played will be located.
In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
Caution:
After performing repeat or random play, be sure to press the
(CD ) button. Otherwise, the disc(s) will play continuously.
To repeat disc:
Press the / button twice.
To repeat all tracks on up to 5 discs:
Press the / button three times.
To repeat desired tracks:
Perform steps 1 - 6 in “Programmed play” section on page 20 and
then press the / button twice.
To random play all tracks on up to 5 discs:
Press the RANDOM button on the remote control.
