Sharp CD-XP500 User manual

CD-XP500/CD-XP5500
No. S1205CDXP500/
CONTENTS Page
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
OPERATION MANUAL ...................................................................................................................................................... 6
QUICK GUIDE ................................................................................................................................................................... 8

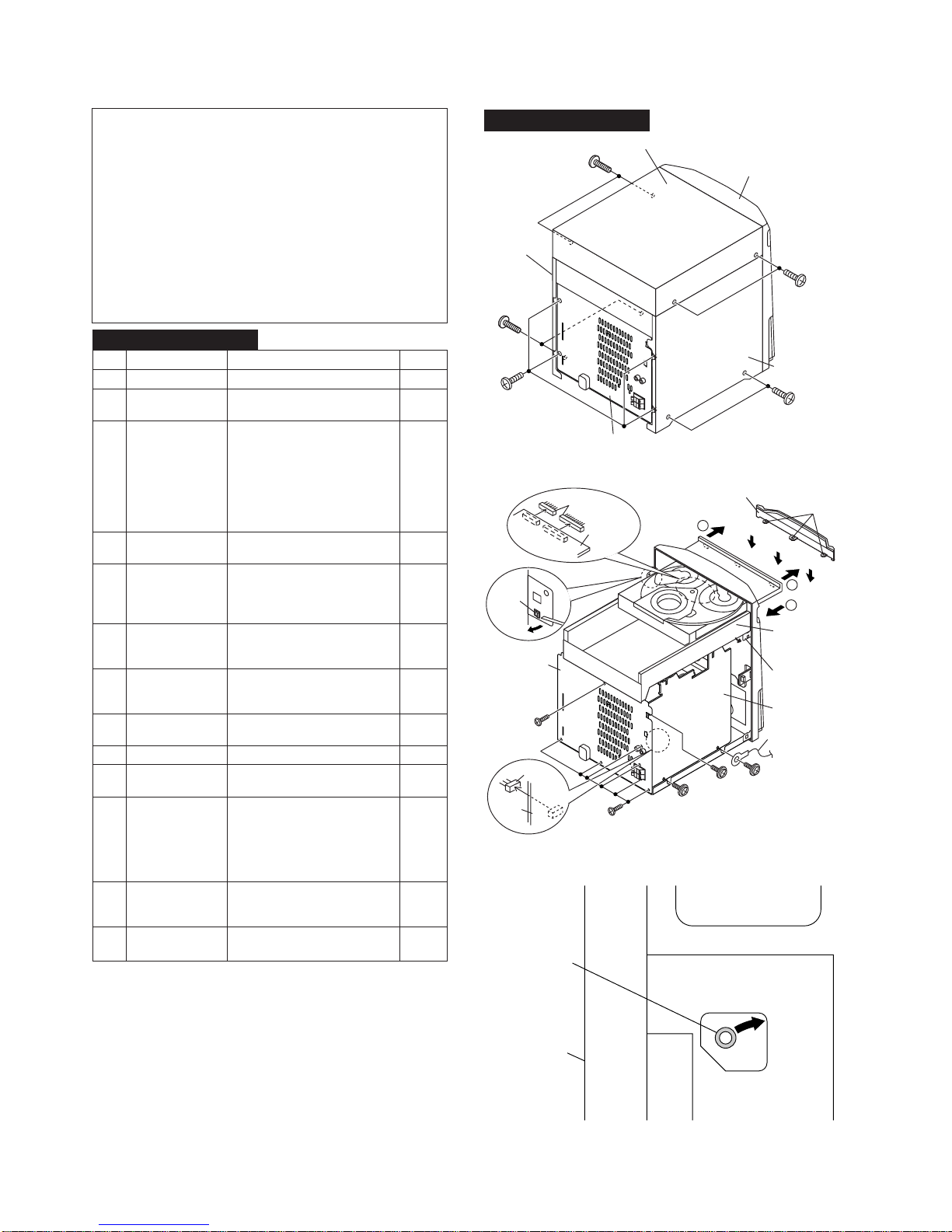

DISASSEMBLY................................................................................................................................................................ 10

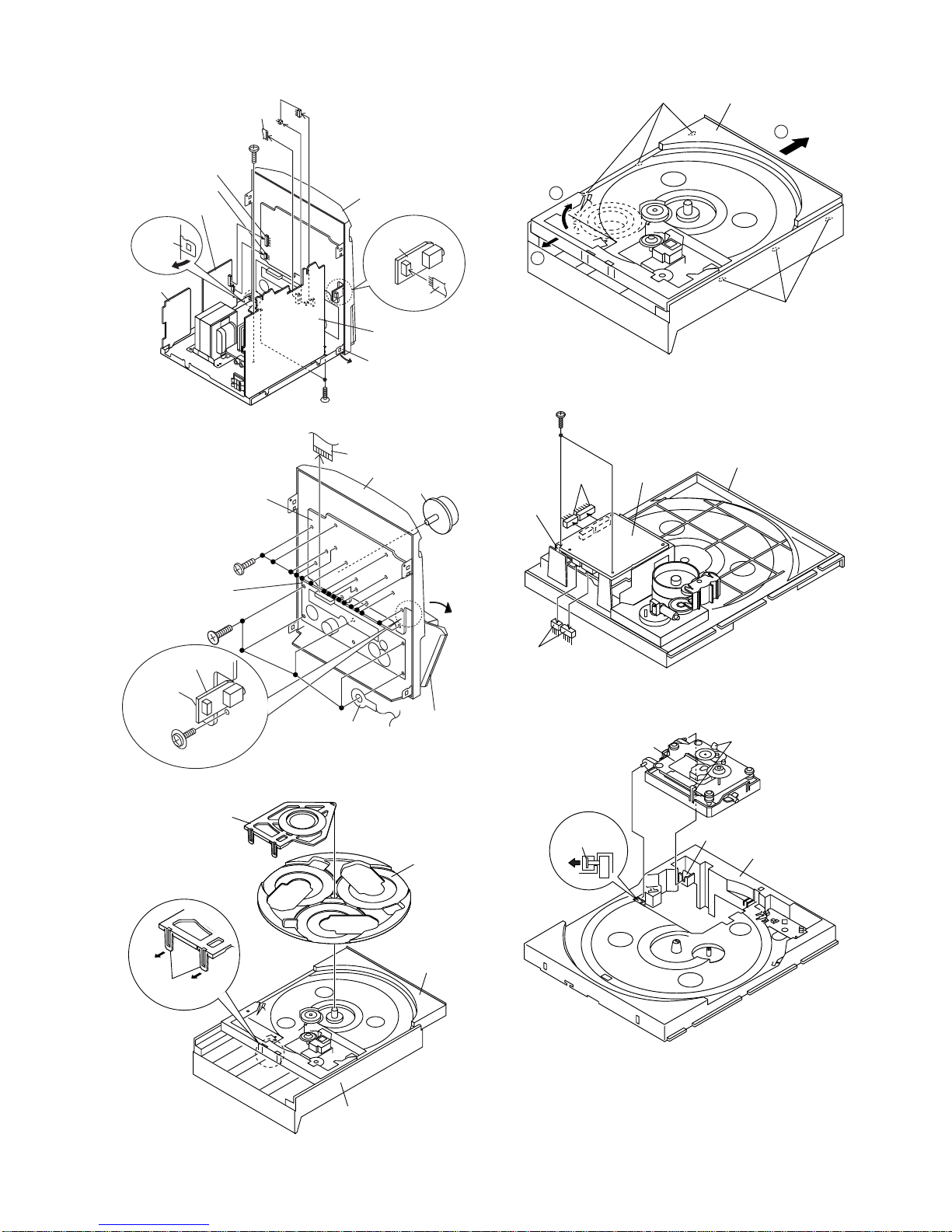

REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 13
ADJUSTMENT ................................................................................................................................................................. 14
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 18

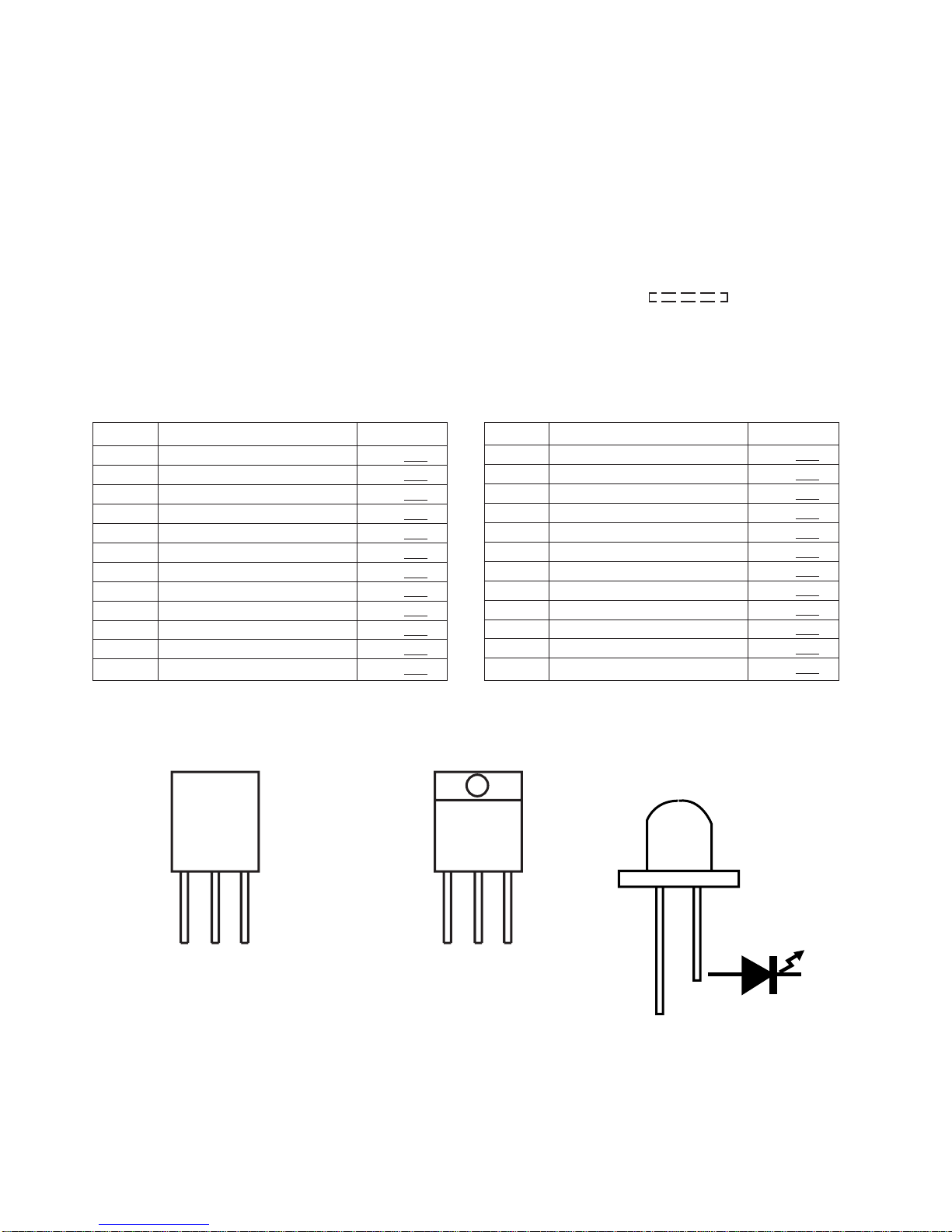

TYPES OF TRANSISTOR AND LED............................................................................................................................... 18
BLOCK DIAGRAM ........................................................................................................................................................... 19

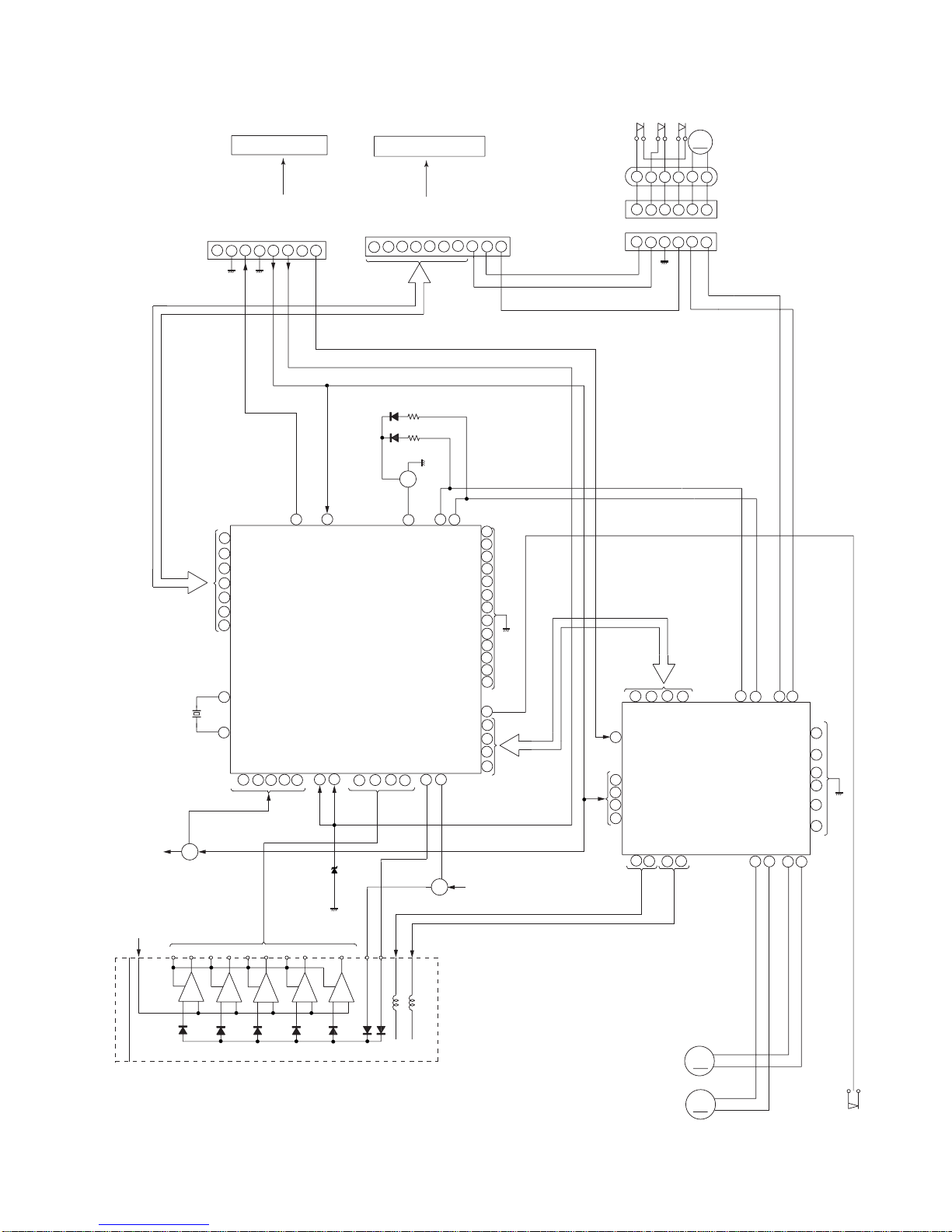

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 22
VOLTAGE ........................................................................................................................................................................ 39
WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 40
TROUBLESHOOTING ..................................................................................................................................................... 41
FUNCTION TABLE OF IC................................................................................................................................................ 45
FL DISPLAY..................................................................................................................................................................... 51
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.A. ONLY)
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
MINI COMPONENT SYSTEM
MODEL CD-XP500
CD-XP500 Mini Component System consisting of CD-XP500
(main unit) and CP-XP500 (speaker system).
MINI COMPONENT SYSTEM
MODEL CD-XP5500
CD-XP5500 Mini Component System consisting of CD-XP5500
(main unit) and CP-XP5500 (speaker system).

CD-XP500/CD-XP5500
– 2 –
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinchedorthathardwareisnotlodgedbetweenthechassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet,terminalboard,adjustmentandcompartmentcovers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5 kohm, 10 watt resistor
paralleled by a 0.15 µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
havingareturnpathtothechassis(antenna,metalcabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
AllcheckmustberepeatedwiththeAClinecordplugconnection
reversed.
Anyreadingof0.3voltRMS(thiscorrespondsto0.2milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µF
1.5 kohms
10 W
VTVM
AC SCALE

– 3 –
CD-XP500/CD-XP5500
General
Amplifier
CD player
Tuner
Cassette deck
Power source AC 120 V, 60 Hz
Power consumption 130 W
Dimensions Width: 10-5/8" (270 mm)
Height: 13" (330 mm)
Depth: 14-3/16" (360 mm)
Weight 17.4 lbs. (7.9 kg)
Output power 150 watts minimum RMS per channel into 6 ohms from
60 Hz to 20 kHz, 10% total harmonic distortion
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 kohms
Type 3-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser pickup
D/A converter 1-bit D/A converter
Frequency response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Frequency range FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
Frequency response 50 - 14,000 Hz (Normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
Type Twin-Drive speaker system
2" (5 cm) Tweeter
5-1/8" (13 cm) Woofer 2
Maximum input power 300 W
Rated input power 150 W
Impedance 6 ohms
Dimensions Width: 8-11/16" (220 mm)
Height: 13" (330 mm)
Depth: 11" (280 mm)
Weight 10.3 lbs. (4.7 kg)/each
SPECIFICATIONS
CD-XP500/CD-XP5500
CP-XP500/CP-XP5500
Specifications for this model are subject to change without
prior notice.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

CD-XP500/CD-XP5500
– 4 –
NAMES OF PARTS
CD-XP500/CD-XP5500
Display
1. CD Pause Indicator
2. Extra Bass Indicator
3. Disc Number Indicators
4. Tape 2 Record Indicator
5. FM Stereo Mode Indicator
6. FM Stereo Receiving Indicator
7. Timer Play Indicator
8. Sleep Indicator
9. Timer Recording Indicator
10. CD Play Indicator
11. CD Repeat Play Indicator
12. Tape Play Indicator
13. Memory Indicator
Front panel
1. Disc Tray
2. Timer Set Indicator
3. Power On/Stand-by Button
4. Tuner (Band) Button
5. CD Button
6. Headphone Jack
7. Tape (1 2) Button
8. Video/Auxiliary Button
9. Equalizer Mode Select Button
10. Extra Bass/Demo Mode Button
11. Disc Tray Open/Close Button
12. Disc Skip Button
13. Volume Control
14. Tape 1 Cassette Compartment
15. Tape 2 Cassette Compartment
16. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button
17. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button
18. Clock Button
19. Timer/Sleep Button
20. CD Play or Repeat, Tape Play Button (with Indicator)
21. CD or Tape Stop Button (with Indicator)
22. Tuning and Time Down Button
23. Memory/Set Button
24. Tape 2 Record Pause Button
25. Tuning and Time Up Button
3
2
1
47
13
8
9
11
12
13
10
15
5
6
14
23456791 8
12
10
11
16
20 21 22 252423
1817 19
Rear panel
1. Cooling Fan
2. AC Power Cord
3. Transport Screw
4. FM/AM Loop Antenna Jack
5. Video/Auxiliary (Audio Signal) Input Jacks
6. Speaker Terminals
4
1
2
5
6
3

– 5 –
CD-XP500/CD-XP5500
CD-XP500/CD-XP5500

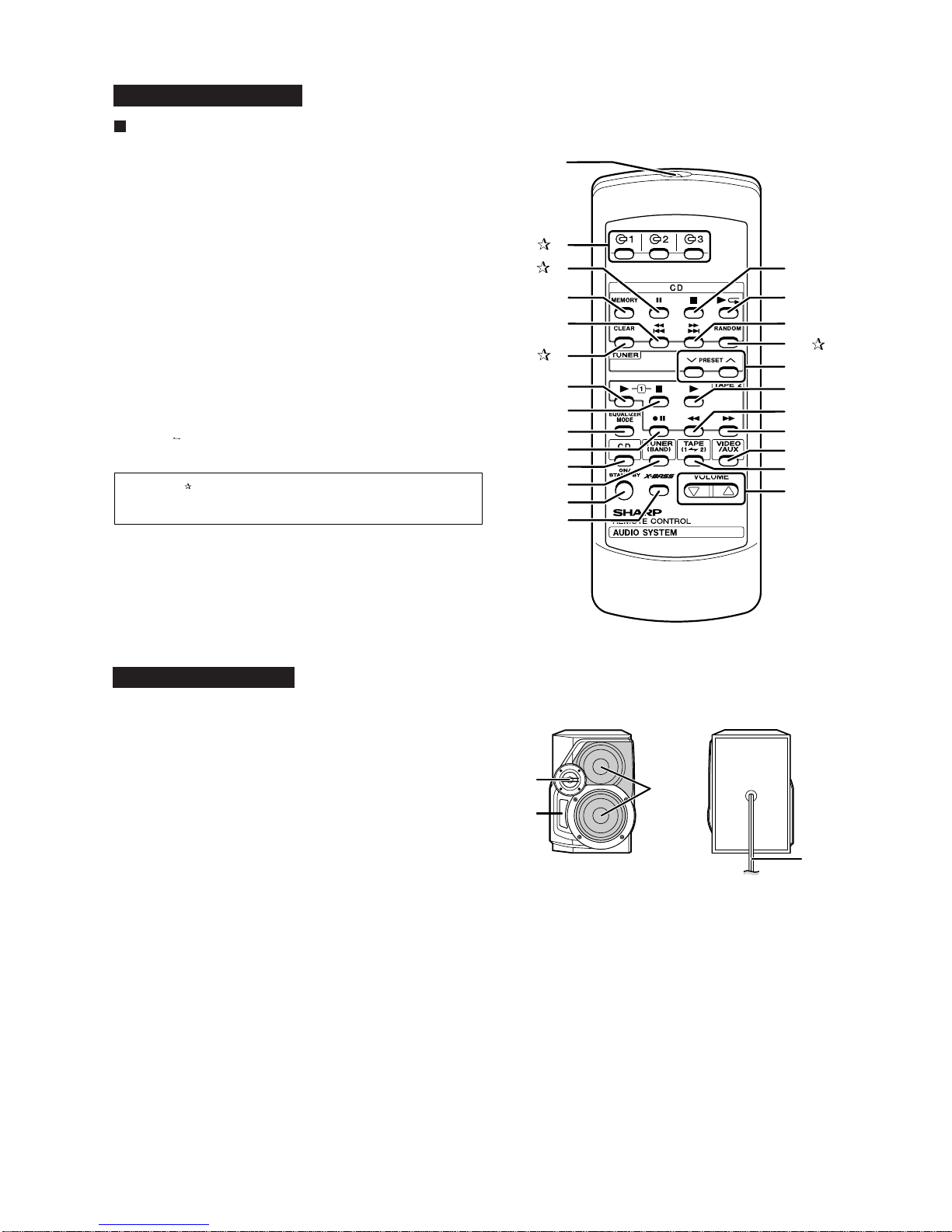

Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. CD Pause Button
4. CD Memory Button
5. CD Track Down or Fast Reverse Button
6. CD Clear Button
7. Tape 1 Play Button
8. Tape 1/Tape 2 Stop Button
9. Equalizer Mode Select Button
10. Tape 2 Record Pause Button
11. CD Button
12. Tuner (Band) Button
13. Power On/Stand-by Button
14. Extra Bass Button
15. CD Stop Button
16. CD Play or Repeat Button
17. CD Track Up or Fast Forward Button
18. CD Random Button
19. Tuner Preset Up and Down Buttons
20. Tape 2 Play Button
21. Tape 2 Rewind Button
22. Tape 2 Fast Forward Button
23. Video/Auxiliary Button
24. Tape (1 2) Button
25. Volume Up and Down Buttons
1
2
3
4
5
6
7
8
9
11
18
19
20
21
22
23
24
15
16
17
25
12
13
14
10
Buttons with " " mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
1. Tweeter
2. Bass Reflex Duct
3. Woofer
4. Speaker Wire 1
23
4
CP-XP500/CP-XP5500

CD-XP500/CD-XP5500
– 6 –
OPERATION MANUAL
Setting the clock
In this example, the clock is set for the 12-hour (AM 12:00) display.
Note:
The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from step 1. If the time display is flashing, step 3 (for
selecting the 12-hour or 24-hour display) will be skipped.
To change the 12-hour or 24-hour display:
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CLOCK button and within 5 seconds, press the MEMO-
RY/SET button.
3
Press the TUNING/TIME ( or ) button to select 12-hour or 24-
hour display and then press the MEMORY/SET button.
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
Note that this can only be set when the unit is first installed or it has been reset.
[Refer to "Clearing all the memory (reset)".]
4
Press the TUNING/TIME( or )button to adjust the hour and then
press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.
When the 12-hour display is selected, "AM" will change automatically to "PM".
5
Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.
Press the TUNING/TIME( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.
The hour will not advance even if minutes advance from "59" to "00".
The clock begins counting from "0" seconds. (Seconds are not displayed.)
The time display will disappear after a few seconds.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.

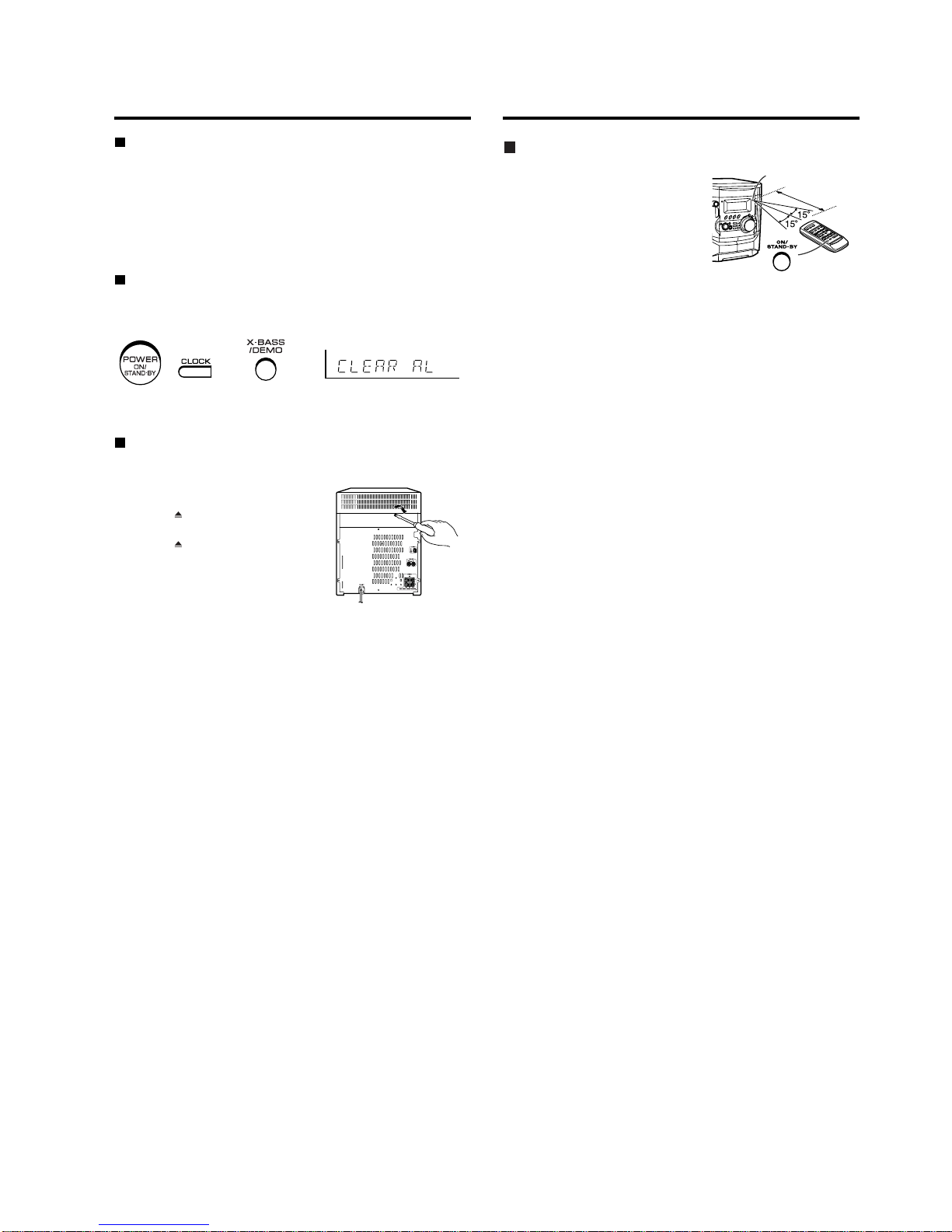

1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)".]
2 Perform "Setting the clock" from step 1.
Troubleshooting chart
Many potential problems can be resolved by the owner without calling a service tech-
nician.
If something is wrong with this product, check the following before calling your autho-
rized SHARP dealer or service center.
General
CD player
Tuner
Cassette deck
Remote control
Condensation
Symptom Possible cause
The clock is not on time. Did a power failure occur? Reset the
clock.
When a button is pressed, the unit
does not respond. Set this unit to the power stand-by mode and then turn it back on.
Ifthe unitstill malfunctions,reset it.
No sound is heard. Is the volume level set to "0"?
Are the headphones connected?
Are the speaker wires disconnected?
Symptom Possible cause
Playback does not start. Is the disc loaded upside down?
Playback stops in the middle or is
not performed properly. Does the disc satisfy the standards?
Is the disc distorted or scratched?
Playback sounds are skipped, or
stopped in the middle of a track. Is the unit located near excessive vibra- tions?
Is the disc very dirty?
Has condensation formed inside the unit?
Symptom Possible cause
Radio makes unusual noise con-
secutively. Is the unit placed near the TV or comput- er?
Is the FM/AM loop antenna placed proper-
ly? Move the AC power cord away from
the antenna if located near.
Symptom Possible cause
Cannot record. Is the erase-prevention tab removed?
Cannot record tracks with proper
sound quality. Is it a normal tape? (You cannot record on a metal or CrO tape.)
Cannot erase completely.
Sound skipping. Is there any slack?
Is the tape stretched?
Cannot hear treble. Are the capstans, pinch rollers, or heads
dirty?
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during playback,
the heads remain engaged with the tape.
Do not open the compartment forcibly.
Wait until electricity resumes.
Symptom Possible cause
The remote control does not oper-
ate. Is the AC power cord of the unit plugged in?
Is the battery polarity respected?
Are the batteries dead?
Is the distance or angle incorrect?
Does the remote control sensor receive
strong light?
Sudden temperature changes, storage or opera-
tion in an extremely humid environment may
cause condensation inside the cabinet (CD pick-
up, tape heads, etc.) or on the transmitter on the
remote control.
Condensation can cause the unit to malfunction.
If this happens, leave the power on with no disc
(or cassette) in the unit until normal playback is
possible (about 1 hour). Wipe off any condensa-
tion on the transmitter with a soft cloth before op-
erating the unit.

– 7 –
CD-XP500/CD-XP5500
Troubleshooting chart
If trouble occurs
When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,
and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 While pressing down the CLOCK button and the X-BASS/DEMO button, press
the ON/STAND-BY button until "CLEAR AL" appears.
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD program.
Before transporting the unit
On the back of this unit is equipped with a transport screw in order to prevent damage
during transportation.
1 Press the ON/STAND-BY button to turn the
power on.
2 Press the CD button.
3 Press the OPEN/CLOSE button to open
the disc tray.
Remove all CDs inserted in the unit.
4 Press the OPEN/CLOSE button to close
the disc tray.
Make sure that "NO DISC" is displayed.
5 Pressthe ON/STAND-BYbutton toenter the
stand-by mode, and then unplug the AC
power cord from the AC outlet.
6 Insert the transport screw into the back of
the unit and tighten it with a flat head screw-
driver or a coin.
Remote control
Test of the remote control
Point the remote control directly at the remote
sensor on the unit.
The remote control can be used within
the range shown:
Press the ON/STAND-BY button. Does the pow-
er turn on? Now, you can enjoy the music.
Remote sensor
(0.2 m - 6 m)
8" - 20'

CD-XP500/CD-XP5500
– 8 –
QUICK GUIDE
Accessories Accesorios
FM/AM loop antenna × 1
Antena de cuadro de FM/AM
×
1
Remote control × 1
Controlador remoto
×
1
1
1
123
Remote control battery installation
Instalación de las pilas del controlador remoto
Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included. Use dos pilas del tamaño “AA” (UM/SUM-3, R6, HP-7 o equivalentes). Las pilas no están incluidas.
Remove the
Insert the batteries
Replace the cover.
battery cover.
as shown.
Extraiga la cubierta Inserte las pilas Vuelva a colocar la
de las pilas. como se muestra. cubierta.
2
2
System connections
Conexiones del sistema
3
3
AM loop antenna Antena de cuadro de AM
FM antenna
Antena de FM
Red Rojo
Black Negro
Right speaker Altavoz derecho
Left speaker Altavoz izquierdo
AC outlet (AC 120 V, 60 Hz) A un tomacorriente de
CA (120 V de CA, 60 Hz)
Right speaker
Altavoz derecho
Left speaker
Altavoz izquierdo
RCA cord (not supplied) Cable RCA
(no suministrado)
To the line output jacks A las tomas de
salida de línea
VCR, DVD, etc. Videograbadora,
DVD, etc.
TV TV
Before turning the power on, be sure to remove this transport screw on the back of the unit using a flat head screwdriver or a coin.
Antes de conectar la alimentación, asegúrese de extraer este tornillo para
el transporte de la parte posterior del aparato empleando un destornillador
de punta plana o una moneda.

– 9 –
CD-XP500/CD-XP5500
Turn on your system Conexión de la alimentación de su sistema
4
4
The first time the unit is plugged in, the unit will enter the demon- stration mode.You will see words scroll. Cuando se enchufe por primera vez
el aparato, se establecerá en el
modo de demostración. Verá un
desplazamiento de palabras.
12
Listening to a CD (CDs) Audición de un disco CD (discos CD)
63
5
2, 4
1
5” (12 cm)
12 cm
3” (8 cm) 8 cm
Press the X-BASS/DEMO button to cancel the demon- stration mode. Pulse el botón
X-BASS/DEMO para
cancelar el modo de
demostración.
Press the ON/STAND-BY button to turn the power on.
Pulse el botón
ON/STAND-BY
para
conectar la alimentación.
1
Press the CD button. Pulse el botón CD.
2
Press the OPEN/CLOSE button to open the disc tray. Pulse el botón OPEN/CLOSE
para abrir
la bandeja de discos.
3
Place the CD(s) on the disc tray, label side up. When loading a third disc, press the DISC SKIP button to turn the disc tray, then place the CD in the open position.
Coloque el disco compacto en la bandeja
de discos, con el lado de la etiqueta hacia
arriba.
Cuando ponga un tercer disco, pulse el
botón DISC SKIP para girar la bandeja de
discos, y coloque el disco compacto en la
posición abierta.
4
Press the OPEN/CLOSE button to close the disc tray. Pulseelbotón OPEN/CLOSEparacerrar
la bandeja de discos.
5
To select the CD you want to listen to first, press one of 1 - 3 buttons on the remote control.
Para seleccionar el disco CD que desee
escucharprimero,pulseunode los botones
1 - 3 del controlador remoto.
6
Press the button to start playback. Pulse el botón para iniciar la
reproducción.
Listening to a cassette tape (TAPE 1 or TAPE 2) Audición de una cinta de cassette (TAPE 1 o TAPE 2)
Listening to the radio Audición de la radio
FM stereo mode indicator Indicador del modo de FM en estéreo
FM stereo receiving indicator Indicador de recepción de FM en estéreo
1 2
TAPE 1 TAPE 2
1, 2
3 4
1
Press the TUNER (BAND) button repeat- edly to select the desired frequency band (FM or AM). Pulse repetidamente el botón TUNER
(BAND) para seleccionar la banda de
frecuencias deseada (FM o AM).
2
Press the TUNING/TIME ( or ) but- ton to tune in to the desired station. When the TUNING/TIME button is pressedformore than0.5 seconds,scan- ningwillstart automaticallyand thetuner will stop at the first receivable broadcast station. PulseelbotónTUNING/TIME( o )para
sintonizar la emisora deseada.
Cuando se pulse el botón
TUNING/TIME
durante más de 0,5 segundos, la
exploración se iniciará automáticamente y
el sintonizador se parará en la primera
emisora difusora que pueda recibirse.
To receive an FM stereo transmission: Press the TUNER (BAND) button to display the “ST” indicator. ●“ ” will appear when an FM broadcast is in ste-
reo.
Para recibir una transmisión de FM en estéreo:
Pulse el botón TUNER (BAND) para que se visualice
el indicador “ST”.
●
“ ” aparecerá cuando una difusión de FM sea en
estéreo.
1
Open the cassette door by pushing the area marked “ PUSH EJECT”. Abra la puerta del cassette pulsando la
parte marcada “ PUSH EJECT”.
2
Load a cassette into the TAPE 1 or TAPE 2 cassette compartment with the side to be played facing toward you. Cargue un cassette en el compartimiento
de cassette de TAPE 1 o de TAPE 2 con la
cara a reproducirse encarada hacia usted.
3
Press the TAPE (1 2) button to select the cassette you want to listen to.
Pulse el botón TAPE (1 2) para
seleccìonar el cassette que desee
escuchar.
4
Press the button to start playback. Pulse el botón para iniciar la
reproducción.

CD-XP500/CD-XP5500
– 10 –
1 Top Cabinet 1. Screw ...................... (A1) x4 10-1
2 Side Panel 1. Screw ...................... (B1) x8 10-1
(Left/Right)
3 CD Tray Cover/ 1. Turn on the power supply,.. 10-2
CD Player Unit open the disc tray, take out
the CD tray cover, and close.
(Note 1)
2. Screw ...................... (C1) x1
3. Hook........................ (C2) x3
4. Hook........................ (C3) x2
5. Socket ..................... (C4) x2
4 Rear Panel with 1. Screw ...................... (D1) x7 10-2
Fan Motor 2. Socket ..................... (D2) x1
5 Main PWB 1. Screw ...................... (E1) x3 10-2, 11-1
2. Socket ..................... (E2) x3 11-1
3. Flat Cable ............... (E3) x1
4. Flat Wire.................. (E4) x1
6 Front Panel 1. Screw .......................(F1) x2 11-1
2. Hook.........................(F2) x2
3. Socket ......................(F3) x1
7 Display PWB 1. Knob........................ (G1) x1 11-2
2. Screw .................... (G2) x16
3. Flat Cable ............... (G3) x1
8 Tape Mechanism 1. Open the cassette holder. .. 11-2
2. Screw...................... (H1) x5
9 Headphones PWB 1. Screw ....................... (J1) x1 11-2
10 Turntable 1. Hook........................ (K1) x2 11-3
2. Cover ...................... (K2) x1
11 Loading Tray 1. Turn fully the lock lever in the 10-3
arrow direction .
2. Push the loading tray backward 11-4
to engage the claw with the
groove and remove it in the
direction of the arrow ... (L1) x6
12 CD Servo PWB 1. Screw ......................(M1) x2 11-5
(Note 2) 2. Hook........................ (M2) x1
3. Socket .....................(M3) x4
13 CD Mechanism 1. Hook........................ (N1) x2 11-6
2. Hook........................ (N2) x2
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylon bands or wire holders wheretheyneedto
beremovedwhendisassemblingtheunit.Afterservicing
theunit,besure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 10-2
STEP REMOVAL PROCEDURE FIGURE
Figure 10-1
Note 1: How to open the changer manually. (Fig. 10-3)
1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading tray bottom.
2. After that, push forward the loading tray.
Note 2:
1. After removing the connector for the optical pickup from the
connector,wraptheconductivealuminiumfoilaroundthefrontend
of the connector so as to protect the optical pickup from electro-
static damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
CD-XP500/CD-XP5500
CD-XP500/CD-XP5500
(B1)x2
ø3x10mm
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
(B1)x2
ø3x10mm
(B1)x4
ø3x10mm
Rear
Panel
Side Panel
(Right)
Side Panel
(Left)
Top Cabinet Front
Panel
(C3)x1
CD Player
Unit
CD Tray Cover (C2)x3
1
1
2
(E1)x1
ø3x10mm
(C1)x1
ø3x10mm
(E1)x1
ø3x10mm
(D1)x1
ø3x10mm
Lug Wire
Main PWB
Rear
Panel
Pull
(C3)x1
(C4)x2
CD Servo
PWB
Main
PWB
(D2)x1
(D1)x6
ø3x10mm
Figure 10-3
Lock Lever
CD Player Unit
(Bottom View)

– 11 –
CD-XP500/CD-XP5500
Figure 11-1
Figure 11-2
Figure 11-3
Figure 11-4
Figure 11-5
Figure 11-6
(F1)x2
ø3x10mm
Headphones
PWB
(E4)x1
Front
Panel
(E1)x1
ø3x10mm
(F2)x1
(F2)x1
(E2)x1
(F3)x1
(E3)x1
(E2)x2
Main PWB
Transformer
PWB
Power PWB
(G3)x1
(G1)x1
(G2)x16
ø3x10mm
Display PWB
Headphones
PWB
Open
Cassette
Holder
Tape
Mechanism
(J1)x1
ø3x10mm
(H1)x5
ø3x10mm
Lug Wire
Front Panel
CD Player Unit
Loading
Tray
Turntable
(K2)x1
(K1)x2
(L1)x3
3
(L1)x3 Loading Tray
1
2
Loading
Tray
(M1)x2
ø3x10mm
(M3)x2 CD Servo
PWB
(M2)x1
(M3)x2
CD
Mechanism (N2)x2
(N1)x1
(N1)x1 Loading Tray

CD-XP500/CD-XP5500
– 12 –
Figure 12-1 Figure 12-2
1 Woofer 1. Front Panel ............. (A1) x1 12-1
2. Screw ...................... (A2) x8 12-2
2 Tweeter 1. Screw ...................... (B1) x2 12-2
STEP REMOVAL PROCEDURE FIGURE
CP-XP500/CP-XP5500
Screwdriver
Driver should
be pried away
from Speaker Box.
Speaker Box
(A1)x1
(A2)x4
ø4x12mm
(A2)x4
ø4x12mm (B1)x2
ø3x10mm
Speaker Box
Woofer
Woofer
Tweeter

– 13 –
CD-XP500/CD-XP5500
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 6 and 8 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 13-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 13-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 13-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2)
(See Fig. 13-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1)
(See Fig. 13-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 13-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 13-1
Figure 13-2
Figure 13-3
Figure 13-4Figure 13-5
(A1)x2
Ø2x9mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1)x2
Ø2x9mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1)x1 <A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 2 TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
Main Belt
(D1)x1 Main Belt
(E1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Motor
Motor
(F1)x2
Ø 2.6x5mm
Motor
Clutch Ass'y

CD-XP500/CD-XP5500
– 14 –
How to remove the pickup (See Fig. 14-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2) x 1 pc.
2. Remove the screws (B3) x 2 pcs., to remove the shaft
(B4) x 1 pc.
3. Remove the pickup.
Note
After removing the connector for the optical pickup from the
connectorwraptheconductivealuminiumfoilaroundthefront
end of connector so as to protect the optical pickup from
electrostatic damage.
Figure 14-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 10, 11,12 and 13 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 14-1)
1. Bend the hooks (A1) x 6 pcs., to remove the loading motor.
Figure 14-1
ADJUSTMENT
MECHANISM SECTION
•Driving Force Check
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ±30 Hz Speaker
speed Resistor in Terminal
motor. (Load
resistance:
6 ohms)
•Tape Speed
Figure 14-3
(B3)x2
ø2.6x6mm
Shaft
(B4)x1
Stop Washer
(B1)x1
Gear
(B2)x1
CD Mechanism
Pickup
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
(A1)x6
Loading
Motor PWB
Loading
Motor
Loading
Tray

– 15 –
CD-XP500/CD-XP5500
Figure 15-2
CD ERROR CODE DESCRIPTION
Error Explanation
01 When Pickup set inner position, inner switch
cannot detect 'ON' level for 10 secs.
When tray moves to Open/Close, Open/Close switch
10* cannot detect 'ON' level for 7 secs.
When disc table rotate to target position.
Clamp switch cannot detect 'ON' level for 7 secs.
When disc table set to Disc1 position for 1 st time,
11* "CLAMP SW", "DISC NO SW" and "OPEN/CLOSE"
cannot detect 'ON' level for 14 secs.
31 When it changes to CD function, DSP cannot read
initial data.
T
T
EFBL
FDO
TE
Stopped
CH1=500 mV
DC 10:1 CH2=200 mV DC 10:1 CH3=1 V DC 10:1 500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V Main : 100K Zoom : 2k Mode : SINGLE Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200 mV
1999/04/05 20:26:47
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
CD SECTION
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,702 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
•FM RF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
FM Band — 87.50 MHz T301 (fL): *1
Coverage 1.3 V ±0.1 V
FM RF 98.00 MHz 98.00 MHz L312 *2
(10-30 dB)
Test Stage Instrument
Connection
Frequency Frequency
Display Setting/
Adjusting
Point
Figure 15-1 ADJUSTMENT POINTS
Items adjusted automatically
(1)Offsetadjustment (The offset voltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing
Fig.15-2 EFBL)
(3)Gainadjustment(Thegainiscompensated insidetheIC
sothattheloop gain at the gain crossover frequency will
be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
•Adjustment
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacingthepickup.Therefore,differentPWBsandpickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
•FM IF
Signal generator: 10.7 MHz, FM modulated
IF 10.7 MHz 98 MHz T302 *1
(Turn the
core of trans-
former T302
fully counter-
clock wise)
Test Stage Instrument
Connection
Frequency Frequency
Display Setting/
Adjusting
Point
*1. Input: Antenna Output: TP301
AM IF
FM RF
TP301
TP302
FM IF
T301
T302
R316 R356
T303
T306
IC301
L312
T351
CNP301
AM/FM LOOP
ANTENNA
FM BAND
COVERAGE fL
AM BAND
COVERAGE fL
AM TRACKING
fL
MAIN PWB
1
* 'CHECKING'
IfErrorisdetected,'CHECKING'willbedisplayinsteadof'ER-
CD**' display. 'ER-CD**' display will only be display when
error had been detected for the 5 th times.

CD-XP500/CD-XP5500
– 16 –
TEST MODE
•Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST: CD operation test.
Function: -CD test mode.
-Enter test mode.
C D T E S T
OPEN/CLOSE operation is using manual.
<< >>, << >> buttons make pick's slide possible.
Do TOC IL. Do normal play.
When these following key is input
into PLAY key, track number can
be appoint directly.
<<PLAY>> key input. <<MEMORY>> key input.
<< 1>> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15
<<STOP>> key input.
STOP
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that
specific point.
<<MEMORY>> key input.
Tracking ON play from
that specific point.
<<STOP>> key input.
STOP
IL isn't done
VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
Sliding the PICKUP with
<< >>, << >> button
must only be in STOP mode.
<<MEMORY>>
key input.
Adjustment result
automatically will
display as below.
for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
explanation:
a) Focus off set = "FOFF_XX"
b) Tracking off set = "TOFF_XX"
c) Tracking balance = "TBAL_XX"
d) Tracking Gain = "TGAN_XX"
f) Focus Gain = "FGAN_XX"
g) RF level shift = "RFLS_XX"
Adjustmentresultautomaticallywill
display as below for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
<<MEMORY>> key input.

– 17 –
CD-XP500/CD-XP5500
Standard Specification of Stereo System Error Message Display Contents
Error Contents DISPLAY Notes
TAPE Mechanism Error. 'ER-TA**' 00: Tape Mechanism Error.
01: Initial Error.
02:
03:
CD/VCD Pickup Mechanism Error. 'ER-CD**' (*) 01: PU-IN SW Detection NG.
02:
03:
04:
CD Changer Mechanism Error. 'ER-CD**' 10: Changer Error.
11: Initial Error.
12:
13:
CD DSP Communication Error 'ER-CD**' 31: DSP COMMUNICATION ERROR
Focus Not Match. 'NO DISC'
IL Time Over. 'NOT READ'
TUN PLL Unlock. 'ER-TU**' 00: TUN Error.
01: PLL Unlock.
02:
03:
(*) CHECKING:
IfCDchangermechanismerrorisdetected,'CHECKING'willbedisplayinsteadof'ER-CD**'display'ER-CD**'willonlybedisplay
when CD changer mechanism error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had occured, it can be check by pressing 'POWER', 'VIDEO' and 'X-
BASS' key twice. Display will show "S** B**". S is referring to speaker abnormal detection and B is referring to +B PROTECTION.
** is in hex valve.
+B PROTECTION is condition when irregular process occur on power supply line.

CD-XP500/CD-XP5500
– 18 –
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ 1” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION
SW713 TAPE ON—OFF
SW714 VIDEO/AUX ON—OFF
SW715 TIMER/SLEEP ON—OFF
SW716 TUNING/TIME UP ON—OFF
SW717 REC PAUSE ON—OFF
SW718 MEMORY/SET ON—OFF
SW719 TUNING/TIME DOWN ON—OFF
SW720 CLOCK ON—OFF
SW723 DISC SKIP ON—OFF
SW724 OPEN/CLOSE ON—OFF
SW725 EQUALIZER ON—OFF
SW726 X-BASS/DEMO ON—OFF
JOG701 JOG VOLUME ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW702 FAST REWIND/PRESET DOWN ON—OFF
SW703 FAST FORWARD/PRESET UP ON—OFF
SW704 STOP ON—OFF
SW705 PLAY/REPEAT ON—OFF
SW711 CD ON—OFF
SW712 TUNER (BAND) ON—OFF
TYPES OFTRANSISTOR AND LED
REF. NO DESCRIPTION POSITION
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
B C E
FRONT
VIEW
KRC102 M
KRC104 M
KTA1266 GR
KTA1273 Y
KTA1274 Y
4204UYT7
A503BC2E
SLR342VCJ
KTC2026
FRONT
VIEW
KTC3194 Y
KTC3199 GR
KTC3200 GR
KTC3203 Y

– 19 –
CD-XP500/CD-XP5500
Figure 19 BLOCK DIAGRAM (1/3)
+5V
CNS4 BI4
CNP4
M3
T/T UP DOWN
LOADING
MOTOR
+–
+3.3V
TO DISPLAY SECTION
TO MAIN SECTION
CONSTANT
VOLTAGE
Q2
LASER
DRIVER
+3.3V
Q1
+5V(+B7)
PICKUP UNIT
IC1
LC78645NE
CD SERVO
VDD LDD LDS
M
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
CNP8
CNP7
TRACKING COIL
FOCUS COIL
SW4
PICKUP IN
M2
SLED
MOTOR
M1
SPINDLE
MOTOR
M
M
Q3
XVDD RVDD LVDD RFVDD
XL1
33.8688 MHz
O/C CLAMP SW CD RES CL DI DO CE DRF WRQ
+6.5V (+B4) DGND (DRIVER)
+5V (+B8)
VCC3
VCC2
VCC4
VCC1
IC2
M63001FP
FOCUS/TRACKING/
SPIN/SLED
DRIVER
XIN
XOUT
RES
WRQ
DO
DI
CLK
CE
TIN2 TIN1 FIN2 FIN1
TDO
FDO
SPDO
SLDO
CONT5
CONT2 CONT3 CONT4
VDD5
LCHO
80
79
75
20
5
40
18
24
23 14
8
21
22
29
35
41
47 46
38
VVDD
77 10
987
15
12
17 25 42
41 3938
4765 16
28
26 27
316452
316452
316452
54
71
61
62
63
69
57
56
55
51
50
43
44
40
37
19
28
26
23
22
21
327168910
687
+5V (+B7) DGND
L-CH
35 4
AGND
R-CH
12
42 68 25 70
64
65
66
DRF
67
48
49
ADAVDD
18
+3.3V
DISC NO
~~
ZD1
3.3V
+
–
–
+

CD-XP500/CD-XP5500
– 20 –
Figure 20 BLOCK DIAGRAM (2/3)
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
VF1
AUX R
L
R
L
JK690
VIDEO/AUX
FM+B
+B5
CLK
+B6 +B6
+B6 +B5
AM IF
OSC BUFF
AM LOOP
ANTENNA
FM IF
FM
OSC
B.P.F
CNP301
BI601 –20dB
ATT
Q101~
Q104
Q107
Q108
Q601
Q602 Q603 Q604
10.7 MHz
450 kHz
FM
ANTENNA
REC/PLAY
CLK
CE
DI
DO DI CE
MO/ST
SWITCHING +B5
FM/AM
IC302
LC72131
PLL(TUNER)
FM/AM OUT
L
R
BIAS
T1/T2
MUTING
P.B. REC.
AC BIAS
L
L
R
R
R
L
TAPE
TUNER
CD
PB
CNP7
FROM CD SECTION
HEAD
ERASE
SWITCHING
SWITCHING
SWITCHING
BIAS
Q113
Q114
Q112
Q110
LED
DRIVER
LED
DRIVER
LED
DRIVER
Q710
Q703
Q701
Q706
Q707
Q708
SWITCHING
Q109
BIAS
OSC
Q111
L103
Q105
Q106
REC./P.B.
HEAD
TAPE 2
P.B. HEAD
TAPE 1
R-CH
L-CH
R-CH
L-CH
IC601
LC75341
AUDIO PROCESSOR
+B5
R
L
REC
R
L
ALC
R REC
L REC
POP REDUCE
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
R
L
FM/AM
MPXIN
STEREO
AM RF IN
AM OSC IN AM OSC OUT
FM
Q360
VT
OSC
X352
4.5 MHZ
AM BAND
COVERAGE
AM TRACKING
T303 T306
Q302
X351
456 kHz
ZD351
5.1V
MO/ST
VCO
FM
DET
FM+B
GND
AM IF
CF351
IC303
LA1832S
FM IF DET.
FM MPX./
AM IF MPX.
AM MIX
CF352
T351
FM RF
OSC
FM
L312 T301
CF303T302
IC301
TA7358AP
FM FRONT END
BF301
21
4
24
2
1
81817
3
9
10
18
11
16
3
15
10
9
7
23
14
12
13
1
2
19
7
18
10
63
68 49 50
66
13
21
4
2
24
23
6
9
16
12
11
15
1
5413
8
4
3
1
21
7
98517
6
21
21
20 22 11
17
1615
9
6
57
13
14
12
15
162324
4
7
H/N
P.B
REC
T1/T2
T1/T2
NOR/
HIGH
+B5
+B5
+B5
+B5
SYSTEM
MUTE
TAPE
MECHANISM
ASS'Y
MOTOR
DRIVER
SOLENOID
DRIVER
+B3
+B3
LED703,
LED704
LED708
LED706
JOG701
JOG
VOLUME
IC701
IX0524AW
SYSTEM
MICROCOMPUTER
(2/2)
