Sharp SD-EX100H User manual

– 1 –
SD-EX100H
1-BIT DIGITAL AUDIO SYSTEM
TINSE0470AWZZ 02D R HK 1
1
2Battery installation of the remote control
Use 2 “AAA” size batteries (UM-4, R03, HP-16 or similar).
Remove the battery
Insert the batteries Replace the cover.
cover.
as shown.
23
Remote control × 1
AM loop aerial × 1
FM aerial × 1
Speaker wire × 2
This Quick Guide will help you to correctly install
and operate your system.
1Accessories
If you require any advice or assistance re-
garding your Sharp product, please visit
our web-site www.sharp.co.uk/support.
Customers without internet access may
telephone [phone] during office
hours (or [phone] if telephoning from
Ireland).
“AAA” size battery
(UM-4, R03, HP-16 or similar) × 2
AC power lead × 1Speaker cushion × 4
SD-EX100H(E)_QG 02.4.19, 5:17 PM1
Downloaded from: http://www.usersmanualguide.com/

–2 –
Wall socket
(AC 230 V, 50 Hz)
Transparent
Line
Right speaker Left speaker
FM aerial
AM loop aerial
(CD only)
To the line
output sockets
VCR, DVD, etc.
Connection cable for digital recording
(Not supplied)
RCA lead
(Not supplied)
WhiteRed
To the optical line
input socket
MD recorder
3System connections
Left speaker
Right speaker
SD-EX100H(E)_QG 02.4.19, 5:17 PM2
Downloaded from: http://www.usersmanualguide.com/

–3 –
Listening to a CD
Press the ON/STAND-BY
button to turn the power on.
Power indicator
1Press the H/7 button.
2Load a CD into the slot.
3Press the H/7 button.
4Press the 06 button to start playback.
Shutter closed (grey lid) Shutter opened
Face the label side
towards you.
4Turning on your system
SD-EX100H(E)_QG 02.4.19, 5:17 PM3
Downloaded from: http://www.usersmanualguide.com/

–4 –

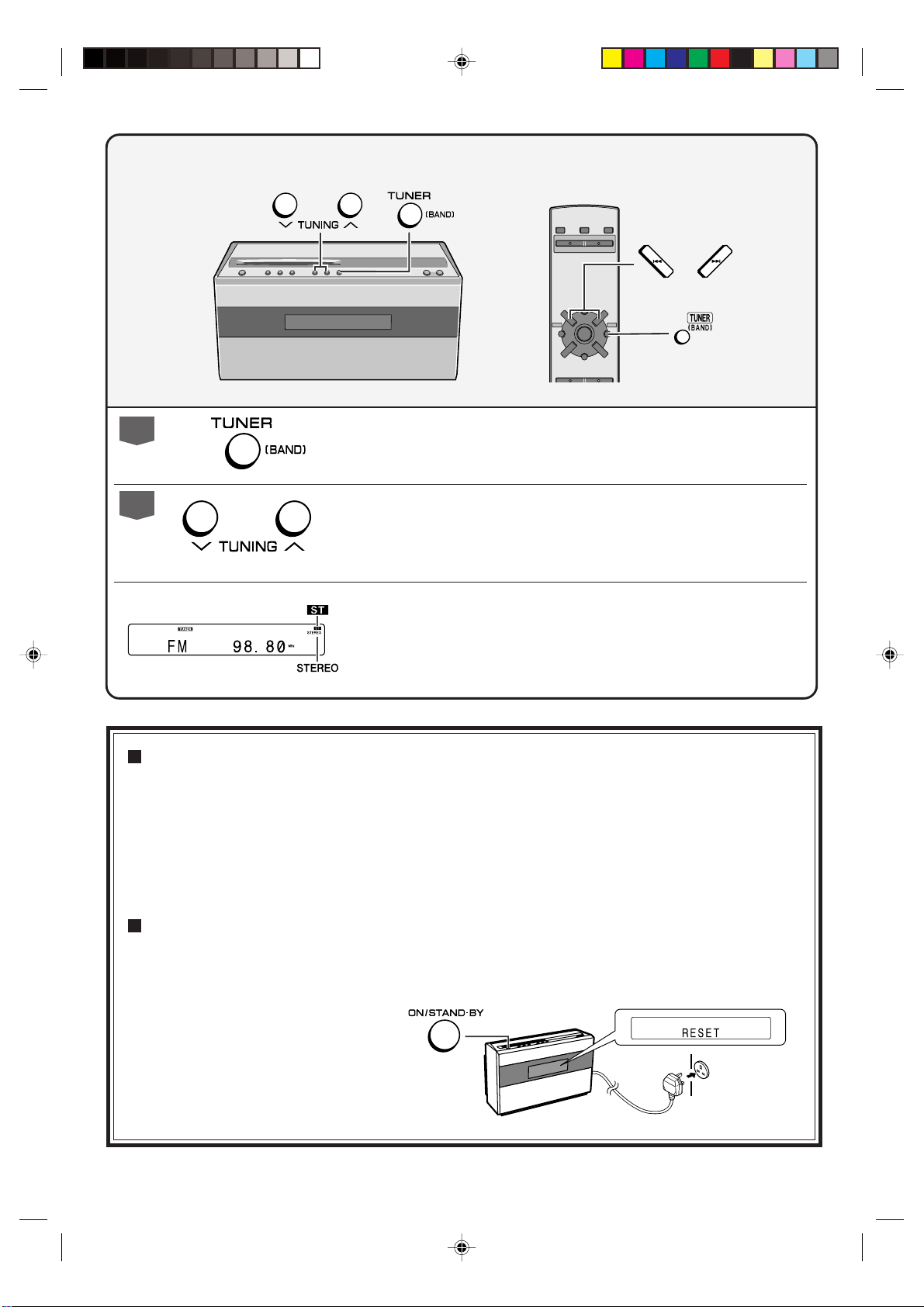

1Press the TUNER (BAND) button repeatedly to select the desired fre-
quency band (FM or AM).
2Press the TUNING (Xor W) button to tune in to the desired station.
●When the TUNING button is pressed for more than 0.5 seconds, scanning will start
automatically and the tuner will stop at the first receivable broadcast station.
To receive an FM stereo transmission:
Press the TUNER (BAND) button to display the “STEREO” indicator.
●“ST” will appear when an FM broadcast is in stereo.
Listening to the radio
FM stereo receiving indicator
FM stereo mode indicator
If trouble occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal
supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the power stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit, and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
Clearing all the memory (reset)
1 Unplug the unit.
2 Whilst holding down the ON/STAND-BY button, plug in the AC power lead. Press down the ON/STAND-BY button until
“RESET” is displayed.
3 Press the ON/STAND-BY button again to turn the power on.
Caution:
This operation will erase all data stored in
memoryincludingclock,timersettings,tuner
preset, and CD programme.
SD-EX100H(E)_QG 02.4.19, 5:17 PM4
