Shimano E6000 Series User manual

UM-70H0A-005-00-ENG.pdf 2 10/5/2016 11:45:58 AM
OWNER’S MANUAL
BENUTZERHANDBUCH
GEBRUIKERSHANDLEIDING
LE MANUEL DU PROPRIÉTAIRE
IT IS IMPORTANT TO READ THE WARNINGS AND INSTRUCTIONS IN THIS MANUAL BEFORE RIDING YOUR NEW BICYCLE.
LESEN SIE SÄMTLICHE WARNHINWEISE UND ANWEISUNGEN IN DIESER BEDIENUNGSANLEITUNG VOR DER ERSTEN FAHRT MIT
IHREM NEUEN BIKE GRÜNDLICH DURCH.
H
ET IS BELANGRIJK DE WAARSCHUWINGEN EN INSTRUCTIES IN DEZE HANDLEIDING TE LEZEN VÓÓR U MET UW NIEUWE FIETS RIJDT
.
IL EST IMPORTANT DE LIRE LES MISES EN GARDE ET INSTRUCTIONS CONTENUES DANS CE MANUEL AVANT D’UTILISER VOTRE
NOUVEAU VÉLO.

Welcome to our bike family
Thank you for purchasing your new bike.
We believe in bikes. We make high quality bikes that are built to last. That is why each bike we make
comes with a limited lifetime warranty.
We wish you many carefree and enjoyable cycling kilometers with your new bike!
However, if you experience any problems with your bike, do not hesitate to contact your local retailer. If
the problem persists, please call our customer service for a solution.
Willkommen in unserer fahrrad-familie
Vielen Dank für den Kauf ihres neuen Fahrrads.
Wir glauben an das Fahrrad. Wir produzieren hochwertige Fahrräder, damit Sie lange mit ihrem Kauf
zufrieden sind.
Aus diesem Grund erhält jedes Fahrrad unsere eingeschränkte lebenslange Garantie.
Wir wünschen ihnen viele problemlose Kilometer und viel Spaß auf ihrem neuen Fahrrad!
Wie auch immer, solten Sie jemals Probleme mit ihrem Fahrrad bekommen, können Sie sich jederzeit an
ihren örtlichen Fachhändler wenden. Wenn das Problem weiterhin besteht, kontaktieren Sie bitte unseren
Kundendienst, um eine Lösung zu finden.
Welkom bij onze fietsfamilie
Dank u voor het kopen van uw nieuwe fiets.
Wij geloven in de kracht van fietsen. We maken hoogwaardige fietsen voor het leven. Daarom wordt elke
fiets geleverd met een beperkte levenslange garantie.
Wij wensen u vele zorgeloze en aangename fietskilometers toe!
Als u echter problemen ondervindt met uw fiets, neem dan contact op met uw plaatselijke fietsendealer.
Als het probleem niet wordt opgelost, vraag dan onze klantenservice om een oplossing.
bienvenue dans notre famille
Merci d’avoir acheté votre nouveau vélo.
Nous croyons aux vertus du vélo. Nous fabriquons des vélos de haute qualité, créés pour durer.
C’est la raison pour laquelle chaque vélo que nous fabriquons est livré avec une garantie à vie limitée.
Nous vous souhaitons de nombreux kilomètres à vélo agréables et sans problème !
Toutefois, si vous avez un souci avec votre vélo, n’hésitez pas à vous adresser à votre distributeur local.
Si le problème persiste, veuillez rechercher une solution auprès de notre service client.
www.trekbikes.com
www.diamantrad.com
Welcome - Willkommen - Welkom - bienvenue
526611 Rev A RIDE+ Owner's manual Shimano STEPS EN-DE-NL-FR MY2016 printed + 3 mm - Copy.pdf 1 8/21/2015 10:21:02 AM

UM-70H0A-005-00
User's manual
Original instructions
E6000 Series
Shimano Total Electric Power System
UM-70H0A-005-00-ENG.pdf 1 10/5/2016 11:45:58 AM
English

UM-70H0A-005-00-ENG.pdf 2 10/5/2016 11:45:58 AM

The most important points for you to do
1. Even if you have ridden a bicycle for years, it is important for every person to read the general
“Bike Owner’s manual” and the specific “RIDE+ Owner’s manual” carefully before you ride on the
new RIDE+ bicycle.
• Both manuals contain detailed information and useful suggestions about your new bicycle.
• Make sure that you understand the proper use, maintenance, and disposal of the components of the electrical
system of your new RIDE+ bicycle.
2. Think about safety. Your safety and that of other road users is very important.
• Do not ride the electric bike without the battery pack. The battery pack must be on the bike while riding; else
the bike has no lights when needed.
• Do not misuse the electric bike by riding it without a saddle. Some bikes have a quick release on the seat
post. If the saddle gets stolen, it may lead to hazardous situations when still riding on the electric bike without
a saddle.
• Check your bike for normal operation, loose parts and defects before riding. If you find any problem, visit
your bike dealer for repairs before riding.
• Be aware that other road users do not expect that an electric bike can ride faster than a normal bike.
Riding faster also increases the risk of accidents.
• Do not ride abusively. Only ride in the use conditions specified for your bike.
Condition 1 (paved roads with tires staying on the ground) is valid for RIDE+ City/Trekking bikes, condition 3
(rougher surfaces, tires momentarily NOT on the ground) is valid for RIDE+ Mountain bikes. Please refer
to the general Bicycle Owner’s manual for more detailed information.
• Do not over load the rear rack. The maximum allowable weight for the rear rack on RIDE+ bikes is 20 kg
for bikes with a rear rack battery pack and 25 kg for bikes with a down tube battery.
3. The electric system of your new bicycle needs special attention.
• Do not clean your electric bicycle with a high pressure washer. Any electric system is sensitive for moisture.
High pressure water might ingress in connectors or other parts of the electric system.
• Handle your battery pack with care. Do not drop or impact the battery pack. Mishandling of the battery
pack could lead to severe damage or over-heating. In an extremely rare case, a battery pack that has been
severely impacted or otherwise mishandled could potentially catch fire.
If you suspect damage to your battery pack, visit your dealer immediately for inspection.
4. Maintain the battery pack as instructed in this RIDE+ Owner’s manual.
Failure to follow these instructions may result in damage to your battery pack and may require battery pack
replacement:
• Only charge the battery pack with the included Shimano charger.
• When not using the battery pack for a longer period, charge it to approx. 100 % (4 to 5 LEDs lit on the
charge-control indicator).
• Check the charge status of the battery pack regularly if you do not use your bike for a longer period. When
only one LED of the charge-control indicator lights up or flashes, recharge the battery pack again to
approx. 100 % immediately.
• It is not recommended to have the battery pack connected permanently to the charger.
Important to read before the fIrst rIde
526611 Rev A RIDE+ Owner's manual Shimano STEPS EN-DE-NL-FR MY2016 printed + 3 mm - Copy.pdf 5 8/21/2015 10:21:02 AM

• When the battery pack is stored discharged (empty) for longer periods, it can become damaged despite
the low self-discharging and the battery-pack capacity may be strongly reduced.
• Store the battery pack in a dry, well-ventilated location. Protect the battery pack against moisture and water.
• Under unfavorable weather conditions, it is recommended e.g. to remove the battery pack from the bike
and store it in an enclosed location until being used again.
• The battery pack can be stored at temperatures between -20°C and +60°C. For a long battery pack life,
however, storing the battery pack at room temperature of approx. 20°C is of advantage.
• Take care that the maximal storage temperature is not exceeded. As an example, do not leave the battery
pack in a vehicle in summer and store it out of direct sunlight.
• It is recommended to not store the battery pack on the bike.
5. Be careful when transporting a RIDE+ bike.
• An E-bike is heavier than a normal bike. If transporting on a vehicle, be aware of the maximum load capacity
of the vehicle’s roof, towing hook and/or of the applied bike carrier. Refer to the manual of the vehicle and
bike carrier for details.
• Remove the controller, battery pack and, if present, panniers from the bicycle and store them elsewhere in
the vehicle during the drive.
• Always respect local laws about transportation of a(n electric) bicycle.
• Because Li-Ion battery packs of this size and power are considered ‘Dangerous goods, class 9’ when
transporting, regulations may restrict the transport of separate Li-Ion batteries in some places.
The restrictions apply to most airlines and some trucking companies. But, if you intend to ship or travel with
your complete RIDE+ bike (with installed battery pack), the regulations are less strict. Make sure to check
ahead with your airline or carrier, before booking your trip, if it is allowed to travel with your complete
RIDE+ bike.
6. Visit your dealer on a regular basis for maintenance of your new bike.
• To guarantee the safe and proper functioning of the bike, the bike must be maintained on a regular basis,
at least once a year, by an authorized RIDE+ dealer.
• Your dealer has the right knowledge and equipment to maintain your RIDE+ bike.
• If you have questions about your new RIDE+ bicycle, ask your dealer!
Getting the most from your RIDE+ Bicycle
526611 Rev A RIDE+ Owner's manual Shimano STEPS EN-DE-NL-FR MY2016 printed + 3 mm - Copy.pdf 6 8/21/2015 10:21:02 AM

1
CONTENTS
IMPORTANT NOTICE
......................................................................................2
Important safety information
.........................................................................2
To ensure safety
...........................................................................................2
Features of SHIMANO STEPS
..........................................................................6
Features.......................................................................................................................................6
Riding the bicycle........................................................................................................................6

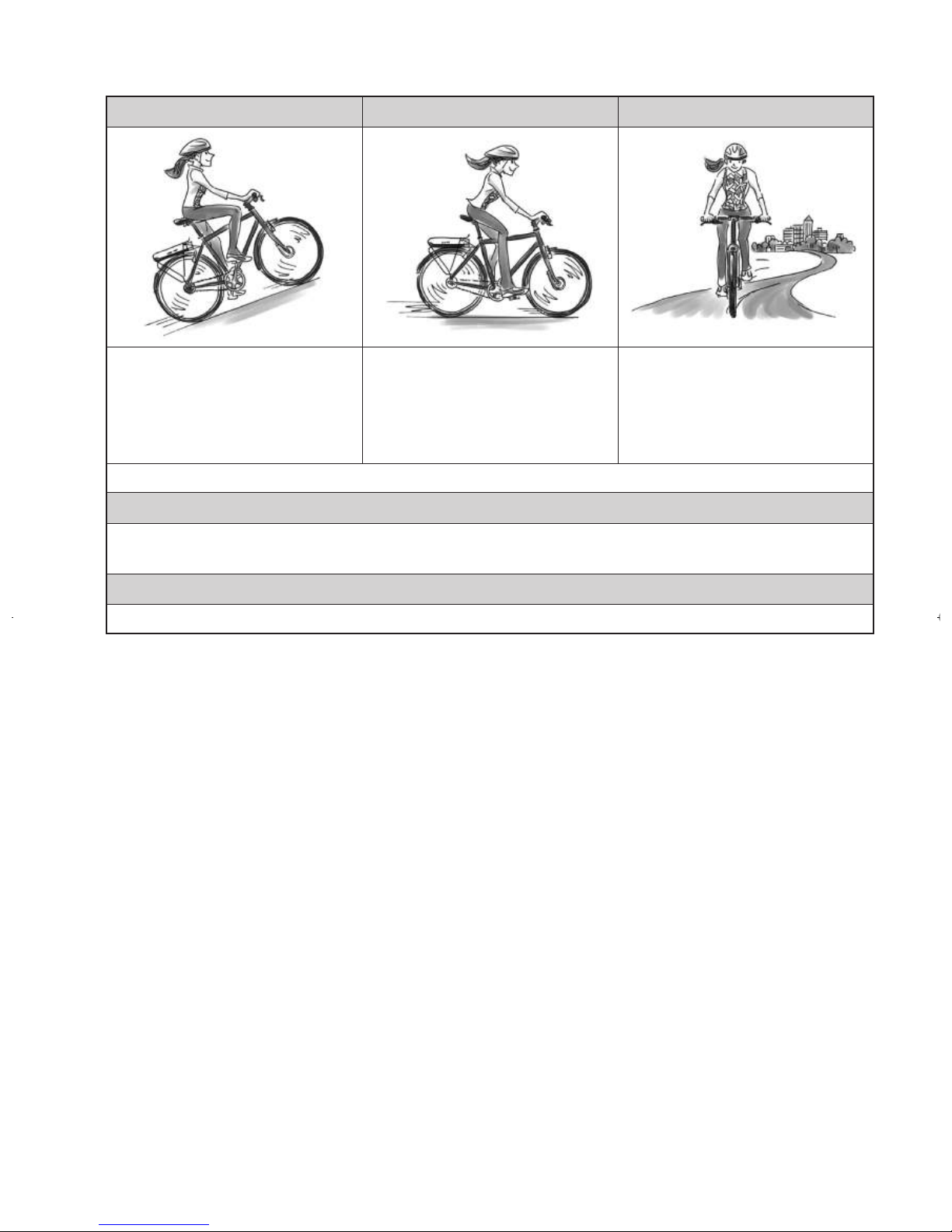

Assist mode .................................................................................................................................7
Names of parts
.............................................................................................8
Specifications
...............................................................................................9
Method of use
...........................................................................................10
INTRODUCTION.........................................................................................................................10

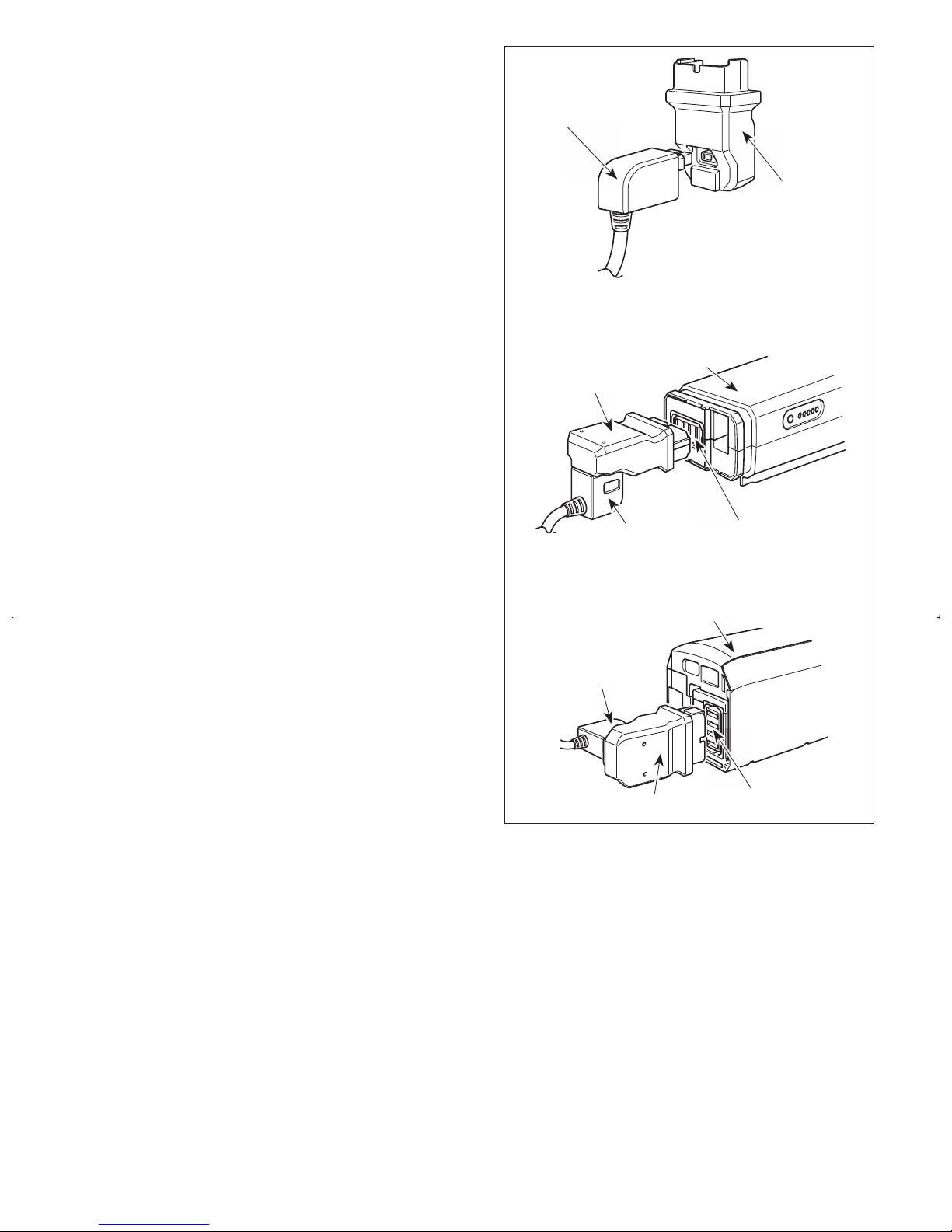

Charging the battery................................................................................................................10
About the charger LED lamp ...................................................................................................15
About the battery LED lamp....................................................................................................15
Handling and charging the battery.........................................................................................16
Installing / removing the battery............................................................................................17
Switching between cycle computer operations and modes
...............................22
Installing and removing the cycle computer...........................................................................23
Turning the power ON / OFF ....................................................................................................24
SHIMANO STEPS logo screen....................................................................................................25
Basic screen display...................................................................................................................26
About the settings menu .........................................................................................................35
Drive unit setting data backup function
.........................................................43
Connection and communication with the PC
...................................................43
Downloading application.........................................................................................................43
Troubleshooting
.........................................................................................44
Battery LED lamp error indications..........................................................................................44
Error messages on the cycle computer....................................................................................45
Troubleshooting........................................................................................................................48
UM-70H0A-005-00-ENG.pdf 3 10/5/2016 11:45:58 AM

2
User's manuals in other languages are
available at :
http://si.shimano.com
IMPORTANT NOTICE
•
Contact the place of purchase or a bicycle dealer for
information on installation and adjustment of the
products which are not found in the user's manual. A
dealer's manual for professional and experienced bicycle
mechanics is available on our website (http://si.shimano.
com).
•
Do not disassemble or alter this product.
•
Use the product according to local laws and regulations.
For safety, be sure to read this user's
manual thoroughly before use, and
follow them for correct use.
Important safety information
For replacement information, contact the place of purchase
or a bicycle dealer.
Be sure to observe the following in order to avoid burns or
other injury from fluid leakages, overheating, fire or
explosions.
To ensure safety
DANGER
Handling the battery
•
Do not deform, modify, disassemble or apply solder
directly to the battery. Doing so may cause leakage,
overheating, bursting, or ignition of the battery.
•
Do not leave the battery near sources of heat such as
heaters. Do not heat the battery or throw it into a fire.
Doing so may cause bursting or ignition of the battery.
•
Do not subject the battery to strong shocks or throw it. If
this is not observed, overheating, bursting, or fire may
occur.
•
Do not place the battery into fresh water or sea water,
and do not allow the battery terminals to get wet. Doing
so may cause overheating, bursting, or ignition of the
battery.
•
Use the Shimano specified charger and observe the
specified charging conditions when charging the
specified battery. Not doing so may cause overheating,
bursting, or ignition of the battery.
UM-70H0A-005-00-ENG.pdf 4 10/5/2016 11:45:58 AM

3
WARNING
To ensure safe riding
•
Do not give too much of your attention to the cycle
computer display while riding, otherwise accidents may
result.
•
Check that the wheels are securely installed to the bicycle
before commencing riding. If the wheels are not securely
installed, the bicycle may fall over and serious injury may
result.
•
If riding a power-assisted bicycle, make sure that you are
fully familiar with the starting-off characteristics of the
bicycle before riding it on roads with several vehicle lanes
and pedestrian footpaths. If the bicycle starts off
suddenly, accidents may result.
•
Check that the bicycle lights illuminate before riding at
night.
Using the product safely
•
Be sure to remove the battery and charging cable before
wiring or attaching parts to the bicycle. Otherwise, an
electric shock may result.
•
When charging the battery while it is installed on the
bicycle, do not move the bicycle. The power plug for the
battery charger may come loose and not be fully inserted
into the electrical outlet, resulting in risk of fire.
•
When installing this product, be sure to follow the
instructions given in the user's manual. Furthermore, it is
recommended that you use only genuine Shimano parts
at these times. If bolts and nuts are left loosened or the
product is damaged, the bicycle may suddenly fall over
and serious injury may result.
•
Do not disassemble the product. Disassembling it may
cause injury to persons.
•
After reading the user's manual carefully, keep it in a
safe place for later reference.
Handling the battery
•
If any liquid leaking from the battery gets into your eyes,
immediately wash the affected area thoroughly with
clean water such as tap water without rubbing your eyes,
and seek medical advice immediately. If this is not done,
the battery liquid may damage your eyes.
•
Do not recharge the battery in places with high humidity
or outdoors. Doing so may result in electric shock.
•
Do not insert or remove the plug while it is wet. If this is
not observed, electric shocks may result. If there is water
leaking out of the plug, dry it thoroughly before
inserting it.
•
If the battery does not become fully charged after 6
hours of charging, immediately unplug the battery from
the outlet to stop charging, and contact the place of
purchase. Failure to do so may cause overheating,
bursting, or ignition of the battery.
•
Do not use the battery if it has any noticeable scratches
or other external damage. Doing so may cause bursting,
overheating or problems with operation.
•
The operating temperature ranges for the battery are
given below. Do not use the battery in temperatures
outside these ranges. If the battery is used or stored in
temperatures outside these ranges, fire, injury or
problems with operation may occur.
1. During discharge: –10 °C - 50 °C
2. During charging: 0 °C - 40 °C
Cleaning
•
The frequency of maintenance will vary depending on
the riding conditions. Periodically clean the chain using
an appropriate chain cleaner. Do not use alkaline or
acidic cleaning agents for removing rust under any
circumstances. If such cleaning agents are used, they may
damage the chain and serious injury may result.
UM-70H0A-005-00-ENG.pdf 5 10/5/2016 11:45:58 AM

4
CAUTION
To ensure safe riding
•
Observe the instructions in the user's manual for the
bicycle, in order to ride safely.
Using the product safely
•
Periodically check the battery charger and adapter,
particularly the cord, plug, and case, for any damage. If
the charger or adapter is broken, do not use it until it has
been repaired.
•
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
•
Do not allow children to play near the product.
Handling the battery
•
Do not leave the battery in a place exposed to direct
sunlight, inside a vehicle on a hot day, or other hot
places. This may result in battery leakage.
•
If any leaked fluid gets on your skin or clothes, wash it
off immediately with clean water. The leaked fluid may
damage your skin.
•
Store the battery in a safe place out of the reach of
infants and pets.
Cleaning
•
If any malfunctions or other problems occur, contact the
place of purchase.
•
Never attempt to modify the system yourself, as it may
cause problems with system operation.
Note
Using the product safely
•
Be sure to install caps to any connectors which are not
being used.
•
For installation and adjustment of the product, consult a
dealer.
•
The Product is designed to be fully waterproof to
withstand wet weather riding conditions. However, do
not deliberately place them into water.
•
Do not clean the bicycle in a high-pressure wash. If water
gets into any of the components, operating problems or
rusting may result.
•
Do not turn the bicycle upside down. The cycle computer
or the shifting switch may get damaged.
•
Handle the product carefully, and avoid subjecting it to
any strong shocks.
•
Although the bicycle still functions as a normal bicycle
even when the battery is removed, the light does not
turn on if it is connected to the electric power system. Be
aware that using the bicycle under these conditions will
be considered non-observance of the road traffic laws in
Germany.
•
When charging the battery while it is mounted on the
bicycle, be careful of the following:
-
When charging, make sure there is no water on the
charging port or the charger plug.
-
Ensure that the battery is locked into the battery
mount before charging.
-
Do not remove the battery from the battery mount
while charging.
-
Do not ride with the charger mounted.
-
Close the charging port cap when not charging.
-
Stabilize the bicycle to ensure that it does not
collapse during charging.
UM-70H0A-005-00-ENG.pdf 6 10/5/2016 11:45:58 AM

5
Handling the battery
•
When you carry a power-assisted bicycle in a car, remove
the battery from the bicycle and place the bicycle on a
stable surface in the car.
•
Before connecting the battery, make sure that there is no
buildup of water or dirt in the connector where the
battery will be connected.
•
The use of a genuine Shimano battery is recommended. If
using a battery from another manufacturer, make sure to
carefully read the instruction manual for the battery
before use.
Disposal information for countries outside
the European Union
This symbol is only valid within the
European Union. Follow local regulations
when disposing of used batteries. If you
are not sure, consult the place of purchase
or a bicycle dealer.
Cleaning
•
The number found on the battery mount key is necessary
when purchasing spare keys. Keep it in a safe place.
There is a space to enter the key number on the back
cover of this user's manual. Enter the key number for
safekeeping and later reference.
•
Contact the place of purchase for updates of the product
software. The most up-to-date information is available
on the Shimano website. For details, refer to the
"Connection and communication with the PC" section.
•
Do not use thinner or other solvents to clean any of the
products. As such substances may damage the surfaces.
•
You should periodically wash the chainrings in a neutral
detergent. In addition, cleaning the chain with neutral
detergent and lubricating it can be an effective way of
extending the useful life of the chainrings and the chain.
•
Use a damp cloth, with the water well wrung out, when
cleaning the battery and plastic cover.
•
For any questions regarding handling and maintenance,
contact the place of purchase.
•
Products are not guaranteed against natural wear and
deterioration from normal use and aging.
•
For maximum performance we highly recommend
Shimano lubricants and maintenance products.
Assist
•
If the settings are not correct, for instance if the chain
tension is too tight, the proper assist force may not be
obtained. If this happens, contact the place of purchase.
<DU-E6010>
•
This component is compatible with coaster brakes. If the
crank is not installed in the correct position or the chain
tension has not been correctly adjusted, contact the place
of purchase, as there may not be proper assistance
power.
Label
•
Some of the important information contained in this
user's manual is also indicated on the battery charger
label.
UM-70H0A-005-00-ENG.pdf 7 10/5/2016 11:45:58 AM

6
Features of SHIMANO STEPS
Features
•
Lightweight, compact design
•
Silent, smooth ride
•
High shifting performance system (In the case of electronic gear shifting)
This system uses accurate sensors to enable shifting gears by providing the most appropriate level of power assistance
carefully adjusted by computer controls.
•
Full Automatic Shifting (In the case of electronic 8-speed gear shifting)
The sensors detect riding conditions, whether you are riding up a hill against the wind, or on flat ground with no wind;
the automatic gear shifting system uses computer controls to make your ride more pleasant.
•
Start mode (In the case of electronic gear shifting)
This function allows automatic shifting down to a preset gear when you stop the bicycle such as at traffic lights so that
you can start traveling at a light gear.
*
If, while the bicycle is stopped, you shift to a gear lower than the set gear, the system will not automatically shift up.
•
Coaster brake compatible (DU-E6010)
Smoothly provides sufficient control power.
•
Light off road
Sporty, provides powerful assistance. Can only be used when set by the manufacturer of the completed bicycle.
•
Walk assistance function (Walk assist mode)
*
Some of the functions listed above can only be used once the firmware has been updated. If this is the case, consult the
place of purchase, and carry out the firmware updates.
Riding the bicycle
1.
Turn on the power.
•
Do not place your foot on the pedals when turning the power on. A system error may result.
•
Power cannot be turned on while charging.
2.
Select your preferred assist mode.
3.
Assistance will start when the pedals start turning.
4.
Change the assist mode in accordance with the riding conditions.
5.
Turn the power off when parking the bicycle.
•
Do not place your foot on the pedals when turning the power off. A system error may result.
UM-70H0A-005-00-ENG.pdf 8 10/5/2016 11:45:59 AM

7
Assist mode
You can select a SHIMANO STEPS assist mode for each particular application.
HIGH NORMAL ECO
Use when powerful assistance is
required, such as when riding up steep
uphill slopes.
Use when an intermediate level of
assistance is needed, such as when you
want to enjoy riding comfortably on a
gentle slope or level ground.
Use when you want to enjoy long
distance riding on level ground. When
pedaling is not very strong, the
amount of assistance is reduced and
energy consumption is lessened.
When the battery level is running low, the level of assistance is lowered to increase the traveling range.
OFF
This mode does not provide power assistance when the power is turned on. Since there is no power consumption
associated with the power assistance, it is useful for reducing battery consumption when the battery is running low.
WALK
This mode is particularly useful when you walk the bicycle with heavy baggage on it or walk it out of a basement.
UM-70H0A-005-00-ENG.pdf 9 10/5/2016 11:45:59 AM

8
Names of parts
B
1 2
3
5
A
B
4
69*
1
*
2
< In the case of electronic gear
shifting >
A
Shifting
switch SW-E6000
B
Motor
unit MU-S705
Internal
geared
hub
SG-C6060
SG-S705
SG-S505
Motor unit
Internal geared
hub
Internal geared
5
6
8
7
UM-70H0A-005-00-ENG.pdf 10 10/5/2016 11:45:59 AM

9
1
Cycle computer
•
SC-E6000
•
SC-E6010
6
Battery mount (external type)
•
SM-BME60
•
SM-BME61
•
BM-E6000
•
BM-E6010
•
BM-E8010
2
Assist switch
•
SW-E6000
7
Battery (built-in type)
•
BT-E8020
3
Front gear / Crank arm
•
FC-E6000
•
SM-CRE60
8
Battery mount (built-in type)
•
BM-E8020
4
Drive unit / Speed sensor
•
DU-E6001
•
DU-E6050
•
DU-E6010
9
Battery charger
*
1: SM-BCE60+SM-BCC1
*
2: EC-E6000
5
Battery (external type)
•
BT-E6000
•
BT-E6001
•
BT-E6010
•
BT-E8010
Specifications
Operating temperature
range: During discharge -10 – 50˚C Battery type Lithium ion battery
Operating temperature
range: During charging 0 – 40˚C Nominal capacity
Refer to the user's manual
for the battery "UM-
70F0A". For the latest
information on manuals, see
the website
(http://si.shimano.com).
Storage temperature -20 – 70˚C Rated voltage 36 V DC
Storage temperature
(Battery) -20 – 60˚C Drive unit type Midship
Charging voltage 100 – 240 V AC Motor type Brush-less DC
Charging time
Refer to the user's manual
for the battery "UM-70F0A".
For the latest information on
manuals, see the website
(http://si.shimano.com).
Rated drive unit power 250 W
*
The range of the assist function speed is different depending on the specifications.
DU-E6001, E6010: 25km/h or less
DU-E6050: 20mile/h or less
UM-70H0A-005-00-ENG.pdf 11 10/5/2016 11:45:59 AM

10
Method of use
INTRODUCTION
You cannot use the battery immediately after shipment.
The battery can be used after charging it with the designated charger.
Be sure to charge it before use. The battery can be used when the LED on it lights up.
The use of a genuine Shimano battery is recommended. If using a battery from another manufacturer, make sure to carefully
read the instruction manual for the battery before use.
Charging the battery
DANGER
•
Use the battery and charger combination specified by the company for charging and follow the charging conditions specified by the
company. Not doing so may cause overheating, bursting, or ignition of the battery.
CAUTION
•When removing the battery charger power plug from the outlet or the charging
plug from the battery, do not pull it out by the cord.
•When charging the battery while it is mounted on the bicycle, be careful not to
trip over the charger cord or get anything caught on it. This may lead to injury or
cause the bicycle to fall over, damaging the components.
•If the bicycle is stored for an extended period of time immediately after purchase,
you will need to charge the battery before using the bicycle. Once the battery is
charged, it starts to deteriorate.
•Connect to E-TUBE PROJECT and click [Connection check] to confirm whether the
battery in use is a genuine Shimano battery or another brand.
UM-70H0A-005-00-ENG.pdf 12 10/5/2016 11:45:59 AM

11
When charging the battery alone
< EC-E6000/BT-E6000/BT-E6001/BT-E6010 >
1.
Attach the adapter to the charging plug.
2.
Plug the charger’s power plug into the outlet.
3.
Plug the adapter into the battery’s charging port.
*
When inserting the adapter into the charging port,
hold the charging plug so it is facing down toward
the adapter. Do not insert the charging plug upward
into the adapter.
*
Charge the batteries on a flat surface indoors.
Adapter
Charging plug
Battery
Charging portAdapter
Charging plug
< BT-E6010 >
Adapter
Battery
Charging port
Charging plug
< BT-E6000/BT-E6001 >
UM-70H0A-005-00-ENG.pdf 13 10/5/2016 11:45:59 AM

12
< EC-E6000/BT-E8010/BT-E8020 >
1.
Connect the battery charger’s power plug to the outlet.
2.
Insert the charging plug into the battery's charging
port.
•
Charge the battery on a flat surface indoors.
< BT-E8010 >
Charging plug
Battery Charging port
< BT-E8020 >
Charging plug Battery
Charging port
UM-70H0A-005-00-ENG.pdf 14 10/5/2016 11:45:59 AM

13
< SM-BCE60/BT-E6000/BT-E6001/BT-E6010 >
1.
Attach the charger plug to the charging port of the
battery.
Insert it with the groove side of the connector facing
up.
*
You cannot insert it with the groove side facing
down.
*
Charge the batteries on a flat surface indoors.
< BT-E6000/BT-E6001 >
Battery
Groove
Charging port
Backside (no groove)
< BT-E6010 >
Groove
Charging port
UM-70H0A-005-00-ENG.pdf 15 10/5/2016 11:45:59 AM

14
Charging the battery while installed onto the bicycle
< EC-E6000/BT-E6000/BT-E6001/BT-E6010/BT-E8010/BT-E8020 >
1.
Insert the battery charger power plug into the outlet.
2.
Insert the charging plug into the charging port on the battery mount or the battery.
*
Place the battery charger main body on a steady surface such as the floor before charging.
*
Stabilize the bicycle to ensure that it does not collapse during charging.
<BT-E6000/BT-E6001>
Battery mount
Charging port
Charging plug
<BT-E6010/BT-E8010>
Battery mount
Battery mount
Charging plug
Charging port
<BT-E6010>
<BT-E8010>
Battery
Charging port
Charging plug
<BT-E8020>
Battery
Charging plug
Charging port
UM-70H0A-005-00-ENG.pdf 16 10/5/2016 11:45:59 AM
Other manuals for E6000 Series
2
Table of contents
Languages:
Other Shimano Scooter manuals
