Shini SDL-U-HD Series User manual

SDL-U-HD Series
HeatlessDehumidifying CompactDryer
Date:Nov. 2014
Version: Ver.B(English)

3(63)
Contents
1. General Description..................................................................................7
1.1 CodingPrinciple...................................................................................8
1.2 Feature.................................................................................................8
1.3 TechnicalSpecifications.....................................................................10
1.3.1 Specifications...........................................................................10
1.3.2 Outline Drawing........................................................................11
1.4 SafetyRegulations.............................................................................12
1.4.1 TheAttentionsforUsing the Blower.........................................12
1.4.2 SafetySignsand Labels...........................................................13
1.4.3 Transportation andStorageoftheMachine..............................13
1.5 ExemptionClause..............................................................................14
2. StructureCharacteristics and WorkingPrinciple.................................16
2.1 WorkingPrinciple...............................................................................16
2.2 Drawingand PartsList.......................................................................18
2.2.1 Systemstructure.......................................................................18
2.2.2 AssemblyDrawing....................................................................19
2.2.3 PartsList...................................................................................20
2.2.4 Filter& PressureRegulatingValveDrawing.............................23
2.2.5 Heater.......................................................................................24
2.3 ElectricalDiagram..............................................................................25
2.3.1 ElectricalCircuit........................................................................25
2.3.2 MainCircuit (SDL-20U~450U-HD)............................................27
2.3.3 ControlCircuit (SDL-20U~450U-HD)........................................28
2.3.4 Electricalcomponentslayout (SDL-20U~450U-HD).................30
2.3.5 ElectricalComponentsList (SDL-20U~450U-HD)....................31
2.3.6 Mainelectricalcircuit (SDL-600U~1200U-HD).........................37
2.3.7 Controlcircuit (SDL-600U~1200U-HD).....................................39
2.3.8 Electricalcomponentslayout (SDL-600U~1200U-HD).............41
2.3.9 ElectricalComponentsList (SDL-600U~1200U-HD)................42
3. Installation and Debugging.....................................................................46
3.1 GeneralSafetyRegulations...............................................................46

4(63)
3.2 Installation diagram............................................................................46
3.3 PowerSupply.....................................................................................46
3.4 Pipe Heaters......................................................................................47
3.5 Blower................................................................................................48
3.5.1 DryingBlower...........................................................................48
3.5.2 ConveyingBlower.....................................................................48
3.5.3 Installation of DryingHopper....................................................49
3.5.4 Filter& PressureRegulatingValve...........................................49
3.5.5 GXW/GWHeatless DehumidifyingCompactDryer..................49
3.5.6 Filter.........................................................................................50
4. Application and Operation......................................................................51
4.1 Operationof controldryingsystem.....................................................51
4.2 Operationof conveyingsystem..........................................................51
5. Trouble-shooting.....................................................................................52
6. Maintenance and Repair.........................................................................53
6.1 Filter& PressureRegulatingValve....................................................53
6.1.1 Filter& PressureRegulatingValveDrawing.............................53
6.1.2 Filter& PressureRegulatingValveOperation steps.................54
6.2 Air Filters............................................................................................54
6.3 BlowerMotors....................................................................................54
6.4 GXW/GWHeatless DehumidifyingCompactDryer............................55
6.4.1 OperationInstruction................................................................55
6.4.2 Specifications...........................................................................55
6.4.3 Installation................................................................................56
6.4.3.1 Inspect.........................................................................56
6.4.3.2 Warning........................................................................56
6.4.3.3 Installation....................................................................56
6.4.3.4 WorkingInstruction......................................................57
6.4.3.5 ElectricalConnections..................................................57
6.4.3.6 Controller.....................................................................57
6.4.4 TechnicalParameters...............................................................58
6.4.5 Maintenance.............................................................................58
6.4.5.1 Adjustment and Monitoring..........................................58

5(63)
6.4.5.2 SemiYearInspect........................................................58
6.4.5.3 RegenerationAir Adjustment.......................................59
6.4.5.4 Controller.....................................................................59
6.4.5.5 DryingTower................................................................59
6.4.5.6 ImproperOperation......................................................59
6.4.5.7 Oil Pollution..................................................................59
6.4.5.8 Adsorbent Replacement...............................................59
6.4.5.9 FilterElement Replacement.........................................60
6.4.5.10 Troubleshooting...........................................................61
6.5 MaintenanceSchedule.......................................................................62
6.5.1 About theMachine....................................................................62
6.5.2 Installation &Inspection............................................................62
6.5.3 DailyChecking..........................................................................62
6.5.4 WeeklyChecking......................................................................62
6.5.5 MonthlyChecking.....................................................................62
6.5.6 Half-yearlyChecking................................................................62
TableIndex
Table1-1 Specifications.................................................................................10
Table2-1 PartsList (SDL-20U~120U-HD).....................................................20
Table2-2 PartsList (SDL-160U~450U-HD)...................................................21
Table2-3 PartsList (SDL-600U~1200U-HD).................................................22
Table2-4 ElectricalCircuit.............................................................................25
Table2-5 ElectricalComponentsList (SDL-20U-HD)....................................31
Table2-6 ElectricalComponentsList (SDL-40U-HD)....................................32
Table2-7 ElectricalComponentsList (SDL-80U-HD)....................................33
Table2-8 ElectricalComponentsList (SDL-160U-HD)..................................34
Table2-9 ElectricalComponentsList (SDL-230U-HD)..................................35
Table2-10 ElectricalComponentsList (SDL-300U-HD)................................36
Table2-11 ElectricalComponentsList (SDL-450U-HD)................................37
Table2-12 ElectricalComponentsList (SDL-600U-HD)................................42
Table2-13 ElectricalComponentsList (SDL-750U-HD)................................43
Table2-14 ElectricalComponentsList (SDL-900U-HD)................................44

6(63)
Table2-15 ElectricalComponentsList (SDL-1200U-HD)..............................45
PictureIndex
Picture1-1 OutlineDrawing...........................................................................11
Picture1-2 Blower..........................................................................................12
Picture2-1 WorkingPrinciple.........................................................................17
Picture2-2 Systemstructure..........................................................................18
Picture2-3 AssemblyDrawing.......................................................................19
Picture2-4 Filter& PressureRegulatingValveDrawing................................23
Picture2-5 Heater..........................................................................................24
Picture2-6 MainCircuit (SDL-20U~450U-HD)...............................................27
Picture2-7 ControlCircuit 1(SDL-20U~450U-HD)........................................28
Picture2-8 ControlCircuit 2(SDL-20U~450U-HD)........................................29
Picture2-9 ElectricalComponentsLayout (SDL-20U~450U-HD)..................30
Picture2-10 Mainelectricalcircuit (SDL-600U~1200U-HD)...........................38
Picture2-11 Controlcircuit 1(SDL-600U~1200U-HD)...................................39
Picture2-12 Controlcircuit 1(SDL-600U~1200U-HD)...................................40
Picture2-13 Electricalcomponentslayout (SDL-600U~1200U-HD)..............41
Picture3-1 Installationdiagram......................................................................46
Picture3-2 PowerSupply...............................................................................47
Picture3-3 Pipe Heaters................................................................................47
Picture3-4 DryingBlower..............................................................................48
Picture3-5 ConveyingBlower........................................................................48
Picture3-6 InstallationofDryingHopper........................................................49
Picture3-7 GXW/GWHeatless DehumidifyingCompactDryer.....................49
Picture3-8 Filter.............................................................................................50
Picture6-1 Filter& PressureRegulatingValveDrawing................................54

7(63)
1. General Description
Read thismanualcarefullybeforeoperationtopreventdamageofthe
machine orpersonalinjuries.
SDL-U seriesofdrying loaderscombineconventionalhotair dryingand two-stage
conveyingfunctionsintoacompactunit. Itisparticularlysuitableforusingwiththe
bigtonnagemouldingmachineswhen heightrestriction isconcernedatthe
workshop.The SDL-U serieshasaunique function oftwo-stageconveyingfthat
can transportbothrawmaterialtoitsowndryinghopperand dried materialtothe
mouldingmachine.
Model: SDL-80U-HD

8(63)
1.1CodingPrinciple
Note
*CE=CEConformityP=For PolishedHopper Inside
S
DL
-
xxx
U
-
xxx
European Type
ShiniDrying Loaders
Option *
Hopper Capacity(L)
HD=Heatless Dehumidifying
1.2Feature
1)Standardconfiguration
●SDL-U integratesautoloadinganddryingintooneunit, whileSDL-U-HD
integratesdehumidifying, dryingand autoloadingintoone unit.
●Adoptsmicroprocessorand P.I.D.controlsystemtoaccuratelycontroldrying
temperature.
●Occupyasmall place, makingmovementeasilyand replacingunits
conveniently. .
●Hoppersaremadeofstainless steeltoavoidcontamination.
●Full functionalalarmingsystemcanimmediatelyshowfaults.
●Closed-loopconveyingdeviceeliminatesthe possibilityof moisture
reabsorption duringdried materialconveying.
●Hot air recyclingdeviceisequipped asastandard, featuringenergysaving,
no exhaust of hot air and dust, andenvironmentalprotection.
●Standardshut-offsuction boxensuresnoresidualmaterialaftereach
loadingprocess.
●European type heatinsulated hopperensuresno heat loss andnomaterial
pollution.
●7-daystart/stop timerisstandardequipment, whichcanbecustomized.
2)Accessoryoption
●SHD-U-HD heatless regenerativedeviceisoptional, can supplydryair with
relativelowdewpoint tospeed up materialhandlingprocess.

9(63)
All serviceworkshouldbe carried out byaperson withtechnicaltrainingor
correspondingprofessionalexperience.The manualcontainsinstructionsforboth
handlingand servicing.Chapter6, whichcontainsserviceinstructionsintendedfor
serviceengineers. Otherchapterscontaininstructionsforthedailyoperator.
Anymodificationsofthemachinemustbe approved bySHINI inordertoavoid
personalinjuryand damagetomachine.Weshall not beliableforanydamage
causedbyunauthorized changeof themachine.
Ourcompanyprovidesexcellent after-salesservice. Shouldyou haveanyproblem
duringusingthemachine,pleasecontactthecompanyorthelocalvendor.
HeadquarterandTaipeifactory
Tel:[phone]
ShiniPlastics Technologies(Dongguan), Inc
Tel:[phone]
ShiniPlastics TechnologiesIndiaPvt.Ltd.
Tel:[phone]

10(63)
1.3Technical Specifications
1.3.1Specifications
Table1-1 Specifications
Model SDL- 20U 40U 80U 120U 160U 230U 300U 450U 600U 750U 900U 1200U
Air InletDia. (inch) 2 2 2.5 2.5 3 3 3 3 4 4 4 4
Air OutletDia.(inch) 1.5 1.5 2 2 2.5 2.5 2.5 2.5 3 3 4 4
ConveyingHoseDia.
(inch) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2
Process Blower (kW)
(50 / 60Hz) 0.05/ 0.06
0.12/
0.15
0.12/
0.15
0.12/
0.15
0.12/
0.15
0.12/
0.15
0.18/
0.22
0.18/
0.22 0.55/ 0.66
0.55/
0.66
0.55/
0.66
1.1/
1.32
Dryer hopper
capacity (L) 20 40 80 120 160
230 300 450 600 750 900 1200
Process Heater(kW) 2.2 3 3.9 3.9 6 6 12 12 18 18 24 24
ConveyingBlower
(kW)(50/60Hz) 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 1.5/ 1.8 2.4/ 3.0 2.4/ 3.0
SHR-U-E Hopper
(liter) 3 3 6 6 6 12 12 12 12 12 18 24
SHR-UHopper (liter) 3 3 6 6 6 12 12 12 12 12 24 24
H(mm) 1200 1300 1550 1800 1880 2160 2020 2420 2450 2720 2610 3030
W(mm) 1035 1035 1035 1035 1400 1400 1400 1400 1960 1960 1960 1960
Dimension
D(mm) 850 850 850 850 1000 1000 1000 1000 1450 1450 1450 1450
Weight(kg) 110 120 130 195 215 240 310 350 435 500 550 600
Note:1)4~6 barcompressedairsupply.Wereservethe righttochangespecifications
2) Power supply: 3 , 230 / 400/ 460/ 575V, 50 / 60Hz.withoutpriornotice.

11(63)
1.3.2Outline Drawing
Picture1-1 OutlineDrawing

12(63)
1.4SafetyRegulations
1.4.1TheAttentionsforUsing the Blower
1)Theblowercoverwill be heatedupduringoperation.Keephandsawayhigh
temperatureblowercovertoavoidhandsburning.
2)Motorunderload current will be varied withair pressureofthe blower.
Overload relayshouldbe used andkeepmotorworkingcurrent within
full-load current toavoidmotorburningout.
3)Air filterisused tokeep offdirts,particles, fibres, and waterdrops. Clean the
filteraboutonceaweek.
4)Clearupinsideandoutsideof theblowerregularly. If therearetoomuchdirts
accumulated on the blower, the function oftheblowerwillbe affected, such
astemperaturerising, reducedair volumeandhighernoiseleveldueto
vibration.All the abovefactorsareliabletocausemechanicalproblems.
5)Thebearing, sealringand silencerareall consumableparts.Theyshouldbe
replacedafteraperiod oftime.And alsothe fans, covers, and metalgrids
needtobechanged when necessary.
6)Ifthe blowercan notworkproperlyormakesloud noises,pleaseturnoff the
powersupplytohaveacheck.
Picture1-2 Blower

13(63)
1.4.2SafetySignsand Labels
Danger!
HighVoltage!
It isattached tothe controlbox.
Attention!
Thismarkremindsyoutobemorecareful.
Warning!
Hightemperaturesurfacemayburnhands!
It isattached on the coverofpipe heater.
Attention!
Noneed forregularinspectionbecauseall theelectricalpartsin
the controlunitarefixed tightly!
Attention!
Topreventover-temperaturealarmfromcausingmachineshutdown,
don't randomlyadjustEGO settingtemp.
1.4.3Transportation andStorageoftheMachine
Transportation
1)SDL-U-HD seriesarepackedincratesorplywood caseswithwooden pallet
at thebottom,suitableforquick positioningbyforklift.
2)Afterunpacked, castorsequippedonthe machinecan be usedforeaseof
movement.
3)Donot rotatethemachineandavoidcollision withotherobjectsduring
transportation toprevent improperfunctioning.
4)Thestructureofthe machine iswell-balanced,althoughit shouldalsobe
handled withcarewhenliftingthemachine forfearoffallingdown.
5)Themachine anditsattached partscanbekeptat atemperaturefrom-25
to+55 forlongdistancetransportationand forashort distance, it can be
transported withtemperatureunder+70.

14(63)
Storage
1)SDL-U-HD seriesshouldbestoredindoorswithtemperaturekept from5to
40and humiditybelow80%.
2)Disconnect all powersupplyand turnoffmainswitchand controlswitch.
3)Keepthe wholemachine,especiallythe electricalcomponentsawayfrom
atertoavoidpotentialtroublescausedbythewater.
4)Plasticfilm shouldbeusedtoprotect the machinefromdust and rains.
Workingenvironment
Themachineshouldbeoperated:
1)Indoorsinadryenvironment withmax. temperature+45 andhumidityno
morethan80%.
Donotusethemachine:
1)Ifit iswithadamaged cord.
2)Onawet floororwhen it isexposed toraintoavoidelectricalshock.
3)Ifithasbeendropped ordamaged until it ischeckedorfixed byaqualified
serviceman.
4)Thisequipmentworks normallyinthe environmentwithaltitudewithin
3,000m.
5)At leastaclearanceof1msurroundingthe equipment isrequired during
operation.Keepthisequipment awayfromflammablesourcesat least two
meters.
6)Avoidvibration,magneticdisturbanceat theoperationarea.
Rejectedpartsdisposal
When the equipmenthasrun out itslifetimeand can notbe usedanymore,
unplugthepowersupplyand disposeof it properlyaccordingtolocalcode.
Firehazard
Incaseoffire, Co2drypowderfireextinguishershouldbe applied.
1.5Exemption Clause
Thefollowingstatementsclarifytheresponsibilitiesandregulationsbornbyany
buyeroruserwho purchasesproductsandaccessoriesfromShini(including
employeesandagents).

15(63)
Shiniisexempted fromliabilityforanycosts,fees,claimsandlossescausedby
reasonsbelow:
1. Anycarelessorman-madeinstallations,operation andmaintenancesupon
machineswithoutreferringtothe Manualpriortomachineusing.
2. Anyincidentsbeyondhumanreasonablecontrols, whichincludeman-made
viciousordeliberatedamagesorabnormalpower,and machine faultscaused
byirresistiblenaturaldisastersincludingfire,flood,stormand earthquake.
3. Anyoperationalactionsthatarenotauthorized byShiniuponmachine,
includingaddingorreplacingaccessories, dismantling,deliveringorrepairing.
4. Employingconsumablesoroil mediathatarenotappointed byShini.

16(63)
2. Structure Characteristics andWorkingPrinciple
2.1WorkingPrinciple
Drying: based on the principleofwaterhightemperaturegasification,moisture
ofmaterialwouldbe blownawaybyhighpressureair fromblowerafterbeing
hightemperaturegasified.Apartofair withmoisturedischargesthroughfilterof
moistureoutlet; mostpartofair arerecyclableafterbeingfilteredthroughreturn
air pipe.
Conveying: suction forceofhighpressureblowermakesavacuuminside
hopperalsoproducesdifferentialpressurebetween hopperandouterspace.
Withthe common forceofdifferentialpressureandcontinuoussuction,
materialsandair mixturewillbe suckedintohopper. Due tothe filterblock of
hopper,materialswill beaccumulatedinhopperandtheair isexpelled fromair
outlet. Double-stageconveyingismainlyaccomplished byshiftingthree way
valveof suctionmachine tocontrolsuction returncircuit.
Heatless regeneration:The compressedair afterpassingthroughinletfilter11
entersintodrybarrel1(ordried barrels2)throughpneumaticcontrolvalve1.
Then itmakeabsorptiondrywithdesiccant bedlayer, andlaterexist from
non-returnvalve9(or10), finallyexist fromthe outlettodryand purifyair. A
partofdryair (about15%)entersdrybarrel2(ordried barrel1)throughcurrent
limitationpipe8toblowand regeneratedesiccantswithsaturatedwater, then
air passesthroughpneumaticcontrolvalves1toexist out of muffler7. Drying
barrel1,2workalternatelytoregenerate.

17(63)
Picture2-1 WorkingPrinciple

18(63)
2.2Drawing and PartsList
2.2.1 Systemstructure
1. Silencer 2. Insulated hopper
3. Heatingbox 4. Dryingblower
5. Heatless regeneration air dryer6. Rack
7. Shut-off valvesuction box 8.Three-wayvalve
9. Conveyingblower 10.Filter& pressureregulatingvalve
11. Castor 12. Filter
13. Filter 14. Mainpowerswitch
15. Controlpanel
Picture2-2 Systemstructure

19(63)

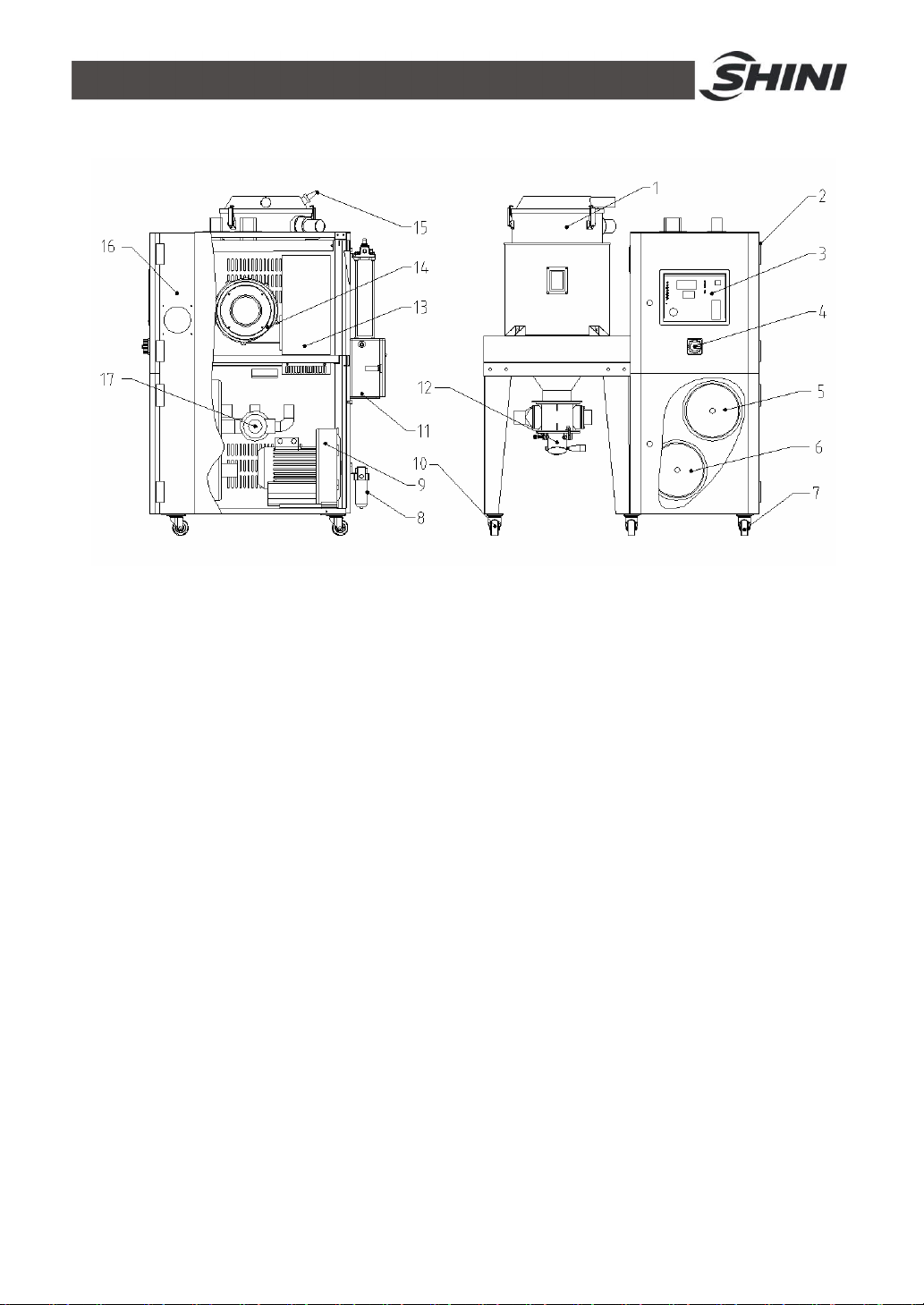

2.2.2 AssemblyDrawing
Remarks: Pleaserefer tomateriallist 2.2.3for specificexplanationofthe Arabicnumbersin
partsdrawing.
Picture2-3 AssemblyDrawing

20(63)
2.2.3PartsList
Table2-1 PartsList (SDL-20U~120U-HD)
Part No.
No. Name SDL-20U-HD SDL-40U-HD SDL-80U-HD SDL-120U-HD
1 Insulatedhopper BY10002000150 BY10004000150 BY10008000150 BY10012000250
2 Door hinge YW06203100200 YW06203100200 YW06203100200 YW06203100200
3 Plastic panel YR40000400400 YR40000400400 YR40000400400 YR40000400400
4 Main power switch YE10200300000 YE10200300000 YE10200300000 YE10200300000
5 Filter YR50708000100
YR50708000100 YR50708000100 YR50708000100
6 Filter YR50708000100
YR50708000100 YR50708000100 YR50708000100
7 3" castor YW03000300000 YW03000300000 YW03000300000 YW03000300000
8
Filter &pressure
regulatingvalve* YE30200020000
YE30200020000 YE30200020000 YE30200020000
9 Conveying blower* BM30042000050 BM30042000050 BM30042000050 BM30042000050
10 3" castor YW03000300200 YW03000300200 YW03000300200 YW03000300200
11
Heatless regeneration
dryer * BY90106600050
BY90106600050 BY90106600050 BY90206600050
12
Shut-off valve
suctionbox BY10203800050
BY10203800050 BY10203800050 BY10203800050
13 Pipe heater** BH70202200050 BH70400300350 BH70803900250 BH70123900150
14 Drying blower* BM40001500850 BM40025300850 BM40338000850 BM40338000850
15 Coppersilencer YW80000400300 YW80000400300 YW80000400300 YW80000400300
16 Control box BH35002000050 BH35004000050 BH35008000050 BH35012000050
17 Three-wayvalve BY20001500050 BY20001500050 BY20001500050 BY20001500050
*means possiblebrokenparts.
** means easybroken part. and sparebackup issuggested.
Please confirm the versionofmanualbeforeplacingthe purchaseordertoguaranteethatthe
itemnumber ofthe sparepart isinaccordancewiththe realobject.
