Shini SHD-EB User manual

SHD-EB
BudgetHopperDryer
Date:Nov. , 2020
Version: Ver.C

3(27)
Content
1. General Description.....................................................................................5
1.1 CodingPrinciple......................................................................................6
1.2 Feature...................................................................................................6
1.3 TechnicalSpecifications.........................................................................8
1.3.1 ExternalDimensions.....................................................................8
1.3.2 Specification..................................................................................8
1.4 SafetyRegulations................................................................................11
1.4.1 SafetySignsand Labels..............................................................11
1.4.2 Signsand Labels.........................................................................12
1.5 ExemptionClause.................................................................................12
2. StructureCharacteristics and WorkingPrinciple....................................13
2.1 WorkingPrinciple..................................................................................13
2.2 Options.................................................................................................14
2.2.1 MagneticBase.............................................................................14
2.2.2 Hot Air Recycler..........................................................................14
2.2.3 Exhaust Air Filter.........................................................................15
2.3 Drawingand PartsList.............................................. 误！未定义书签。
2.3.1 AssemblyDrawing(SHD-12EB~150EB)......... 误！未定义书签。
2.3.2 PartsList (SHD-12EB~50EB).......................... 误！未定义书签。
2.3.3 PartsList (SHD-75EB~150EB)........................ 误！未定义书签。
2.3.4 AssemblyDrawing(SHD-200EB~400EB)....... 误！未定义书签。
2.3.5 PartsList (SHD-200EB~400EB)...................... 误！未定义书签。
3. Installation and Debugging .......................................................................17
3.1 Direct Installation..................................................................................17
3.2 Connectingthe PowerSource..............................................................18
3.3 TheHopperDryerTest.........................................................................18
3.4 Installation of the Options.....................................................................19
3.4.1 Installation of Air-Exhaust Filter...................................................19
3.4.2 SuctionBoxInstallation...............................................................20
3.4.3 BlowerInlet FilterInstallation.......................................................21
3.4.4 Hot Air RecyclerInstallation........................................................21
4. Operation Guide.........................................................................................22

4(27)
4.1 ControlPanel........................................................................................22
4.1.1 PanelOperation..........................................................................22
4.1.2 SettingTemperature....................................................................23
4.1.3 PanelOperation..........................................................................24
4.1.4 TimerSetting...............................................................................24
5. Maintenance and Repair............................................................................27
5.1 Blower...................................................................................................27
6. Troubleshooting......................................................................................... 27
TableIndex
Table1-1: Specification.......................................................................................8
Table1-2: DryerDryingCapacity(kg/hr)(Selection Guide)................................10
PictureIndex
Picture1-1: ExternalDimensions........................................................................8
Picture2-1:WorkingPrinciple...........................................................................13

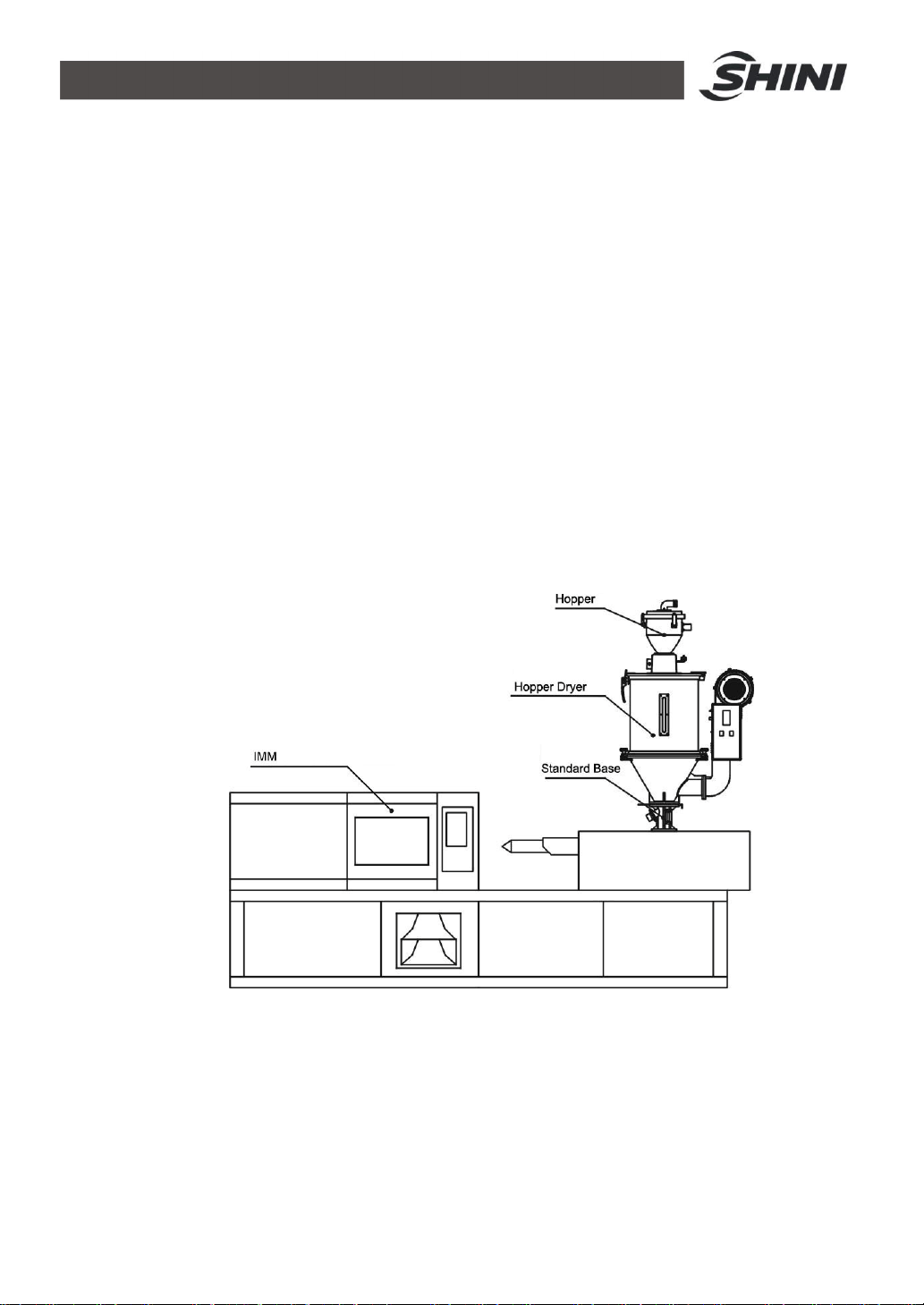

Picture3-1: Direct Installation............................................................................17
Picture3-2: Blower............................................................................................18

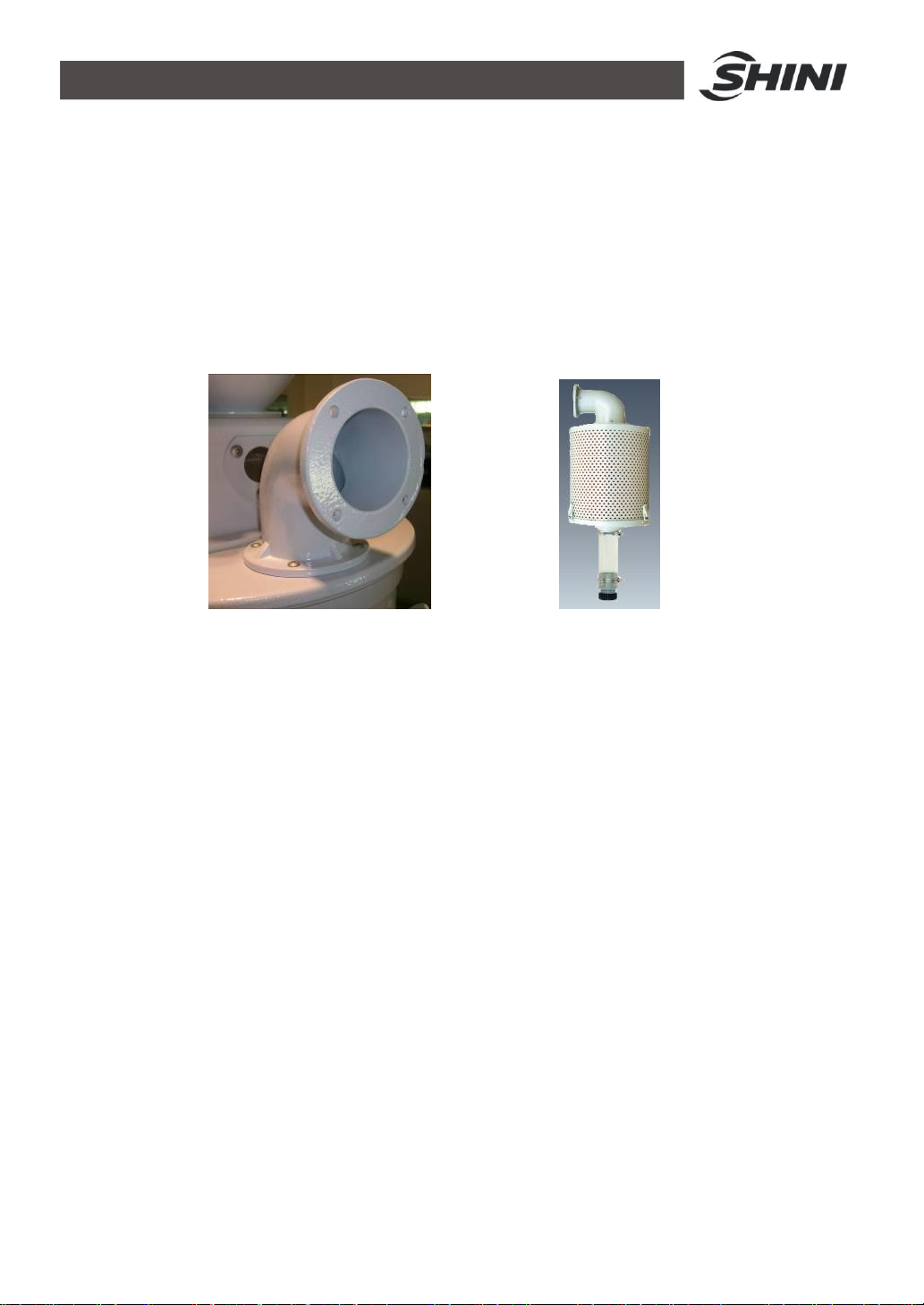

Picture3-3: Left :Air-exhaust ElbowofDryer....................................................19
Picture3-4: European SuctionBox...................................................................20
Picture3-5: Shut-off Suction Box......................................................................20
Picture3-6: AIFBlowerInlet Filter.....................................................................21
Picture3-7: HotAir Recycler.............................................................................21
Picture4-1: ControlPanel.................................................................................22
Picture4-2:TemperatureController..................................................................23
Picture4-3: OverheatingProtector....................................................................24
Picture4-4:Timer..............................................................................................25

5(27)

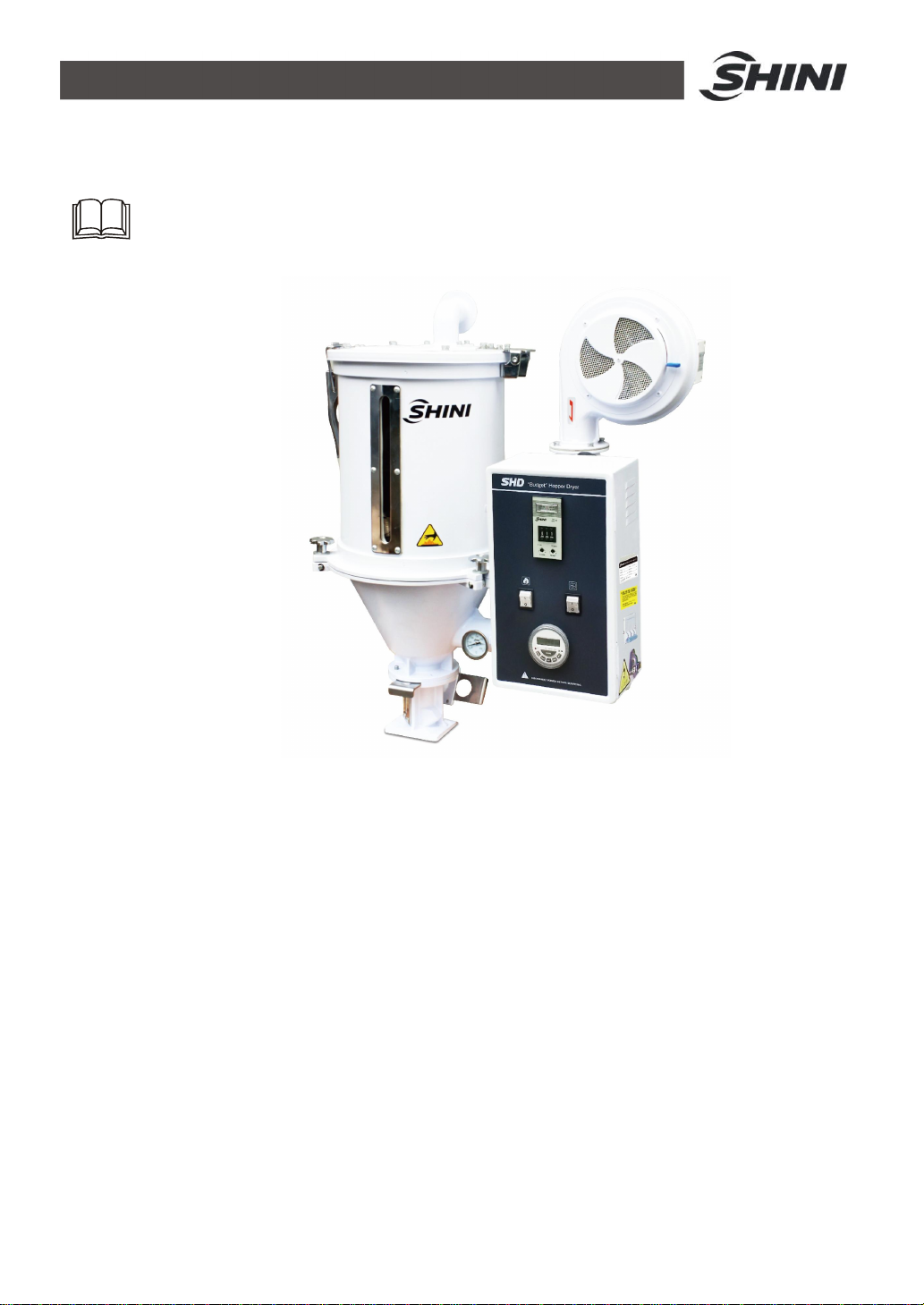

1. General Description
Pleasereadthrough thisoperation manualbeforeusingthe machine to
prevent damagesofthemachineorpersonalinjuries.
SHD-12-EB

6(27)
1.1CodingPrinciple
1.2Feature
ŸAdopt hot air diffusertogainaneven hotair flowtoimprovedryingefficiency.
ŸHot air inletelbowdesigncan preventdust pilingup atbottomof thepipe
heaterssoastoavoidburning.
ŸAll materialcontact surfacesaremadeof stainless steeltoeliminatematerial
contamination.
ŸHopperseparatedfromitsbase,ensuringconvenient cleaning.
ŸAdoptsheat-insulatedblowertoprolongblowerlifespan.
ŸSHD-EB serieshasstandardtimer
ŸSHD-EB seriesof blowersequipwithoverheat protectors

7(27)
All serviceworkshouldbe carried out byaperson withtechnicaltrainingor
correspondingprofessionalexperience.The manualcontainsinstructionsforboth
handlingand servicing.Chapter5, whichcontainsserviceinstructionsintendedfor
serviceengineers. Otherchapterscontaininstructionsforthedailyoperator.
Anymodificationsofthemachinemustbe approved bySHINI inordertoavoid
personalinjuryand damagetomachine.Weshall not beliableforanydamage
causedbyunauthorized changeof themachine.
Ourcompanyprovidesexcellent after-salesservice. Shouldyou haveanyproblem
duringusingthemachine,pleasecontactthecompanyorthelocalvendor.
HeadquarterandTaipeifactory
Tel:[phone]
ShiniPlastics Technologies(Dongguan), Inc
Tel:[phone]
ShiniPlastics TechnologiesIndiaPvt.Ltd.
Tel:[phone]

8(27)
1.3Technical Specifications
1.3.1ExternalDimensions
Picture1-1: ExternalDimensions
1.3.2Specification Table1-1: Specification
ModelSHD-12-
EB
SHD-25-
EB
SHD-50-
EB
SHD-75-
EB
SHD-100-
EB
SHD-150-
EB
SHD-200-
EB
SHD-300-
EB
SHD-400-
EB
Ver. B C C C B B B B B
Drying
Heater(kW)
2.2/3* 3/3.3* 3.9/4.2* 4.2/4.8* 6/6.6* 6.6/7.2* 8.4/9.6* 9.6 18
Blower(W) 75 155 155 155 215 215 320 320 340
Loading
Capacity(kg)
12 25 50 75 100 150 200 300 400
H(mm) 825 1015 1145 1445 1330 1650 1730 2180 1940
H1(mm) 810 925 1045 1045 1360 1360 1590 1590 1760
H2(mm) 325 410 380 380 535 535 635 635 710
H3(mm) 380 460 520 820 650 970 920 1370 1040
H4(mm) 160 194 206 206 313 313 338 338 435
H5(mm) 110 150 150 150 175 175 195 195 205
W(mm) 670 725 840 840 1020 1020 1210 1210 1400
D(mm) 350 405 490 490 640 640 780 780 920
D1（mm)
110 158 158 158 180 180 230 230 280

9(27)
W1（mm)
110 158 158 158 180 180 230 230 280
A（mm)
330 385 470 470 600 600 750 750 910
B（mm)
45 74 74 74 85 85 110 110 120
Weight（kg)
25 28 31 38 49 52 70 84 115
Notes:1) Test conditionofconveying capacity: plasticmaterial ofbulkdensity0.65kg/L, dia.
3-5mm/0.12~0.2inch.
2) “*”Optionalhigh-tempmodel that uptomax. 180℃.
3) Power supply SHD-12-50EB is 1/PE/220V, 75-400EB is 3/N/PE/400V.

10(27)
Table1-2: DryerDryingCapacity(kg/hr)(Selection Guide)
Material
Mode
SHD-
12-
EB
25-
EB
50-E
B 75-E B 100- EB
150-
EB
200-
EB
300-
EB
400-
EB Drying Time Drying Temp.
Polystyre(PS) 8 20 50 75 100 150 200 300 400 0.75hrs 80
Polyethylen
(PE) 8 20 50 75 100
150 200 300 400 0.75hrs 80
Polypropyrene
(PP) 8 20 50 75 100
150 200 300 400 0.75hrs 80
Polystyrene
(EPR) 6 14 38 57 80 115
150 225 300 1hrs 80
ABS 4 8 20 30 40 60 80 120
160 1hrs 80
Nylon 11,122 4 10 13 20 27 35 60 80 4hrs 75
Nylon6/6,6/10 1.5 3.2 8 11 16 22 30 45 65 5hrs 75
Nylon 6 1 2 5 7 10 15 20 35 50 7hrs 75
Acrylic fiber 2.5 6 12 22 30 45 60 100
140 2.5hrs 80
Cellulose
acetate 2.5
6 17 26 35 52 70 110
150 2.25hrs 75
Butyrate 4 10 25 37 50 75 100 160
220 1.5hrs -
Polycarbonate
(PC) 1.5
4 10 15 20 30 40 75 90 3hrs 120
Rigid PVC5 12 30 45 60 90 120
185 250 1.25hrs 70
Notes:Basedonrelativehumidity65%withambient temperatureof20 ,moisurecontentafter dryingcan be
0.2% roless.

11(27)
1.4SafetyRegulations
1.4.1SafetySignsand Labels
Note!
Electricalinstallation shouldbe done byqualifiedelectrician only.
BeforeconnectingtoACPowerSource,turnpowerswitchtoOFF
position.WhileACpowersourceisconnected,makesurespecifications
and overload protection ratingofthepowerswitcharesuitableand
reliable.Whenthemachine isundercareormaintenance,turnoff both
powerswitchandautomaticoperation switch.
Danger!
Highpresscure!
It isattached tothe controlbox.
Warning!
Hightemperaturesurfacemayburnhands!
It isattached on the coverofpipe heater.
Attention!
Thismarkremindsyoutobemorecareful！
Warning!
Hightemperaturesurfacemayburnhands！
Thislabelshouldbestick tothe shell of electricheatingbox.

12(27)
1.4.2Signsand Labels
Protectiondeviceactivateswhen overheat
occurs；afterfaultsaredischarged,press
blue keytoresetandturnontheswitchto
Restart operation.
Push-and-pull switchforshut-off plate:
I: Means"Pull"
O: Means"Push"
Regularlyclean the filterscreen toavoid
insufficient dryingcaused byblocking
1.5ExemptionClause
Thefollowingstatementsclarifytheresponsibilitiesandregulationsbornbyany
buyeroruserwho purchasesproductsandaccessoriesfromShini(including
employeesandagents).
Shiniisexempted fromliabilityforanycosts,fees,claimsandlossescausedby
reasonsbelow:
1. Anycarelessorman-madeinstallations,operation andmaintenancesupon
machineswithoutreferringtothe Manualpriortomachineusing.
2. Anyincidentsbeyondhumanreasonablecontrols, whichincludeman-made
viciousordeliberatedamagesorabnormalpower,and machine faultscaused
byirresistiblenaturaldisastersincludingfire,flood,stormand earthquake.
3. Anyoperationalactionsthatarenotauthorized byShiniuponmachine,
includingaddingorreplacingaccessories, dismantling,deliveringorrepairing.
4. Employingconsumablesoroil mediathatarenotappointed byShini.

13(27)
2. Structure Characteristics andWorkingPrinciple
2.1WorkingPrinciple

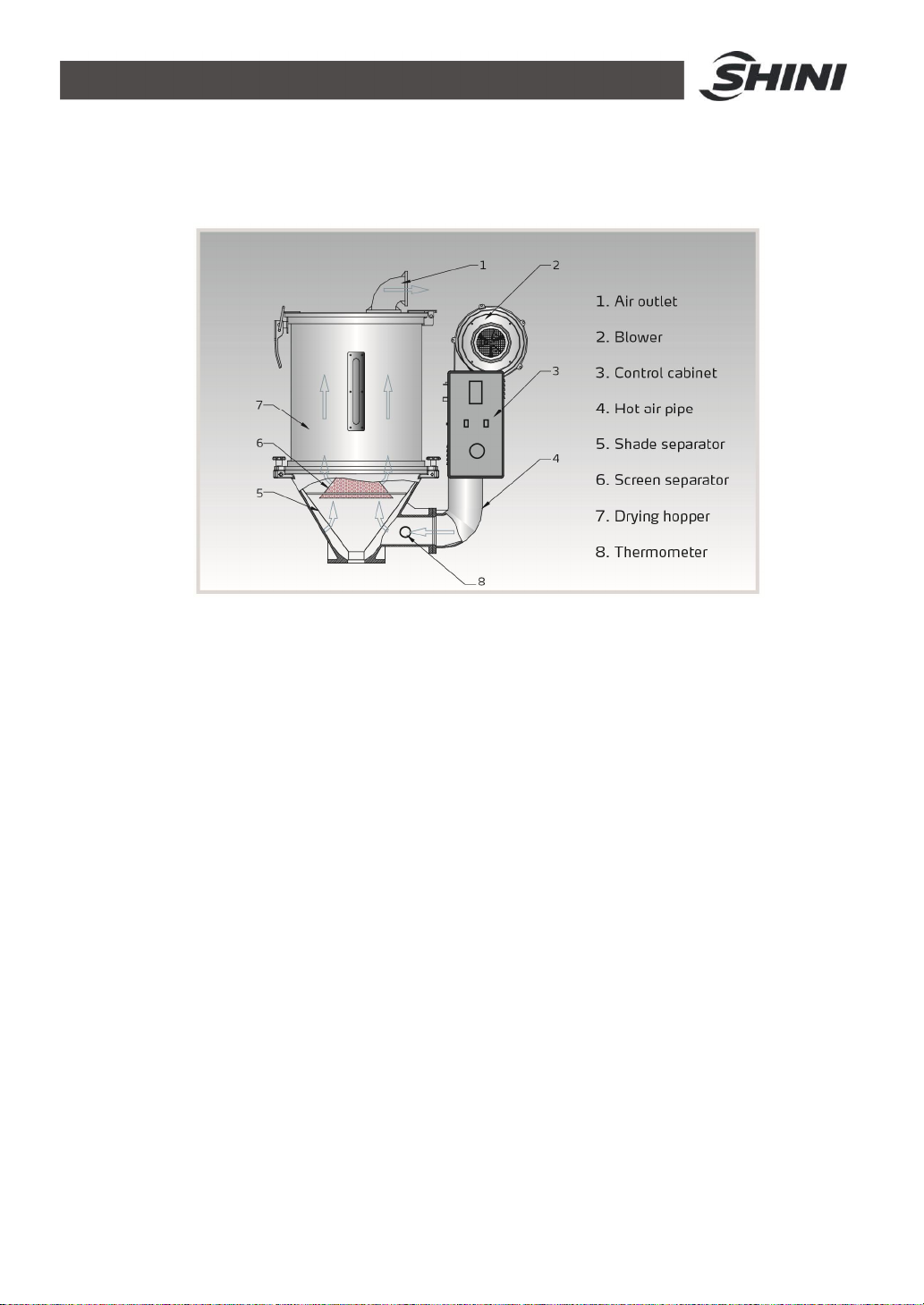

Picture2-1:WorkingPrinciple
Inthedryingprocess,hotair withconstanttemperatureisblownbyablowerinto
atwo-layerinsulated hoppertodrythe materials. Moisturewill be separatedout
and takenawaybyhot air, thustogainasatisfieddryingeffect.
Air blownoutofblowerbecamehightemperaturedryingair afterbeingheated.
Throughscreen protectorand holescreen,hotair can beequablydispersed in
thematerialofstorage tank(seepicture).Hotair recyclerisoptionalsotheair
enterdryingblowerafterbeingfilteredtoformaclosedloopcircleandsave
electricity.

14(27)
2.2Options
2.2.1MagneticBase
Model Applied to
MB-12EB SHD-12EB
MB-50 SHD-25EB~75EB
MB-100EB SHD-100EB~150EB
MB-200EB SHD-200EB~300EB
MB-400EB SHD-400EB
Made ofaluminumwithbuilt-inhoppermagnet, caneffectivelyseparatemetal
scrapsout toavoidmaterialcontamination.
2.2.2Hot Air Recycler
Model
Filtering
Barrel
Dia.
(mm)
Inlet Air
Pipe Dia.
(inch)
Flange of
AirOutlet
(inch)
Applied to
HAR-12 157 2 SHD-12EB
HAR-25EB 157 2.5 SHD-25EB
HAR-50 177 3 SHD-50EB/75EB
HAR-100EB 219 3 SHD-100EB/150EB
HAR-200EB 249 4 SHD-200EB/300EB
HAR-400EB 221 4 SHD-400EB
Workwithhopperdryertomakethe hotair formasemi-closed circulatedloop
and hasfeaturesasfollows
1)Hot air recyclingand circulatingavoidsindoortemperaturerisingup.
2)Keepair infactorycleanandensuregood product quality.
3)Theenergyconsumption canbereducedbyfast heatingspeedofthehot
air circulation, whichsaves40%of theenergy.

15(27)
2.2.3 Exhaust Air Filter
ModelApplicableModels
ADC-1 SHD-12EB
ADC-2EB SHD-25EB ~150EB
ADC-3EB SHD-200EB ~400EB
It caneffectivelyfilterthe dustair discharged fromthe dryertoprevent air
pollution, and the efficiencycan reach99%.
2.2.4BlowerInlet Filter
Model FilterDia.
（mm）
Height（mm） Applied to
AIF-12 157 195 SHD-12EB
AIF-25EB 157 195 SHD-25EB
AIF-50 177 201 SHD-50EB ~75EB
AIF-100EB 219 191 SHD-100EB ~150EB
AIF-200EB 249 168 SHD-200EB ~300EB
AIF-400EB 221 380 SHD-400EB
Note Refill air input oftheblowerisadjustable.
2.2.5HopperMagnet
Absorbmetalscrapsinthe materialtoavoidthe damageof moldingscrew.
2.2.6MaterialSuction Box/Shut-off Suction Box
Model Applied to
MR-5 SHD-12EB
MR-7 SHD-25EB~75EB
MR-9 SHD-100EB~400EB

16(27)
Notes 1)Installpneumaticshut off valve(add “V”at the endof themodelcode).
2) Changeintostainless steel material(add “S”atthe endofthe model code).
3) Stainless steelpolishing(add “P”at theendof themodel code)l
4) “S”standsforsingletubesuction boxand “D”standsfor doubletubessuction box.
2.2.7N-type FloorStand
ModelApplied toDimensionH WD(mm) A/ B / C (mm)
FSN-50 SHD-12EB~75EB 600 ×700 ×640 140/54/ 9
FSN-100 SHD-100EB/150EB 615 ×800 ×710 210/90/11
FSN-200 SHD-200EB/300EB 680 ×1000 ×840 210/90/11
FSN-400 SHD-400EB 700 ×1200 ×1010 260/116 /13
Withwhichmachinescan be easilymoved outofworkplacewhichissuitablefor
the factorieswithheightlimitedworkshops,alsoitcan makeoperationsmore
convenient.
Applied to
Model SHD-12EB~75EB SHD-100EB~400EB
SBU -20-38S -160-38S
SBU -20-50S -160-50S
SBU -20-38D -160-38D
SBU -20-50D -160-50D

17(27)
3. InstallationandDebugging
NotesforInstallationand Positioning
1)Machinejustcanbemountedinverticalposition.Makesurethere’snopipe,
fixed structureorotherobjectsabovethe installinglocation andaround the
machinewhichmayblock machine’sinstallation,hitobjectsorinjure
human person.
2)Inordertomaintainconvenient operation, it’ssuggested tokeep1mspace
aroundthe machine.Pleasekeepatleast 2mdistancebetweenthedevice
and theinflammablegoods.
3)Thisseriesofmodelsonlycouldbeappliedinworkingenvironmentwith
good ventilation.
3.1Direct Installation
Picture3-1: Direct Installation
Directinstallationtypeistomountthehopperdryerdirectlyon themolding
machine viaastandardbase.
When usingthemethod tomountthe dryer,the equippedstandardbasemust
accordingtomaterialinletdiameterofthe moldingmachinemountingdrill holes.
Then usethe screwtofastenthebaseandthemoldingmachineinlet.

18(27)
3.2Connectingthe Power Source
Openthecontrolboxand connect the powersourceinaccordancewithwiring
diagram. Noticeshouldbe takenconcerningif the powervoltageisincompliance
withthe required specifications,alsoif theswitchand load areproperand safe.
Notes:Beforeconnecting,themainswitchandheatswitchshouldbeoff.
3.3The Hopper DryerTest
Afterensuringall thecircuitshavebeen connected firmly,turnon theblower
switchto”ON”statusand turnon theheaterswitchon controlboxto “ON”status.
Then lightindicatoroftheswitchwouldturnon,observewhetherthe rotating
derectionofthe blowerissameasthe arrowindicated direction.Ifitisnot,
randomlyexchangetwoofthethreepowerfiringlinesandconnect themfirmly.
Picture3-2: Blower

19(27)
3.4InstallationoftheOptions
3.4.1Installation of Air-Exhaust Filter
If thematerialscontaindustortoavoidthedust-containair exhausted bydryer
pollutingtheworkshop’senvironment.Option withair-exhaustfilterADC can
filterthe exhausted air fromthe dryer. ADC can reachfilterefficiencyof99%.
ADC areinstalled on air-exhaustelbowofthe dryer.Pointittothe installed
holesthentightenupthe screws, userubberringtosealthe combined place.
Picture3-3: Left :Air-exhaust ElbowofDryer
Right: Air-exhaust Filter

20(27)
3.4.2SuctionBoxInstallation
Picture3-4: European SuctionBox
When installingthe SHD-EB on thefloorstand,the suction boxSBUisrequired,so
conveyorcan takeawaythe driedplastics.TheinstallationofEuropean suction
boxandshut-off suctionboxissimple,whicharemountedatthehopperbottom,
and itmust lock correspondingholeswithscrews.
Picture3-5: Shut-offSuctionBox
