Shire Paradise Bar User manual

© Paradise Bar 6x4
Version 1 051//025/2020 Julian Shepherd
These instructions are for your safety. Please read through them thoroughly before use.
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE
WEIGHT
165kg

Let’s
get started...
GB
IE
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
02
In more detail...
Parts List 06
Hardware chart 08
Before you start 09
12-23Assembly instructions
Detailed Technical Drawing 10-11
Fascia & Nail List 07

We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof,
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/ SCREW/ PIN HEADS PROUD: Tap home to be flush with surface of
timber
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
METAL: Replace.
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and reposition.
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and refit.
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and refit/discard.
Important!
Safety
IMPORTANT ! For your safety please read
carefully the safety warnings
Check that you have noted all the following instructions:
03

Getting Started…..
GB
IE
Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly
 Poor treatment application
 Poor care and maintenance
 Changes to the design
 Misuse
 General wear and tear.
Warranty...
10 Year anti rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass).
 This can be achieved using a timber, concrete or slab base.
 When using a concrete or slab base use damp proofing strips
under the bearers.
 The building must have been completely treated and sealed
immediately prior to or after assembly.
 The building must have been re-treated and re-sealed annually.
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change.
- Warping.
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1790mm x 1190mm
Total height clearance: 2178mm
Roof size: 1928mm wide x 2349mm deep
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, on to which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

Care, Maintenance and Recycling
1. Pallet and timber widely recycled
2. Cardboard widely recycled
3. Plastic strapping subject to local regulations
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any Silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled.
2. Metal fixings widely recycled.
3. Glass widely recycled.
4. Roofing felt not currently recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant.
(5) Regularly check your roofing felt for weather damage and leaks.
Getting Started…..
GB
IE
05
Recycling and disposal:

Stacked Parts List Scale 1:70 unless stated
Description
(part No ) - Qty
06

Fascia Bag Parts List no scale
Description
(part No ) - Qty
07

08

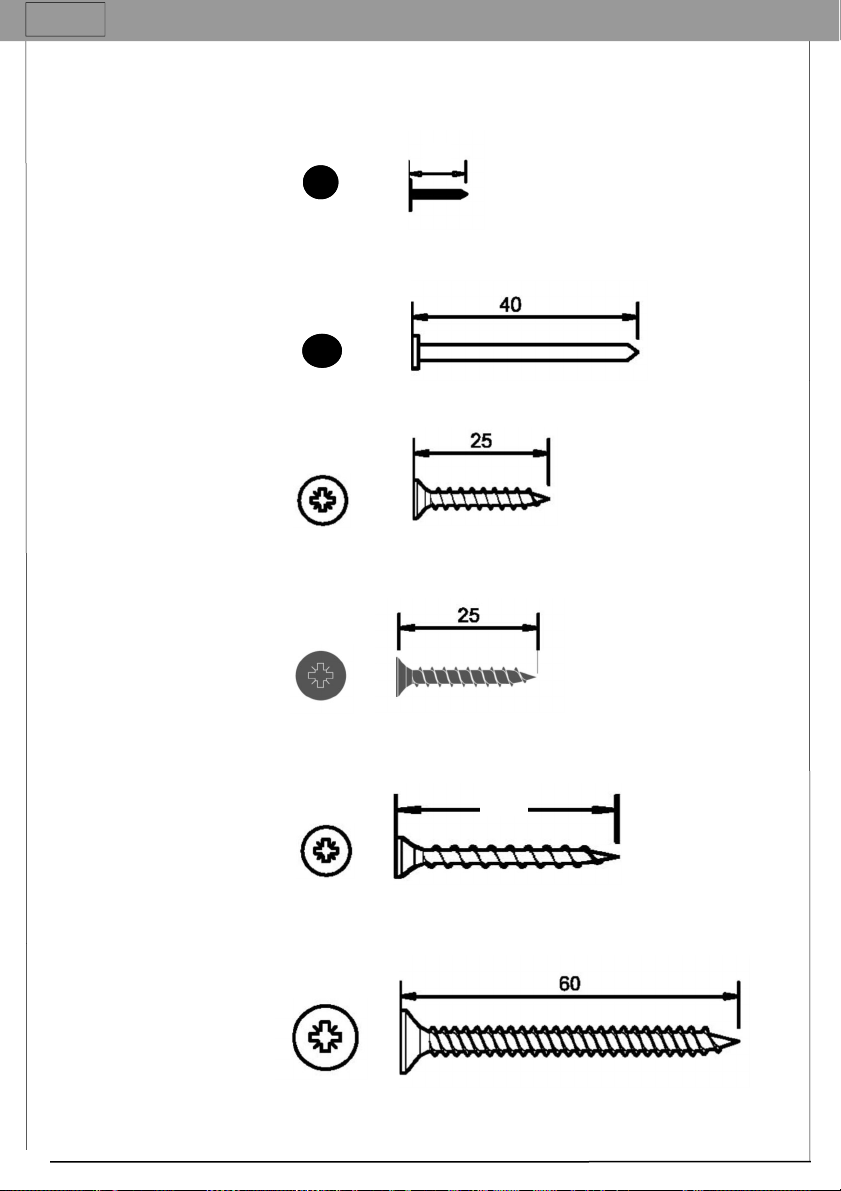

Hardware Chart
Scale 1:1
(A0025) x30
40mmRound head nail
(A0032) x16
25mm Posi-drive screw
(A0035) x38
60mm Posi-drive screw
Nail bag contents
Description --
(part No ) - qty:
13
(A0023) x96
13mmFelt Nail
(A0031 ) x12
Posi-drive screw
Black 25mm
(A0033) x04
40mm Posi-drive screw
40

09
Before you start...

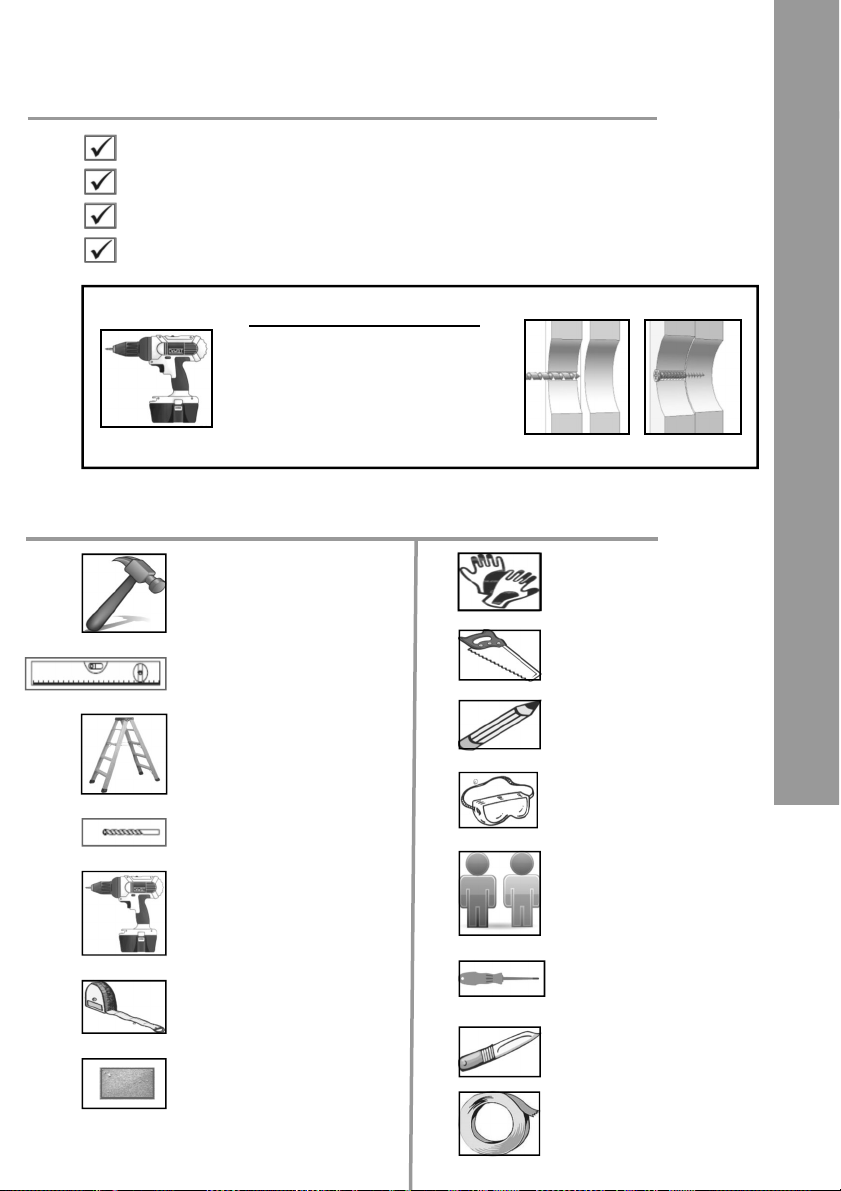

Things to check before you start:
Check all parts as listed in the parts lists
Read the instructions fully before starting work
Follow all the health and safety guidelines.
Ensure your base is ready – See page 4
You will need:
Hammer
Spirit level
Ladder
1mm 3mm 5mm 8mm
drill bits
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
Masking tape
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
6mm
In more detail…..
GB
IE

10
In more detail…..
GB
IE

11
In more detail…..
GB
IE

12
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!
GB-IE See page 4 for base recommendation. We have used concrete for our example.
Make sure the floor is situated as shown. The open long side of the floor is the front.
Door Panel
(A5003)x01
02
Front
Floor panel
(A0085)x01
GB-IE
Fit the lock bar and handles to the doors and unlock the door.
The Key is usually screwed to the panel or in the nail bag. Unlock the door and keep the key safe.
Front
25mm Black Screw
(A0031)x04
Black Knob set
(A2888)x02

13
Sutter
(A2439) x01
GB-IE

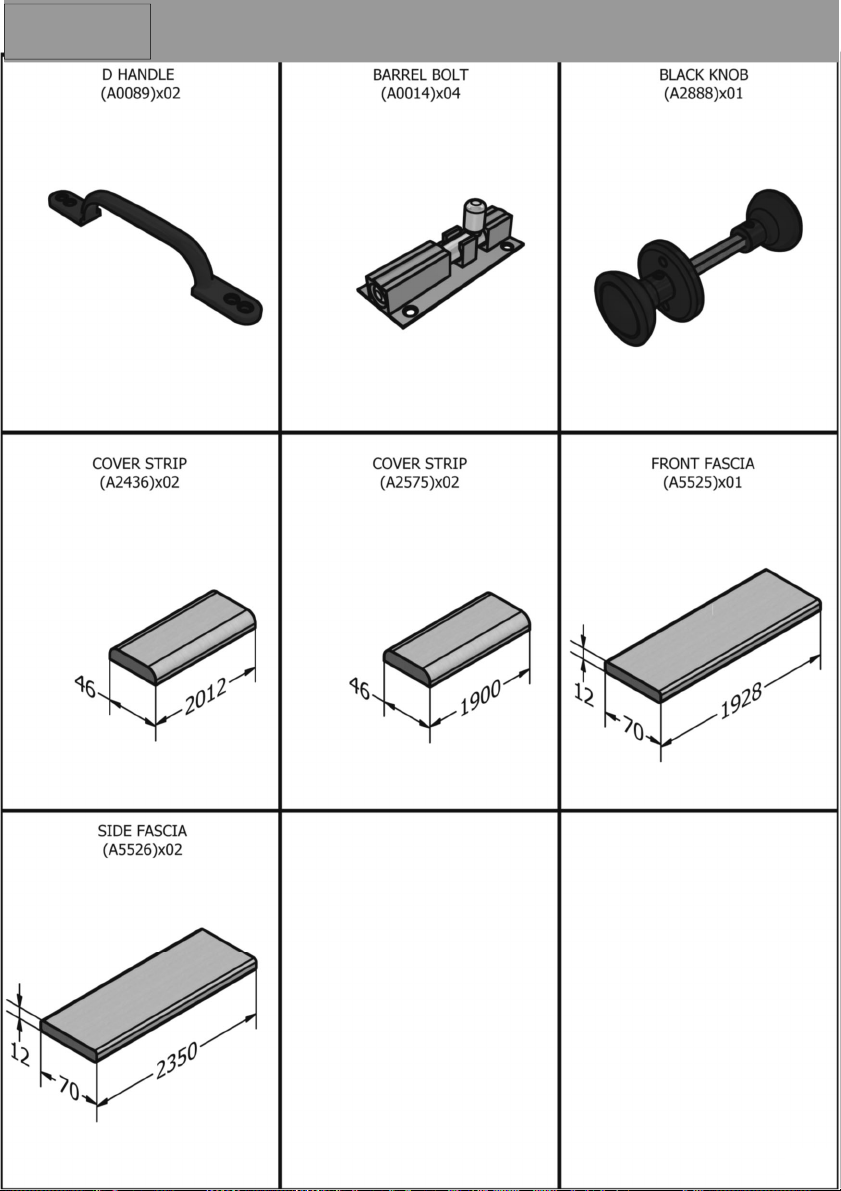

Fix the two D-handles A0089 to the outside of the shutter so the 25mm black screws go into the
framework .
Fix a A0014 Bolt at each corner framework with 4x25mm screws each
03
D-handle
(A0089) x02
Bolt
(A0014) x04
25mm Black Screw
(A0031)x08
25mmScrew
(A0032)x16

14
60mm Screws
(A0035)x03
Back Panel
(A5002) x01
GB-IE

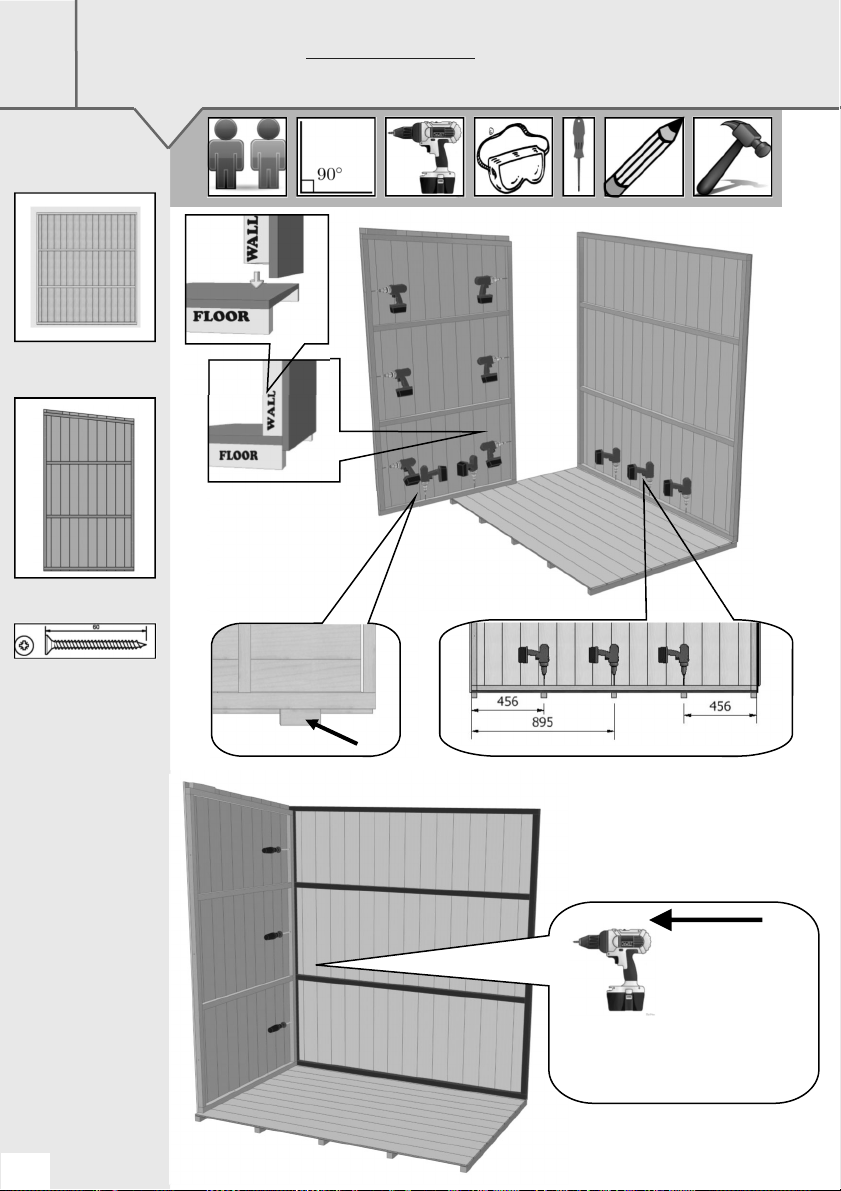

Remove the transport blocks from the bottom of the panels gently with a hammer.
Drill the panels as shown. Some of the holes will be used in later steps.
The Back panel A5002 fits the full length of the floor and the cladding overhangs the floor.
Push the Plain end A5005 up to it and ensure both panels are tight to the floor and the framework is flush
before fixing. Do not screw to the floor yet!
04
If using a drill or
electric screwdriver
carefully but firmly
push the opposite end
to the screwdriver bit
into the screw head
and keep the pressure on to prevent
the screwdriver spinning in the
screw.
Plain end
(A5005) x01
REMOVE
Transport blocks
5 mm

15
60mm Screws
(A0035)x03
Door Panel
(A5003) x01
GB-IE

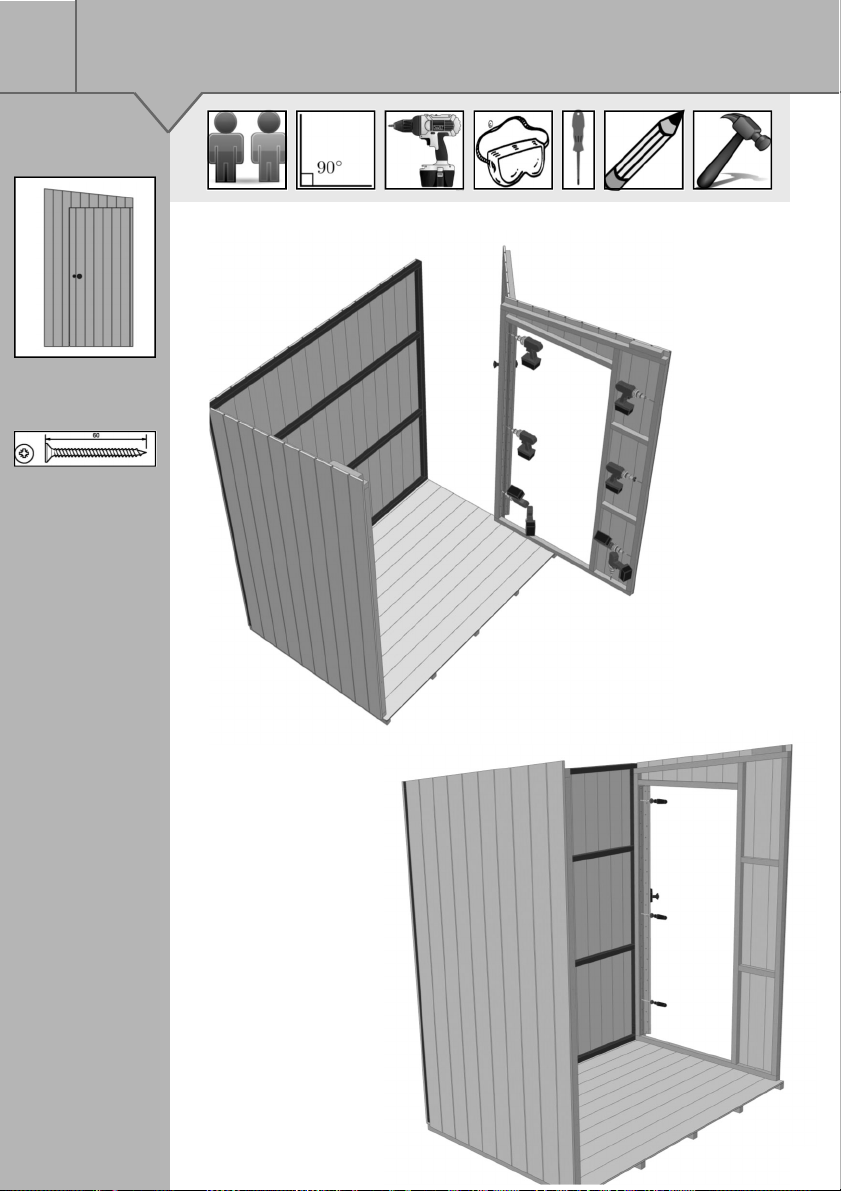

Again drill holes in both sides and the bottom of the door panel although only 3 holes are for this step.
Position the A5003 door panel flush and true as before.
Fix to the back with 3x 60mm screws.
05 5 mm

GB-IE
16
Front panel
(A2423) x01
Make sure all the wall panels are square and there are no framework gaps.
Make sure the panels cladding is against the floor
Fix to the floor with the 10 holes drilled previously.
07
GB-IE
The A2423 front panel needs no holes in the end framework
Again the bottom edge must be drilled inline with the floor framework
Like the back the front fits in front of the sides and runs the length of the floor.
Fix using the holes drilled in steps 4&5
06
60mmScrew
(A0035)x06
60mmScrew
(A0035)x10
5 mm

19
Roof
(A5004)x01
GB-IE
Position the A5004 Roof so the bearers with gaps are positioned with the gap over both ends cladding
and tight to the front wall.
Drill and fix the up the gable slopes into the bearers.
Drill through the front bearer and screw into the front.
08
GB-IE From the outside drill 4 places inline with the wall and fix with 60mm screws.
TIP– use a chalk line or string to mark the drill line.
09
60mmScrew
(A0035)x04
60mmScrew
(A0035)x05
5 mm
5 mm
Roof bearer with
gap each end
109mm
Roof bearer with
gap each end

2.0m Felt strip
(A2433)x01
18
GB-IE

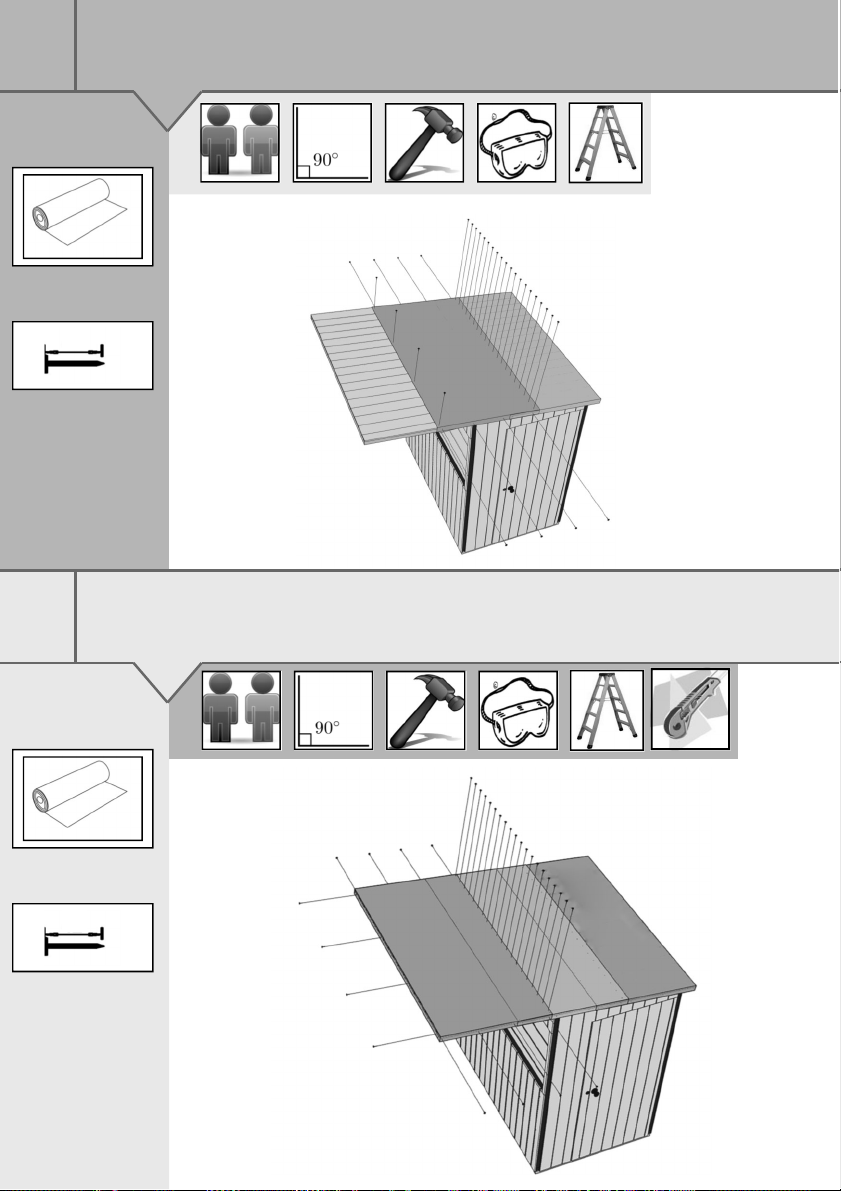

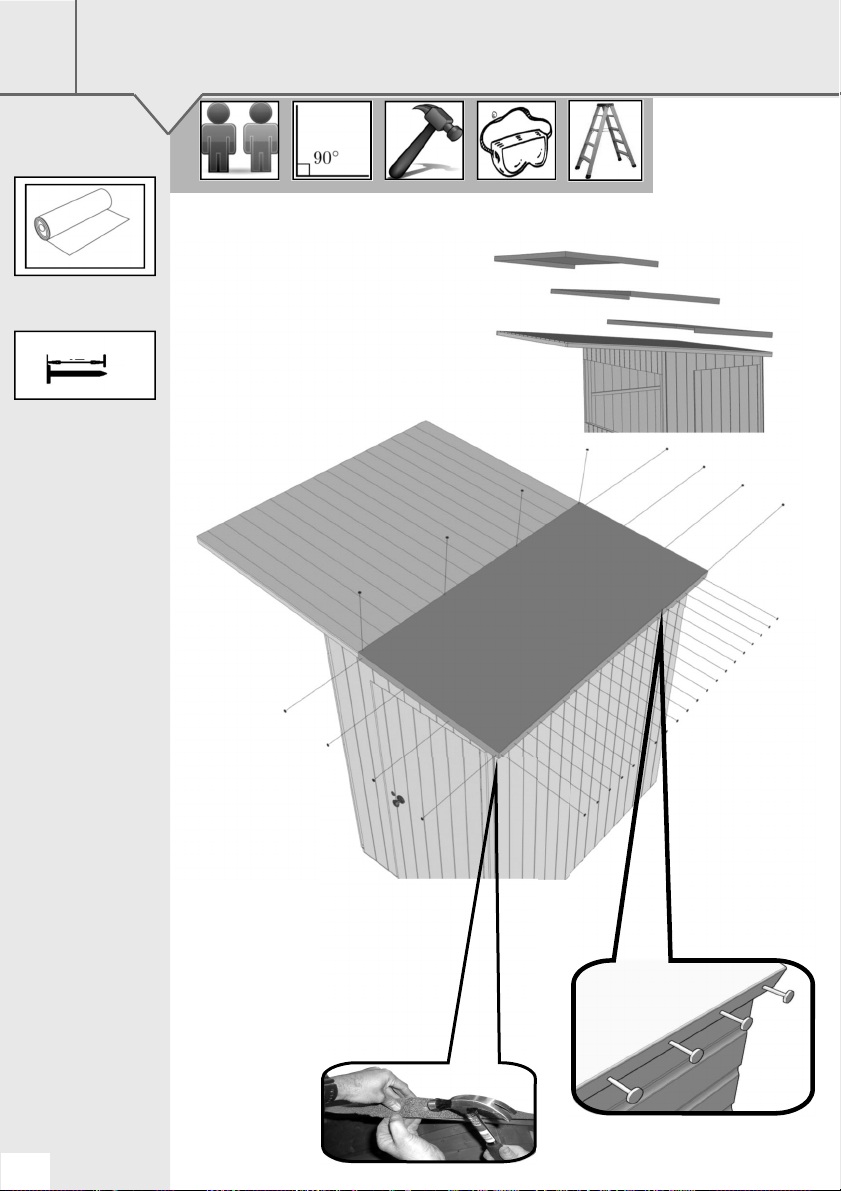

3 Strips of felt have been supplied. Fit the rear, lowest strip first folding the felt over the roof edging level
with the bottom edge and the same at one end with the excess at the other end.
Secure with a couple of nails at the top and ends to hold the felt in position.
On the back edge nail at approximately 100mm centres.
10
Tidying the corner
13
13mm Felt nails
(A0023) x32

19
GB-IE
The third piece fits the front the same as the first piece.
Nail at approximately 100mm centres as before at the join and four at each side and at the front.
Carefully trim the excess felt level with the bottom of the roof frame.
12
GB-IE
Measure how far the first piece of felt comes up the roof and mark this distance from the front.
Position the second piece of felt so it overlaps the bottom strip and the measurement mark evenly.
Nail at approximately 100mm centres at the lower edge and four at the top and sides to hold.
11
2.0m Felt strip
(A2433)x01
13
13mm Felt nails
(A0023) x32
2.0m Felt strip
(A2433)x01
13
13mm Felt nails
(A0023) x32

20
RH brace
(A2427) x01
GB-IE
Drill a hole through the short framework on the A2427 & A2428 braces.
Place some masking tape below the opening in the front at each outer edge and mark and drill two holes
either side as dimensioned below.
Align the braces flush with the opening and fix from the inside.
13
LH brace
(A2428) x01
3mm
40mmScrew
(A00033)x04
40
