ShowPro ALLIGATOR User manual

1
ALLIGATOR
MANUAL
LEDALL100

2
CONTENTS
SAFETY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
PHOTOMETRICS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
DIMENSIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
OVERVIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
CONNECTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
MENU - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
DMX CHART - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
PIXEL MAPPING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
TROUBLESHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23

3
SAFETY
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with care for future reference, it contains important information about the
installation, user and maintenance of the unit.
General instructions
- The products referred to in this manual conform to the European Community Directives and
are therefore marked with CE.
- The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled
personnel only. Never make any modifications on the unit not described in this instruction
manual, otherwise you risk an electric shock.
- Connection must be made to a power supply system fitted with efficient earthing (Class I
appliance according to standard EN60598-1). It is recommended to protect the supply lines
of the units from indirect contact and/or shorting by using appropriately sized residual current
devices.
- The connection to the main network of electric distribution must be carried out by a
qualified electrical installer. Check that the mains frequency and voltage correspond to those
for which the unit is designed as given on the electrical data label.
- This unit is not for home use, only use for professional applications.
- Never use the fixture under the following conditions:
• in places subject to vibrations or bumps;
• in places with a temperature of over 40 ℃.
- Make certain that no flammable liquids, water or metal objects enter the fixture.
- Do not dismantle or modify the fixture.
- All work must always be carried out by qualified technical personnel. Contact the nearest
sales point for an inspection or contact the manufacturer directly.
- If the unit is to be put out of operation definitively, take it to a local recycling plant for a
disposal which is not harmful to the environment.

4
Warnings and installation precautions
- If this device is operated in any way different to the way described in this manual, it may
suffer damage and the warranty becomes void. Any unauthorized operation may lead to
dangers like short circuit, burns, electric shock, etc.
- Before starting any maintenance work or cleaning the fixture, cut off power from the main
supply.
- Always additionally secure the fixture with a safety chain. When carrying out any work,
always comply scrupulously with all the regulations (particularly regarding safety) currently in
force in the country in which the fixture is being used.
- Install the fixture in a well-ventilated place.
- Keep any flammable materials at a safe distance from the fixture.
- Shields, lenses or ultraviolet screens shall be changed if they have become damaged to
such an extent that their effectiveness is impaired.
- The lamp (LED) shall be changed if it has become damaged or thermally deformed.
- Never look directly at the light beam. Note that fast changes in lighting, e.g. flashing lights,
may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
- Do not touch the product’s housing when operating because it may be very hot.
INTRODUCTION
Features
• Creative double-sided design provides flexible solutions for different applications
• Up to 9600lm (front beam/wash panel), up to 18000lm (back strobe panel)
• Speedy infinite pan/tilt movement
• Motorized wide-ranging zoom of 3~37°
• 4 dimming curves with 16-bit high resolution control
• Selectable PWM frequency for flicker-free video
• DMX, RDM and Art-Net control

5
SPECIFICATIONS
Light Source: Front panel: 7 x 60W RGBW 4-in-1 + 280W WW&CW
Back panel: 700W RGBW
Lumen Output: Front panel: up to 9600lm
Back panel: 18000lm
Lux Output: Front panel: 52000lux @ 3M
Back panel: 800lux @ 3M
Color Temperature: 2800~8000K
CRI: Ra ≥ 68
DUV: 0.0001 - 0.009
Wavelength: Front panel: R: 620nm G: 526nm B: 453nm
Back panel: R: 623nm G: 526nm B: 457nm
TM-30-15rg/rf: 98/83 TLCI: 70
LED Life: 20000 hrs
Beam Angle: Front panel: 3~37°
Back panel: 70°
Field Angle: Front panel: 4~51°
Back panel: 124°
Pan Movement: Infinite movement
Tilt Movement: Infinite movement
Color Mixing: Front panel: RGBW+WW+CW
Back panel: RGBW
Zoom: 3~37° motorized
Strobe: 0~30Hz
LED Refresh Rate: 600Hz/1200Hz/2000Hz/4000Hz/6000Hz/25kHz
Dimmer: 4 dimming curves, 0~100% adjustable
Mains: 100~240VAC, 50-60Hz
Consumption: 920W @ 230V (strobe: 1500W @ 230V)
Fuse: T15A
Power Connections: PowerCon In
Power Factor: 0.96 @ 230V
Protocol: DMX512/RDM/ArtNet
Data Connections: 3 or 5 pin XLR In/Out for DMX
RJ45 In/Out for ArtNet
DMX Channels: 26CH/50CH/84CH/98CH
Display: 2.83-inch TFT display
Housing: Flame-retardant nylon with black finish
Operating Tempt.: 0~45°
Cooling: Low noise fan for forced-air
IP Rate: IP20
Dimension: 713*244*451mm
Weight: 27kg

6

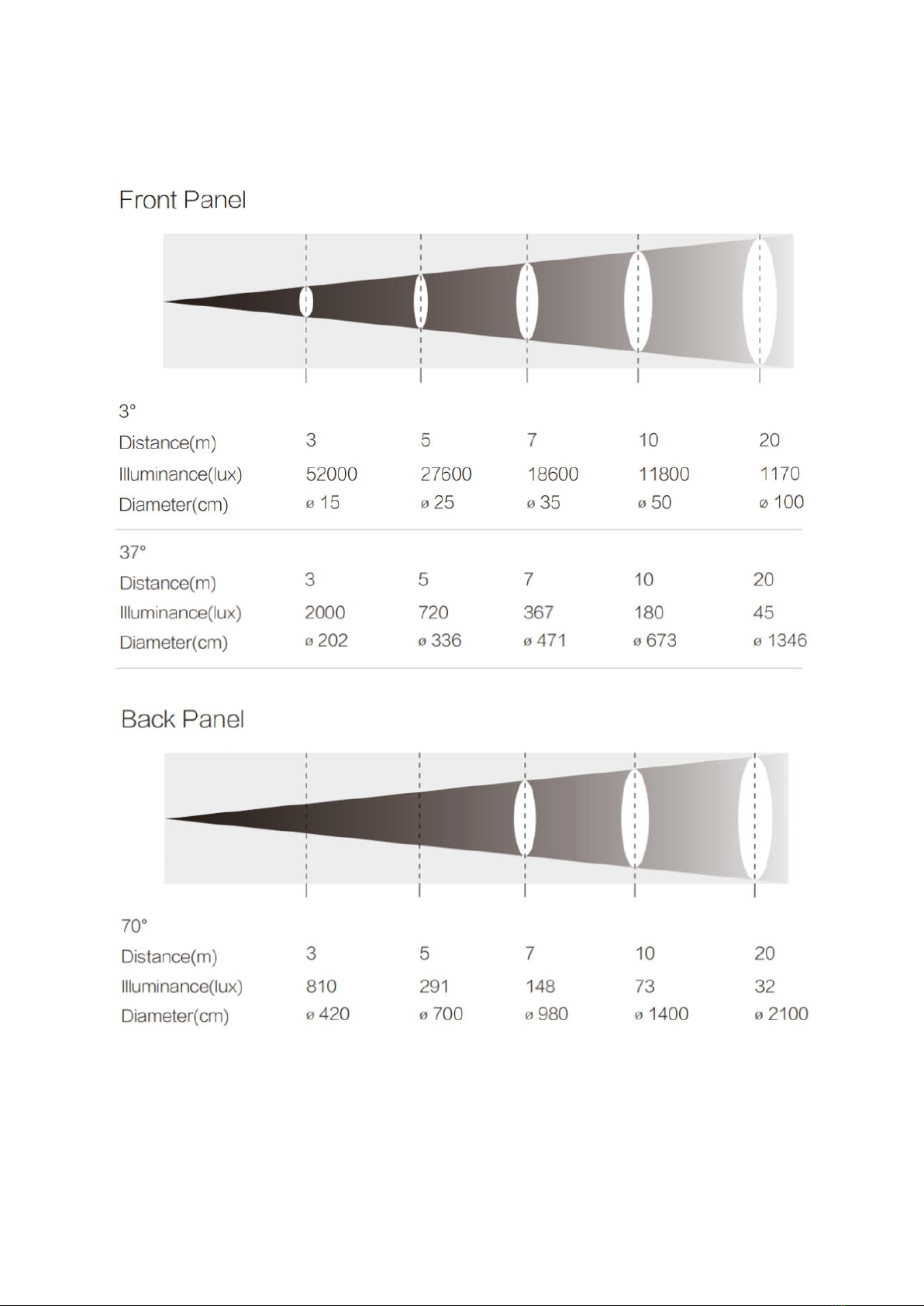

PHOTOMETRICS

7
DIMENSIONS

8
OVERVIEW

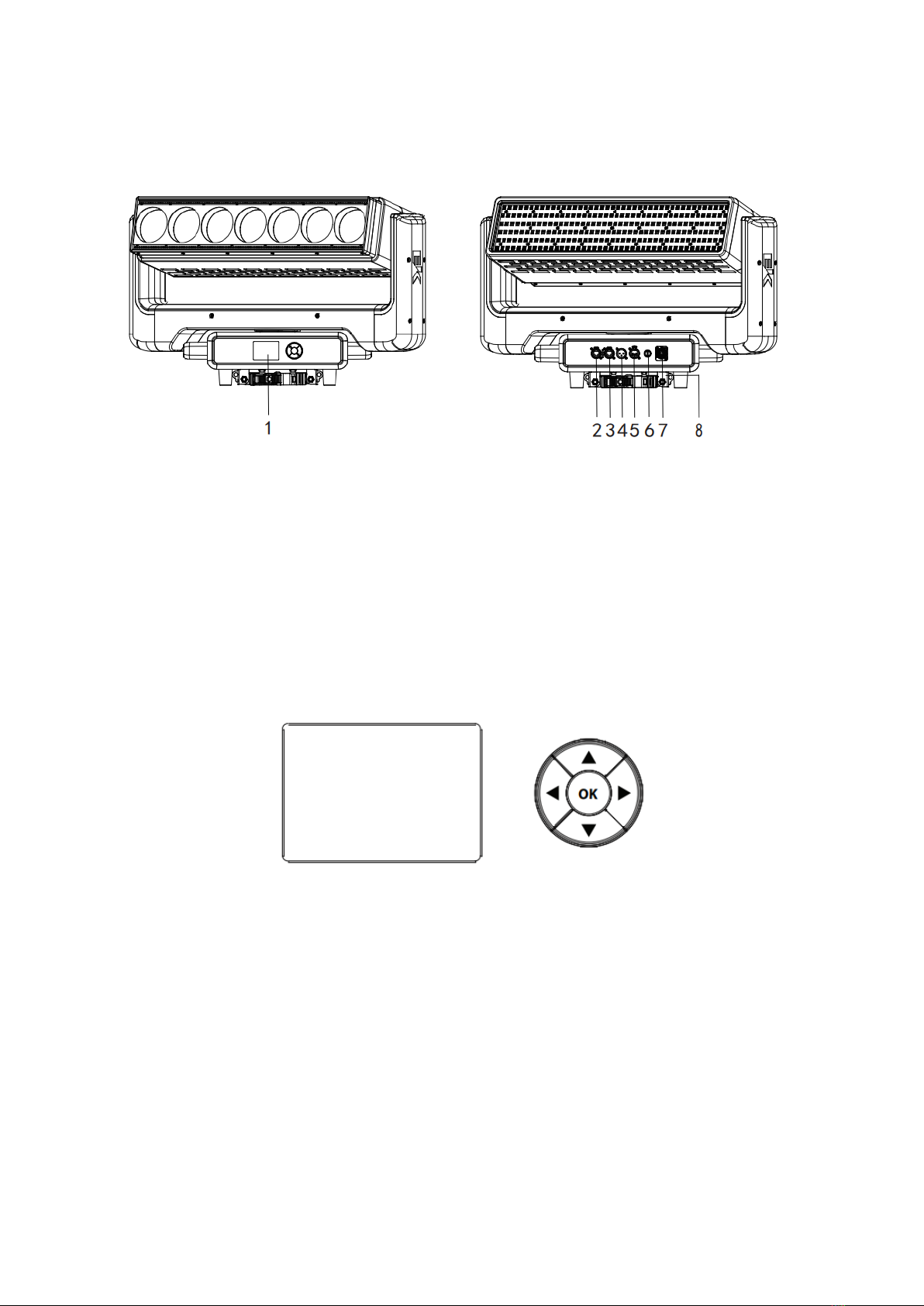

Fixture Illustration
1. Control Panel 6. Fuse
2/3. RJ45 for Art-Net 7. PowerCon Input
4. 3 or 5 Pin XLR Input for DMX 8. Clamp
5. 3 or 5 Pin XLR Output for DMX
Control Panel
If the panel is password-protected, go to the Advanced menu, in the Menu locking submenu,
and enter the unlock code using the navigation buttons: 1234
If you want to flip the display, hold UP + DOWN buttons for 3seconds to set display
orientation.

9
INSTALLATION
We recommend the following general guidelines below:
1. Always mount this product in a safe position and make sure there is adequate room
for ventilation, configuration and maintenance.
2. Keep any flammable materials a safe distance from the fixture, as indicated in the
safety notes.
3. Make sure that the device is not exposed to extreme heat, moisture or dust.
4. Make sure that the structure to which you are hanging the fixture can support the
weight.
Alligator may be set up on a solid and even surface. The unit can also be mounted upside
down to a cross arm. For mounting, stable mounting clamps are required. The mounting
place must be of sufficient stability and be able to support a weight of 10 times the unit’s
weight.
When carrying out any installation, always comply with all regulations (particularly regarding
safety) currently in force in the country in which the fixture is being used.
•Install the fixture at a suitable location by means of the mounting bracket.
•Always secure the fixture with safety chain to keep the fixture from falling. For this
purpose, fasten the safety chain in a suitable position so that the maximum fall of the
fixture will be 20 cm.
•Adjust the fixture and use the knob to slightly release or tighten the locking
mechanism of the bracket if necessary.

10
CONNECTION
Power Connection
Using Power Con In power cable
Attention: due to power rating, one power cable can connect 1 unit maximum
Do not connect more than 1 unit in series with one power cable.
Do not use with damaged power cable.
Power off the fixture when not in use.

11
Ethernet Connection
DMX Connection

12
DMX Connection
•Depending on the length of the DMX cable run, or other factors, it may be advisable
to install a terminator at the last fixture in the run.
•The illustration below shows the correct placement of a 120Ω 0.25W resistor in a
terminator, as well as the standard DMX signal pin connections
Example of DMX Addressing
The below table shows an example of starting addresses for four fixtures assuming a first
fixture with starting address of 001.
The actual starting addresses will be determined by the operator as needed to match
external controller settings.
MODE
ALLOCATION
ADDRESS
1st Fixture
ADDRESS
2nd Fixture
ADDRESS
3rd Fixture
ADDRESS
4th Fixture
26CH
001 – 026
001
027
053
079
Follow above method for subsequent fixtures, calculating addresses as indicated.

13
MENU
NO.
Main Menu
Menu Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Default
1
SETUP
DMX Address
1-512
1
DMX Channel
26CH
26CH
50CH
84CH
98CH
Protocol
DMX
DMX
ArtNet
DMX + ArtNet
ArtNet for color mixing only
Ethernet Interface
Universe
0-255
0
Start Channel
1-512
1
Custom IP Address
2.xxx.xxx.xxx
2.133.139.215
Custom IP Mask
255.0.0.0
255.0.0.0
Ethernet to DMX
No
No
Yes
2
OPTION
Movement Setting
Tilt Reverse
Off
Off
On
Encoder Pan/Tilt
Off
On
On
Display Setting
Warn Cue
Off
On
On
Backlight
Off
Off
On
Display Reverse
Off
Off
On
Key Lock
Off
Off
On
Fixture Setting
Fan Mode
Auto
Auto
Theatre
High
Dimmer Mode
Dimmer Mode 1
Dimmer Mode 1
Dimmer Mode 2
Dimmer Mode 3
Dimmer Mode 4
Dimmer Curve
Dimmer Curve 1
Dimmer Curve 2
Dimmer Curve 2
Dimmer Curve 3
Dimmer Curve 4
Dimmer Curve 5
PWM Frequency
600Hz
2000Hz
1200Hz
2000Hz
4000Hz
6000Hz
25000Hz
LED Reverse
Off
Off
On
Reset Setting
All
No
No
Yes
Pan/Tilt
No
No
Yes
Zoom
No
No
Yes
3
INFORMATION
System Errors
System Version
DISP: V1.0
CTR1-XY: V1.0
CTR2-LED1: V1.0
CTR3-LED2: V1.0
CTR4-LED3: V1.0
LED Hours
Total Hours
0~65000H
Partial Hours
0~65000H
Reset
Go Back
Fixture Hours
Total Hours
0~65000H
Partial Hours
0~65000H
Reset
Go Back
LED Temperature
LED A
LED B
LED C
UID
030F0AE*****

14
NO.
Main Menu
Menu Level 1
Menu Level 2
Menu Level 3
Menu Level 4
Default
4
TEST
AUTO
Pan/Tilt
Color
Zoom
All
Channel
1
Pan Rotation
0-255
2
Pan
0-255
3
Pan Fine
0-255
4
Tilt Rotation
0-255
5
Tilt
0-255
6
Tilt Fine
0-255
7
Zoom
0-255
8
Strobe
0-255
9
Dimmer
0-255
10
White Strobe
0-255
11
White Dimmer
0-255
12
Panel Strobe
0-255
13
Panel Dimmer
0-255
14
Device Setting
0-255
15
Red
0-255
16
Green
0-255
17
Blue
0-255
18
White
0-255
19
Top Cool White
0-255
20
Top Warm White
0-255
21
Bottom Cool White
0-255
22
Bottom Warm White
0-255
23
Panel Red
0-255
24
Panel Green
0-255
25
Panel Blue
0-255
26
Panel White
0-255
5
ADVANCED
(Code:1234)
Calibration
Tilt Offset
0-255
128
Pan Offset
0-255
128
Zoom Offset
0-255
128
Color Calibration
Factory Calibration
Red 1-7
125-255
Off
Green 1-7
125-255
Blue 1-7
125-255
White 1-7
125-255
Custom Calibration
Red 1-7
125-255
Off
Green 1-7
125-255
Blue 1-7
125-255
White 1-7
125-255
Recover
No
No
Yes

15
DMX CHART
26CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
1
1
Pan Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
2
2
Pan
000-255
Positioning from 0-540 Degrees (Indexing)
3
3
Pan Fine
000-255
4
4
Tilt Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
5
5
Tilt
000-255
Positioning from 0-270 Degrees (Indexing)
6
6
Tilt Fine
000-255
7
7
Zoom
000-255
Narrow to Wide Beam
8
8
Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
9
9
Dimmer
000-255
0~100%
10
10
White Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
11
11
White Dimmer
000-255
0~100%
12
12
Panel Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
13
13
Panel Dimmer
000-255
0~100%
14
14
Device Setting
000-025
No Function
026-076
Head Reset (Hold 5s)
077-127
Pan/Tilt Reset (Hold 5s)
128-178
Complete Reset (Hold 5s)
179-192
No Function
193-200
Dimmer Mode 1
201-208
Dimmer Mode 2
209-216
Dimmer Mode 3
217-224
Dimmer Mode 4
225-255
No Function
15
1
Red
000-255
0~100%
16
2
Green
000-255
0~100%
17
3
Blue
000-255
0~100%
18
4
White
000-255
0~100%
19
5
Top Cool White
000-255
0~100%
20
6
Top Warm White
000-255
0~100%
21
7
Bottom Cool White
000-255
0~100%
22
8
Bottom Warm White
000-255
0~100%
23
9
Panel Red
000-255
0~100%
24
10
Panel Green
000-255
0~100%
25
11
Panel Blue
000-255
0~100%
26
12
Panel White
000-255
0~100%

16
50CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
1
1
Pan Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
2
2
Pan
000-255
Positioning from 0-540 Degrees (Indexing)
3
3
Pan Fine
000-255
4
4
Tilt Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
5
5
Tilt
000-255
Positioning from 0-270 Degrees (Indexing)
6
6
Tilt Fine
000-255
7
7
Zoom
000-255
Narrow to Wide Beam
8
8
Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
9
9
Dimmer
000-255
0~100%
10
10
CTO
000-009
OFF
010-255
CTO 8000K~2700K
11
11
Background CTO
000-009
OFF
010-255
CTO 8000K~2700K
12
12
Effects
000-005
No Function
006-015
Effect 1
016-023
Effect 2
024-031
Effect 3
032-038
Effect 4
039-046
Effect 5
047-054
Effect 6
055-062
Effect 7
063-069
Effect 8
070-077
Effect 9
078-085
Effect 10
086-093
Effect 11
094-100
Effect 12
101-108
Effect 13
109-116
Effect 14
117-124
Effect 15
125-131
Effect 16
132-139
Effect 17
140-147
Effect 18
148-155
Effect 19
156-162
Effect 20
163-170
Effect 21
171-178
Effect 22
179-186
Effect 23
187-193
Effect 24
194-201
Effect 25
202-209
Effect 26
210-217
Effect 27
218-224
Effect 28
225-232
Effect 29
233-240
Effect 30
241-248
Effect 31
249-255
Effect 32
13
13
Effects Speed
000-124
Normal
125-130
Static
131-255
Dynamic
14
14
White Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
15
15
White Dimmer
000-255
0~100%
16
16
White CTO
000-009
OFF
010-255
CTO 8000K~2700K
17
17
White Background CTO
000-009
OFF
010-255
CTO 8000K~2700K

17
50CH Mode
DMX/NET
DMX/NET
DMX/NET
DMX/NET
DMX/NET
18
18
White Effects
000-005
No Function
006-015
Effect 1
016-023
Effect 2
024-031
Effect 3
032-038
Effect 4
039-046
Effect 5
047-054
Effect 6
055-062
Effect 7
063-069
Effect 8
070-077
Effect 9
078-085
Effect 10
086-093
Effect 11
094-100
Effect 12
101-108
Effect 13
109-116
Effect 14
117-124
Effect 15
125-131
Effect 16
132-139
Effect 17
140-147
Effect 18
148-155
Effect 19
156-162
Effect 20
163-170
Effect 21
171-178
Effect 22
179-186
Effect 23
187-193
Effect 24
194-201
Effect 25
202-209
Effect 26
210-217
Effect 27
218-224
Effect 28
225-232
Effect 29
233-240
Effect 30
241-248
Effect 31
249-255
Effect 32
19
19
White Effects Speed
000-124
Normal
125-130
Static
131-255
Dynamic
20
20
Panel Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
21
21
Panel Dimmer
000-255
0~100%
22
22
Panel Effects
000-005
No Function
006-015
Effect 1
016-023
Effect 2
024-031
Effect 3
032-038
Effect 4
039-046
Effect 5
047-054
Effect 6
055-062
Effect 7
063-069
Effect 8
070-077
Effect 9
078-085
Effect 10
086-093
Effect 11
094-100
Effect 12
101-108
Effect 13
109-116
Effect 14
117-124
Effect 15
125-131
Effect 16
132-139
Effect 17
140-147
Effect 18
148-155
Effect 19
156-162
Effect 20
163-170
Effect 21
171-178
Effect 22
179-186
Effect 23
187-193
Effect 24
194-201
Effect 25
202-209
Effect 26
210-217
Effect 27

18
50CH Mode
DMX/NET
DMX/NET
DMX/NET
DMX/NET
DMX/NET
22
22
Panel Effects
218-224
Effect 28
225-232
Effect 29
233-240
Effect 30
241-248
Effect 31
249-255
Effect 32
23
23
Panel Effects Speed
000-124
Normal
125-130
Static
131-255
Dynamic
24
24
Device Setting
000-025
No Function
026-076
Head Reset (Hold 5s)
077-127
Pan/Tilt Reset (Hold 5s)
128-178
Complete Reset (Hold 5s)
179-192
No Function
193-200
Dimmer Mode 1
201-208
Dimmer Mode 2
209-216
Dimmer Mode 3
217-224
Dimmer Mode 4
225-255
No Function
27
1
Red
000-255
0~100%
28
2
Green
000-255
0~100%
29
3
Blue
000-255
0~100%
30
4
White
000-255
0~100%
31
5
Background Red
000-255
0~100%
32
6
Background Green
000-255
0~100%
33
7
Background Blue
000-255
0~100%
34
8
Background White
000-255
0~100%
35
9
Top Cool White
000-255
0~100%
36
10
Top Warm White
000-255
0~100%
37
11
Bottom Cool White
000-255
0~100%
38
12
Bottom Warm White
000-255
0~100%
39
13
Background Top Cool White
000-255
0~100%
40
14
Background Top Warm White
000-255
0~100%
41
15
Background Bottom Cool White
000-255
0~100%
42
16
Background Bottom Warm White
000-255
0~100%
43
17
Panel Red
000-255
0~100%
44
18
Panel Green
000-255
0~100%
45
19
Panel Blue
000-255
0~100%
46
20
Panel White
000-255
0~100%
47
21
Background Panel Red
000-255
0~100%
48
22
Background Panel Green
000-255
0~100%
49
23
Background Panel Blue
000-255
0~100%
50
24
Background Panel White
000-255
0~100%
84CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
1
1
Pan Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
2
2
Pan
000-255
Positioning from 0-540 Degrees (Indexing)
3
3
Pan Fine
000-255
4
4
Tilt Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
5
5
Tilt
000-255
Positioning from 0-270 Degrees (Indexing)
6
6
Tilt Fine
000-255
7
7
Zoom
000-255
Narrow to Wide Beam
8
8
Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
9
9
Dimmer
000-255
0~100%
10
10
White Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe

19
84CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
10
10
White Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
11
11
White Dimmer
000-255
0~100%
12
12
Panel Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
13
13
Panel Dimmer
000-255
0~100%
14
14
Device Setting
000-025
No Function
026-076
Head Reset (Hold 5s)
077-127
Pan/Tilt Reset (Hold 5s)
128-178
Complete Reset (Hold 5s)
179-192
No Function
193-200
Dimmer Mode 1
201-208
Dimmer Mode 2
209-216
Dimmer Mode 3
217-224
Dimmer Mode 4
225-255
No Function
15
1
Red 1
000-255
0~100%
16
2
Green 1
000-255
0~100%
17
3
Blue 1
000-255
0~100%
18
4
White 1
000-255
0~100%
19
5
Red 2
000-255
0~100%
20
6
Green 2
000-255
0~100%
21
7
Blue 2
000-255
0~100%
22
8
White 2
000-255
0~100%
23
9
Red 3
000-255
0~100%
24
10
Green 3
000-255
0~100%
25
11
Blue 3
000-255
0~100%
26
12
White 3
000-255
0~100%
27
13
Red 4
000-255
0~100%
28
14
Green 4
000-255
0~100%
29
15
Blue 4
000-255
0~100%
30
16
White 4
000-255
0~100%
31
17
Red 5
000-255
0~100%
32
18
Green 5
000-255
0~100%
33
19
Blue 5
000-255
0~100%
34
20
White 5
000-255
0~100%
35
21
Red 6
000-255
0~100%
36
22
Green 6
000-255
0~100%
37
23
Blue 6
000-255
0~100%
38
24
White 6
000-255
0~100%
39
25
Red 7
000-255
0~100%
40
26
Green 7
000-255
0~100%
41
27
Blue 7
000-255
0~100%
42
28
White 7
000-255
0~100%
43
29
Cool White 1
000-255
0~100%
44
30
Warm White 1
000-255
0~100%
45
31
Cool White 2
000-255
0~100%
46
32
Warm White 2
000-255
0~100%
47
33
Cool White 3
000-255
0~100%
48
34
Warm White 3
000-255
0~100%
49
35
Cool White 4
000-255
0~100%
50
36
Warm White 4
000-255
0~100%
51
37
Cool White 5
000-255
0~100%
52
38
Warm White 5
000-255
0~100%
53
39
Cool White 6
000-255
0~100%
54
40
Warm White 6
000-255
0~100%
55
41
Cool White 7
000-255
0~100%
56
42
Warm White 7
000-255
0~100%
57
43
Panel Red 1
000-255
0~100%
58
44
Panel Green 1
000-255
0~100%
59
45
Panel Blue 1
000-255
0~100%
60
46
Panel White 1
000-255
0~100%
61
47
Panel Red 2
000-255
0~100%
62
48
Panel Green 2
000-255
0~100%
63
49
Panel Blue 2
000-255
0~100%
64
50
Panel White 2
000-255
0~100%
65
51
Panel Red 3
000-255
0~100%
66
52
Panel Green 3
000-255
0~100%

20
84CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
67
49
Panel Blue 3
000-255
0~100%
68
50
Panel White 3
000-255
0~100%
69
43
Panel Red 4
000-255
0~100%
70
44
Panel Green 4
000-255
0~100%
71
45
Panel Blue 4
000-255
0~100%
72
46
Panel White 4
000-255
0~100%
73
47
Panel Red 5
000-255
0~100%
74
48
Panel Green 5
000-255
0~100%
75
49
Panel Blue 5
000-255
0~100%
76
50
Panel White 5
000-255
0~100%
77
43
Panel Red 6
000-255
0~100%
78
44
Panel Green 6
000-255
0~100%
79
45
Panel Blue 6
000-255
0~100%
80
46
Panel White 6
000-255
0~100%
81
47
Panel Red 7
000-255
0~100%
82
48
Panel Green 7
000-255
0~100%
83
49
Panel Blue 7
000-255
0~100%
84
50
Panel White 7
000-255
0~100%
98CH Mode
DMX/NET
DMX+NET
Function
Value
Setting
1
1
Pan Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
2
2
Pan
000-255
Positioning from 0-540 Degrees (Indexing)
3
3
Pan Fine
000-255
4
4
Tilt Rotation
000-003
Indexing
004-129
Fast to Slow (Forward Spin)
130-255
Slow to Fast (Reverse Spin)
5
5
Tilt
000-255
Positioning from 0-270 Degrees (Indexing)
6
6
Tilt Fine
000-255
7
7
Zoom
000-255
Narrow to Wide Beam
8
8
Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
9
9
Dimmer
000-255
0~100%
10
10
White Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
11
11
White Dimmer
000-255
0~100%
12
12
Panel Strobe
000-003
OFF
004-103
Strobe Slow (1Hz) to Fast (25Hz)
104-107
Open
108-207
Pulse from Slow (1Hz) to Fast (25Hz)
208-212
Open
213-225
Random Slow Strobe
226-238
Random Medium Strobe
239-251
Random Fast Strobe
252-255
Open
13
13
Panel Dimmer
000-255
0~100%
14
14
Device Setting
000-025
No Function
026-076
Head Reset (Hold 5s)
077-127
Pan/Tilt Reset (Hold 5s)
128-178
Complete Reset (Hold 5s)
179-192
No Function
193-200
Dimmer Mode 1
201-208
Dimmer Mode 2
209-216
Dimmer Mode 3
217-224
Dimmer Mode 4
225-255
No Function
15
1
Red 1
000-255
0~100%
16
2
Green 1
000-255
0~100%
17
3
Blue 1
000-255
0~100%
18
4
White 1
000-255
0~100%
