ANIUSB-Matrix
Audio Network Interface
General Description
The ANIUSB-MATRIX Audio Network Interface provides connections for USB, Dante™, and
analog audio sources. Collaborate and connect with all audio devices on a single network,
with support for wireless microphones, computers, mobile devices, video codecs, and
loudspeaker systems. Connect with a single network cable to receive audio and power
through Power over Ethernet (PoE). A browser-based web application controls audio and
network settings from any computer connected to the same network.
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate
ventilation and install in accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat. Do not place any
open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wider blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Publications User Guides ANIUSB-Matrix (English)
› ›
English
Table of Contents
General Description
Safety Information
Getting Started
Hardware and Installation
Device Identification
Signal Flow and Connections
Audio Settings
Using A Password
Networking and Dante
ANIUSB Command Strings
Troubleshooting
Important Product
Information
Specifications
Accessories

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 2 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
13. UNPLUG this apparatus during lightning storms or when unused for long periods of
time.
14. REFER all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled
with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet
with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury and/or
product failure.
21. Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are important operating and maintenance
instructions in the literature accompanying this unit.
Getting Started
This device features a browser-based web application, which controls audio and network
properties. Upon completing this basic setup process, you will be able to:
Access the web application to customize audio settings, signal routing, and network
properties

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 3 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Use Dante Controller software to connect with other Dante devices and pass audio
Access additional configuration information

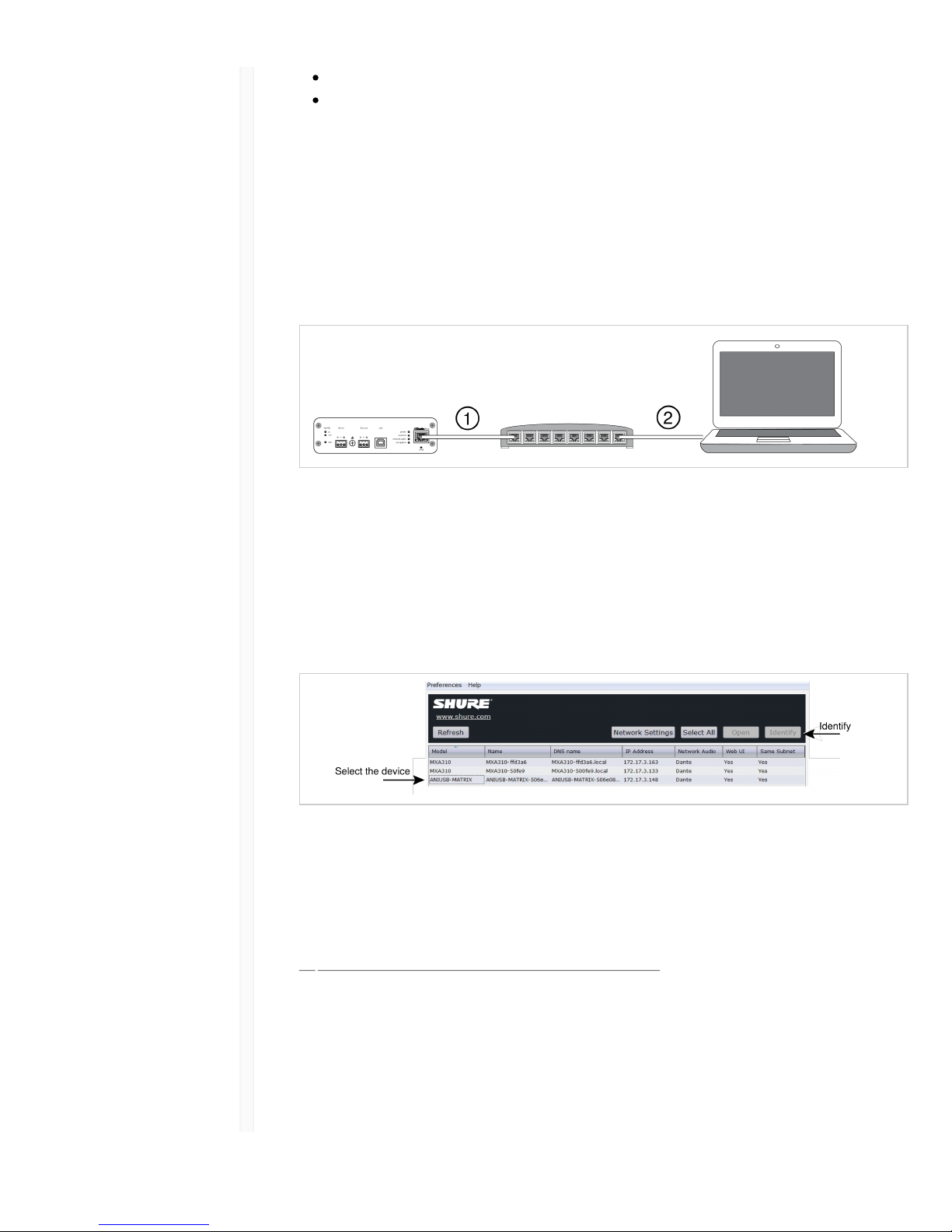

Step 1: Connect to a Network
1. Use an Ethernet cable (CAT5e or higher) to connect the ANIUSB-MATRIX to a network
switch.
Note: The network switch must provide Power over Ethernet (PoE). Make sure to
connect to a PoE port, since many switches do not supply power on all ports.
2. Connect a computer to the network switch with an Ethernet cable
Step 2: Access the Web Application
1. Download and install the Shure Device Discovery application (http://www.shure.com)
2. Open the Shure Device Discovery application
3. Double-click the device to open the web application.
Tip: If setting up multiple Shure devices, use the Identify button in the application to
flash the lights on the device.
Step 3: Connect Devices in Dante Controller Software
1. Download and install Dante Controller Software from http://www.audinate.com
2. Use Dante Controller to create connections with other Dante devices
Note: Refer to the Dante Controller user guide for more information on channel routing (available at
http://www.audinate.com/resources/technical-documentation)
Example: Connecting the ANIUSB-MATRIX and Shure MXA310

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 4 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
1. Find the MXA310 in the list of Dante transmitters, and select the plus sign (+) to show
all channels.
2. Find the ANIUSB-MATRIX in the list of Dante receivers, and select the plus sign (+) to
show all channels.
3. Check the box where the MXA310 AUTOMIX OUT and the ANIUSB-MATRIX DANTE
INPUT 1 intersect
Step 4: Configure Audio
The final configuration steps will vary, depending on the devices used with the ANIUSB-
MATRIX. These steps may include:
Connecting analog and USB audio devices
Using the matrix mixer to customize signal routing
Adjusting input and output levels
Viewing the entire signal path and modifying settings in schematic view
Applying equalization to maximize speech clarity
For these steps, comprehensive information is available in the help section of the web
application.

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 5 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Example: Connecting Loudspeakers, Wireless Microphones, and a Computer

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 6 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
1. Connect analog equipment (such as loudspeakers or wireless microphone systems) to
the analog input and output. Refer to the hardware section in this guide for
information on connections and LED metering.
2. Connect a computer to the USB port
3. In the ANIUSB-MATRIX web application, open the matrix mixer to make connections
between devices.
Note: Some connections are established in the matrix mixer by default. Refer to the
matrix mixer help topic in the web application for additional information.
4. In the ANIUSB-MATRIX web application, adjust input and output levels and perform a
sound check. Refer to the help topics in the web application for additional
information.
Get More Information
Now that the basic setup is complete, you should have access to the web application and
be able to pass audio between devices. More comprehensive information is available
online and in the help section, including:
Maximizing audio quality with the built-in parametric equalizer
External control system command strings
Signal routing
System scenario diagrams
Software configuration
Networking information
Troubleshooting
Replacement parts and accessories
The complete user guide is available at http://pubs.shure.com/guide/ANIUSB-MATRIX
Hardware and Installation
Rear Panel
ɠ Level Indicators
(Signal/Clip)
Tri-color LEDs indicate the audio signal level for the analog
channels and connectivity status for the USB channel. Adjust

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 7 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
output levels in the web application to avoid clipping.
Analog Input/Output
LED State Audio Signal
Level
Off less than -60
dBFS
Green -60 dBFS to
-18 dBFS
Yellow -18 dBFS to -6
dBFS
Red -6 dBFS or
more
Note: The input and output LEDs stay off when metering is set to Post
Fader and the channel is muted in the web application.
USB Audio
LED State Status
Off No USB device connected
Green USB device operating
successfully
Red (flashing) Problem detected with
connected USB audio device
ɡ Audio Input (Block
Connector)
Block Pin Assignments:
Audio +
Audio -
Audio
ground
ɢ Chassis Ground
Screw
Provides an optional connection for microphone shield wire to
chassis ground.
ɣ Audio Output
(Block Connector)
Balanced audio output connects to an analog device. Set the
output level in the web application to match the input sensitivity of
the analog device.Note: See front panel labels for block connector
assignments.
ɤ USB Port Connects to a computer to send and receive any combination of

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 8 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
input and output audio channels.
ɥ LED Indicators Power: Power over Ethernet (PoE) present
Note: Note: Use a PoE injector if your network switch does not supply PoE.
Network: Network connection active
Network Audio: Dante audio present on the network
Note: Error details are available in the event log in the web application.
Network Audio LED Behavior
LED Status Activity
Off No active signal
Green Device is operating
successfully
Red Error has occurred. See
event log for details.
Encryption:
LED Status Activity
Off Audio not encrypted
Green Successful encrypted audio
connection with another device
Red Encryption error. Possible
causes:
Encryption is enabled on
one device and not on
another
Passphrase mismatch
ɦ Dante Network
Port
Connects to a network switch to receive Dante audio, Power over
Ethernet (PoE), and data from the control software.
ɧ Reset Button Resets the device settings back to the factory default
Power Over Ethernet (PoE)
This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE
sources.
Power over Ethernet is delivered in one of the following ways:
A network switch that provides PoE
A PoE injector device
Reset
The reset button is located inside a small hole in the rear panel. Use a paperclip or other

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 9 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
small tool to press the button.
There are two hardware reset functions:
Network reset (press
button for 4-8
seconds)
Resets all Shure control and audio network IP settings to factory
defaults
Full factory reset
(press button for
longer than 8
seconds)
Restores all network and web application settings to the factory
defaults.
Software Reset Options
To simply revert settings without a complete hardware reset, use one of the following
options:
Reboot Device:In the web application (settings > factory reset), there is a Reboot Device
button, which simply power-cycles the device as if it were unplugged from the network. All
settings are retained when the device is rebooted.
Default Settings: To revert audio settings back to the factory configuration (excluding
Device Name, IP Settings, and Passwords), select Load Preset and choose the default
settings preset.

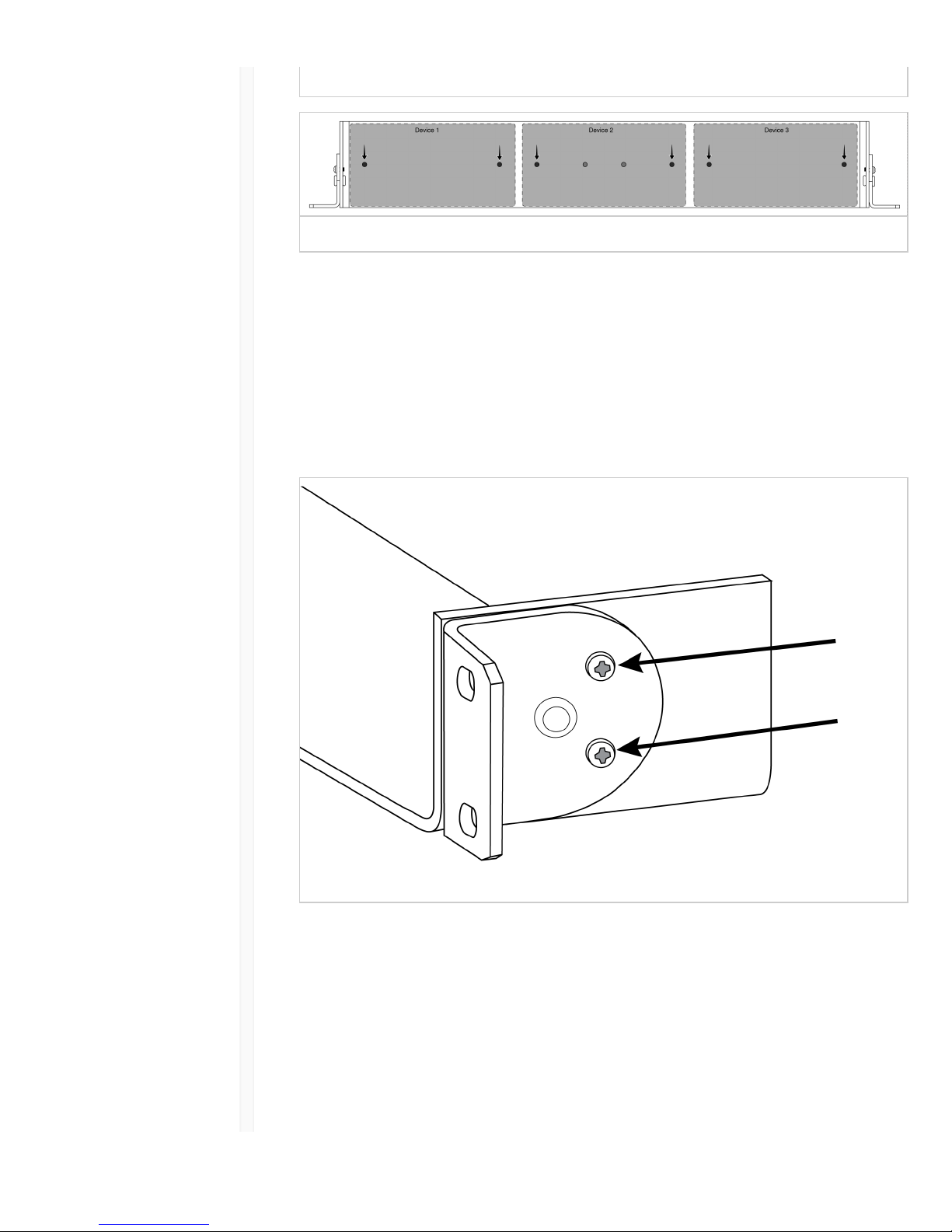

Installation and Rack Mounting
Two mounting solutions are available for installing the Audio Network Interface:
CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or
under a table
Single-unit Mounting Tray (included accessory): Supports a single device for mounting
under a table
Securing the Devices
Use the included screws from the mounting hardware kit to secure the Audio Network
Interfaces. Audio Network Interfaces can be mounted to face either direction. Insert the
screws from the bottom in the appropriate holes, according to the following diagrams:

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 10 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Align the holes as shown for securing a single device in the single-unit mounting tray
Align the holes as shown for securing up to three devices in the 19" rack tray.
Rack Ear Configuration
A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch
rack space. The adjustable rack ears support mounting in a standard equipment rack or
underneath a table.
Standard 19" Rack Mount
1. Align the ears with the mounting holes pointed forward.
2. Install the two screws that hold the ear to the tray as shown.
Under-table Mounting
1. Align the ears with the mounting holes pointed upward.
2. Install the two screws that hold the ear to the tray as shown.

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 11 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Installing Underneath a Table
1. Hold the tray in the desired location under a table
2. Use a pencil to mark the location of the mounting holes on the table.
3. Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
4. Install the components into the tray
5. Install with 4 screws to secure the tray underneath the table
Device Identification
To identify the hardware by flashing the lights, select the Identify button in the device
options section.
Signal Flow and Connections
Connections and Signal Flow

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 12 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
ɠ Computer Compatible with Mac and PC
The host computer sends and receives audio through
conferencing software. All signals are passed through a single USB
connection, with input sources and output devices (dante and
analog) routed through Dante Controller.
ɡ Analog Input
Sources
Analog sources (such as wireless microphones or any line-level
devices) connect to the analog line input.
ɢ Analog Output
Devices
Loudspeakers, amplifiers, or recording devices connect to the
analog line output.
ɣ Dante-enabled
Equipment
Dante microphones, such as the Shure Microflex Advance ceiling
and table arrays connect to the network switch and can be routed
through the USB channel on the ANIUSB.

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 13 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
ɤ Control CPU A computer connected to the network accesses the web
application to control the channel levels and processing.
ɥ Network Switch The network switch provides Power over Ethernet (PoE) to the
ANIUSB, while also supporting all other Dante-enabled audio
equipment.
Connecting a USB Device
The USB port connects the host computer to the entire room audio system, including
microphones and loudspeakers.
When the ANIUSB-MATRIX is connected for the first time, the computer recognizes it as a
USB audio device. You may need to select it as the input/output (recording/playback)
device to pass audio. Assign the ANIUSB-MATRIX as the default device to ensure it passes
audio every time it is plugged in. Refer to the manual for your computer to configure the
audio settings.
Adapter Compatibility
This device is compatible with USB-B to USB-C adapters. Using an adapter is only
recommended for desktop and laptop computers, as many mobile devices do not support
bi-directional audio through USB or lightning ports.
Routing Audio Channels Through the USB Port
Audio channel routing is managed through Dante Controller software and the matrix mixer
in the ANIUSB-MATRIX web application.
Step one: Dante Controller
1. Open Dante Controller and route Dante-enabled devices (such as Microflex®Advance™
and Microflex Wireless microphones) to the ANIUSB-MATRIX Dante receive channels.
Name the channels in the ANIUSB-MATRIX web application to keep track of devices.
2. If the ANIUSB-MATRIX needs to send channels to Dante-enabled devices (such as an
amplifier, loudspeaker, or recording device on the network), route the ANIUSB-
MATRIX Dante transmit channels to the appropriate receiving devices in Dante
Controller.
Step two: matrix mixer
1. Open the matrix mixer section in the ANIUSB-MATRIX web application to route Dante
and analog channels through the USB port.
2. Assign the USB Input channel (far-end audio) to the appropriate outputs. If recording
a meeting, be sure to route the near end microphones in addition to the USB input to
the recording device.
Note: Refer to the matrix mixer topic for additional information and signal routing examples.
Encryption
Audio is encrypted with the Advanced Encryption Standard ( AES -256), as specified by

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 14 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
the US Government National Institute of Standards and Technology (NIST) publication
FIPS-197. Shure devices that support encryption require a passphrase to make a
connection. Encryption is not supported with third-party devices.
To activate encryption:
1. Open the Settings menu and select the General tab.
2. Select the Enable Encryption checkbox.
3. Enter a passphrase. All devices must use the same passphrase to establish an
encrypted connection.
Important: For encryption to work:
Encryption must be universally enabled or disabled on all connected Shure devices
AES67 must be disabled in Dante Controller to turn encryption on or off. AES67
encryption is currently not supported.
Audio Settings
Schematic View
The schematic view in the web application provides an overview of the entire signal chain,
with the ability to adjust settings and monitor signals.
Adjusting Settings
Right-click an input, output, or processing block to access the following options:
Per Channel
Copy / paste Copy and paste settings between items. For example, set the
equalizer curve on the USB output, and then use the same setting
for the analog output. Or, copy the gain and mute status from one
input channel to several others.
Mute / unmute Mutes or activates the channel
Enable / disable Turns processing on or off (applies to equalizer and limiter only)
Edit Opens the dialog to adjust parameters
Global (right-click in blank
area)
Mute all inputs Mutes all input channels
Mute all outputs Mutes all output channels
Close all dialogs Clears all open dialogs from the workspace
Customizing the Workspace
Create a custom environment to monitor and control a set of inputs, outputs, and

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 15 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
processing blocks from a single screen. There are two ways to break out dialogs:
Right click > edit
Double-click the input, output, or processing block.
Open as many dialogs as you need to keep important controls available.
Metering and Signal Flow
A meter appears underneath each input and output to indicate signal levels (dBFS).
The lines connecting inputs and outputs to the matrix mixer appear colored when
connections are established. When a signal is not routed, the line appears gray. Use these
tools to troubleshoot audio signals and verify connections and levels.
Matrix Mixer
The matrix mixer routes audio signals between inputs and outputs, for simple and flexible
routing:
Send a single input channel to multiple outputs
Send multiple input channels to a single output
Routing Channels
Connect inputs and outputs by selecting the box where they intersect.
Important: Dante devices must be routed in Dante Controller software to pass audio to or
from a Dante device.
Default Setting
All Dante input channels and analog Input channel > USB output
USB input channel and analog input channel > analog output
Crosspoint Gain
Crosspoint gain adjusts the gain between a specific input and output, to create separate
submixes without changing input or output fader settings. Select the dB value at any
crosspoint to open the gain adjustment panel.
Gain staging: input fader > crosspoint gain > output fader
Example Scenario
Hosting a meeting with a computer:
Near-end audio from Dante microphones (Shure MXA 310) and an analog source (Shure
wireless microphone system) are both routed to the USB input and sent to the far end.
Far-end audio from the computer (USB input in the matrix mixer) can be sent to analog or
Dante-enabled amplifiers and loudspeakers.
Record meeting audio from all locations by routing all sources to a recording device or
computer on the network.

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 16 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Mute and Fader Groups
Mute Groups Check the Mute group box to add the channel to a group. Muting
any channel within the Mute group mutes all channels in the
group.
Fader Groups Check the Fader group box to add the channel to a group. All
faders within the group are linked, and move together when a
single fader is adjusted.
Adjusting Input levels

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 17 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Levels for analog and Dante channels are adjustable in the Input tab.
To monitor input levels before they reach the ANIUSB-MATRIX, set the metering to pre-
fader in the settings menu. When adjusting the faders, set metering to post-fader.
Dante Sources
1. Check the source level before it reaches the Network Interface:
Verify that the networked microphones or other Dante sources are operating at
nominal output levels.
Levels for Microflex Advance™ microphones are adjustable through their web
application.
2. Adjust the digital gain in the Network Interface web application:
Use the faders or manually enter a gain value.
The digital gain adjusts the level of the signal before it reaches the matrix mixer.
Mix the levels as high as possible without the loudest channel reaching the peak
level (0 dB) on the meter.
Note: The matrix mixer provides crosspoint gain, to adjust separate submixes for different outputs.
Analog Sources
Before you begin, verify that levels from the analog devices with adjustable output levels
are operating at nominal levels. The fader adjusts the digital gain before the signal
reaches the matrix mixer.
1. Match the analog input level setting according to the incoming signal level:
Line (+4 dBu)
Aux (-10 dBV)
2. Use the fader (digital gain) to adjust the mix going to the USB or Dante output
channels.
Adjusting Output Levels
Tip: Set the metering to post-fader in the settings menu to adjust output levels.
Adjust faders in the Outputs section as high as necessary, but make sure to avoid clipping
(when the signal reaches 0 dBFS). Always adjust the input gain and crosspoint gain in the
matrix mixer before the output gain.
Analog output level:Select Line, Aux, or Mic level output signal to match the sensitivity of
the receiving device.
Parametric Equalizer
Maximize audio quality by adjusting the frequency response with the parametric equalizer.
Common equalizer applications:
Improve speech intelligibility
Reduce noise from HVAC systems or video projectors
Reduce room irregularities

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 18 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Adjust frequency response for reinforcement systems
Setting Filter Parameters
Adjust filter settings by manipulating the icons in the frequency response graph, or by
entering numeric values. Disable a filter using the check-box next to the filter.
Filter Type Only the first and last band have selectable filter types.
Parametric: Attenuates or boosts the signal within a customizable
frequency range
Low Cut: Rolls off the audio signal below the selected frequency
Low Shelf: Attenuates or boosts the audio signal below the
selected frequency
High Cut: Rolls off the audio signal above the selected frequency
High Shelf: Attenuates or boosts the audio signal above the
selected frequency
Frequency Select the center frequency of the filter to cut/boost
Gain Adjusts the level for a specific filter (+/- 30 dB)
Q Adjusts the range of frequencies affected by the filter. As this value
increases, the bandwidth becomes thinner.
Width Adjusts the range of frequencies affected by the filter. The value is
represented in octaves.
Note: the Q and width parameters affect the equalization curve in the same
way. The only difference is the way the values are represented.

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 19 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Copy, Paste, Import, and Export Equalizer Channel Settings
These features make it simple to use effective equalizer settings from a previous
installation, or simply accelerate configuration time.
Copy and Paste
Use to quickly apply the same PEQ setting across multiple channels.
1. Select the channel from the pull-down menu in the PEQ screen.
2. Select Copy
3. In the pull-down menu, select the channel to apply the PEQ setting and select Paste.
Import and Export
Use to save and load PEQ settings from a file on a computer. This is useful for creating a
library of reusable configuration files on computers used for system installation.
Export Choose a channel to save the PEQ setting, and select Export to
file.
Import Choose a channel to load the PEQ setting, and select Import from
file.
Equalizer Applications
Conferencing room acoustics vary based on room size, shape, and construction materials.
Use the guidelines in following table.
EQ Application Suggested Settings
Treble boost for improved speech
intelligibility
Add a high shelf filter to boost frequencies
greater than 1 kHz by 3-6 dB
HVAC noise reduction Add a low cut filter to attenuate frequencies
below 200 Hz
Reduce flutter echoes and sibilance Identify the specific frequency range that
"excites" the room:
1. Set a narrow Q value
2. Increase the gain to between +10 and
+15 dB, and then experiment with
frequencies between 1 kHz and 6 kHz
to pinpoint the range of flutter echoes
or sibilance
3. Reduce the gain at the identified
frequency (start between -3 and -6 dB)
to minimize the unwanted room sound
Reduce hollow, resonant room sound Identify the specific frequency range that
"excites" the room:
1. Set a narrow Q value
2. Increase the gain to between +10 and
+15 dB, and then experiment with
frequencies between 300 Hz and 900

9/12/17, 8)20 AMShure Publications | User Guides | ANIUSB-Matrix
Page 20 of 39http://pubs.shure.com/guide/ANIUSB-Matrix/en-US
Hz to pinpoint the resonant frequency
3. Reduce the gain at the identified
frequency (start between -3 and -6 dB)
to minimize the unwanted room sound
Custom Presets
Use presets to quickly save and recall settings. Up to 10 presets can be stored on each
device to match various seating arrangements. A preset saves all device settings except
for the Device Name, IP Settings, and Passwords. Importing and exporting presets into
new installations saves time and improves workflow. When a preset is selected, the name
displays above the preset menu. If changes are made, an asterisk appears next to the
name.
Note: Use the default settings preset to revert to the factory configuration (excludes Device Name, IP
Settings, and Passwords).
Open the presets menu to reveal preset options:
save as preset: Saves settings to the device
load preset: Opens a configuration from the device
import from file: Downloads a preset file from a computer onto the device. Files
may be selected through the browser or dragged into the import
window.
export to file: Saves a preset file from the device onto a computer
Using A Password
All settings are configurable by default. To protect settings with a password, open the
Settings menu and select the General tab. In this screen, passwords can be created or
changed.
Once a password has been set, a Read-Only option appears on the log-in screen. In Read-
Only mode, device parameters can be viewed, but not edited. Device identification
remains active.
Networking and Dante
Dante Transmit Flows
This device supports up to two transmit flows and two receive flows. A single flow consists
of up to four channels, through either a unicast or multicast transmission.
A unicast flow is a point-to-point connection between two devices, supporting up to
four channels per flow.
A multicast flow is a one-to-many transmission, which supports sending up to four
