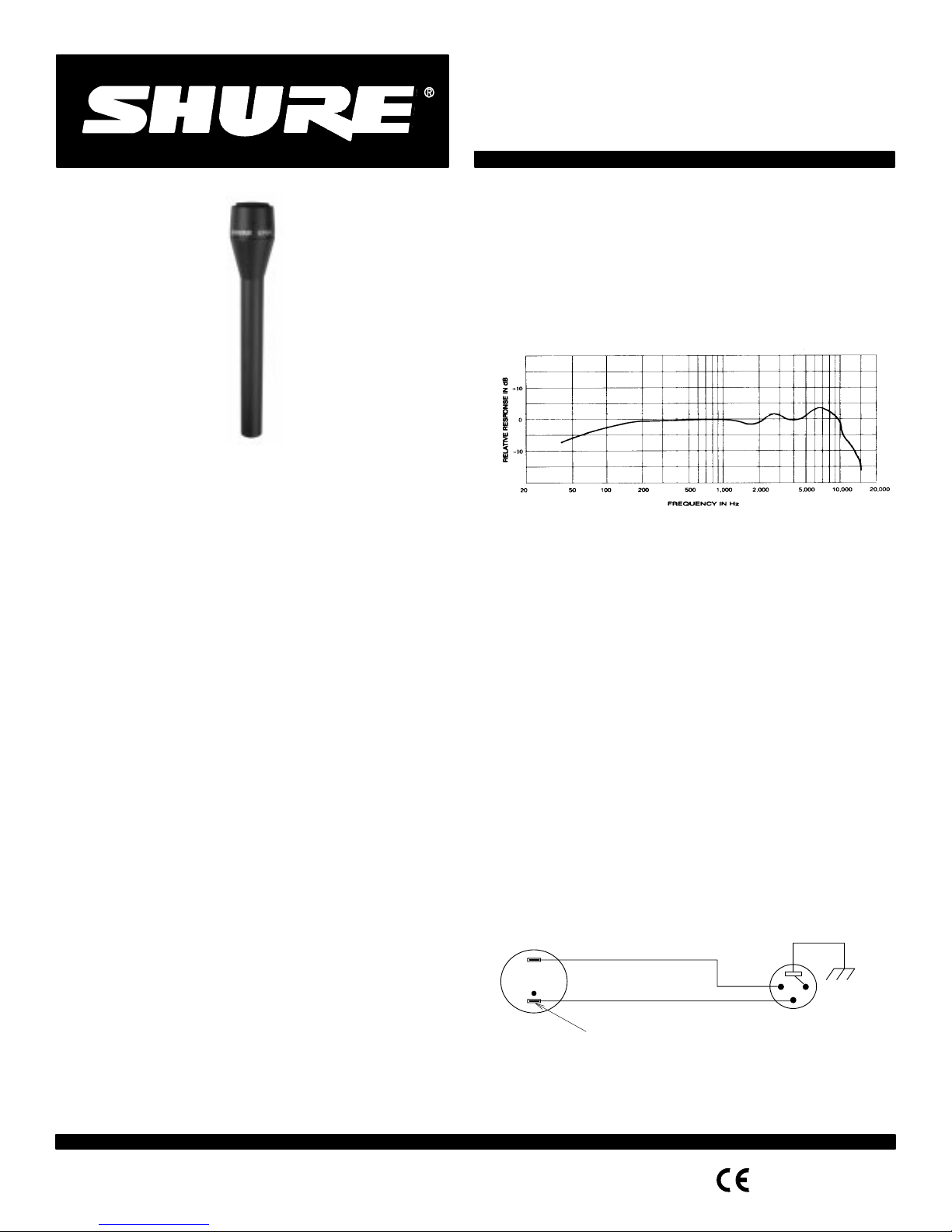

Shure VP64 User manual

Model VP64 User Guide
Shure Brothers Incorporated
222 Hartrey Avenue
Evanston IL 60202-3696 U.S.A.
27A2533 (SF)
E1997, Shure Brothers Incorporated Printed in U.S.A.
GENERAL
The Shure Model VP64 is a high output omnidirectional
handheld dynamic microphone designed for professional
audio and video production. It combines exceptional perfor-
mance and comfortable feel with a handsome on-camera
appearance.
The VP64 is ideal for closeup use and can be used out-
side as well as indoors. Its omnidirectional pickup pattern
provides uniform pickup on or off axis, eliminating the need
for critical microphone positioning. The VP64 also features
atailoredfrequencyresponsewithanuppermidrangepres-
ence rise that adds crispness and clarity to speech. A low
frequency rolloff minimizes “boominess” and background
noise.Thecircuitryincludesaneodymiummagnetforhigher
output and increased signal-to-noise ratio.
The cartridge is shock mounted for ruggedness and to
minimize handling noise pickup. Wind noise and “pop” are
reduced by the the supplied windscreen.
Features
•
High-efficiency circuitry uses neodymium magnet for
increased output and maximized signal-to-noise ratio
• Frequencyresponsetailoredforoptimumspeechclarity
and crispness
• Omnidirectionalpolarpatterneliminatesneedforcritical
microphone positioning
• Shock mounted cartridge for low handling noise
• Suppliedwindscreen permits outdoor orindoorusewith
minimum pop and wind pickup
• Comfortable feel
• Handsome appearance; ideal for on-camera applications
• Legendary Shure ruggedness
SPECIFICATIONS
Type
Dynamic
Frequency Response
50 to 12,000 Hz (see Figure 1)
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Omnidirectional, symmetrical about axis
Impedance
Low (330 Ωactual)
Output Level (at 1,000 Hz)
Open Circuit Voltage –71.0 dB (0.28 mV). . . . . . . . . . .
Power Level –52.0 dB. . . . . . . . . . . . . . . . . . . . . . . . . . .
0 dB = 1 mW/10 µbar
Phasing
Positive pressure on diaphragm produces positive volt-
age on pin 2 with respect to pin 3 (see Figure 2)
WHITE
GREEN 12 3
CODED TERMINAL
CARTRIDGE 3-PIN PROFESSIONAL
AUDIO CONNECTOR
INTERNAL CONNECTIONS
FIGURE 2

Cartridge Shock Mount
Internal rubber vibration isolator
Case
Durableblack painted machined aluminumwith steel
cartridge housing and steel mesh screen
Dimensions
See Figure 3
38 mm
(1-1/2 IN.)
200 mm
(7-7/8 IN.) 19 mm
(3/4 IN.)
OVERALL DIMENSIONS
FIGURE 3
Net Weight
167 g (6 oz)
Certifications
Conforms to European Union directives, eligible to
bear CE marking; meets European Union EMC Im-
munity Requirements (EN 50 082–1, 1992); RF ra-
diated (IEC 801–3); ESD (IEC 801–2); EFT (IEC
801–4).
FURNISHED ACCESSORIES
Swivel Adapter A57F. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windscreen 49C55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONAL ACCESSORIES
Cable (7.6 m [25 ft]) C25E. . . . . . . . . . . . . . . . . . . . . . . . .
Isolation Mount A53M, A53HM. . . . . . . . . . . . . . . . . . . . .
Microphone Bag 26A13. . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACEMENT PARTS
Cartridge R161. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen Assembly 90GH2600. . . . . . . . . . . . . . . . . . . . . .
Closing Ring 31B1605. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plug Element 90A1984. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foradditionalserviceorpartsinformation,pleasecontact
Shure’s Service department at 1-800-516-2525. Outside
the United States, please contact your authorized Shure
Service Center.
