Shure PSM 300 User manual

© 2014 Shure Incorporated
27A23050 (rev. 2)
Printed in China
WIRELESS SYSTEM
USER GUIDE
PSM 300
®
取扱説明書
사용자 안내서
用户指南
繁體中文
Pengguna Panduan

2
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient
distances for adequate ventilation and install in
accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as open flames, radiators,
heat registers, stoves, or other apparatus (including amplifiers) that
produce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or groundingtype
plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms
or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT
put objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler
shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a
MAINS socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
20. Do not attempt to modify this product. Doing so could
result in personal injury and/or product failure.
21. Operate this product within its specified operating temperature range.
WARNING: This product contains a chemical known to the State of
California to cause cancer and birth defects or other reproductive harm.
SAFETY PRECAUTIONS
The possible results of incorrect use are marked by one of the two
symbols—"WARNING" and "CAUTION"—depending on the imminence of
the danger and the severity of the damage.
WARNING: Ignoring these warnings may cause severe injury or
death as a result of incorrect operation.
CAUTION: Ignoring these cautions may cause moderate injury or
property damage as a result of incorrect operation.
CAUTION
• Never disassemble or modify the device, as failures may result.
• Do not subject to extreme force and do not pull on the cable or failures
may result.
• Keep the product dry and avoid exposure to extreme temperatures and
humidity.
WARNING
• If water or other foreign objects enter the inside of the device, fire or
electric shock may result.
• Do not attempt to modify this product. Doing so could result in personal
injury and/or product failure.
This device is able to produce sound volume higher than 85 dB SPL.
Please check your maximum allowed continuous noise exposure level
based on your national employment protection requirements.
WARNING
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE
PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS
POSSIBLE. Over exposure to excessive sound levels can damage your
ears resulting in permanent noise-induced hearing loss (NIHL). Please
use the following guidelines established by the Occupational Safety Health
Administration (OSHA) on maximum time exposure to sound pressure
levels before hearing damage occurs.
90 dB SPL
at 8 hours
95 dB SPL
at 4 hours
100 dB SPL
at 2 hours
105 dB SPL
at 1 hour
110 dB SPL
at ½ hour
115 dB SPL
at 15 minutes
120 dB SPL
Avoid or damage may occur

3
PSM®300
The PSM300 Personal Monitor System delivers wireless stereo monitoring
for improved clarity and reduced feedback over traditional stage wedges.
Performers can create their own custom mixes by adjusting the stereo
blend and overall volume level at the bodypack, resulting in lower volume
on stage and enhanced audio detail. Easy to set up and operate, PSM300
features one-touch frequency syncing and solid wireless RF stability
between transmitters and receivers. With rugged, dependable hardware
and hard-working technology, Shure PSM300 Personal Monitor Systems
deliver a greatly improved monitoring experience on stage.
Features
• Send two channels of audio wirelessly to performers onstage
• Solid RF connection over a 300 foot (90 meter) range
• Create a personal mix on each bodypack with adjustable stereo
balance or MixMode®two-channel mono blend.
• Up to 90 dB signal-to-noise ratio provides clear, detailed audio at any
volume
• Systems available with Shure Sound Isolating™ earphones
• One-touch scan and IR sync quickly and easily assigns a clean
wireless channel
• No complicated menus, just simple volume and mix controls that focus
on the performance
• All-metal half-rack transmitter
• Slim, lightweight bodypack attaches easily to a belt or guitar strap
Instrument Mix
(Channel 1)
Vocal Mix
(Channel 2)
CH 1 CH 2 CH 1 CH 2
P3T
Mixer Outputs
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
Personal MixMode settings
Personal MixMode settings
Instruments
Vocals
Instruments
Vocals
Stage signals
to mixer inputs
Instrument mix (channel 1)
Vocal mix (channel 2)
Mixer Outputs
Drums
Vocals
Instruments

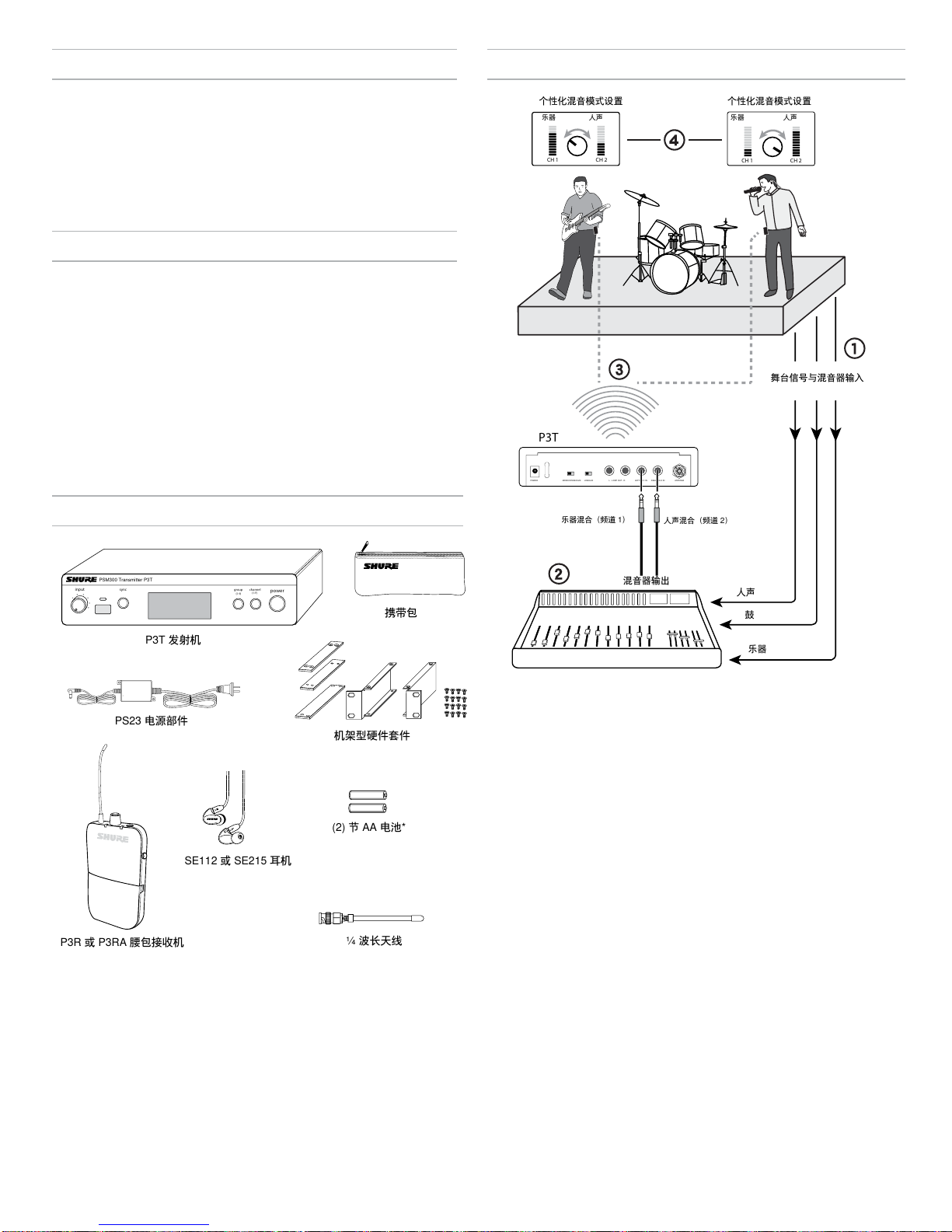

Included Components
System Overview
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T Transmitter
P3R or P3RA Bodypack Receiver
¼ Wave Antenna
SE112 or SE215 Earphones
Rackmount Hardware Kit
Carrying Bag
PS23 Power Supply
(2) AA Batteries*
*Not included in Argentina

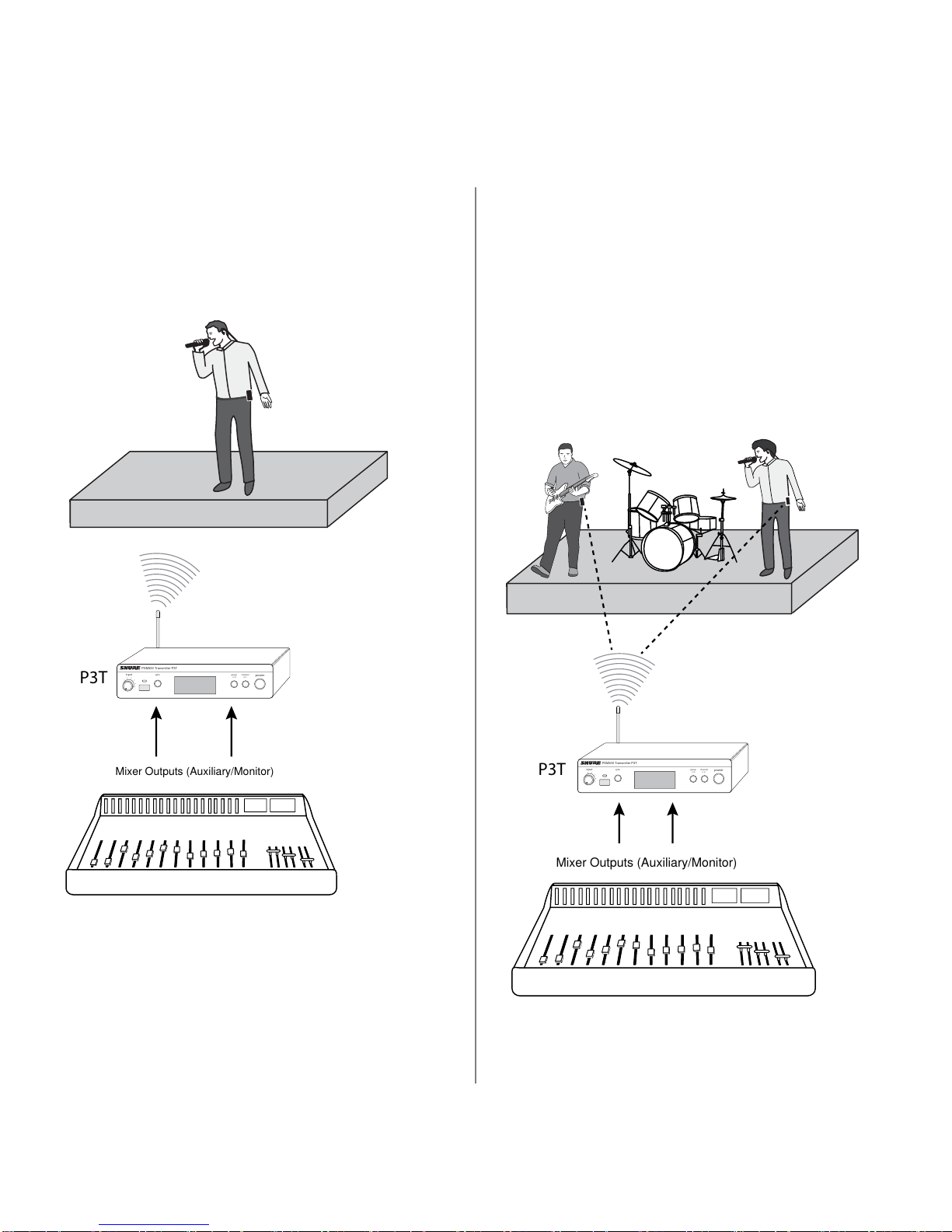

This example shows a typical setup for musical performance. See the

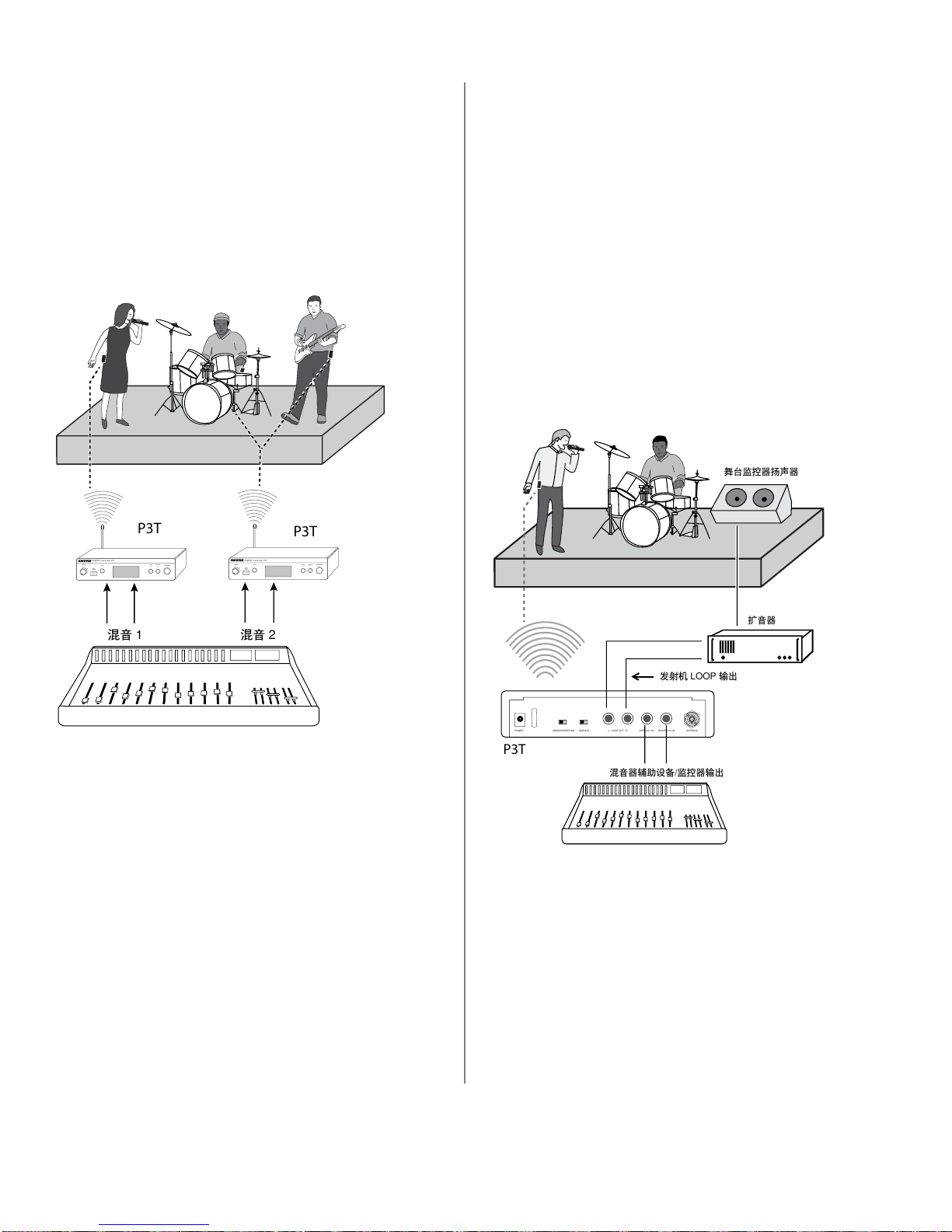

System Applications section for additional examples.
① Route audio signals
Send Instrument and microphone signals from the stage to a mixer or
PA system.
② Create monitor mixes
From the mixer, create two mixes: one of just the instruments, and a
second with just the vocals. Route each of these to separate mixer
outputs and connect them to the P3T inputs.
③ Send wireless audio to the performers
Sync the bodypacks to the P3T transmitter to send the mixes to the
performers for in-ear monitoring.
④ Adjust personal mixes
Each performer uses the MixMode knob on the bodypack to control
their own mix between the instruments and vocals .

4

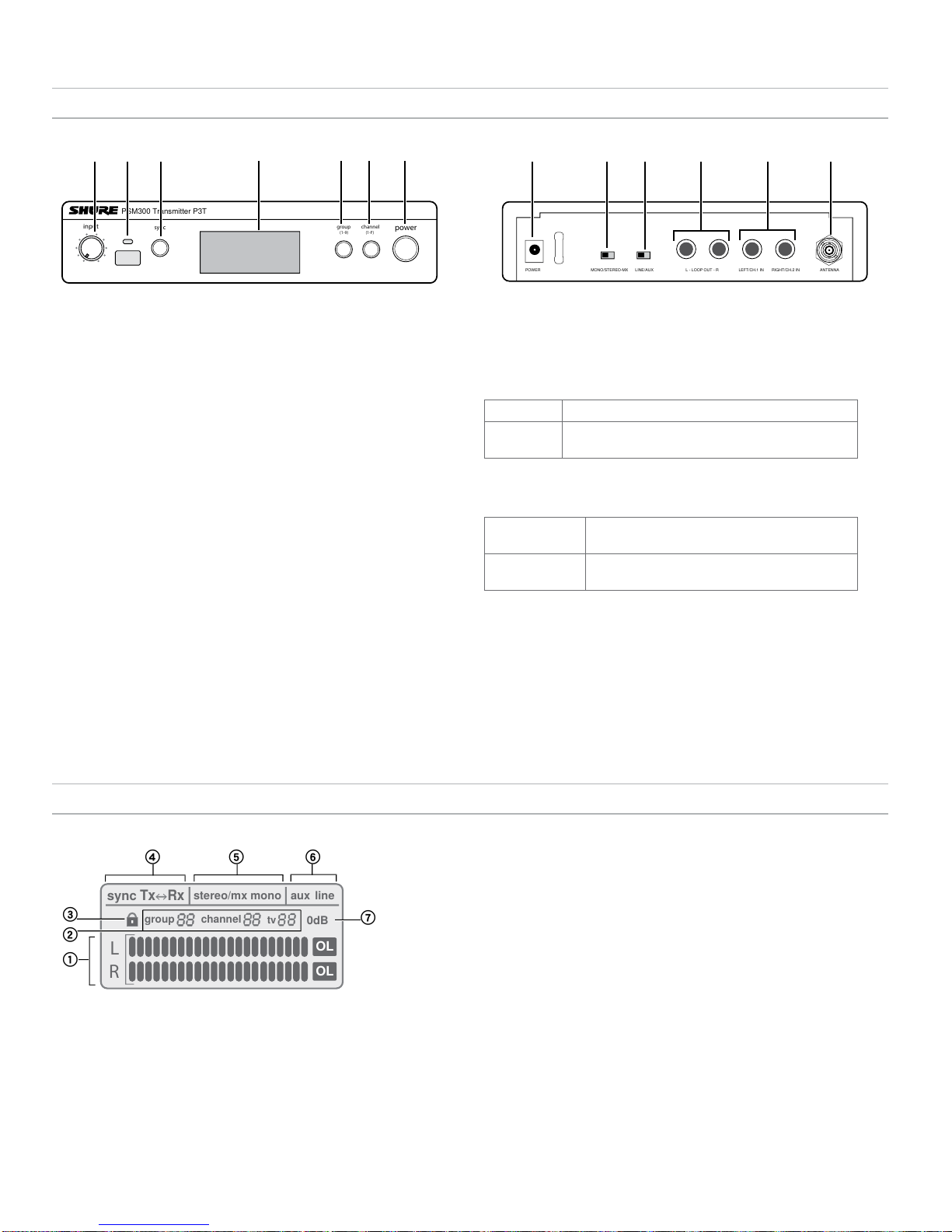

P3T Transmitter Front and Rear Panels
⑧ Power Input
Connect the supplied Shure PS23 external power supply
⑨ Mono/Stereo-MX Switch
StereoMX Sends a two-channel stereo mix to the receiver
Mono Sends a summed audio mix to both receiver channels
⑩ Line/Aux Switch
Adjust the input sensitivity using the following as a connection reference:
Aux (-10 dBV): Consumer audio devices, such as computers or
portable media players
Line (+4 dBu): Mixers or other professional audio devices
⑪ Loop Outputs (¼ Inch TRS, Balanced)
Connect outputs to additional PSM systems or other audio devices
⑫ Audio Inputs (¼ Inch TRS, Balanced)
Connect to mixer outputs or other audio sources for monitoring by the
performers
⑬ BNC Antenna Connector
Connect the supplied ¼ wave antenna, directional antenna, or a Shure
P3AC antenna combiner
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T Front Panel
① Input Level Control
Adjusts the level of the incoming audio signal
② IR Sync Window
Sends and receives group/channel data to sync receivers with
the transmitter
③ Sync Button
Press to synchronize the transmitter and receiver to the same
group and channel
Note: Sync data is sent through the IR sync window
④ LCD Display
Displays audio, RF, and system information
⑤ Group Button
Press to scroll through group settings
⑥ Channel Button
Press to scroll through channel settings
⑦ Power
Turns power on or off
P3T Transmitter Display
L
R
OL
OL
sync
Tx Rx
stereo/mx mono aux line
0dB
group channel tv
௔
௕
௖
ௗ௘௙
௚
① Audio Input Meter
Indicates the audio signal level
② Group / Channel / TV Setting
Displays selected group and channel settings and the
corresponding television channel
Note: the TV indicator only applies to U.S.A. channels, and remains
blank in other regions
③ Lock Status
To lock or unlock the controls, press and hold the group and channel buttons
until the lock icon appears/disappears.
④ Sync Status
Appears after a successful sync between the transmitter and receiver. The
direction of the sync is shown as Tx>Rx (transmitter sends frequency to
receiver) or Tx<Rx (receiver sends frequency to transmitter).
⑤ Stereo-MX / Mono Mix
Indicates whether the audio sent to the receiver is a single or two-channel mix
(corresponds to the Stereo-MX/Mono switch on the rear panel).
⑥ Aux / Line Mode
Indicates the input sensitivity setting (corresponds to the Aux/Line switch on
the rear panel)
⑦ 0 dB Indicator
Turns on when input signal reaches 0 dB. Refer to the section on adjusting gain
and listening volume for information on how to use this icon.
① ② ③④⑤ ⑥ ⑦ ⑧⑨⑩⑪ ⑫ ⑬
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
P3T Rear Panel
▇Hardware

5
P3R Wireless Receiver
௣
௢
௟
௤
௥ ௦ ௧ ௨
௩
௪
௠௡
MixMode
Group /
Channel
P3R
① Display
Shows group, channel, and MixMode settings
② Group Button
• Press to display group
• Press and hold to edit the group, then press to scroll when display flashes
③ Channel Button
• Press to display channel
• Press and hold to edit the channel, then press to scroll when display flashes
④ IR Sync Window
Sends and receives sync data between the receiver and transmitter
⑤ Scan Button
• Press and hold to perform a group scan
• Press to perform a channel scan
Note: A channel scan selects the best channel in the current group. A group scan finds the group
with the most open channels and selects the first available channel in that group.
⑥ Antenna
⑦ Power LED Indicator
Indicates when receiver is on, remaining battery life, and when power-save mode is
active. See battery life table for more information.
⑧ Power Switch / Volume Control Knob
Turns the receiver on/off and adjusts master headphone volume level
⑨ RF LED Indicator (blue)
Illuminates when tuned to an active transmitter group and channel
⑩ Headphone Output
Connects to earphones or headphones
⑪ MixMode Control Knob
• When operating in MixMode, this knob blends channels 1 and 2 into a single mix
• When operating in stereo mode, this knob adjusts the left/right balance
⑫ Battery Compartment
Holds 2 x AA batteries
P3RA Receiver
For more demanding applications, Shure
offers the P3RA receiver, which features
all-metal construction and advanced menu
navigation in addition to the features included
on the P3R receiver. For more information,
please visit www.shure.com.
Battery Life
LED Behavior Remaining Runtime
(Hours)
Green 5-7
Amber 1-3
Red (solid) 0.5-1
Red (flashing) 0
Battery life was measured using Energizer™ alkaline batteries, under the
following conditions:
• Transmitter sensitivity: Line (+4dBu)
• Audio output from receiver: 100 dB through Shure SE112 earphones
Power-save mode: When there are no earphones plugged in, the receiver enters
power-save mode to preserve battery life. The LED slowly fades on/off in this
mode and continues to display the color that represents the remaining battery life.

6
Single Transmitter with Multiple Receivers

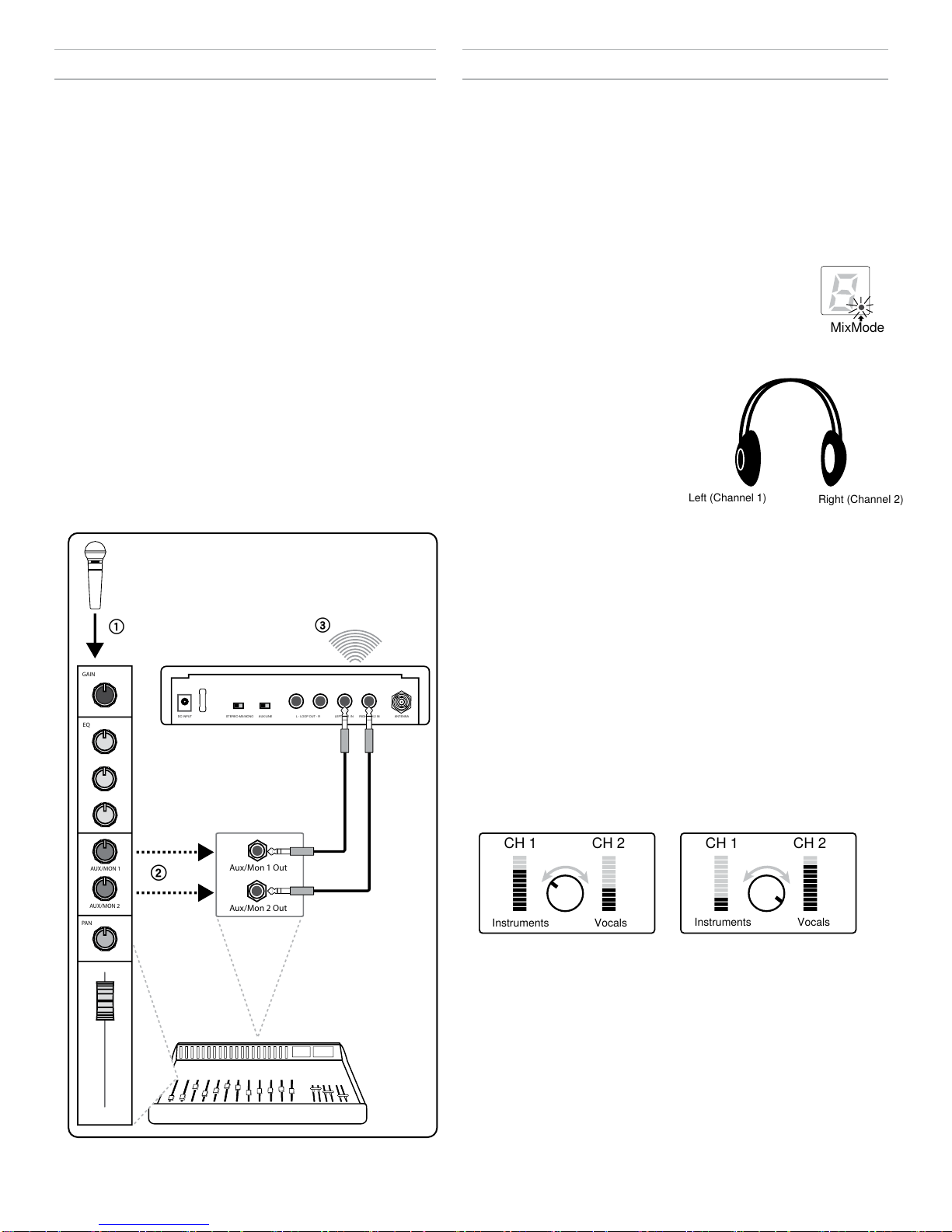

Multiple performers can monitor audio from the same transmitter and
still adjust the signal at their bodypack to personalize the mix. Simply
tune each bodypack to the same frequency as the transmitter and use
the MixMode knob to adjust the mix.
MixMode or Stereo Operation:
Each performer has the option of setting their bodypack to MixMode or
Stereo when the transmitter is set to Stereo-MX. When the bodypack
is powered on, it is set to stereo by default. To operate in MixMode,
hold the GROUP button when turning the power on. For information on
these modes, see "MixMode and Stereo Monitoring".
P3T power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Mixer Outputs (Auxiliary/Monitor)
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T
Mixer Outputs (Auxiliary/Monitor)
Single System for an Individual Performer
This configuration provides in-ear monitoring in a solo performance,
or in a group performance in which only one person requires wireless
monitoring. This system can be expanded for multiple performers
by using additional P3R bodypack receivers tuned to the same
transmitter.
Refer to the following PSM300 system scenarios prior to installation. Understanding the configuration options before setting up helps to identify signal
routing requirements and plan for future expansion. Specific information on how to set up the PSM300 system and create mixes for monitoring can be
found in the "System Setup and Configuration" and "Operation" sections of this user guide.
▇Applications

7
Multiple Transmitters with Separate Mixes
When several performers in a group have different monitoring
requirements, multiple PSM300 systems may be used
simultaneously to send different mixes through each transmitter.
This setup requires a mixer with two monitor/auxiliary outputs for
each transmitter.
Tip: To simplify setup in applications that involve multiple
transmitters, Shure offers the P3AC antenna and power
distribution system, which supplies up to four PSM transmitters
with power and RF from a single source.
Signal Routing to External Devices
(Combination Systems)
The LOOP outputs pass audio to an external device, such as other
personal monitoring systems, recording devices, or stage monitors. The
signal at the LOOP outputs is identical to the signal coming from the
mixer, and is not affected by the transmitter volume or input sensitivity
(line/aux) settings. This makes the LOOP outputs particularly useful
when using a mixer that has one or two monitor/auxiliary sends.
Using the PSM300 simultaneously with Loudspeakers:
A combination monitoring system can be used, where some of the
performers are using the PSM300 wireless system and others are
listening through loudspeakers on stage.
Note: If using passive stage monitors, the P3T outputs must be
connected to an amplifier. Active (amplified) speakers can be
connected directly to the P3T outputs.
Using the PSM300 Combined with Other Wireless
Monitoring Systems
In a scenario where two performers have their own wireless monitoring
systems (one Shure PSM300 system and one third-party system, for
example), the PSM300 can pass the signal from the mixer on to the
second monitoring system.
P3T P3T
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Mix 1
Mix 2
P3T
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
Stage Monitor Loudspeaker
Amplifier
Transmitter LOOP Outputs
Mixer Auxiliary/Monitor Outputs

8
Power, Audio, and RF Connections
1. Use the power adapter to connect the P3T to an AC power source.
2. Install 2 AA batteries in the bodypack receiver.
3. Attach the antenna to the BNC antenna
connector on the P3T rear panel.
4. Connect the mixer or audio source to the P3T
audio inputs using ¼ inch balanced cables.
Important: When connecting to only one transmitter input, use the LEFT/
CH1 input. Set the transmitter to MONO to hear audio on both channels of the
receiver.
Rack Mounting
Scanning for the Best Open Channel
Follow these steps to scan the RF environment and find the best available
frequency for operation:
1. Turn on the bodypack receiver and any potential sources of
interference, including wireless systems, computers, audio
equipment, cellular phones, LED panels, and other electronic
devices that will be in use during a performance.
2. Make sure the P3T transmitter is OFF.
3. Position the receiver in the performance area and press SCAN to
survey the available channels within the current group setting.
If using several PSM300 systems or operating in a location with a high
volume of wireless devices, perform a group scan first, followed by a
channel scan:
Group Scan: Press and hold the SCAN button on the receiver.
Channel Scan: Press the SCAN button on the receiver.
௖ ௗ
௕
MONO/STEREO-MX LINE/AUX
LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNA
POWER
PS23
௔
MONO/STEREO-MX LINE/AUX
LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNA
POWER
௖
௕
௔
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Power = Off
Group
Channel
Scan
The P3T Transmitter can be mounted in a standard 19-inch rack. Up to two units can be mounted in a single rack space. If using multiple P3T
transmitters, the Shure PA411 Antenna Combiner system can be used to consolidate and distribute all RF and power for up to four transmitters.
▇System Setup and Configuration
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
Single unit
Dual-mounting two units
Note: Always use both straddle bars when mounting two units.

9

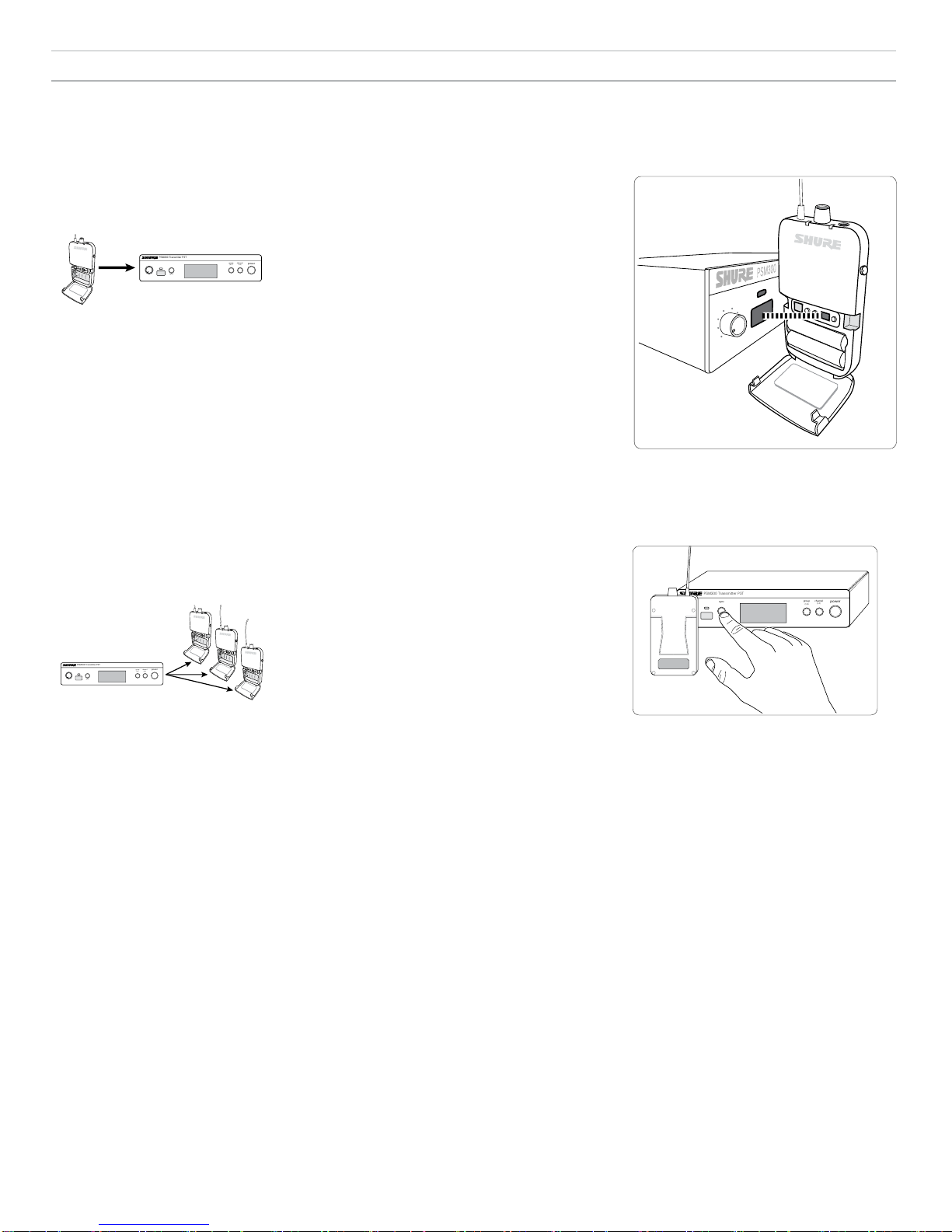

Creating a Wireless Connection Between Receivers and Transmitters (Sync)
To pass audio from the transmitter to the receiver, both must be tuned to the same frequency. The easiest way to configure the system is to use the
automatic sync feature. This transfers group and channel settings with a press of a button. Based on your system configuration, use one of the following
processes to sync the components:
Single Transmitter and Receiver
The following sync procedure should be used with a setup that consists of a single transmitter
and receiver, unless a group/channel setting has been assigned prior to a performance.
Align the IR windows to sync the receiver
and transmitter
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Pressing the SYNC button transfers group/
channel data
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
Sync from receiver to transmitter:
1. Perform a scan on the receiver (see "Scanning for the Best Open Channel" for best practices).
2. Align the IR windows on the receiver and transmitter. The windows should be 6-11 cm apart.
3. Press the SYNC button on the transmitter while the blue RF LED on the receiver is flashing.
4. The Transmitter displays SYNC when the sync is successful. The arrow between
Rx (receiver) and Tx (transmitter) shows the direction of the sync.
Note: When the RF LED on the receiver is flashing after performing a scan, the receiver sends its
frequency setting to the transmitter. After it stops flashing, pressing SYNC sends the frequency setting from
the transmitter to the receiver.
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
Sync from transmitter to receivers:
1. Sync the first receiver to the transmitter using the sync procedure
for a single receiver. Performing a scan and using the resulting
group and channel from the receiver is recommended.
2. Set additional receivers to the transmitter frequency (one at a time) using IR sync:
• Align the IR windows on the receiver and transmitter and press SYNC.
• The receiver LED should not be flashing when pressing SYNC.
Note: Receivers can also be manually tuned to the transmitter if an IR sync is not practical.
Multiple Transmitters and Multiple Receivers
1. Set up the first transmitter and all associated receivers according to the appropriate sync procedure. Keep the
transmitter and all receivers from this first system powered on when setting up additional systems.
2. Set up each additional system using the appropriate sync process. Always leave each new system on before setting up an additional one.
Manual Selection
If frequencies have been planned ahead of time, the group and channel can be set manually without performing a scan. Refer to the frequency table at
the end of this user guide to identify frequencies for each group/channel setting.
To select group/channel settings on the receiver and transmitter:
1. Press GROUP to scroll through group settings.
2. Press CHANNEL to scroll through channel settings within the selected group.
Single Transmitter and Multiple Receivers
The following sync procedure should be used with a setup that consists of a single transmitter
with multiple receivers, or if a specific group/channel setting has been assigned to the transmitter
prior to a performance.

10

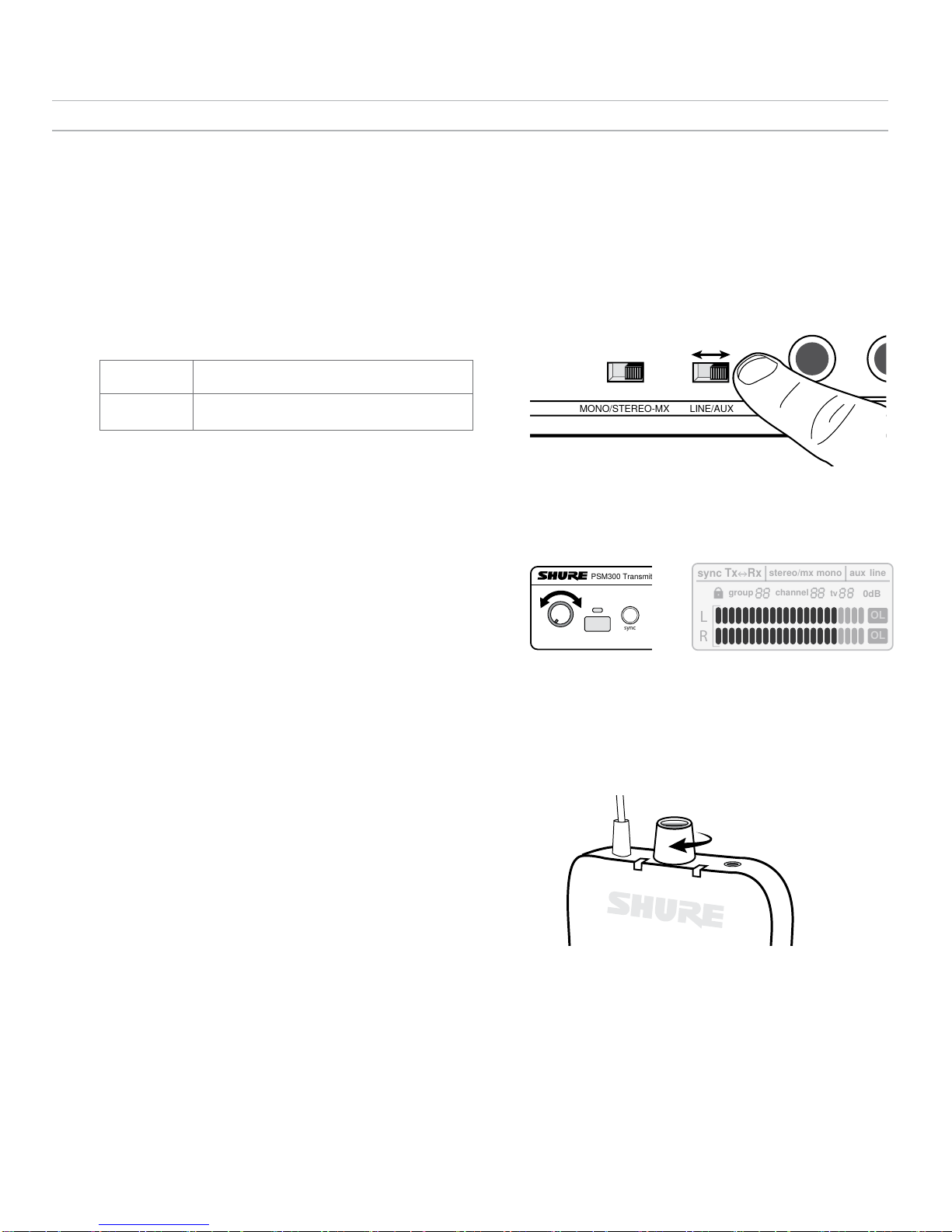

Adjusting Gain and Listening Volume
For the best audio quality, start by adjusting the levels from the mixer or audio source, and then adjust levels through the PSM300 system. This
approach corresponds to the way that the audio signal flows through the system, and maximizes the signal-to-noise ratio.
Before you begin: verify all signal routing and gain settings at the mixer or source prior to adjusting any levels from the PSM300 system. If the sound is
distorted or faint when it enters the P3T transmitter, there is likely an issue elsewhere in the signal chain that needs to be resolved.
MONO/STEREO-MX LINE/AUX TRS IN
Input Level
Adjust the level so that average levels on the audio meter reach
approximately 75% of the full range. The highest levels should
occasionally hit the 0dB indicator on the audio input meter, without
reaching the OL (overload) indicator.
Tip: If a sound check before the performance is possible, everyone
should play at the loudest anticipated volume so that attenuation is
not required during the performance.
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
L
R
OL
OL
sync
Tx
Rx
stereo/mx mono
aux
line
0dB
group
channel
tv
② Adjust Receiver Volume:
① Adjust Transmitter Levels:
▇Operation
Input Sensitivity
Select the setting that matches the input source:
Line (+4 dBu) Use with mixers or other professional audio devices
that send line-level signals.
Aux (-10
dBV)
Use when connecting consumer audio devices such as
portable audio players or computers.
Note: When using consumer audio devices, the output volume of the device
should typically be adjusted as close to the maximum setting as possible without
distorting or clipping at the output of the device. This maximizes the signal-to-
noise ratio.
After levels are established at the mixer and transmitter, use the
headphone volume control on the bodypack receiver to adjust overall
listening volume. For information on adjusting the left/right balance or
customizing the mix blend, see "MixMode and Stereo Monitoring".

11
MixMode and Stereo Monitoring
The receiver can operate in stereo or MixMode when the transmitter is set
to STEREO-MX. In applications that involve multiple bodypack receivers tuned
to a single transmitter, some bodypacks can operate in stereo, while others
operate in MixMode.
Selecting the Mode
Stereo: The receiver is set to stereo mode by default. To switch from
MixMode to stereo, simply turn the receiver off and it will return to stereo
mode when powered back on.
Creating Monitor Mixes
The mix that performers hear on stage is usually different than the
mix heard by the audience. In live sound applications, the engineer
creates a separate mix to send to the performer by routing the input
signals to specified mixer outputs, usually called Monitor or Auxiliary
outputs.
The following scenario demonstrates a generic signal path for
monitoring mixes, and may not reflect the routing for all mixer types.
Consult the user guide for your mixer for detailed signal routing
options.
① Mixer Channel
Each mixer channel controls audio processing and routing for
a single audio source. In this example, a vocal microphone is
plugged into the mixer channel.
② Monitor/Auxiliary Sends
Adjust the signal levels to send to the monitor/auxiliary outputs,
each of which corresponds to a separate monitoring mix. Each of
these mixes are sent to separate channels on the P3T transmitter.
Note: The channel faders on most mixers do not affect the volume of the
monitor/auxiliary sends.
③ Wireless Transmission
Each monitoring mix is transmitted on a separate channel to the
P3R receiver. The MixMode knob on the bodypack adjusts the
blend between the audio from channel 1 and channel 2.
CH 1 CH 2
Instruments
Vocals
To hear more of channel one,
turn the MixMode knob to the
left.
CH 1 CH 2
Instruments
Vocals
To hear more of channel two,
turn the MixMode knob to the
right.
When to Use the Mono Setting
In some cases, only a single input on the transmitter is used (if the mixer only
features a single monitor/auxiliary output, for example). To ensure that audio
is heard on both the left and right earphones:
• Use the LEFT/CH1 input on the transmitter
• Set the transmitter to MONO
Note: When the transmitter is set to mono operation, the MixMode knob
will not affect the sound.
AUX/MON 1
AUX/MON 2
EQ
GAIN
PAN
௖
௕
௔
Aux/Mon 1 Out
Aux/Mon 2 Out
STEREO-MX/MONO AUX/LINE LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNADC INPUT
MixMode: Press and hold the GROUP button on the
bodypack receiver while turning the power on. The MixMode
indicator light on the receiver display turns on to confirm the
setting. The receiver will return to stereo mode after it has
been powered off.
MixMode
Stereo
Audio from channel 1 is heard on
the left earphone, while audio from
channel 2 is heard on the right
earphone. Listening in stereo mode
increases separation between the
sources on each channel, which can
improve clarity when many sources
are being monitored. The MixMode
knob on the bodypack adjusts left/
right balance when operating in stereo
mode.
Left (Channel 1)
Right (Channel 2)
MixMode
MixMode allows performers to adjust the blend between two monitoring
mixes (an instrumental mix and a vocal mix, for example). When using
MixMode:
• Each mix is heard through both the left and right earphones
• The MixMode knob adjusts the volume blend between the two monitor
mixes (channel 1 and channel 2)
• Each bodypack receiver can dial in a unique blend to meet the
monitoring needs of each performer
Adjusting mix levels
In this scenario, an instrumental mix is on channel 1 and a vocal mix is on
channel 2:

12
Troubleshooting
Problem Solution
Distorted Audio • Check the volume levels at the P3T transmitter and verify that the meter is not reaching the overload indicator
• Check levels going in and out of the mixer. If audio is distorting anywhere in the signal chain, it will be distorted even if the PSM300
system is not overloading.
• Make sure batteries in the receiver are fresh
• Verify that the cables are 1/4 inch balanced. If an unbalanced instrument or speaker cable is used, it may introduce noise.
Tip: To tell the difference, look at the connectors on the cable. The metal connector on a balanced cable has two plastic rings that
divide it into three separate sections (tip, ring, sleeve). An unbalanced cable only has a single plastic ring that divides the metal portion
into two sections (tip, sleeve).
• Check that all cables are plugged all the way into the mixer and the P3T inputs. Sometimes, if a cable is not fully inserted, the signal will
be faint and distorted.
• Make sure you are using the line-level outputs from the mixer. If you have a powered mixer, do not use the main speaker outputs, as they
are amplified signals and will overload the P3T inputs.
No sound from receiver • Make sure the transmitter and receiver are linked to the same group and channel
• Verify levels are registering at the transmitter and that the volume is turned up on the receiver
• Check that the receiver is on and that the headphones are properly connected to the receiver
Turning the MixMode knob
does not affect the sound
• The Stereo-MX/Mono switch on the rear panel of the P3T may be switched to mono. For the MixMode knob to work, the transmitter must
be set to Stereo-MX.
• Verify that the signals going from the mixer to the transmitter are not identical
• Check that the bodypack is set to MixMode
Low audio output at the
receiver
• Check headphone connection and volume level
• If only sending a single channel into the P3T transmitter, check it the MixMode knob isn't turned towards a silent channel. If using one
channel, set the P3T transmitter to mono mode.
Audio or RF drops out • Perform a scan to ensure the receiver is on a clear (available) frequency
• Make sure there is a line-of-sight path between the transmitter antenna and the bodypack receivers
• Verify that other wireless devices that are being monitored, such as wireless microphones, are not experiencing RF dropouts
• If using an antenna other than the one included with the system, make sure it is designed to operate in the correct frequency range
IR sync failure Verify distance between receiver and transmitter is between 6-11 cm
Optional Accessories and Replacement
Parts
Bodypack receiverBodypack receiver P3R
Half-rack TransmitterHalf-rack Transmitter P3T
Universal bodypack receiverUniversal bodypack receiver P3RA
Antenna and power distribution systemAntenna and power
distribution system
PA411
Wired PSM bodypackWired PSM bodypack P9HW
Dynamic MicroDriver earphonesDynamic MicroDriver
earphones
SE112
Dynamic MicroDriver earphonesDynamic MicroDriver
earphones
SE215
High-definition MicroDriver earphones with tuned bass
portHigh-definition MicroDriver earphones with tuned bass
port
SE315
High-definition earphones with dual MicroDriversHigh-
definition earphones with dual MicroDrivers
SE425
High-definition earphones with triple MicroDriversHigh-
definition earphones with triple MicroDrivers
SE535
High-definition earphones with quad MicroDriversHigh-
definition earphones with quad MicroDrivers
SE846
Carrying/Storage BagCarrying/Storage Bag 95A2313
1/4 Wave Antenna (748–865 MHz) for SLX Wireless
System1/4 Wave Antenna (748–865 MHz) for SLX
Wireless System
UA400
1/4 wave antenna (470-752 MHz)1/4 wave antenna (470-
752 MHz)
UA400B
Frequency Range and Transmitter
Output Power
BAND RANGE (MHz) Output Power (mW)
G20 488 - 512 30
H8E 518 - 542 10
J10 584 - 608 30
J13 566 - 590 30
JB 806 - 810 10
K12 614 - 638 30
K3E 606 - 630 30
L18 630 - 654 10
L19 630 - 654 30
M16 686 - 710 30
M18 686 - 710 10
Q25 742 - 766 30
R12 794 - 806 10
S8 823 - 832 20
T11 863 - 865 10
X7 925 - 937.5 10
NOTE: This Radio equipment is intended for use in musical
professional entertainment and similar applications. This Radio
apparatus may be capable of operating on some frequencies not
authorized in your region. Please contact your national authority
to obtain information on authorized frequencies and RF power
levels for wireless microphone products.

13
Specifications
PSM300
RF Carrier Range
488-937.5 MHz
varies by region
Compatible Frequencies
Per band
up to 15
Tuning Bandwidth
24 MHz Maximum
Note: varies by region
Operating Range
environment dependent
90 m (300 ft)
Audio Frequency Response
38 Hz–15 kHz
Signal-To-Noise Ratio
A-Weighted
90 dB (typical)
Total Harmonic Distortion
ref. ±34 kHz deviation @1 kHz
<0.5% (typical)
Companding
Patented Shure Audio Reference Companding
Spurious Rejection
ref. 12dB SINAD
>80 dB (typical)
Frequency Stability
±2.5 ppm
MPX Pilot Tone
19 kHz (±1 Hz)
Modulation
FM*, MPX Stereo
*ref. ±34 kHz deviation @1 kHz
Operating Temperature
-18°C to +63°C
P3R
Active RF Sensitivity
at 20 dB SINAD
2.2 µV
Image Rejection
>90 dB
Adjacent Channel Rejection
>60 dB
Intermodulation Attenuation
>50 dB
Blocking
>60 dB
Audio Output Power
1kHz @ <1% distortion, peak power, @32Ω
80 mW (per output)
Minimum Load Impedance
16 Ω
Headphone Output
3.5 mm (1/8") stereo
Net Weight
98 g(3.5 oz.) (without batteries)
Dimensions
110 x 64 x 21 mm H x W x D
Battery Life
5–7 hours (continuous use) AA batteries
P3T
RF Output Power
10, 20, 30 mW
Note: varies by region
RF Output Impedance
50 Ω (typical)
Net Weight
783 g(27.6 oz.)
Dimensions
43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
Power Requirement
12-15V DC, 260 mA Maximum
Audio Input
Connector Type
6.35 mm (1/4") TRS
Polarity
Tip positive with respect to ring
Configuration
Electronically balanced
Impedance
40 kΩ (actual)
Nominal Input Level
switchable: +4 dBu, –10 dBV
Maximum Input Level
+4 dBu +22 dBu
-10 dBV +12.2 dBu
Pin Assignments
Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection
Up to 60 V DC
Audio Output
Connector Type
6.35 mm (1/4") TRS
Configuration
Electronically balanced
Impedance
Connected directly to inputs

14
Certifications
This product meets the Essential Requirements of all relevant European
directives and is eligible for CE marking.
Meets essential requirements of the following European Directives:
• Low Voltage Directive 2006/95/EC
• R&TTE Directive 99/5/EC
• WEEE Directive 2002/96/EC, as amended by 2008/34/EC
• RoHS Directive 2002/95/EC, as amended by 2008/35/EC
Note: Please follow your regional recycling scheme for batteries and electronic
waste
Conforms to the relevant requirements of regulation (EC) No.278/2009, for
low voltage external power supplies.
Meets requirements of the following standards:
EN 300 422 Parts 1 and 2. EN 301 489 Parts 1 and 9.
P3T
Certified under FCC Part 74.
Certified by IC in Canada under RSS-123 and RSS-102.
IC: 616A-P3TA, 616A-P3TB, 616A-P3TD.
FCC: DD4P3TA, DD4P3TB, DD4P3TD.
P3R
Approved under the Declaration of Conformity (DoC) provision of FCC
Part 15.
Complies with requirements set out in RSS-GEN.
This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation of this device is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Important Product Information
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be
required in certain areas. Consult your national authority for possible
requirements. Changes or modifications not expressly approved by Shure
Incorporated could void your authority to operate the equipment. Licensing
of Shure wireless microphone equipment is the user’s responsibility, and
licensability depends on the user’s classification and application, and
on the selected frequency. Shure strongly urges the user to contact the
appropriate telecommunications authority concerning proper licensing, and
before choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada ICES-003 Compliance Label:
CAN ICES-3 (B)/NMB-3(B)
Note: EMC conformance testing is based on the use of supplied and
recommended cable types. The use of other cable types may degrade
EMC performance.
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with
all the conditions of that licence including operating frequencies. Before
31 December 2014, this device will comply if it is operated in the 520-820
MHz frequency band. WARNING: After 31 December 2014, in order to
comply, this device must not be operated in the 694-820 MHz band.
Note: EMC conformance testing is based on the use of supplied and
recommended cable types. The use of other cable types may degrade
EMC performance.
Please follow your regional recycling scheme for batteries, packaging, and
electronic waste.

58
重要安全事项!
1. 必须阅读这些注意事项。
2. 必须保留这些注意事项。
3. 必须注意所有警告内容。
4. 必须遵循所有注意事项。
5. 不要在靠近水的地方使用本设备。
6. 只能用干布擦拭设备。
7. 不要堵塞任何通风口。留出足够的距离，确保充分
通风，并安装在符合制造商要求的位置。
8. 不要将本设备安装在任何热源（如明火、散热器、调温
器、火炉或包括功率放大器在可的其它可能产生热量的
装置附近。不要将任何明火火源放置在产品上。
9. 不要破坏带极性或接地类型插头的安全功能。极性插头带有两个插
片，其中一个比另一个宽。接地类型插头带有两个插片和第三个接
地插脚。较宽的插片或第三个插脚是为安全目的设置的。如果提供
的插头无法插入您的插座，请向电工咨询如何更换合适的插座。
10. 保护电源线防止被脚踩踏或被夹紧，尤其是在插
头、方便插座和机身电源线的引出处。
11. 只能使用制造商指定的连接部件/附件。
12. 只能使用制造商指定的或随设备售出的手推车、支座、
三角架、托架或支撑台。如果使用手推车，在移动装有
设备的手推车时应注意安全，避免设备翻落。
13. 在雷电天气或长时间不使用情况下，应拔下设备插头。
14. 所有维修均应由合格的维修人员执行。如果设备因下列情况损坏，应
进行维修：电源线或插头损坏、液体泼溅到设备上或异物进入设备，
设备暴露在雨水或潮湿环境中而无法正常工作，或摔落到地上。
15. 不要将本设备暴露在可能滴水和溅水的地方。不要将装
有液体的容器（如花瓶等）放在本设备顶部。
16. 电源插头或电器转接头应保持在随时可用的状态。
17. 本装置的空气噪声不超过 70dB (A)。
18. 应将符合 I 类标准的设备连接到带有接地保护装置的主电源插座。
19. 为降低起火或电击危险，不要将本设备暴露在雨中或潮湿环境下。
20. 不要尝试改装本产品。否则可能会导致人身伤害和/或产品故障。
21. 应在技术规格指定的温度范围内操作此产品。
警告：本产品含有被美国加利福尼亚州确定为可能会引发癌症和出生缺陷
及其它生殖问题的化学物质。
安全事项
根据危险程度和损坏严重性的不同，使用“警告”和“小心”文字对未正确使用
可能导致的后果做出标识。
警告：如果没有遵循这些警告事项，在操作不正确的情况下可能会导
致严重的人身伤亡事故。
小心：如果没有遵循这些警告事项，在操作不正确的情况下可能会导
致常见的人身伤害或财产损失。
小心
• 不要拆开或改装设备，这样做可能会导致故障。
• 不要用力过大，不要拉扯线缆，否则会损坏线缆。
• 应让产品保持干燥，并避免暴露在极高的温度和湿度环境下。
警告
• 如果有水或其他异物进入设备内部，可能会导致起火或触电事故。
• 不要尝试改装本产品。否则可能会导致人身伤害和/或产品故障。
本设备可产生高于 85 dB SPL 的音量。 请根据您所在国家的劳动保护要
求，检查允许的最大连续噪声暴露级别。
警告
在过大音量下收听音频信号可能会导致永久性失聪。应尽可能使用较低音
量。长时间暴露在过高音量级别下可能会导致噪声性永久失聪(NIHL)。如
果要长时间暴露在高声压级别下，为避免丧失听力，请遵循美国职业安全
健康局 (OSHA) 制订的指导原则。
90 dB SPL
八小时
95 dB SPL
四小时
100 dB SPL
两小时
105 dB SPL
一小时
110 dB SPL
半小时
115 dB SPL
十五分钟
120 dB SPL
尽量避免，否则可能会造成损伤

59
PSM®300
PSM300 个人监控系统提供无线立体声监控功能，能够提高清晰度并减少
传统舞台边缘处的噪音。表演者可通过调节立体声合成和腰包的总体音量
水平来制作他们自己的自定义混音，从而可以在舞台上生成较低的音量及
增强音频细节。PSM300 易于设置和操作，具备一键式频率同步功能并且
可在发射机和接收机之间实现可靠的无线射频稳定性。利用坚固、可靠的
硬件和不断钻研的技术，Shure PSM300 个人监控系统能够极大改进舞台
上的监控体验。
特性
• 以无线方式向舞台上的表演者发送两个频道的音频
• 可靠的射频连接覆盖范围达 300 英尺（90 米）
• 在每个腰包上生成带有可调立体声平衡或混音模式®双频道单声道合成的
个人混音。
• 高达 90 dB 的信噪比可在任何音量下实现清晰、详尽的音频
• 系统适用于 Shure Sound Isolating 隔音™耳机系列
• 一键式扫描和红外同步可快速和轻松地分配干净的无线频道
• 没有复杂的菜单，而只有简单的音量和混音控制旋钮，专注高性能
• 全金属半机架发射机
• 纤薄轻巧的腰包易于连接至腰带或吉它带
Instrument Mix
(Channel 1)
Vocal Mix
(Channel 2)
CH 1 CH 2 CH 1 CH 2
P3T
Mixer Outputs
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
个性化混音模式设置
个性化混音模式设置
乐器
人声
乐器
人声
舞台信号与混音器输入
乐器混合（频道 1）
人声混合（频道 2）
混音器输出
鼓
人声
乐器
这些示例显示了音乐演出的典型设置。有关其他示例，请参见“系统应
用”部分。
① 路由音频信号
将乐器和话筒信号从舞台发送至混音器或 PA 系统。
② 创建监控器混音
从混音器创建两种混音：一种是乐器混音，另一种是人声混音。路
由其中的每种混音，以隔离混音器输出并将它们连接至 P3T 输入。
③ 发送无线音频至演出者
将腰包与 P3T 发射机同步，发送混音供演出者耳内监控。
④ 调整个性化混音
每个演出者均使用腰包上的混音模式旋钮，以便在乐器与人声之间
控制其自己的混音。
系统概述
附带组件
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T 发射机
P3R 或 P3RA 腰包接收机
¼ 波长天线
SE112 或 SE215 耳机
机架型硬件套件
携带包
PS23 电源部件
(2) 节 AA 电池*
*在阿根廷未包括

60
P3T 发射机前后面板
⑧ 电源输入
连接随附的舒尔 PS23 外部电源
⑨ 单声道/立体声-混音开关
立体声混音 将双频道立体声混音发送至接收机
Mono（单
声）
将汇合音频混音发送至两个接收机频道
⑩ 线路/辅助开关
使用以下项作为连接参考以调整输入敏感性：
辅助设备 (-10
dBV)：
用户音频设备，比如，计算机或便携式媒体播 放器
线路 (+4 dBu)
：
混音器或其他专业音频设备
⑪ 环路输出（¼ 英尺 TRS，平衡输出）
将输出连接至其他 PSM 系统或其他音频设备
⑫ 音频输入（¼ 英尺 TRS，平衡输出）
连接至调音台输出或其他音频源，以供演出者监听
⑬ BNC 天线连接端口
连接随附的 ¼ 波长天线、指向性天线或舒尔 P3AC 天线组合器
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T 前面板
① 输入电平控件
调整输入音频信号的电平
② IR 同步窗口
发送和接收组/频道数据，将接收机与发射机同步
③ 同步按钮
按下此按钮，可将接收机与发射机同步至相同的组和频道
注意：同步数据通过 IR 同步窗口发送
④ LCD 显示屏
显示音频、射频和系统信息
⑤ 组按钮
按下此按钮可滚动查看组设置
⑥ 频道按钮
按下此按钮可滚动查看频道设置
⑦ 电源
打开或关闭电源
P3T 发射机显示屏
L
R
OL
OL
sync
Tx Rx
stereo/mx mono aux line
0dB
group channel tv
௔
௕
௖
ௗ௘௙
௚
③ 锁定状态
要锁定或解锁控件，按住组和频道按钮，直到锁定图标出现/消失。
④ 同步状态
当发射机与接收机成功同步之后出现。同步方向显示为 Tx>Rx（发射机发送频率至
接收机）或 Tx<Rx（接收机发送频率至发射机）。
⑤ 立体声混音/单声混音
指明发送至接收机的音频是单频道还是双频道混音（与后面板上的 Stereo-MX/
Mono 开关相对应）。
⑥ 辅助设备/线路模式
指明输入敏感性设置（与后面板上的 Aux/Line 开关相对应）
⑦ 0 dB 指示器
当输入信号到达 0 dB 时开启。请参阅有关调整增益和聆听音量的章节，了解有关如
何使用此图标的信息。
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
P3T 后面板
▇硬件
① 音频输入量表
指明音频信号电平
② 组/频道/电视设置
显示选定的组和频道设置以及相应的电视频道
注意：电视指示器仅适用于美国频道，在其他地区仍为空白
① ② ③④⑤ ⑥ ⑦ ⑧⑨⑩⑪ ⑫ ⑬

61
P3R 无线接收机
௣
௢
௟
௤
௥ ௦ ௧ ௨
௩
௪
௠௡
组/频道
混音模式
P3R
① 显示屏
显示组、频道和混音模式设置
② 组按钮
• 按下此按钮可显示组
• 按住此按钮可编辑组，然后在显示屏闪烁时按下可滚动
③ 频道按钮
• 按下此按钮可显示频道
• 按住此按钮可编辑频道，然后在显示屏闪烁时按下可滚动
④ IR 同步窗口
在接收机与发射机之间发送和接收同步数据
⑤ 扫描按钮
• 按住可执行组扫描
• 按下此按钮可执行频道扫描
注意：频道扫描选择当前组中最佳频道。组扫描查找有最近空闲频道的组，并选择该组中第一个
可用频道。
⑥ 天线
⑦ 电源 LED 指示器
指明当接收机开启时，剩余的电池寿命以及何时激活节能模式。参见电池寿命表了解
更多信息。
⑧ 电源开关/音量控制旋钮
打开/关闭接收机，并调整主要话筒音量
⑨ 射频 LED 指示灯（蓝色）
当调谐至活动发射机组和频道时亮起
⑩ 话筒输出
连接至耳机或听筒
⑪ 混音模式控制旋钮
• 在混音模式中操作时，此旋钮将频道 1 和频道 2 合成为单一混音
• 在立体声模式中操作时，此旋钮调整左/右平衡
⑫ 电池舱
可装 2 节 AA 电池
P3RA 接收机
对于要求更高的应用，舒尔提供了 P3RA 接收
机，它为全金属结构，除了 P3R 接收机所包括
的功能，还具备高级菜单导航功能。有关更多
信息，请访问 www.shure.com。
电池寿命
LED 行为 剩余运行时（小时数）
绿色 5-7
琥珀色 1-3
红色（稳定亮起） 0.5-1
红色（闪烁） 0
在以下条件下，使用 Energizer™ 碱性电池测量电池寿命：
• 发射机敏感性：线路 (+4dBu)
• 接收机的音频输出： 100 dB 通过舒尔 SE112 耳机
节能模式：未插入耳机时，接收机进入节能模式，以延长电池寿命。在此模式中，LED 缓
慢开启/关闭，并继续显示表示剩余电池寿命的颜色。

62
带多个接收机的单一发射机
多位演出者可从同一发射机监控音频，仍在其腰包调整信号，以个性化混
音。只需将每个腰包调谐至与发射机相同的频率，并使用混音模式旋钮调
整混音。
混音模式或立体声操作：
每位演出者均可选择将其腰包设置为 MixMode 或 Stereo（当发射机设置为
Stereo-MX 时）。腰包开启时默认设置为立体声。要在混音模式中操作，
在开启电源时按住 GROUP 按钮。有关这些模式的信息，请参见“混音模式和
立体声监控”。
P3T power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
混音器输出（辅助设备/监控器）
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T
混音器输出（辅助设备/监控器）
适合每位演出者的单一系统
此配置在单人演出或只有一人需要无线监控的群组演出中均能提供耳
机内监控。可为多位演出者扩展此系统，只需使用与相同发射机已调
谐的附加 P3R 腰包接收机。
安装之前，请参阅以下 PSM300 系统方案。设置之前了解配置选项有助于确定信号路由要求并为未来扩展做好计划。有关如何设置 PSM300 系统并为监
控创建混音的特定信息可在本用户指南的“系统设置和配置”以及“操作”部分中找到。
▇应用

63
带独立混音的多个发射机
当一组中多位演出者有不同监控要求时，可同时使用多个 PSM300 系
统通过每个发射机发送不同的混音。此设置要求可为每个发射机提供
两种监控器/辅助设备输出的混音器。
提示：为了在涉及多个发射机的应用中简化设置，舒尔提供 P3AC
天线和配电系统，仅从一个来源为多达四个 PSM 发射机供电并提
供射频。
路由至外部设备的信号（组合系统）
LOOP 输出将音频传递给外部设备，比如，其他个人监控系统、录音设备
或舞台监控器。LOOP 输出的信息与来自混音器的信号相同，均不受发
射机音量或输入敏感性（线路/辅助设备）设置影响。因此，在使用具备
一个或两个监控器/辅助设备的混音器时，LOOP 输出特别有用。
同时使用 PSM300 和扬声器：
当一些演出者使用 PSM300 无线系统，而其他演出者通过舞台上的扬声
器进行聆听时，可使用组合监控系统。
注意：如果使用无源舞台监控器，必须将 P3T 输出连接至扩音器。有
源（已扩音）扬声器可直接连接至 P3T 输出。
组合使用 PSM300 与其他无线监控系统
在两位演出者有其各自的无线监控系统（例如，一个舒尔 PSM300 系统
和一个第三方系统）的情况下，PSM300 可将源自混音器的信号传递至
第二个监控系统。
P3T P3T
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
混音 1
混音 2
P3T
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
舞台监控器扬声器
扩音器
发射机 LOOP 输出
混音器辅助设备/监控器输出
