Shure ANI22 User manual

ANI22
Audio Network Interface
Complete user guide for the ANI22. Includes system diagrams, specifications, installation instructions, command strings, and more.
Version: 3 (2020-B)

Shure Incorporated
2/27
Table of Contents
ANI22Audio Network Interface 3
Safety Information 3
IMPORTANT SAFETY INSTRUCTIONS 3
General Description 4
Getting Started 4
Step 1: Connect to a Network 4
Step 2: Access the Web Application 4
Step 3: Connect Devices in Dante Controller Software 5
Step 4: Configure Audio 5
Get More Information 6
Hardware and Installation 6
Hardware 7
Power Over Ethernet (PoE) 9
Reset 9
Installation and Rack Mounting 10
Signal Flow and Connections 12
Connections and Signal Flow 12
Summing 13
Encryption 14
Logic Applications 14
Device Identification 15
Audio Settings 15
Adjusting Input levels 15
Adjusting Output Levels 16
Metering Options (Pre-gain and Post-gain) 16
Parametric Equalizer 16
Custom Presets 19
Networking and Dante 20
Dante Transmit Flows 20
Pushing Device Names to the Dante Network 20
Compatibility with Dante Domain Manager 20
QoS (Quality of Service) Settings 20
IP Ports and Protocols 21
Event Log 22
Using a Third-Party Control System 23
Important Product Information 23
Information to the user 23
Certifications 24
Specifications 24
Accessories 26
Furnished Accessories 27
Optional Accessories and Replacement Parts 27

Shure Incorporated
3/27
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
ANI22
Audio Network Interface

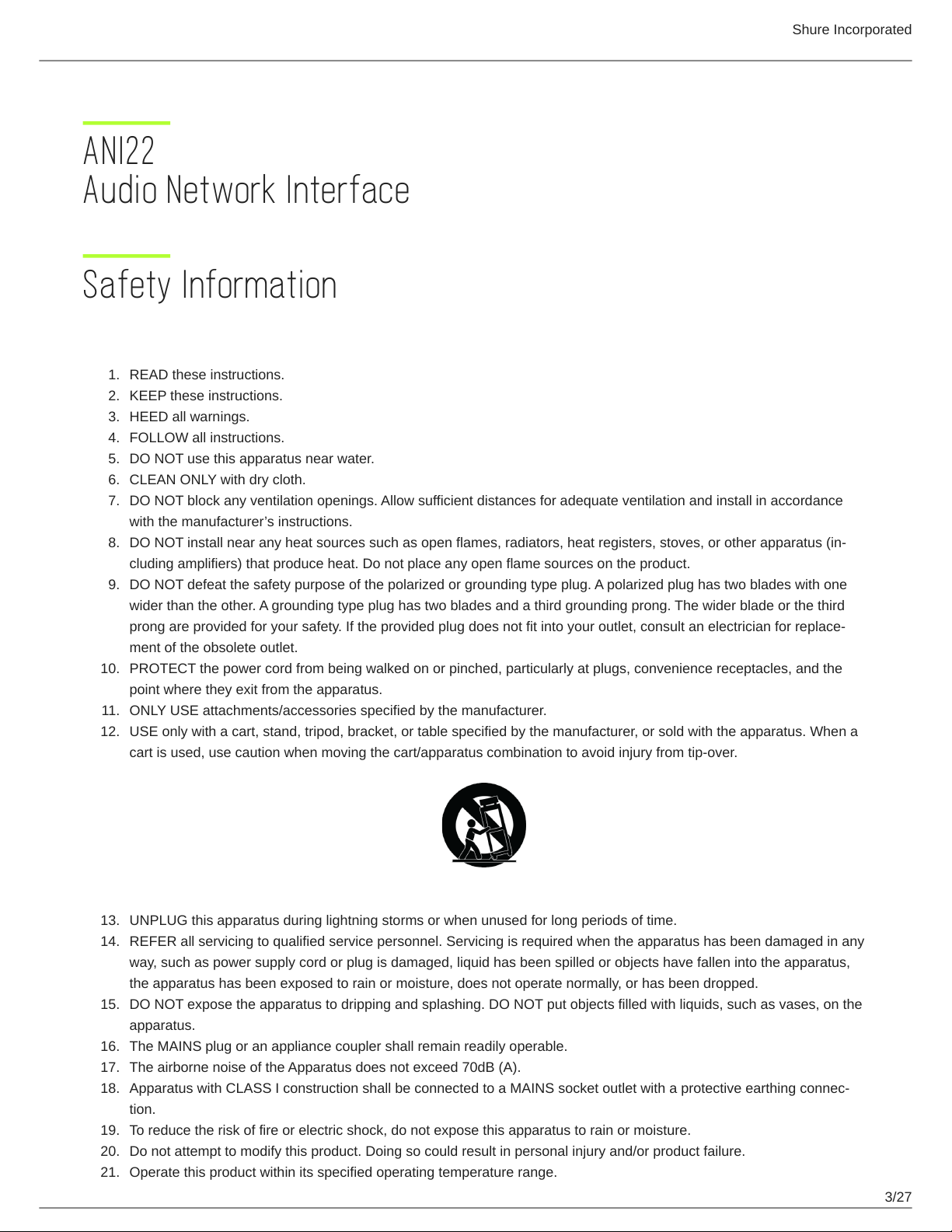

Safety Information
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
with the manufacturer’s instructions.
DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.

Shure Incorporated
4/27
•
•
•
1.
2.
1.
2.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and maintenance instructions in the literature accom
panying this unit.
General Description
The Shure ANI22 Audio Network Interface provides 2 channels of Dantetoanalog and 2 channels of analogtoDante conver
sion. A single interface provides a simple way to connect analog equipment to the audio network, such as wireless micro
phones, audio processors, video codecs, and loudspeaker systems. Available in XLR and block connector versions, each box
uses a single network cable to carry audio and power through Power over Ethernet (PoE). A browser-based web application
controls audio and network settings from any computer connected to the same network.
Getting Started
This device features a browser-based web application, which controls audio and network properties. Upon completing this ba
sic setup process, you will be able to:
Access the web application to customize audio settings and network properties
Use Dante Controller software to connect with other Dante devices and pass audio
Access additional configuration information
Step 1: Connect to a Network
Use an Ethernet cable (CAT5e or higher) to connect the ANI22 to a network switch.
Note: The network switch must provide Power over Ethernet (PoE). Make sure to connect to a PoE port, since many switches do not supply power
on all ports.
Connect a computer to the network switch with an Ethernet cable
Step 2: Access the Web Application
Download and install the Shure Device Discovery application (http://www.shure.com)
Open the Shure Device Discovery application
™

Shure Incorporated
5/27
3.
1.
2.
1.
2.
3.
1.
Double-click the device to open the web application.
Tip: If setting up multiple Shure devices, use the Identify button in the application to flash the lights on the device.
Step 3: Connect Devices in Dante Controller Software
Download and install Dante Controller Software from http://www.audinate.com
Use Dante Controller to create connections with other Dante devices
Note: Refer to the Dante Controller user guide for more information on channel routing (available at http://www.audinate.com/resources/technicaldocumenta
tion)
Example: Connecting the ANI22 and Shure MXA310
Find the MXA310 in the list of Dante transmitters, and select the plus sign (+) to show all channels.
Find the ANI22 in the list of Dante receivers, and select the plus sign (+) to show all channels.
Check the box where the MXA310 AUTOMIX OUT and the ANI22 DANTE INPUT 1 intersect
Step 4: Configure Audio
Connect analog equipment (such as loudspeakers or wireless microphone systems) to the analog inputs and outputs.
Refer to the hardware section in this guide for information on connections and LED metering.

Shure Incorporated
6/27
2.
•
•
•
•
•
•
•
In the ANI22 web application, adjust input and output levels and perform a sound check. Refer to the help topics in the
web application for additional information.
Get More Information
Now that the basic setup is complete, you should have access to the web application and be able to pass audio between de
vices. More comprehensive information is available online and in the help section, including:
Maximizing audio quality with the built-in parametric equalizer
External control system command strings
System scenario diagrams
Software configuration
Networking information
Troubleshooting
Replacement parts and accessories
The complete user guide is available at http://pubs.shure.com/guide/ANI22

Shure Incorporated
7/27
◦
◦
Hardware and Installation

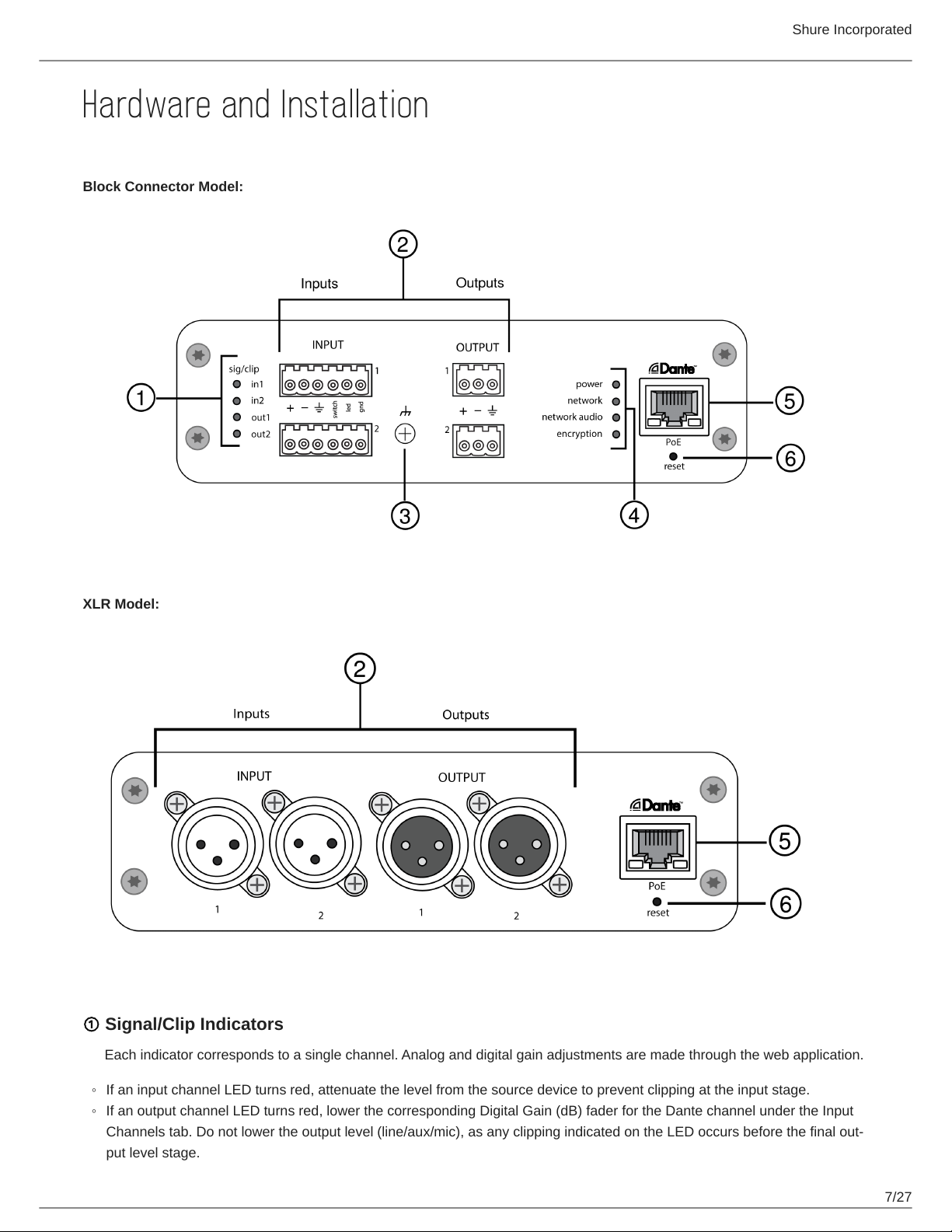

Hardware
Block Connector Model:
XLR Model:
①Signal/Clip Indicators
Each indicator corresponds to a single channel. Analog and digital gain adjustments are made through the web application.
If an input channel LED turns red, attenuate the level from the source device to prevent clipping at the input stage.
If an output channel LED turns red, lower the corresponding Digital Gain (dB) fader for the Dante channel under the Input
Channels tab. Do not lower the output level (line/aux/mic), as any clipping indicated on the LED occurs before the final out
put level stage.

Shure Incorporated
8/27

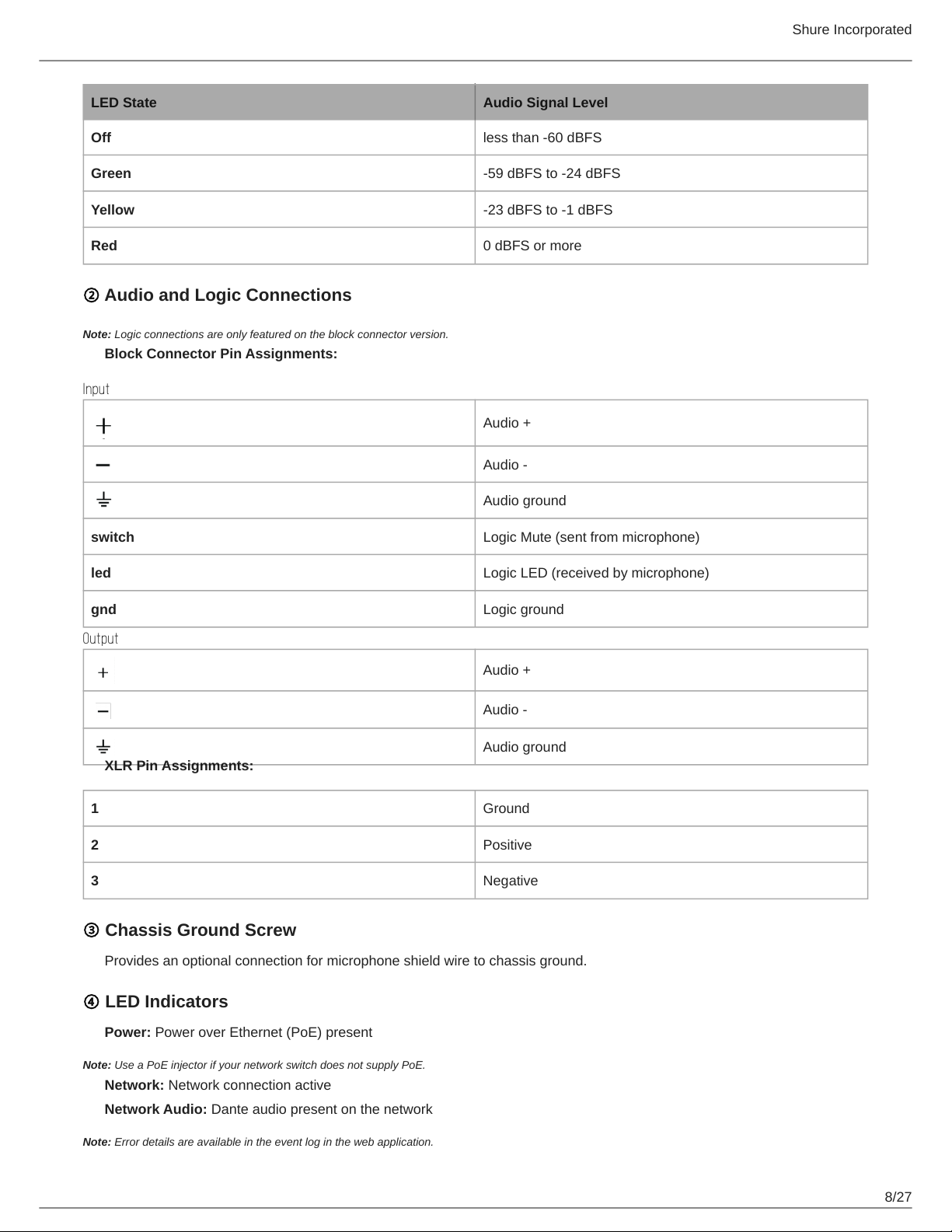

LED State Audio Signal Level
Off less than -60 dBFS
Green -59 dBFS to -24 dBFS
Yellow -23 dBFS to -1 dBFS
Red 0 dBFS or more
②Audio and Logic Connections
Note: Logic connections are only featured on the block connector version.
Block Connector Pin Assignments:
Input
Audio +
Audio -
Audio ground
switch Logic Mute (sent from microphone)
led Logic LED (received by microphone)
gnd Logic ground
Output
Audio +
Audio -
Audio ground
XLR Pin Assignments:
1Ground
2Positive
3Negative
③Chassis Ground Screw
Provides an optional connection for microphone shield wire to chassis ground.
④LED Indicators
Power: Power over Ethernet (PoE) present
Note: Use a PoE injector if your network switch does not supply PoE.
Network: Network connection active
Network Audio: Dante audio present on the network
Note: Error details are available in the event log in the web application.

Shure Incorporated
9/27
•
•
LED Status Activity
Off No active signal
Green Device is operating successfully
Red Error has occurred. See event log for details.
Encryption:
LED Status Activity
Off Audio not encrypted
Green Successful encrypted audio connection with another device
Red
Encryption error. Possible causes:
Encryption is enabled on one device and not on another
Passphrase mismatch
⑤Dante Network Port
Connects to a network switch to send Dante audio, while receiving Power over Ethernet (PoE) and data from the control
software. See the Dante and networking section for additional information.
⑥Reset Button
Resets the device settings back to the factory default.
Power Over Ethernet (PoE)
This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE sources.
Power over Ethernet is delivered in one of the following ways:
A network switch that provides PoE
A PoE injector device
Reset
The reset button is located inside a small hole in the rear panel. Use a paperclip or other small tool to press the button.
There are two hardware reset functions:
Network reset (press button for 4-8 seconds)
Resets all Shure control and audio network IP settings to factory defaults
Full factory reset (press button for longer than 8 seconds)
Restores all network and Designer settings to the factory defaults.
Software Reset Options
To simply revert settings without a complete hardware reset, use one of the following options:
Reboot Device:Power-cycles the device as if it were unplugged from the network. All settings are retained when the device is
rebooted.

Shure Incorporated
10/27
1.
2.
Default Settings: To revert audio settings back to the factory configuration (excluding Device Name, IP Settings, and Pass
words), select Load Preset and choose the default settings preset.
Installation and Rack Mounting
Two mounting solutions are available for installing the Audio Network Interface:
CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or under a table
Single-unit Mounting Tray (included accessory): Supports a single device for mounting under a table
Securing the Devices
Use the included screws from the mounting hardware kit to secure the Audio Network Interfaces. Audio Network Interfaces can
be mounted to face either direction. Insert the screws from the bottom in the appropriate holes, according to the following dia
grams:
Align the holes as shown for securing a single device in the single-unit mounting tray
Align the holes as shown for securing up to 3 devices in the 19" rack tray.
Rack Ear Configuration
A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears
support mounting in a standard equipment rack or underneath a table.
Standard 19" Rack Mount
Align the ears with the mounting holes pointed forward.
Install the 3 screws that hold the ear to the tray as shown.

Shure Incorporated
11/27
1.
2.
Under-Table Mounting
Align the ears with the mounting holes pointed upward.
Install the 3 screws that hold the ear to the tray as shown.

Shure Incorporated
12/27
1.
2.
3.
4.
5.
Installing Underneath a Table
Hold the tray in the desired location under a table.
Use a pencil to mark the location of the mounting holes on the table.
Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
Install the components into the tray.
Install with 4 screws to secure the tray underneath the table.
Signal Flow and Connections
Connections and Signal Flow

Shure Incorporated
13/27
•
•
•
•

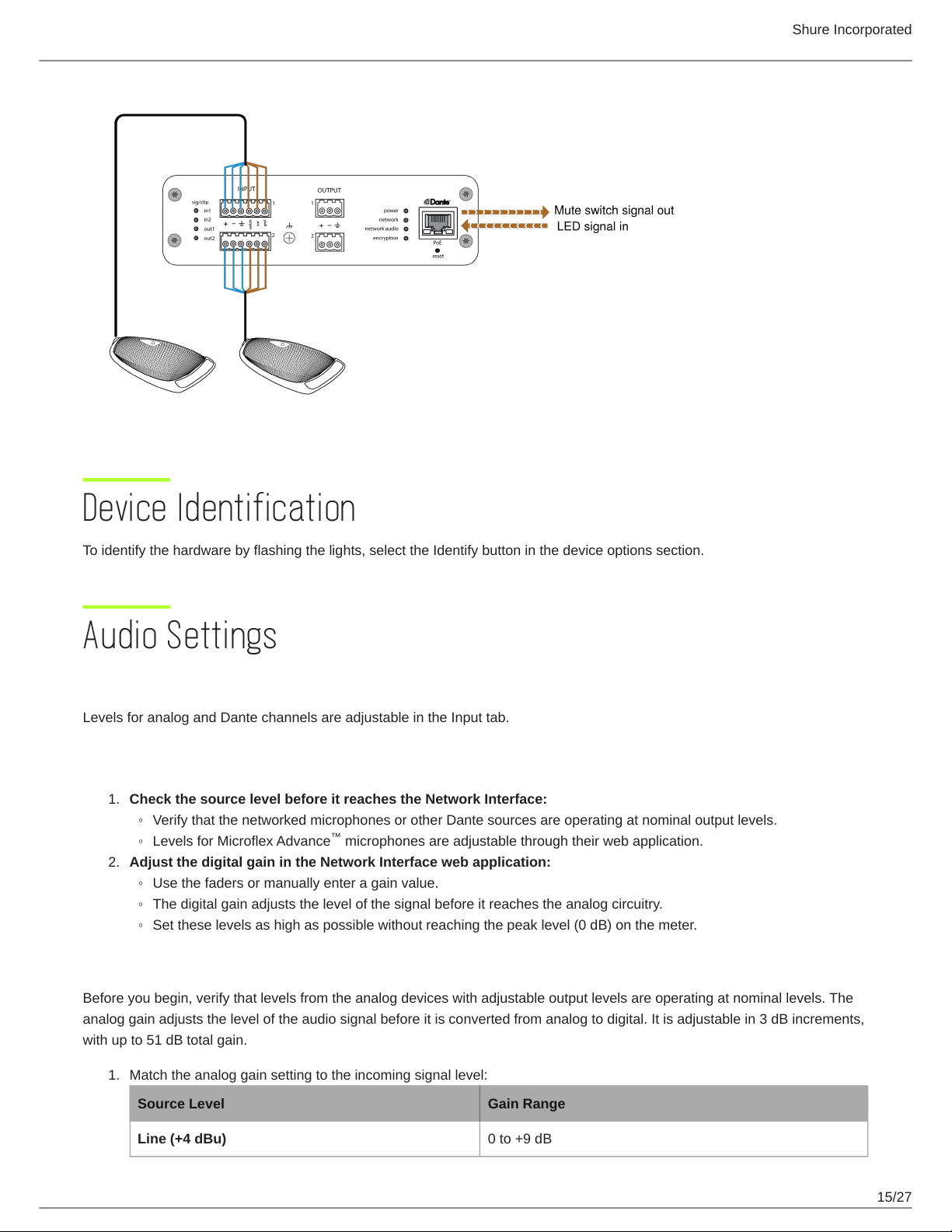

①Analog Input with Logic
Connection (MX392)
In addition to running the audio signal, this boundary microphone features three additional
wire leads for logic connections. This allows the switch on the microphone to send a logic
mute signal to other equipment on the network, and to receive a logic LED control signal.
②Analog Input Sources Analog sources, such as wireless microphones, connect to the analog line input
③Analog Output Devices Loudspeakers, amplifiers, or recording devices connect to the analog line output
④ Dante-enabled Equip-
ment
Dante microphones, such as the Shure Microflex Advance ceiling and table arrays connect
to the network switch and can be routed using Dante Controller software.
⑤Control CPU A computer connected to the network accesses the web application to control the channel
levels and processing.
⑥Network Switch The network switch provides Power over Ethernet (PoE) to the ANI22, while also supporting
all other Dante-enabled audio equipment.
Summing
The Audio Network Interface provides channel summing to combine input signals and send them over a single output channel.
This makes it possible to send all channels to a device with a limited number of Dante receiver channels or analog inputs. The
relative channel levels are not affected; the mix is summed in the device and sent over a single output channel.
Note: When summing is enabled, a limiter is activated to prevent signal overloading. The limiter does not affect the direct outputs, and will only affect the
summed signal.
By default, the ANI22 treats signals this way:
Analog input 1 → Dante output 1
Analog input 2 → Dante output 2
Dante input 1 → Analog output 1
Dante input 2 → Analog output 2
To combine channels, select one of the summing options in Channels > Inputs.
Summing Option Signal Destination
1 + 2
Analog input 1 + analog input 2
Dante output 1
Dante output 2
3 + 4
Dante input 1 + Dante input 2
Analog output 1
Analog output 2
1 + 2 / 3 + 4
Analog input 1 + analog input 2
Dante output 1
Dante output 2
Dante input 1 + Dante input 2 Analog output 1

Shure Incorporated
14/27
1.
2.
3.
Summing Option Signal Destination
Analog output 2
Encryption
Audio is encrypted with the Advanced Encryption Standard (AES-256), as specified by the US Government National Institute of
Standards and Technology (NIST) publication FIPS-197. Shure devices that support encryption require a passphrase to make
a connection. Encryption is not supported with third-party devices.
To activate encryption:
Open the Settings menu and select the General tab.
Select Enable Encryption.
Enter a passphrase. All devices must use the same passphrase to establish an encrypted connection.
Important: For encryption to work, all Shure devices on your network must use encryption.
If you’re using Shure Designer software to configure your system, please check the Designer help section for more about this topic.
Logic Applications
The block connecter inputs feature three logic signal connections. Logic signals are converted into Ethernet command strings
and sent and received by any device (such as an echo canceller or control system) that supports Ethernet command strings.
In this diagram, Shure MX392 Microflex microphones are connected the audio network interface. The mute button on each mi
crophone sends a logic signal (switch) to mute other audio equipment. The microphones receive logic signals (LED) so that the
microphone LED behavior reflects the state of the entire audio system.
®

Shure Incorporated
15/27
1.
◦
◦
2.
◦
◦
◦
1.
Device Identification
To identify the hardware by flashing the lights, select the Identify button in the device options section.
Audio Settings
Adjusting Input levels
Levels for analog and Dante channels are adjustable in the Input tab.
Dante Sources
Check the source level before it reaches the Network Interface:
Verify that the networked microphones or other Dante sources are operating at nominal output levels.
Levels for Microflex Advance™microphones are adjustable through their web application.
Adjust the digital gain in the Network Interface web application:
Use the faders or manually enter a gain value.
The digital gain adjusts the level of the signal before it reaches the analog circuitry.
Set these levels as high as possible without reaching the peak level (0 dB) on the meter.
Analog Sources
Before you begin, verify that levels from the analog devices with adjustable output levels are operating at nominal levels. The
analog gain adjusts the level of the audio signal before it is converted from analog to digital. It is adjustable in 3 dB increments,
with up to 51 dB total gain.
Match the analog gain setting to the incoming signal level:
Source Level Gain Range
Line (+4 dBu) 0 to +9 dB

Shure Incorporated
16/27
2.
•
•
•
•
•
•
•
Source Level Gain Range
Auxiliary (-10 dBV) +9 to +21 dB
Microphone (varies) +21 to +51 dB
The meters should peak between -18 and -9 dB.
Note: Leaving some additional headroom is a recommended to prevent clipping if mobile devices will be plugged into particular channels.
Adjusting Output Levels
Dante Outputs
Output levels are controlled by the Digital Gain (dB) fader. Always adjust the input gain before the output gain. In most cases,
setting the analog gain correctly results in an appropriate output level. Sources that have a quiet signal, such as a microphone
with low sensitivity, may need some Digital Gain (dB) applied. If the output is clipping, use the Digital Gain (dB) fader to lower
the signal.
Note: If summing is enabled on input channels, use the Digital Gain (dB) and Analog Gain (dB) controls in the Input section to adjust the mix.
Analog Outputs
Match the output level from the Network Interface to the input sensitivity on the analog device:
Line level (0 dB)
Aux level (-20 dB)
Microphone level (-46 dB)
LED Signal and Clipping Indicators
Each analog output channel has a corresponding LED:
Green: Audio signal present
Red: Audio signal is clipping and should be attenuated.
Metering Options (Pre-gain and Post-gain)
Each Dante channel includes a meter to measure signal levels (dBFS), located in the web application under the input and out
put sections.
Pre-gain metering measures the signal level without digital gain applied. It does reflect analog gain adjustments on the two in
put channels. Post-gain metering measures the signal with both analog and digital gain applied.
To change the metering setting, open the Settings menu, select the General tab, and adjust the Metering setting.
Important: If the incoming signal is adjustable (wireless microphone systems, for example), make sure it is at the nominal level
before adjusting the analog gain on the Audio Network Interface.
Parametric Equalizer
Maximize audio quality by adjusting the frequency response with the parametric equalizer.
Common equalizer applications:
Improve speech intelligibility
Reduce noise from HVAC systems or video projectors
Reduce room irregularities
Adjust frequency response for reinforcement systems

Shure Incorporated
17/27
If you’re using Shure Designer software to configure your system, please check the Designer help section for more about this topic.
Setting Filter Parameters
Adjust filter settings by manipulating the icons in the frequency response graph, or by entering numeric values. Disable a filter
using the check-box next to the filter.
Filter Type
Only the first and last band have selectable filter types.
Parametric: Attenuates or boosts the signal within a customizable frequency range
Low Cut: Rolls off the audio signal below the selected frequency
Low Shelf: Attenuates or boosts the audio signal below the selected frequency
High Cut: Rolls off the audio signal above the selected frequency
High Shelf: Attenuates or boosts the audio signal above the selected frequency
Frequency
Select the center frequency of the filter to cut/boost
Gain
Adjusts the level for a specific filter (+/- 30 dB)
Q
Adjusts the range of frequencies affected by the filter. As this value increases, the bandwidth becomes thinner.
Width
Adjusts the range of frequencies affected by the filter. The value is represented in octaves.
Note: The Q and width parameters affect the equalization curve in the same way. The only difference is the way the values are represented.

Shure Incorporated
18/27
1.
2.
3.
Copy, Paste, Import, and Export Equalizer Channel Settings
These features make it simple to use effective equalizer settings from a previous installation, or simply accelerate configuration
time.
Copy and Paste
Use to quickly apply the same PEQ setting across multiple channels.
Select the channel from the pull-down menu in the PEQ screen.
Select Copy.
In the pull-down menu, select the channel to apply the PEQ setting and select Paste.
Import and Export
Use to save and load PEQ settings from a file on a computer. This is useful for creating a library of reusable configuration files
on computers used for system installation.
Export
Choose a channel to save the PEQ setting, and select Export to file.
Import
Choose a channel to load the PEQ setting, and select Import from file.

Shure Incorporated
19/27
1.
2.
3.
1.
2.
3.

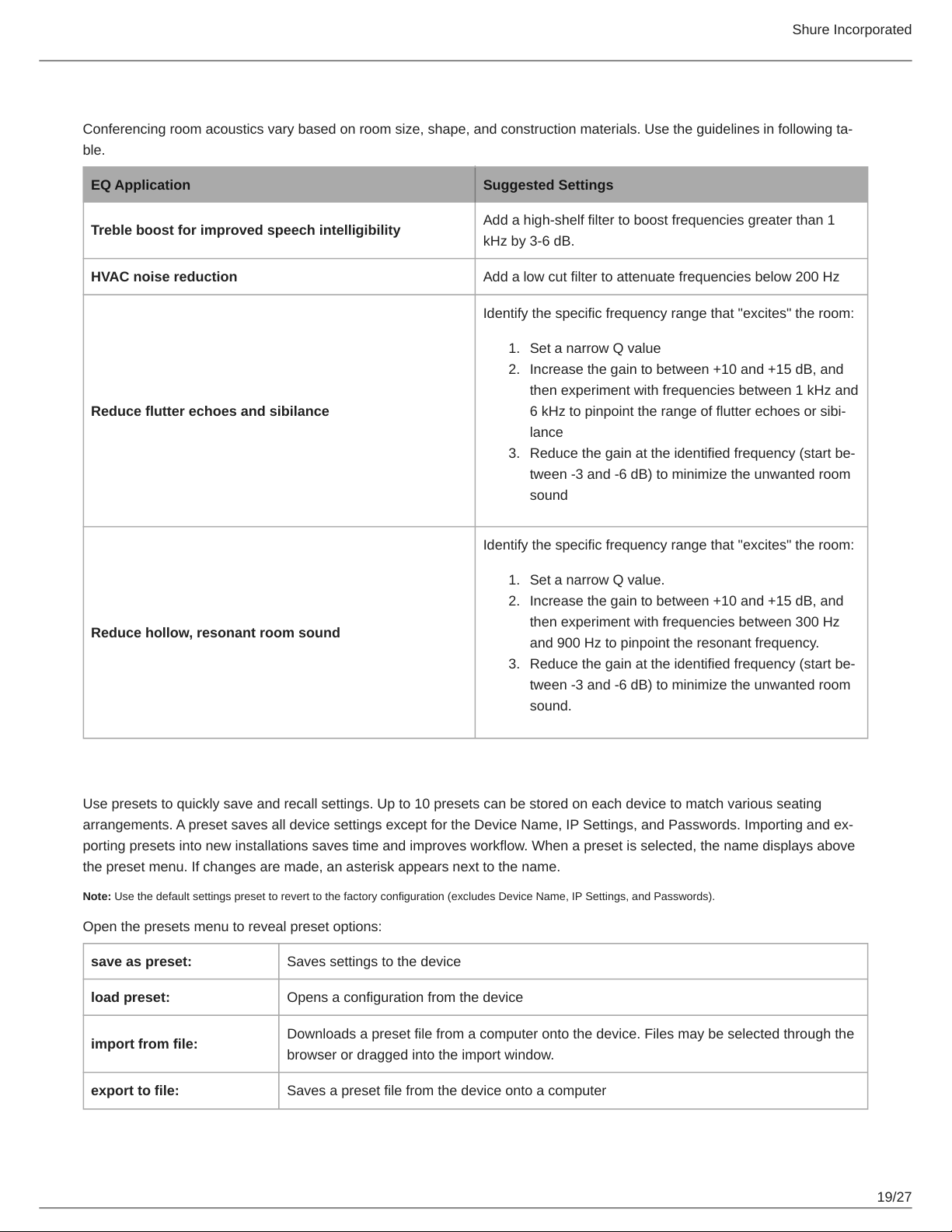

Equalizer Applications
Conferencing room acoustics vary based on room size, shape, and construction materials. Use the guidelines in following ta
ble.
EQ Application Suggested Settings
Treble boost for improved speech intelligibility Add a high-shelf filter to boost frequencies greater than 1
kHz by 3-6 dB.
HVAC noise reduction Add a low cut filter to attenuate frequencies below 200 Hz
Reduce flutter echoes and sibilance
Identify the specific frequency range that "excites" the room:
Set a narrow Q value
Increase the gain to between +10 and +15 dB, and
then experiment with frequencies between 1 kHz and
6 kHz to pinpoint the range of flutter echoes or sibi
lance
Reduce the gain at the identified frequency (start be
tween -3 and -6 dB) to minimize the unwanted room
sound
Reduce hollow, resonant room sound
Identify the specific frequency range that "excites" the room:
Set a narrow Q value.
Increase the gain to between +10 and +15 dB, and
then experiment with frequencies between 300 Hz
and 900 Hz to pinpoint the resonant frequency.
Reduce the gain at the identified frequency (start be
tween -3 and -6 dB) to minimize the unwanted room
sound.
Custom Presets
Use presets to quickly save and recall settings. Up to 10 presets can be stored on each device to match various seating
arrangements. A preset saves all device settings except for the Device Name, IP Settings, and Passwords. Importing and ex
porting presets into new installations saves time and improves workflow. When a preset is selected, the name displays above
the preset menu. If changes are made, an asterisk appears next to the name.
Note: Use the default settings preset to revert to the factory configuration (excludes Device Name, IP Settings, and Passwords).
Open the presets menu to reveal preset options:
save as preset: Saves settings to the device
load preset: Opens a configuration from the device
import from file: Downloads a preset file from a computer onto the device. Files may be selected through the
browser or dragged into the import window.
export to file: Saves a preset file from the device onto a computer

Shure Incorporated
20/27
•
•
•
•
•
•
•

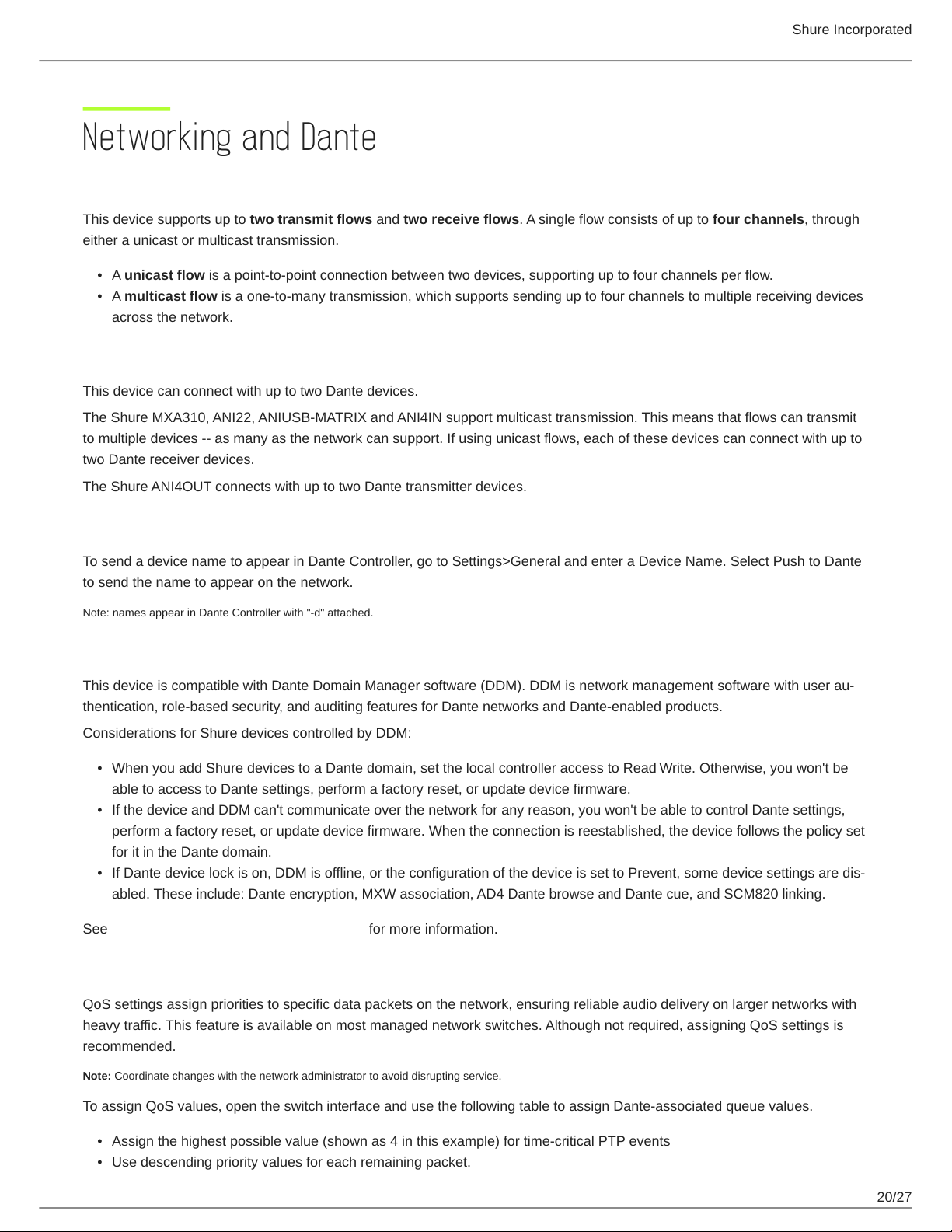

Networking and Dante
Dante Transmit Flows
This device supports up to two transmit flows and two receive flows. A single flow consists of up to four channels, through
either a unicast or multicast transmission.
A unicast flow is a point-to-point connection between two devices, supporting up to four channels per flow.
A multicast flow is a one-to-many transmission, which supports sending up to four channels to multiple receiving devices
across the network.
Shure Device Applications
This device can connect with up to two Dante devices.
The Shure MXA310, ANI22, ANIUSB-MATRIX and ANI4IN support multicast transmission. This means that flows can transmit
to multiple devices -- as many as the network can support. If using unicast flows, each of these devices can connect with up to
two Dante receiver devices.
The Shure ANI4OUT connects with up to two Dante transmitter devices.
Pushing Device Names to the Dante Network
To send a device name to appear in Dante Controller, go to Settings>General and enter a Device Name. Select Push to Dante
to send the name to appear on the network.
Note: names appear in Dante Controller with "-d" attached.
Compatibility with Dante Domain Manager
This device is compatible with Dante Domain Manager software (DDM). DDM is network management software with user au
thentication, role-based security, and auditing features for Dante networks and Dante-enabled products.
Considerations for Shure devices controlled by DDM:
When you add Shure devices to a Dante domain, set the local controller access to Read Write. Otherwise, you won't be
able to access to Dante settings, perform a factory reset, or update device firmware.
If the device and DDM can't communicate over the network for any reason, you won't be able to control Dante settings,
perform a factory reset, or update device firmware. When the connection is reestablished, the device follows the policy set
for it in the Dante domain.
If Dante device lock is on, DDM is offline, or the configuration of the device is set to Prevent, some device settings are dis
abled. These include: Dante encryption, MXW association, AD4 Dante browse and Dante cue, and SCM820 linking.
See Dante Domain Manager's documentation for more information.
QoS (Quality of Service) Settings
QoS settings assign priorities to specific data packets on the network, ensuring reliable audio delivery on larger networks with
heavy traffic. This feature is available on most managed network switches. Although not required, assigning QoS settings is
recommended.
Note: Coordinate changes with the network administrator to avoid disrupting service.
To assign QoS values, open the switch interface and use the following table to assign Dante-associated queue values.
Assign the highest possible value (shown as 4 in this example) for time-critical PTP events
Use descending priority values for each remaining packet.
