Shure AXT210 User manual

AXT210 Handheld Single Channel Transmitter
©2011 Shure Incorporated
27A15019 (Rev. 1)
Draft
6/7/11

READ these instructions.1.
KEEP these instructions.2.
HEED all warnings.3.
FOLLOW all instructions.4.
DO NOT use this apparatus near water.5.
CLEAN ONLY with dry cloth.6.
DO NOT block any ventilation openings. Install in accordance with 7.
the manufacturer’s instructions.
DO NOT install near any heat sources such as radiators, heat 8.
registers, stoves, or other apparatus (including ampliers) that
produce heat.
DO NOT defeat the safety purpose of the polarized or grounding-9.
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wider blade or the third prong are provided for your
safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, 10.
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
ONLY USE attachments/accessories specied by the 11.
manufacturer.
12.
UNPLUG this apparatus during lightning storms or when unused 13.
for long periods of time.
REFER all servicing to qualied service personnel. Servicing is 14.
required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
DO NOT expose the apparatus to dripping and splashing. DO 15.
NOT put objects lled with liquids, such as vases, on the appara-
tus.
The MAINS plug or an appliance coupler shall remain readily oper-16.
able.
The airborne noise of the Apparatus does not exceed 70dB (A).17.
Apparatus with CLASS I construction shall be connected to a 18.
MAINS socket outlet with a protective earthing connection.
To reduce the risk of re or electric shock, do not expose this ap-19.
paratus to rain or moisture.
Do not attempt to modify this product. Doing so could result in 20.
personal injury and/or product failure.
IMPORTANT SAFETY INSTRUCTIONS
USE only with a cart, stand, tripod, bracket, or table speci-
ed by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm.
WARNING: No user-serviceable parts inside. Refer all servicing to qualified
service personnel.
WARNING
• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify,
disassemble, heat above 212°F (100°C), or incinerate
• Follow instructions from manufacturer
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs with other than specified Shure products
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs
Draft
6/7/11

3
<Link status>
000.000 MHz }
|
00.00
2
3 4
6
5
1
6
7
Remove the battery
Unscrew the
locking ring
Batteries
Axient transmitters are powered by a Shure lithium-ion rechargeable
battery.
Caution: Turn off the transmitter before changing batteries.
Note: Refer to your battery charger manual for charging instructions.
Battery Runtime Chart
Battery runtime varies according to the transmitter’s operating mode.
Higher power settings will reduce battery runtime.
Remaining battery runtime is shown on the display in the form of a bat-
tery indicator icon and approximate time in hours and minutes.
Battery Indicator Approximate
Time Remaining
Tips for achieving maximum runtime:
• Use fully charged batteries
• Use the lowest power setting if possible
• Turn off the transmitter when not in use
1
1
Main Menu Screen
The main menu screen displays the following transmitter parameters:
① Link Status
• Linked : Displays linked receiver ID
• Unlinked : Not linked to a receiver
② Frequency
Tuned frequency of the transmitter
③ Battery Charge Indicator
5-segment icon indicates battery life
④ Remaining Battery Life
Displays remaining battery life in hours and minutes
⑤ Showlink Icon
Indicates transmitter is within range of a ShowLink access point
enabling remote control of parameters
⑥ Audio Meter
Indicates the audio signal level
⑦ Control Lock Icon
Displayed when buttons are locked
Locking the Buttons
Lock the buttons of the transmitter to prevent accidental or unauthor-
ized parameter changes.
Press and hold the ▼ and ▲ buttons for 3 seconds. Repeat to unlock.
Power-on RF Mute
The transmitter can be powered on in RF mute mode to prevent trans-
mission of the audio signal.
Press and hold the ▼ button during power until the RF Muted message
is displayed.
Draft
6/7/11

4
Optional Accessories
AXT920 or AXT920SL Handheld Rechargeable Battery
AXT904 Portable Battery Charger
AXT921 1-AA Battery Sled
WA371 Swivel adaptor Euro thread adapter for WA371
Shure Microphone Cartridges: (SM58, SM86, BETA58A, BETA87A,
BETA87C, KSM9/BK, KSM9/SL)
AXT210 Axient Handheld Transmitter
The AXT210 delivers ultra-linear RF performance for more channels on air and superb audio quality. Its advanced rechargeable power manage-
ment supports extended battery life and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote
control of all transmitter parameters, including real-time frequency adjustments.
Features
Transmitter Overview
Included Components
Shure Microphone Cartridge: (SM58, SM86, BETA58A, BETA87A,
BETA87C, KSM9/BK, KSM9/SL)
AXT920 or 920SL Handheld Rechargeable Battery (2)
Padded Case
Zipper Bag
WA371 Swivel adaptor Euro thread adapter for WA371
1
set
1
2
4
5
6
79
8
3
• Ultra-linear RF performance places more channels on-air in crowded
RF environments
• IR Sync function automatically tunes transmitter to the receiver
frequency
• Comprehensive real-time remote control of all transmitter parameters
when a linked transmitter is within range of a ShowLink access point.
• Shure Li-ion rechargeable battery delivers up to 10 hours of runtime
from a single charge
• Rugged, sleek industrial design that withstands the demands of
extreme performances
• Advanced control menu to adjust frequency, audio and security
settings from the transmitter
• Two audio stages (gain and sensitivity) are adjustable for optimal
audio quality.
• Rapid charging brings batteries to 50% capacity (5 hours at 10 mW
power) within 1 hour
• Lockable user interface prevents accidental or inadvertent changes to
controls once settings are made
① Microphone Cartridge
Interchangeable with a variety of Shure cartridges
② LCD Display
View menu screens and settings. Momentarily press power
button to activate backlight.
③ IR Sync Port
Use for IR sync automatic frequency tuning
④ Shure Rechargeable Li-ion Battery
⑤ Locking Ring
Secures the battery and protects the control buttons
⑥ Dual-Band Antenna
For RF signal and 2.4 GHz ShowLink signal
⑦ Arrow Buttons
Use to scroll through menu screens and to change
parameter values
⑧ Set Button
Enables parameter editing. After editing is complete, press to
save changes and return to the main menu screen
⑨ Power Button
Hold for 3 seconds to turn the transmitter on or off. When editing
parameters, acts as a “back” button to cancel changes and return
to a previous parameter or to the main menu screen.
Draft
6/7/11

5
Device ID
The device ID identifies the transmitter on a
network in WWB software or when linked to
a receiver.
• ID length can be up to 8 characters
• Use arrow buttons to scroll through
characters
• Use Set button to save and move to next
character
Frequency
Press the set button once to highlight the
first 3 digits for editing, or twice to highlight
all digits for editing. Use the arrow buttons
to change each digit.
When finished, press the set button to save
changes.
RF Mute
Disables the RF signal to mute the audio
output.
TX On: Audio output on
TX Off: Audio output muted
Gain
Adjust the gain to set audio output level.
Gain range is -10 to +20 dB, in 1 dB steps.
Sens(sensitivity)
Adjust the sensitivity to compensate for input
level variation.
Sensitivity settings are 0 or +12 dB
RF PWR
From the main menu screen, press and hold the
▼ and set button to edit the RF power level.
Use lower power settings to conserve battery life
and to prevent RF overload at the receiver.
Note: A password is required in some regions.
Firmware
Displays the firmware version installed in the
transmitter
Unlink
The unlink command ends the linking relation-
ship between a transmitter and a receiver.
YES: Ends the link between a transmitter and a
receiver.
NO: Preserves the link between a transmitter
and a receiver.
Note: When a transmitter is unlinked, the chan-
nel name will revert to unlinked.
PCB Serial Number
Use this menu to view the serial number of the
printed circuit board (PCB) installed in the unit.
1. From the main menu screen, press and
hold the ▼ and “set” buttons to enter the RF
Power screen.
2. Press the▲ button to access the serial num-
ber .
3. Momentarily press the power button to return
to the home menu screen.
AA Type
Sets the AA battery type to ensure accurate
runtime display when using the optional battery
sled.
Alkaline
NiMH
Lithium
Showlink Test
Activates the ShowLink test 5-bar display to
measure the control range of a ShowLink ac-
cess point.
• 5 bars indicate the center of the coverage
area
• 1 bar indicates the outer boundary of the
coverage area
• If bars are not displayed, ShowLink control is
not available
Troubleshooting
Input Overload
The Input Overload message indicates an excessive signal level at
the transmitter input. To remove an overload, reduce the gain or sensi-
tivity settings.
No ShowLink Alert
This alert is appears if you try to change the frequency when the trans-
mitter is beyond the range of an active ShowLink access point. Choose
OK to unlink the transmitter and complete the frequency change, or
Cancel to return to the home screen.
Group (G) and Channel (C)
A group is a set of pre-set frequencies. A single
frequency within a group is a channel.
G: Change the group
C: Change the channel
Firmware Updates
Firmware is embedded software in each Axient component that controls functionality. Periodically, new versions of firmware are developed to in-
corporate additional features and enhancements. To take advantage of design improvements, new versions of the firmware can be uploaded and
installed using the Firmware Update Manager tool available in WWB6 software. Firmware is available for download from .
Parameter Menus
To adjust transmitter settings, use the arrow buttons to access and edit the parameter menus.
Input
Overload
No ShowLink.
UNLINK Tx to
change freq?
OK Cancel
Draft
6/7/11

6
Specifications- AXT210 Handheld
Transmitter
Axient System
RF Carrier Frequency
Range
470–952 MHz
Note: varies by region
Working Range Under typical
conditions:
150 m (500 ft)
Line of Sight,
outdoors for a
single system:
500 m (1600 ft)
Note: Actual range depends on RF signal absorp-
tion, reflection and interference.
Audio Frequency
Response
40 – 18 kHz (+1, -3 dB)
Note: Dependent on microphone type
RF Tuning Step Size 25 kHz
Modulation
45 kHz max. deviation
FM, Audio Reference Companding
with pre- and de-emphasis
Dynamic Range >108 dB, A-weighted (referenced at 0
dB setting on bodypack)
Image Rejection >90 dB, typical
RF Sensitivity -110 dBm for 12 dB SINAD, typical
Spurious Rejection >110 dB, typical
Ultimate Quieting >110 dB, A-Weighted
Squelch Quieting >115 dB, A-Weighted
Latency <1 ms
Total Harmonic
Distortion
45 kHz max. deviation
<0.3%, A-weighted, typical
System Audio Polarity Positive pressure on microphone dia-
phragm (or positive voltage applied to
tip of WA302 phone plug) produces
positive voltage on pin 2 (with respect
to pin 3 of low-impedance output) and
the tip of the high impedance 1/4-inch
output.
AXT210
Sensitivity Settings 0, +12 dB
Gain Adjustment Range -10 to +20 dB (in 1 dB steps)
Battery Type Shure AXT920/920SL (Rechargeable
Li-Ion)
Battery Life up to 10 hours (low power mode)
Dimensions 261 mm x 37 mm (10.3 in. x 2.6 in.) L
x Dia.
Weight 395 g (13.9 oz.), with batteries
Housing Machined aluminum
Operating Temperature
Range
-18°C (0°F) to 63°C (145°F)
Note: Battery characteristics may limit this range.
Storage Temperature
Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input
Configuration Unbalanced
Impedance >30 kΩ
Maximum Input Level
1 kHz at 1% THD
Sensitivity
Setting:
0 dB: 5.5 dBu
+12 dB: −6.5 dBu
RF Output
Connector SMA (UHF and Showlink); Shell=Ground,
Center=Signal
Antenna Type Integrated Dual Band Helical
Power See Frequency Range and Ouput Power table
Impedance 50 Ω
Showlink
Network Type IEEE 802.15.4
Frequency Range 2.40 to 2.4835 GHz (16 Channels)
RF Output Power 10 dBm (ERP)
Tables and Diagrams
Frequency Range and Transmitter Output Power
Band Frequency
Range ( MHz)
Region Power
( mW)
G1 470 to 530 Americas 10/100
G7C 470 to 510 China 10/50
G1E 470 to 530 EMEA 10/50
G1HK 470 to 530 Hong Kong 10
H4 470 to 530 Americas 10/100
H4E 470 to 510 EMEA 10/50
H4HK 470 to 530 Hong Kong 10
J5 578 to 638 Americas 10/100
J5E 578 to 638 EMEA 10/50
J5HK 578 to 638 Hong Kong 10
K4E 606 to 666 EMEA 10/50
L3 638 to 698 Americas 10/100
L3E 638 to 698 EMEA/ China 10/50
L3HK 638 to 698 Hong Kong 10
M5 694 to 750 EMEA 10/50
Q5 740 to 814 EMEA 10/50
Q5HK 740 to 814 Hong Kong 10
Q6 740 to 752 Korea 10
Q10A 740 to 787 China 10/50
A24 779 to 806 Japan 10
JBX 806 to 810 Japan 10
Draft
6/7/11

7
Certifications
Licensing Information
Licensing: A ministerial licence to operate this equipment may be required in certain areas. Consult your national authority for possible
requirements.
Changes or modification not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure
wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the
selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before
choosing and ordering frequencies.
Meets essential requirements of European R&TTE Directive 99/5/EC,
eligible to bear the CE mark:
WEEE Directive 2002/95/EC as amended by 2008/34/EC.
RoHS Directive 2002/95/EC as amended by 2008/35/EC.
Meets requirements of EMC standards EN 300 328, EN 300 422 Parts 1
and 2, and EN 301 489 Parts 1 and 9.
Certified under FCC Part 15 and FCC Part 74.
Certified in Canada by IC to RSS-123 and RSS-210.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.
FCC ID: DD4AXT210. IC: 616A-AXT210.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
This radio transmitter 616A-AXT610 has been approved by Industry
Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et d’un
gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l’intention des autres utilisateurs, il faut choisir le type d’antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une
communication satisfaisante.
Le présent émetteur radio 616A-AXT610 a été approuvé par Industrie
Canada pour fonctionner avec les types d’antenne énumérés ci-
dessous et ayant un gain admissible maximal et l’impédance requise
pour chaque type d’antenne. Les types d’antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l’exploitation de l’émetteur.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne
doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
The CE Declaration of Conformity can be obtained from Shure
Incorporated or any of its European representatives. For contact
information please visit www.shure.com
The CE Declaration of Conformity can be obtained from: www.shure.
com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Wannenacker Str. 28
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: [email protected]
Information to the user
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Draft
6/7/11

www.shure.com ©2011 Shure Incorporated
Asia, Pacific:
Shure Asia Limited
22/F, 625 King’s Road
North Point, Island East
Hong Kong
Phone: 852-2893-4290
Fax: 852-2893-4055
Email: [email protected]
United States, Canada, Latin
America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608 USA
Phone: 847-600-2000
Fax: 847-600-1212 (USA)
Fax: 847-600-6446
Email: [email protected]
Europe, Middle East, Africa:
Shure Europe GmbH
Jakob-Dieffenbacher-Str. 12,
75031 Eppingen, Germany
Phone: 49-7262-92490
Fax: 49-7262-9249114
Email: [email protected]
Draft
6/7/11
Table of contents
Other Shure Transmitter manuals

Shure
Shure AD2 User manual

Shure
Shure P4T User manual

Shure
Shure ADX2 User manual

Shure
Shure ADX2/K8N User manual

Shure

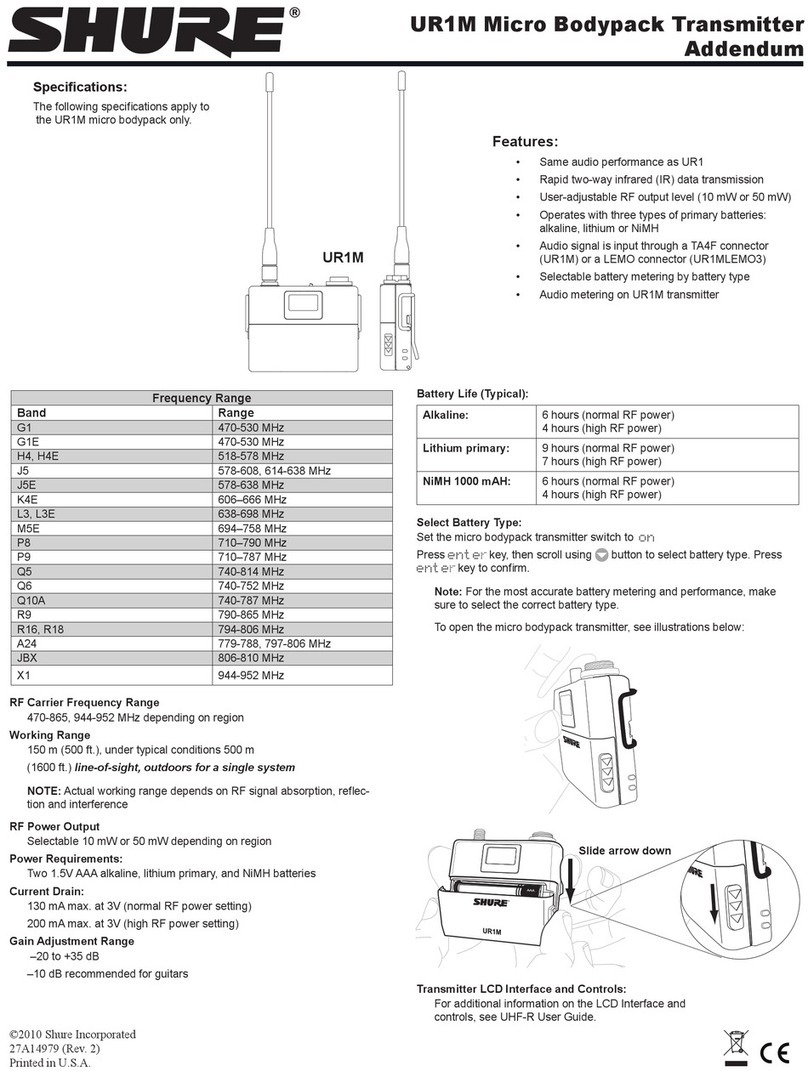

Shure UR1M Installation and operating instructions

Shure
Shure UC2 User manual

Shure
Shure AD1 User manual

Shure
Shure ADX1M User manual

Shure
Shure Axient Digital ADX1 User manual

Shure
Shure ULXD6-8 User manual
Popular Transmitter manuals by other brands

Endress+Hauser

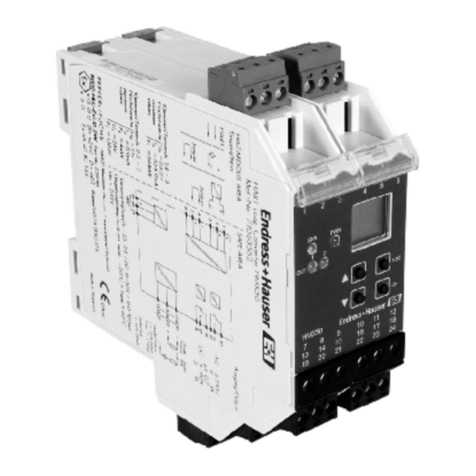

Endress+Hauser HMX50 operating instructions

Emerson
Emerson Rosemount Oxymitter 4000 Reference manual

Marti Electronics
Marti Electronics SRPT-40A user manual

M-system
M-system M1EXS-2 operating manual

BWI Eagle
BWI Eagle AIR-EAGLE SR PLUS Product information bulletin

HobbyZone

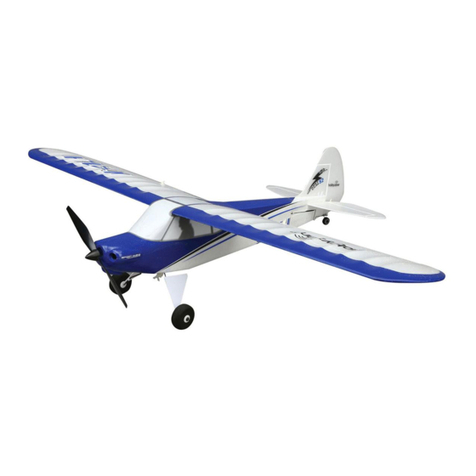

HobbyZone Sport Cub S quick start guide
