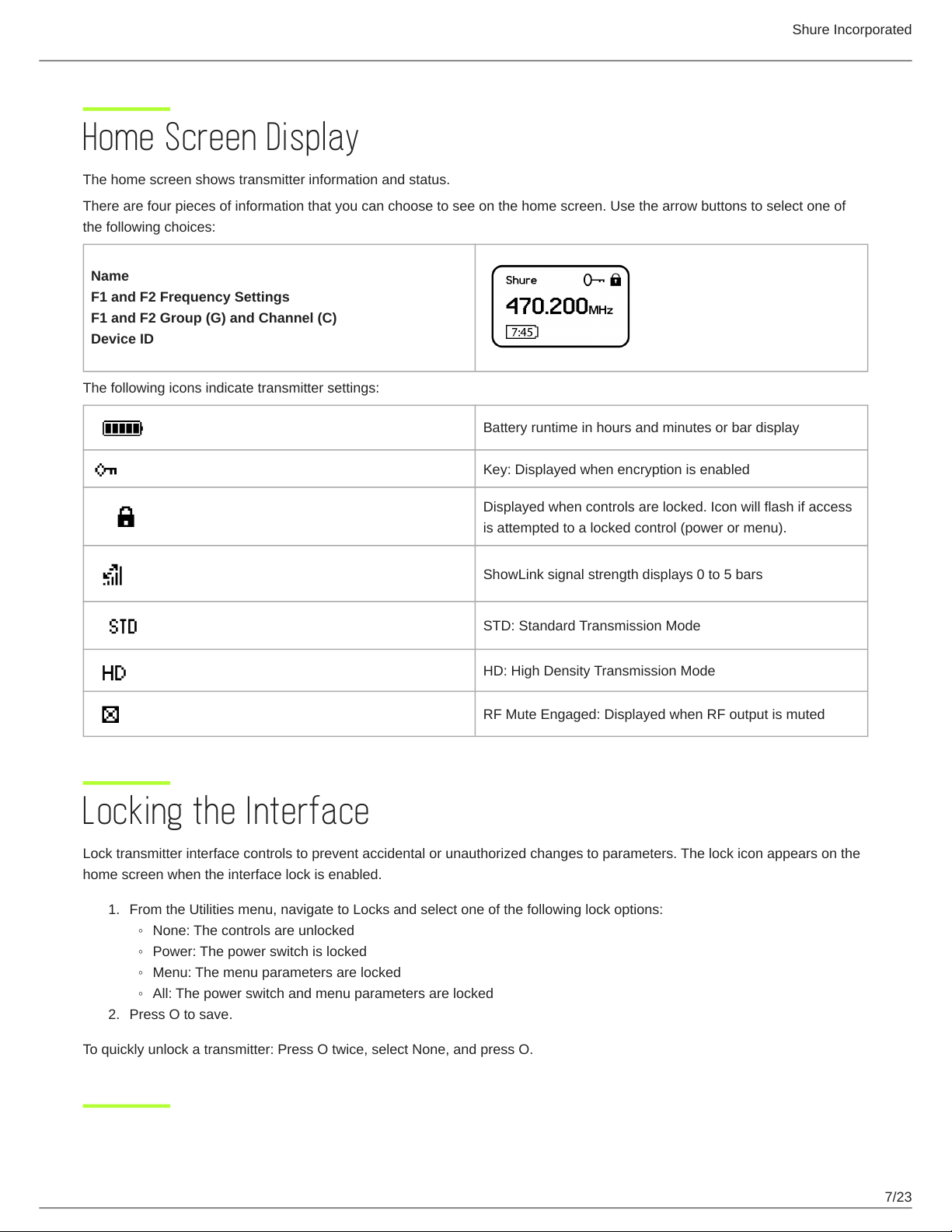

Home Screen Display 7
Locking the Interface 7
Shure Rechargeable Batteries 7
Checking Battery Info 8
Important Tips for Care and Storage of Shure Recharge
able Batteries 8
Battery Installation 9
ADX2FD SB920 Battery Runtime 9
Installing the Battery Contact Cover 9
Menu Parameters 9
Tips for Editing Menu Parameters 10
Menu Map 10
Menu Parameter Descriptions 10
Radio Menu 10
Audio Menu 11
Utilities Menu 11
IR Sync 12

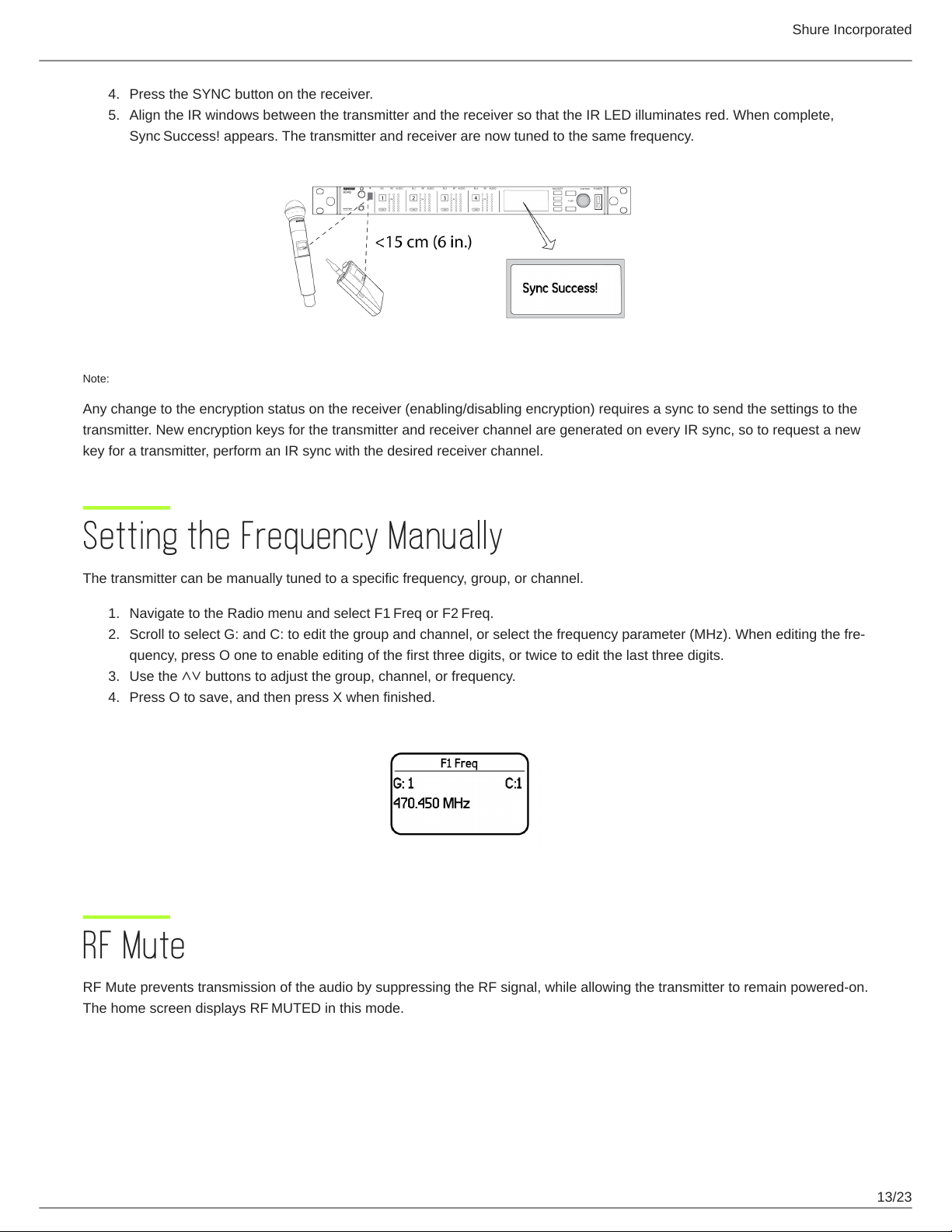

Setting the Frequency Manually 13
RF Mute 13
Safe Start 14
Operating in Frequency Diversity Mode 14
Turning Off Frequency 2 (Freq 2) 15

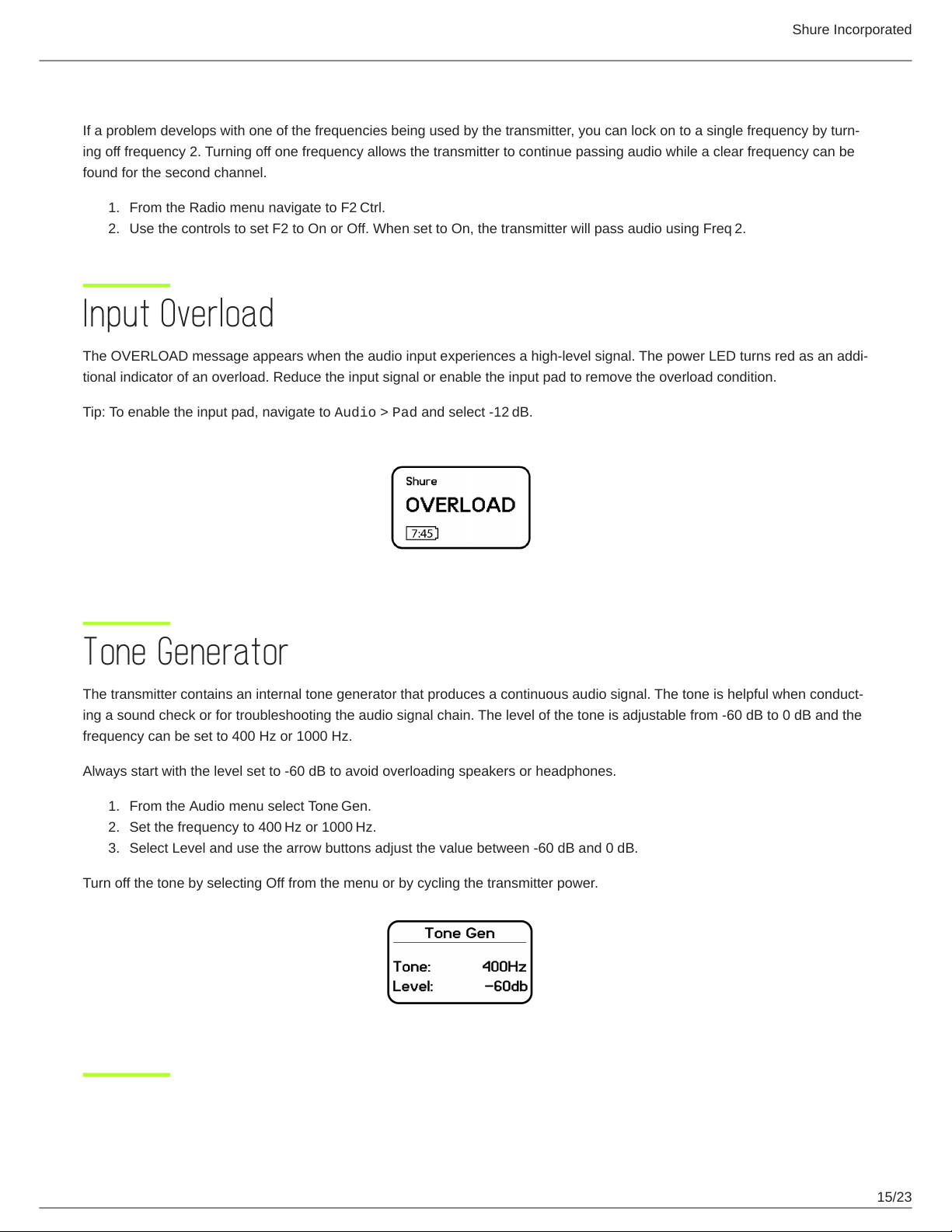

Input Overload 15
Tone Generator 15

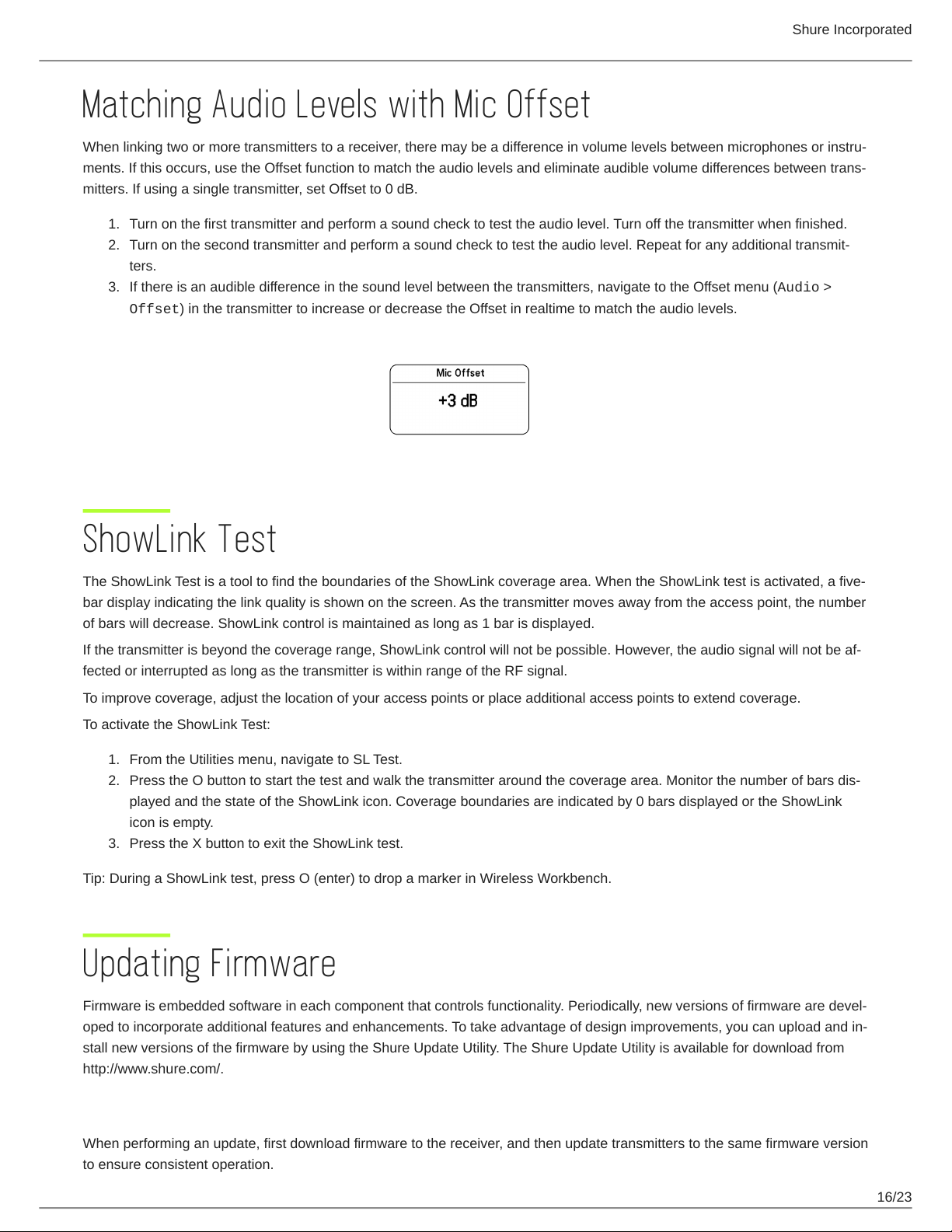

Matching Audio Levels with Mic Offset 15
ShowLink Test 16
Updating Firmware 16
Firmware Versioning 16
Updating the Transmitter 17
Specifications 17
Frequency Range and Transmitter Output Power 18
Australia Warning for Wireless 21
LICENSING INFORMATION 21
Certifications 21
Information to the user 22
Contact Customer Support 23

Shure Incorporated
3/23
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ADX2FD
Handheld Transmitter

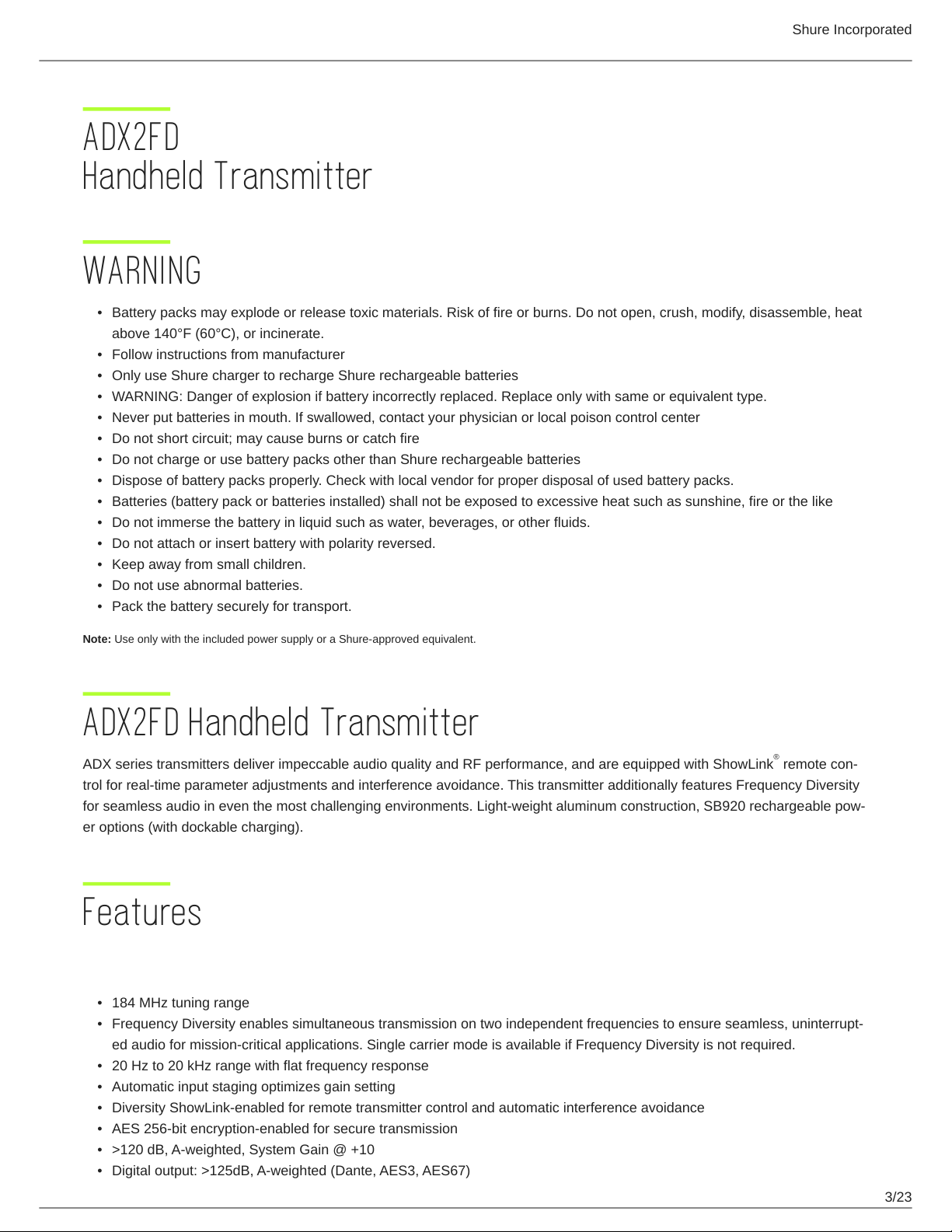

WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Do not immerse the battery in liquid such as water, beverages, or other fluids.
Do not attach or insert battery with polarity reversed.
Keep away from small children.
Do not use abnormal batteries.
Pack the battery securely for transport.
Note: Use only with the included power supply or a Shure-approved equivalent.
ADX2FD Handheld Transmitter
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink remote con
trol for real-time parameter adjustments and interference avoidance. This transmitter additionally features Frequency Diversity
for seamless audio in even the most challenging environments. Lightweight aluminum construction, SB920 rechargeable pow
er options (with dockable charging).
Features
Performance
184 MHz tuning range
Frequency Diversity enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupt
ed audio for mission-critical applications. Single carrier mode is available if Frequency Diversity is not required.
20 Hz to 20 kHz range with flat frequency response
Automatic input staging optimizes gain setting
Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
AES 256-bit encryption-enabled for secure transmission
>120 dB, A-weighted, System Gain @ +10
Digital output: >125dB, A-weighted (Dante, AES3, AES67)
®

Shure Incorporated
4/23
•
•
◦
◦
•
◦
◦
•
•
•
•
•
•
•
•
◦
◦
◦
100 meter (300 feet) line-of-sight operating range
Selectable modulation modes optimize performance for spectral efficiency or audio quality:
Standard – optimal coverage, low latency
High density – dramatic increase in max system channel count
Switchable Power Levels (region dependent):
2/10/50 mW (single carrier mode)
2 x 20 mW (Frequency Diversity mode)
Built-in tone generator and RF markers to facilitate range-testing
Design
Interchangeable Shure microphone cartridges
Backlit LCD with easy to navigate menu and controls
Rugged metal construction
Menu and power lockout
Power
Shure SB920 rechargeable batteries offer precision metering and zero memory effect
External charging contacts for docked charging
Battery Runtime with Shure SB920:
Up to 9 hours in single carrier mode @ 10 mW
Up to 6.5 hours in Frequency Diversity mode @ 10 mW x 10 mW
Up to 5 hours in single carrier, high-power mode @ 50 mW
Included Components
SB920 Shure Rechargeable Battery 95A25763
Zipper Bag 95B2313
Threaded Adapter 31B1856
Swivel Adapter, black 90F4046
Choice of (1) of the following Shure microphone cartridges:
SM58 (RPW112) KSM9 Nickel (RPW188)
BETA 87C (RPW122) BETA 87A (RPW120)
BETA 58A (RPW 118) KSM9 Black (RPW184)
KSM8 Black (RPW174) KSM8 Nickel (RPW170)
KSM9HS Black (RPW186) KSM9HS Nickel (RPW190)

Shure Incorporated
5/23

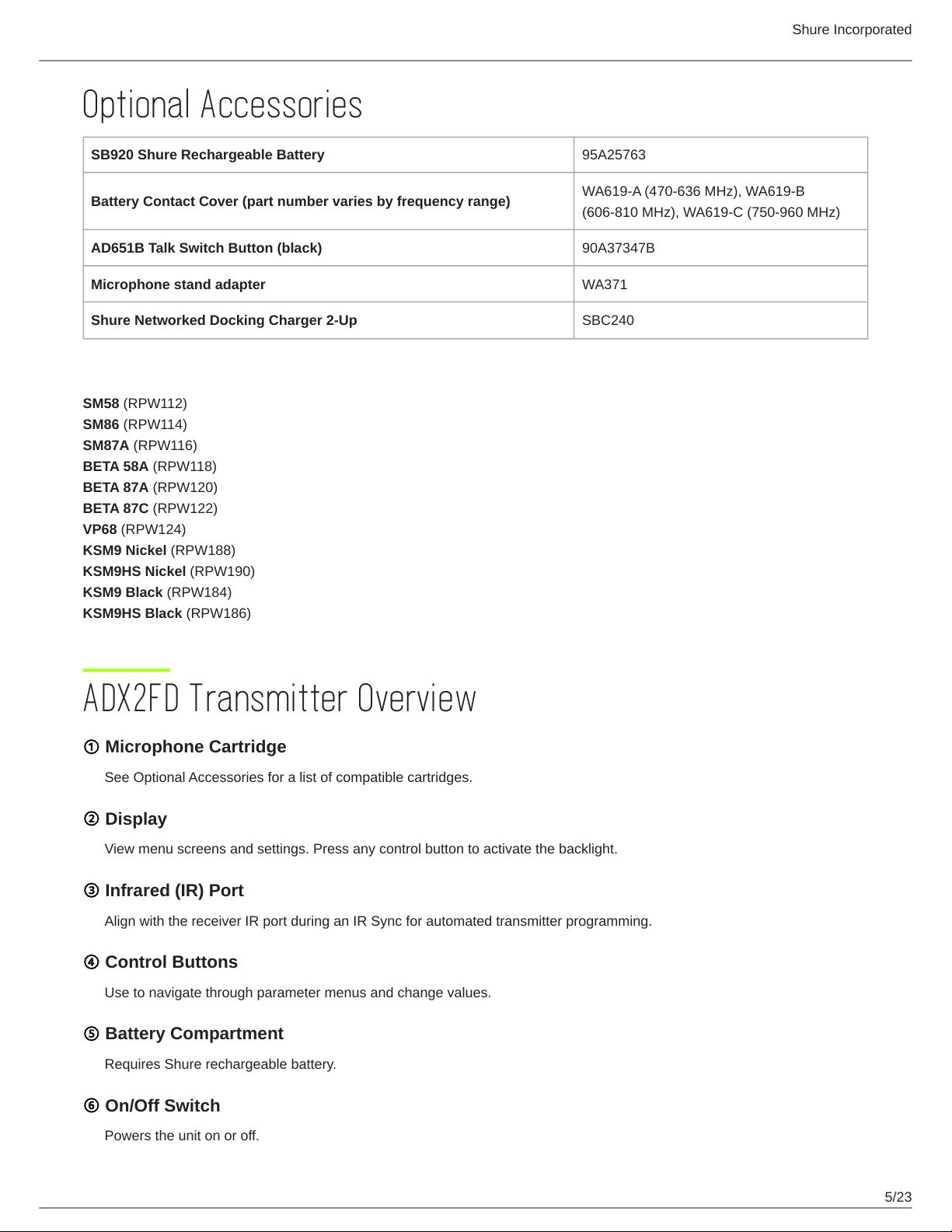

Optional Accessories
SB920 Shure Rechargeable Battery 95A25763
Battery Contact Cover (part number varies by frequency range) WA619-A (470-636 MHz), WA619-B
(606-810 MHz), WA619-C (750-960 MHz)
AD651B Talk Switch Button (black) 90A37347B
Microphone stand adapter WA371
Shure Networked Docking Charger 2-Up SBC240
Optional Shure microphone cartridges:
SM58 (RPW112)
SM86 (RPW114)
SM87A (RPW116)
BETA 58A (RPW118)
BETA 87A (RPW120)
BETA 87C (RPW122)
VP68 (RPW124)
KSM9 Nickel (RPW188)
KSM9HS Nickel (RPW190)
KSM9 Black (RPW184)
KSM9HS Black (RPW186)
ADX2FD Transmitter Overview
①Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
②Display
View menu screens and settings. Press any control button to activate the backlight.
③Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter programming.
④Control Buttons
Use to navigate through parameter menus and change values.
⑤Battery Compartment
Requires Shure rechargeable battery.
⑥On/Off Switch
Powers the unit on or off.

Shure Incorporated
6/23
•
•
⑦Handle
Unscrew to access controls and batteries.
⑧Battery Charging Contacts
Charging contacts for use with docking battery chargers.
Transmitter Controls
Use to navigate through parameter menus and change values.
XActs as a 'back' button to return to previous menus or parameters without confirming a value change
OEnters menu screens and confirms parameter changes
∨∧ Use to scroll through menu screens and to change parameter values
Tip: Use the following shortcuts for quick setup:
Hold the ∧button while powering on to lock or unlock the transmitter controls.
Hold the X button while powering on to enter the Safe Start menu.

Shure Incorporated
7/23
1.
◦
◦
◦
◦
2.
Home Screen Display
The home screen shows transmitter information and status.
There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of
the following choices:
Name
F1 and F2 Frequency Settings
F1 and F2 Group (G) and Channel (C)
Device ID
The following icons indicate transmitter settings:
Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Displayed when controls are locked. Icon will flash if access
is attempted to a locked control (power or menu).
ShowLink signal strength displays 0 to 5 bars
STD: Standard Transmission Mode
HD: High Density Transmission Mode
RF Mute Engaged: Displayed when RF output is muted
Locking the Interface
Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the
home screen when the interface lock is enabled.
From the Utilities menu, navigate to Locks and select one of the following lock options:
None: The controls are unlocked
Power: The power switch is locked
Menu: The menu parameters are locked
All: The power switch and menu parameters are locked
Press O to save.
To quickly unlock a transmitter: Press O twice, select None, and press O.

Shure Incorporated
8/23
•
•
•
•
•
•
•
•
•
•
•
Shure Rechargeable Batteries
Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity
in one hour and reach full charge within three hours.
Single chargers and multiple bay chargers are available to recharge the Shure batteries.
Caution: Only charge Shure rechargeable batteries with a Shure battery charger.
Checking Battery Info
When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes
remaining.
Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery
Battery: The chemistry type of for the installed battery (Shure, Alkaline, Lithium, NiMH)
Bars: Indicates the number of bars displayed
Time: Battery runtime
Charge: Percentage of charge capacity
Health: Percentage of current battery health
Cycle Count: Total of the number of charging cycles for the installed battery
Temperature: Battery temperature reported in Celsius and Fahrenheit
Important Tips for Care and Storage of Shure Rechargeable Batteries
Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.
Always store batteries and transmitters at room temperature
Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
Periodically clean the battery contacts with alcohol to maintain ideal contact
During storage, check batteries every 6 months and recharge to 40% of capacity as needed
For additional rechargeable battery information, visit www.shure.com.

Shure Incorporated
9/23

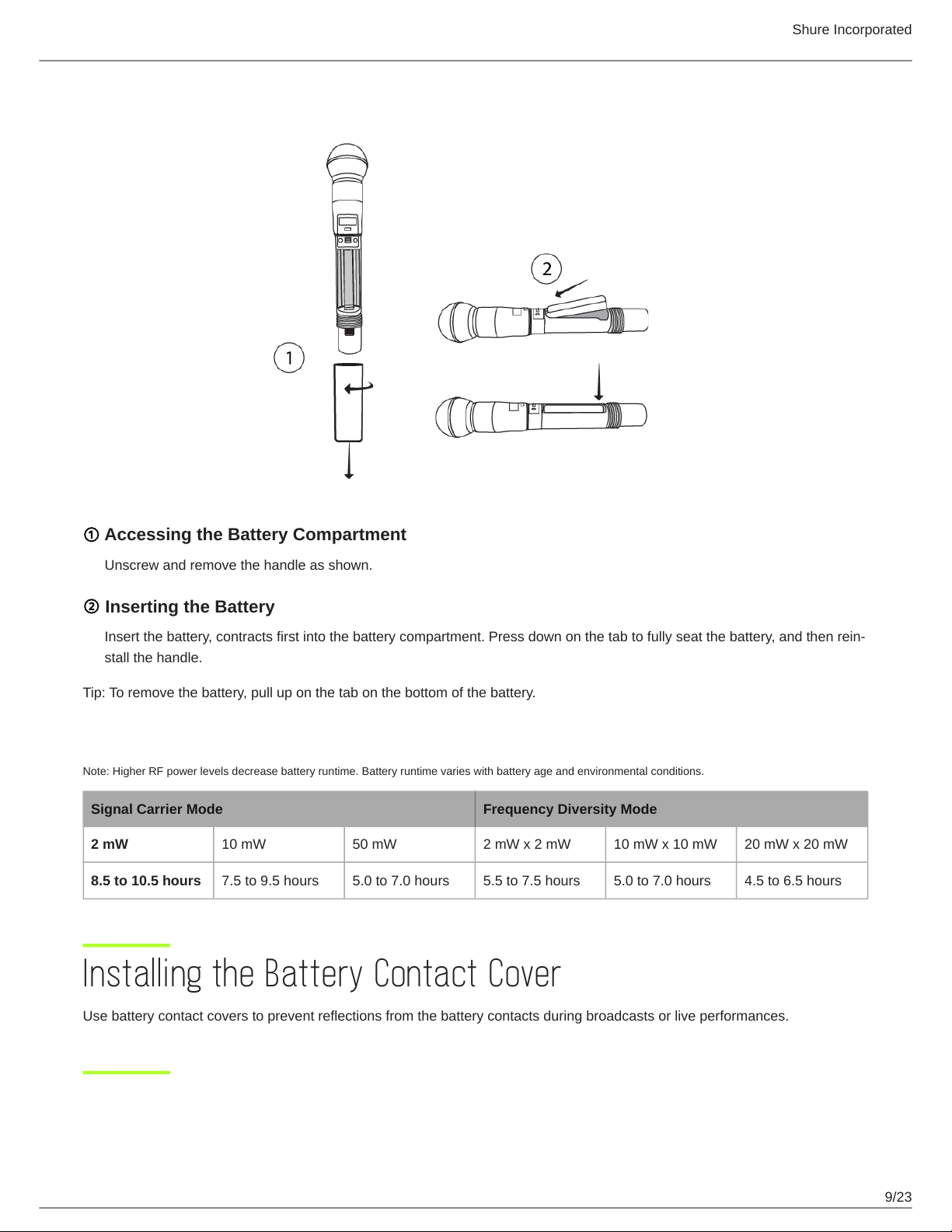

Battery Installation
①Accessing the Battery Compartment
Unscrew and remove the handle as shown.
②Inserting the Battery
Insert the battery, contracts first into the battery compartment. Press down on the tab to fully seat the battery, and then rein
stall the handle.
Tip: To remove the battery, pull up on the tab on the bottom of the battery.
ADX2FD SB920 Battery Runtime
Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.
Signal Carrier Mode Frequency Diversity Mode
2 mW 10 mW 50 mW 2 mW x 2 mW 10 mW x 10 mW 20 mW x 20 mW
8.5 to 10.5 hours 7.5 to 9.5 hours 5.0 to 7.0 hours 5.5 to 7.5 hours 5.0 to 7.0 hours 4.5 to 6.5 hours
Installing the Battery Contact Cover
Use battery contact covers to prevent reflections from the battery contacts during broadcasts or live performances.

Shure Incorporated
10/23
•
•
•
•
•
•
•
•
Menu Parameters
The Main menu organizes the available transmitter parameters into three categories:
Radio
Audio
Utilities
Tips for Editing Menu Parameters
To access the menu options from the home screen, press O . Use the arrow buttons to access additional menus and para
meters.
A menu parameter will blink when editing is enabled
To increase, decrease or change a parameter, use the arrow buttons
To save a menu change, press O
To exit a menu without saving a change, press X
Menu Map
Menu Parameter Descriptions
Radio Menu
F1 Freq

Shure Incorporated
11/23
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦

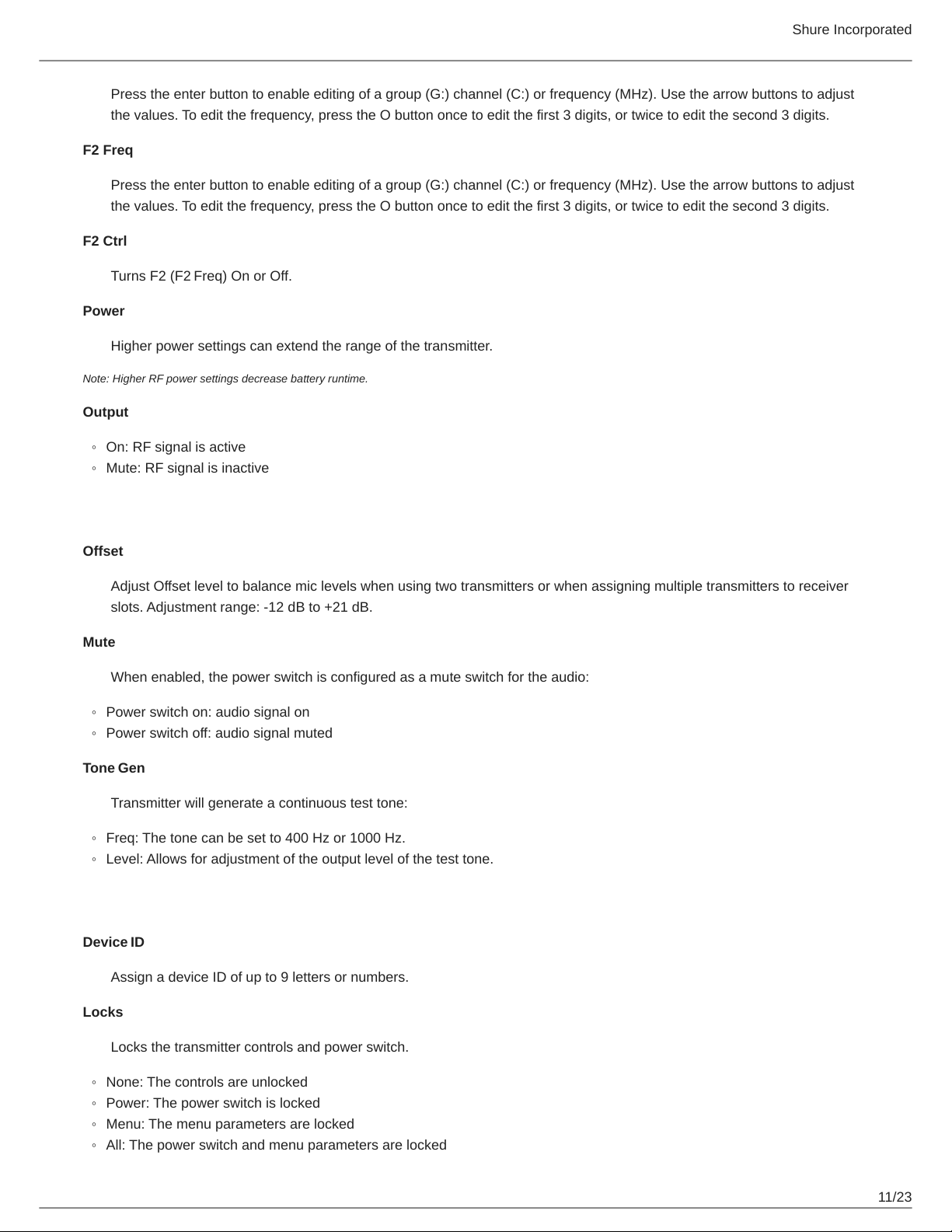

Press the enter button to enable editing of a group (G:) channel (C:) or frequency (MHz). Use the arrow buttons to adjust
the values. To edit the frequency, press the O button once to edit the first 3 digits, or twice to edit the second 3 digits.
F2 Freq
Press the enter button to enable editing of a group (G:) channel (C:) or frequency (MHz). Use the arrow buttons to adjust
the values. To edit the frequency, press the O button once to edit the first 3 digits, or twice to edit the second 3 digits.
F2 Ctrl
Turns F2 (F2 Freq) On or Off.
Power
Higher power settings can extend the range of the transmitter.
Note: Higher RF power settings decrease battery runtime.
Output
On: RF signal is active
Mute: RF signal is inactive
Audio Menu
Offset
Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver
slots. Adjustment range: -12 dB to +21 dB.
Mute
When enabled, the power switch is configured as a mute switch for the audio:
Power switch on: audio signal on
Power switch off: audio signal muted
Tone Gen
Transmitter will generate a continuous test tone:
Freq: The tone can be set to 400 Hz or 1000 Hz.
Level: Allows for adjustment of the output level of the test tone.
Utilities Menu
Device ID
Assign a device ID of up to 9 letters or numbers.
Locks
Locks the transmitter controls and power switch.
None: The controls are unlocked
Power: The power switch is locked
Menu: The menu parameters are locked
All: The power switch and menu parameters are locked

Shure Incorporated
12/23
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
1.
2.
3.
Link Info
Displays the following information about the link between a transmitter and receiver:
Not Linked: The transmitter is not linked to a receiver
Linked: The transmitter is linked to a receiver. Select Unlink? to free the transmitter from the receiver link.
Unlinked: The transmitter is not linked to a receiver
SL Test
ShowLink test tool to measure the boundaries of ShowLink coverage.
Marker
When enabled, press the enter button to drop a marker in Wireless Workbench.
Battery
Displays battery information:
Battery Life: Runtime reported in bar display and time (hours:minutes)
Charge: Percentage of charge capacity
Health: Percentage of current battery health
Cycle Count: Total of the number of charging cycles for the installed battery
Temperature: Battery temperature reported in Celsius and Fahrenheit
Talk Sw
Press ENTER to add control from a talk switch. Press the button on the talk switch twice to complete the link.
Identify
When enabled, Identify flashes the transmitter icon in Wireless Workbench Inventory or Monitor tabs.
About
Displays the following transmitter information:
Model: Displays the model number
Band: Displays the tuning band of the transmitter
FW Version: Installed firmware
HW Version: Hardware version
Serial Num: Serial number
Reset All
Restores all transmitter parameters to factory settings.
IR Sync
Use IR Sync to form an audio channel between the transmitter and receiver.
Note: The receiver band must match the band of the transmitter.
Select a receiver channel.
Tune the channel to an available frequency using group scan or manually turn to an open frequency.
Power on the transmitter.

Shure Incorporated
13/23
4.
5.
1.
2.
3.
4.
Press the SYNC button on the receiver.
Align the IR windows between the transmitter and the receiver so that the IR LED illuminates red. When complete,
Sync Success! appears. The transmitter and receiver are now tuned to the same frequency.
Note:
Any change to the encryption status on the receiver (enabling/disabling encryption) requires a sync to send the settings to the
transmitter. New encryption keys for the transmitter and receiver channel are generated on every IR sync, so to request a new
key for a transmitter, perform an IR sync with the desired receiver channel.
Setting the Frequency Manually
The transmitter can be manually tuned to a specific frequency, group, or channel.
Navigate to the Radio menu and select F1 Freq or F2 Freq.
Scroll to select G: and C: to edit the group and channel, or select the frequency parameter (MHz). When editing the fre
quency, press O one to enable editing of the first three digits, or twice to edit the last three digits.
Use the ∧∨ buttons to adjust the group, channel, or frequency.
Press O to save, and then press X when finished.
RF Mute
RF Mute prevents transmission of the audio by suppressing the RF signal, while allowing the transmitter to remain powered-on.
The home screen displays RF MUTED in this mode.

Shure Incorporated
14/23
1.
2.
◦
◦
3.
•
•
1.
2.
3.
4.
From the Radio menu, navigate to Output.
Choose one of the following options:
On: RF signal is active
Mute: RF signal is disabled
Press O to save.
Turning the transmitter off and on, or replacing the battery will restore Output to On.
Safe Start
Power on in Safe Start mode to prevent interference with other devices. Hold the X button while powering on your device until
the Safe Start menu appears.
Safe Start menu options:
RF: Mute or On
Locks: None, Pwr, Menu, All
Use the navigation buttons to make changes.
To exit the Safe Start menu, cycle the power or momentarily remove the battery.
Previous settings for locks and RF will be retained when the transmitter is powered on in Safe Start.
Operating in Frequency Diversity Mode
Operating the AXDFD2 in frequency diversity mode with an Axient Digital receiver enables simultaneous transmission of audio
on 2 independent frequencies.
Select a channel and navigate to the Frequency Diversity setting: Advanced > Frequency Diversity .
Use the control wheel to select the Combining option.
Press ENTER to confirm and save.
Perform an IR sync to link the transmitter to the receiver.
In Frequency Diversity, the transmitter will operate on two adjacent receiver channels (1 and 2 or 3 and 4).

Shure Incorporated
15/23
1.
2.
1.
2.
3.
Turning Off Frequency 2 (Freq 2)
If a problem develops with one of the frequencies being used by the transmitter, you can lock on to a single frequency by turn
ing off frequency 2. Turning off one frequency allows the transmitter to continue passing audio while a clear frequency can be
found for the second channel.
From the Radio menu navigate to F2 Ctrl.
Use the controls to set F2 to On or Off. When set to On, the transmitter will pass audio using Freq 2.
Input Overload
The OVERLOAD message appears when the audio input experiences a highlevel signal. The power LED turns red as an addi
tional indicator of an overload. Reduce the input signal or enable the input pad to remove the overload condition.
Tip: To enable the input pad, navigate to Audio > Pad and select 12 dB.
Tone Generator
The transmitter contains an internal tone generator that produces a continuous audio signal. The tone is helpful when conduct
ing a sound check or for troubleshooting the audio signal chain. The level of the tone is adjustable from -60 dB to 0 dB and the
frequency can be set to 400 Hz or 1000 Hz.
Always start with the level set to -60 dB to avoid overloading speakers or headphones.
From the Audio menu select Tone Gen.
Set the frequency to 400 Hz or 1000 Hz.
Select Level and use the arrow buttons adjust the value between -60 dB and 0 dB.
Turn off the tone by selecting Off from the menu or by cycling the transmitter power.

Shure Incorporated
16/23
1.
2.
3.
1.
2.
3.
Matching Audio Levels with Mic Offset
When linking two or more transmitters to a receiver, there may be a difference in volume levels between microphones or instru
ments. If this occurs, use the Offset function to match the audio levels and eliminate audible volume differences between trans
mitters. If using a single transmitter, set Offset to 0 dB.
Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when finished.
Turn on the second transmitter and perform a sound check to test the audio level. Repeat for any additional transmit
ters.
If there is an audible difference in the sound level between the transmitters, navigate to the Offset menu (Audio >
Offset) in the transmitter to increase or decrease the Offset in realtime to match the audio levels.
ShowLink Test
The ShowLink Test is a tool to find the boundaries of the ShowLink coverage area. When the ShowLink test is activated, a five-
bar display indicating the link quality is shown on the screen. As the transmitter moves away from the access point, the number
of bars will decrease. ShowLink control is maintained as long as 1 bar is displayed.
If the transmitter is beyond the coverage range, ShowLink control will not be possible. However, the audio signal will not be af
fected or interrupted as long as the transmitter is within range of the RF signal.
To improve coverage, adjust the location of your access points or place additional access points to extend coverage.
To activate the ShowLink Test:
From the Utilities menu, navigate to SL Test.
Press the O button to start the test and walk the transmitter around the coverage area. Monitor the number of bars dis
played and the state of the ShowLink icon. Coverage boundaries are indicated by 0 bars displayed or the ShowLink
icon is empty.
Press the X button to exit the ShowLink test.
Tip: During a ShowLink test, press O (enter) to drop a marker in Wireless Workbench.
Updating Firmware
Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are devel
oped to incorporate additional features and enhancements. To take advantage of design improvements, you can upload and in
stall new versions of the firmware by using the Shure Update Utility. The Shure Update Utility is available for download from
http://www.shure.com/.
Firmware Versioning
When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version
to ensure consistent operation.

Shure Incorporated
17/23
1.
2.
3.
4.
The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all
devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g.,
1.2.x).
Updating the Transmitter
Download the firmware to the receiver.
Access the following menu from the receiver: Device Configuration > Tx Firmware Update.
Align the IR ports between the transmitter and the receiver. IR ports must be aligned for the entire download, which can
take 50 seconds or longer.
The red alignment LED will turn on when the alignment is correct.
Press ENTER on the receiver to begin the download to the transmitter. The receiver will display the progress of the up
date as a percentage.
Specifications
Mic Offset Range
-12 to 21 dB (In 1 dB steps)
Battery Type
Shure SB920 Rechargeable Li-Ion
Battery Runtime
Shure SB920 @ 10 mW
Single Carrier Mode Up to 9 hours
Frequency Diversity Up to 6.5 hours
Dimensions
254 mm x 51 mm (10.0 in. x 2.0 in.) L x Dia.
Weight
338 g (11.9 oz.), Without Battery
Housing
Cast Aluminum
Operating Temperature Range
-18°C (0°F) to 45°C (113°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Audio Input
Configuration
Unbalanced

Shure Incorporated
18/23
Maximum Input Level
1 kHz at 1% THD
145 dB SPL (SM58), typical
RF Output
Antenna Type
Integrated Dual Band Helical
Occupied Bandwidth
<200 kHz
Channel-to-Channel Spacing
Standard Mode 350 kHz
High Density Mode 125 kHz
Modulation Type
Shure Axient Digital Proprietary
Power
See Frequency Range and Output Power table, varies by region
Single Carrier Mode 2 mW, 10 mW, 50 mW
Frequency Diversity 2x20 mW
Specific Absorption Rate (SAR)
< 0.21 W/kg
ShowLink
Network Type
IEEE 802.15.4
Antenna Type
Zigbee Dual Conformal
Frequency Range
2.40 to 2.4835 GHz (24 Channels)
RF Output Power
10 dBm (ERP)

Shure Incorporated
19/23

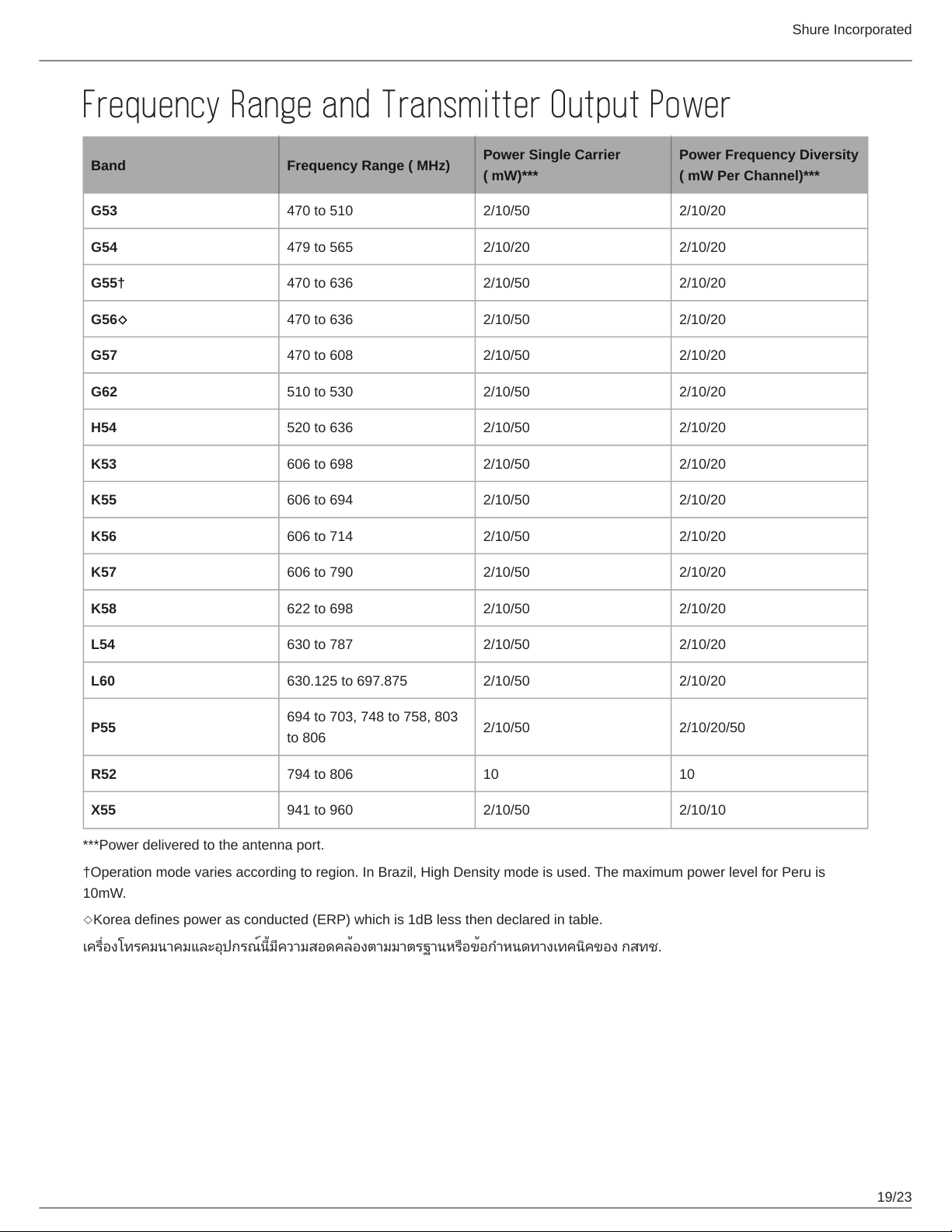

Frequency Range and Transmitter Output Power
Band Frequency Range ( MHz)Power Single Carrier
( mW)***
Power Frequency Diversity
( mW Per Channel)***
G53 470 to 510 2/10/50 2/10/20
G54 479 to 565 2/10/20 2/10/20
G55† 470 to 636 2/10/50 2/10/20
G56◇470 to 636 2/10/50 2/10/20
G57 470 to 608 2/10/50 2/10/20
G62 510 to 530 2/10/50 2/10/20
H54 520 to 636 2/10/50 2/10/20
K53 606 to 698 2/10/50 2/10/20
K55 606 to 694 2/10/50 2/10/20
K56 606 to 714 2/10/50 2/10/20
K57 606 to 790 2/10/50 2/10/20
K58 622 to 698 2/10/50 2/10/20
L54 630 to 787 2/10/50 2/10/20
L60 630.125 to 697.875 2/10/50 2/10/20
P55 694 to 703, 748 to 758, 803
to 806 2/10/50 2/10/20/50
R52 794 to 806 10 10
X55 941 to 960 2/10/50 2/10/10
***Power delivered to the antenna port.
†Operation mode varies according to region. In Brazil, High Density mode is used. The maximum power level for Peru is
10mW.
◇Korea defines power as conducted (ERP) which is 1dB less then declared in table.
เครื่องโทรคมนาคมและอุปกรณ์นี้มีความสอดคล้องตามมาตรฐานหรือข้อกำหนดทางเทคนิคของ กสทช.

Shure Incorporated
20/23

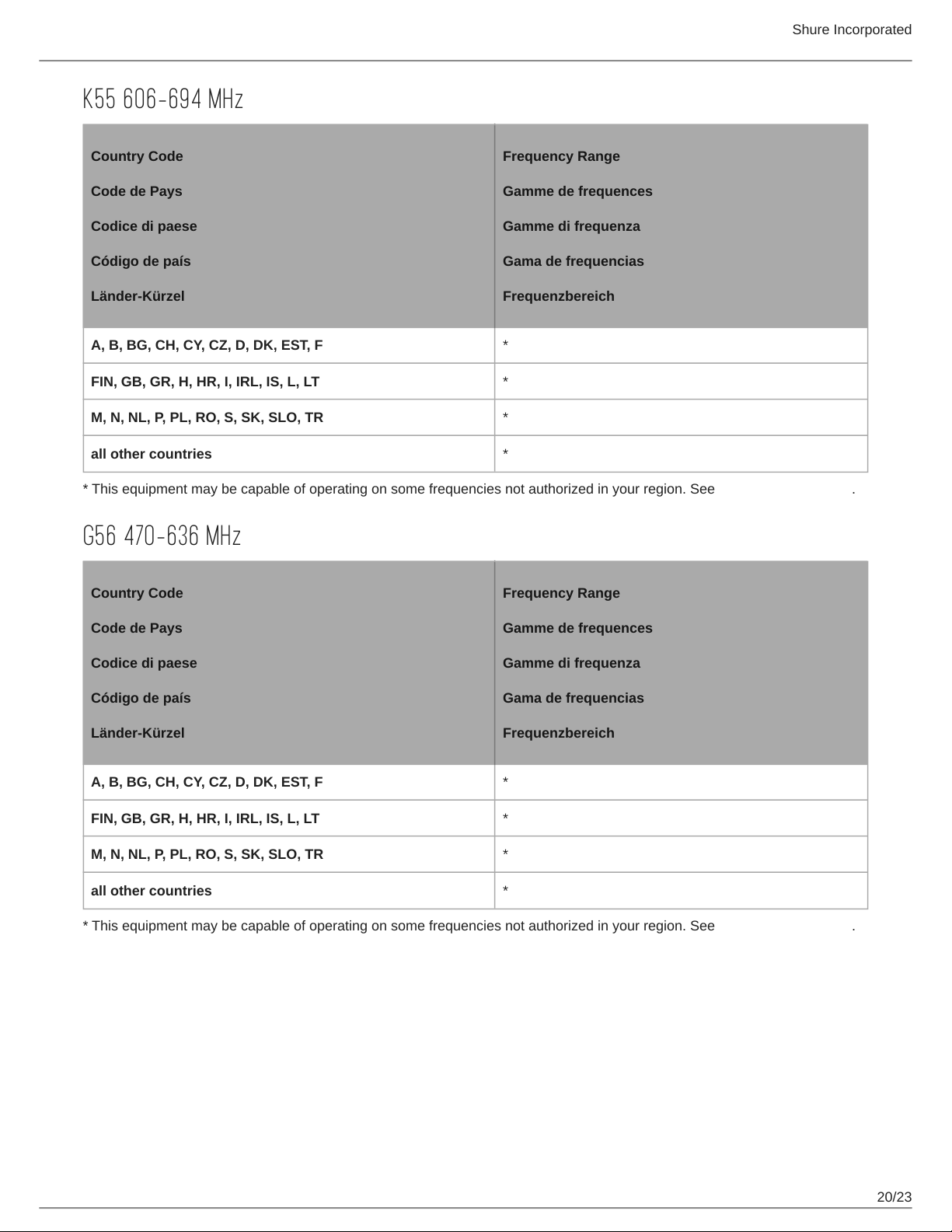

K55 606-694 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.
G56 470-636 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.
