Shure Axient Digital ADX1 User manual

ADX1
Bodypack Transmitter
ADX1 Enhanced Bodypack Transmitter User Guide
Version: 7 (2019-D)

Shure Incorporated
2/26
Table of Contents
ADX1Bodypack Transmitter 3
WARNING 3
ADX1 Axient Digital Bodypack Transmitter 3
Features 3
Included Components 4
Optional Accessories 5
ADX1 Transmitter Overview 5
Transmitter Controls 6
Locking the Interface 7
Home Screen Display 7
Shure Rechargeable Batteries 8
Checking Battery Info 8
Important Tips for Care and Storage of Shure
Rechargeable Batteries 9
Battery Installation 9
ADX1 SB910 Battery Runtime 10
Menu Parameters 10
Tips for Editing Menu Parameters 10
Menu Map 11
Menu Parameter Descriptions 11
Radio Menu 11
Audio Menu 12
Utilities Menu 12
IR Sync 13
Setting the Frequency Manually 14
Wearing the Bodypack Transmitter 14
RF Mute 15
Safe Start 15
Input Overload 16
Matching Audio Levels with Mic Offset 16
Tone Generator 17
ShowLink Test 17
Updating Firmware 18
Firmware Versioning 18
Updating the Transmitter 18
Specifications 18
Input Connector Diagrams 21
Frequency Bands and Transmitter RF Power 22
LICENSING INFORMATION 24
Australia Warning for Wireless 24
Certifications 25
Information to the user 26

Shure Incorporated
3/26
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦

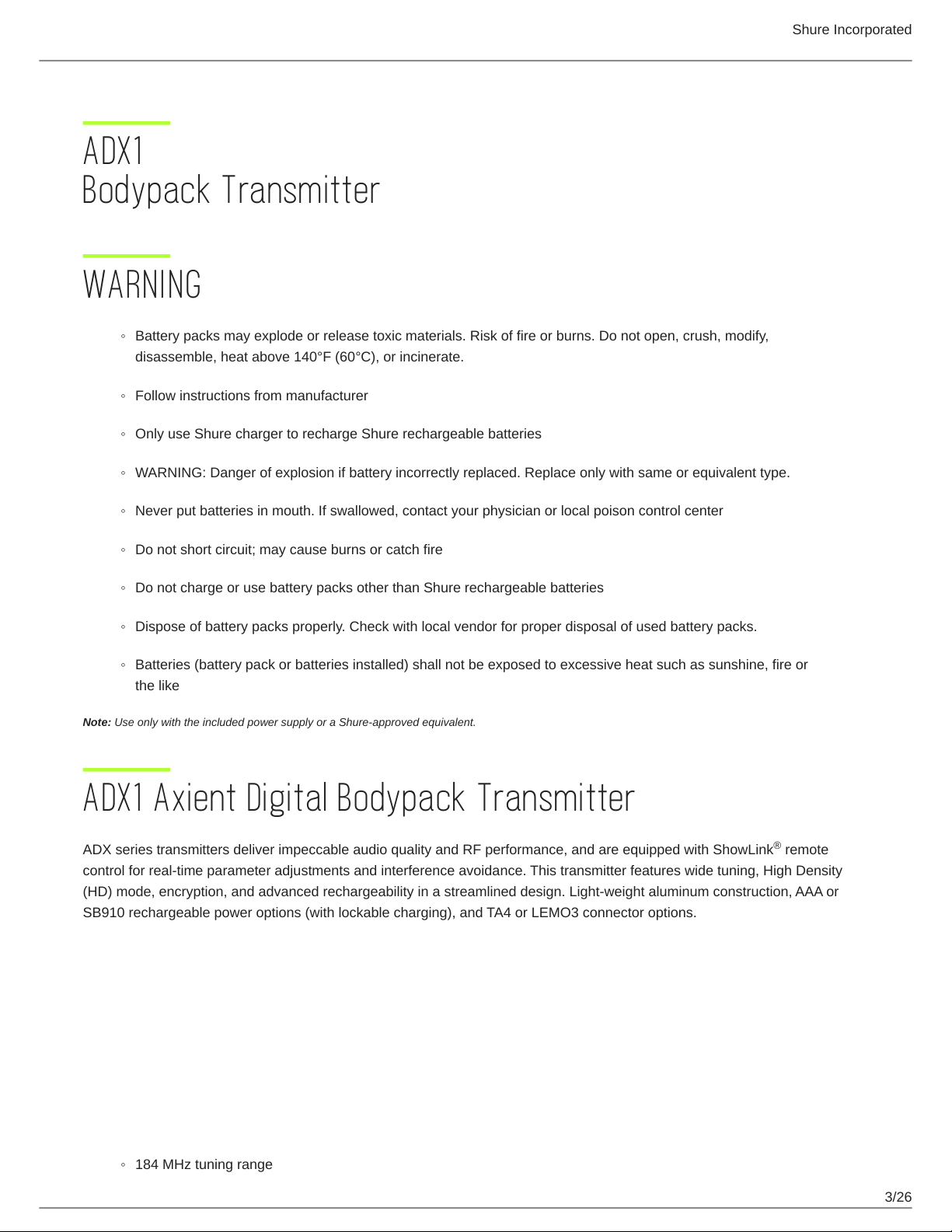

ADX1
Bodypack Transmitter
WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify,
disassemble, heat above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or
the like
Note: Use only with the included power supply or a Shure-approved equivalent.
ADX1 Axient Digital Bodypack Transmitter
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink remote
control for real-time parameter adjustments and interference avoidance. This transmitter features wide tuning, High Density
(HD) mode, encryption, and advanced rechargeability in a streamlined design. Light-weight aluminum construction, AAA or
SB910 rechargeable power options (with lockable charging), and TA4 or LEMO3 connector options.
Features
Performance
184 MHz tuning range
®

Shure Incorporated
4/26
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦

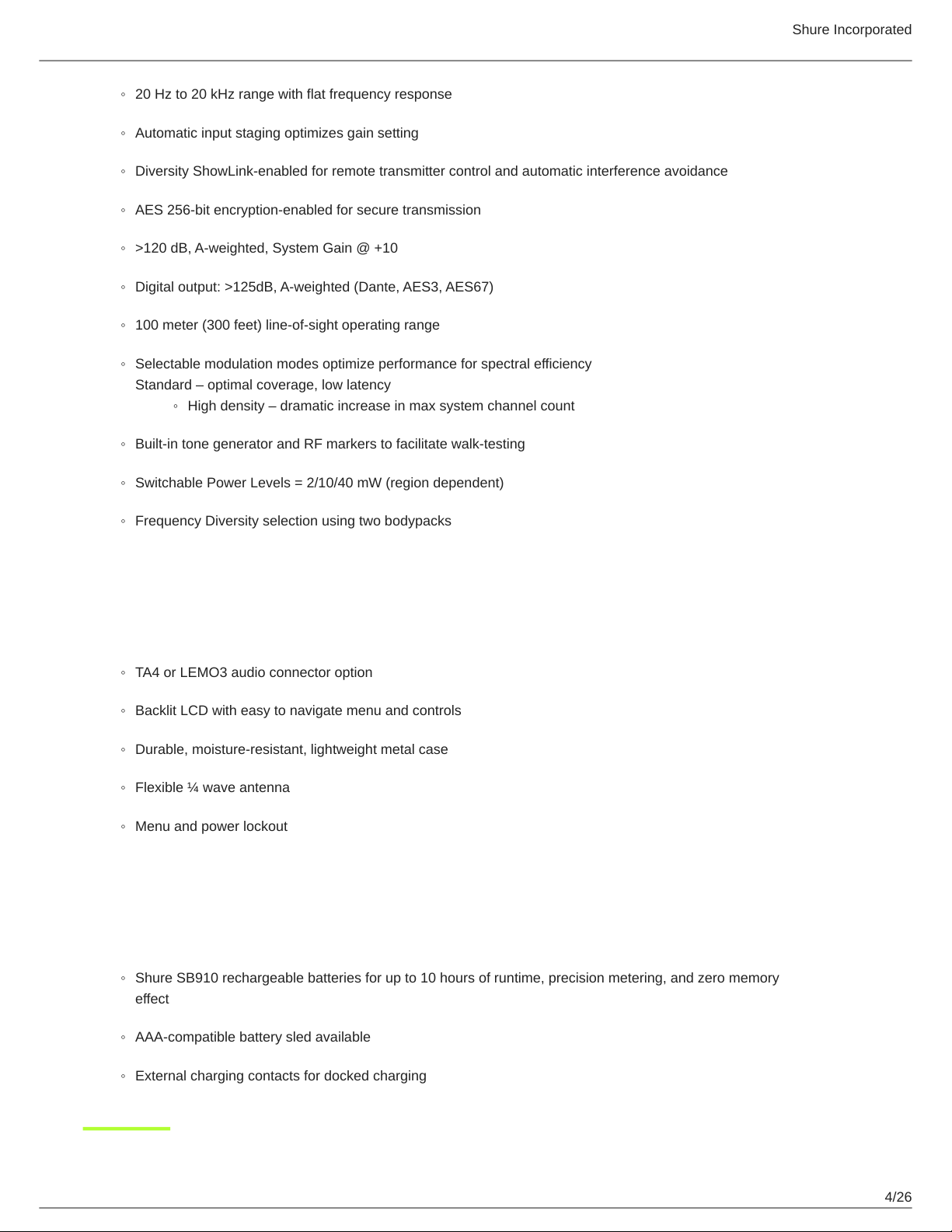

20 Hz to 20 kHz range with flat frequency response
Automatic input staging optimizes gain setting
Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
AES 256-bit encryption-enabled for secure transmission
>120 dB, A-weighted, System Gain @ +10
Digital output: >125dB, A-weighted (Dante, AES3, AES67)
100 meter (300 feet) line-of-sight operating range
Selectable modulation modes optimize performance for spectral efficiency
Standard – optimal coverage, low latency
High density – dramatic increase in max system channel count
Built-in tone generator and RF markers to facilitate walk-testing
Switchable Power Levels = 2/10/40 mW (region dependent)
Frequency Diversity selection using two bodypacks
Design
TA4 or LEMO3 audio connector option
Backlit LCD with easy to navigate menu and controls
Durable, moisture-resistant, lightweight metal case
Flexible ¼ wave antenna
Menu and power lockout
Power
Shure SB910 rechargeable batteries for up to 10 hours of runtime, precision metering, and zero memory
effect
AAA-compatible battery sled available
External charging contacts for docked charging

Shure Incorporated
5/26

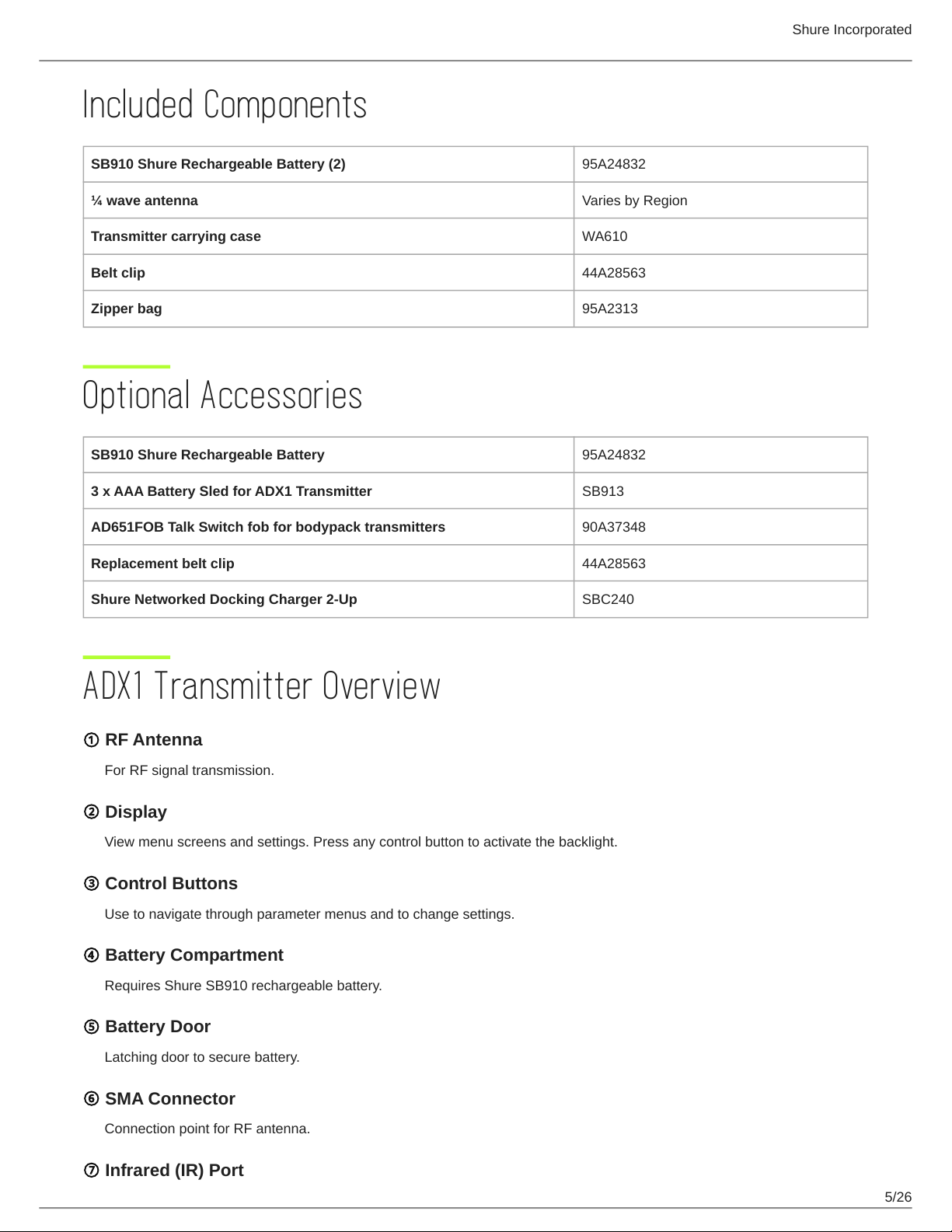

Included Components
SB910 Shure Rechargeable Battery (2) 95A24832
¼ wave antenna Varies by Region
Transmitter carrying case WA610
Belt clip 44A28563
Zipper bag 95A2313
Optional Accessories
SB910 Shure Rechargeable Battery 95A24832
3 x AAA Battery Sled for ADX1 Transmitter SB913
AD651FOB Talk Switch fob for bodypack transmitters 90A37348
Replacement belt clip 44A28563
Shure Networked Docking Charger 2-Up SBC240
ADX1 Transmitter Overview
①RF Antenna
For RF signal transmission.
②Display
View menu screens and settings. Press any control button to activate the backlight.
③Control Buttons
Use to navigate through parameter menus and to change settings.
④Battery Compartment
Requires Shure SB910 rechargeable battery.
⑤Battery Door
Latching door to secure battery.
⑥SMA Connector
Connection point for RF antenna.
⑦Infrared (IR) Port

Shure Incorporated
6/26
◦
Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.
⑧Power Switch
Powers the unit on or off.
⑨Power LED
Green = unit is powered on
Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)
⑩Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
Note: A LEMO connector model variation of this transmitter is available.
⑪Battery Charging Contacts
Charging contacts for use with docking battery chargers.
Transmitter Controls
Use the controls to navigate through parameter menus and change values.

Shure Incorporated
7/26
◦
◦
1.
◦
2.
XActs as a 'back' button to return to previous menus or parameters without confirming a value change
OEnters menu screens and confirms parameter changes
∨∧ Use to scroll through menu screens and to change parameter values
Tip: Use the following shortcuts for quick setup:
Hold the ∧button while powering on to lock or unlock the transmitter.
Hold the Xbutton while powering on to enter the Safe Start menu.
Locking the Interface
Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the
home screen when the interface lock is enabled.
From the Utilities menu, navigate to Locks and select one of the following lock options:
None: The controls are unlocked
Power: The power switch is locked
Menu: The menu parameters are locked
All: The power switch and menu parameters are locked
Press Oto save.
Tip: To quickly unlock a transmitter: Press Otwice, select None, and press O.
Home Screen Display
The home screen shows transmitter information and status.
There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of
the following choices:
Name
Frequency Setting
Group (G) and Channel (C)
Device ID
The following icons indicate transmitter settings:

Shure Incorporated
8/26
◦
◦
◦
◦
◦
◦
◦

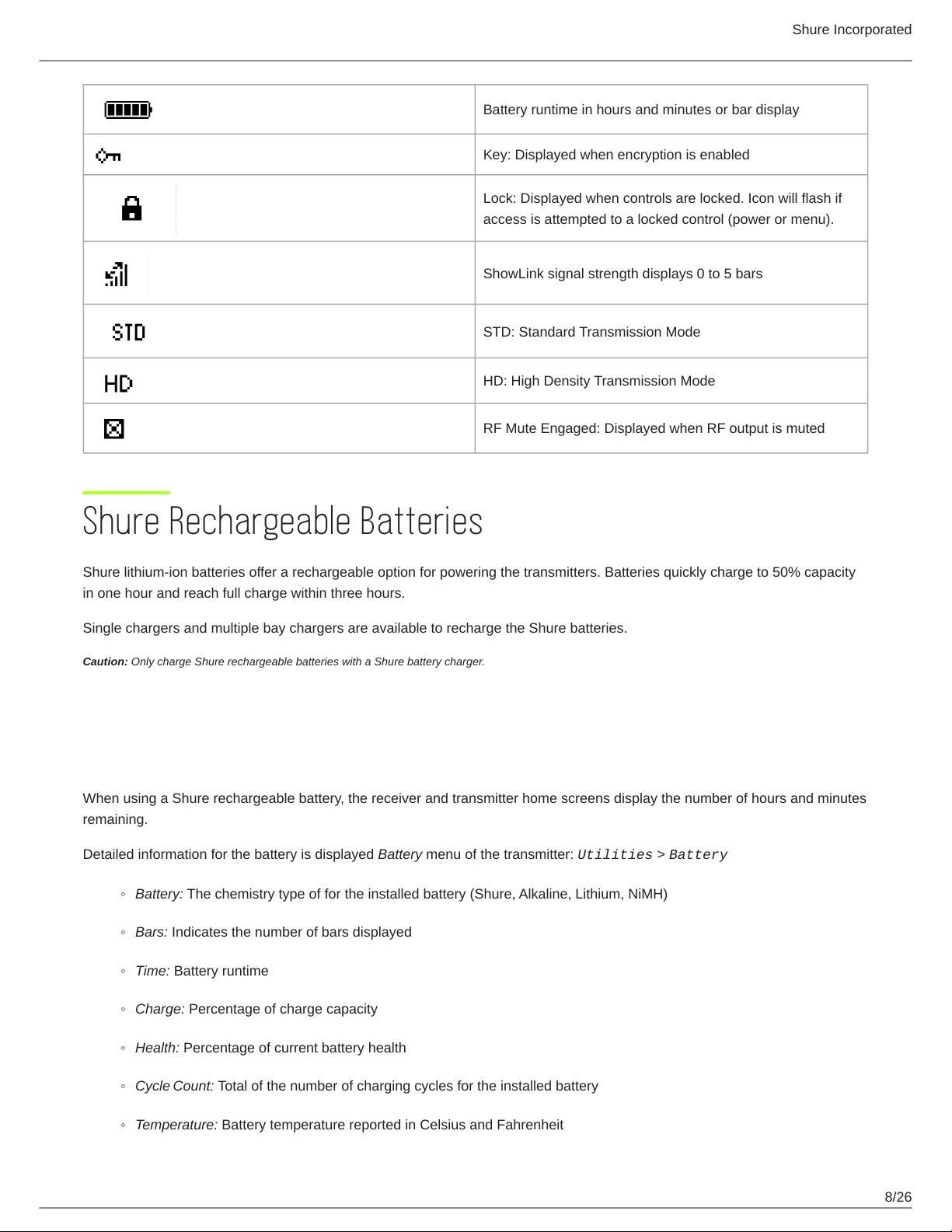

Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Lock: Displayed when controls are locked. Icon will flash if
access is attempted to a locked control (power or menu).
ShowLink signal strength displays 0 to 5 bars
STD: Standard Transmission Mode
HD: High Density Transmission Mode
RF Mute Engaged: Displayed when RF output is muted
Shure Rechargeable Batteries
Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity
in one hour and reach full charge within three hours.
Single chargers and multiple bay chargers are available to recharge the Shure batteries.
Caution: Only charge Shure rechargeable batteries with a Shure battery charger.
Checking Battery Info
When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes
remaining.
Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery
Battery: The chemistry type of for the installed battery (Shure, Alkaline, Lithium, NiMH)
Bars: Indicates the number of bars displayed
Time: Battery runtime
Charge: Percentage of charge capacity
Health: Percentage of current battery health
Cycle Count: Total of the number of charging cycles for the installed battery
Temperature: Battery temperature reported in Celsius and Fahrenheit

Shure Incorporated
9/26
◦
◦
◦
◦
Important Tips for Care and Storage of Shure Rechargeable Batteries
Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.
Always store batteries and transmitters at room temperature
Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
Periodically clean the battery contacts with alcohol to maintain ideal contact
During storage, check batteries every 6 months and recharge to 40% of capacity as needed
For additional rechargeable battery information, visit www.shure.com.
Battery Installation
①Accessing the Battery Compartment
Press the door latches and open the battery door.
②Inserting the Battery

Shure Incorporated
10/26
◦
◦
◦
◦
◦
◦
◦
◦

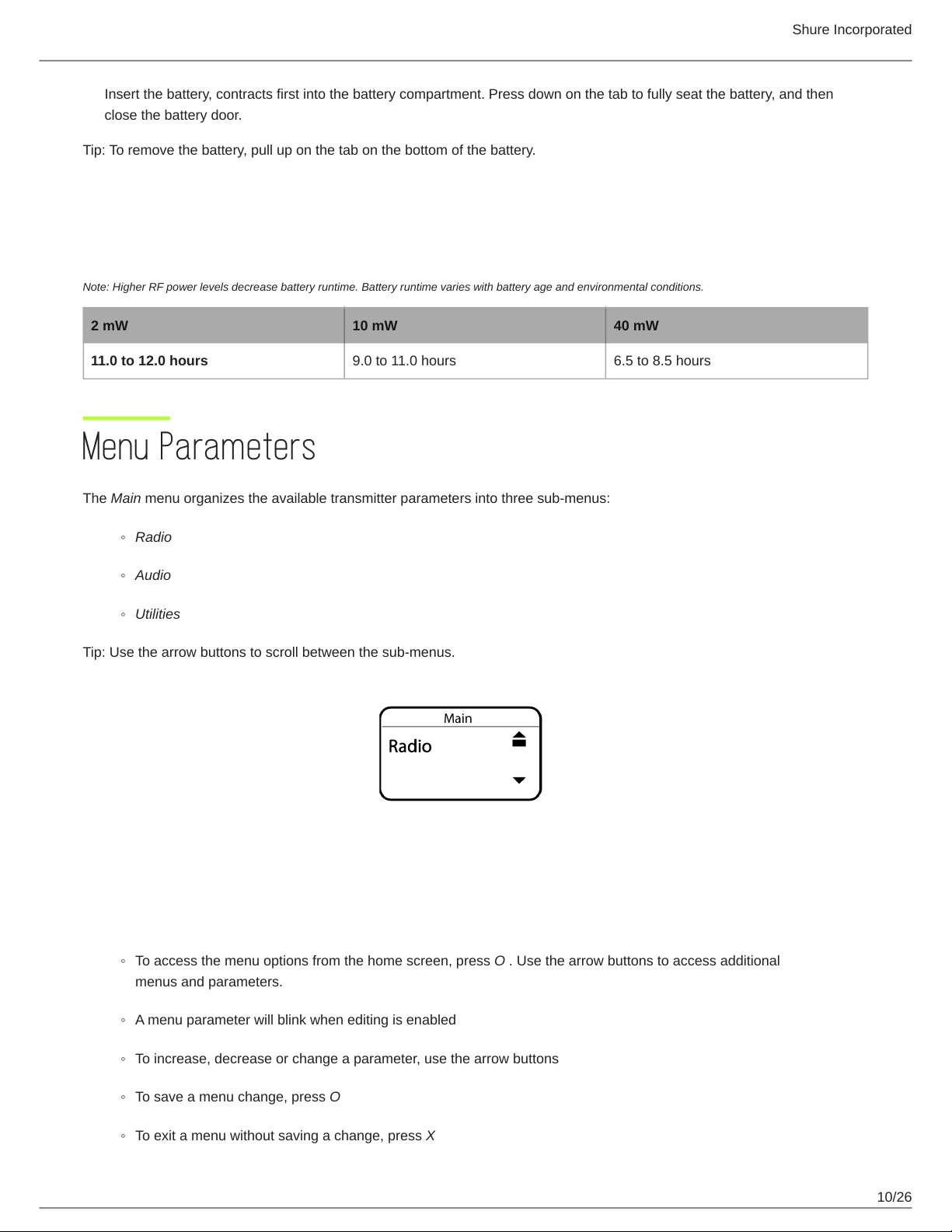

Insert the battery, contracts first into the battery compartment. Press down on the tab to fully seat the battery, and then
close the battery door.
Tip: To remove the battery, pull up on the tab on the bottom of the battery.
ADX1 SB910 Battery Runtime
Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.
2 mW 10 mW 40 mW
11.0 to 12.0 hours 9.0 to 11.0 hours 6.5 to 8.5 hours
Menu Parameters
The Main menu organizes the available transmitter parameters into three sub-menus:
Radio
Audio
Utilities
Tip: Use the arrow buttons to scroll between the sub-menus.
Tips for Editing Menu Parameters
To access the menu options from the home screen, press O. Use the arrow buttons to access additional
menus and parameters.
A menu parameter will blink when editing is enabled
To increase, decrease or change a parameter, use the arrow buttons
To save a menu change, press O
To exit a menu without saving a change, press X
