Shuttle av61 User manual

AV61
PentiumTM II/IIIprocessor
BasedAGP MAINBOARD
User's Manual

M332
ShuttleAV61
Pentium II/III processor based AGPset Mainboard
Manual Version 1.2
Copyright
Copyright©2000byShuttleInc. AllRightsReserved.
Nopartofthispublicationmaybereproduced,transcribed,storedinaretrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical,magnetic,optical, chemical,photocopying, manual,or otherwise,without
priorwritten permission from ShuttleInc.
Disclaimer
Shuttle Inc. shall not be liable for any incidental or consequential damages resulting from the
performanceor use of thisproduct.
Thiscompany makesno representationsorwarranties regardingthe contents ofthis manual.
Informationin thismanual hasbeencarefully checkedfor reliability; however,no guarantee
is given as to the correctness of the contents. In the interest of continued product improve-
ment, this company reserves the right to revise the manual or include changes in the specifi-
cations of the product described within it at any time without notice and without obligation to
notify any persion of such revision or changes. The information contained in this manual is
providedfor generaluse bythe customers.
Trademarks
Spacewalkeris a registered trademark of Shuttle Inc.
Intel,Pentiumisaregisteredtrademarksof Intel Corporation.
VIAis a registered trademarks of VIA Corporation.
PS/2is a registeredtrademark of IBM Corporation.
AWARDisaregisteredtrademarkofAwardSoftwareInc.
Microsoftand Windows are registered trademarks of Microsoft Corporation.
General Notice:Otherbrandandproduct names used herein are for identification
purposesonlyand may be trademarks of their respective owners.

- 1 -
WHAT’SINTHEMANUAL ................................................................4
QuickReference.................................................................................................4
About This Manual..............................................................................................4
Technical Support..............................................................................................4
1INTRODUCTION ............................................................................5
1.1 TO DIFFERENT USERS................................................................................5
FIRST-TIME DIY SYSTEM BUILDER.......................................................5
EXPERIENCED DIY USER.......................................................................5
SYSTEMINTEGRATOR ...........................................................................5
1.2 ITEM CHECKLIST.........................................................................................6
2FEATURES....................................................................................7
2.1 SPECIFICATIONS.........................................................................................7
3HARDWAREINSTALLATION.......................................................10
3.1 STEP BY STEP INSTALLATION................................................................10
Accessories Of AV61...............................................................................10
STEP 1 Install the CPU ...........................................................................11
STEP 2 Set Jumpers ...............................................................................13
STEP 3 Install SDRAM System Memory.................................................13
STEP 4 Install Internal Peripherals in System Case ...............................14
STEP 5 Mount the Mainboard on the Computer Chassis .......................15
STEP 6 Connect Front Panel Switches/LEDs/Speaker ..........................16
STEP 7 Connect IDE & Floppy Disk Drives ............................................18
STEP 8 Connect Other Internal Peripherals ...........................................18
STEP 9 Connect the Power Supply.........................................................19
STEP 10 Install Add-on Cards in Expansion Slots..................................19
TABLEOFCONTENTS

- 2 -
STEP 11 Connect External Peripherals to Back Panel...........................20
STEP 12 First Time System Boot Up ......................................................21
STEP 13 Install Drivers & Software Components...................................22
3.2 JUMPER SETTINGS...................................................................................23
Jumpers & Connectors Guide .................................................................24
Set Keyboard & PS/2 Mouse Power-On (JP38)......................................26
CPU Host Frequency Setting (JP39)......................................................27
CPU Clock Ratio Setting (JP37)..............................................................28
CPU Vcore Fine Tune (JP48)..................................................................29
Over-Clocking the CPU (J55 & JP45) .....................................................29
Clear CMOS (JP19).................................................................................29
PS/2 Keyboard & PS/2 Mouse Connectors.............................................30
USB1 / USB2 Port Connectors................................................................30
COM1 / COM2 Connector .......................................................................30
Parallel Port Connector............................................................................30
ATX Power On/Off Switch Connector (PWON-S1).................................31
Green LED Connector (GLED-J48).........................................................31
EPMI Connector (EPMI-J42) ...................................................................31
HDD LED Connector (IDE LED-S3) ........................................................32
Hardware Reset Connector (RST-J32) ...................................................32
Speaker Connector (SPK-JP24)..............................................................32
PWR LED Connector (PWR-J27)............................................................32
Keylock Connector (KEYLOCK-J27).......................................................33
Enhanced IDE Ports and Floppy Connectors .........................................33
ATX Power Supply Connector (J31) .......................................................34

- 3 -
Cooling Fan Connectors for CPU (JP29),
Chassis (JP28), (J43) & (J47) .................................................................34
IR Connector (JP4)..................................................................................35
Wake-on LAN Connector (J45) ...............................................................35
SB-Link Connector (JP46).......................................................................35
3.3 SYSTEM MEMORY CONFIGURATION......................................................36
Install Memory..........................................................................................36
Upgrade Memory .....................................................................................36
4SOFTWAREUTILITY ...................................................................37
4.1 AV61 MAINBOARD CD OVERVIEW.........................................................37
4.2 INSTALL MAINBOARD DRIVER...............................................................38
4.3 TO VIEW THE USER'S MANUAL..............................................................39
5 BIOS SETUP ...............................................................................40
5.1 ENTERING BIOS.........................................................................................40
5.2 THE MAIN MENU.........................................................................................41
Standard CMOS Setup............................................................................43
BIOS Features Setup...............................................................................45
Chipset Features Setup...........................................................................48
Power Management Setup......................................................................50
PnP / PCI Configuration ..........................................................................53
CPU Features Setup................................................................................56
Integrated Peripherals .............................................................................58
User Password Setting ............................................................................62
Save & Exit Setup....................................................................................63
Exit Without Saving..................................................................................63

- 4 -
Quick Reference
HardwareInstallation >> Step-by-Step.................................................Page 10
Jumper Settings >> A Closer Look.......................................................Page 23
Software Utility >> How to Install..........................................................Page 37
BIOS Setup >> How to Configure.........................................................Page 40
About This Manual
For First-Time DIY System Builder.........................................................Page 5
ForExperienced DIY User.......................................................................Page 5
For System Integrator..............................................................................Page 5
WHAT’SINTHEMANUAL

- 5 -
1INTRODUCTION
1.1ToDifferent Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience a
success, right from the start, we have designed the 3 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders.
Prior to installation, we also suggest you to read the whole manual carefully
to gain a complete understanding of your new AV61 mainboard.
Experienced DIY User
Congratulations on your purchase of the Shuttle AV61 mainboard. You will
findthatinstallingyournewShuttle AV61 mainboard is just thateasy. Bundled
with an array of onboard functions, the highly-integrated AV61 mainboard
provides you with a total solution to build the most stable and reliable system.
Refer to section 3.2 Jumper Settings and Chapter 4 Software Utility to find
out how to get the best out of your new mainboard. Chapter 5 BIOS Setup
also contains relevant information on how to tune up your system to achieve
higher performance.
System Integrator
You have wisely chosen Shuttle AV61 to construct your system. Shuttle
AV61 incorporates all the state-of-the-art technology of the VT82C693A
chipset from VIA. It integrates the most advanced functions you can find to
date in a compact ATX board. Refer to section 3.2 Jumper Settings and
Chapter 4 Software Utility for an in-depth view of system construction.

- 6 -

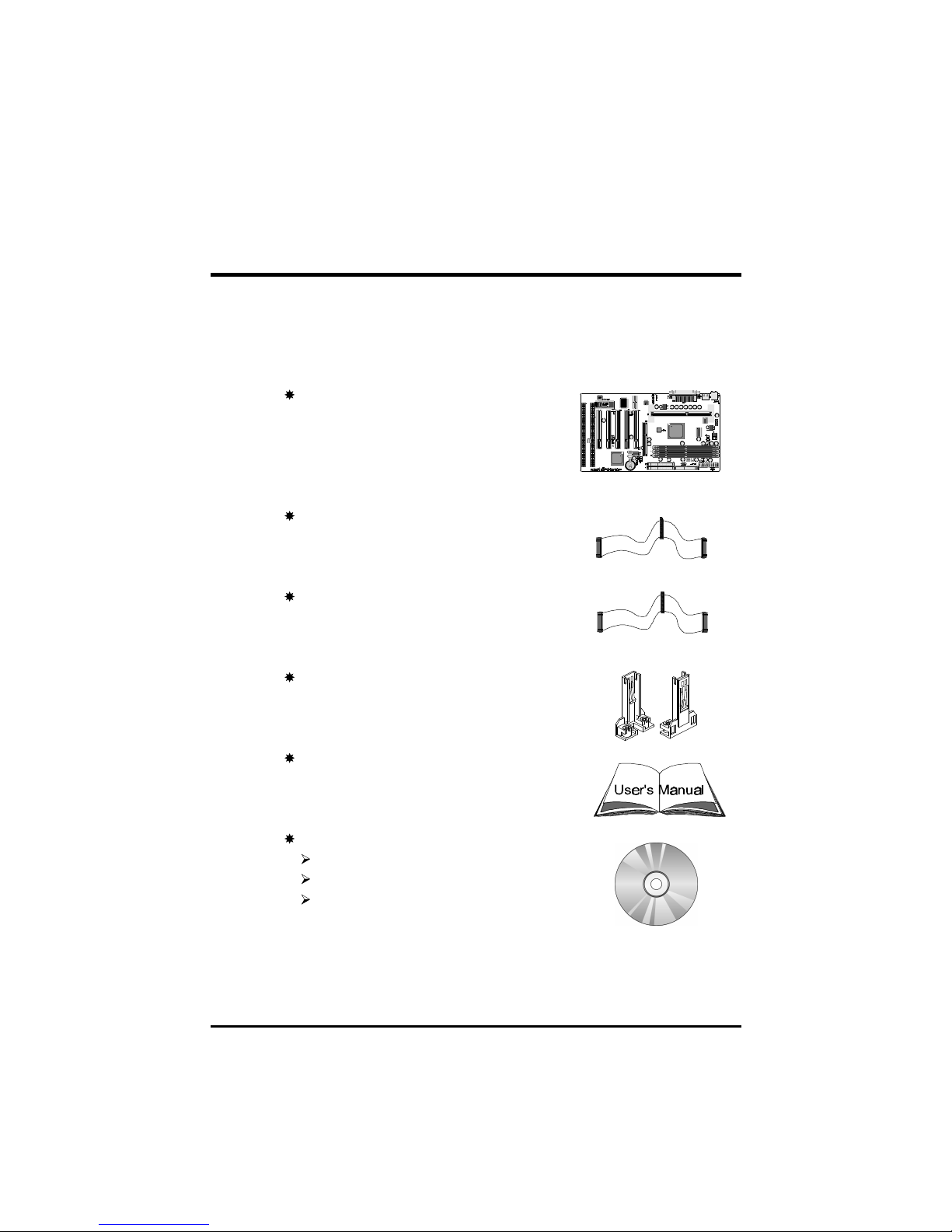

1.2ItemChecklist
Check all items you received with your AV61 mainboard to make sure
nothing is missing. The complete package should include:
One Shuttle AV61 Mainboard
(with onboard Slot1, built-in VIA693A
chipset, ATX form factor, including 2xUSB,
2xSerial, and 1xParallel ports, plus 1xPS/2
Keyboard, and 1xPS/2 Mouse connectors.)
One ATA/66 Ribbon Cable
One Floppy Ribbon Cable
One set of Universal Retention Mechanism
This AV61 User’s Manual
One CD-ROM containing:
The AV61 user’s manual on PDF format
The VIA 4 IN 1 Drivers
The Award Flashing Utility

- 7 -
The AV61 mainboard is carefully designed for the demanding PC user who wants
high performance and maximum intelligent features in a compact package.
2.1Specifications
CPU Support
Supports Slot-1 (Celeron, Pentium II/III and Coppermine) processor.
66/100/133MHz CPU Front Side Bus (FSB).
Chipset
Features VIA VT82C693A AGPset with I/O subsystems.
Jumperless CPU Configuration
Auto-detect CPU voltage
Soft-configure CPU Speed (The CPU operating speed is software
configurable in the CMOS Setup menu of the BIOS Setup utility.)
Versatile Memory Support
Equipped with three DIMM banks of PC/100 and PC/133 compliant
SDRAM to provide up to 768MB of system memory.
Configurable support for EC (Error Checking) and ECC (Error Checking
and Correcting)
AGP Slots
Supports Accelerated Graphics Port cards for high-performance, compo-
nent level interconnect directed at 3D graphical display applications.
PCI and ISA Expansion Slots
Provides five 32-bit PCI slots and two 16-bit ISA slots.
LPC Super I/O Onboard
Provides a variety of I/O interfaces:
1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, 2.88MB
format or for 5.25-inch FDD with 360KB or 1.2MB format.
1 × PS/2 mouse connector
2FEATURES

- 8 -
1 × PS/2 Keyboard connector
2 × USB connectors
3 × USB Hub connectors (optional)
2 × DB9 Serial connectors 16550 UART compatible
1 × Infrared communications port ASKIR and HPSIR compatible.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
PCI Bus Master IDE Controller Onboard
Two UltraDMA 33/66 Bus Master Dual-channel IDE ports provide support to
a maximum of four IDE devices (one Master and one Slave per channel). The
IDE Bus implements data transfer speeds of up to 33/66 MB/sec and also
supports Enhanced PIO Modes 3 & 4.
ATX Power Supply Connector
ATX power supply unit can connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.
Advanced Configuration and Power Interface
Features four power savings modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
System BIOS
Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.
Supports Green PC and Desktop Management Interface (DMI).
