Shuttle Spacewalker MK20 User manual

MK20
SocketA
AMD Athlon/Duron Processor
Based SDR Main Board
User's Manual

Thermalissueishighlyessentialforprocessorswithaspeedof600MHzandabove.
Hence,werecommendyoutousetheCPUfanqualifiedbyAMDormotherboard
manufacturer.Meanwhile,pleasemakesureCPUandfanare securely fastenedwell.
Otherwise,improper fan installationnotonlygetssystem unstable butalsocould
damagebothCPUandmotherboardbecauseinsufficientthermaldissipation.
Ifyouwouldliketoknowmoreabout thermal topic please see AMD website for
detailedthermal requirement throughtheaddress:
http://www.amd.com/products/athlon/thermals
http://www.amd.com/products/duron/thermals
WARNING

Shuttle®SpacewalkerTM MK20
SocketA
AMD Athlon/Duron Processor
based SDR Mainboard
Manual Version 1.0
Copyright
Copyright©2001 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
VIA is a registered trademark of VIA Corporation.
AMD, Athlon, and Duron are registered trademarks of AMD Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M469

- 1 -
WHAT’S IN THE MANUAL .....................................................................5
Quick Reference................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION .................................................................................6
1.1 TO DIFFERENT USERS ..............................................................................6
First-TimeDIYSystemBuilder ..................................................................6
ExperiencedDIY User ..............................................................................6
SystemIntegrator .....................................................................................6
1.2 ITEM CHECKLIST........................................................................................7
2 FEATURES..........................................................................................8
2.1 SPECIFICATIONS ........................................................................................8
3 HARDWARE INSTALLATION ...........................................................11
3.1 STEP-BY-STEP INSTALLATION ............................................................... 11

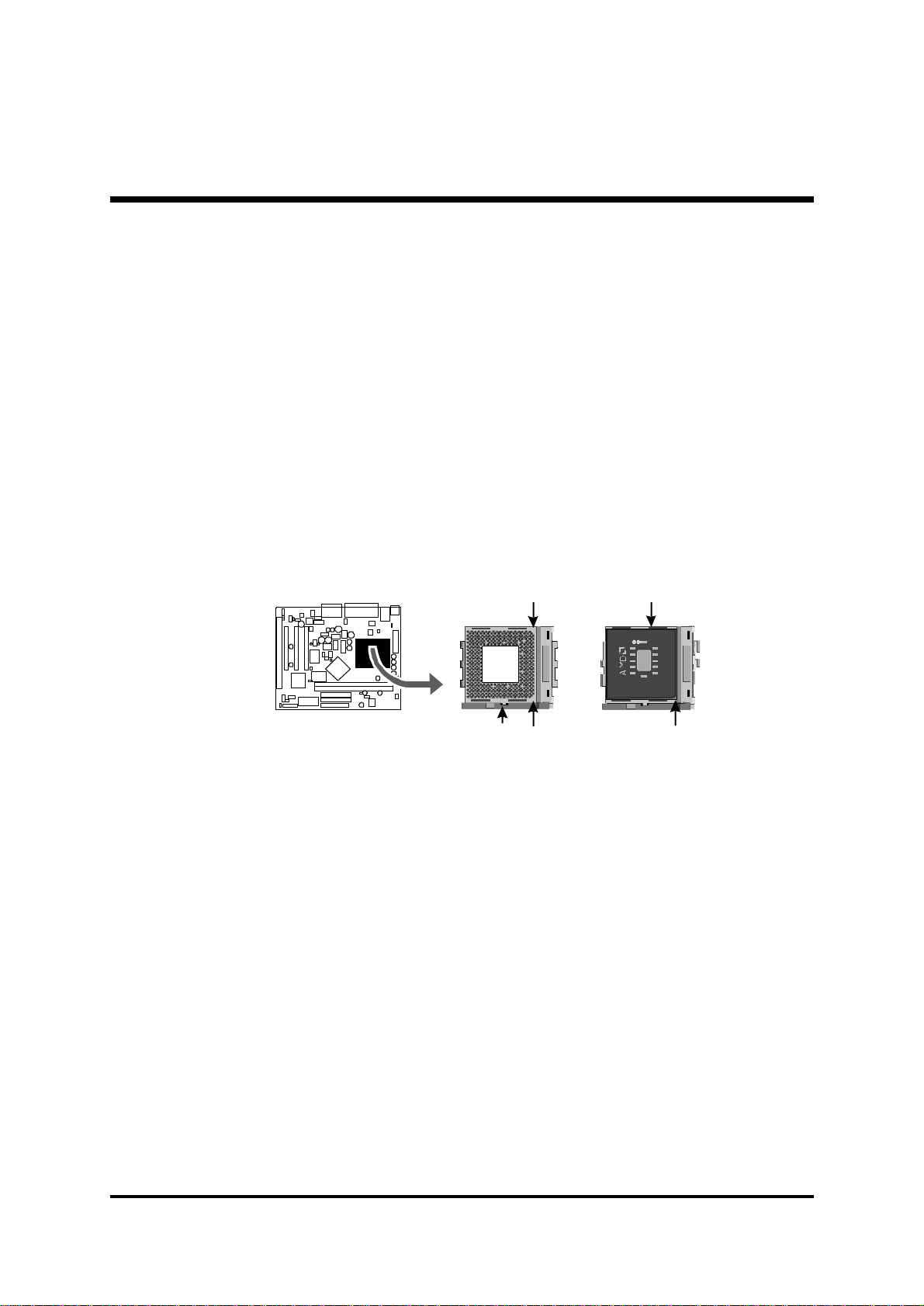

STEP1Install the CPU...........................................................................12
STEP 2 Set Jumpers..............................................................................13
STEP3InstallSDRSDRAMSystemMemory.........................................13
STEP4Install Internal PeripheralsinSystemCase.................................14

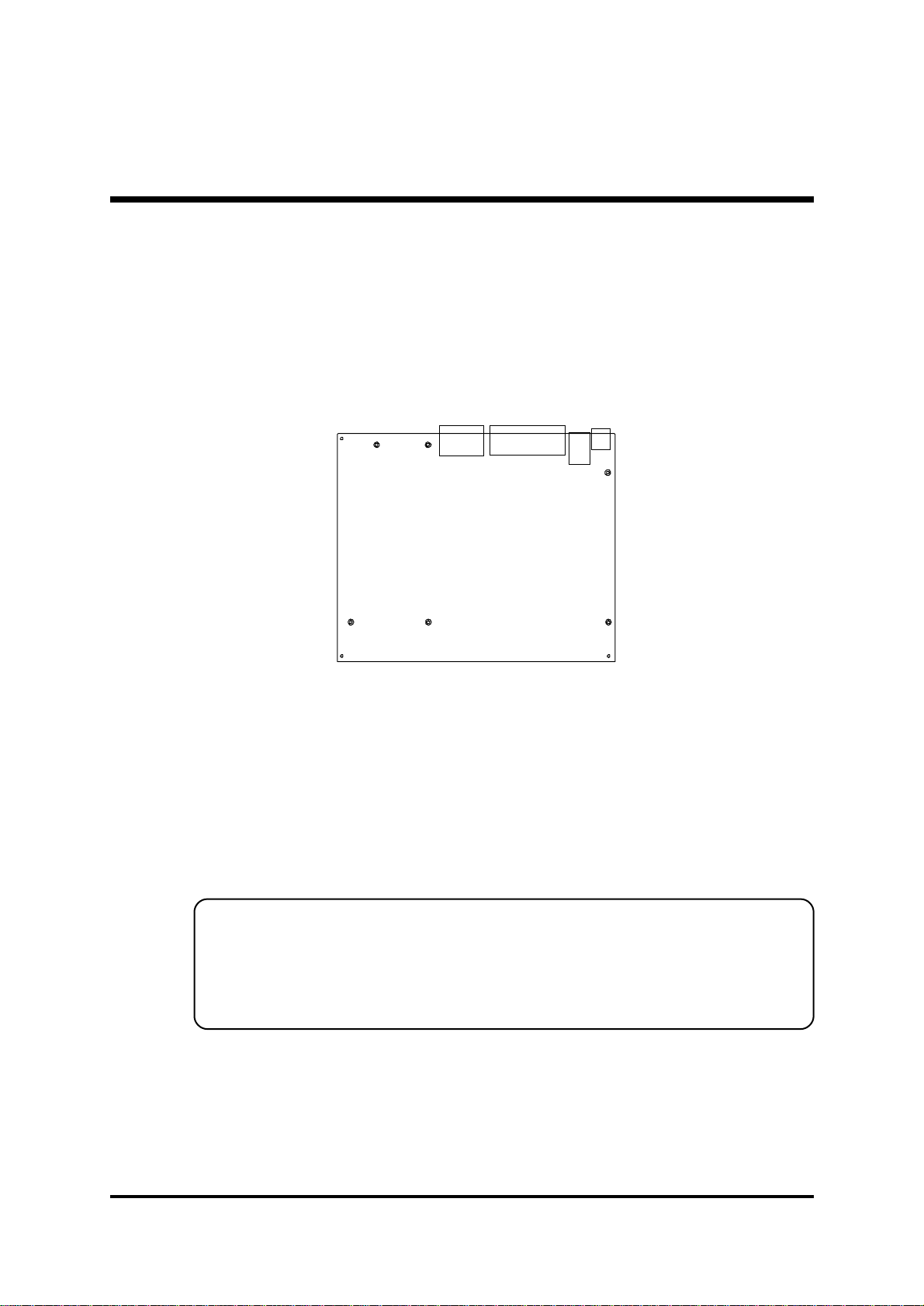

STEP5MounttheMainboardontheComputerChassis ........................15
STEP6ConnectFront-panelSwitches/LEDs/Speaker/USB ..................16
STEP 7 Connect IDE & Floppy Disk Drives............................................18
STEP8 Connect OtherInternalPeripherals ............................................18
STEP9ConnectPowerSupply ..............................................................19
STEP10InstallAdd-onCardsinExpansionSlots ..................................19
STEP11 Connect External PeripheralstoBack-panel............................20
STEP 12 First Time System Boot Up......................................................22
STEP13InstallDriver&SoftwareComponents......................................23
TABLE OF CONTENTS

- 2 -
3.2 JUMPER SETTINGS ..................................................................................24
JUMPER&CONNECTOR GUIDE .........................................................25
Jumpers
USB1/2Power-OnSetting(JP1) ............................................................28
USB3/4Power-OnSetting(JP9) ............................................................28

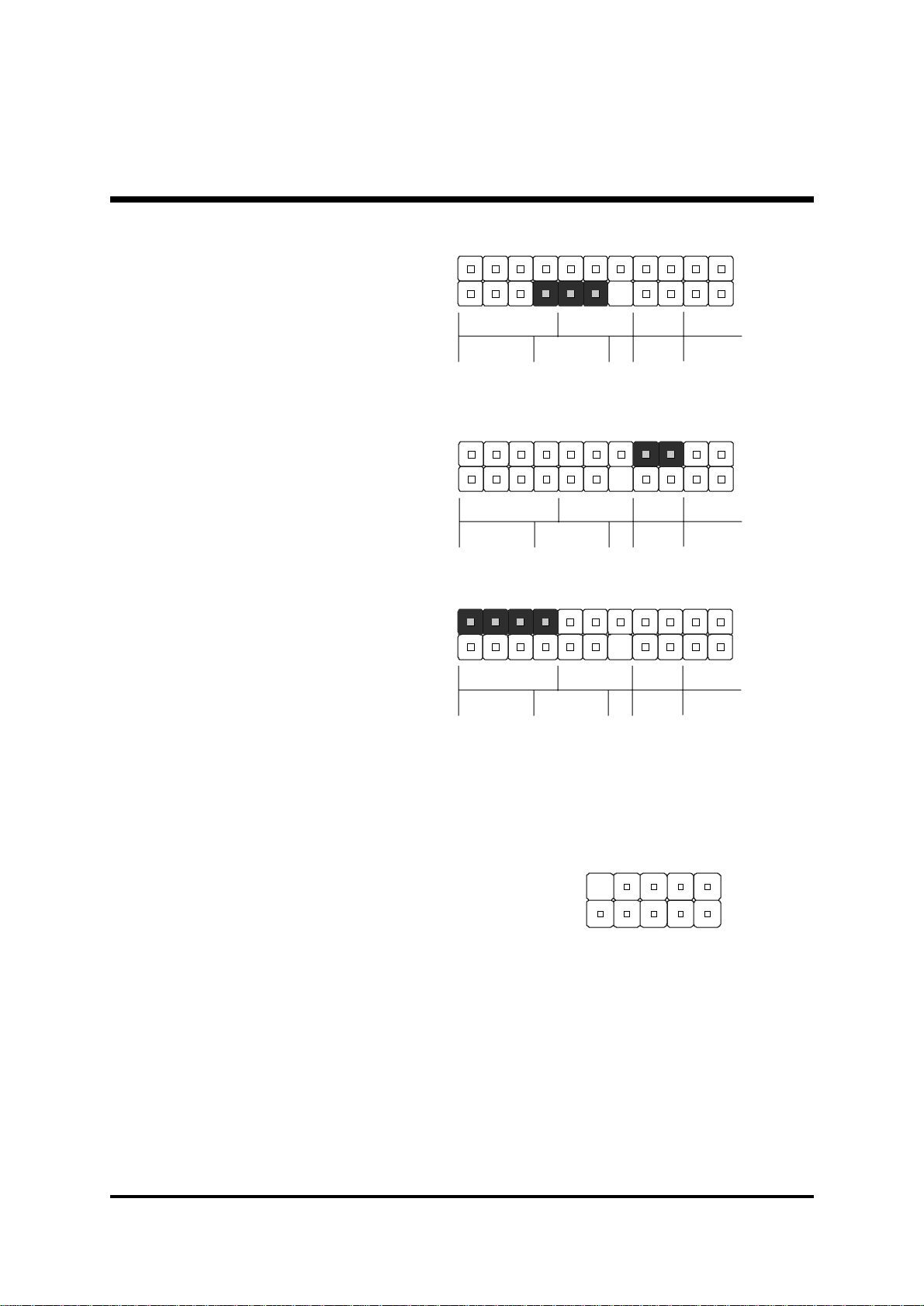

FSB Speed Configuration Setting (J3) ...................................................29
Clear CMOS (JBAT1).............................................................................29
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors ............................................30
LANPortConnector ...............................................................................30
USBPortConnectors.............................................................................30
COM1Connector ...................................................................................30
VGAConnector......................................................................................31
ParallelPortConnector...........................................................................31
Line-Out .................................................................................................31
Line-In ....................................................................................................31
Mic-In .....................................................................................................31
MIDI/GAMEPort.....................................................................................32
Front-Panel Connectors
ATX Power On/Off Switch Connector(PTSW).........................................33
HDD LED Connector (HDLED) ..............................................................33
Green LED/ Power LED Connector (GLED/PLED) ................................34
Power LED Connector (PLED)...............................................................34
HardwareReset Connector (RST) ..........................................................35
Speaker Connector (SPK)......................................................................35
ExtendedUSB Header (JP8)..................................................................36

- 3 -
Internal Peripherals Connectors
EnhancedIDEPorts and Floppy Connectors ..........................................37
Other Connectors
ATXPowerSupplyConnector(CN2) ......................................................38
Cooling FAN Connectors for CPU FAN (FAN1) and
Chassis FAN (FAN2/3) ...........................................................................38
IRConnector (JP7) .................................................................................39
COM2Connector(J5) ............................................................................40
Front-PanelMicrophoneand Line-Out Header (JP6) ..............................40
AudioCD-IN Header (JP2) (Block) .........................................................41
AudioAUX-INHeader(JP3)(White).......................................................41
AudioTAD-IN Header (JP4) (Green).......................................................41
3.3 SYSTEM MEMORY CONFIGURATION ......................................................42
InstallMemory.........................................................................................42
UpgradeMemory ...................................................................................42
4 SOFTWARE UTILITY .......................................................................43
4.1 Mainboard CD Overview ..........................................................................43
4.2 Install Mainboard Software ......................................................................44
InstallVIA4 in 1, AGP, and Audio Device Driver .....................................45
4.3 Install VIA Hardware Monitor ...................................................................46
4.4 Install LAN Software.................................................................................47
InstallWIN98 LANdriver .........................................................................47
InstallWIN2000 LANdriver .....................................................................50
InstallWINNTLANdriver.........................................................................54
4.5 View the User's Manual............................................................................56

- 4 -
5 BIOS SETUP.....................................................................................57
5.1 ENTER THE BIOS......................................................................................57
5.2 THE MAIN MENU .......................................................................................58
STANDARD CMOS FEATURES ................................................................60
ADVANCED BIOS FEATURES..................................................................64
ADVANCED CHIPSET FEATURES...........................................................68
INTEGRATEDPERIPHERALS...................................................................72
POWERMANAGEMENTSETUP ..............................................................76
PNP/PCICONFIGURATION .......................................................................81
PC HEALTH STATUS.................................................................................84
FREQUENCY/VOLTAGECONTROL..........................................................85
LOAD FAIL-SAFE DEFAULTS...................................................................86
LOADOPTIMIZEDDEFAULTS ..................................................................86
SET SUPERVISOR PASSWORD ..............................................................87
SET USER PASSWORD ...........................................................................87
SAVE & EXIT SETUP.................................................................................88
EXITWITHOUTSAVING.............................................................................88

- 5 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 24
Software Utility >> How to Install ......................................................... Page 43
BIOS Setup >> How to Configure ........................................................ Page 57
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
WHAT’S IN THE MANUAL

- 6 -
1INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the Chapter 3 Hardware
Installation section in a step-by-step fashion for all the first-time DIY system
builders. Prior to installation, we also suggest you to read the whole manual
carefully to gain a complete understanding of your new Shuttle MK20
mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle MK20 mainboard. You will find
that installing your new Shuttle MK20 mainboard is just easy. Bundled with an
array of onboard functions, the highly-integrated MK20 mainboard provides
you with a total solution to build the most stable and reliable system. Refer to
sections 3.2 Jumper Settings and Chapter 4 Software Utility to find out how to
get the best out of your new mainboard. Chapter 5 BIOS Setupalso contains
the relevant information on how to tune up your system to achieve higher per-
formance.
System Integrator
You have wisely chosen Shuttle MK20 to construct your system. Shuttle MK20
incorporates all the state-of-the-art technology of the KLE133 chipset from VIA.
It integrates the most advanced functions you can find to date in a compact
Micro ATX board.

- 7 -

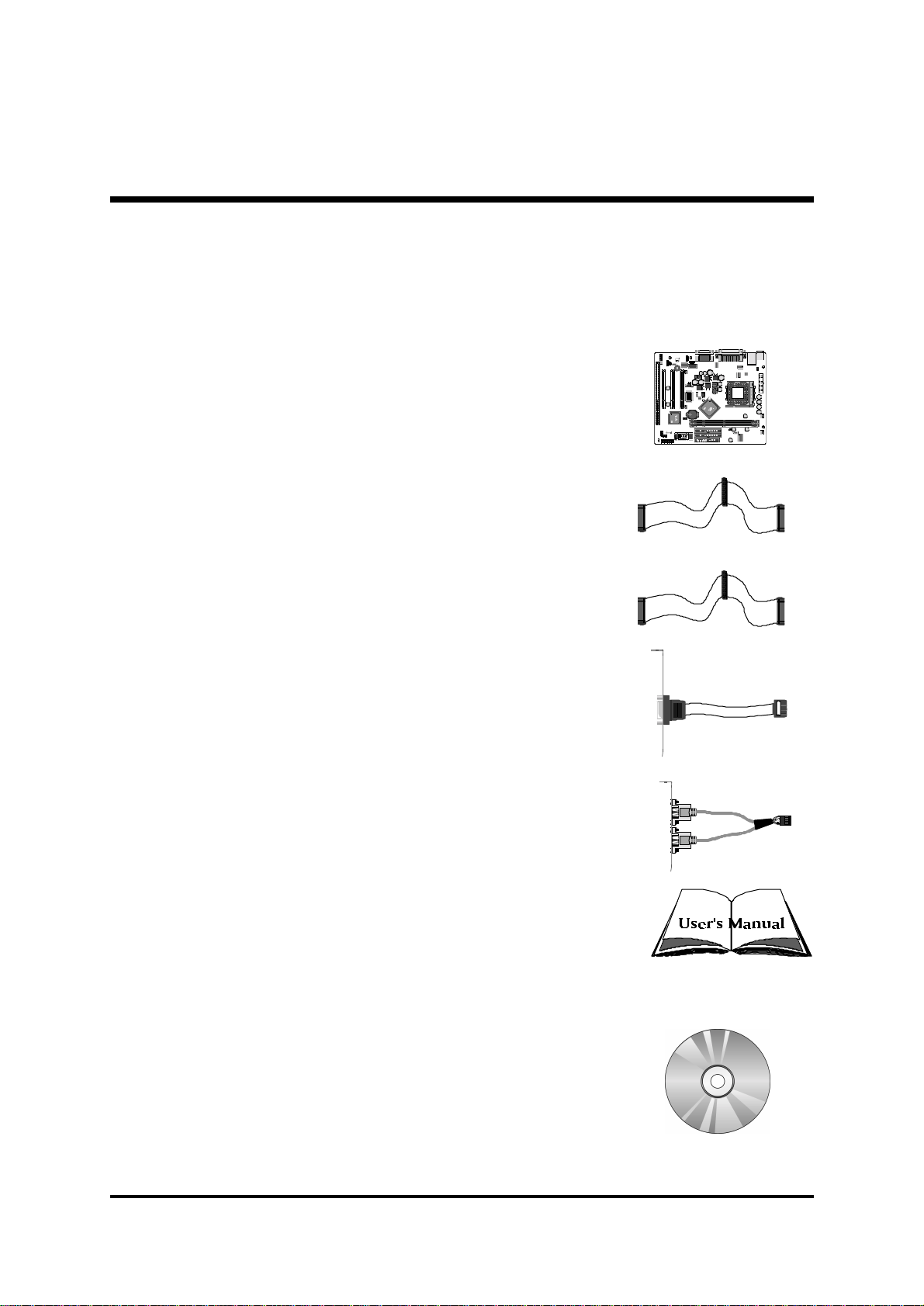

1.2 Item Checklist
Check all items with you MK20 mainboard to make sure nothing is missing.
The complete package should include:
!One piece of Shuttle MK20 Mainboard
!One piece of ATA100/66/33 Ribbon Cable
!One piece of Floppy Ribbon Cable
!One piece of 9-pin Ribbon Cable
!One piece of twin ports USB Cable (optional)
!MK20 User’s Manual
!One piece of Bundled CD-ROM with containing:
"MK20 user’s manual on PDF format
"VIA 4-IN-1 driver
"VIA AGP driver
"VIA Audio driver
"VIA Hardware Monitor driver
"LAN driver
"Award Flashing Utility

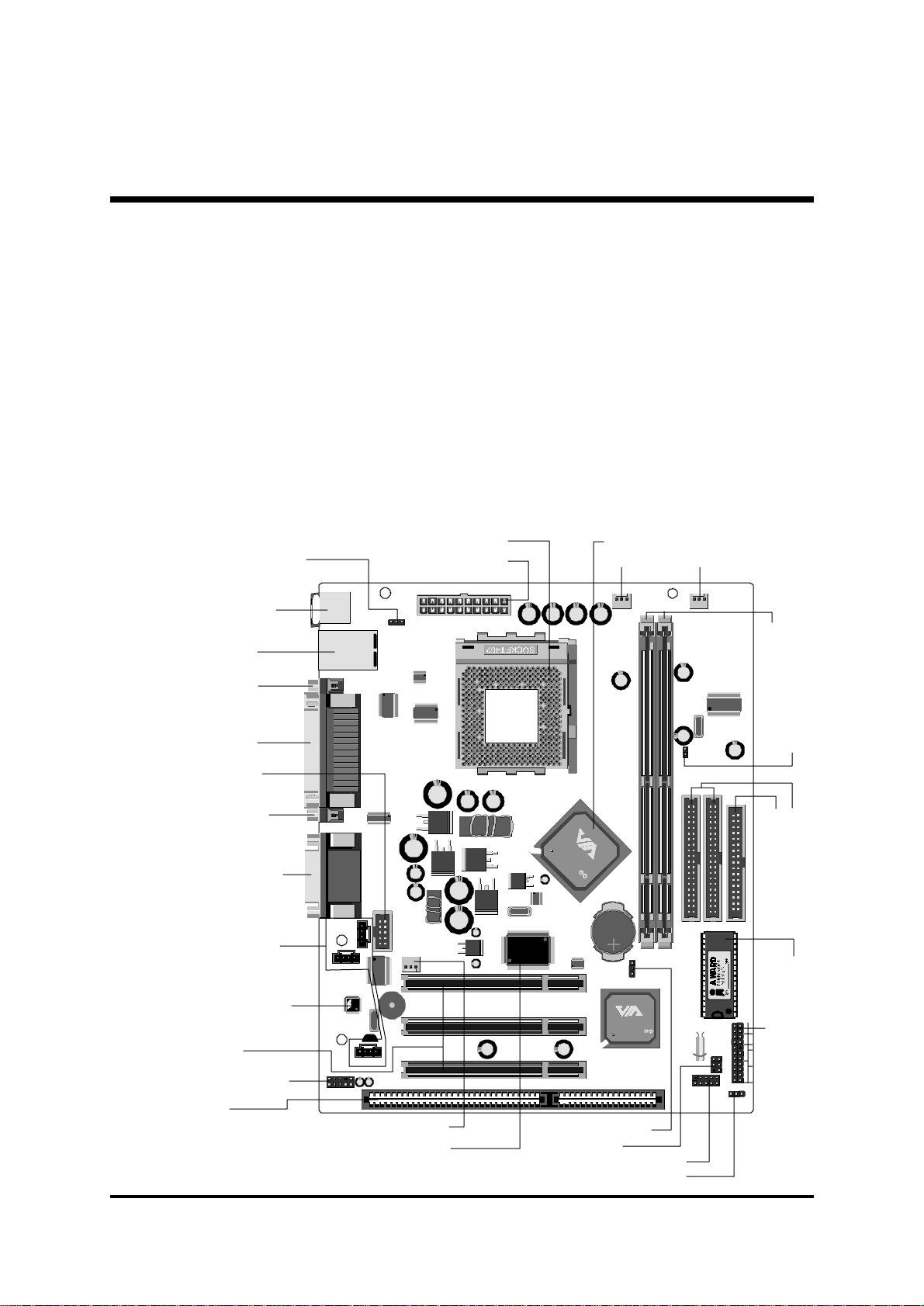

KM1
CD IN
COM2
US B1 LAN1
PCI3
ISA1
PCI2
PCI1
AUDIO
J2
VT
8
2
C686
B
00
21
CG
TAIWAN
13CON3400
TADIN
1
1
1
1
1
1
1
1
1
1
1
JP2
JP3
JP4 1
1
11
JP6
J
P
8
J
P
9
SPKRSTHDLED
GLED
PLED PTSW
JP7
JP5FDD1
111
IDE 2
IDE 1
DIMM1 DIMM2 JBAT1
J3
JP1 FAN3
FAN2FAN1
J5
Panasonic
CR2032
3V
JAPAN1
CN2
C
VT8361
0118CETAIWAN
23A1419000
RTL
8
1
39C
02175T1
009
BTAIWANRMC
VT1611A

- 8 -
MK20 mainboard is carefully designed for the demanding PC user who wants high perfor-
mance and maximum intelligent features in a compact package.
2.1 Specifications
!!
!!
!CPU Support
Support Socket462 package CPU with 200/266 MHz FSB.
AMD Athlon Processor: 600 ~ 1400+ MHz.
AMD Duron Processor 600 ~ 850+ MHz.
!!
!!
!Chipset
Features VIA KLE133, VT8361 N.B. / VT82C686B S.B. Chipset.
!!
!!
!AC'97 Link for Audio and Telephony CODEC
AC'97 2.1 compliant.
Spread independent PCI functions for Audio and Modem.
!!
!!
!Integrated Graphics Controller
Enhancement 3D graphics visual and texturing features.
Integrated 24-bit 230MHz RAMDAC.
Supports VESA DDC2B.
Up to 1600 x 1200 in 8-bit color at 85 Hz refresh in 2D graphics.
!!
!!
!On Board LAN Controller
Support 10Mb/s and 100Mb/s operation.
!!
!!
!Versatile Memory Support
Two 168-pin DIMM slots to support up to 1GB of PC100 or PC133
compliant SDR SDRAM module.
!!
!!
!PCI and ISA Expansion Slots
Provides three 32-bit PCI slots and one 16-bit ISA slot.
2FEATURES

- 9 -
!!
!!
!I/O Interface
Provides a variety of I/O interfaces:
"1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
"1 × PS/2 mouse connector.
"1 × PS/2 Keyboard connector.
"1 × RJ45 LAN connector.
"1 × DB15 VGA connector.
"1 × DB9 Serial connector 16550 UART compatible.
"1 × Infrared communication port.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
"1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
"1 × Line-Out port.
"1 × Line-In port.
"1 × Mic-In port.
"1 × MIDI/GAME port.
!!
!!
!4 USB Supported Onboard
"2 × USB connectors on back-panel and one sets of dual USB ports headers
on mid-board.
!!
!!
!PCI Bus Master IDE Controller Onboard
Two UltraDMA 100/66/33 Bus Master Dual-channel IDE ports provide support
to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements the data transfer speed up to 100/66/33MB/sec and
also supports Enhanced PIO Modes.
80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
!!
!!
!ATX Power Supply Connector
ATX power supply unit can be connected to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.

- 10 -
!!
!!
!Advanced Configuration and Power Interface
Features four power saving modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
!!
!!
!System BIOS
Provides licensed Award BIOS V6.0 PG on 2Mb Flash EEPROM and
supports Green PC, Desktop Management Interface (DMI).
!!
!!
!ATX Form Factor
System board conforms to the Micor ATX specification.
Board dimension: 244mm × 200mm.
!!
!!
!Advanced Features
"Dual Function Power Button - The system can be in one of two states;
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
"Modem Ring Power-On - The system can be powered on automatically
by the activation of modem ring.
!!
!!
!Intelligent Features
"Voltage Monitoring - Monitors various voltages of key elements, such as
the CPU, and other critical system voltage levels to ensure stable current
passing through mainboard components. System voltages include Vcore
on CPU, and +2.5V, +3.3V, +5V, +12V on system etc.
"Fan Status Monitoring - To prevent CPU from overheating, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)
"Temperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 11 -
3HARDWAREINSTALLATION
Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your MK20 mainboard. Refer to the
following mainboard layout to help you identify various jumpers, connectors, slots, and
ports. Then follow these steps to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
Accessories Of MK20
KM1
CD IN
COM2
USB1 LAN1
PCI3
ISA1
PCI2
PCI1
AUDIO
J2
VT82C686B
0021CGTAIWAN
13CON3400
TAD IN
1
1
1
1
11
1
1
1
1
1
JP2
JP3
JP4
1
1
11
JP6
JP8
JP9
SPK RST HD LED
GLED
PLED PTSW
JP7
JP5 FDD1
111
IDE2
IDE1
DIMM1 DIMM2
JBAT1
J3
JP1
FAN3
FAN2FAN1
J5
Panasonic
CR2032
3V
JAPAN1
CN2
C
VT8361
0118CE TAIWAN
23A1419000
RTL8139C
021 75T1
009B TAIW AN
RMC
VT1611A
Programmable 2Mb Flash
EEPROM
PS2 Keyboard/
PS/2 Mouse Connectors
USB1/USB2 & LAN
Connectors
Socket 462
Serial Port Connector
(COM2)
VGA Port Connector
Serial Port Connector
(COM1)
Parallel Connector
VIA 8361 Chipset
On Board Audio CODEC
On Board LAN Controller
On Board Audio Header-
JP2,JP3,JP4
Front-Panel Audio Header-
JP6
Three PCI Slots
One ISA Slot
ATX Power Connector
FAN1
Line-In/Line-Out/Mic-In
Game/MIDI Connectors
Floppy Connector Two DIMM slots
Two IDE Connectors
FAN2
Front-Ponel Header -
JP5
FSB Speed Configuration Setting -
J3
Clear CMOS - JBAT1
USB Power-On Setting - JP9
USB Power-On Setting - JP1
Extended USB - JP8 Header
IR -
JP7 Header
FAN3

- 12 -
Step 1
Install the CPU:
1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right
sector of your mainboard (between the back-panel connectors and the
DIMM memory slots).
2. Pull the CPU ZIF socket lever slightly sideways away from the socket
to unlock the lever, and then bring it to an upwardly vertical position.
3. Place your AMD 462 Athlon/Duron processor in the socket A. Note that the
CPU’s edges have been purposely designed non-symmetrically to prevent
from inserting the processor in the wrong direction. The following diagram
demonstrates the correct placement of the CPU in the ZIF socket. You can
see that the two blunt-edged corners should face towards the socket-lever.
4. Slightly push the AMD 462 Athlon/Duron processor into the socket without
applying excessive force while making sure there is no gap between CPU
and socket. Then lower the socket-lever all the way down to its horizontal
position and lock it to secure the CPU in place.
5. The AMD 462 Athlon/Duron processor requires a set of heatsink/fan to
ensure proper cooling of the processor. If heatsink/fan have not been
already mounted on your CPU, you must purchase the heatsink/fan sepa-
rately and have it installed. Plug the cable throught the heatsink/fan in the
CPU fan power connector located nearby. Note that there are several types
of CPU fan connectors. Normally, if your mainboard supports the hard
ware monitoring function, a 3-pin fan power connector should allow your
system to detect the CPU fan’s speed . The CPU fan can also run with a 2-
pin fan power connector, however, detection of CPU fan’s speed is not sup-
ported. Another type of CPU fan may feature a large 4-pin fan power con-
nector, which does not support CPU fan's speed detection and must be di-
rectly connected to the system’s power supply unit. Please refer to the fol-
lowing diagram.
Notch
AMD CPU
SOCKET462
ASSEMBLED IN MALAYSIA
Lever Blank
Blank
SOCKET462

- 13 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. CPU FSB Speed
2. Set USB Power-On
3. Clear CMOS
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with mainboard configu-
ration procedures. The factory-set default settings are tuned for optimum
system performance. For the advanced users who wish to customize their
system, section 3.2 Jumper Settingswill provide detailed information on how
to configure your mainboard manually.
Step 3.
Install SDR SDRAM System Memory
To install memory, insert SDR SDRAM memory module(s) in DIMM slot(s).
Note that SDR SDRAM modules are directional and will not go in the DIMM
slots unless properly oriented. After the module is fully inserted into the
DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in
place.

- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE
/HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de-
scribed below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on board each device according to the
instructions provided by the manufacturer. (IDE devices, HDD, and
CD-ROM have to set jumpers on Master or Slave mode depending
on your willing to install more than one device for each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually in red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.
3. Connect an available power cable through your system power supply unit
to the back-panel of each peripheral device. Note that the power cable
is directional and cannot fit in if not properly positioned.
4. Connect serial port cable to on board COM2 header. And install the other
side of CMOS cable to back-panel with a screw.

- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical short between the
board and the metal frame of chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there aren’t enough matching holes, then make sure to install at
least 4 mounting studs to ensure proper attachment of the
mainboard.

- 16 -
Step 6
Connect Front-Panel Switches/LEDs/Speaker/USB connectors
You can find there are several different cables already existing in the system
case and originating from the computer’s front-panel devices (HDD LED,
Green LED, Reset Switch, PC Speaker, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to the
mainboard’s front-panel connectors group (JP5 and JP8), as shown below.
1. ATX Soft Power On/Off (PTSW)
2. HDD_LED (HDLED)
3. Green_LED (GLED)/Power_LED (PLED)
1
1
JP8
SPK RST HDLED
GLED
PLED PTSW
JP5
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5

- 17 -
4. Power_LED (PLED)
5. Hardware Reset Switch (RST)
6. PC Speaker (SPK)
7. Extended USB Header
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5
1
SPK RST HDLED
- +
- + + - - +
GLED/PLEDPLED PTSW
JP5
USB port 3
USB port 4
KEY
GND +
USBP0-
USBP0
+5V
OC0
+
GND
USBP1
USBP1-
+5V
9
10 1 2
