Shuttle FN45U User manual

FN45U
AMD Sempron/Athlon XP/Athlon/Duron
462-pinProcessor
BasedDDRMAINBOARD
User's Manual

M912
Shuttle®FN45U
AMD Sempron/Athlon XP/Athlon/Duron
462-pin Processor
Based DDR Mainboard
Manual Version 1.0
Copyright
Copyright©2004 by Shuttle®Inc. All Rights Reserved.
This publication, including all photos, illustrations, and software, is protected under interna-
tional copyright laws, with all rights reserved. Reproducing any of the material contained
herein is prohibited without the consent of the publisher.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Shuttle is a registered trademark of Shuttle Inc.
nVIDIAisaregisteredtrademarkofnVIDIACorporation.
AMD,AthlonandDuronareregistered trademarks ofAMDCorporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.

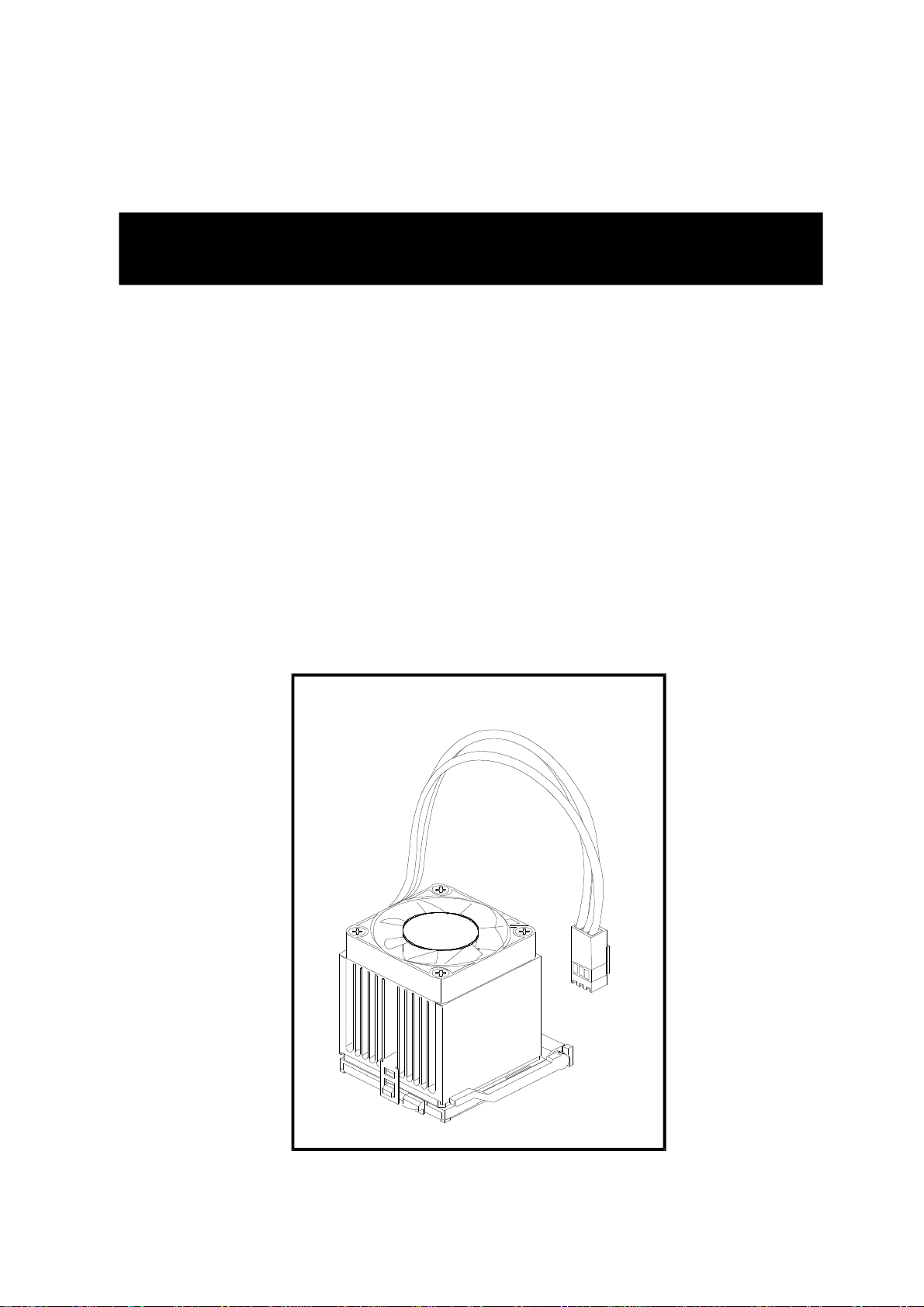

Thermalissue ishighly essentialfor processorswith aspeed of600MHz andabove.
Hence,we recommendyou touse the CPUfan qualifiedbyAMDor motherboard
manufacturer.Meanwhile,please makesureCPUand fan aresecurelyfastened well.
Otherwise,improperfan installationnotonlygets system unstablebutalso could
damageboth CPUandmotherboard becauseinsufficient thermaldissipation.
Ifyou wouldlike to knowmore aboutthermal topicplease see AMD website for
detailedthermalrequirement throughtheaddress:
http://www.amd.com
WARNING

Ifyou’ve changedyour CPUor overclockedyour system,the system mayfail toboot up,
even with a Clear CMOS jumper physically resetted. The reason is that NVIDIA’s new
nForce2 chipset introduces a way to reset a Clear CMOS jumper without removing a
chassis.Please followthesteps listedbelow:
1. Turnoffyour computerandunplugthe powercable.Reconnect it after30seconds;
2. Press<Insert>andthenpressyourcomputer’sstart button. Continueholding <Insert>
untilthesystem beginsthePOST(Power-On Self Test);
3. Immediatelypress<Del> toenterthe BIOS;
4. Select‘Load OptimizedDefaults’to returnyoursystem toabootable condition;then
select ‘SAVE to CMOS and EXIT’;
5. Rebootyoursystem.
Moreover, if your system fails to boot up after you reset the CPU FSB, select “SAVE to
CMOS and EXIT” in the BIOS.After the system restarts, there is on screen a message
warningyounotto reset orturnoffyourcomputer:
Warning! New setting is updating now
Do not Reset or Shutdown the system
Yoursystem worksafterthe BIOSis updated.
NOTICE

Statement of Shuttle Mainboard via the EMI Test
Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548ClassB,EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000,ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus-
trated as follows:
(A)Voltage:AC110V/60HZ &AC230V/50HZ
(B) Tested Product Information:
Product Name: PC Mainboard
Status: Sample
ModelName:FN45U
S/N:N/A
CPU:
External Frequency: 200 MHz
AthlonXP3000+/3200+
External Frequency: 166 MHz
AMDAthlonXP2800+/3000+
External Frequency: 133 MHz
AMDAthlonXP2200+/2400+/2600+
IEEE1394a Port: one port with 6 pins
IEEE1394a Port: one port with 4 pins
LAN Port: one port with 8 pins
USB 2.0 Port: four ports with 4 pins respectively
Mouse Port: one port with 6 pins
Keyboard Port: one port with 6 pins
Microphone Port: one port
Line-In Port: two ports for each
Line-Out Port: four ports
Coaxial Port: one port
DIMM Memory (Option): Kingston 256 MB *2
Power Cable: Detachable and Shielded (with a GND pin)
Monitor:CRT
MaximumResolution: 1280 X 1024 V:60Hz
All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:
Test Mode
1
2
3
External Frequency
133 MHz
166 MHz
200 MHz
CPU
AthlonXP 2600+
AthlonXP 3000+
AthlonXP 3200+

(C) Remedy for the Tested Product & Its EMI Interference:
Remedy:N/A
EMIInterference:
Crystal:32.768KHz(Y2)/25MHz(Y6)/25MHz(Y3)/24.576MHz(Y5)/
24.576MHz(Y7)
ClockGenerator: N/A
(D) Supported Host Peripherals:
(E) Notices for Assembling Computers:
1. Cases should be made of iron or other metal that has good electric conductivity.
2. Cylinders in a case should be made of metal, and as having a mainboard mounted
in a case, make sure screws are all utilized and fastened on a mainboard.
3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.
4. Cables should appropriately be arranged and fixed in a case. Follow instructions:
Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.
5. Make sure an EMI shielding attached to a case has properly been installed.
6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.
7. Make sure a case is closely in contact with EMI connected points.
8. Make sure there is no cleft in a case which is not deformed.
9. Make sure a PCI orAGP door is bound to a case.
10. Make sure cables of other devices (fans or some others) are fixed in a case.
Host Peripheral Product Name Model Name S/N FCC ID
#1 Case FN45U N/A
#2 Power Supply PC40N250EV
#3 Western Digitel HDD
(30GB) WD300BB 3902B934
#4 MITSUMI FDD D353M3D 62007003
#5 Panasonic DVD DVD-115 3892A807

- 1 -
TABLE OF CONTENTS
WHAT'S IN THE MANUAL.................................................................... 4
Quick Reference............................................................................................... 4
About This Manual ........................................................................................... 4
1 INTRODUCTION................................................................................ 5
1.1 TO DIFFERENT USERS ............................................................................. 5
FIRST-TIMEDIYSYSTEMBUILDER............................................................ 5
EXPERIENCEDDIYUSER ......................................................................... 5
SYSTEMINTEGRATOR............................................................................... 5
1.2 ITEM CHECKLIST: ...................................................................................... 6
2 FEATURES ........................................................................................ 7
2.1 SPECIFICATIONS ....................................................................................... 7
3 HARDWARE INSTALLATION..........................................................10
3.1 STEP-BY-STEP INSTALLATION (Accessories of FN45U)...................... 10

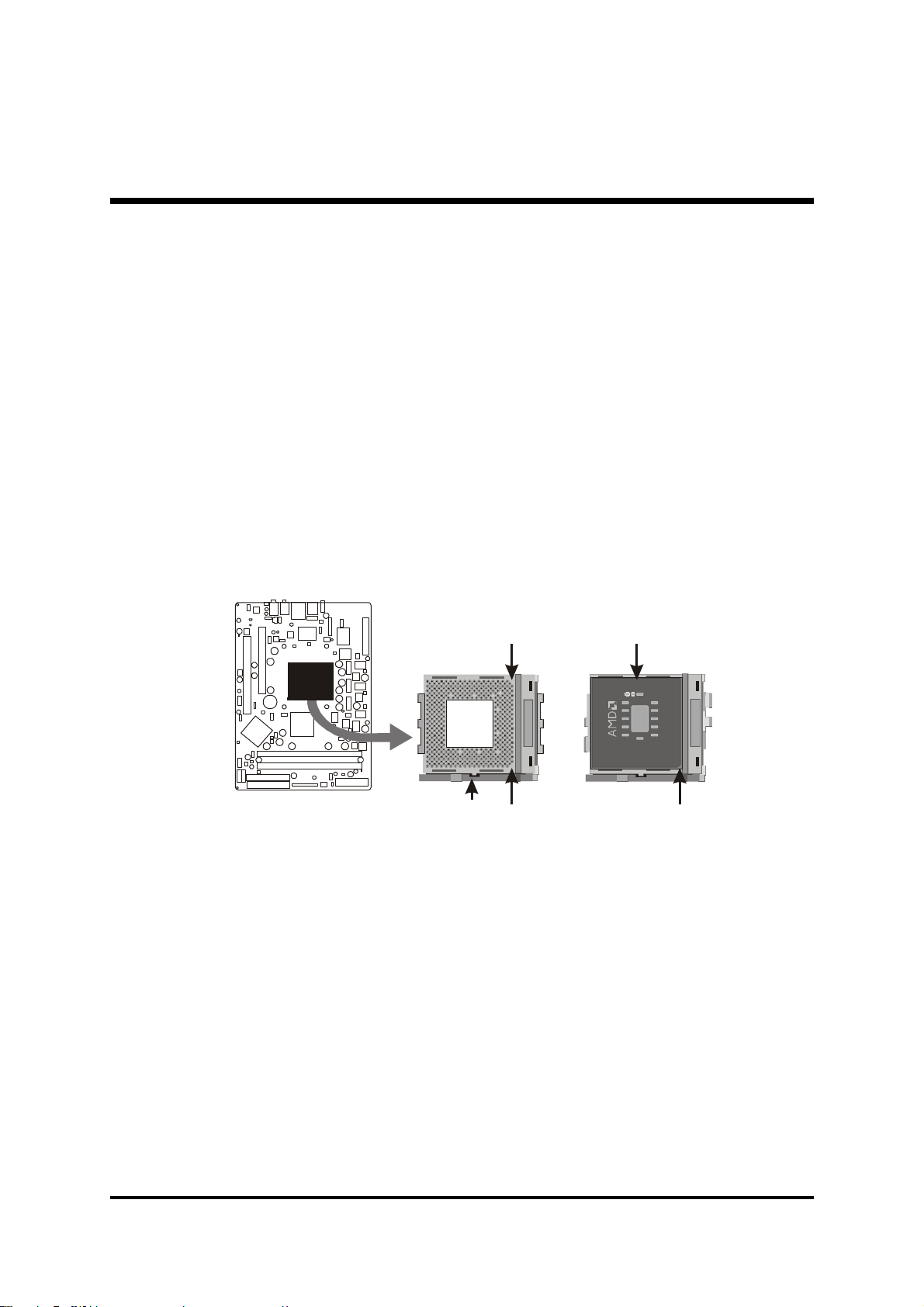

STEP1 Installthe CPU ...............................................................................11
STEP 2 Set Jumpers ................................................................................. 12

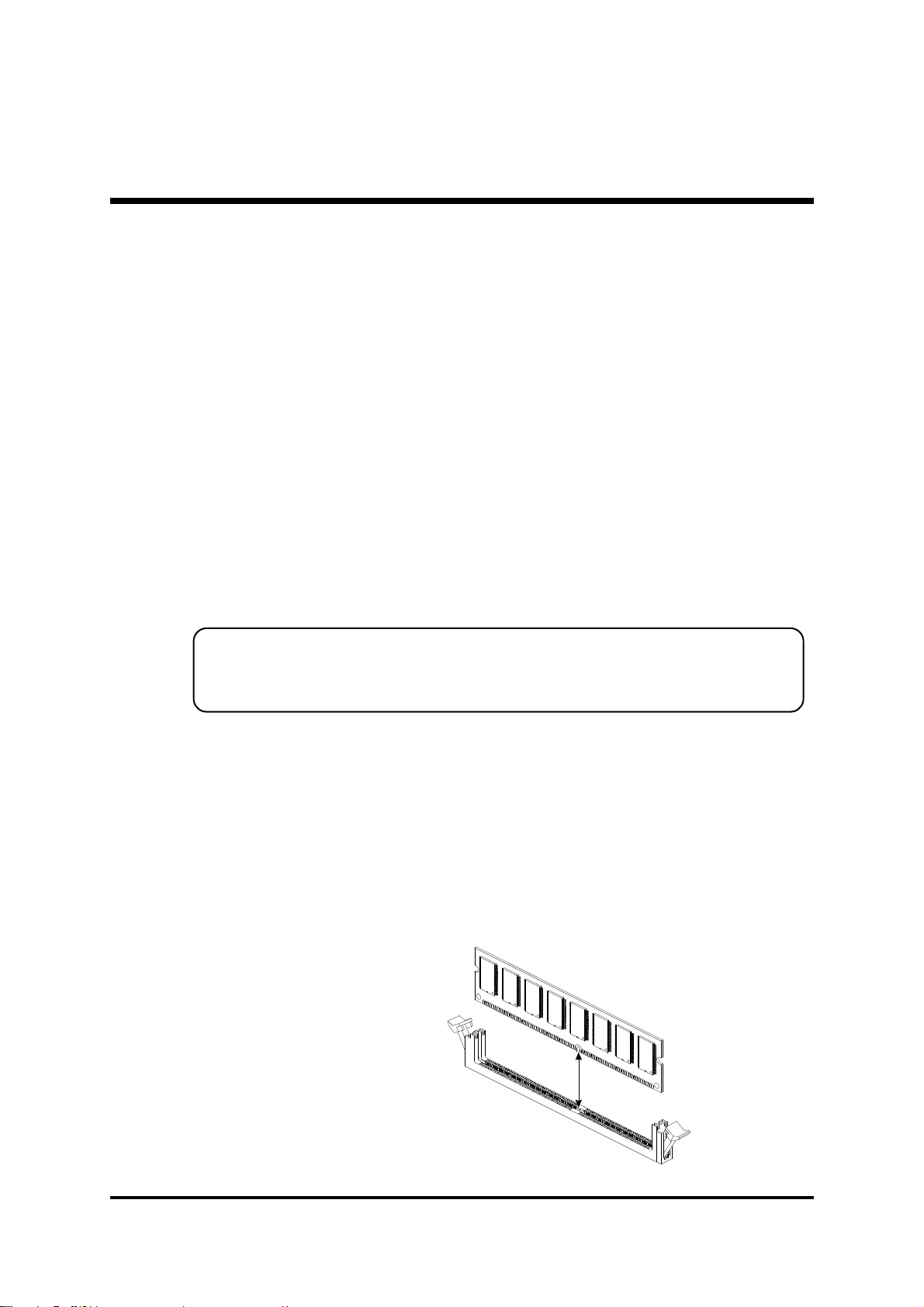

STEP3 InstallDDR SDRAMSystem Memory............................................ 12
STEP4Install InternalPeripheralsin SystemCase .................................... 13
STEP5 Mountthe Mainboardon theComputer Chassis............................ 14
STEP6 ConnectFront-PanelLEDs, Switchesand USBs,Ext.1394/USB/
FrontPanelAudioConnector ..................................................................... 15
STEP 7 Connect IDE and Floppy Disk Drives ............................................ 16
STEP8Connect OtherInternalPeripherals................................................ 17
STEP9 Connectthe PowerSupplies......................................................... 19
STEP10 InstallAdd-on Cardsin ExpansionSlots ...................................... 19
STEP11 ConnectExternal Peripheralsto Back-Panel ............................... 20
STEP12 SystemBoot Up For the First-Time ............................................. 21
STEP13 InstallDrivers& SoftwareComponents ....................................... 22
3.2 JUMPER SETTINGS ................................................................................. 23
JUMPERS& CONNECTORSGUIDE........................................................ 24
Jumpers
Clear CMOS Setting (JP1)........................................................................ 27

- 2 -
Back-Panel Connectors
IEEE1394aPort Connectors...................................................................... 28
PS/2Mouse & PS/2Keyboard PortConnectors ........................................ 28
LANPortConnector................................................................................... 28
USB1/2 PortConnectors........................................................................... 28
CoaxialPort Connector.............................................................................. 28
Line-InPortConnector ............................................................................... 29
Center/Bass-OutPortConnector................................................................ 29
Rear-OutPortConnector ........................................................................... 29
Line-OutPortConnector ............................................................................ 29
ClearCMOS button(SW1)......................................................................... 29
Front-Panel Connectors
HDD LED Connector (HLED) .................................................................... 30
GreenLED/Power LEDConnector (GLED/PWRLED) .............................. 30
HardwareResetConnector (RST).............................................................. 31
ATXPowerOn/Off SwitchConnector(PWON) ........................................... 31
USBHeaders (USB1/USB2/JP15) ............................................................ 32
Ext.1394/USB/FrontPanelAudioConnector(JP14) ................................... 33
Internal Peripheral Connectors
EnhancedIDE andFloppyConnectors (IDE1/IDE2& FLP1) ...................... 34
SerialATA Connectors (SATA1/SATA2) ..................................................... 34
Other Connectors
ATXPower SupplyConnectors (CN9/JP13)............................................... 35
CPU,Systemand ChipsetFanConnectors (FAN1/2/3) .............................. 36
AudioCD_IN Connector(CN6) .................................................................. 36
IRHeader(JP5)......................................................................................... 37
SPDIFIn/Out Header(JP7) ....................................................................... 37
WirelessKB/MS Header (JP2) .................................................................. 38
ExtendedParallel Port Header(JP12) ....................................................... 38
LINE_INConnector(JP16)......................................................................... 39

- 3 -
AGP Protection LED (D16)........................................................................ 39
CPUOvertemperature LED(D14) ............................................................. 39
3.3 System Memory Configuration................................................................ 40
InstallMemory ............................................................................................ 40
UpgradeMemory....................................................................................... 40
4 SOFTWARE UTILITY ......................................................................41
4.1 Mainboard CD Overview ....................................................................... 41
4.2 Install Mainboard Software ................................................................... 42
4.2A Install DirectX9 Utility ............................................................................ 42
4.2B Install nVIDIA Chipset Driver................................................................. 43
4.2C Install USB 2.0 Driver ............................................................................ 43
4.3 View the User's Manual......................................................................... 44
4.3A View the nVIDIA RAID User's Guide ..................................................... 44
5 BIOS SETUP ................................................................................... 45
5.1 Enter BIOS ................................................................................................ 45
5.2 The Main Menu.......................................................................................... 46
SandardCMOS Features .......................................................................... 48
AdvancedBIOSFeatures .......................................................................... 50
AdvancedChipset Features....................................................................... 53
IntegratedPeripherals................................................................................ 56
PowerManagementSetup......................................................................... 59
PnP/PCIConfigurations ............................................................................. 62
PCHealth Status ....................................................................................... 63
Frequency/VoltageControl......................................................................... 65
Load Fail-SafeDefaults ............................................................................. 66
LpadOptimizedDefaults ........................................................................... 66
SetSupervisor/User Password .................................................................. 66
Save & Exit Setup...................................................................................... 67
ExitWithoutSaving.................................................................................... 67

- 4 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................Page 10
Jumper Settings >> A Closer Look.......................................................Page 23
Software Utility >> How to Install..........................................................Page 41
BIOS Setup >> How to Configure.........................................................Page 45
About This Manual
For First-Time DIY System Builder .........................................................Page 5
For Experienced DIY User ......................................................................Page 5
For System Integrator .............................................................................Page 5
WHAT'S IN THE MANUAL
