Sibata DAS-100 User manual

OPERATIONMANUAL
CODE 090150-70
Read this operation manual before using the product.
Thank you for purchasing this product.
•This operation manual describes precautions that are important for preventing accidents
as well as procedures used to handle the product.
•To ensure safety, read this operation manual thoroughly before use and use the product
correctly.
•After reading this operation manual, keep it handy for future reference.
Semi-Active Sampler
DAS-100


- 3 -
Table of Contents
Before Use ............................................................................................ 4
Safety Precautions ............................................................................... 6
1Product Overview............................................................................ 9
2Features.......................................................................................... 9
3Type of Battery Used and Sampler Operation .............................. 10
4Names of Parts ............................................................................. 10
5User Instructions ........................................................................... 12
5-1 Preparation............................................................................................ 12
5-2 Sampling ............................................................................................... 12
5-3 After Sampling....................................................................................... 15
5-4 Storage.................................................................................................. 15
6Troubleshooting ............................................................................ 16
7Specifications................................................................................ 17
8Warranty and Repairs ................................................................... 18
9Product Disposal........................................................................... 18
10 Inquiries ........................................................................................ 18
Problem Report Form ......................................................................... 19

- 4 -
Before Use
•Read this operation manual thoroughly before use, and
use the product correctly.
•Keep this operation manual handy for future reference.
•Be sure to familiarize yourself with, and observe, the
safety precautions given in this operation manual.
•Observe usage procedures that are suitable for the
product and that are specified in this operation manual.
•This product is not designed to be explosion-proof. To
prevent explosion accidents, do not use it in
dangerous locations.
Be sure to observe the above instructions.
Not doing so may result in an accident or injury.
About This Operation Manual
•Information in this operation manual is subject to change without notice in the interest
of product improvement.
•Every effort has been made to ensure that the information in this operation manual is
correct. If you discover any errors or omissions, however, please contact your Sibata
representative.
•The copyright of this operation manual belongs to Sibata Scientific Technology Ltd.
This operation manual, or any part thereof, may not be reproduced, reprinted, or
altered in any form without prior written permission from Sibata Scientific Technology
Ltd.

- 5 -
Checking Packaging Contents
(Please verify contents before using the product.)

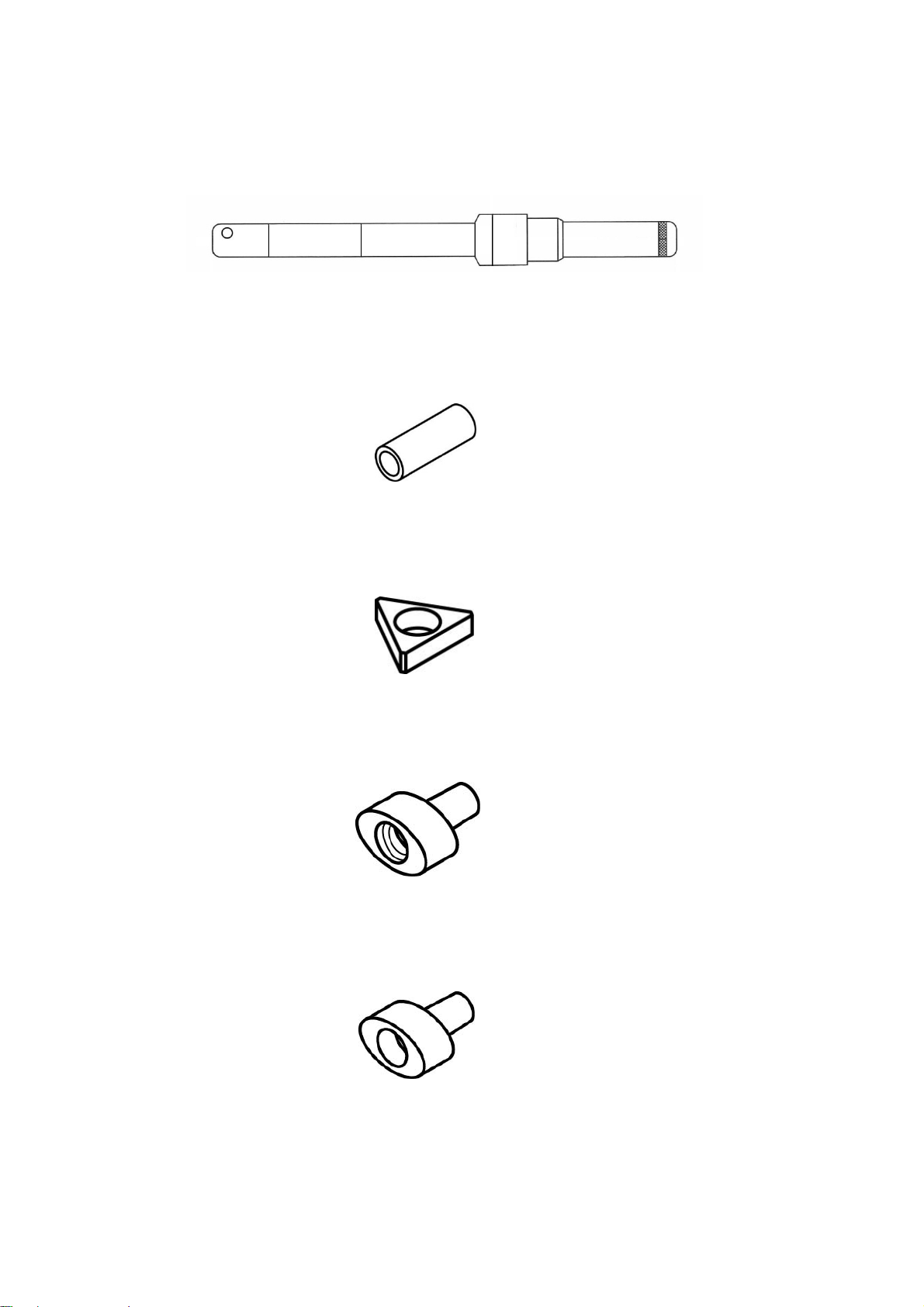

DAS-100 Semi-Active Sampler···················································· 1
Tube for installing activated carbon passive gas tube ······················· 1
(for installing 080150-066 tube)
Positioning stopper for activated carbon passive gas tube ················· 1
(for installing 080150-066 tube)
Plug A for installing DNPH passive gas tube ··································· 1
(for installing 080150-075 tube)
Note: Threaded hole included on one side.
Plug B for installing DNPH passive gas tube··································· 1
(for installing 080150-075 tube)
Note: 5 mm diameter hole included on one side.
Operation manual (this manual)··················································· 1
Note: The battery is not included. Please obtain it separately.

- 6 -
Safety Precautions
The precautionary information in this operation manual is for ensuring that the product
is used safely and for preventing injury to you and other people and damage to
equipment. It is all important for ensuring safety, so be sure to read it thoroughly before
using the product and observe it during use.
Graphical Symbols
This operation manual uses various graphical symbols to indicate warnings and
instructions. These consist of two categories, WARNING and CAUTION, which are
indicated based on the severity of consequences if the corresponding warning or
instruction is ignored and the product is operated improperly. Always observe these
warnings and instructions, as they include important information about safety.
Labels Indicating Degrees of Damage or Injury
Indicates a potentially hazardous situation which,
if not avoided, will result in serious injury or death.
Indicates a potentially hazardous situation which,
if not avoided, may result in injury or equipment
damage.

- 7 -
•Do not apply chemicals to the product. Doing so could cause a malfunction or fire.
•This product is not designed to be explosion-proof. Do not operate the product near
highly flammable or combustible items. Doing so could cause explosion or fire.
•Keep the product away from open flames. Do not burn the product in a fire. Doing so
could cause explosion or fire.
•This product is not designed to be water-proof. Do not get water or other liquids on the
product. Doing so could cause a malfunction or fire.
•Do not subject the product to strong impacts or drops. Doing so could cause a
malfunction or accident.
•Never attempt to disassemble or modify the product. Doing so could cause a
malfunction or accident.
•If a problem occurs during operation, immediately stop operating the product, and
remove the cause. If it is determined that the product caused the problem, remove the
battery and then contact your Sibata representative or the store where you purchased
the product. Never operate the product if it is not functioning normally. Also, never allow
anyone other than a qualified service engineer to disassemble or modify the product.
Doing so could cause a malfunction or accident.
•Use a new AA alkaline battery. Using any other battery not only could prevent the
product from functioning properly, it could also cause an accident, malfunction, electric
shock, or fire.
•Do not touch the product with wet hands. Doing so could cause a malfunction.

- 8 -
•The product is a sampling device that uses a passive sampler. Do not use it for any
purpose not indicated in this manual. Doing so could cause a malfunction.
•Do not wash the product directly in water. Doing so could result in malfunction.
•Do not place anything on top of the product. Doing so could cause the product falling
down, deformation, malfunction or accident.
•Remove the battery before cleaning or inspecting the product. Not doing so could cause
an injury or malfunction.
•Remove the battery when the product is not in use. Not doing so could cause a
malfunction.
•If not using the product for an extended period, remove the battery and store it at normal
room temperature in a dry location away from direct sunlight. Not doing so could cause
a malfunction or other problems.
•Never attempt to connect to the battery case with wire or other metal objects, or any
other method not specified in this manual. Doing so could cause a malfunction.
•Do not permit water, other liquids, or non-atmospheric gases to enter the product. Also,
do not permit salt air or other corrosive gases or chemicals to enter the product, either.
Doing so could cause a malfunction or fire.
•Do not insert screws or other foreign objects into product gaps. Doing so could cause a
malfunction. If a foreign object accidentally enters the product, immediately stop the
measurement, remove the battery, and contact your Sibata representative or the store
where you purchased the product.
•The normal operating temperature range of this product is 5 to 35 °C, with humidity
between 20 and 75 % RH (and no condensation). Operating the product outside these
temperature and humidity ranges could reduce performance, shorten the service life, or
cause a malfunction.
•Keep the product away from sources of noise. Also, do not place it in areas with strong
magnetic fields, high dust levels, or high humidity. Doing so could cause product
damage or other problems.
•Be sure to operate the product using a new AA alkaline battery. The fan and LED
functions may not be coordinated properly if the battery is depleted.
•Hold the battery case when removing the battery cap to remove or install the battery.
Removing the battery cap while holding other areas of the main unit could cause the
removal of parts unnecessary for battery replacement.

- 9 -
1 Product Overview
The DAS-100 semi-active sampler is a peripheral device that assists sampling with
passive samplers. The product generates a constant air flow near the passive sampler
to help prevent any wind speed fluctuations from affecting the sampling rate. One new
AA alkaline battery enables over 30 hours of sampling.
With quiet operation during sampling and a compact easily portable design, the DAS-
100 enables a wide variety of on-site measurement applications, such as measuring
personal exposure levels.
2 Features
•Can install a passive sampler to minimize wind speed effects during sampling.
•Can install the following Sibata passive samplers.
080150-066: Passive gas tube (for organic solvents)
080150-075: DNPH passive gas tube
•Using an extension enables two types of passive samplers to be used simultaneously
for sampling (example: passive gas tube plus DNPH passive gas tube).
•Because the sampler can be operated for over 30 hours using one new AA alkaline
battery, it can be used for personal exposure sampling 24 hours a day.
•The included hanger rings can be used to wear the sampler around the neck, such as
by hanging it from a lanyard strap. (Be careful not to get the strap caught on objects.)
•The threaded mounting hole on the bottom allows the sampler to be mounted to any
commercial tripod for sampling.

- 10 -
3 Type of Battery Used and Sampler
Operation
To ensure the product functions properly, use a new AA alkaline battery each time the
product is used. The fan and LED functions may not be properly coordinated if the
battery is depleted.
The product's LED indicator is for confirming the product function when a new alkaline
battery is installed. It may not be possible to properly confirm sampler functionality if a
partially used battery is installed or after the sampler has been operated for 24 hours.
Confirm both that the fan rotates and that the LED illuminates when the product is
operating.
Hold the battery case when removing the battery cap to remove or install the battery.
Removing the battery cap while holding areas other than the battery case could cause
the removal of parts unnecessary for battery replacement.
4 Names of Parts
Exterior of Semi-Active Sampler
Sample intake port cap Holder
Extension
Fan motor
(and exhaust port) Battery cap
Tripod mount
Battery case
LED indicator
Hanger rings

- 11 -

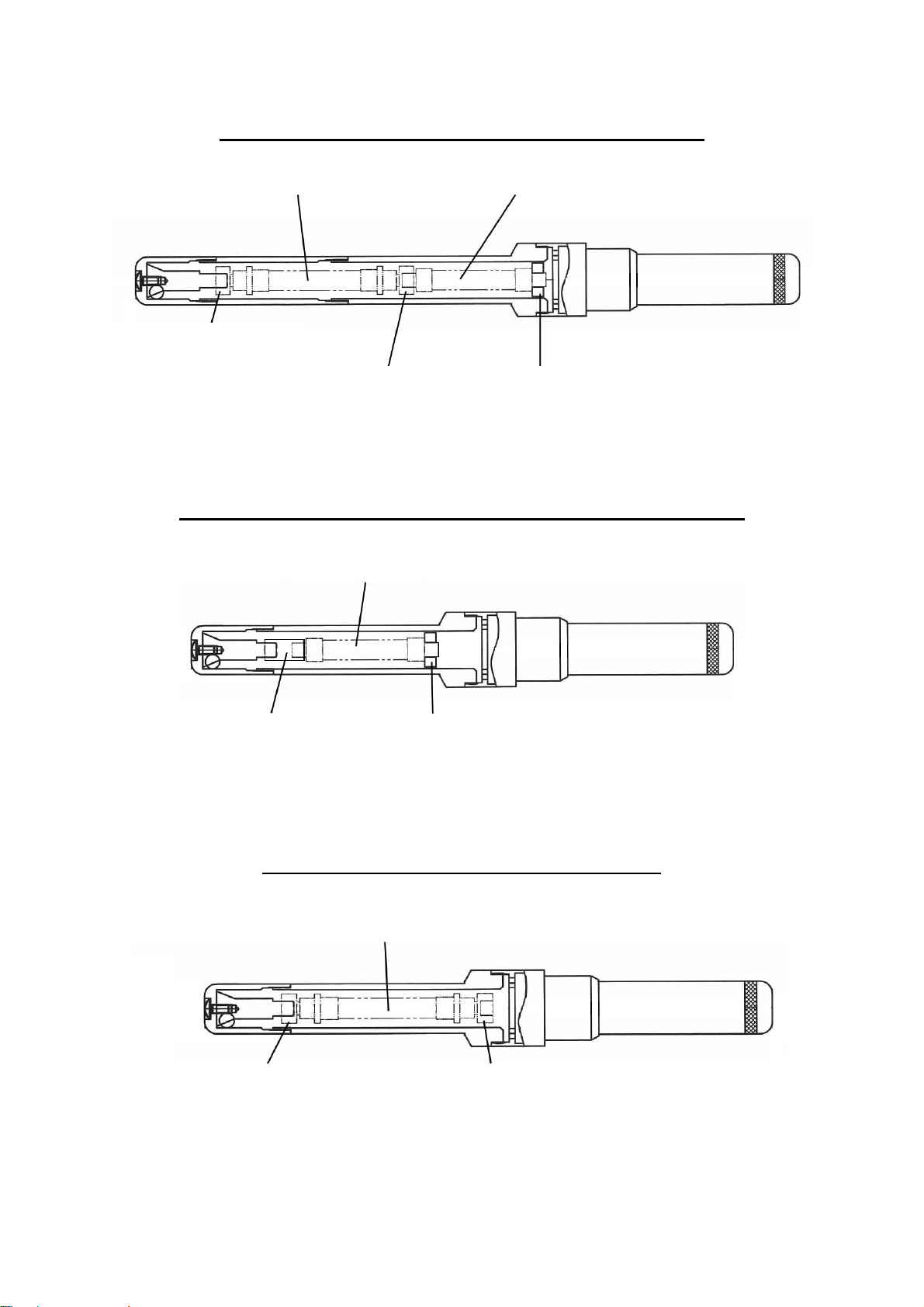

Interior of Semi-Active Sampler
With Two Types of Passive Gas Tubes Installed
With Passive Gas Tube (for Organic Solvents) Installed
With DNPH Passive Gas Tube Installed
DNPH passive gas tube Passive gas tube (for organic solvents)
Positioning stopper
for passive gas tube
Plug A for installing
DNPH passive gas tube
Plug B for installing
DNPH passive gas tube
Positioning stopper for
passive gas tube
Tube for installing
passive gas tube
Passive gas tube (for organic solvents)
Plug A for installing
DNPH passive gas tube
Plug B for installing
DNPH passive gas tube
DNPH passive gas tube

- 12 -
5 User Instructions
5-1 Preparation
Perform the following preparations before sampling. Inadequate preparation could not
only prevent optimal sampling performance, it could also prevent the sampler from
completing the scheduled sampling time.
(1) Remove the intake port cap, holder, and extension (for using two types of passive
samplers) and clean them with alcohol. Dry the parts thoroughly after cleaning.
(2) Reassemble the parts, insert one AA alkaline battery* into the sampler and fasten the
battery cap. After confirming that the LED indicator illuminates and the fan motor
rotates properly, remove the battery.
(3) Provide mounting equipment appropriate for the intended sampling application. (For
example, provide a lanyard strap for measuring personal exposure or a tripod for
measuring an indoor environment.)
* Orient the battery with the positive (+) terminal toward the main unit and the negative
(-) terminal toward the battery cap. The sampler will not function with the battery
oriented incorrectly. Also, provide a new AA alkaline battery. (Using a battery that is
not a new AA alkaline battery may prevent sampling for 24 hours.) Furthermore,
using a depleted battery could prevent properly coordinating the fan motor and LED
indicator operation.
5-2 Sampling
The method used to install passive samplers differs depending on the type and quantity
of passive samplers being used for sampling. Confirm the sampling method in advance
to install passive samplers correctly.
(A) Sampling Using One Passive Gas Tube (for Organic Solvents)
(1) Install a mounting tube and positioning stopper for activated carbon passive gas
tubes on each end of the passive gas tube (for organic solvents) .
Passive gas tube (for organic solvents)
End toward the intake port cap
Positioning stopper for passive gas tube
Tube for installing passive gas tube

- 13 -
(2) Insert the mounting tube from step (1) into the threaded portion of the intake port
cap.
(3) Remove the extension from the main semi-active sampler unit.
(4) Install the intake port cap onto the semi-active sampler holder.
(5) Holding the battery case, remove the battery cap and insert a new AA alkaline
battery* into the case, with the negative (-) terminal oriented toward the battery cap.
(6) When the battery cap is screwed all the way on, the fan motor will begin to rotate
and sampling will begin. (The fan motor may not rotate or may stop rotating if the
battery cap is not tightened properly.)
(B) Sampling Using One DNPH Passive Gas Tube
(1) Remove the plugs from both ends of the DNPH passive gas tube and install plugs A
and B included with the semi-active sampler for installing DNPH passive gas tubes.
•Keep the plugs originally installed in the DNPH passive gas tube stored until
sampling is finished. When sampling is finished, reinstall the original plugs.
(2) Install the mounting plug A from step (1) into the threaded portion of the intake port
cap.
(3) Remove the extension from the main semi-active sampler unit.
(4) Install the intake port cap onto the semi-active sampler holder.
(5) Holding the battery case, remove the battery cap and insert a new AA alkaline
battery* into the case, with the negative (-) terminal oriented toward the battery cap.
(6) When the battery cap is screwed all the way on, the fan motor begins to rotate and
the sampler will begin sampling. (The fan motor may not rotate or may stop rotating
if the battery cap is not tightened properly.)
* Be sure to install a new AA alkaline battery. Installing a partially used battery or
another type of battery may prevent the sampler from operating for an adequately
long period. It may also prevent operating (coordinating) fan motor and LED functions
properly.
End toward the
intake port cap
Insert plug A for installing DNPH passive gas tube Insert plug B for installing DNPH passive gas tube
Remove the plugs
originally installed

- 14 -
(C) Sampling Using One Passive Gas Tube (for Organic Solvents) and One DNPH
Passive Gas Tube (Total of Two)
(1) Install an activated carbon passive gas tube positioning stopper on one end of the
passive gas tube (for organic solvents) .
(2) Remove the plugs from both ends of the DNPH passive gas tube and install plugs A
and B included with the semi-active sampler for installing DNPH passive gas tubes.
•Keep the plugs originally installed in the DNPH passive gas tube stored until
sampling is finished. When sampling is finished, reinstall the original plugs.
(3) Insert the end of the passive gas tube that does not have the stopper attached into
the hole in mounting plug B that is installed in one end of the DNPH passive gas
tube.
(4) Install mounting plug A of the DNPH passive gas tube into the threaded portion of
the intake port cap.
(5) Install the extension into the main semi-active sampler unit, if not already installed.
(6) Install the intake port cap onto the extension of the semi-active sampler.
(7) Holding the battery case, remove the battery cap and insert a new AA alkaline
battery* into the case, with the negative (-) terminal oriented toward the battery cap.
(8) When the battery cap is screwed all the way on, the fan motor begins to rotate and
the sampler will begin sampling. (The fan motor may not rotate or may stop rotating
if the battery cap is not tightened properly.)
* Be sure to install a new AA alkaline battery. Installing a partially used battery or
another type of battery may prevent the sampler from operating for an adequately
long period. It may also prevent operating (coordinating) fan motor and LED functions
properly.

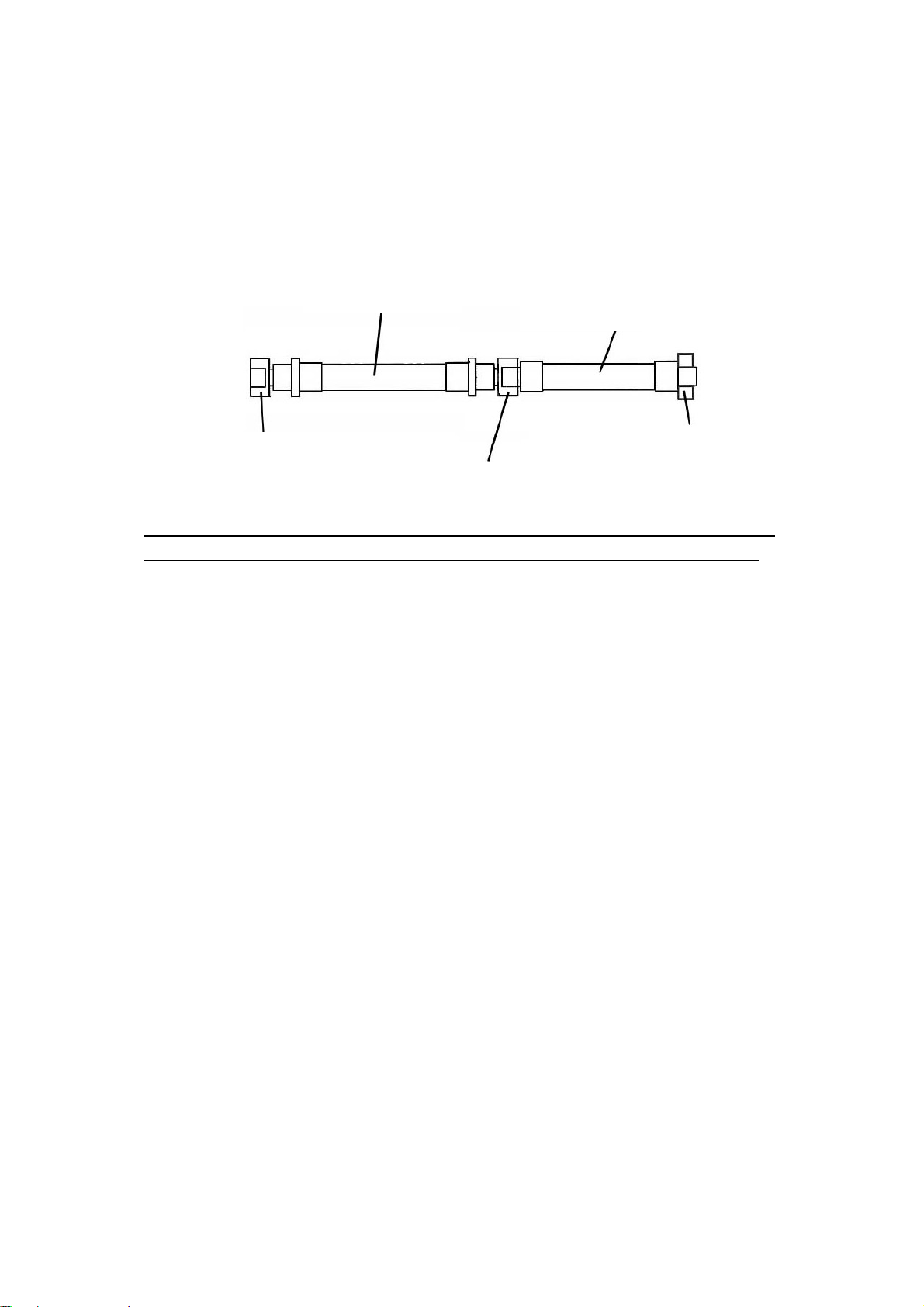

Passive gas tube (for organic solvents)
End toward the
intake port cap
Positioning stopper for passive gas tube
Plug A for installing DNPH passive gas tube
Plug B for installing DNPH passive gas tube
DNPH passive gas tube

- 15 -
5-3 After Sampling
(1) After the intended sampling time has elapsed, remove the battery from the main unit
to shut off the fan motor and stop sampling.
(2) Remove the intake port cap and then remove the gas tube from the main unit.
Remove the passive gas tube from the intake port cap, being careful to hold the
intake port cap. If they are removed by holding the passive gas tube mounting tube,
it could dislodge the PTFE seal from the gas tube, in rare cases.
(3) Store each removed gas tube appropriately until they are analyzed.
•Be sure to remove the mounting plugs used to mount the DNPH passive gas tube to
the semi-active sampler.
•Also remember to reinstall the original plugs that were stored before sampling.
5-4 Storage
•When finished using the sampler, store the sampler with the battery removed.
Leaving the battery installed will cause the fan motor to continue running, which
could result in leakage or malfunction.
•To prevent contamination, store the sampler in a clean location. Storing it in an
environment with high humidity, temperature, or dust levels could reduce product
performance.

- 16 -
6 Troubleshooting
Before sending the product in for repairs, inspect it one more time. If it still does not
function properly, contact your Sibata representative or the store where you purchased the
product.
Note: Be sure to operate the product using a new AA alkaline battery.
Problem Cause Remedy
The fan motor does
not rotate and the
LED indicator does
not illuminate.
A battery is not installed. Install a new battery.
The battery is depleted. Install a new battery.
The battery terminals
are oriented incorrectly.
Install the battery with the negative
(-) terminal oriented toward the
battery cap.
The battery cap is not
fastened tightly. Fasten the battery cap properly.
The main unit has failed
or malfunctioned. Have it repaired.
The fan motor
functions, but the
LED does not
illuminate.
The battery is depleted. Install a new battery.
The LED has failed or
malfunctioned. Have it repaired.
The LED illuminates,
but the fan motor
does not function.
The battery is depleted. Install a new battery.
The fan motor has failed
or malfunctioned. Have it repaired.
The fan motor
stopped during
sampling.
The installed battery is
not the correct type. Use a new AA alkaline battery.

- 17 -
7 Specifications
Product Name Semi-Active Sampler
Product Code 090150-70
Model DAS-100
Method Airflow diffusion
Material of Main Unit Aluminum (hardened)
Operating Temperature
and Humidity Range 5 to 35 °C and 20 to 75 %RH*1
Dimensions 30 mm diameter ×210 mm long (excluding protrusions)
Weight Approx. 75 g (including battery)
Power Supply 1.5 V DC, 0.07 A (one AA alkaline battery)
Battery Life Min. 30 hours*2
Parts Included
Tube for installing activated carbon passive gas tube
Positioning stopper for activated carbon passive gas tube
Plug A for installing DNPH passive gas tube
Plug B for installing DNPH passive gas tube
*1 Prioritize an operating environment appropriate for the passive gas tube used for
sampling.
*2 Approximation based on continuous operation using one new AA alkaline battery in a
25 °C environment. Be sure to start sampling using a new AA alkaline battery.

- 18 -
8 Warranty and Repairs
If a Sibata product fails within one year from date of purchase, it will be repaired free of
charge. To request repairs, contact the store where you purchased the product.
Consumables included with Sibata products are not covered by the warranty. The
warranty excludes any problems resulting from any of the following causes. Such
repairs are subject to normal service fees.
•Faults or damage due to improper usage
•Faults or damage resulting from repairs or modifications implemented by parties
other than Sibata
•Faults or damage resulting from fires, earthquakes, or other natural disasters
•Faults or damage resulting from salt damage, gas damage, or abnormal voltage
•Faults or damage occurring after purchase due to relocation, movement, falling, or
vibration
•Faults or damage resulting from the use of consumable items not specified by
Sibata
•[Modifications and Repairs Are Prohibited] Never disassemble or modify this
product, as doing so will void the warranty with Sibata. Doing so may also result in
an unforeseen fault and accident.
For more information regarding repairs after the warranty period, contact the store
where you purchased the product. If Sibata determines that repairs can restore normal
performance levels and that those levels can be maintained as long as the specified
operating methods are used, then Sibata offers repair services on a fee basis.
When shipping the product to Sibata for repairs, fill out a Problem Report Form and
include it with the shipment (see page 19).
9 Product Disposal
Dispose of the product in accordance with all local laws and regulations. The main unit
is mostly made of aluminum and plastic.
10 Inquiries
If you have any questions about this product, or if there is any other way in which we
can be of assistance, contact the store where you purchased the product or your Sibata
representative.
17.11.01H (02)

- 19 -
Problem Report Form
The Problem Report Form is for users to provide the information necessary to ensure
that the process of inspecting and repairing the problem can be performed smoothly.
Please complete the form in as much detail as possible. Please also include this
Problem Report Form with your shipment when requesting repairs.
DAS-100 Semi-Active Sampler Problem Report Form
If a problem occurs, please copy and fill out this Problem Report Form and contact your
Sibata representative or the store where you purchased the product.
Date completed: (yyyy/mm/dd)
Circumstances Under Which the Product Is Used
Purchase date: (yyyy/mm/dd)
Date of first use: (yyyy/mm/dd)
Frequency of use: : Daily : days a week : days a month
Hours of use per day:
Temperature of operating environment (actual measurements, if possible):
Between _____ and _____°C
Number of units owned: Used for:
Problem Description
Problem frequency: : Every time : Occasionally : Rarely
: Other ( )
Timing of occurrence: : Immediately after purchase : Within 1 month
: Within 1 week
: Other ( )
Symptoms (in as much detail and as specifically as possible):
Example: The LED flashes erratically during operation.
Check List (circle all applicable)
xDoes the unit function when a battery is installed?
(Only the fan functions / Only the LED illuminates / Neither the fan or LED functions /
The LED and fan function, but do not stabilize)
xIs the unit rusty, corroded, or dirty? (Yes / Not very much)
xIs the unit being used in an environment containing significant levels of chemicals?
(Yes / No)
xDoes the unit show any signs of being dropped or impacted?
(Yes / No)
Check List for Requesting Repairs
: Fill out a copy of the Problem Report Form and include it inside the shipping box.
: If the intake of a hazardous substance is possible, place this form in an envelope
and affix it to the shipping box exterior. Please make a note of that accordingly.

Note) Shape, dimensions, specifications, and other product information are subject to change without notice in the
interest of product improvement to the extent that product functions and applications will not be impaired.
Table of contents
Other Sibata Sampler manuals
Popular Sampler manuals by other brands

KC
KC 13.540 manual

YZ Systems
YZ Systems DynaPak Series System Support Manual

Endress+Hauser
Endress+Hauser asp-station d 2 Installation and operating instructions

Endress+Hauser
Endress+Hauser Liquiport 2010 CSP44 operating instructions

Hach
Hach AS950 AWRS Basic Installation and Maintenance

globalwater
globalwater WS700R manual
