SICK TiM361S User manual

OPERATING INSTRUCTIONS
TiM361S
Safety-related 2D LiDAR sensor

2SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 8022483/108R/2018-07-09 | SICK
Subject to change without notice
Product described
TiM361S
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal notes
This work is protected by copyright. The associated rights are reserved by SICK AG.
Reproduction of this document or parts of this document is only permissible within the
limits of the legal provisions of copyright law.
Any modification, abridgment, or translation of this document is prohibited without the
express written permission of SICK AG.
The trademarks mentioned in this document are the property of their respective
owners.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.

CONTENTS
8022483/108R/2018-07-09 | SICK SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 3
Subject to change without notice
Contents
1About this document ................................................................................ 5
1.1 Function ...........................................................................................................5
1.2 Scope ............................................................................................................... 5
1.3 Target groups .................................................................................................. 5
2Safety information .................................................................................... 7
2.1 Intended use....................................................................................................7
2.2 Application area..............................................................................................7
2.3 Requirements for the qualification of personnel ......................................... 8
2.4 Safety notes .................................................................................................... 9
2.5 Regulations and standards ..........................................................................10
3Product description.................................................................................11
3.1 Scope of delivery...........................................................................................11
3.2 Type label ......................................................................................................11
3.3 Device layout.................................................................................................12
3.4 Accessories....................................................................................................13
3.5 Safety characteristic values .........................................................................16
3.6 Safety-related detection capability..............................................................16
4Mounting...................................................................................................17
4.1 Notes on mounting .......................................................................................17
4.2 Mutual interference ......................................................................................17
5Commissioning and configuration........................................................18
5.1 Notes on the electrical installation..............................................................18
5.2 Prerequisites for safe electrical operation..................................................18
5.3 Installation of SOPAS Engineering Tool ......................................................21
5.3.1 Installation process.....................................................................21
5.3.2 Installing the device driver .........................................................21
5.4 Configuration of the sensor..........................................................................22
5.4.1 Establishing the connection.......................................................22
5.4.2 Configure the device...................................................................22
5.4.3 Display of the current operational status..................................23
5.4.4 Changing parameters.................................................................23
5.4.5 Default configuration..................................................................23
5.4.6 Passwords ...................................................................................27
5.5 Editing fields..................................................................................................27
5.5.1 Operating modes/operational statuses....................................28
5.5.2 Digital inputs/outputs ................................................................30
5.5.3 Function and status displays .....................................................33
6Error behavior...........................................................................................34
6.1 General ..........................................................................................................34

CONTENTS
4SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 8022483/108R/2018-07-09 | SICK
Subject to change without notice
6.2 Detected errors .............................................................................................34
6.3 Undetected errors and faults .......................................................................34
6.4 Fault exclusions ............................................................................................35
6.5 Manipulation .................................................................................................35
7Project planning ......................................................................................36
7.1 Manufacturer of the machine ......................................................................36
7.2 Operating entity of the machine..................................................................36
8Regular thorough checks .......................................................................38
9Working with the product.......................................................................39
9.1 Maintenance and care..................................................................................39
9.2 Transport and storage ..................................................................................39
9.3 Repairs...........................................................................................................39
9.4 Disassembly and disposal............................................................................39
10 Technical data..........................................................................................40
10.1 General technical data .................................................................................40
10.2 Safety-related technical data.......................................................................41
11 Declaration of conformity ......................................................................43

1ABOUT THIS DOCUMENT
8022483/108R/2018-07-09 | SICK SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 5
Subject to change without notice
1About this document
1.1 Function
These operating instructions contain the information required during the life cycle of
the TiM361S safety-related 2D LiDAR sensor (2D laser scanner).
These operating instructions must be made available to everyone who works with this
sensor.
Please read these operating instructions carefully and make sure that you understand
the content fully before working with the sensor.
1.2 Scope
These operating instructions apply to the TiM361S safety-related laser scanner (also
referred to as TiM361S, device or sensor) with part number 1090608 and the
associated safety notes, part number 8018793.
The TiM361S comes with the conformity for use within the scope of application of the
Machinery Directive 2006/42/EC and the associated standards and regulations (see
also chapter 2.5).
1.3 Target groups
These operating instructions are intended for the following target groups: project
developers (planners, developers, designers), installers, electricians, safety experts
(such as CE authorized representatives, compliance officers, people who test and
approve the application), operators, and maintenance personnel.
Commissioning, operation and maintenance.
In many applications, the target groups consist of the manufacturer and the operating
entity of the machine in which the TiM361S is integrated, as follows:
Target group Specific chapters of these operating
instructions1
Manufacturer Project developers (planners,
developers, designers)
Project planning, page 8
Configuration, page 8
Technical data, page 40
Accessories, page 13
Installers Mounting, page 17
Electricians Commissioning , page 18
Safety experts Project planning, page 8
Configuration, page 8
Commissioning , page 18
Regular thorough checks,
page 38
Technical data, page 40
1Chapters not listed here are intended for all target groups. All target groups must comply with the safety notes in all of the operating
instructions!

1ABOUT THIS DOCUMENT
6SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 8022483/108R/2018-07-09 | SICK
Subject to change without notice
Target group Specific chapters of these operating
instructions1
Operating entity Operator of the
device/person who performs
device configuration
Configuration of the sensor,
page 22
Maintenance personnel Regular thorough checks,
page 38
Accessories, page 13

2SAFETY INFORMATION
8022483/108R/2018-07-09 | SICK SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 7
Subject to change without notice
2Safety information
2.1 Intended use
The TiM361S is a safety-related sensor suitable for the following applications:
Hazardous area protection
Hazardous point protection
Access protection
Mobile hazardous area protection (protection of mobile platforms)
The safety-related 2D LiDAR sensor must only be used within the limits of the
prescribed and specified technical data (see 10.2 Safety-related technical data,
page 41) and operating conditions at all times.
Use inconsistent with the intended use, operation beyond the technical limits, improper
modification of, or manipulation of the TiM361S, will invalidate any warranty from SICK;
in addition, any responsibility and liability of SICK AG for damage and consequential
damage caused by this is excluded.
Reasonably foreseeable misuse
DANGER
Risk of ineffectiveness of the protective device
Persons and parts of the body to be protected may not recognized in case of non-
observance. The TiM361S works as an indirect protective measure and cannot provide
protection from pieces thrown from the application nor from emitted radiation. Objects
within the blind zone and outside of the safety-related detection zone as well as
transparent objects will not be detected.
You must only use the sensor as an indirect protective measure.
The TiM361S is not suitable for the following applications, among others:
Outdoors
Underwater
In explosion-hazardous areas
Use beyond the technical specifications
As a safety-related sensor, the TiM361S safety-related 2D LiDAR sensor with
performance level b (PL b), Category B, according to EN ISO 13849 is only intended to
perform part of the safety function (partial safety function). In its safety function, it
provides sensor information to a downstream logic unit for further processing.
The safety function arises only in context with the target application, e.g., machine
tools, a mobile platform or service robot.
Requirements and features of the application may differ from the features and
characteristic values of the product and must be evaluated within the scope of project
planning.
2.2 Application area
The TiM361S safety-related laser scanner is intended for use as a sensor in personal
protection equipment, in mobile applications on electrically operated autonomous
platforms in industrial environments, as well as in stationary applications for access
protection and presence monitoring in industrial environments.

2SAFETY INFORMATION
8SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 8022483/108R/2018-07-09 | SICK
Subject to change without notice
2.3 Requirements for the qualification of personnel
The TiM361S safety-related laser scanner must be configured, installed, connected,
commissioned and serviced only by qualified safety personnel.
Project planning
For project planning, a person is considered qualified when he/she has expertise and
experience in the selection and use of protective devices on machines in the respective
area of application, and is familiar with the relevant technical rules and national work
safety regulations.
Mechanical mounting
For mechanical mounting, a person is considered qualified when he/she has the
expertise and experience in the relevant field and is sufficiently familiar with the use of
the protective device on machines in the respective area of application to be able to
assess whether it is in an operationally safe state.
Electrical installation
For electrical installation, a person is considered qualified when he/she has the
expertise and experience in the relevant field and is sufficiently familiar with the use of
the protective device on machines in the respective area of application to be able to
assess whether it is in an operationally safe state.
Configuration
For configuration, a person is considered qualified when he/she has the expertise and
experience in the relevant field and is sufficiently familiar with the use of the protective
device on machines in the respective area of application to be able to assess whether
it is in an operationally safe state.
Commissioning
For commissioning, a person is considered qualified when he/she has the expertise
and experience in the relevant field and is sufficiently familiar with the use of the
protective device on machines in the respective area of application to be able to
assess whether it is in an operationally safe state.
Regular thorough checks
For these regular thorough checks, a person is considered qualified when he/she has
the expertise and experience in the relevant field and is sufficiently familiar with the
use of the protective device on machines in the respective area of application to be
able to assess whether it is in an operationally safe state.
Operation and maintenance
For operation and maintenance, a person is considered qualified when he/she has the
expertise and experience in the relevant field, is sufficiently familiar with the use of the
protective device on machines in the respective area of application, and has been
instructed by the operating entity of the machine in the details of operation.
An operator may clean the device and carry out specific thorough checks as instructed.

2SAFETY INFORMATION
8022483/108R/2018-07-09 | SICK SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 9
Subject to change without notice
2.4 Safety notes
Caution
Optical radiation: Laser class 1!
The accessible radiation does not pose a danger when viewed directly for up to
100 seconds. It may pose a danger to the eyes and skin in the event of incorrect use.
Do not open the housing. Opening the housing will not switch off the laser.
Opening the housing may increase the level of risk.
Current national regulations regarding laser protection must be observed.
Warning
Electrical voltage!
Electrical voltage can cause severe injury or death.
Work on electrical systems must only be performed by qualified electricians.
The power supply must be disconnected when attaching and detaching electrical
connections.
The product must only be connected to a voltage source as set out in the
requirements in the operating instructions.
National and regional regulations must be complied with.
Safety requirements relating to work on electrical systems must be complied with.

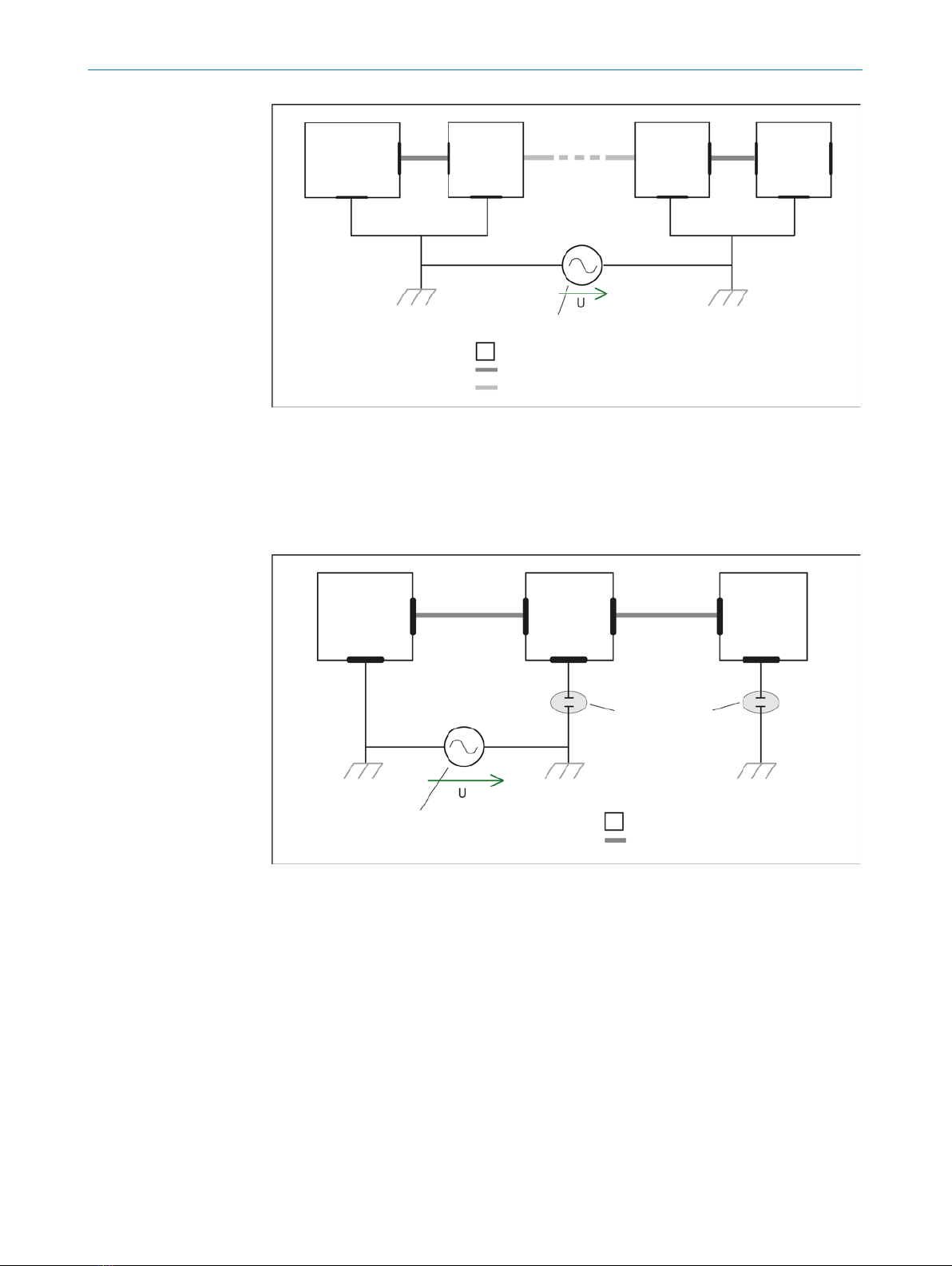

Warning

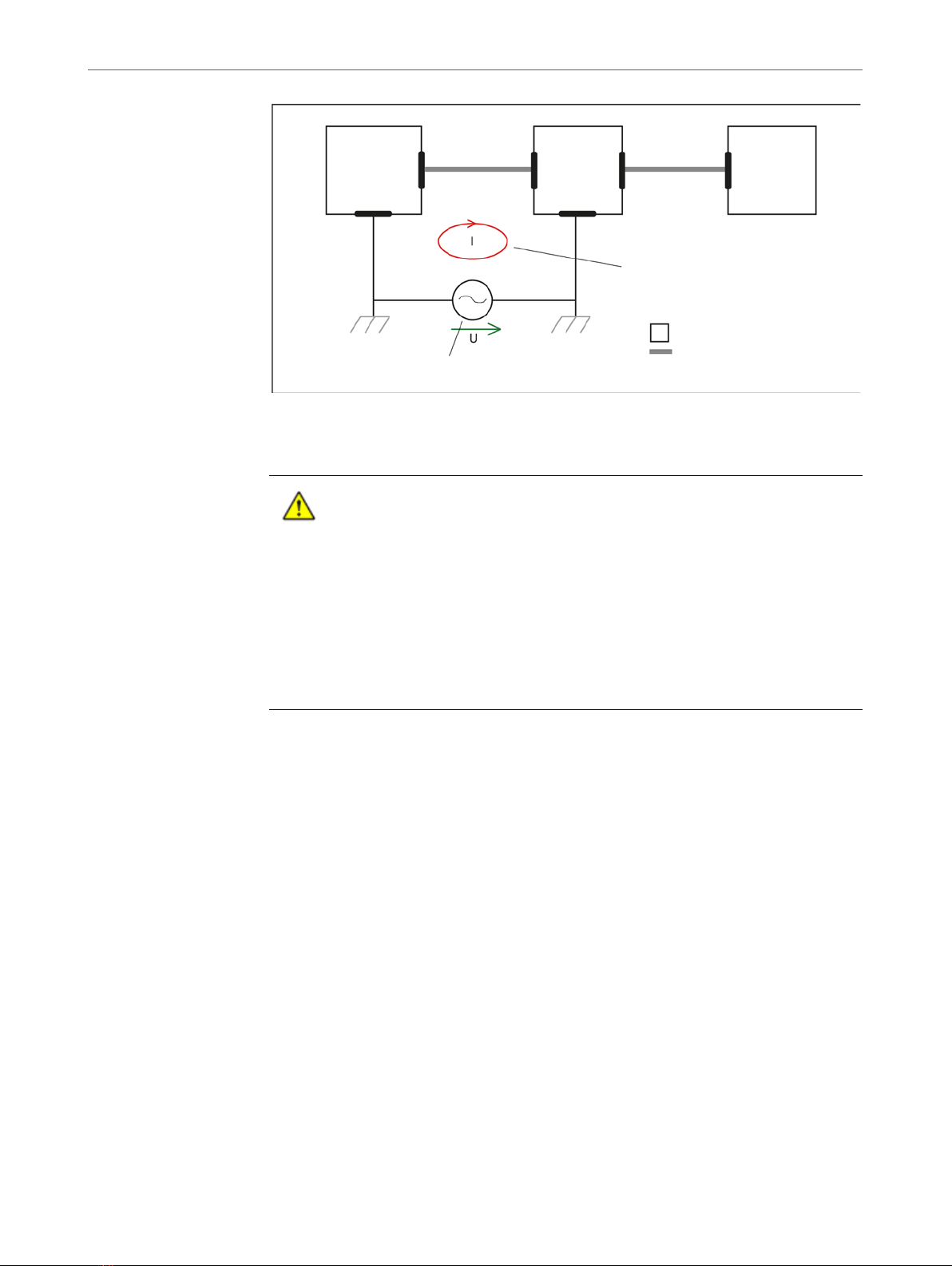

Dangerous equipotential bonding currents!
Improper grounding can lead to dangerous equipotential bonding currents, which may
in turn lead to dangerous voltages on metallic surfaces, such as the housing. Electrical
voltage can cause severe injury or death.
Work on electrical systems must only be performed by qualified electricians.
Follow the notes in the operating instructions.
Install the grounding for the product and the system in accordance with national
and regional regulations.

2SAFETY INFORMATION
10 SAFETY-RELATED 2D LIDAR SENSOR | TIM361S 8022483/108R/2018-07-09 | SICK
Subject to change without notice
2.5 Regulations and standards
EN/IEC 60825-1:2014 - Laser safety standard
Complies with 21 CFR 1040.10 and 1040.11 except for the listed tolerances in
the document "Laser Notice No. 50" of June 24, 2007.
For safety-related parts of control systems
EN ISO 13849-1:2015
Safety of machinery – Safety-related parts of control systems – Part 1: General
principles for design
For mobile applications
EN ISO 13482:2014
Robots and robotic devices – Safety requirements for personal assistance robots
For stationary applications
DIN ISO 13855:2010
Safety of machinery – Positioning of protective devices with respect to the
approach speeds of parts of the human body
DIN CLC/TS 62046:2009
Safety of machinery – Application of protective equipment to detect the presence
of persons
