SICK InspectorP64 Series User manual

OPERATING INSTRUCTIONS
InspectorP64x/65x
2D vision

Described product
InspectorP64x Flex
InspectorP65x Flex
InspectorP65x DynamicFocus
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
2O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

Contents
1 About this document........................................................................ 5
1.1 Information on the operating instructions.............................................. 5
1.2 Scope......................................................................................................... 5
1.3 Explanation of symbols............................................................................ 5
1.4 Further information................................................................................... 6
1.5 SICK service.............................................................................................. 6
2 Safety information............................................................................ 7
2.1 Intended use............................................................................................. 7
2.2 Improper use............................................................................................. 7
2.3 Internet protocol (IP) technology.............................................................. 7
2.4 Limitation of liability................................................................................. 8
2.5 Modifications and conversions................................................................ 8
2.6 Requirements for skilled persons and operating personnel.................. 8
2.7 Operational safety and particular hazards.............................................. 9
2.8 Repairs...................................................................................................... 11
3 Product description........................................................................... 12
3.1 Product ID.................................................................................................. 12
3.2 Scope of delivery....................................................................................... 13
3.3 Product characteristics............................................................................ 14
4 Transport and storage....................................................................... 17
4.1 Transport................................................................................................... 17
4.2 Transport inspection................................................................................. 17
4.3 Storage...................................................................................................... 17
5 Mounting............................................................................................. 18
5.1 Overview of mounting procedure............................................................. 18
5.2 Optic kit scope of delivery........................................................................ 18
5.3 Preparation for mounting......................................................................... 18
5.4 Mount the optics....................................................................................... 19
5.5 Mounting location..................................................................................... 21
5.6 Mounting the device................................................................................. 26
6 Electrical installation........................................................................ 28
6.1 Safety......................................................................................................... 28
6.2 Connections and pin assignment............................................................ 30
6.3 Connection diagrams............................................................................... 31
6.4 Connecting the device.............................................................................. 33
6.5 CDB650-204 wiring connection module................................................. 36
6.6 CDM420-0006 wiring connection module............................................. 45
7 Commissioning.................................................................................. 55
7.1 Installing SensorApps and programming the device.............................. 55
CONTENTS
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 3
Subject to change without notice

8 Maintenance...................................................................................... 57
8.1 Maintenance plan..................................................................................... 57
8.2 Cleaning..................................................................................................... 57
8.3 Repairs...................................................................................................... 59
9 Troubleshooting................................................................................. 60
9.1 Overview of possible errors and faults.................................................... 60
9.2 SICK Support............................................................................................. 60
9.3 Returns...................................................................................................... 60
10 Decommissioning............................................................................. 61
10.1 Disposal..................................................................................................... 61
11 Technical data.................................................................................... 62
11.1 Optics and Illumination............................................................................ 62
11.2 Performance............................................................................................. 63
11.3 Interfaces.................................................................................................. 64
11.4 Mechanics and electronics...................................................................... 64
11.5 Ambient data............................................................................................. 65
12 Accessories........................................................................................ 66
13 Annex.................................................................................................. 67
13.1 EU declaration of conformity / Certificates............................................. 67
13.2 Licenses.................................................................................................... 67
CONTENTS
4O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

1 About this document
1.1 Information on the operating instructions
These operating instructions provide important information on how to use devices from
SICK AG.
Prerequisites for safe work are:
•Compliance with all safety notes and handling instructions supplied.
•Compliance with local work safety regulations and general safety regulations for
device applications
The operating instructions are intended to be used by qualified personnel and electrical
specialists.
NOTE
Read these operating instructions carefully to familiarize yourself with the device and its
functions before commencing any work.
The instructions constitute an integral part of the product and are to be stored in the
immediate vicinity of the device so they remain accessible to staff at all times. Should
the device be passed on to a third party, these operating instructions should be handed
over with it.
These operating instructions do not provide information on operating the machine or
system in which the device is integrated. For information about this, refer to the operat‐
ing instructions of the specific machine.
1.2 Scope
These operating instructions serve to incorporate the device into a customer system.
Instructions are given by stages for all actions required.
These operating instructions apply to all available device variants of the product. More
detailed information for identification of the available device type see "Type code",
page 12.
Available device variants are listed on the online product page:
•www.sick.com/InspectorP64x
•www.sick.com/InspectorP65x
Various device variants are used as examples for commissioning, based on the default
parameter settings for the relevant device.
1.3 Explanation of symbols
Warnings and important information in this document are labeled with symbols. The
warnings are introduced by signal words that indicate the extent of the danger. These
warnings must be observed at all times and care must be taken to avoid accidents, per‐
sonal injury, and material damage.
DANGER
… indicates a situation of imminent danger, which will lead to a fatality or serious
injuries if not prevented.
ABOUT THIS DOCUMENT 1
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 5
Subject to change without notice

WARNING
… indicates a potentially dangerous situation, which may lead to a fatality or serious
injuries if not prevented.
CAUTION
… indicates a potentially dangerous situation, which may lead to minor/slight injuries if
not prevented.
NOTICE
… indicates a potentially harmful situation, which may lead to material damage if not
prevented.
NOTE
… highlights useful tips and recommendations as well as information for efficient and
trouble-free operation.
1.4 Further information
NOTE
Further documentation for the device can be found on the online product page at:
•www.sick.com/InspectorP64x
•www.sick.com/InspectorP65x
There, additional information has been provided depending on the product, such as:
•Model-specific online data sheets for device variants, containing technical data,
dimensional drawing, and specification diagrams
•EU declarations of conformity for the product family
•Dimensional drawings and 3D CAD dimension models in various electronic for‐
mats
•This documentation, in English and German and other languages if applicable
•Other publications related to the devices described here
•Publications dealing with accessories
Documents on request
Overview of command strings for the device.
1.5 SICK service
If you require any technical information, our SICK Service will be happy to help. To find
your agency, see the final page of this document.
NOTE
Before calling, make a note of all type label data such as type code, serial number, etc.,
to ensure faster processing.
1 ABOUT THIS DOCUMENT
6O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

2 Safety information
2.1 Intended use
The InspectorP6xx is a programmable vision sensor for industrial use for tasks which
require high-resolution images at long distances. The program for individual use is cre‐
ated by SICK and HDevelop using SICK AppStudio.
The device is programmed on a PC by using the development environment software
SICK AppSpace. Depending on the application, a browser-based, graphical user inter‐
face (HMI) can be created, which provides opportunities defined by the application
developer to influence an application at operator level. The device offers various inter‐
faces for controlling, programming, and operating purposes, which can be activated as
necessary via development environments, control systems (programmable logic con‐
trollers), or applications. However, configuration, programming, and control requires var‐
ious technical skills, depending on how the device is connected and used.
The devices are primarily designed for use in industrial and logistics areas, and they
meet the requirements for industrial ruggedness, interfaces and data processing. They
are not safety components as per the Machinery Directive 2006/42/EC. They are not
intended and not permitted to be used in areas with explosive atmospheres, in corro‐
sive environments, or in extreme ambient conditions.
2.2 Improper use
Any use outside of the stated areas, in particular use outside of the technical specifica‐
tions and the requirements for intended use, will be deemed to be incorrect use.
•The device does not constitute a safety component in accordance with the respec‐
tive applicable safety standards for machines.
•The device must not be used in explosion-hazardous areas, in corrosive environ‐
ments or under extreme environmental conditions.
•Any use of accessories not specifically approved by SICK AG is at your own risk.
WARNING
Danger due to improper use!
Any improper use can result in dangerous situations.
Therefore, observe the following information:
■Device should be used only in accordance with its intended use.
■All information in these operating instructions must be strictly observed.
2.3 Internet protocol (IP) technology
NOTE
SICK uses standard IP technology in its products. The emphasis is placed on availability
of products and services.
SICK always assumes the following prerequisites:
•The customer ensures the integrity and confidentiality of the data and rights
affected by its own use of the aforementioned products.
•In all cases, the customer implements the appropriate security measures, such as
network separation, firewalls, virus protection, and patch management.
SAFETY INFORMATION 2
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 7
Subject to change without notice

2.4 Limitation of liability
Relevant standards and regulations, the latest technological developments, and our
many years of knowledge and experience have all been taken into account when com‐
piling the data and information contained in these operating instructions. The manufac‐
turer accepts no liability for damage caused by:
■Non-adherence to the product documentation (e.g., operating instructions)
■Incorrect use
■Use of untrained staff
■Unauthorized conversions
■Technical modifications
■Use of unauthorized spare parts, consumables, and accessories
With special variants, where optional extras have been ordered, or owing to the latest
technical changes, the actual scope of delivery may vary from the features and illustra‐
tions shown here.
2.4.1 Programmable device
The InspectorP6xx is a programmable device.
Therefore the respective programmer is responsible for his/her programming perfor‐
mance and the resulting working principle of the device.
The liability and warranty of SICK AG is limited to the device specification (hardware
functionality and any programming interfaces) according to the agreed conditions.
Therefore, SICK AG is not liable, among other things, for damages that are caused by
programming of the customer or third parties.
2.5 Modifications and conversions
NOTICE
Modifications and conversions to the device may result in unforeseeable dangers.
Interrupting or modifying the device or SICK software will invalidate any warranty claims
against SICK AG. This applies in particular to opening the housing, even as part of
mounting and electrical installation.
2.6 Requirements for skilled persons and operating personnel
WARNING
Risk of injury due to insufficient training.
Improper handling of the device may result in considerable personal injury and material
damage.
■All work must only ever be carried out by the stipulated persons.
This product documentation refers to the following qualification requirements for the
various activities associated with the device:
2 SAFETY INFORMATION
8O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

■Instructed personnel have been briefed by the operator about the tasks assigned
to them and about potential dangers arising from improper action.
■Skilled personnel have the specialist training, skills, and experience, as well as
knowledge of the relevant regulations, to be able to perform tasks delegated to
them and to detect and avoid any potential dangers independently.
■Electricians have the specialist training, skills, and experience, as well as knowl‐
edge of the relevant standards and provisions to be able to carry out work on elec‐
trical systems and to detect and avoid any potential dangers independently. In Ger‐
many, electricians must meet the specifications of the BGV A3 Work Safety Regu‐
lations (e.g. Master Electrician). Other relevant regulations applicable in other
countries must be observed.
The following qualifications are required for various activities:
Table 1: Activities and technical requirements
Activities Qualification
Mounting, maintenance ■Basic practical technical training
■Knowledge of the current safety regulations in the workplace
Electrical installation,
device replacement
■Practical electrical training
■Knowledge of current electrical safety regulations
■Knowledge of the operation and control of the devices in their
particular application
Commissioning, configura‐
tion
■Basic knowledge of the WindowsTM operating system in use
■Basic knowledge of the design and setup of the described con‐
nections and interfaces
■Basic knowledge of data transmission
■Knowledge of the programming of image-processing systems
and network components
Operation of the device for
the particular application
■Knowledge of the operation and control of the devices in their
particular application
■Knowledge of the software and hardware environment for the
particular application
2.7 Operational safety and particular hazards
Please observe the safety notes and the warnings listed here and in other chapters of
this product documentation to reduce the possibility of risks to health and avoid dan‐
gerous situations.
LED radiation of the internal illumination unit (variants of the VI55I illumination unit)
NOTE
Only the VI55I integrable illumination units from SICK intended for the application can
be used as internal illumination units.
Risk group 1
•Color of illumination: blue (aperture angle: wide, medium), red or white
•Color of spot: red, green
SAFETY INFORMATION 2
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 9
Subject to change without notice

CAUTION
Warning! Optical radiation: LED risk group 1
The LEDs may pose a danger to the eyes and skin in the event of incorrect use.
■Protect the eyes and skin against radiation.
■Use suitable eye protection.
■Use protective measures such as a screen to shield the radiation.
■Do not open the housing. Opening the housing will not switch off the light source.
Opening the housing may increase the level of risk.
■Comply with the current national regulations on photobiological security of lamps
and lamp systems.
Risk group 2
•Color of illumination: blue (aperture angle: narrow)
CAUTION
Warning! Optical radiation: LED risk group 2
The LEDs may pose a danger to the eyes in the event of incorrect use.
■Protect the eyes and skin against radiation.
■Use suitable eye protection.
■Never point the light source at people.
■Use protective measures such as a screen to shield the radiation.
■Avoid any reflections on people from reflective surfaces. Be particularly careful
during mounting and alignment work.
■Do not open the housing. Opening the housing will not switch off the light source.
Opening the housing may increase the level of risk.
■Comply with the current national regulations on photobiological security of lamps
and lamp systems.
If the product is operated in conjunction with external illumination systems, the risks
described here may be exceeded. This must be taken into consideration by users on a
case-by-case basis.
CAUTION
Optical radiation: Laser class 1
The accessible radiation does not pose a danger when viewed directly for up to 100
seconds. It may pose a danger to the eyes and skin in the event of incorrect use.
■Do not open the housing. Opening the housing may increase the level of risk.
■Current national regulations regarding laser protection must be observed.
Caution – Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
For both radiation types:
It is not possible to entirely rule out temporary disorienting optical effects, particularly
in conditions of dim lighting. Disorienting optical effects may come in the form of daz‐
zle, flash blindness, afterimages, photosensitive epilepsy , depending on parameteriza‐
tion), or impairment of color vision, for example.
2 SAFETY INFORMATION
10 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

WARNING
Electrical voltage!
Electrical voltage can cause severe injury or death.
■Work on electrical systems must only be performed by qualified electricians.
■The power supply must be disconnected when attaching and detaching electrical
connections.
■The product must only be connected to a voltage supply as set out in the require‐
ments in the operating instructions.
■National and regional regulations must be complied with.
■Safety requirements relating to work on electrical systems must be complied with.
WARNING
Risk of injury and damage caused by potential equalization currents!
Improper grounding can lead to dangerous equipotential bonding currents, which may
in turn lead to dangerous voltages on metallic surfaces, such as the housing. Electrical
voltage can cause severe injury or death.
■Work on electrical systems must only be performed by qualified electricians.
■Follow the notes in the operating instructions.
■Install the grounding for the product and the system in accordance with national
and regional regulations.
2.8 Repairs
Repair work on the device may only be performed by qualified and authorized person‐
nel from SICK AG. Interruptions or modifications to the device by the customer will inval‐
idate any warranty claims against SICK AG.
SAFETY INFORMATION 2
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 11
Subject to change without notice

3 Product description
3.1 Product ID
3.1.1 Type label
The type label gives information for identification of the sensor.
UL certification is dependent on the type. Information on the existing UL certification
can be found on the type label.
1
2
3
4
5
6

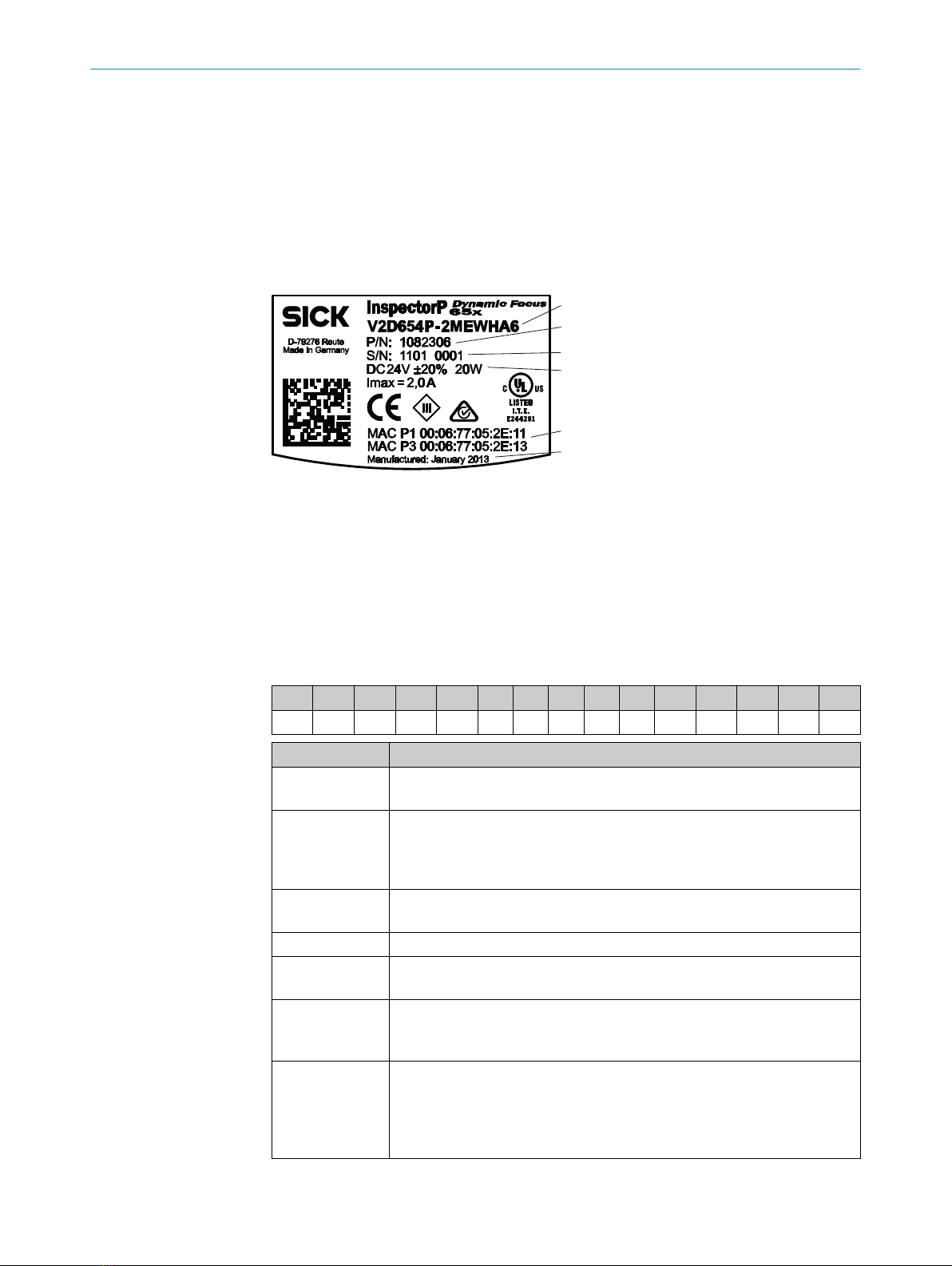

Figure 1: Type label design for the sensor
1Type code
2Product information number
3Serial number
4Power consumption
5MAC addresses
6Date of manufacture
3.1.2 Type code
V 2 D 6 x x P - x M x x x x x
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Position Description
1 ... 5 Product family
V2D6xx InspectorP6xx
6Image sensor resolution
2: For InspectorP642: 1.7 megapixels (1600 px x 1088 px)
2: For InspectorP652: 2.1 megapixels (2048 px x 1088 px)
4: 4.2 megapixels (2048 px x 2048 px)
7Function
P: Programmable
8Generation
9Image sensor type
M: Monochrome
10 Lens unit type
E: Electrical focus (dynamic, auto, teach-auto)
C: C-mount thread
11 Illumination
R: Red/Amber
W: White
B: Blue
X: No illumination unit installed
3 PRODUCT DESCRIPTION
12 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

Position Description
12 Focal distance (lens unit)
H: 54 mm
K: 40 mm
X: No lens installed
13 Connection variants1)
A: Connection variant 1
F: Connection variant 2
H: Connection variant 3
14 IP protection class and front screen
5: IP 65: Plastic front screen
6: IP 65: Glass front screen
1) see "Connections and pin assignment", page 30
3.2 Scope of delivery
Depending on the device version and the accessories ordered, the scope of delivery will
include the listed items:
•The version of the camera housing ordered, with a C-mount threaded connection
(InspectorP6xx Flex) or InspectorP65x Dynamic Focus (incl. pre-mounted lens)
•Two sliding nuts, M5
•Light inlet and electrical connections fitted with protective caps/plugs.
•SW 2 hexagon key for opening and closing the cover of the micro SD card slot and
mounting the integrable illumination unit from the optic kit (InspectorP6xx Flex)
•SICK lens cloth (only with Flex variant)
Accessories
Accessories, such as the optic kit, brackets, and connecting cables, are only supplied if
ordered separately.
PRODUCT DESCRIPTION 3
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 13
Subject to change without notice

3.3 Product characteristics
3.3.1 Device view
InspectorP64x/65x Flex dimensional drawing
ß
â
102
21,6
75,6
90
0,2
21,4
14,2 97,2
142,8
7,2
1 2
3
4
5
7
8
9
ã
å
ä
á
46
6All distances
in mm
1Connection P1, function and design dependent on type
2Gigabit Ethernet port
3Connection X2, function and design dependent on type
4Connection P2, function and design dependent on type
5Connection X1, function and design dependent on type
6Reference point for working distance (center of front screen) from InspectorP64x/65x Flex
to object
7Black cover for the micro SD memory card slot
8M5 blind tapped holes, 5 mm deep (4 x), for mounting the InspectorP64x/65x Flex
9Optics protective hood for lens unit and integrated illumination
ßSliding nut M5, 5.5 mm deep (2 x), pivoting, for an alternative method of mounting the
InspectorP64x/65x Flex
àFeedback LED, green
áLens unit
âOutlet opening for light beam from aiming laser
ãBar graph display (10 x LEDs)
äFunction button (2 x)
åStatus display (10 x LEDs)
3 PRODUCT DESCRIPTION
14 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

Integrable illumination unit (option)
1
1
1
3
1
1
2

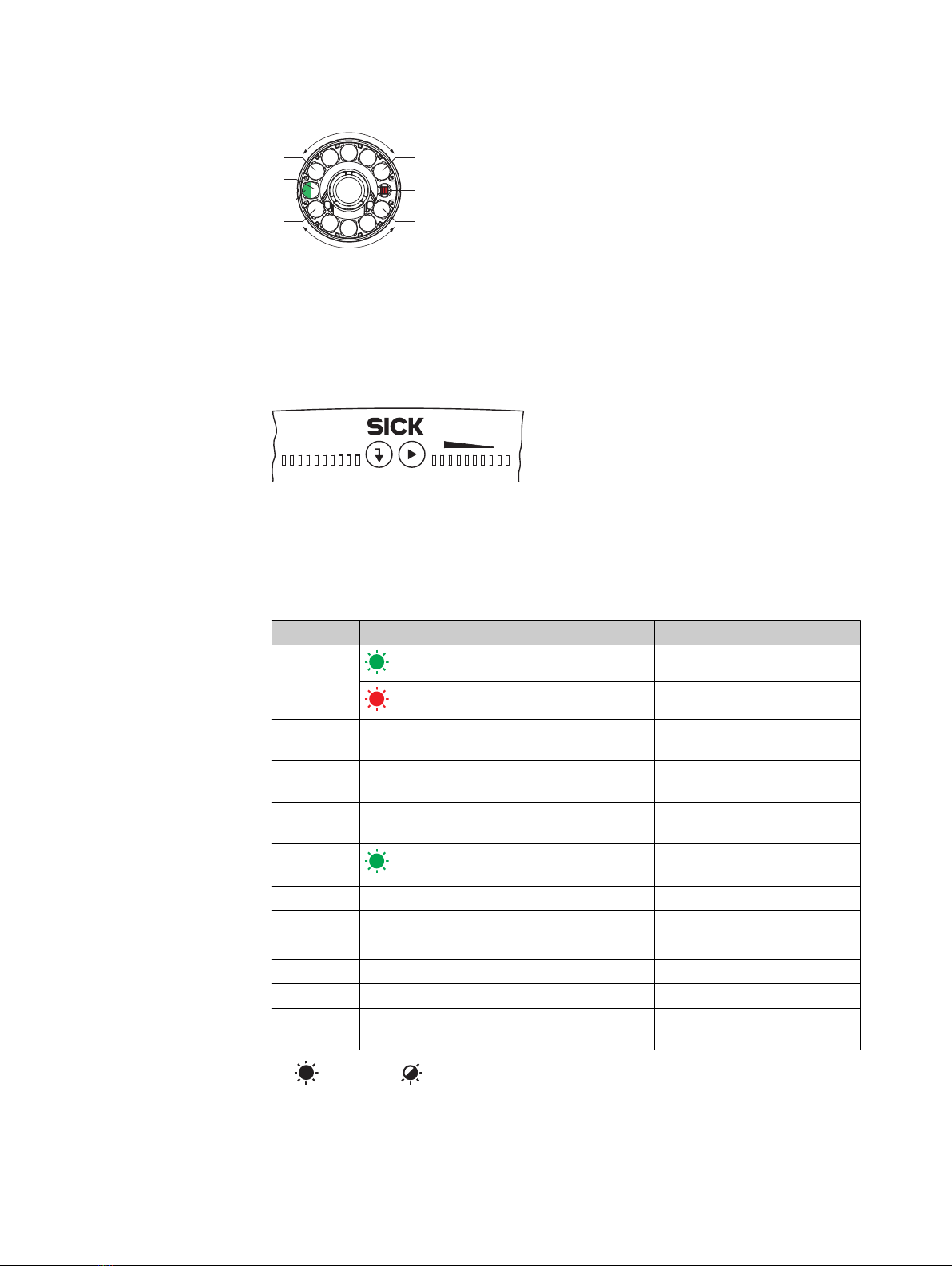

1Illumination via 11 LEDs
2Feedback LED, green (pass), briefly generates a light spot on the object within the field of
view after a successful analysis (default)
3Opening in the illumination for the aiming laser for alignment, the red laser LEDs can be
switched off and generates a red cross on the object within the field of view
3.3.2 Status indicators and functions
0% 100%
Ready Result FB|ERR|MS
|Tst |Tch |Usr |A-S
SF|RUN|NS L/A P1 FB L/A P2 FB L/A P1 GbE L/A P3 GbE Funct Light
12
1Enter pushbutton
2Skip pushbutton
See table 2 for LED descriptions. The functions for the programmable LEDs are defined
by the user in the SICK AppStudio software.
Table 2: LED status descriptions
Display LED Color Status
Ready green Sensor ready
red Hardware or software error
Result Programmable red, green, blue, fuchsia,
yellow, aqua, white
Function defined by user
Light Programmable red, green, blue, fuchsia,
yellow, aqua, white
Function defined by user
Function Programmable red, green, blue, fuchsia,
yellow, aqua, white
Function defined by user
L/A P3 GbE green The device is connected to a
network
L/A P1 GbE Not in use
L/A P2 FB Not in use
L/A P1 FB Not in use
BF|ERR|MS Not in use
SF|RUN|NS Not in use
LED bar
graph (0 - 9)
Programmable green Function for each LED defined
by user
= illuminated, = flashing
3.3.3 Product features and functionality
The InspectorP6xx is a vision sensor which is well-suited for a wide variety of industrial
tasks thanks to its programmable interface.
PRODUCT DESCRIPTION 3
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 15
Subject to change without notice

Convenient functions such as function buttons, auto-setup, aiming laser, an acoustic
feedback signal, and a green feedback LED reduce the amount of work required for
training and installation.
The microSD memory card can be used to store images or backup copies of parame‐
ters. Thanks to SICK's 4Dpro feature, the InspectorP6xx can be integrated into numer‐
ous industrial networks.
3.3.4 SICK AppSpace
The SICK AppSpace ecosystem reveals new paths leading to solutions for customer-spe‐
cific applications and consists of software tools and programmable sensors or devices,
such as the InspectorP6xx. The SICK AppStudio SDK is used for developing SensorApps
on programmable SICK devices. Its user interface for machine operators can be cre‐
ated individually as a web GUI. The SICK AppManager software tool supports the ser‐
vice in the field in the simple distribution and management of SensorApps.
Figure 2: SICK AppSpace
Detailed instructions for SICK AppStudio and for programming the InspectorP6xx can
be found in the SICK Support Portal, supportportal.sick.com.
3 PRODUCT DESCRIPTION
16 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

4 Transport and storage
4.1 Transport
For your own safety, please read and observe the following notes:
NOTICE
Damage to the product due to improper transport.
■The device must be packaged for transport with protection against shock and
damp.
■Recommendation: Use the original packaging as it provides the best protection.
■Transport should be performed by trained specialist staff only.
■The utmost care and attention is required at all times during unloading and trans‐
portation on company premises.
■Note the symbols on the packaging.
■Do not remove packaging until immediately before you start mounting.
4.2 Transport inspection
Immediately upon receipt in Goods-in, check the delivery for completeness and for any
damage that may have occurred in transit. In the case of transit damage that is visible
externally, proceed as follows:
■Do not accept the delivery or only do so conditionally.
■Note the scope of damage on the transport documents or on the transport com‐
pany's delivery note.
■File a complaint.
NOTE
Complaints regarding defects should be filed as soon as these are detected. Damage
claims are only valid before the applicable complaint deadlines.
4.3 Storage
Store the device under the following conditions:
■Recommendation: Use the original packaging.
■Do not store outdoors.
■Store in a dry area that is protected from dust.
■So that any residual damp can evaporate, do not package in airtight containers.
■Do not expose to any aggressive substances.
■Protect from sunlight.
■Avoid mechanical shocks.
■Storage temperature: see "Technical data", page 62.
■Relative humidity: see "Technical data", page 62.
■For storage periods of longer than 3 months, check the general condition of all
components and packaging on a regular basis.
TRANSPORT AND STORAGE 4
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 17
Subject to change without notice

5 Mounting
5.1 Overview of mounting procedure
The mounting of the device is divided into the following steps:
•Mount the device.
•Align the device with the object.
•Connect the device to interfaces and supply voltage.
•Adjust the device.
5.2 Optic kit scope of delivery
--
Figure 3: Optic kit
The optic kit is an accessory which can be optionally ordered for the InspectorP6xx Flex
product family and is mounted on the C-Mount threaded connection of the camera
housing.
NOTE
The IP protection class IP65 can only be guaranteed with the optic protective hood (can
also be ordered individually).
The following components are included in the scope of delivery of the optic kit:
•Application-specific lens unit
•Application-specific VI83I illumination unit (ring light), luminous field appropriate
for focal distance of lens
•Two spacers, one with a plated-through connection for the electrical connection
•Screws: 4 x M2, 5 x 6 mm, 4 x M2, 5 x 12 mm, all screws have a hexagon cylinder
head, SW 2
•IP65 optics protective hood with screw thread and viewing window
5.3 Preparation for mounting
5.3.1 Mounting requirements
NOTICE
Radio interference may occur when the device is used in residential areas!
Only use the device in industrial environments (EN 61000-6-4).
■Ensure that there is good heat transfer from the device, in particular at high ambi‐
ent temperatures (e.g., via the bracket to the mounting base or ensure that the
back of the device is a sufficient distance from the wall of a housing).
■Only to be mounted using the threaded mounting holes provided for this purpose
or the sliding nuts.
■Shock and vibration-free mounting.
■Clear view of the object to be measured.
5 MOUNTING
18 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice

Equipment required
■Mounting device (bracket) with sufficient load-bearing capacity and suitable
dimensions.
■Two or four M5 screws for mounting on a mounting device supplied by the cus‐
tomer. The screw length depends on the mounting base (wall thickness of the
bracket). When using an optional SICK bracket, the screws for mounting are
included with delivery.
■Tool and tape measure.
5.3.2 Mounting the device
The device is mounted using threaded mounting holes (M5) or sliding nuts.
The threaded mounting holes are located on the rear of the device.
The sliding nuts can each be inserted into a slot on the side of the housing.
SICK offers prefabricated brackets which are optimally suited for mounting the device
in a wide range of applications (www.sick.com).
User-supplied brackets
A user-supplied bracket must meet the following requirements:
•Alignment of the device in the x and y axes can be adjusted
•The mounting device must be able to bear the weight of the device and connecting
cables free of vibrations
•In mounting situations with strong vibrations, shock mounts may need to be pro‐
vided
•Mounting options must be available for the 4 threaded mounting holes or the two
sliding nuts
5.4 Mount the optics
NOTE
This mounting step is only required if the optional optics accessory has been included
in the order for a programmable vision sensor of the InspectorP6xx Flex product family.
This does not apply for the Dynamic Focus type.
5.4.1 Mounting the lens and illumination
NOTICE
Possible impairment of image quality!
Dust and fingerprints on optical boundary surfaces can reduce image quality and may
also affect the analysis performance of the device.
■When mounting the optics accessories, always ensure that the environment is free
of dust.
■Do not touch the image sensor (CMOS) in the light inlet opening of the sensor or
the glass lenses at either end of the lens unit.
NOTE
When mounting the optics accessories on the camera housing, always ensure that
there is no power to the system.
MOUNTING 5
8019943/16UR/31-01-2020 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 19
Subject to change without notice

NOTICE
Risk of damage due to electrostatic discharge!
Electrostatic discharge from the human body may damage parts of the illumination unit
or the camera housing.
The illumination variants for lenses with a focal length of 12 mm or 16 mm do not fea‐
ture any plastic lenses in front of the LEDs in the round recesses.
■Do not insert your fingers into the recesses.
■Do not touch the open contacts of the electrical connection for the illumination
unit on the camera housing.
Mounting the optics
1
2
3
4
5
6
7
1Spacer, left with electrical connection
2Screw, long (4 x)
3Electrical connection for ring light
4Screw, short (4 x)
5Ring light
6Spacer, right
7Light inlet with threaded connection for lens
1. Peel off the white protective sticker on the camera housing that covers the electri‐
cal connection 3 for the illumination unit.
2. Place the camera housing on a nonslip base.
3. Remove the protective cap from the round light inlet.
4. If necessary, carefully insert the filter (optional) and spacer disk into the light inlet.
5. Screw the lens unit into the C-mount thread. This will also lock the optional filter in
place at the same time (if applicable).
6. Take two pairs of long screws and screw them into the threaded mounting holes to
attach each spacer (1 and 6) to the correct side of the camera housing.
7. Use the 4 short screws to attach the illumination unit 5 to the two spacers.
8. Manually preset the sharpness and mask of the lens unit.
5 MOUNTING
20 O P E R A T I N G I N S T R U C T I O N S | InspectorP64x/65x 8019943/16UR/31-01-2020 | SICK
Subject to change without notice
