Acoustic Sensors
SITRANS AS100
Operating Instructions
06/2016
A5E31952194
-AB
General Information
1
Specifications
2
Outline and Dimensions
3
Installation
4
Mounting
5
Interconnection
6
Applications
7

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GER
MANY
Document order number: A5E31952194
Ⓟ
11/2016 Subject to change
Copyright © Siemens AG 2016.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be
used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property
damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific task
in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified
personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication may
be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software described.
Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this
publication is reviewed regularly and any necessary corrections are included in subsequent editions.

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 3
Table of contents
1 General Information ................................................................................................................................ 5
2 Specifications.......................................................................................................................................... 7
3 Outline and Dimensions.......................................................................................................................... 9
4 Installation ............................................................................................................................................ 15
5 Mounting............................................................................................................................................... 17
6 Interconnection ..................................................................................................................................... 21
7 Applications .......................................................................................................................................... 25
Index..................................................................................................................................................... 29

Table of contents
SITRANS AS100
4Operating Instructions, 06/2016, A5E31952194-AB

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 5
General Information
1
SITRANS AS100 Sensor
SITRANS AS100 is an acoustic sensor for flow detection. It monitors high frequency acoustic
emissions (sound waves) generated by:
●the friction and impact of solids flow in pipes, chutes, and conveyors
●cavitation occurring in pumps, pipes, and valves
●turbulence of gases or liquids leaking through valves and flanges
●friction and jarring of mechanical parts
Acoustic emissions travel readily through solid materials such as metal, but are strongly
attenuated when traveling through air. As such, the Sensor is immune to airborne interferences
and provides a non-invasive method of monitoring process activities.
The sensor can be configured electrically during wiring to operate in either low or high sensitivity
range mode. The high sensitivity range applies where highest signal levels vary up to 40 dB. The
low sensitivity range applies where highest signal levels vary between 28 and 68 dB.
SITRANS AS100 Sensor provides an analog output for use with the Sitrans Control Unit. The
Sensor may be operated independently from the Control Unit by providing an external supply.
The output is fed into a control panel, chart recorder, data logger, or programmable logic
controller with a suitable input.
SITRANS AS100 Sensor is primarily used for solids flow detection. However, this device can be
used in pump cavitation and fluid leak detection, provided sufficient noise levels are generated.
Note
•
The SITRANS AS100 is to be used only in the manner outlined in this manual
•
This product is intended for use in industrial areas. Operation of this equipment in a
residential area may cause interference to several frequency based communications
Features
●non-invasive
●screw in, bolt on, weld, or bond in place
●analog output
●high and low sensitivity range of operation

General Information
SITRANS AS100
6Operating Instructions, 06/2016, A5E31952194-AB

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 7
Specifications
2
Model
•
standard
standard operating temperature range (see below)
•
extended
extended operating temperature range (see below)
Power
•
20 to 30 V DC
•
18 mA typical
Operating Temperature
•
standard
-
20 to 80 °C (-4 to 176 °F)1
•
extended:
-
30 to 120 °C (-22 to 248 °F)2or
-40 to 125 °C (-40 to 257 °F)
3
Note
1
Available for CSA/FM Class II, ATEX versions
2
Available only for CSA Class II version
3
Not available for hazardous rated versions
Relative Sensitivity
•
0.5% / °C of reading, average over the operating range
Output
•
analog, 0.08 to 10 V DC nominal, 100 KΩ minimum load impedance

Specifications
SITRANS AS100
8Operating Instructions, 06/2016, A5E31952194-AB
Construction
•
housing
304 stainless steel
303 stainless steel (CSA/FM Class II, ATEX II 3D version)
aluminum (ATEX II 2GD version)
•
cable
standard: 4 m (13 ft) cable, PVC jacketed, 3 twisted pairs, 24 AWG,
shielded
extended: 4 m (13 ft) cable, thermoplastic elastomer jacketed, 6 condu
c-
tor, 24 AWG conductor, shielded
Ingress Protection
•
IP68 (waterproof) The IP68 test was performed by immersing the enclosure in 1.8 m of
water for 30 minutes.
Weight
•
0.4 kg (1 lb.)
•
1.2 kg (2.65 lb.) (ATEX II 2GD version)
Approvals
General
CE, C-TICK, KCC
Hazardous
Europe:
ATEX II 2GD
•
Ex II 2G Ex d IIC T4 Gb
•
Ex II 2D Ex tb IIC T100 °C Db
•
DEKRA cert #: DEKRA 13ATEX0006 X
•
Standards: 60079-0 : 2009, EN 60079-1 : 2007 and EN 60079-
31
: 2009
ATEX II 3D
US:
FM Class II, Div. 1, Groups E, F, G
Canada:
CSA Class II, Div. 1, Groups E, F, G

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 9
Outline and Dimensions
3

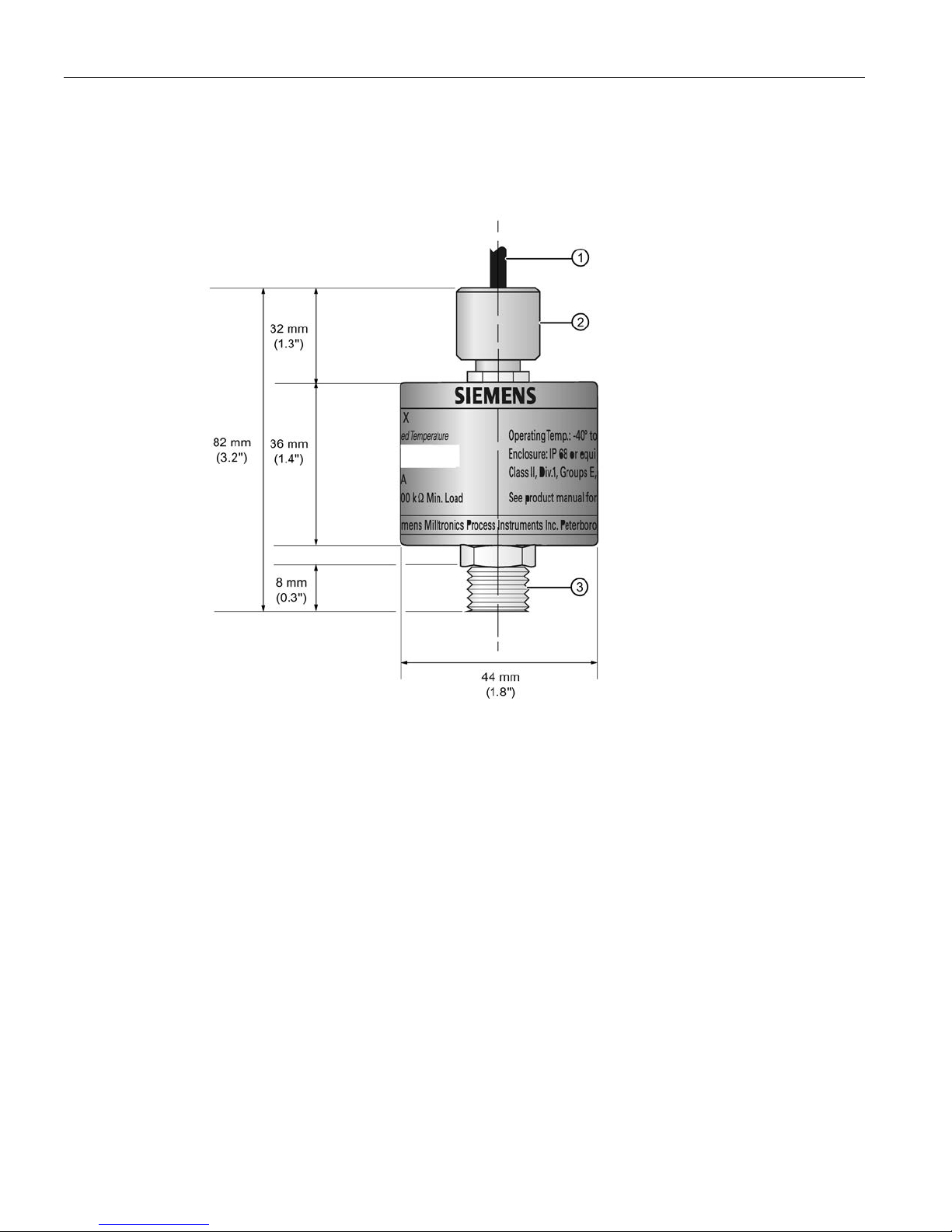

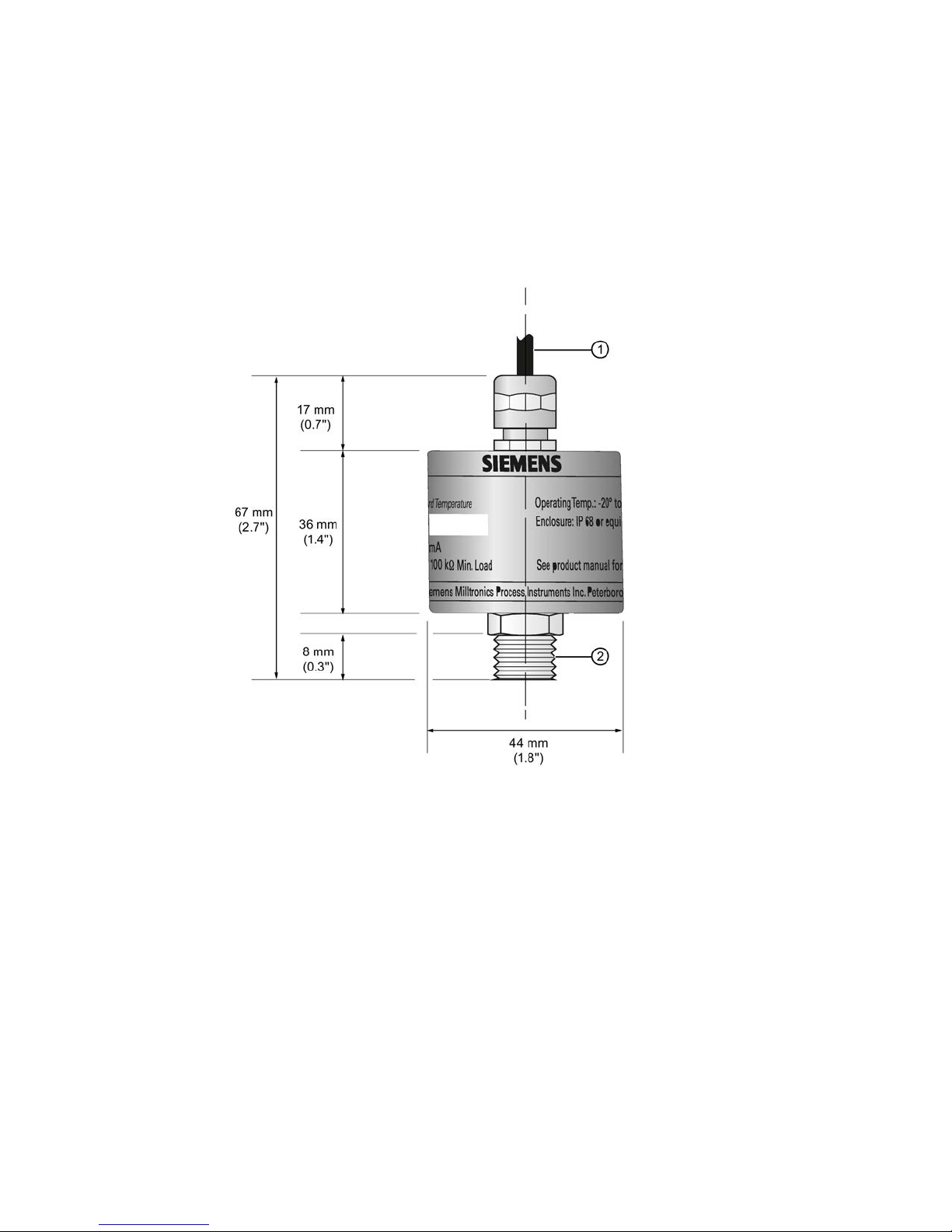

SITRANS AS100 (ST and ET versions)
①
6 x 24 AWG cable
②
Mounting post, 17A/F nut and M10 thread

Outline and Dimensions
SITRANS AS100
10 Operating Instructions, 06/2016, A5E31952194-AB
SITRANS AS100 (CSA/FM Class II Rated ST and ET versions)
①
6 x 24 AWG cable
②
½" NPT (CSA and FM approvals) or M20 (ATEX approval) female conduit fitting
③
Mounting po
st, 17A/F nut and M10 thread

Outline and Dimensions
SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 11

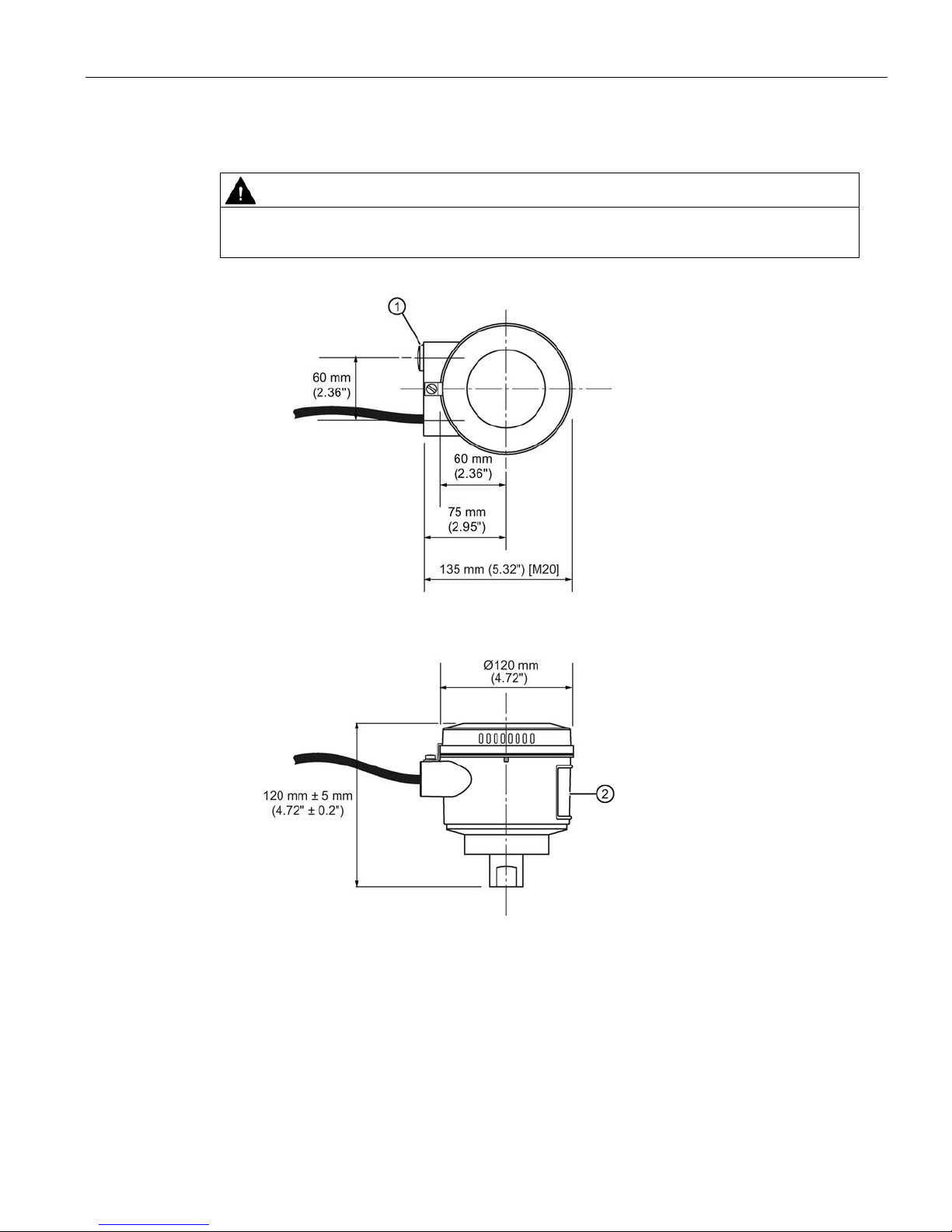

SITRANS AS100 (ATEX II 2GD version)
WARNING
Do not open when an explosive atmosphere is present. Possible static hazard. Do not rub
or clean the product on site.
①
Cable entry (2) M20 x 1.5
②
Enclosure

Outline and Dimensions
SITRANS AS100
12 Operating Instructions, 06/2016, A5E31952194-AB

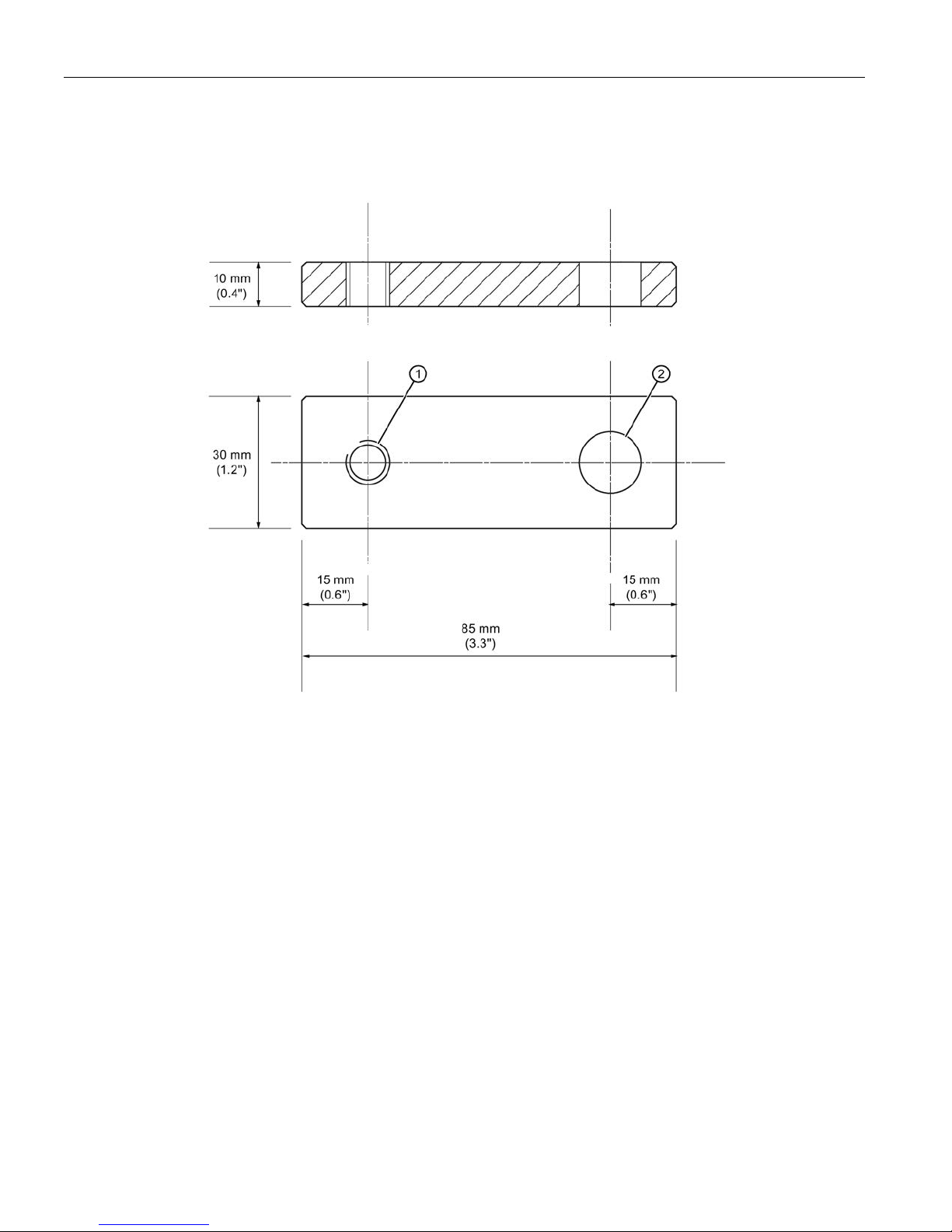

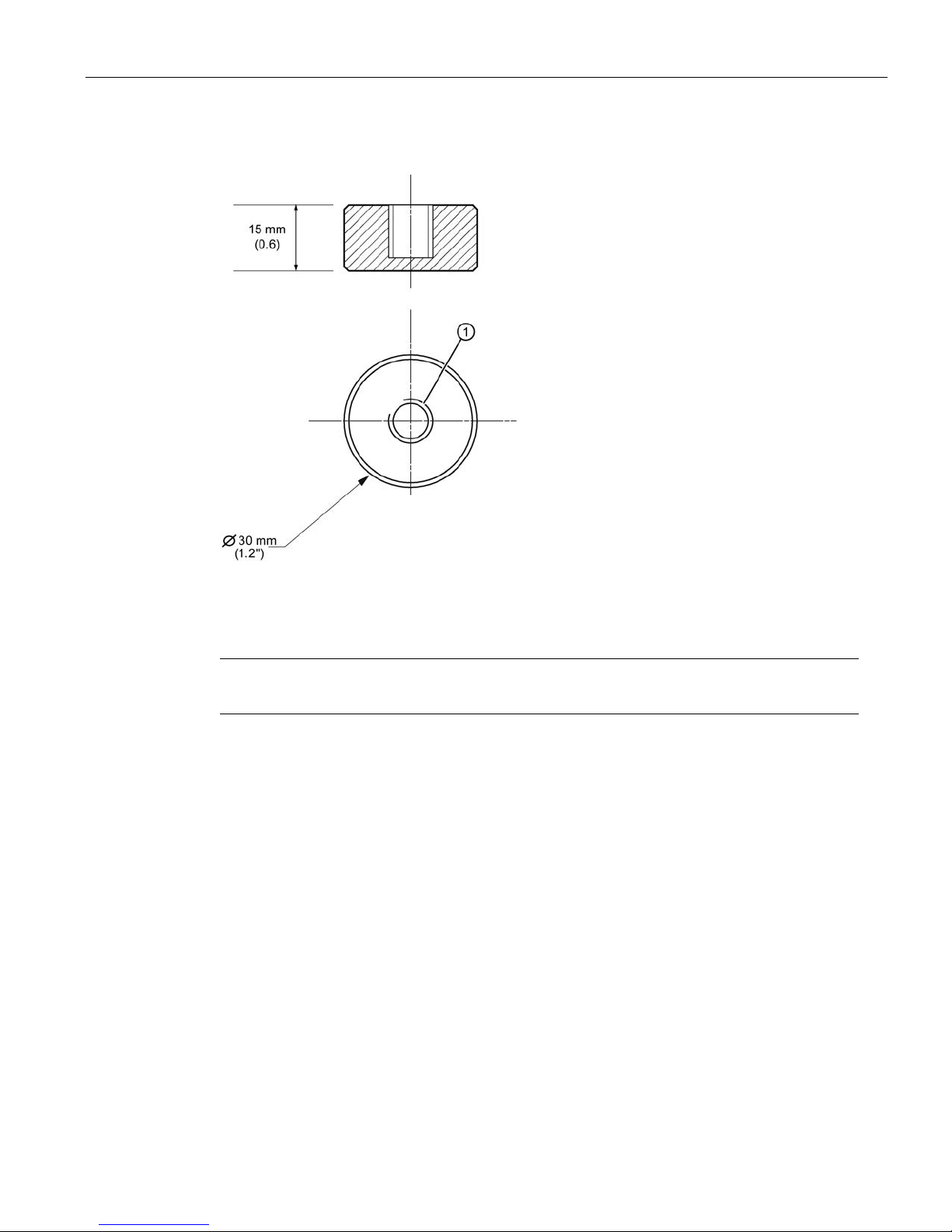

Accessories
Extension Tab (optional, not available for ATEX II 2GD version)
①
SITRANS AS100 mounting hole M10 thread
②
Bolt hole, 14mm (0.55")Ø

Outline and Dimensions
SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 13
Mounting Disc (optional, not available for ATEX II 2GD version)
①
SITRANS AS100 mounting hole M10 thread
Note
Both Tab and Disc are 304SS.

Outline and Dimensions
SITRANS AS100
14 Operating Instructions, 06/2016, A5E31952194-AB

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 15
Installation
4
Ideal Locations
●areas where the acoustic emission levels are highest and most consistent
●where the material impact is greatest
●areas closest to the point of leakage (e.g. valve body)
●closest point to source of cavitation (e.g. pump body)
Conditions to Avoid
●non-metallic surfaces, as these tend to attenuate acoustic emission levels
●pipes with non-metallic liners as these tend to attenuate acoustic emission levels
Conditions to Consider
●joints and interfaces attenuate the acoustic emission levels.
●minimal temperature variation where acoustic emission levels are weak.
●location should provide sufficient response time in alarm or control circuit. e.g. loss of bearing
lubrication, plug chute detection.

Installation
SITRANS AS100
16 Operating Instructions, 06/2016, A5E31952194-AB

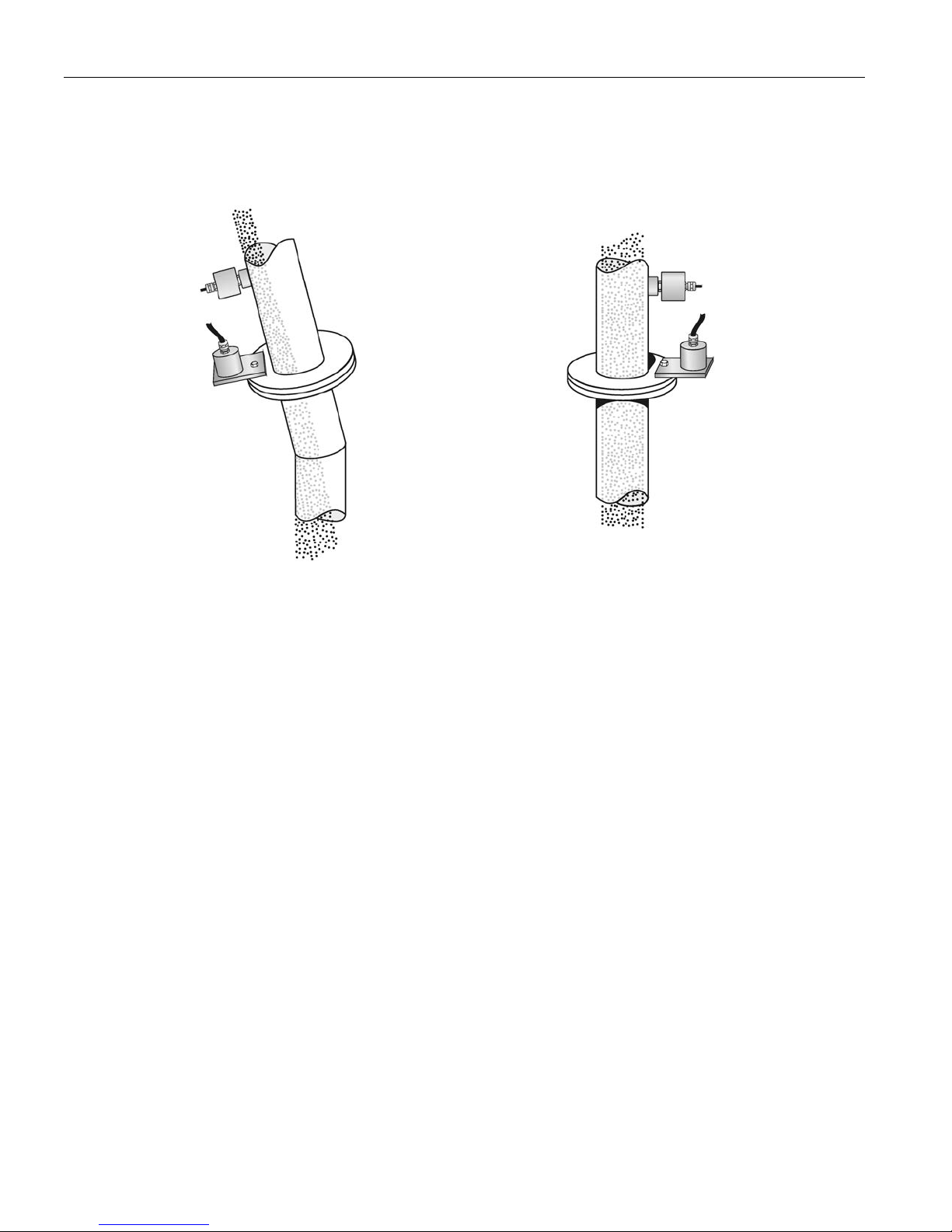

Solids Flow Sensing
Recommended
Not Recommended
Good friction between product and pi
p-
ing. Mount Sensor on the upstream side
of gasket for highest level of acoustic
emission activity.
Minimal amoun
t of acoustic emission
activity due to limited friction between
product and piping.

SITRANS AS100
Operating Instructions, 06/2016, A5E31952194-AB 17
Mounting
5
Note
•
To ensure the most ideal location, test the SITRANS AS100 by clamping the Sensor to
the application, and running a trial period to determine the system's performance. The
acoustic emission level can be monitored by a voltmeter across the analog output. Refer
to Interconnection (Page 21).
•
Coating the contact surfaces with grease enhances the propagation of acoustic emissions
to the Sensor.
Mounting Method
Acoustic Coupling and Sensitivity
Clearance hole
Good
Drill and Tap
Good
Mounting Disc
Good
Extension Tab
Fair

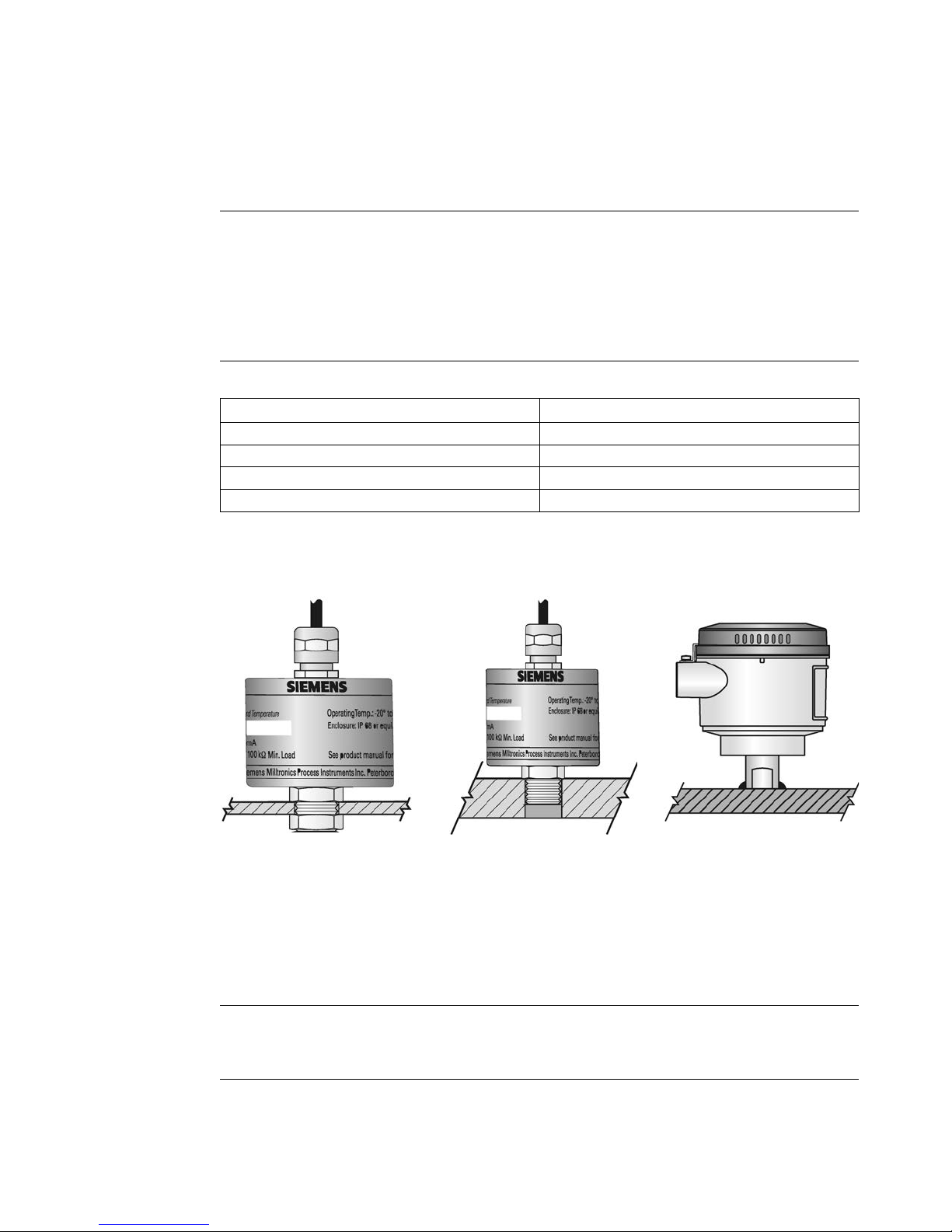

Direct Mounting
Clearance Hole
Drill and Tap
Contact
Insert mounting post
through hole in device being
monitored and fasten with
customers
upplied washers
and nut.
Screw mounting post into
threaded hole in device
being monitored.
Weld or bond mounting post
to device being monitored.
When welding, first remove
the acoustic sensor from the
housing.
Note
To ensure proper coupling, the fac
e of the Sensor nut must be tight to the application
surface.

Mounting
SITRANS AS100
18 Operating Instructions, 06/2016, A5E31952194-AB
Accessory Mounting
Extension Tab
Mounting Disc
Screw Sensor into threaded hole of tab,
and fasten onto device being monitored.
Screw Sensor into disc, after welding or
bonding disc onto device being monitored.
Note
•
If welding, weld must be a continuous bead. Tacking does not provide sufficient
acoustical coupling.
•
Do not arc weld on equipent connected to a SITRANS AS100. Remove the SITRANS
AS100 or disconnect electrically to avoid current flowing through the sensor.
•
If gluing, use Loctite 326 adhesive, or equivalent. Follow manufacturer’s instructions to
ensure proper adhesion.
