Local Service Organization Service Manual

BE INSPIRED

S

SL

L

L7

7

75

5

V 1.0

Version Date Department Notes to change

V1.0 30.11.2005 COM D CCQ APAC SLI New Document

Our innovation shapes the future

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 2 of 44 Internal Use Only

Table of Contents

1 GPRS (GENERAL PACKET RADIO SERVICE)…………………………………3

2 K JAVA APPLICATION……………………………………………………………….4

3 KEY FEATURES……………………………………………………………………….5

4 COMPARISON WITH PERVIOUS PRODUCT...……………………………………7

5 ACCESSORIES……………………………………………………………………......8

6 UNIT DESCRIPTION SL75..………..……………………………………………….10

7 DISASSEMBLY OF SL75......……………………………………………………….14

8 REASSEMBLY OF SL75..…..………………………………………………………22

9 ASSEMBLING AND DISASSEMBLING OF CAMERA MODULE………………24

10 MOBILE SOFTWARE PROGRAMMING…………………………………………..26

11 SIEMENS SERVICE EQUIPMENT USER MANUAL……………………………..29

12 JPICS INTERNET.……………………………………………………………………30

13 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI…….………………..36

14 GENERAL TESTING INFORMATION……………………………….……………..37

Annex 1…………………………………………………………………….………...42

Annex 2……………………………………………………………..…….………….43

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 3 of 44 Internal Use Only

1 GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 4 of 44 Internal Use Only

2 K-Java Application

Java-based game system

Java Application Manager

(JAM)

Application launcher and

download manager.

Supports HTTP-based OTA

download of applications over

GPRS and CSD.

yes

RAM for Java applications Available RAM for Java

applications (i.e. Program code

and data) during application

runtime:

Minimum 100 Kbytes (Has to be

taken as working assumption

for application development).

Goal: 145 Kbytes as SL45i (not

committed)

yes

MIDP 1.0, CLDC 1.0 As SL45i, including

performance optimizations from

SL45i-Infusio.

yes

‘OEM extensions’ Proprietary API extension as

SL45i. Including ‘Siemens

Game API’

yes

HTTP API over GPRS Sl45i: only CSD yes

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 5 of 44 Internal Use Only

3 Key Features

Bands • Triple Band E-GSM 900 / GSM 1800 / GSM 1900

• GPRS Multi Class 10

Battery • Li-Ion Battery Pack

• Nominal Voltage : 3.7V

• Nominal Capacity : 700 mAh

• GSM Capacity : 670 mAh

• Power Input : 2.0A (0.6 ms) / 0.25A (4 ms)

• Cut-off Threshold : 3.2V

Stand-by Time ≥Approx. 290 h (Best Case)

Talk Time ≥4.7 hrs (Best Case)

SIM Card

• Small (”Plug In”) 1.8 or 3V SIM card (Phase II)

• To insert the SIM card, the battery pack must be

removed.

Speech Codec

• Triple Rate (HR/FR/EFR) and Adaptive Multi Rate are

available as standard

Temperature

Range

• -100C to +550C (Normal operation)

• -300C to +850C (Storage capability)

Display • Type: Full Graphic

• Resolution: 132 x 176 Pixel

• Color depth: 262K

• Technology: TFT

• Active area / mm: 27.7 x 37.0

• Illumination: White LED (4 LEDs integrated)

• Frame rate: maximum 15 frames/seconds

• Pixel size per mm: 0.21mm x 0.21mm ( 1 pixel consist

of 3 sub pixels in red, green and blue)

Keypad •Hardcapes backside-printed

• 12-key-block (0-9, #, *)

• Dedicated operator hard key for quick and easy access to

relevant operator services

• two function keys (SEND, END)

• ON/OFF key combined with the END key; the symbol (I

inside O) is used as a symbol for ON/OFF.

• 5 way-joystick with design-cap (soft material)

• 2 soft-keys for different SW-enabled functions

• white as illumination colour

• tactile finder on key “5“

• 2x4 white LEDs for keypad (main / slider keypad)

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 6 of 44 Internal Use Only

Acoustics

• Omni-directional microphone

• Three-in-one-earpiece for handset, handsfree and ringing

tones

• Loud signal emitter (soundringer) (>100dB(A) SPL @5cm,

'Hongkong-Spec.') only for rectangular sound signals (NOT

POSSIBLE for all Soundringer melodies)

• Polyphonic ringer tones (parallel to GPRS: 16 voices; all

other Use Cases: 32 voices)

• Hands free mode

• different selectable volume levels for handsfree, handset

and ringer mode (for the amount see SW product

description)

Memory • Approx 20MB

Connectivity • Bluetooth®

• USB

Multimedia • Video recording / encoding, playback & streaming

• MP3/AAC/AAC+/AAC++ ringtones/Real Audio 8*

• Video ringtone

Camera • Integrated 1.3 Mega pixel with LED light

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 7 of 44 Internal Use Only

4 Comparison with Previous Product

anualSL75 Level 2 Service M

COM D CCQ APAC SLI Page 8 of 44 Internal Use Only

Feature

IRIS

HYDRA

Supported Systems

Triple Band

(EMEA, APAC)

GSM900/GSM1800/GS

M1900

Triple Band

(EMEA, APAC)

GSM900/GSM1800/GS

M1900

Stand-by Time SL65: 230h

SL66: 120h (DRX2)

Up to 290h (Siemens

best case approx.

2.3mA quiescent

current)

Talk Time SL65: 270min

SL66: 130min (GSM850

PowerLevel 5 DTX

OFF)

Up to 4.7h (Siemens

best case 143 mA

avarage)

Battery Technology

Battery Capacity

Li-Ion Battery Pack

Nominal Cap.: 700 mAh

IRIS Battery pack

Norminal capacity

700mAh

Weight Approx. 85g TBD

Volume Approx. 78 cm3approx 78cm^3

Length 90,2mm 92mm

Width 47,6mm 48mm

Thickness 20,9mm 23mm

SIM Plug-In 1.8V/3V Small (=”Plug In“) 1.8 V

or 3 V-SIM card (Phase

II)

Antenna

Antenna Performance

in comparison

SL65

28,6dBm@900MHz

26,4dBm@1800MHz

25,2dBm@1900MHz

Input PAH

Half Rate Yes Yes

Enhanced Full Rate Yes Yes

AMR Yes Yes

Fax/Data Yes Yes

GPRS Yes (Class 10) EDGE / Class 10

Keypad Illumination Yes (white) 2 * 4 White LED’s

Display /

Display Illumination

TFT

65k colour

Enhanced TFT 256k

Color

4 White LED’s

Exchangeable

Memory

No No

Camera Yes

(integrated camera)

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 9 of 44 Internal Use Only

5 Accessories

For SL75, the following accessories will be available.

Description Part number

Leather Case FCL-700 TBC

Tour Case FCT-650 TBC

Li-Ion Battery 720mAh EBA-730 TBC

Travel Charger ETC-500 L36880-N5601-A104

Travel Charger ETC-510 L36880-N5601-A105

Car Charger Plus ECC-600 L36880-N7101-A109

Car Charger ECC-500 TBC

Desk Top Stand EDS-600 L36880-N6881-A100

Headset Bluetooth® HHB-600 L36880-N7401-A100

Headset Bluetooth® HHB-610 L36880-N7401-A101

Headset Purestyle HHS-610 L36880-N7101-A500

Headset HHS-510 L36880-N5601-A108

Headset Stereo HHS-700 L36880-N7431-A101

Headset Bluetooth® HHB-700 TBC

Headset Bluetooth® HHB-710 TBC

Headset Bluetooth® Stereo HHB-750 TBC

Headset Basic HHS-500 L36880-N5601-A107

Charger Adapter ECA-500 (for Headset Bluetooth®) L36880-N7401-A104

Car Kit Bluetooth® Portable HKW-700 TBC

Car Kit Bluetooth® HKW-600 L36880-N6551-A100

Car Kit Bluetooth® HKW-710 TBC

Car Kit Bluetooth® SIM HKW-720 TBC

Car Kit Portable HKP-500 L36880-N5601-A109

Mobile Music Set IMS-700 L36880-N7431-A110

Flash IFL-600 L36880-N7101-A400

Data Cable DCA-500 L36880-N5601-A110

Data Cable USB – serial DCA-510 L36880-N5601-A111

Data Cable USB – USB DCA-540 L36880-N6501-A102

SyncStation DSC-600 TBC

Note: Visit the Communication Market for updated accessories:

https://communication-market.siemens.de/

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 10 of 44 Internal Use Only

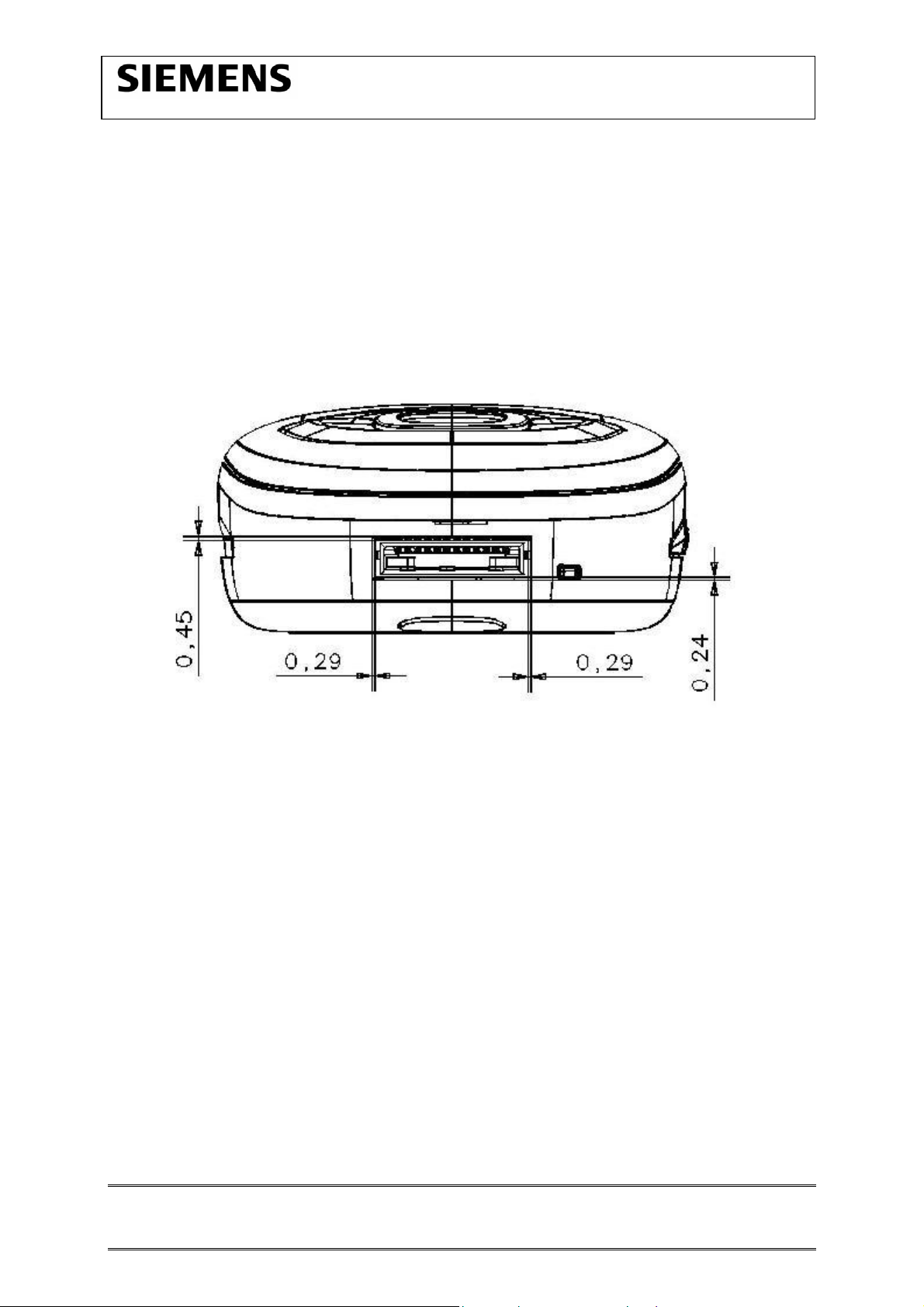

5.1 SL75 Interface to Accessories

Hydra does not have an external coax connection. Further more will the support for the

cradles be done bye the 3D shape not additional cuts or hulls are introduced. I/O is the

standard slim Lumberg known from the 65Generation.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 11 of 44 Internal Use Only

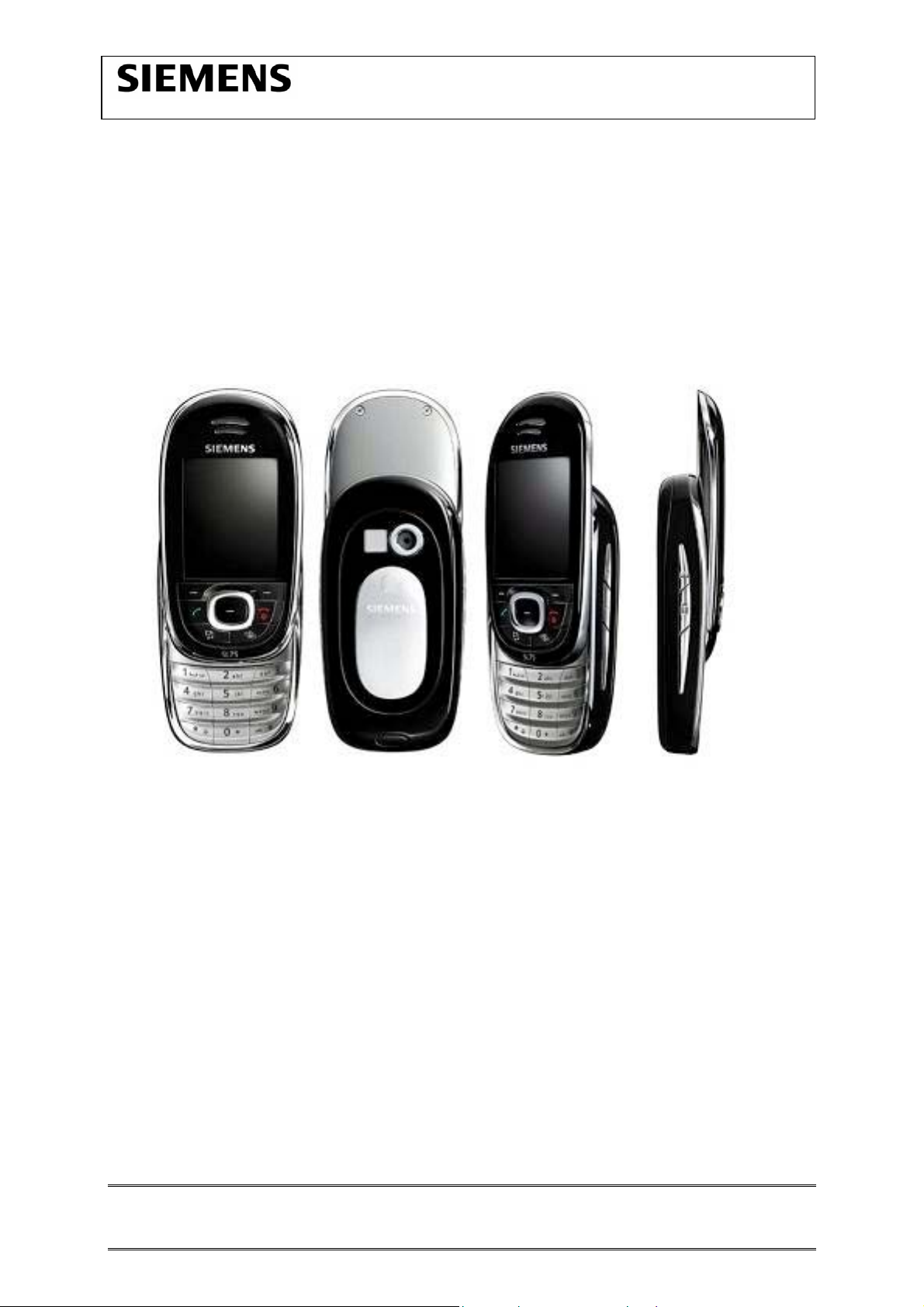

6 Unit Description of SL75

Hydra is a slider devices and the placement of different parts is analog to SL55 and

SL65. Hydra is deviate from the former slider devices on two main points slider system

and the number of parts. The slider system, which is delivered as one module is made in

Magnesium and stainless steel. The slider movement is assisted by 2 springs.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 12 of 44 Internal Use Only

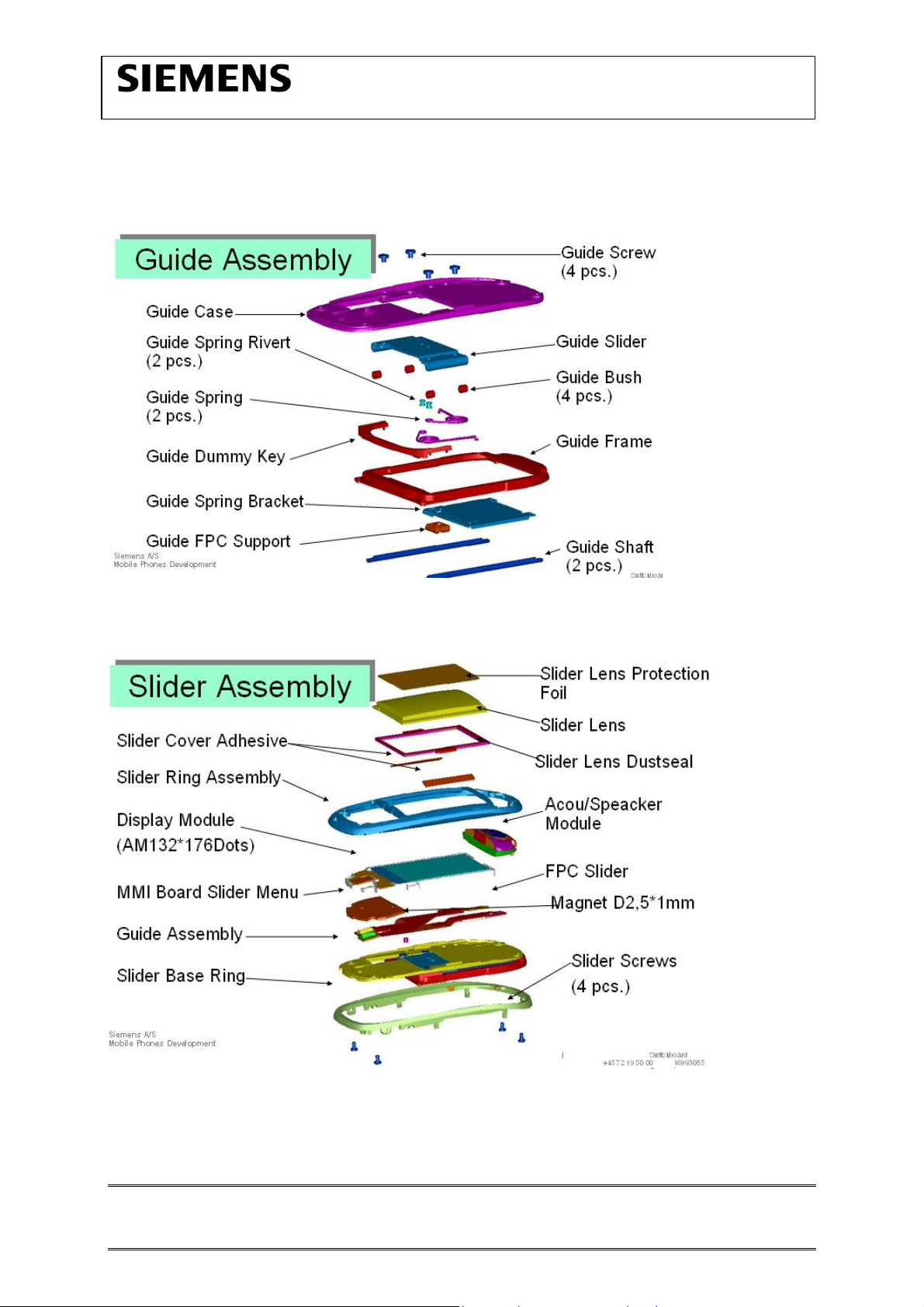

6.1 Exploded View of SL75

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 13 of 44 Internal Use Only

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 14 of 44 Internal Use Only

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 15 of 44 Internal Use Only

7 Disassembly of SL75

Note: ESD concept; the internal circuits will be more susceptible to ESD because of

the use of exchangeable housing. The construction of the internal block must be/is

designed, in the best possible way, to protect the circuit against sparks.

The keypad must be completely closed to prevent any occurrence of an ESD

disruptive discharge.

The SIM contacts may be open, thus reachable for ESD contact discharge. This

could lead to damage or destruction of the S-Goldlite pins.

It is a requirement for the service personnel to observe ESD protection rules while

performing servicing the SL75.

Step 1

Front view of the SL75

Step 2

Back View of the SL75

Step 3

Remove Battery cover.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 16 of 44 Internal Use Only

Step 4

Remove Battery.

Step 5

Remove SIM card.

Step 6

Unscrew the 4 T5 plus screws using a Torque screw driver.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 17 of 44 Internal Use Only

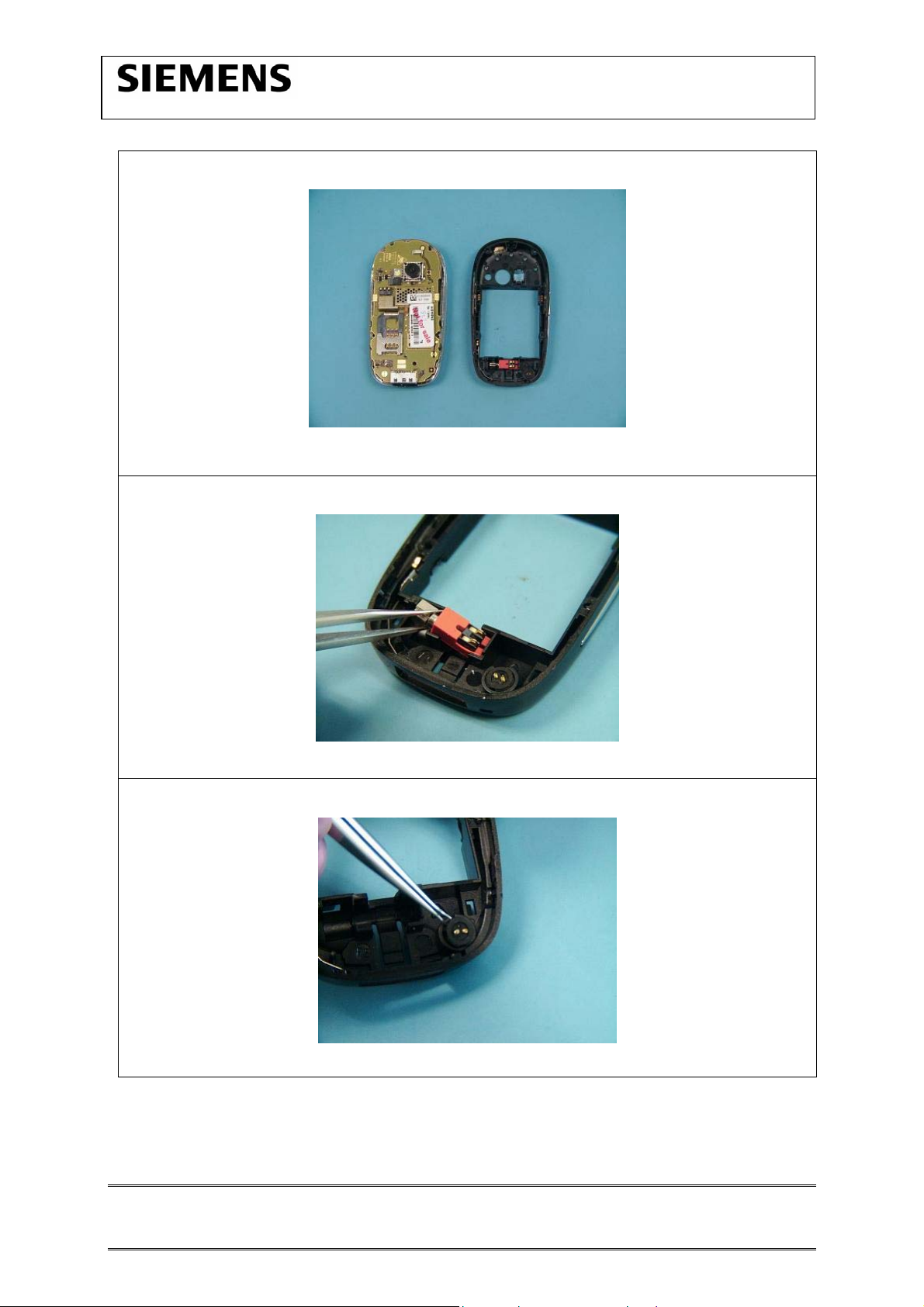

Step 7

Remove Base assembly.

Step 8

Remove Vibramotor from Base assembly.

Step 9

Remove Microphone from Base assembly.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 18 of 44 Internal Use Only

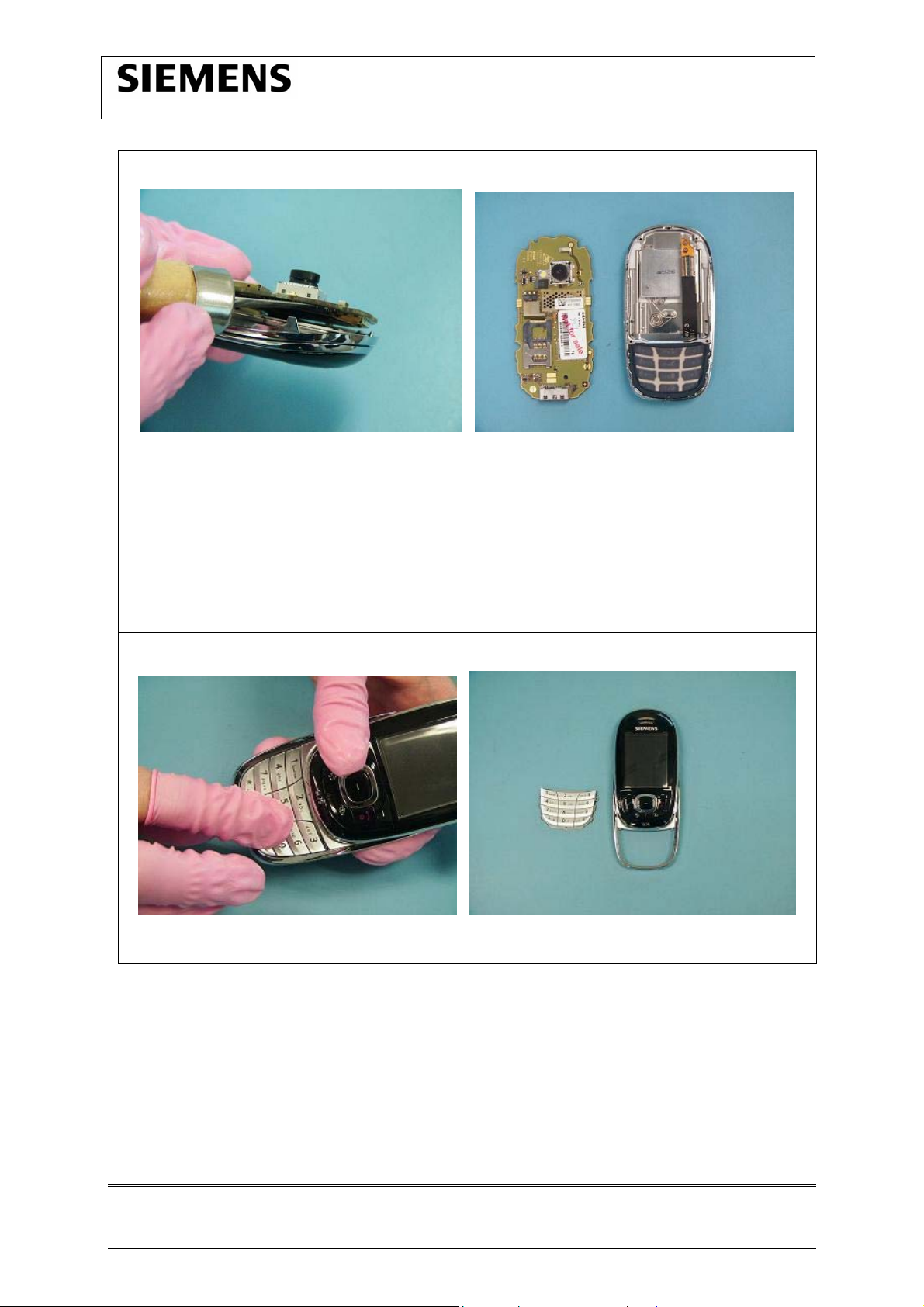

Step 10

Disconnect flex cable before removing main board from Slider assembly.

Step 11

Remove Camera module – Refer to Chapter 9 for Camera Module assembling and disassembling instructions.

Step 12

Remove Base keypad from Slider assembly.

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 19 of 44 Internal Use Only

Step 13

Remove 4 Guide screw from Slider assembly using Phillip screw driver (‘+’ type).

Step 14

RemoveGuilde assembly from slider assembly.

Step 15

SL75 Level 2 Service Manual

COM D CCQ APAC SLI Page 20 of 44 Internal Use Only

Remove flex cable using opening tool.

Step 16

Remove Display Module – Place protective foil over on the Display Module.

Step 17

Remove Earphone.
