Siemens S65 User manual

Issued by
Information and Communication mobile
Haidenauplatz 1
D-81667 Munich
© Siemens AG 2004
All rights reserved. Subject to availability.
Rights of modification reserved.
Siemens Aktiengesellschaft
www.siemens-mobile.com
cyan magenta yellow black LIEBREICH, Medienproduktion
s
mobile
s
mobile
S65
BA S65.QXD 20.02.2004 15:37 Uhr Seite 1

right page (1) of SL65 Iris en A31008-H7700-A1-1-7619 (18.06.2004, 17:01)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65IVZ.fm
Table of Contents 1
VAR Language: en; VAR issue date: 040517
See also Index at the end of this User Guide
Safety precautions ..................... 3
Telephone list ............................ 5
Display symbols ......................... 8
Getting started ......................... 10
Inserting the SIM
card/battery ........................... 10
Charging the battery .............. 11
Switching phone on and
off/entering PIN ....................... 12
Enter PIN ............................... 12
Emergency number (SOS) ...... 12
General instructions ................ 13
Standby mode ....................... 13
Signal strength ...................... 13
Digital Rights Mgmt. (DRM) .... 13
Main menu ............................ 13
Standard functions .................. 15
Highlighting mode ................. 16
Menu speed dialling ............... 16
Security .................................... 17
Codes .................................... 17
Preventing accidental
activation ............................... 18
Text entry ................................. 19
My phone ................................. 23
Calling ...................................... 24
Default book ............................ 30
Addressbook ............................ 31
New entry .............................. 31
Change entry ......................... 33
Dialling an entry .................... 33
Groups ................................... 34
Phonebook ............................... 35
New entry ..............................35
Call (search for an entry) ........36
Change entry ......................... 36
<Special books> ..................... 37
Call records ............................... 38
Durat./charge ............................ 39
Camera ..................................... 40
Photo mode ...........................41
Video mode ............................41
Inbox ........................................ 43
SMS ...........................................44
Write/send ..............................44
Read .......................................46
Setting ...................................48
MMS ......................................... 50
Create ...................................50
Templates ..............................52
Sending an MMS ....................53
Receiving an MMS ..................54
Reading an MMS ....................55
Setting ...................................56
E-mail ........................................58
Write ......................................58
Receive/read ...........................59
Setting ...................................60
Voice message/mailbox ............ 61
Inst. message ...........................62
Start menu .............................62
Login .....................................63
Contact lists ...........................63
Starting to Inst. Message ........66
Table of
Contents
See also In-
dex at the end
of this User
Guide

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65IVZ.fm
left page (2) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 17:01)
2 Table of Contents
VAR Language: en; VAR issue date: 040517
See also Index at the end of this User Guide
Msg. history ........................... 67
Setting ................................... 67
CB services ............................... 69
Text zoom .............................. 70
Surf & fun ................................. 71
Internet ................................. 71
Bookmarks ............................. 73
Games and Applications ......... 74
Downl. assist. ......................... 74
Setup ........................................ 76
Profiles .................................. 76
Themes .................................. 78
Display ................................... 79
Ringtones .............................. 81
Call setup ............................... 83
Phone setup ........................... 85
Clock ..................................... 87
Connectivity .......................... 88
Security ................................. 91
Network ................................ 93
Accessories ............................ 95
ProSlide ................................. 96
My menu .................................. 97
Fast access key ......................... 98
Organiser ............................... 100
Calendar .............................. 100
Appointments ...................... 101
Tasks ................................... 102
Notes ................................... 103
Missed appts. ....................... 103
Dictat.machine .................... 104
Time zones .......................... 105
Extras ...................................... 106
SIM services (optional) .........106
Alarm clock ..........................106
Sound recorder .....................107
Calculator .............................108
Unit converter ......................108
Stopwatch ............................109
Countdown .......................... 110
Remote synchronisation .......110
Media player ........................... 112
My stuff .................................. 113
Mobile Phone Manager .......... 115
Questions & Answers ............. 118
Customer Care ........................121
Care and maintenance ........... 123
Product data ...........................124
Accessories ............................. 125
Quality ....................................127
Battery quality statement ...... 127
Display quality declaration ....127
Guarantee certificate
(UK) ........................................ 128
Guarantee certificate
(IRL) ........................................ 129
SAR – European Union
(RTTE) ..................................... 130
SAR – International
(ICNIRP) .................................. 132
Menu tree ............................... 133
Index ....................................... 139

right page (3) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_SecurityInfo.fm
3Safety precautions
VAR Language: en; VAR issue date: 040517
Safety precautions
Information for parents
Please read the operating instructions and safety precautions carefully before use.
Explain the content and the hazards associated with using the phone to your children.
Remember to comply with legal
requirements and local restric-
tions when using the phone.
For example in aeroplanes,
petrol stations, hospitals or
while driving.
Mobile phones can interfere
with the functioning of medical
devices such as hearing aids or
pacemakers. Keep at least
20 cm/9 inches between phone
and pacemaker. When using
the mobile phone hold it to the
ear which is further away from
the pacemaker. For more infor-
mation consult your doctor.
The ringtone (p. 81), info tones
(p. 85) and handsfree talking
are reproduced through the
loudspeaker. Do not hold the
phone to your ear when it rings
or when you have switched on
the handsfree function (p. 26).
Otherwise you risk serious
permanent damage to your
hearing.
Only use original Siemens bat-
teries (100 % mercury-free) and
charging devices. Otherwise
you risk serious damage to
health and property. The battery
could explode, for instance.
Small parts such as the SIM
card, sealing stop, lens ring and
lens cap can be dismantled and
swallowed by small children.
The phone must therefore be
stored out of the reach of small
children.
The mains voltage specified on
the power supply unit (V) must
not be exceeded. Otherwise
the charging device may be
destroyed.
You may only open the phone
to replace the battery (100 %
mercury-free) or SIM card. You
must not open the battery under
any circumstances. All other
changes to this device are
strictly prohibited and will
invalidate the guarantee.

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_SecurityInfo.fm
left page (4) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Safety precautions4
VAR Language: en; VAR issue date: 040517
Do not use an optical magnifier
to look at the activated infrared
interface [Class 1 LED product
(classification as per
IEC 60825-1)].
Important
Please dispose of unwanted
batteries and phones as permit-
ted by the laws in your country.
The phone may cause interfer-
ence in the vicinity of TV sets,
radios and PCs.
Use only Siemens original ac-
cessories. This will avoid poten-
tial risks to health or property
and ensure compliance with all
relevant regulations.
Improper use will invalidate the guarantee!
These safety instructions also apply to
Siemens original accessories.

right page (5) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Overview.fm
5Telephone list
VAR Language: en; VAR issue date: 040517
Telephone list
1ACall key
Dial phone number/name displayed/
highlighted, take calls. Show last phone
numbers dialled in standby mode.
2BOn/Off/End key
• Switched off: Press and hold to
switch on.
• During a conversation or in an appli-
cation: press briefly to finish.
• In menus: Press briefly to go back
alevel.
Press and hold to go back to standby
mode.
• In standby mode: Press and hold
to switch off phone if the keypad
is closed.
• Keylock in standby mode, keypad
closed: Press briefly to lock keypad.
Press briefly and confirm with §OK§ to
unlock the keypad.
3Joystick
CPress the joystick down vertically
to start an application or function.
The actual function is shown be-
tween the soft keys (p. 14).
In standby mode:
COpen main menu.
GOpen user profiles.
HOpen phonebook/addressbook.
EOpen Inbox
DStart the camera.
In lists, messages and menus:
IScroll up and down.
DBack one level.
During a call:
ISet volume.
ECall options.
4Soft keys
The current functions of this key are
shown in the bottom line of the display
as §Text§/symbol (e.g. p).
5Internet access
Z£X
Service provider
01.05.2004 10:10
Inbox íNew SMS

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Overview.fm
left page (6) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Telephone list6
VAR Language: en; VAR issue date: 040517
1Loudspeaker
2kl Plus/minus sidekey
• During a call: volume loud-quiet.
• In menus, lists and internet pages:
scroll up and down.
• In standby mode press side key:
Briefly at top: plays last memo.
Press and hold at bottom:
starts camera application.
3Dictation key (in standby mode)
Press and hold: record.
Press briefly: play back.
4Display
5Infrared interface (IrDA)
6*Ringtone
• Press and hold in standby mode:
Switch all audible signals on/off
(except alarm).
• Press and hold on incoming call:
Switch off ringtone for this call only.
7#Key lock
Press and hold in standby mode:
Switch key lock on/off.
8Connection socket
For charger, headset, flash, etc.
9Car Kit support
:Integrated antenna
Do not obstruct the phone above the
battery cover unnecessarily.
This reduces the signal quality.
!Camera
"Mirror for self portrait
Z£X
Service provider
01.05.2004 10:10
Inbox íNew SMS

right page (7) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Overview.fm
7Telephone list
VAR Language: en; VAR issue date: 040517

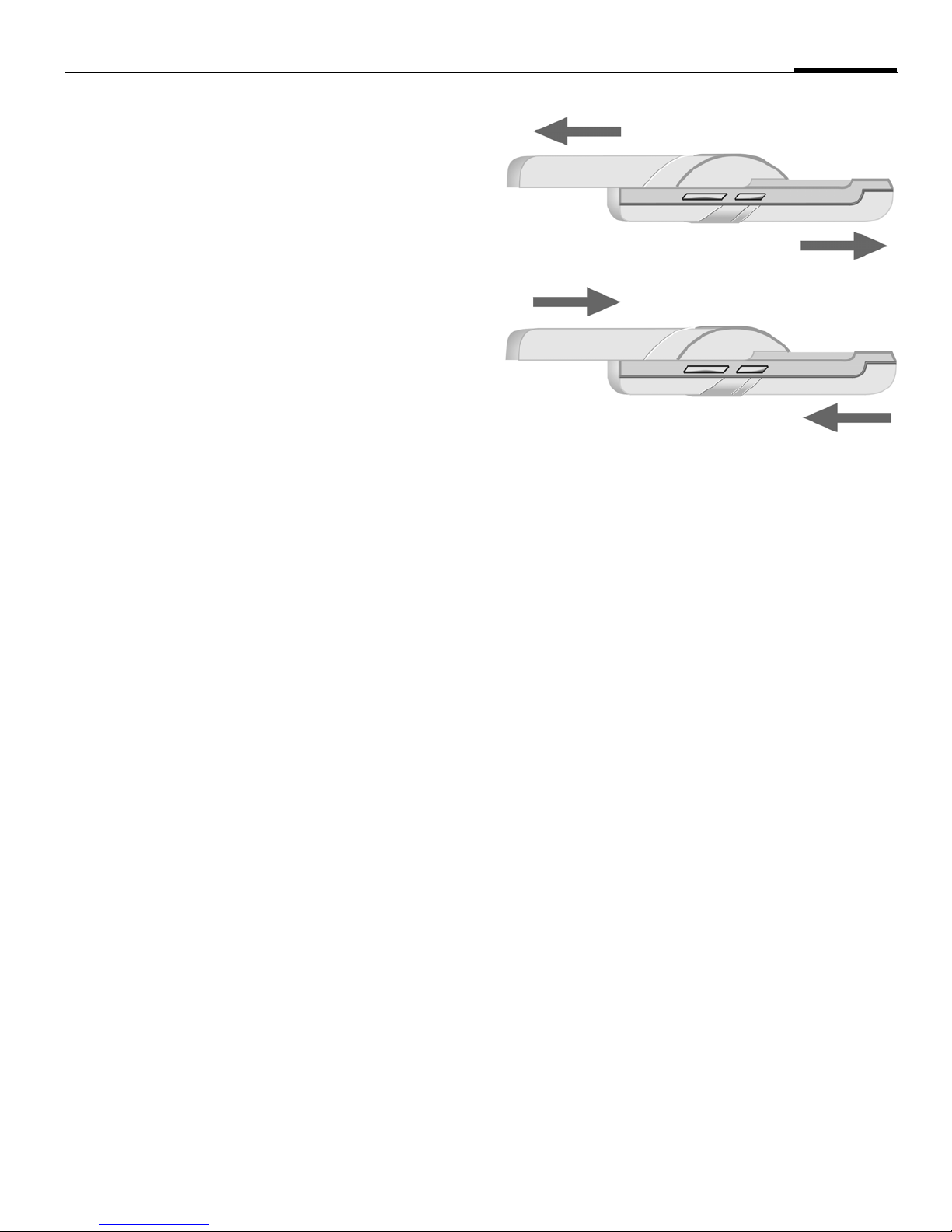

Open keypad completely:
• Light on.
• Keypad unlocked.
• Opening melody on (if set).
• The call is accepted.
• Alarm sound off (appointment, alarm).
Close keypad completely:
• Prompt to decide whether application
should be continued or returned to
standby status.
• Light off.
• Keypad locked (if set).
• Closing melody on (if set).
• The call is ended.
• The call is rejected.
• Alarm sound off (appointment, alarm).

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Displaysymbols.fm
left page (8) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Display symbols8
VAR Language: en; VAR issue date: 040517
Display symbols
Display symbols (selection)
ZSignal strength
YCharging
WBattery charge level,
e.g. 50 %
LPhonebook
PRecords
OSurf & fun
Service supplier portal
QOrganiser
MMessages
RCamera
SExtras
NFile management
TSettings
ÇAll calls are diverted
¿Ringing tone off
¾Short ring (beep) only
¼Ringer only if the caller is
stored in the Phonebook.
¹Alarm set
ÄKeypad locked
ÅAuto answer feature on
T9Abc Text input with T9
£Activated and available
¢Registered
¤Temporarily interrupted
±Internet Offline
²Internet online
³Internet via GPRS online
´Internet no network
¯ IrDA activated
®IrDA transmission
Events (selection)
ãSIM memory full
äMMS memory full
åPhone memory full
ÆNo network access
ÂMissed call
ÊMemory assistant

right page (9) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Displaysymbols.fm
9Display symbols
VAR Language: en; VAR issue date: 040517
Message symbols (selection)
pUnread
qRead
rDraft
sSent
tMMS not sent
wMMS received
xMMS read
yMMS with DRM contents
(p. 13)
zE-mail forwarded
{E-mail with attachment
ÀVoice mail received
Camera symbols
ÈPhoto mode
ÉVideo mode
ÙBrightness
ÚZoom factor
ÛWhite balance
×Flash connected

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
left page (10) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Getting started10
VAR Language: en; VAR issue date: 040517
Getting started
Inserting the SIM
card/battery
The service provider supplies you with
a SIM card on which all the important
data for your line is stored. If the SIM
card has been delivered in credit-card
size, snap the smaller segment out
and remove any rough edges.
• Press the latch 1and simultane-
ously push the cover towards the
front the direction indicated by
the arrow 2.
• Place the SIM card in front of the
slot with the contact surface fac-
ing downwards. Then press the
SIM card slightly to push it in 3
(ensure that the chamfered corner
is in the correct position).
• Insert the battery into the
phone 4, then press it down-
wards 5until it engages.
• To remove, press the retaining tab
on the side of the battery, then lift
the battery out.
• Place the cover in position and
push it towards the front until it
latches into place.
Your phone's dis-
play is delivered
with a protec-
tive film. Re-
move this film
before getting
started.
1
2
Additional information
Please switch off your phone before
removing the battery!
Only 3 V SIM cards are supported.
3
4
5

right page (11) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
11Getting started
VAR Language: en; VAR issue date: 040517
Charging the battery
Charging the battery
The battery is not fully charged
when delivered. Plug charger cable
into the bottom of the phone, plug
power supply unit into a mains pow-
er socket and charge for at least
two hours.
YDisplay during charging.
Charging time
An empty battery is fully charged af-
ter about 2 hours. Charging is only
possible within a temperature range
of +5 °C to 45 °C. If the temperature
rises/falls 5 °C above/below this, the
charge symbol flashes a warning. The
mains voltage specified on the power
supply unit must not be exceeded.
Operating time
The operating time depends upon
the respective conditions of use. Ex-
treme temperatures considerably re-
duce the phone’s standby time.
Avoid placing the phone in the sun
or on a heater.
Call time: 100 to 270 minutes
Stand-by time: 60 to 290 hours.
Charge icon not visible
If the battery has been discharged
fully, the charge icon is not immedi-
ately visible when the power supply
is plugged in. It will appear after up
to two hours. In this case the battery
is fully charged after 3 to 4 hours.
Only use the plug-in power supply in-
cluded in delivery!
Display while in service
Charge level display during opera-
tion (empty–full):
VWX
A beep sounds when the battery is
nearly empty. The charge level of
the battery is only displayed correct-
ly after an uninterrupted charg-
ing/discharging cycle. You should
therefore not remove the battery unnec-
essarily and where possible not finish
the charging process prematurely.
Additional information
The power supply unit heats up when used
for long periods. This is normal and not
dangerous.
If the battery is removed for longer than
30 seconds, the clock must be reset.

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
left page (12) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Switching phone on and off/entering PIN12
VAR Language: en; VAR issue date: 040517
Switching phone on and off/entering PIN
Switching phone on and
off
BPress and hold.
Enter PIN
The SIM card can be protected with
a4to8-digitPIN.
JOpen keypad. Enter the
PIN using the number
keys. The characters ****
appear to ensure
nobody can read your
PIN on the display.
Correction with ].
CConfirm by pressing the
joystick. Logging on to
the network will take a
few seconds.
Emergency number
(SOS)
Only to be used in real emergencies!
By pressing the soft key §SOS§ you can
make an emergency call on any net-
work without a SIM card and without
entering a PIN (not available in all
countries).
Switching on your phone
for the first time
Time/date
During commissioning, set the clock
so that it displays the correct time.
You will not have to make this
setting again.
CPress this key, then select
§Change§.
JOpen keypad. First enter
the date
(day/month/year), then
the time (24 hours, in-
cluding seconds).
CPress this key. The time
and date are updated.
Time zones
Set the time zone for your area.
ISelect the city in the de-
sired time zone
§Set§ and specify this firmly.
Copying SIM addresses
The first time the SIM card is insert-
ed, the entries on it can be copied to
the Addressbook. Please do not inter-
rupt this procedure. During this time,
do not accept incoming calls. Follow
the instructions in the display.
You can also copy data from the SIM
card at a later time (p. 36).

right page (13) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
13General instructions
VAR Language: en; VAR issue date: 040517
General instructions
Standby mode
The phone is in standby mode and is
ready for use when the name of the
service provider appears on the dis-
play. If you now close the keypad,
the phone remains in standby mode.
BPress and hold the
On/Off/End key to return
to standby mode from
any situation.
Signal strength
ZStrong receive signal.
[A weak signal reduces the
call quality and may lead
to loss of the connection.
Change your location.
Digital Rights Mgmt.
(DRM)
Remember that your telephone has
digital rights management. The use
of downloaded pictures, sounds or
appliations can be restricted by the
suppliers, e.g. copy protection, use
for a limited period of time only,
number of times it can be used etc.
(see also p. 75).
Main menu
The main menu is displayed graphi-
cally with symbols:
CCall up from standby
mode.
FISelect the application
symbols.
CStart an application.
Main menu options
§Options§ Open menu.
Different functions are available de-
pending on the context:
Big letters Selection between two
font sizes.
Illumination Set display light bright-
er/darker.
Help Display of a help text.

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
left page (14) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
General instructions14
VAR Language: en; VAR issue date: 040517
User guide
Menu controls
The steps needed to reach a function
are shown in a condensed form in the
user guide, e. g. to display call list for
missed calls in condensed form:
C¢P¢Calls missed
This comprises the following steps:
COpen the main menu.
¢ Select P, then function
Calls missed.
CConfirm.
Symbols
The following symbols are used to
explain operation:
CPress joystick
The symbol in the centre of the low-
er line of the display shows the cur-
rent function when the joystick is
pressed down vertically.
íDisplay menu
îTake photos
ïZoom
ðCancel
ìSelect, Change, OK
ñCall, accept call
JEnter numbers or letters.
BOn/Off/End key.
ACall key
<>Soft keys
§Menu§ Displays a soft-key func-
tion.
CPress the joystick vertically,
e.g., to call up the menu.
D F E
HI G
Press the joystick in the
direction indicated.
=Function dependent on
service provider, may re-
quire special registration.

right page (15) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
15Standard functions
VAR Language: en; VAR issue date: 040517
Standard functions
Option menus
Functions which appear repeatedly
in the options menu are listed here.
§Options§ Open menu.
Edit Open the entry to edit.
View Display entry.
Delete/
Delete all Delete entry/delete all en-
tries after confirmation.
New entry Create new entry.
Send... Selecttransmission service
and medium for sending.
Reply/
Reply to all The sender becomes the
recipient, "Re." is placed in
front of the subject matter
and the received text is
transferred into the new
message.
Save Store entry.
Save to 9Save recipients in the cur-
rent address directory.
Sort Set sort criteria (alphabeti-
cal, type, time).
Text input
(p. 19)
T9 preferred: Activate/de-
activate T9 input.
Input language: Select
language for text.
Rename Rename selected entry.
Capacity Display memory capacity.
Attributes Display properties of the
highlighted object.
Drive info Display name, free memo-
ry and size of actual drive.
Help Display help text.

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
left page (16) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Standard functions16
VAR Language: en; VAR issue date: 040517
Highlighting mode
With some applications (e.g. Phone-
book/Addressbook) one or more en-
tries in a list can be highlighted to
carry out a function jointly.
§Options§ Open menu.
Mark Activate highlighting
mode.
If a non-highlighted entry is selected,
this can be highlighted:
§Mark§ The current entry is high-
lighted.
If a highlighted entry is selected, the
highlighting can be deleted:
§Unmark§ Dehighlight the current
entry.
Additional highlighting functions:
Menu speed dialling
All menu functions are numbered in-
ternally. A function may be selected
directly by entering these numbers
in sequence.
E.g., write new SMS (from standby
mode):
CPress this key to display
the main menu.
5Press this key for
Messages.
1Press this key to
Create new.
1Press this key for SMS text.
Mark all Highlight all entries.
Unmark all Delete highlighting on all
marked entries.
Delete
marked All selected entries are
deleted.
Additional information
In lists use also the Dictation key to
mark/unmark entries.

right page (17) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
17Security
VAR Language: en; VAR issue date: 040517
Security
The phone and SIM card are protect-
ed against misuse by several security
codes.
Codes
C¢T¢Security¢Codes
¢Select function.
PIN control
The PIN is usually requested each
time the phone is switched on. You
can deactivate this feature but you
risk unauthorised use of the phone.
Some service providers do not per-
mit deactivation of the controls.
§Select§ Press this key.
JEnter PIN.
CConfirm input.
§Change§ Press this key.
CConfirm.
Change PIN
You can change the PIN to any
4 to 8-digit number you find easier
to remember.
JEnter current PIN.
CPress this key.
J, CEnter new PIN.
J, CRe-enter new PIN.
Keep these confidential numbers in a
safe place where you can access them
again if required.
PIN Protects your SIM card (person-
al identification number).
PIN2 This is needed to set the charge
detail display and to access
additional functions on special
SIM cards.
PUK
PUK2 Key code. Used to unlock SIM
cards after the wrong PIN has
been entered repeatedly.
Phone
code Protects your phone. Must be
entered at the first security set-
ting.

©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Startup.fm
left page (18) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
Security18
VAR Language: en; VAR issue date: 040517
C¢T¢Security¢Codes
¢Select function.
Change PIN2
(Display only if PIN 2 is available).
Proceed as with Change PIN.
Chg.phonecode
(Change phone code)
You define the phone code (4–8 dig-
its) when you call up a phone-code
protected function for the first time
(e.g. Direct call, p. 29). It is then valid
for all phone-code protected func-
tions.
Following the third unsuccessful at-
tempt, access to the phone code and
the functions that use it is denied.
Contact the Siemens Service
(p. 121).
Clearing SIM card barring
If the PIN is entered incorrectly three
times, the SIM card is barred. Enter
the PUK (MASTER PIN) provided by
your service provider with the SIM
card in accordance with the instruc-
tions. If the PUK (MASTER PIN) has
been lost, please contact your serv-
ice provider.
Preventing accidental
activation
Even if PIN use is deactivated (p. 17)
confirmation is required to switch on
the phone.
This prevents accidental activation
of the phone, e.g. when you are
carrying it in a bag or when you are
travelling in an aircraft.
BPress down.
CPress. The phone switches
on.
§Cancel§ Press or take no action.
The phone does not
switch on.

right page (19) of SL65 Iris en, A31008-H7700-A1-1-7619 (18.06.2004, 16:59)
©
Siemens AG 2003, U:\Siemens\ICM_MP_CCQ_S_UM_RUST\10210-001_vor-Ort-Einsatz\Produkte\SL65\output\FUG\en\SL65_Text.fm
19Text entry
VAR Language: en; VAR issue date: 040517
Text entry
Text entry without T9
Press number key repeatedly until
the required letter appears. After a
brief interval the cursor will advance.
Example:
2Press once briefly to type
the letter a, twice to
type betc.
Press and hold to write the
number.
Ä, ä, 1–9 Umlauts and numbers are
displayed after the rele-
vant letters.
]Press briefly to delete the
letter before the cursor,
press and hold to erase the
whole word.
FMove the cursor
(forwards/back).
#Press briefly: Swap be-
tween abc, Abc, T9abc,
T9Abc, T9ABC, 123. Status
shown in top line of dis-
play.
Press and hold: All input-
variants are displayed.
*Press briefly: Special char-
acters are shown.
Press and hold: Open input
menu.
0Press once/repeatedly:
. , ? ! ’ " 0 + - ( ) @ / : _
Press and hold: Writes 0.
1Writes blank. Press twice
= jumps a line.
Special characters
*Press briefly. The symbols
chart is displayed
1) Line break
I, FNavigate to characters.
§Select§ Confirm.
1)¿¡_;!?,.
+-"’:()/*
¤¥$£€&#\ @
[ ] { } %~<=>
|^§Γ∆ΘΛΞΠ
ΣΦΨΩ
