Siemens S6 GSM User manual

Private Communication Systems
Mobile Phones
Service Manual
S6 GSM / PCN
V 1.3
Total number of pages: 31
V1.3 1 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
Table of Contents
General Information
The S6 is the first model of a whole new handset generation in 3 Volt technology.
It comes either as a GSM or a PCN version.
V1.3 2 PN MP ST
. Schnoor
10/97
Technical Data
Length 159 mm
Width 55 mm
Thickness 16/22 mm
Volume 155 cm³
Weight 165 g
Performance: GSM class 4 (2 Watt)
PCN class 1 (1 Watt)
Powersupply: Lithium Ion battery (3,6V/1000mAh)
Standby time: up to 30 hours
Talk time: Up to 4 hours.
Carging Time: Full charge in 2.5 hours
isplay LC high-resolution graphic display, 97 x 33 pixels, 4 rows
of 16 characters
SIM Card Type: Small (plug in) 3V or 5V

Private Communication Systems
Mobile Phones
Mechanical Concept
Note: All part numbers refer to mechanical drawing in section 4.1!
The S6 consists of two boards, the RF & Control module (1010) and the user
interface (1020).
The connection between those two boards is not made by a normal connector with
plug-in contacts, but by a special interconnector (1090) embedded into a shielding
frame (1060). This interconnector is upholding the connection through the pressure
implied on it by the housing.
Be careful when assembling the interconnector. Avoid any kind of dust or dirt
because it will affect the contacts of the interconnector.
The only removable part on the user interface is the ringer gasket (1080) which is
needed to increase the ringer volume.
Furthermore there is a RF-plug on the user interface which has to be plugged into
the appropriate connector on the RF & control module. This conection is very
essential because it is the RF signal from / to the internal antenna.
The shielding is done by the lower case shell (1050) which is covered with a
conductive material, so no additional shielding screen is necessary.
The antenna (1130) is directly screwed into the lower case shell.
The keypad (1030), the loudspeaker (1120), the microphone (1110) and the dust
protection frame (1210) are mounted into the upper case shell (1040). Make sure
that the microphone contacts are properly bent up when mounting.
When turning in the screws (1140, 1145 and 1150) make sure that the right torque is
used (25 Ncm), because this will have an effect on the contacts of the
interconnector.
Note: Make sure that you mount the right antenna, the GSM antenna has two
stripes, the PCN antenna only has one!
V1.3 3 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
S6 GSM / PCN mechanical drawings
V1.3 4 PN MP ST
. Schnoor
10/97

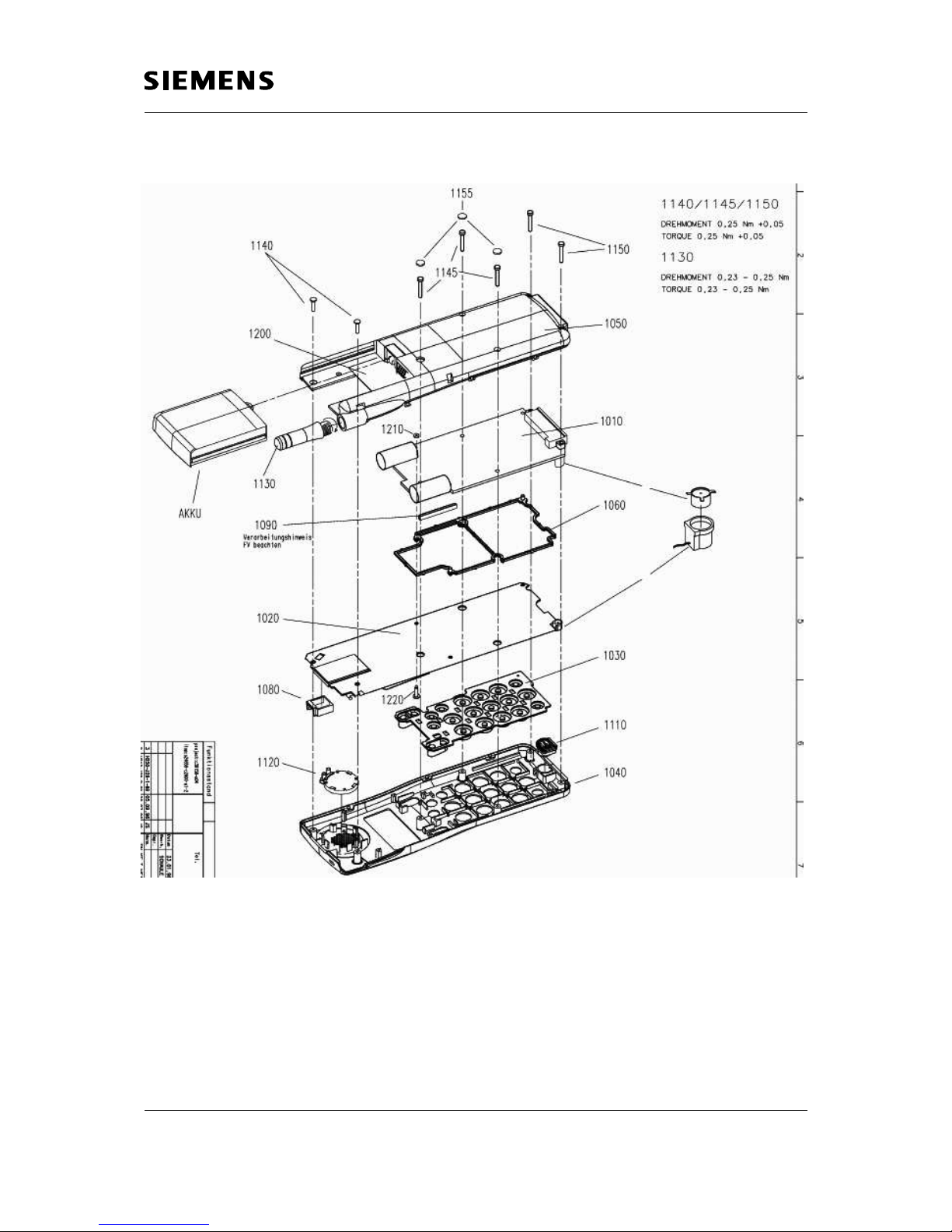

Fi ure 1: Mechanical Drawin S6

Private Communication Systems
Mobile Phones
Note: The numbers displayed in the above drawin s are NO ORDERING Nos,
use the numbers in chapter 11 for orderin !
Ordering number for dust protection frame:
L36859-A4-C141
V1.3 5 PN MP ST
. Schnoor
10/97

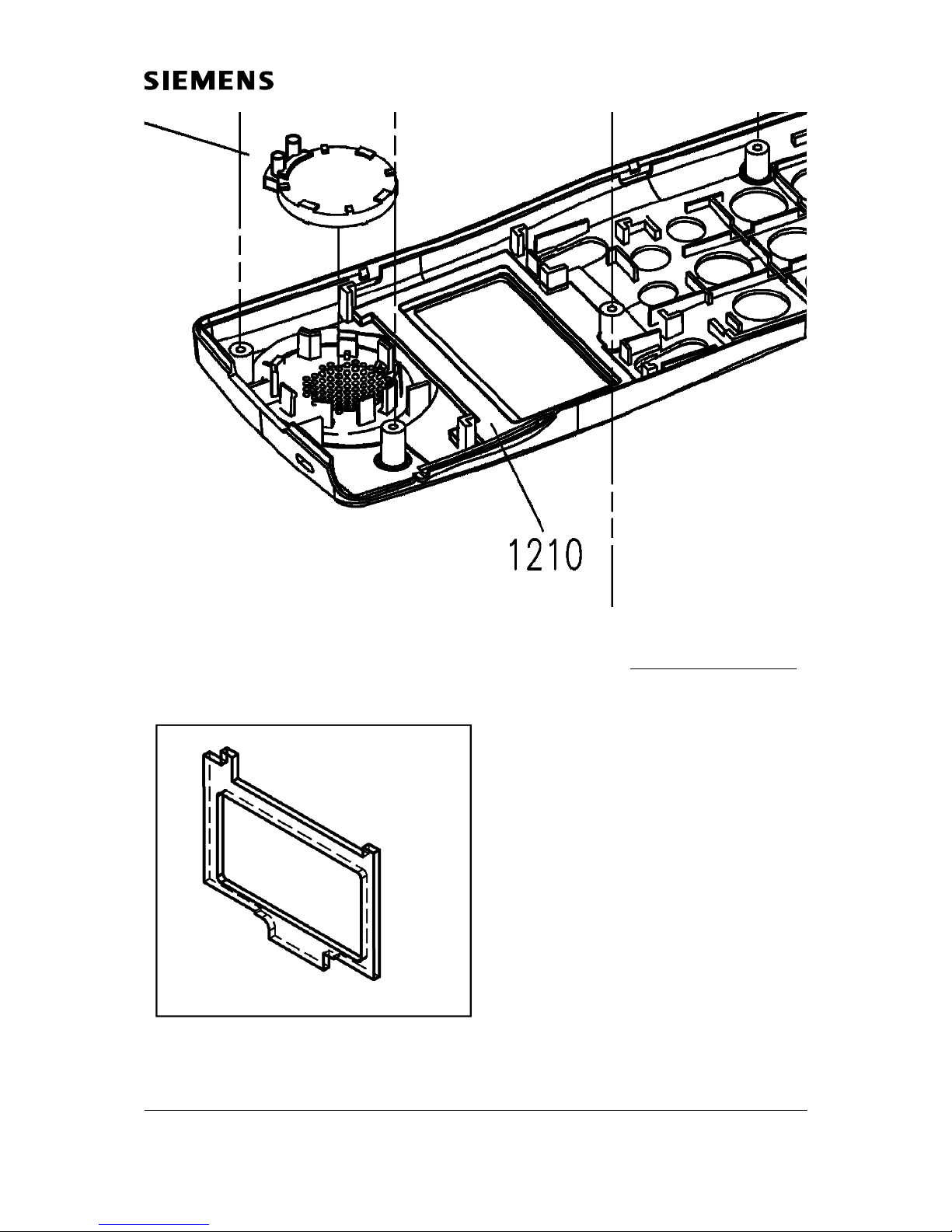

Fi ure 2: Display with Dust Protection Frame
Fi ure 3: Dust Protection Frame

Private Communication Systems
Mobile Phones
Disassembling the S6
ESD re ulations have to be followed!
1. Remove battery and SIM-Card.
2. Unscrew antenna (1130).
3. Unscrew 2 oval head screws (1150) (Torx 1,8x12).
4. Turn out 2 short flat head screws (1140) (Torx 1,8x8).
5. Remove plastic disks (1155) and turn out the 3 long flat head screws (1145)
(Torx 1,8x12).
6. Lift off the lower case shell (1050).
7. Lift composite of MMI-board (1020) and RF-and controle module (1010) out of
the upper case shell (1040).
Only for level-2 repairs:
a) Remove ringer gasket (1080) from the MMI board (1020).
b) Remove RF plug from RF- and control module (1010).
c) Take off the MMI board (1020).
d) Take frame (1060) off the RF- and control module (1010).
e) Remove interconnector (1090) from the frame (1060).
8. If necessary: Take battery connector out of lower case shell (1050).
9. Remove the dust protection frame (1210) from the upper case shell (1040).
10. Take keypad (1030) out of upper case shell (1040).
11. Remove earphone capsule (1120) and microphone (1110) from upper case
shell.
Assembling the S6
V1.3 6 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
ESD re ulations have to be followed!
1. Put earphone capsule (1120) and microphone (1110) into upper case shell.
2. Insert keypad (1030) into upper case shell (1040).
3. Put dust protection frame (1210) on display window inside upper case shell.
4. If necessary: Insert battery connector into lower case shell (1050).
5. Insert composite of MMI-board (1020) and RF-and controle module (1010) into
upper case shell (1040).
BEFORE (only for level 2 repairs):
a) Put interconnector (1090) to the frame (1060).
b) Positioning of frame (1060) on the RF- and control module (1010).
c) Place MMI board (1020) on top of frame (1060).
d) Connect RF plug of MMI board (1020) to RF- and control module
(1010).
e) Mount ringer gasket (1080) on the MMI board (1020).
6. Close device with upper case shell (1040). Make sure that the 6 hooks of the
upper case shell fit firmly into the respective slots of the lower case shell
(1050).
7. Screw 3 long flat head screws (1145) (Torx 1,8x12 /Torqe 25 Ncm) into lower
case shell (1050). Close holes with plastic disks (1155) afterwards.
8. Screw 2 short flat head screws (1140) (Torx 1,8x8 /Torqe 25 Ncm) into lower
case shell.
9. Screw 2 oval head screws (1150) (Torx 1,8x12 /Torqe 25 Ncm) into lower case
shell.
10. Screw in Antenna (1130) (Torqe 25 Ncm).
11. Insert SIM-Card and battery.
Board Versions
V1.3 7 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
In the S6 mechanical drawing you see a bolt (position 1220) which is holding the
RF&control module and the user interface together. This bolt was mounted only in
the first 100k S6 handsets produced.
The handsets produced later are using different board versions with different part
numbers (see table below!)
If a bolted handset comes back for service and one of the boards is defective, do not
try to separate them. Just send the whole sandwich back to Germany.
Attention!
These numbers are not the spare part ordering numbers, they are manufacturing
numbers printed on the boards itself.
Do not use them for ordering spare parts!
V1.3 8 PN MP ST
. Schnoor
10/97
S6 GSM/PCN Board Versions
GSM:
Old version (with bolt):
Main Board: S24859-A2600-A1-x
MMI-Board: V24851-Z1508-A9-x
New version:
Main Board: S24859-A2600-A -x
MMI-Board: V24851-Z1508-A17-x
PCN:
Old version (with bolt):
Main Board: S24859-A3600-A1-x
MMI-Board: V24851-Z1508-A10-x
New version:
Main Board: S24859-A3600-A -x
MMI-Board: V24851-Z1508-A18-x
Furthermore, the new versions are usin a different shieldin frame and a
different interconnector !

Private Communication Systems
Mobile Phones
Upper Case Protection
If the bolted boards are used, it
has to be made sure that one
guiding pin in the upper case
shell is removed (see drawing!).
If the pin is not removed, the
case may break!
Attention!
o not remove the pin if the
unbolted boards are used!
The removal of the pin is simply
done by cutting it off with a sharp
knife or cutter.
Handset Datecodes
Siemens is using the industrial standard IN EN 60062 to indicate the production /
service dates. The code is printed on the IMEI sticker located under the simcard
reader.
V1.3 9 PN MP ST
. Schnoor
10/97
uidin
pin
-> YY = atecode

Private Communication Systems
Mobile Phones
The first character of the datecode indicates the year of production:
F = 1995
H = 1996
J = 1997
The second character indicates the month of production:
1-9 = january to september
O = october
N = november
= december
Example: H means that the set was produced in december of 1996.
Hardware Concept
Block Diagram
V1.3 10 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
V1.3 11 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
Hardware Description
The handset consists of five major integrated circuits:
1) GOL -µC (PMB 2706)
This microprocessor is responsible for controlling the keyboard, SIM-Card,
EEPROM, Flash and RAM.
Furthermore it interfaces the GOL -SP (PMB 2707), controls the power up/power
down of the RF module and sets the amplification of the PA.
2) GOL -SP (PMB 2707)
This signal processor is responsible for processing the Rx I/Q signals (filtering,
equalizing, speech and channel decoding).
Furthermore it does the speech and channel encoding and the GSMK modulation of
the Tx I/Q signals.
3) GAIM (PMB 2905)
The GAIM provides the interface between the analogue signals (I/Q, voiceband, PA-
control) and its digital representation.
4) Receiver Circuit (PMB 2405/07)
This circuit provides the following main functionalities:
a) Low Noise Amplifier (LNA) with a fixed amplification of +20dB to amplify the input
RF signal.
b) Mixer to mix down the RF signal to the Intermediate Frequency (IF)
c) Programmable IF amplifier with a dynamic range of 60dB ( -10dB ... +50dB in
steps of 2dB)
d) Mixer to mix down the IF signal to the baseband, generating and inphase (I) and a
quadrature (Q) signal.
e) Offset compensation for the I/Q signals.
5) Transmitter Circuit PMB 2240/45
This circuit provides the IF synthesizer, the I/Q modulator, prescalers to regulate the
RF synthesizer and a buffer stage to feed the PA.
The antenna switch is mechanical, whenever you plug in the bottom connector,
the handset will switch to its external antenna.
V1.3 12 PN MP ST
. Schnoor
10/97
TH

Private Communication Systems
Mobile Phones
Power Supply Concept
The S6 has two main power inputs (see Blockdiagram):
1) Battery Voltage (3.6 Volts) connected at the battery contacts
2) Charging Voltage (6.5 Volts) delivered by
a) The plug-in charger at the charging plug
b) The desktop charger (using the charging contacts at the bottom of the phone)
Since the battery voltage is supplying the power supply asic, it is always needed to
operate the phone. You cannot switch on the handset if the battery voltage is not
present.
From the 3.6 V battery voltage, all other supply voltages of the S6 are derived, controlled by the
power supply ASIC.
The RF module needs 6.4 V for its PA, this voltage is generated by a step-up converter.
The logic module uses 2.8 V, generated by a simple linear regulator.
Furthermore the ASIC generates the supply voltage for the SIM-Card and the RESET signal for the
logic devices.
The ASIC also checks the presence of the watchdog signal from the µP and provides the switching on
functionality (ON_OFF button or Ignition signal).
V1.3 13 PN MP ST
. Schnoor
10/97
ON_OFF Button
S6 GSM/PCN
Power Supply
ASIC
+3.6 V
Batt+
+6.5 V
Power
V
Ignition
Watchdog
Charging Control
Power etection
(to µP)
Charging On
(from µP)
Switching
Regulator
Linear
Regulator
+6.4 V
+2.8 V
Logic Supply
RF Supply
Control
Control

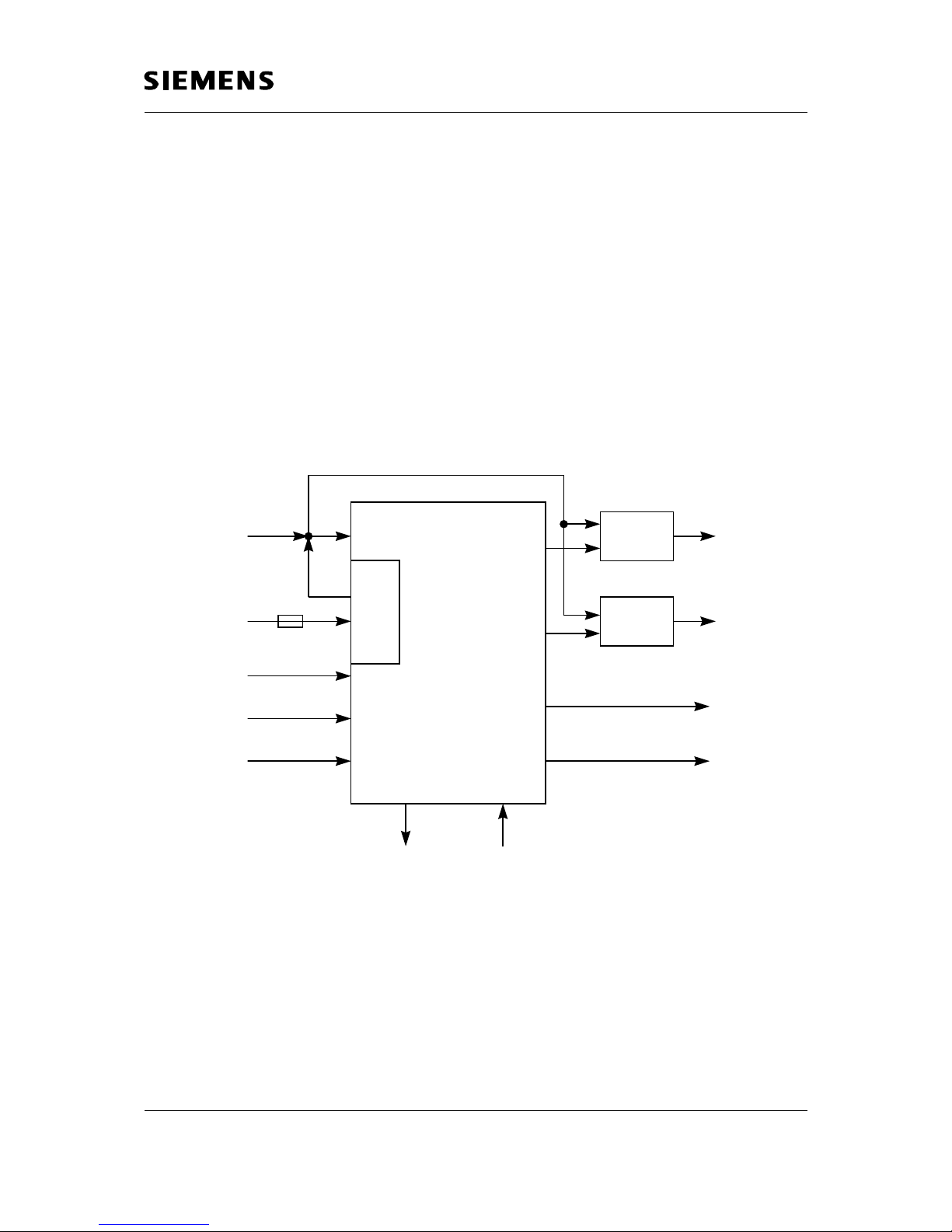

Blockdia ram S6 Power Supply
SIM Supply
RESET
1A

Private Communication Systems
Mobile Phones
uring testing ist is advisable to use a battery dummy, connected to a power supply delivering +4V,
max 3A.
Make sure that you connect the battery dummy with the right polarity, the red plug to +4V and the blue
plug to ground.
If you use a voltage higher than +7V, or with wrong polarity, the phone can be
destroyed!
Overvoltage Conditions
a) Battery Voltage: If the battery voltages rises above 6.2 Volts, the phone will
switch off and it cannot be switched on again before the
voltage is lower than 6.2 Volts.
If the battery voltage rises above 7 Volts the phone can be
destroyed.
b) Charging Current: The charging current must not rise above 1 A or the
phone (fuse) will be inoperable.
-> Be careful with foreign accessories or chargers!
-> Make sure that the charging current is limited to a value below 1A!
S6 GSM / PCN Software Options
The following list will help you to understand what the different software options
are for and how they are used.
Keep in mind that many of these features are network dependent, a malfunction
cannot automatically be blamed on the handset.
V1.3 14 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
OPTIONS
1 RINGER
2Rin er On / Off
The ringer can be switched on or off
3Volume Adjust
The ringer olume can be adjusted
4Tone Adjust
The ringer tone can be adjusted
5 DIVERT
6If not Reachable Clear / Set / Check
Di ert when the phone is switched off
7If no Reply Clear / Set / Check
Di ert if nobody answers the call
8All Calls Clear / Set / Check
Di ert all incoming calls
9If Busy Clear / Set / Check
Di ert if the line is busy
10 CONTROL USE
11 Key Lock
Lock your keys from unwanted pressing.
Unlock by holding down the „#“ button.
12 Pin Control Alter / On / Off
Some networks allow you to swith off
your PIN control
13 Allow only *&Set / Clear PIN2
This will limit all outgoing calls to the
numbers stored in the
FDN - Phonebook (FDN = Fixed Dialling
Numbers), which is only
a ailable in a phase 2 SIM-Card.
If you are using a phase 1 SIM-Card you
will see the following:
Allow only &Set / Clear
PHONECODE
This will limit all outgoing calls to the
numbers stored in the normal
Phonebook.
V1.3 15 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
14 Allow last 1-5 Set / Clear PHONECODE
This will limit all outgoing calls to the
numbers
stored in the redail list (maximum fi e
numbers!)
15 Call Screenin Set / Clear PHONECODE
This feature will filter the incoming calls.
If a call comes in which
number is stored in the phonebook, the
phone will ring.
Otherwise the phone will only gi e an
indication on the display.
16 SIM Lock
17 Prevent new SIM Set / Clear PHONECODE
If you set this feature, the phonecode
will
be acti ated.
Whene er another SIM-Card is inserted,
the phone will ask for the phonecode.
18 Network Lock Set / Clear NETWORKCODE
If you ha e a network lock acti ated,
the phone will only accept SIM-Cards
of this network operator.
19 Service-P. Lock Set / Clear SERV.-P. CODE
If you ha e a ser ice pro ider lock
acti ated, the phone will only accept
SIM-Cards of this ser ice pro iders.
20 Loan Phone Set / Clear PHONECODE
If you set this feature, the „Pre ent new
SIM“
feature will be acti ated, and you cannot
change
the charging information anymore.
21 Network Barrin
22 All Calls Out Set / Clear PASSWORD
No outgoing calls possible
23 Out Internat. Set / Clear PASSWORD
Just national calls allowed
24 Out Int.excHome Set / Clear PASSWORD
No international calls except to the home PLMN
V1.3 16 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
25 All Calls In Set / Clear PASSWORD
No incoming calls possible
26 When Roamin Set / Clear PASSWORD
No incoming or outgoing calls when roaming
27 MESSAGES
28 Voice Messa e Alter / Hear
You can sa e the telephone number of
your oice
mailbox to hear your messages
29 .....Text ( x old )
Read your recei ed SMS messages
30 Send Text
Send a SMS message
31 ......Known Calls
Telephone numbers of calls not
accepted.
Only a ailable if CLIP is acti e!
32 GSM (PCN) SERVICE
33 Network Info
This feature will show you all a ailable
and accessible
GSM (PCN) networks
34 Reselect Netw.
Restart the network searching process
35 Auto Network On / Off
If you switch on auto network the mobile
will first
try to find the home network, then the
networks in
the network list and finally the strongest
a ailable
36 Network List
Free programmable priority list for
networks
37 Call Waitin Check / On / Off
The second call coming in will be
indicated (knocking)
38 Conceal ID Check / On / Off
Your number will not be presented to the
V1.3 17 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
called party (CLIR)
39 Power Save Mode On / Off
Periodic location update will be delayed to sa e energy
40 TIME CHARGE
41 Last Call
Length and cost of last call
42 Total Calls Clear (PHONECODE)
Lenght and cost of all calls
43 Auto Display On / Off
Automatic lenght and cost display
44 1 Minute Beep On / Off
1 minute indication during call
45 Char e Rate
Setting of charge rate
46 Char e Limit On / Off (PHONECODE / PIN 2)
Setting and acti ating of charge limit
If you ha e a phase 1 SIM-Card you will
ha e to enter
the phonecode, with a phase 2 SIM-
Card the PIN 2 is
needed.
47 LANGUAGE
48 Automatic
Language which preferred in the SIM-
Card is used,
if the language is in the mobile software.
49 En lish
50 Deutsch
51 Francais
52 CAR USE
53 Auto Answer On / Off
If a call comes in it will be automatically
answered
54 Auto Power Off
You can set the time of auto power off
after ignition
has been switched of.
V1.3 18 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
55 SET UP
56 DTMF Key Tone On / Off
DTMF for remote control of answering
machines etc.
57 Key Sound Click / Tone / Silent
58 Any Key Answer On / Off
Any key will hook off
59 Illumination On / Off
Switch off illumination permanently to
sa e energy
60 Own Greetin On / Off
Program your own greetings text
61 Service Tones On / Off
Ser ice tones are audible when loggin
into the net-
work or connecting a call etc.
62 Master Reset
This feature will reset factory settings,
but not the se-
curity codes or charge limits etc.
63 Phone Status
This shows your IMEI-Number and the Software-Date
(Press left softkey once!)
V1.3 19 PN MP ST
. Schnoor
10/97

Private Communication Systems
Mobile Phones
Software pro rammin
The software of the S6 GSM / PCN handsets is programmed directly from a PC
using the bootadapter (see drawing below).
Description of software booting
Connect COM-port of PC with bootadapter using the enclosed RS232 cable.
Afterwards plug in AC-Adapter, if connected correctly the „Power“ lamp will be
active.
Switch off handset and connect it to the bootadapter with the connection cable.
Copy bootsoftware to your PC and follow the instructions in the „readme.txt“.
Ordering Number Bootadapter: L24857-F1006-A30
The bootadapter comes complete with AC-Adapter,
RS-232 and handset connection cable.
V1.3 20 PN MP ST
. Schnoor
10/97
AC-Adapter
RS-232
Bootadapter
Connection Cable
