MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 2 of 37 Internal Use Only

Table of Contents

1 GPRS (GENERAL PACKET RADIO SERVICE)……….3

2 K JAVA APPLICATION……………………………………………………………….4

3 KEY FEATURES……………………………………………………………………….5

4 COMPARISON WITH PERVIOUS PRODUCT...……………………………………7

5 ACCESSORIES……………………………………………………………………......8

6 UNIT DESCRIPTION MC60 ………..……………………………………………….10

7 DISASSEMBLYOF MC 60....………………………………………………………..15

8 REASSEMBLY OF MC 60…………………………………………………………..18

9 MOBILE SOFTWARE PROGRAMMING…………………………………………..19

10 SIEMENS SERVICE EQUIPMENT USER MANUAL……………………………..22

11 PICS NTERNET………………………………………………………………………23

12 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI……………………..31

13 GENERAL TESTING INFORMATION……………………………………………..32

Annex 1……………………………………………………………………………………….36

Annex 2……………………………………………………………………………………….37

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 3 of 37 Internal Use Only

1 GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

2 K-Java Application

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 4 of 37 Internal Use Only

Java-based game system

Java Application Manager

(JAM)

Application launcher and

download manager.

Supports HTTP-based OTA

download of applications over

GPRS and CSD.

yes

RAM for Java applications Available RAM for Java

applications (i.e. Program code

and data) during application

runtime:

Minimum 100 Kbytes (Has to be

taken as working assumption

for application development).

Goal: 145 Kbytes as SL45i (not

committed)

yes

MIDP 1.0, CLDC 1.0 As SL45i, including

performance optimizations from

SL45i-Infusio.

yes

‘OEM extensions’ Proprietary API extension as

SL45i. Including ‘Siemens

Game API’

yes

HTTP API over GPRS Sl45i: only CSD yes

3 Key Features

Bands • Tri Band E-GSM 900 / GSM 1800 / GSM 1900

• GPRS Multi Class 8

Battery • Li-Ion Battery Pack

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 5 of 37 Internal Use Only

• Nominal Voltage : 3.6V

• Nominal Capacity : 750 mAh

• GSM Capacity : 700 mAh

• Power Input : 1.8A (0.6 ms) / (4 ms)

• Cut-off Threshold : 3.2V

Stand-by Time • Approx. 250 h / Li-Ion (measured at BSPAMFRMS = 9;

Number of neighboring cells = 0)

Talk Time • Best case approx. 5 hours (lowest output level with

DTX

• Worst case approx. : 2.0 hours (highest output level with

DTX)

Condition for DTX : 40% user talk time

SIM Card

• Small (”Plug In”) 3V SIM card (Phase II)

• To insert the SIM card, the battery pack must be

removed.

GSM Antenna

• A triple band PIFA antenna will be an integral part of the

mobile phone.

Receiver Sensitivity

• EGSM: -102 dBm (-104dBm-15.2) (Specification; static

& with fading)

• PCN : -102 dBm (Specification; static & with fading)

The reception sensitivity must comply with the corresponding

GSM recommendations in all operating conditions

(temperature,

battery level ...).

• EGSM: measurements according typical sensitivity are

not yet available.

• PCN: measurements according typical sensitivity are

not yet available

Measurement values are referred to the external antenna

connector.

Transmitter Power • EGSM: nominal 2W (Specification: Class 4 Mobile

phone)

• PCN: nominal 1W (Specification: Class 1 Mobile phone)

Transmitter output characteristics is according to GSM 11.10

specification implying all specified operating conditions

(temperature, battery level ...).

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 6 of 37 Internal Use Only

Transmitter set points will be specified for GSM and PCN when

typical values and statistical values become available.

Speech Codec

• Triple Rate (HR/FR/EFR) and AMR

Temperature

Range

• -100C to +550C (Normal operation)

• -300C to +850C (Storage capability)

Display • Type: Full Graphic

• Resolution: 101 x 80 Pixel

• Color depth: 4096

• Technology: Color STN

• Active area / mm: 29.379 x 25.265

• Visible area / mm: max. 32.4 x 28.9

• Illumination: 2 White LED

• Contrast: Adjustable

Keypad • Partially bridgeless

• 12-digit block (0-9, #, *) and two function keys (SEND,

END) in one block with small letters.

• ON/OFF key combined with the END key; the symbol _

(I inside O) is used as a symbol for ON/OFF.

• 2 soft keys

• 2-way navigation key

• Illumination color : Red

• Dedicated picture key “5”

Acoustics

• Comfortable earpiece

• Omni-directional microphone

4 Comparison with Previous Product

Feature M55 MC 60

Supported Systems Triple Band – EGSM 900 /

1800 / 1900

Triple Band – EGSM 900 /

1800 / 1900

Stand-by Time Up to 250 H Up to 250 H

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 7 of 37 Internal Use Only

Talk Time Up to 5 H Up to 5 H

Battery Type / Capacity Li-Ion Battery Pack

Nominal Cap. : 750 mAh

Li-Ion Battery Pack

Nominal Cap.: 700 mAh

Weight Approx. 95 g Approx. 86 g

Volume Approx. 69 cm3Approx. 88 cm3

Length 100.8 mm 109 mm

Width 45.6 mm 46 mm

Thickness 20.9 mm 21 mm

SIM Plug-in 1.8 V / 3 V Plug-in 3 V

Antenna Integrated Integrated

SAR related to 1 g 1.0 W/kg @ 900 MHz

0.8 W/kg @ 1800 MHz

0.8 W/kg @ 1900 MHz

2.0 W/kg @ 900 MHz

0.8 W/kg @ 1800 MHz

0.8 W/kg @ 1900 MHz

Full Rate Yes Yes

Half Rate Yes Yes

Enhanced Full Rate Yes Yes

AMR Yes Yes

Fax / Data Yes Yes

GPRS Yes, Class 8 Yes, Class 8

Keypad Illumination Yes Yes

Display

4K color STN full dot matrix,

6 lines graphic + icons

4K color STN full dot matrix,

6 lines graphic + icons

Display Illumination White White

Ringer Volume Level Min. 95 dB(A) @ 5 cm

Typ. > 100 dB(A) @ 5 cm

Min. 95 dB(A) @ 5 cm

Typ. > 100 dB(A) @ 5 cm

5 Accessories

For MC 60, the following accessories will be available.

Description Part number

Li-Ion Battery EBA-510 L36880-N5601-A100

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 8 of 37 Internal Use Only

Car Charger ECC-500 L36880-N5601-A106

Travel Charger (Euro) ETC-500 L36880-N5601-A104

Travel Charger (UK) ETC-510 L36880-N5601-A105

Desk Top Charger EDC-510 L36880-N5601-A101

Headset with PTT HHS-510 L36880-N5601-A108

Basic Car Pack (Headset, Car Charger, Y-Adapter) HKB-500 L36880-N5601-A118

Car Kit Portable HKP-500 L36880-N5601-A109

Car Kit Comfort HKC-540 L36880-N5701-A100

Car Data Adapter (for CK Prof. Voice II) HKO-530 L36880-N5701-A108

Car Kit Professional Voice II (E) HKV-570 L36880-N5601-A100

Push To Talk Key (for CK Prof. Voice II) HKO-520 L36880-N4501-A135

Sync Station DSC-500 L36880-N5601-A103

Data Link Cable USB DCA-510 L36880-N5601-A111

Tour Case FCT-550 L36880-N5601-A140

Hands-free Loudspeaker L36104-F3090-X903

Base Module without key with Slim-Lumberg-Connector L36158-A91-A10

Hands-free Microphone Active L36254-Z6-C95

E-Box Car Kit Voice L36880-S4501-A301

Serial Data Cable L36880-S5601-A800

5.1 Interface MC 60 to accessories

The I/O Connector of MC 60 is the slim Lumberg (identical to SL55, S55/57,

C55/2128, A55/52, and M55).

It is the only electrical interface to the Accessories. Also, it has only one

mechanical interface which is integrated in the design parts.

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 9 of 37 Internal Use Only

Slim Lumberg I/O Connector

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 10 of 37 Internal Use Only

6 Unit Description MC 60

The MC 60 is the first Siemens mobile phone with integrated CIF-Camera. It is

designed as a single-PCB phone with a partly bridgeless keypad, color display,

exchangeable covers and exchangeable keypads. The upper and lower covers are

designed as two-colored parts, which is realized in 2-shot-moulding technology.

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 11 of 37 Internal Use Only

6.1 Exploded View of MC 60

Earpiece Cover

with mesh

Display window

Upper Case

Antenna

Mounting frame

Sim Slider

Vibra Motor

Microphone

Light Guide

SAR-Frame

ESD Protection

Metal frame

Speaker

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 12 of 37 Internal Use Only

Camera Module

Explode View of Camera Module:

PCB Assembly

Assembly of Display Module

Camera Module

Camera Unit

(C-MOS Chip with

housing and lens;

lens hood and cover glass)

Adapter

Connector

Flex

PCB

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 13 of 37 Internal Use Only

PCB Back View

Assembly of Camera Module

.

MC 60 Final Assemblies:

Camera Module

Display Module

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 14 of 37 Internal Use Only

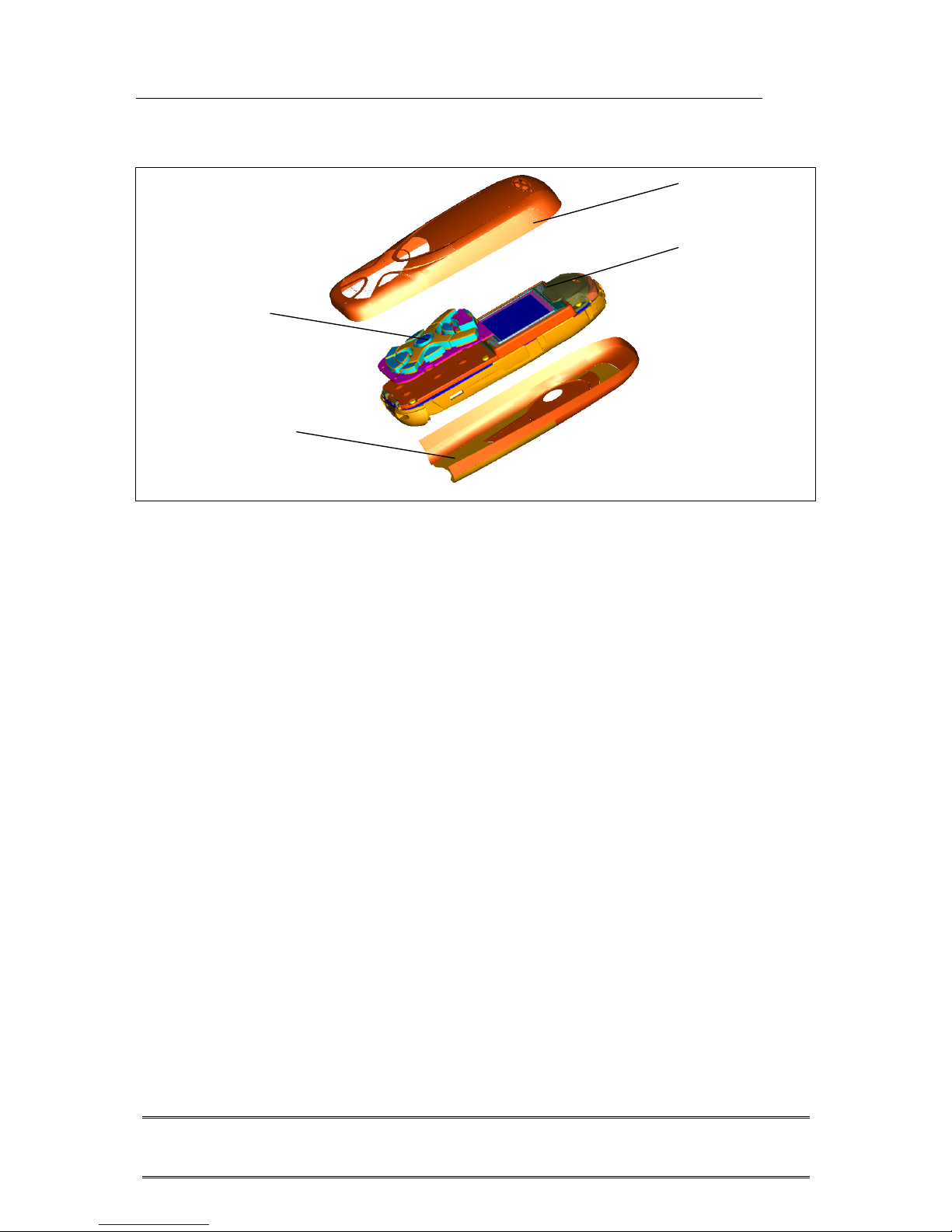

7 Disassembly of MC 60

Upper Case

Inner Unit

Keypad

Lower case

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 15 of 37 Internal Use Only

Note: ESD concept; the internal circuits will be more susceptible to ESD because of

the use of exchangeable housing. The construction of the internal block must be/is

designed, in the best possible way, to protect the circuit against sparks.

The keypad must be completely closed to prevent any occurrence of an ESD

disruptive discharge.

The SIM contacts may be open, thus reachable for ESD contact discharge. This

could lead to damage or destruction of the E-Gold pins.

It is a requirement for the service personnel to observe ESD protection rules while

performing servicing the M55.

Step 1

Front view of the MC 60

Step 2

Back View of the MC 60

Step 3

Remove the back cover by pushing it upwards as

indicated by the arrow.

Step 4

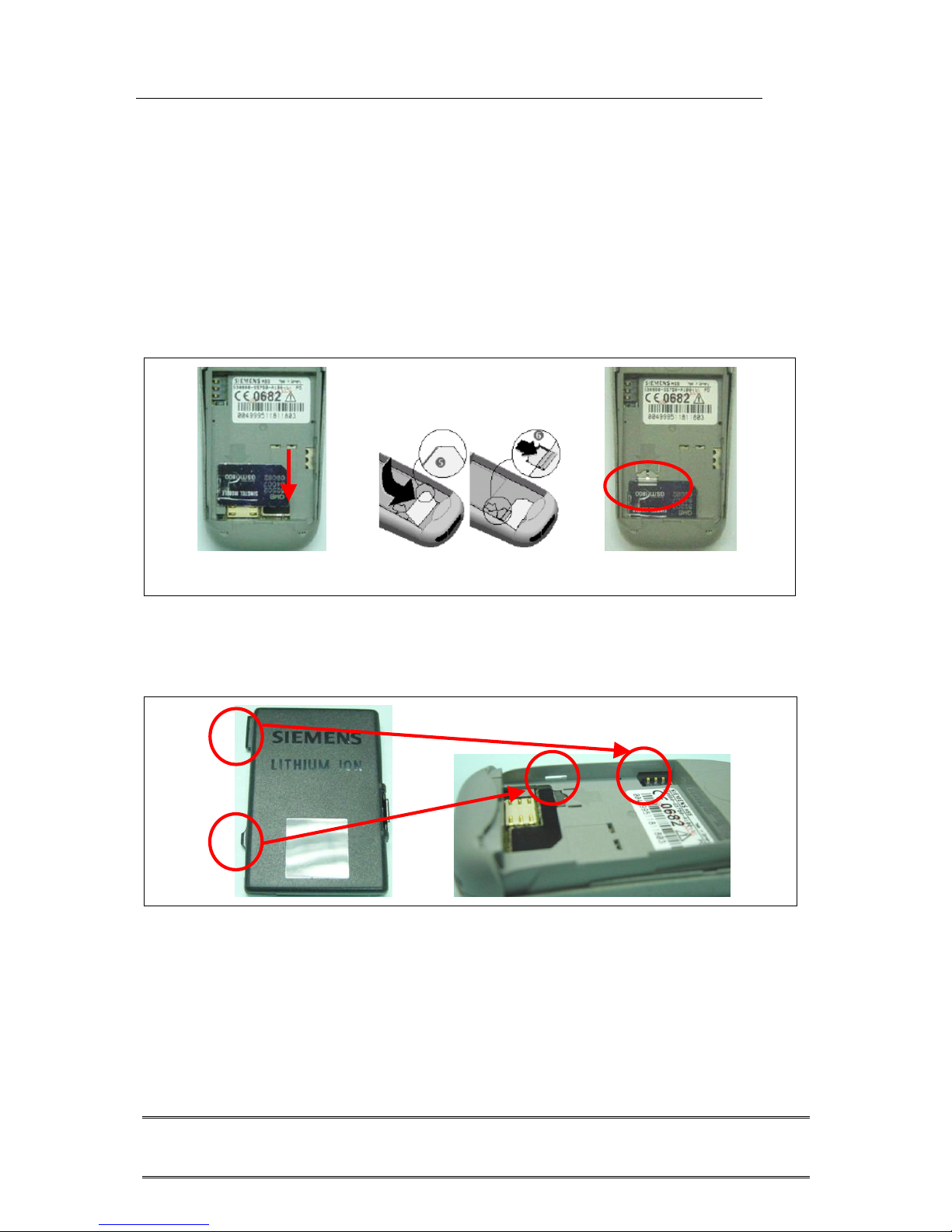

To remove the battery, release the catch, located at the

side, by pressing with the finger tip.

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 16 of 37 Internal Use Only

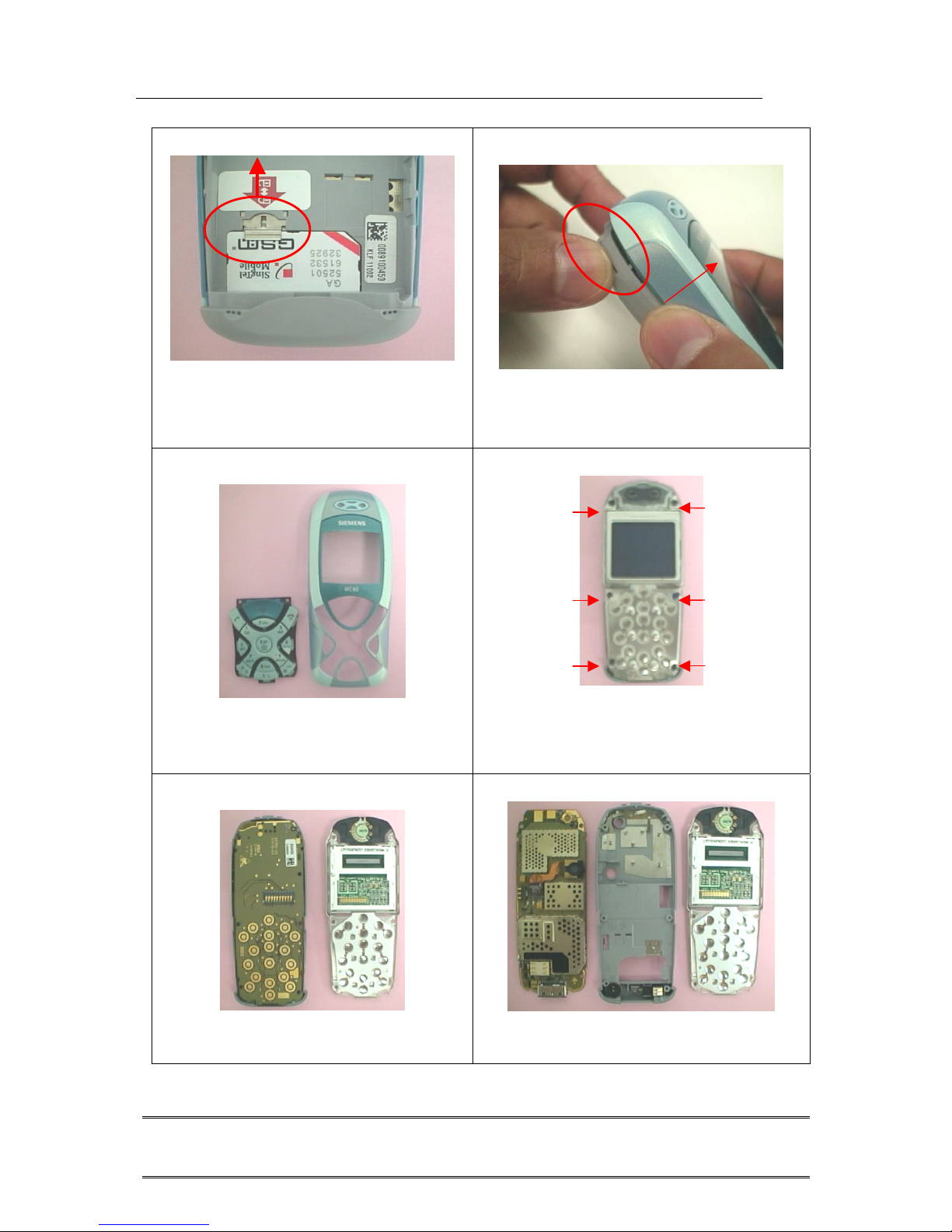

Step 5

To remove the SIM card, push the SIM slider upwards

as indicated by the arrow.

Step 6

To remove the CLIPit cover, gently pull the cover upwards

from the side of the phone while holding firmly the lower

mounting frame as shown.

Step 7

The keypad can be separated from the CLIPit cover.

Step 8

To remove the SAR frame and Light Guide assembly from

the lower mounting frame, unscrew the 6 screws (as

indicated) with a T5 Plus screw driver (set Torque = 16

cNm).

Step 9

The RF board (PCB) can be seen after removing the

SAR Frame and Light Guide assembly.

Step 10

Separate the PCB from the Lower Mounting Frame. The

antenna is built-in on the Lower Mounting Frame.

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 17 of 37 Internal Use Only

Step 11

To detach the camera module with a pair of tweezers to

disconnect the flex cable from the connector. Then,

gently push the camera outwards as shown by the

arrow.

Step 12

Remove the Vibrator motor and MIC from the Lower

Mounting Frame.

Step 13

Fully disassembled MC 60

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 18 of 37 Internal Use Only

8 Reassembly of MC 60

For the reassembly of the MC 60, reverse the disassembly procedures from Step 12 to

Step 1. However there are some areas to be taken note of during reassembling of the

phone.

During the installation of the SIM card, make sure that the SIM card is inserted properly and that

the golden contact area is facing backwards. Push the SIM slider downwards to lock the SIM card

into position.

Installation of the SIM card

During the installation of the battery, make sure that the hinges are properly in place (See picture

below). Otherwise the battery will not be able to fit into the phone properly.

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 19 of 37 Internal Use Only

9 Mobile Software Programming

The common mobile software available is divided into language groups. However, this

software does not contain the specific settings, such as ringing tones, greeting text, and

short dial list etc., required by the operator or service provider. Therefore, it is common to

have some menu item(s) differ in different variants or are not visible at all. These settings

are stored in different memory area of the mobile and will be activated depending on the

customer specific model or variant of the phone by a separate test step during the

production process.

Due to this separation of common mobile software and customer specific initialization, it

is possible to fulfil the demands of the market requiring customization and flexibility. As a

consequence the software programming process in the LSO is divided into two different

steps as followed:

- Software update to actual version and appropriate language group

- Programming of CUSTOMER SPECIFIC INITIALIZATION

Figure 1. MC 60 Software Programming Setup

Slim Lumberg Cable

Boot Ada

p

te

r

AC Adapter

SIEMENS PTE LTD

MC 60 Level 2 Service Manual

ICM MP CCQ ASP/ASC Page 20 of 37 Internal Use Only

9.1 Mobile Software Updating

The software of the mobile, L55 series is loaded from a PC directly. Hardware

interconnection between the mobile and the PC is shown in Figure 1. Because of the new

type of external connector used in X55 series (Slim-Lumberg type) an additional adaptor

cable between mobile and boot adaptor is required. Table 1 listed all the hardware

requirements

If you use the battery dummy, make sure that the power supply voltage is correctly

adjusted.

Description Part No.

Bootadapter 2000 incl. AC-Adapter, serial

cable and mobile connection cable

L36880-N9241-A200

IBM Compatible PC – Pentium -

Adapter cable – Slim Lumberg to Old F30032-P226-A1

TABLE 1. EQUIPMENT LIST FOR SOFTWARE PROGRAMMING

Siemens MC60 User manual

Popular Cell Phone manuals by other brands
