Siemens N2250X User manual

200% Neutral Kit
Installation Instructions
Turn off and lock out all power supplying this device before
working on this device.
Replace allcovers before powersupplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement depouvoir soit alimenté.
Tensión peligrosa.
Puedecausarla muerte o lesiones graves. Tension dangereuse. Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death orserious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
Turn off and lock out all power supplying this device before
working on this device.
Replace allcovers before powersupplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement depouvoir soit alimenté.
Tensión peligrosa.
Puedecausarla muerte o lesiones graves. Tension dangereuse. Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death orserious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
I.L. No. 506199B00
Use only with Siemens certified components.
NOTE - These instructions do not purport to cover all details or
variations in equipment, or to provide for every possible contingency
to be met in connection with installation, operation or maintenance.
Should further information be desired or should particular problems
arise, which are not covered sufficiently for the purchaser’s
purposes, the matter should be referred to the local Siemens sales
office. The contents of this instruction manual shall not become part
of or modify any prior or existing agreement, commitment or
relationship. The sales contract contains the entire obligation of
Siemens. The warranty contained in the contract between the
parties is the sole warranty of Siemens. Any statements contained
herein do not create new warranties or modify the existing warranty.
TRADEMARKS - Unless otherwise noted, all names identified by ®
are registered trademarks of Siemens AG or Siemens Industry, Inc.
The remaining trademarks in this publication may be trademarks
whose use by third parties for their own purposes could violate the
rights of the owner.

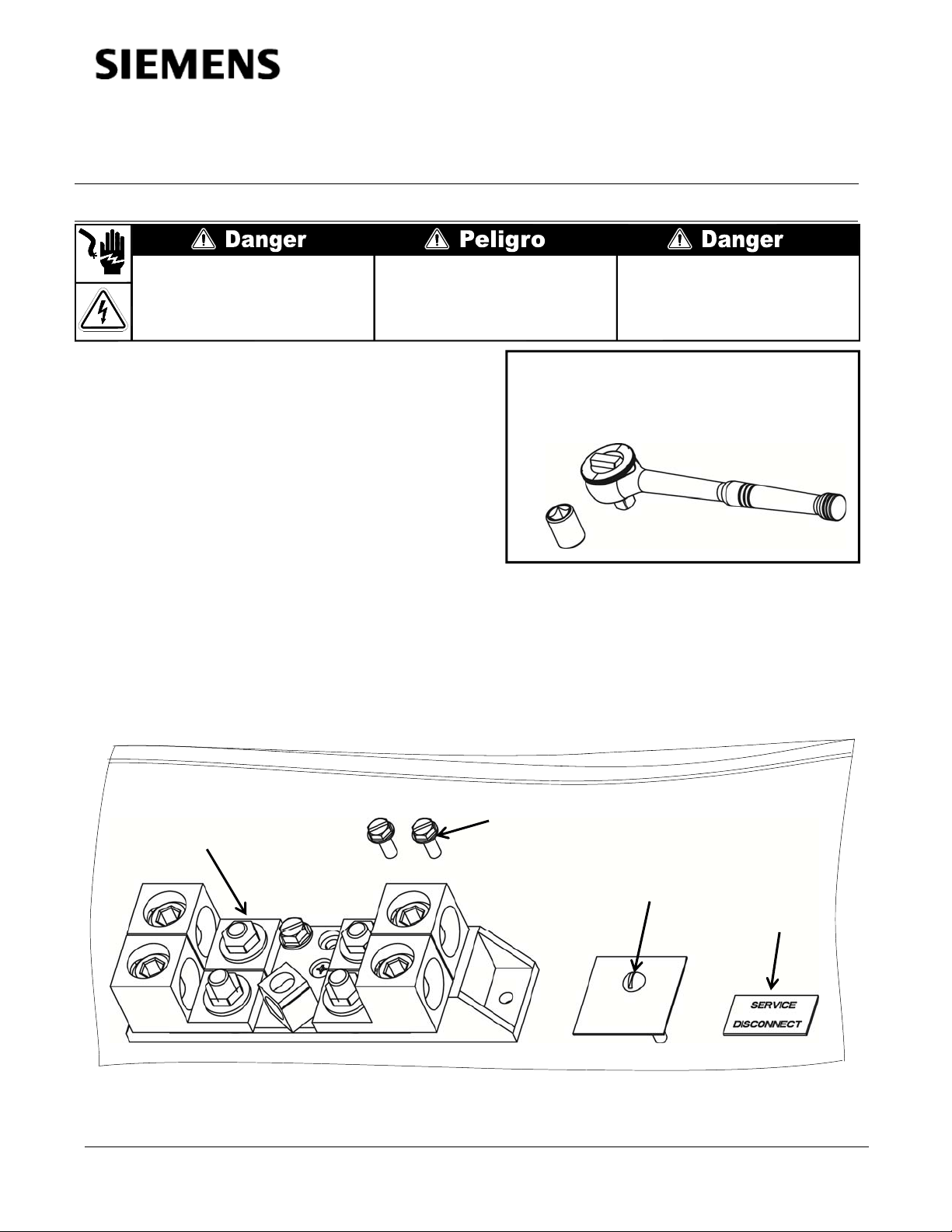

Item: N2250X
For use with: VL / QR Circuit Breaker Enclosures
Recommended tools:
Torque wrench
Neutral
Service
Disconnect
Label
Bonding Screw
1 / 2
(2) Mounting Screws
10-32 x ½”

Turn off and lock out all power supplying this device before
working on this device.
Replace allcovers before powersupplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement depouvoir soit alimenté.
Tensión peligrosa.
Puedecausarla muerte o lesiones graves. Tension dangereuse. Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death orserious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
Turn off and lock out all power supplying this device before
working on this device.
Replace allcovers before powersupplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement depouvoir soit alimenté.
Tensión peligrosa.
Puedecausarla muerte o lesiones graves. Tension dangereuse. Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death orserious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
1. Prepare circuit breaker enclosure for neutral installation.
Turn OFF and lock out all power supplying this device before working on the device.
Turn OFF the circuit breaker.
2. Mount neutral as shown below.
Bonding
When bonded neutral is required:
•Insert Neutral Bonding Screw into bonding location shown
•Torque Neutral Bonding Screw to 27 lb-ins
•Apply Service Disconnect Label to cover if applicable
Bonding Location
Subject to change without prior notice © Siemens Industry Inc. 2015
Siemens Industry Inc., Norcross, GA 30092
Technical Support: Toll Free: 1-800-241-4453 Internet: www.usa.siemens.com/powerdistribution
I.L. No. 506199B00
2/2
Wire Range
Main Neutral 6 AWG – 350 kcmil CU / AL
Service Ground 6 AWG – 2/0 AWG CU / AL
Torque to 27 lb-ins.
