Instruction Handbook
OP7control system
Programme for chambers with µ PLC
512976
Rel.130601
OP7 FOTO

1
CONTENTS
1 WARNINGS............................................................................................................................................. 3
2 THE OP7 SYSTEM ..................................................................................................................................... 3
2.1 DESCRIPTION ................................................................................................................................. 3
2.2 KEY FUNCTIONS ............................................................................................................................ 4
2.3 BRIEF LIST OF THE MOST USED TERMINOLOGY............................................................................... 5
2.4 START-UP ....................................................................................................................................... 6
2.4.1 HOW TO SWITCH ON/OFF .................................................................................................. 7
2.5 HOW TO THE SET SOFTWARE ALARMS .......................................................................................... 7
2.6 OPERATION DIAGRAM .................................................................................................................. 8
3 MANUAL OPERATION ............................................................................................................................. 9
3.1 HOW TO SET A VALUE .................................................................................................................. 9
TEST START-UP ............................................................................................................................. 11
3.2 HOW TO SET A CONTROLLED SLOPE ........................................................................................... 12
STEP -A- ....................................................................................................................................... 12
CYCLE START-UP .......................................................................................................................... 14
STEP -B- ....................................................................................................................................... 14
STEP -C- ....................................................................................................................................... 16
4 AUTOMATIC OPERATION ...................................................................................................................... 18
4.1 EXAMPLE CYCLE ........................................................................................................................... 18
4.2 EXAMPLE CYCLE TABLE ................................................................................................................. 19
4.3 HOW TO SET A PROGRAMME ..................................................................................................... 20
4.4 LOOP TABLE................................................................................................................................. 33
4.5 HOW TO SAVE A PROGRAMME .................................................................................................. 34
4.6 HOW TO LOAD AND CARRY OUT A PROGRAMME ...................................................................... 35
4.7 HOW TO DELETE A PROGRAMME ................................................................................................ 36
4.8 REPETITONS (HOW TO REPEAT A PROGRAMME) .......................................................................... 37
4.9 HOW TO CHECK A PROGRAMME ................................................................................................ 38
4.10 HOW TO VISUALIZE A PROGRAMME ........................................................................................... 39
4.11 HOW TO VISUALIZE USER ANALOG INPUTS ................................................................................ 41
4.12 HOW TO VISUALIZE USER PT100.................................................................................................. 41
5 GENERAL SETTINGS ............................................................................................................................... 42
5.1 USER ANALOG INPUT CONFIGURATION (FROM 1 TO 6) ................................................................. 42
6 ALARMS ................................................................................................................................................ 43

3
To switch a function on/off
SIEMENS SIMATIC OP7
F1 F2 F3 F4
K1 K2 K3 K4
789
456
123
.0 +/-
SHIFT INS
DEL HELP
ENTER
ACK
ESC
HELP
SHIFT
OP2605-040
• The machine must only be used as described in this hand-
book.
• The machine must only be used by personnel who have read
all the instructions contained in this handbook.
2.1 DESCRIPTION
The system consists of a control panel equipped with a display, keyboard and function keys.
This system enables temperature and humidity cycles to be carried out.
The system can operate Manually or Automatically.
2THE OP7 SYSTEM
The concept of HUMIDITY always
refers to Climatic Chambers. If the
chamber is not a climatic chamber,
you may ignore the relevant
references.
1WARNINGS
Numerical key-
board
Display
Function keys
(F2-F3-F4 not used)
To confirm
Movement
keys
To reset an alarm
To exit from a function
(and return to the selected page)
This push-button may not be
present according to the model
of the machine
When a temperature grade is set (Centigrades per minute), it is unadvisable to set a humidity grade.
The two quantities interfere with each other and therefore the temperature grade would be observed,
whereas the humidity grade would not.
The humidity grade should, therefore, be set only when the temperature is kept constant.
Please refer to the MOLLIER diagram to establish the test logic to be carried out for both temperature
and humidity.
Ambient temperature min: min: + 5°C
max + 45°C
Relative humidity RH max 80%
To enter or delete Help on line
SHIFT key warning light
HELP key warning light
START/STOP
Alarm in process

4
SIEMENS
SIMATIC OP7
F1 F2 F3 F4
K1 K2 K3 K4
789
456
123
.0 +/-
SHIFT INS
DEL HELP
ENTER
ACK
ESC
HELP
SHIFT
MICRO
PLC
OP7
RAM work memory (volatile) Main memory
The programmes set on the OP7 panel have to be memorised permanently in the MICRO PLC; if there is a black-out or if
the machine is switched off, those programmes which have not been saved will be lost.
A specific guided procedure enables the relevant programmes to be both programmed and saved.
OP7 Technical Specifications:
N°10 memorisable programmes
N°99 segments for each programme
N°9999 programme repetitions
N°10 loops in each programme
Some of the displayed messages will differ from those shown
here according to the machine version.
In this case only remember the messages shown on your
display.
If any further instructions are necessary, they will be attached
to this handbook.
F1
CONTRAST
• Place the cursor in this field.
• Digit a value.
• Press ENTER to confirm.
LANGUAGE
To change the language:
• Place the cursor in this field.
• Press
• Insert a password (100=default value)
• Press
to change the language
• Press ENTER to confirm
F2 F3 F4
NOT USED
K1
CYCLE ON/OFF
• To switch on/off test cycle.
Pressthesamekeytoswitchthefunctiononand
off.
SHIFT
SHIFT
Led light off = chamber switched off
Fixed led light on = chamber in manual op-
eration
Flashing led light = chamber in automatic
operation
2.2 KEY FUNCTIONS
K2
SET-UP
• Tosetatemperatureandrelevanthumdityvalue.
K3
PROGRAMME SET-UP
K4
GENERAL SETTINGS
• to set software alarms
• to set measurement parameters for external
devices connected to the chamber.
SHIFT
To be used together with other keys.
When this key is pressed, the “SHIFT” led light
switches on.
(*) Up to version 0.0B.
The language cannot be changed from version 0.0C
onwards.ThelanguageusedbytheOP7systemispre-
programmed in the factory.

5
To move from one line to another or
from one page to another
ENTER
To confirm a choice or a value that has been
inserted.
To insert a numerical value
SHIFT
To change a choice from ON to OFF and
vice versa.
INS
DEL
To erase a letter pinpointed by the cursor.
The letters will then run from right to left.
If it is used together with SHIFT
SHIFT INS
DEL
To insert a space where the cursor is placed.
The letters will then run from left to right.
HELP
In some software versions it gives help on line.
When this function is switched on, the “HELP” led
light switches on.
ACK
To read alarm signals and to carry out the relevant
reset.
ESC
To exit from a page and to return to the preceding
page. The function is switched on only if it is
visualized on the page.
0. +/-
21 3
54 6
87 9
2.3 BRIEF LIST OF THE MOST USED TERMINOLOGY
• Programme
Asetof instructions.Theprogramme canbememorisedinthemainmenu(MicroPLC)and then recalledin the work
memory (OP7) in order to be carried out. A programme that has just be set can be carried out even if it has not been
saved in the main menu. We advise you to always memorize your programmes in the main memory (MICRO PLC)
so as to avoid accidental deletions.
• Cycle: a set of several segments.
• Segment
Interval of time in which the required values that the chamber must carry out are set.
• Maintenance segment
A segment in which the set temperature (°C) and/or relative humidity (RH%) values are kept constant for a certain
period of time.
• Maximum speed segment
A segment which is carried out at the highest possible speed.
• Controlled slope segment
A segment in which the chamber must reach set point at the required speed (gradient).
• Gradient
Speed at which a segment is carried out. It is expressed as a ratio between the unit of measurement and the time
(C/min.; RH%/min. etc...).
• Set-point
The set value (temperature or relative humidity).
• Flag: Programme variables which may assume only two values or two different states (for example: 0 or 1; ON or
OFF; OK or OFF; SAVE or OFF; etc...)
• Repetitions
It enables an entire programme to be repeated automatically, starting from a specific segment. Up to 9999
repetitionsof the entire programme may be carried out. When the machine is switched on, the default value is 1 and
therefore the number of repetitions must always be reset. The operations included at this stage are not memorized
and therefore the data have to be reinserted each time you wish to repeat a programme.

6
• Loop table
This enables up to 10 repetitions of parts of a programme (series of segments or single segment) to be set. It is
possible to carry out another nested loop within a loop; the former, however, must be part of the main loop.
• Special and/or auxiliary contacts
To electrically switch on certain characteristic functions of the system as well as auxiliary contacts (external
apparatus).
• How to load a programme
Procedure to load a programme (already saved in the main memory) into the work memory (OP7). This procedure
is always carried out before executing a programme.
• How to save a programme
To memorize a programme permanently in the system’s main memory (Micro PLC).
• Channel 1
Temperature channel.
• Channel 2
Relative humidity channel.
• Duration wait
ON: the segment is considered finished only when the set time has passed. After this period of time the programme
moves on to the following segment, indipendently of the set temperature or humidity value.
OFF: the segment is considered finished when the set time finishes, whether the set point has been reached or not.
NB: The “Duration wait” and “Setpoint wait” flags must not both be turned OFF at the same time.
• Control System
ON: the relevant channel (temperature, humidity, etc..) is controlled
OFF: the relevant channel (temperature, humidity, etc...) is not controlled
• Wait set-point
ON: the segment is considered terminated only when the pre-set set-point value (temperature or relative humidity)
has been reached; the programme then moves on to the next segment.
OFF: the segment is considered terminated at the end of the pre-set time, whether the set-point has been reached
or not.
NB: The "Wait duration" and "Wait set-point" flags should never both be switched off at the same time.
• Maximum speed
ON: the set value (SET POINT) is reached at the highest possible speed.
OFF: the programme considers the set gradient.
• Near set
The tolerance within which the set point is considered to have been reached.
A default value is memorized; this value should not be changed.
In order for this indication to be effective while the programme is being carried out, the “Wait set-point” flag must be
switched on (ON).
• CTRL humid. spec.
ON/OFF: this option has been introduced in order to improve the performance of the system under certain work
conditions. On the basis of the results obtained during a cycle, the user may experiment by changing this flag to see
whether the chamber performance improves or not.
2.4 START-UP
• Use the main switch to turn on the machine.
If the START/STOP switch is not held down, the
following alarm message will appear:
• Press the START/STOP key.
• Use the ACK key to reset the alarm.
ALARM
SWITCH
START/STOP
Thewarninglight on
the OP7 panel flashes

7
When the system is switched on, it checks all the
parameters and visualizes page P1.
The page visualized by the system may vary according
to the version of the chamber.
Angelantoni Ind.
Challenge 0.000
P1
Version of
the resident
programme
B)By pressing the lighted START/STOP push-button When this push-button is pressed, the machine
stopsand restarts either manuallyor automatically.
(This push butom may not be present according to
the version of the machine).
C)By switching off the main switch (isolating switch) The machine is switched off.
When it is switched on again:
- in MANUAL mode a cycle has to be reprogrammed and
restarted as the data will have been lost.
- inAUTOMATIC mode the cycle may be recalled and restarted.
The instructions to start up the cycles in
either MANUAL or AUTOMATIC mode
will be given in the following chapters.
START/STOP
2.5 HOWTOSETTHESOFTWAREALARMS
Never carry out a temperature cycle without having set the relevant software and hardware alarms.
Three alarm levels are usually available:
• Softwarealarms for maximum and minimumtempera-
ture (that can be set on the OP7 panel).
• Hardwarealarmsformaximumandminimumtempera-
ture (see chamber handbook).
• Fixed alarm for maximum temperature preset in the
factory (see chamber handbook).
How to set the software alarm for maximum and mini-
mum temperature
The alarms have to be defined after the minimum and
maximum value for the cycle that is to be carried out have
beendefined. If thealarms are not programmed and they set
off within the field of work, the cycle will be stopped and the
relevant alarm will be triggered.
Theoretical diagram showing the position of the
software and hardware alarms
0°C
MIN cycle °C
maximum temperature software alarm
WORK
CYCLE
maximum temperature hardware alarm (fixed)
MAX cycle °C
The aim of these alarms is to protect the product which has to be tested in the case of temperature failures due to an
accidental faulty operation.
minimum temperature software alarm
minimum temperature hardware alarm (fixed)
followed by • Insert the relevant alarm values and confirm them with
ENTER
• (ESC) if you do not wish to modify any data
K4
Press Press K4 to switch off this function
K1
Manual mode
Whenthiskeyispressed,themachinestopsandrestartsonlyinthe
manual mode. If the machine is operating automatically, please
refer to paragraph 4.6.
A)By pressing key K1
2.4.1 HOW TO SWITCH ON/OFF
followed by
Overtemp _ _ _
Undert. _ _ _
K4
Press
General settings

8
REPETITIONS
CURRENT
PROGRAMME
CHECK
DELETES
PROGRAMME
SAVES
PROGRAMME
EDITA PRO-
GRAMME
2.6 OPERATIONAL DIAGRAM
SIEMENS
SIMATIC OP7
F1 F2 F3 F4
K1 K2 K3 K4
789
456
123
.0 +/-
SHIFT INS
DEL HELP
ENTER
ACK
ESC
HELP
SHIFT
Angelantoni Ind.
Challenge 0.000
K1 K2 K3 K4
VISUALIZATION MANUAL SETTING GENERAL SETTINGS
CYCLE MENU
CYCLE
VISUALIZATION
ESC ESC ESC ESC ESC ESC ESC ESC
LOOP TABLE
12 3 4 5 67
LOADS
PROGRAMME

9
3MANUAL OPERATION

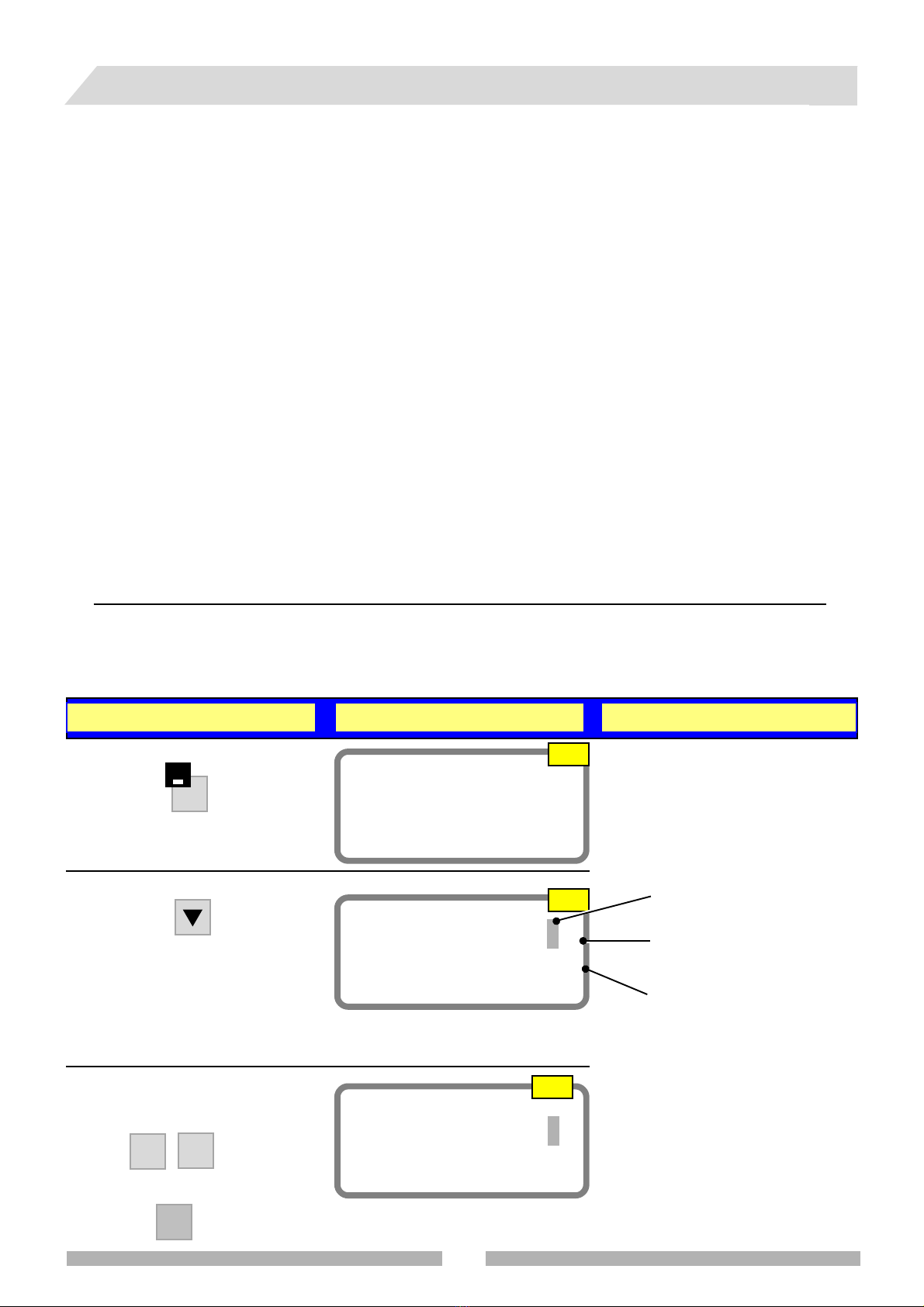

3.1 HOW TO SET A VALUE
- Temperature value setting (e.g.
80°C)
- Humidityvaluesetting(e.g.70%)
Themachinereachesthesetvalue,at
maximum speed, both when it rises
and when it descends.
Oncethevaluehasbeenreached,the
machine will maintain this value.
3.1 HOW TO SET A VALUE
- How to set a temperature value (e.g. 80°C)
- How to set a humidity value (e.g. 70%)
K2
Settings
A1
Temper. Set 0.00°C
Humid. Set 0.00 %
A2 Flashing cursor
To set the humidity % (2)
(1) See the temperature range in the chapter entitled “Technical specifications”
(2) See the humidity range in the chapter entitled “Technical specifications”
Temperature values and other param-
eters are set on this page
In order to make the following instructions easier to understand, examples with the relevant values will be given.
Operations that can be carried out in manual mode:
3.2 HOW TO SET A CONTROLLED SLOPE
- Controlled temperature slope setting (Example 20 ÷35°C) with an
average gradient of 1°C per minute and 60% relative humidity.
- Humidity setting from 60 to 90% with a gradient of 2% per minute.
(in order to calculate the average gradient, that is the temperature rise or
descent speed, please refer to the technical data contained in the chamber
instruction handbook).
Steps to be carried out:
3.2.1 Step A: followthe sameproceduredescribed in paragraph3.1 so that
the departure temperature in the chamber reaches 20°C in manual mode.
3.2.2 Step B: set the final value to 35°C and follow a slope with a gradient
of 1°C/min. and 60% relative humidity.
The machine will reach the set temperature and humidity and will then
maintain these values;
3.2.3StepC: keepaconstanttemperature(35°C)andsetthecontrolledRH
humidity cycle (60÷90%) with a gradient of 2% per minute.
NB: if a mistaken gradient value is set, the machine will not follow the set
slope but will still reach the final temperature and humidity.
A3
Placethecursorasshowninorder
to set a temperature value
Temp. gr. 80.00°C
Hum. gr. 0.00 %
80
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
To set the temperature (1)
KEYS DISPLAY FUNCTIONS
• Switch on the machine as described in paragraph 2.4.

10
7 0
Imp. temp. 80.00°C
Imp. umid. 70.00 %
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Temp. gr. 0.00°C min
Hum. gr. 0.00 RH%min
Temp. gr. = Temperature gradient
(0=maximum speed)
Hum. gr. = Humidity gradient
(0=maximum speed)
SHIFT
Temperature enab OFF
Humidity enab. OFF
- Toenableordisablethetemperature
- To enable or disable the humidity
Data is entered and memorized as described previously.
The average gradient is given in the technical specifications in the chamber handbook.
Temperature enab ON
Humidity enab. ON
- The temperature is enabled
- Move the cursor on to the line below
and enable humidity
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Place the cursor as shown in order to
set a humidity value %.
If the chamber is not climatic, leave the
value at zero
A4
A5

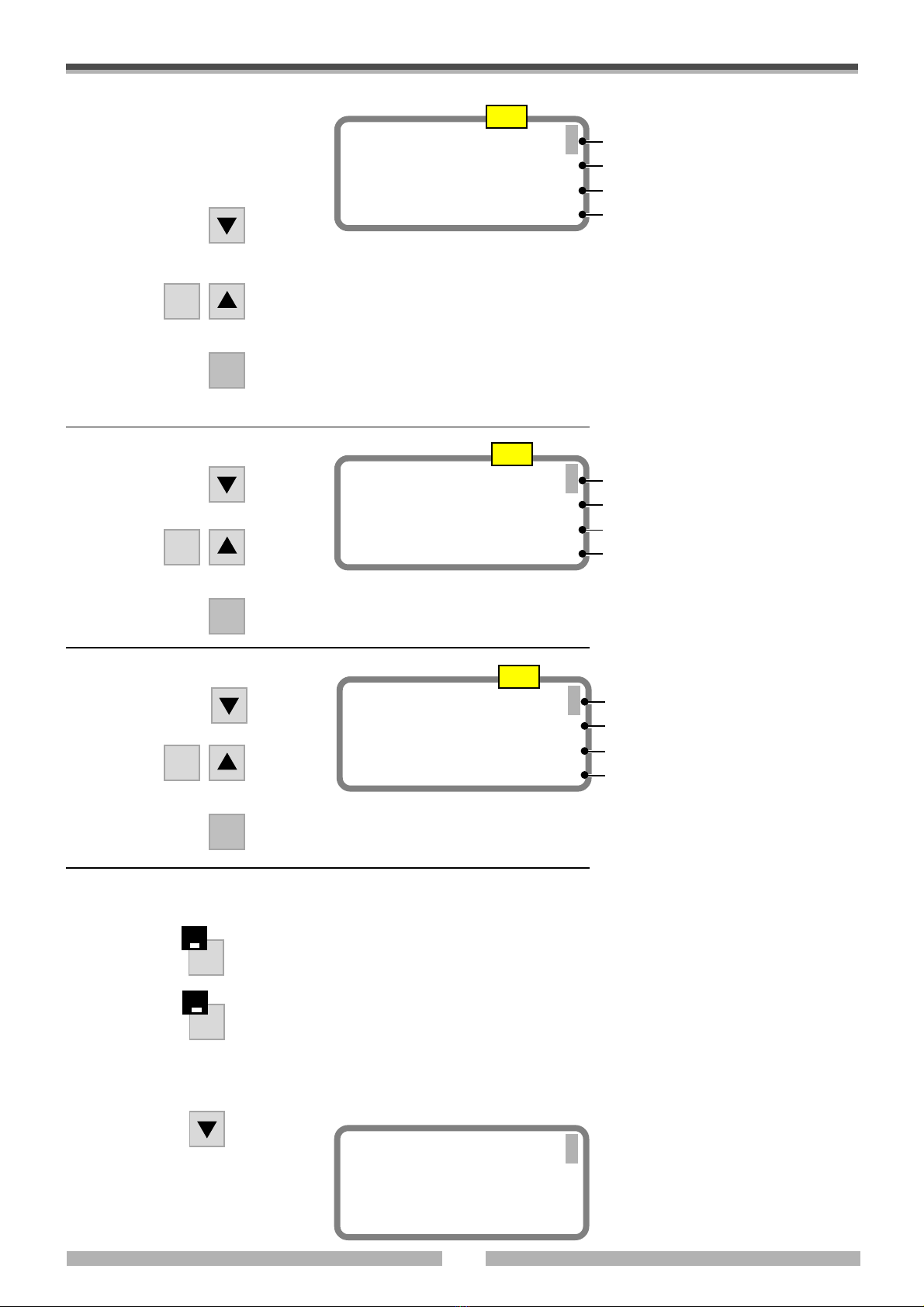

Dehumidification: OFF
Vibrator: OFF
Specimens: OFF
U.V. lamp.: OFF
(1)
(2)
(3)
(4)
1) Therising dehumidification (optional)
avoids the formation of condensate
on the object to be tested. The cham-
ber must be originally equipped with
this device.
2) Only for special machines equipped
with Vibrator
3) When it is switched ON, contact E
(Apparatus) is closed on the DIG-
ITAL IN/OUT connector (see at-
tached electrical diagram and de-
scription of the connector in the
chamber instruction handbook).
4) Enables the UV lamp (optional) to
be switched on.
A6
In some versions of the programme the
writing in points (1), (2), (3), (4) are
replaced by:
Dedicated contact 1
Dedicated contact 2
Dedicated contact 3
Dedicated contact 4

11
Water recharge: OFF
Not used: OFF
Not used: OFF
SP. hum. CTRL OFF
A7 (1)
(2)
(3)
(4)
1) When it is switched ON, the condensate water is recycled
When it is switched OFF, the condensate water is drained off.
2) Not used
3) Not used
4) When it is switched ON, the humidity slope can be controlled.
SHIFT
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Aux 1: OFF
Aux 2: OFF
Aux 3: OFF
Aux 4: OFF
A8
(1)
(2)
(3)
(4)
When it is switched ON, the ABCD
contacts on the DIGITAL IN/OUT
connectorareclosed(seeattached
electricaldiagramandthe descrip-
tion of the connector in the cham-
ber instruction handbook).
Aux 5: OFF
Aux 6: OFF
Aux 7: OFF
Aux 8: OFF
A9 (1)
(2)
(3)
(4)
SHIFT
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
SHIFT
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
TEST START-UP
K1 TO VISUALIZE
• To start the test
• The led light switches on the machine starts up and reaches the set tempera-
ture and humidity values: 20°C, 60% RH and remains in operation along these
values.
Both the set rising and descending values are reached at maximum speed.
K2 To switch off (led light switched off)
• Press Datameasuredinsidethechamberare
visualized.
Thechamberreachesthesevaluesand
maintains them.
Temp. meas. .......°C
Humid. meas. .......%
In some versions of the programme the
writing in points (1), (2), (3), are
replaced by:
Dedicated contact 5
Dedicated contact 6
Dedicated contact 7

12
10
15
20
25
30
35
5
5’ 10’ 15’
t= min.
Temp
°C

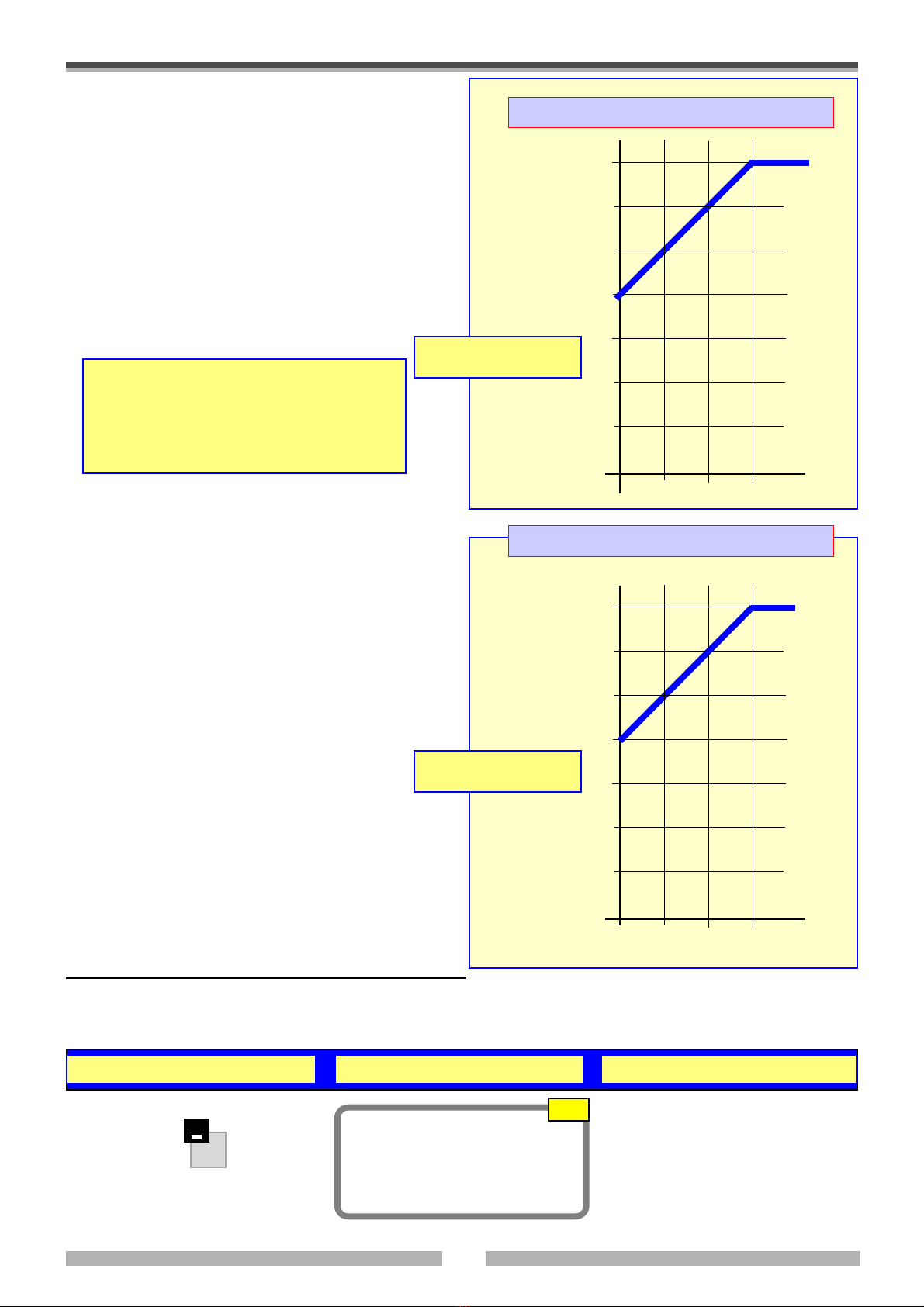

Temperature Chart
40
50
60
70
80
90
30
20’ 25’ 30’
t= min.
% RH
K2
Settings
A1 The temperature values and other pa-
rameters are set on this page.

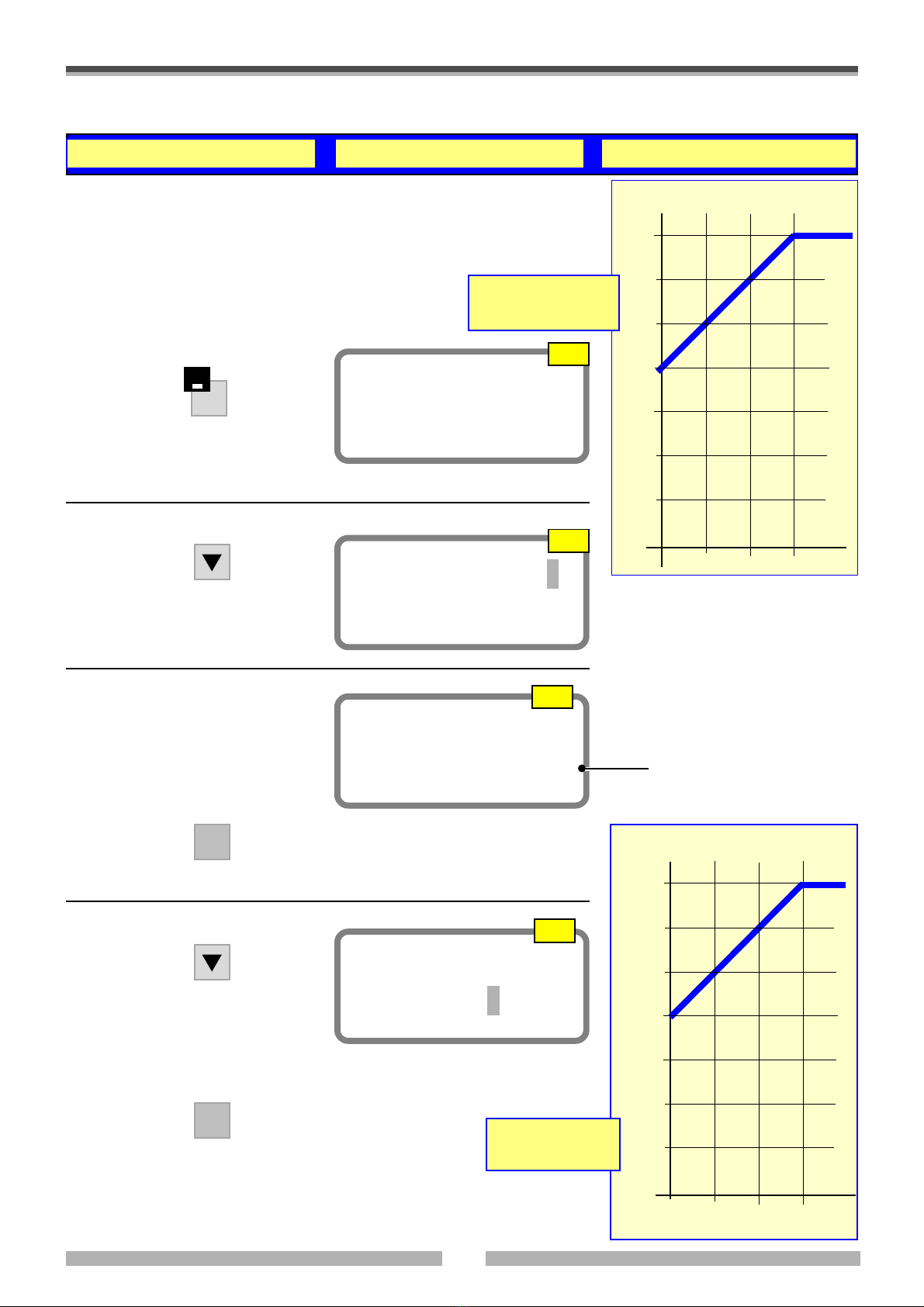

3.2 STEP A•
Bring the chamber up to the departure temperature value of 20°C.
gradient: 1°C/min
gradient: 2%/min
3.2 HOW TO SET A CONTROLLED SLOPE
- Settingofacontrolledtemperatureslope(Ex-
ample 20÷35°C) with an average gradient of
1°C per minute and 60% relative humidity
- Setting of a humidity from 60 to 90% with a
gradient of 2% per minute
(inordertocalculatetheaveragegradient,thatis
the temperature rise or descent speed, please
refertothetechnicaldatacontainedinthecham-
ber instruction handbook).
Humidity Chart
KEYS
DISPLAY FUNCTIONS
Operations:
3.2.1 Step A: follow the same procedure de-
scribed in paragraph 3.1 so that the departure
temperature in the chamber reaches 20°C in
manual mode.
3.2.2 Step B: seta temperatureslope from20°C
to to 35°C and follow a slope with a gradient of
1°C/min.
The machine will reach the set temperature and
humidity and will then maintain these values;
3.2.3 Step C: keep a constant temperature
(35°C) and set the controlled humidity value
(60÷90%) RH with a gradient of 2% per minute.
NB: if a mistaken gradient value is set, the ma-
chinewillnotfollowthesetslopebutwillstillreach
the final temperature and humidity.
We advise you not to carry out controlled tem-
perature and humidity slopes (with a gradient)
at the same time; in fact, the humidity slope
would not be sufficiently controlled.
When you carry out a humidity slope, make
sure that the temperature is kept constant.
15’
• For access to the page visualized
on the display.

13
Temper. Set. 0.00°C
Humid. Set. 0.00 %
A2 Flashing cursor
To set the temperature (1)
To set the humidity % (2)
(1) See the temperature range in the chapter entitled “Technical specifications”
(2) See the humidity range in the chapter entitled “Technical specifications”
A3
Place the cursor as shown in order to
set a temperature value
Temp. gr. 20.00°C
Hum. gr. 0.00 %
20
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Departure temperature
Temp. gr. 0.00°C min
Hum. gr. 0.00 RH%min
Warning!
in order to reach the
departure point, theses
values must be set to zero
(maximum speed).
A4
Temp. gr. = Temperature gradient
(0=maximum speed)
Hum. gr. = Humidity gradient
(0=maximum speed)
Temperature enab OFF
Humidity enab. OFF
- To enable or disable temperature
control
- To enable or disable humidity con-
trol
A5
SHIFT
Temperature enab. ON
Humidity enab. OFF
- Temperature control is enabled
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.

14

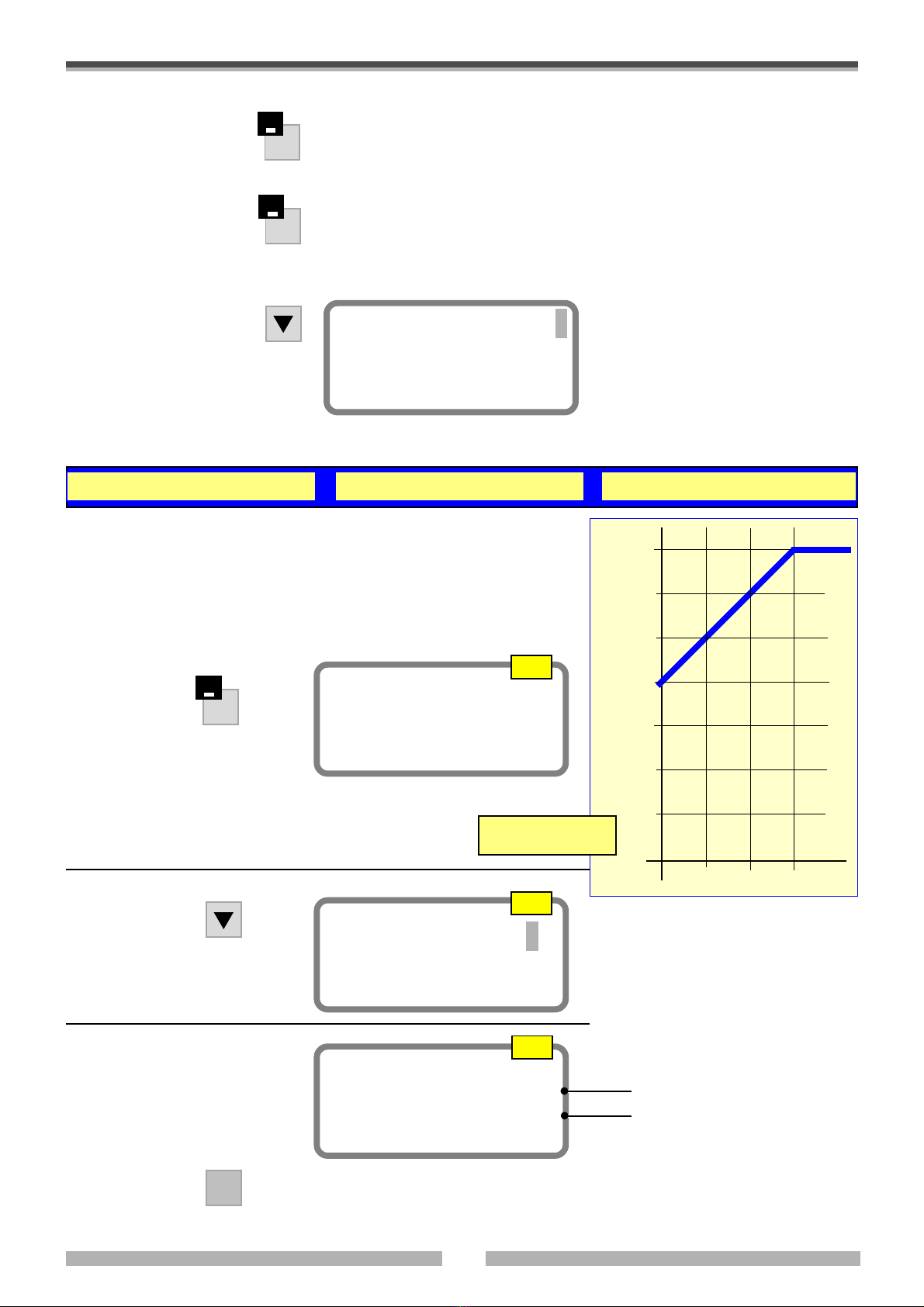

CYCLE START-UP
K1 VISUALIZED ON THE DISPLAY:
• The key led light is switched on.
• The machine starts, reaches the set temperature value (20°C) and continues
to operate along this value.
• The set rising and descending value is reached at maximum speed.
3.2 STEP B • Set a temperature slope from 20°C to 35°C with a gradient of 1°C/min and a 60% RH.
• Wait for the chamber to reach the set departure value (20°C) (Step A).
• Follow the example to programme a temperature slope as shown in the
diagram with the gradient that is indicated below.
• Move to the page shown below.
10
15
20
25
30
35
5
5’ 10’ 15’
t=min.
Temp
°C
gradient: 1°C/min
K2
Settings
A1
A3
Temper. Set. 35.00°C
Humid. Set. 60.00 %
ENTER
To confirm.
If you enter the wrong number, you will
still have to press ENTER and then re-
digit the number.
Temper. Set. 20.00°C
Humid. Set. 0.00 %
A2
The previously set values are visual-
ized
Final temperature
Final humidity
K2
• Press this key to switch it
off (led light switched off)
If the machine has stopped:
• Press this key to start the
machine

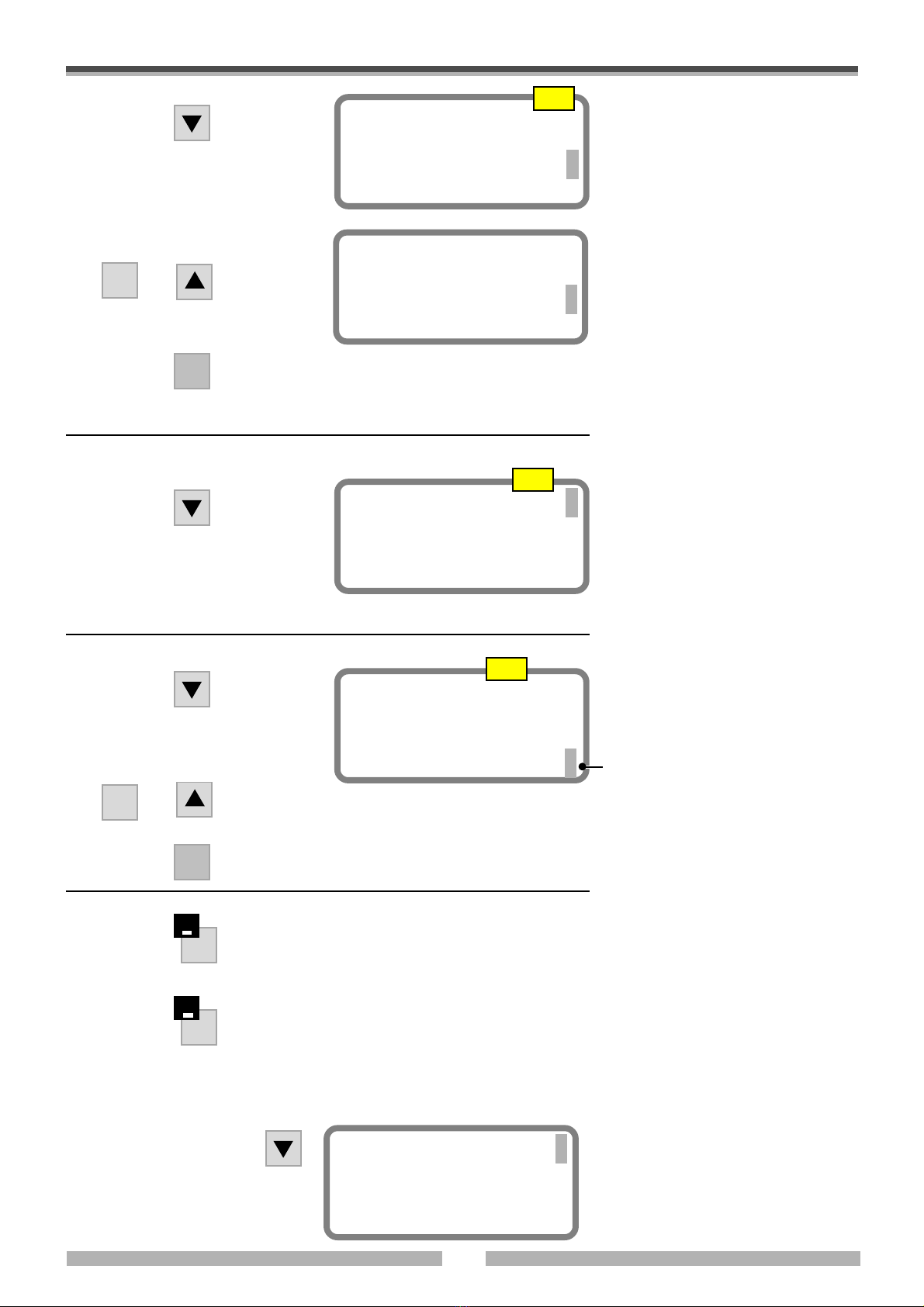

KEYS DISPLAY FUNCTIONS
• Press The chamber internal data are visual-
ized.
Thechamberreachesthesevaluesand
maintains them.
Temp. meas. .......°C
Humid. meas. .......%
• Enter the values visualized on
thedisplay in the page shown on
the right.

15
Temp. gr. 1.00 °C min
Hum. gr. 0.00 RH%min
• Enterthetemperaturegradientbut
leavethe humidity gradientat 0 for
the time being.
A4
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Temperature enab ON
Humidity enab. OFF
- To enable or disable temperature
control
- To enable or disable humidity
control
A5
SHIFT
- Temperature control is enabled
If you also wish to enable humdity
control, move the cursor to the line
below.
Temperature enab. ON
Humidity enab. ON
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number.
Dehumidification: OFF
Vibrator: OFF
Specimens: OFF
U.V. lamp.: OFF
A6 - Ignore these data for the time
being and move on to the next
page.
Water recharge: OFF
Not used: OFF
Not used: OFF
SP. hum. CTRL OFF
A7
SHIFT
Humdity slope control remains
switched off.
To improve the performance of the
system (experiment the setting)
ENTER
K1 TO VISUALIZE ON THE DISPLAY
• The key led light is switched on
• the machine starts up and carries out the set temperature slope with a 60% RH
humdity.
Once the set temperature values have been reached, the machine will continue
along these values.
K2 • To switch off (led light switched off)
• Press
Internal chamber data are visualized.
Temp. meas. 35 °C
Humid. meas. 60 %

16
10
15
20
25
30
35
5
5’ 10’ 15’
t=min.
Temp
°C
3.2 STEP C Set a controlled humidity slope from 60% to 90% with a gradient of 2%/min with a
constant temperature and 60% RH humidity
• Wait for the chamber to reach the preset values, 35°C
and 60% RH (Step Aand Step B).
• Followthe example given to programme a temperature
slope as shown in the diagram with the gradient indi-
cated.
• Move to the next page.
Temperature slope
already carried out
K2
Settings
A1
Temp. Set 35.0°C
Humid. Set 60.0 %
A2
The previously set values are visual-
ized.
Temp. gr. 0.00°C min
Hum. gr. 2.00 RH%min
• Turnthetemperaturegra-
dient to 0
• Turn the humidity gradi-
ent to 2
A4
ENTER
A3
Temp. Set 35.0°C
Humid. Set 90.0 %
ENTER
If the K1 key lights up, the machine will
carry out the command immediately
Final humidity
40
50
60
70
80
90
30
15’ 20’ 25’
t=min.
% RH
KEYS DISPLAY FUNCTIONS
gradient:
2%/min
30’

17
Temperature enab. ON
Humidity enab. OFF
A5
SHIFT
Temperature enab. ON
Humidity enab. ON
ENTER
Ifyouenterthewrongnumber,youwillstillhavetopressENTERandthenre-digit
the number
Dehumidification: OFF
Vibrator: OFF
Specimens: OFF
U.V. lamp: OFF
A6 - Ignore these data for the time
being and move on to the next
page
Water recharge: OFF
Not used: OFF
Not used: OFF
SP. hum. CTRL OFF
A7
SHIFT
Toimprove the performance of thesys-
tem (experiment the setting)
ENTER
K1 TO VISUALIZE
• The key led light is switched on the machine starts up and carries out the
controlled humidity slope.
• Once the set temperature values have been reached, the machine will continue
along these values.
K2 • To switch off (led light switched off)
• Press
Internal chamber data are visualized.
Temp. meas. 35 °C
Humid. meas. 90 %
- To enable or disable tempera-
ture control
- To enable or disable humidity
control
- Temperature control is enabled.
If you also wish to enable
humdity control, move the
cursor to the line below and use
the same keys.

18
20
40
60
80
100
110
°C
h
2 2 1,5 2,5 2 2
30
55
20
40
60
100
UR
%
h
1 1,5 2,5
95 90
2
90
30 30
55
110
12,5
1 1,5 2,52
1
95 95
2 2 1,5 2 2
1,5
80
1,5
95
4AUTOMATIC OPERATION
In order to make the following instructions easier to understand, a temperature and humidity cycle will be carried out.
OP2605-010
Example graph of
temperature control
Ambient
temperature
Ambient
humdity
Controlled
humidity
slope
Period of
stabilization
Period of
stabilization
Controlled
temperature
slope
Field of
humidity
control
Example graph of
humidity control
Segment 2 Segment 3 Segment 5 Segment 6
Loop = repetition of
segments 4,5,6,7
Controlled
temperature
slope
Segment 8
Maximum
speed
ON
OFF OFF OFF
ON Example of how to operate
AUX 1
Constant
humidity
OP2605-015
95
110
Segment 1 Segment 7 Segment 4
Point of loss of control of
humdity (disable humidity)
Segment 8
Segment 9
Segment 11
Segment 10
Segment 9
Segment 10
Segment 11
4.1 EXAMPLE CYCLE
RH

19
1 2 3 4 56 7 8 9 10 11
.........
OFF
ON
ON
ON
30
0.00
1.00
ON
ON
ON
60
0.00
3.00
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
1
1:0:0
ON
ON
OFF
OFF
30
0.00
1.00
ON
OFF
OFF
60
0.00
3.00
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
2
2:0:0
ON
ON
OFF
OFF
30
0.00
1.00
ON
OFF
OFF
95
0.29
3.00
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
3
1:30:0
ON
ON
ON
OFF
55
0.28
1.00
ON
ON
OFF
95
0.00
3.00
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
4
2:30:0
ON
ON
OFF
OFF
55
0.00
1.00
ON
OFF
ON
90
20
3.00
OFF
OFF
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
5
2:0:0
ON
ON
OFF
OFF
30
0.21
1.00
ON
OFF
ON
95
20
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
6
2:0:0
ON
ON
OFF
OFF
30
0.00
1.00
ON
OFF
OFF
95
0.00
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
7
1:30:0
ON
ON
OFF
OFF
95
0.70
1.00
ON
ON
OFF
95
0.00
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
8
0:0:5
ON
ON
OFF
OFF
95
0.00
1.00
OFF
OFF
ON
95
0.00
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
9
0:0:0
OFF
ON
ON
ON
110
0.00
1.00
OFF
OFF
OFF
0.00
0.00
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
10
1:30:0
ON
ON
ON
OFF
110
0.00
1.00
OFF
OFF
OFF
0.00
0.00
3.00
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SAVE
11
OK
4.2 EXAMPLE CYCLE TABLE
Segment n°
Duration
Duration wait:
CHANNEL 1
Control:
Wait for set point
Max speed
Set point
Gradient
Near set
CHANNEL 2
Control:
Wait for set point
Max speed
Set point
Gradient
Near set
Special contacts
Dehumidification
Vibrator
Apparatus
UV lamp
Water recycle
Humid. spec. CTRL
Auxiliary contacts
Aux1
Aux2
Aux3
Aux4
Aux5
Aux6
Aux7
Aux8
To save segment
Total segments
Confirm progr.
