Welcome to LOGO!
Dear customer,
Thank you for purchasing LOGO!, and congratulations on your decision.
In LOGO! you have acquired a logic module that meets the stringent qual-
ity requirements of ISO 9001.
LOGO! is universal in application. Its comprehensive functionality and
great ease of use make it a highly cost-efficient solution for virtually any
application.
LOGO! documentation
This LOGO! manual tells you how to install, progam and use LOGO!.
In addition, the step-by-step graphical guide shipped with LOGO! and the
LOGO!Soft online help system provide you with the essentials.
LOGO!Soft is a programming package that runs on PCs under WindowsT.
It will help you get to know LOGO! and test, print and archive programs.
Guide to the manual
We have subdivided this manual into 6 chapters:
SGetting to know LOGO!
SInstalling and wiring LOGO!
SProgramming LOGO!
SParameterizing LOGO!
SApplications
STechnical data
Additional support
If you have any questions concerning LOGO!, the dealer from whom you
bought it will be glad to help you.
Safety guidelines
This manual contains notices which you should observe to ensure your own personal
safety, as well as to protect the product and connected equipment. These notices are
highlighted in the manual by a warning triangle and are marked as follows according
to the level of danger:

LOGO! manual
EWA 4NEB 712 6006-02
ii
!Danger
indicates that death, severe personal injury or substantial property dam-
age will result if proper precautions are not taken.
!Warning
indicates that death, severe personal injury or substantial property dam-
age can result if proper precautions are not taken.
!Caution
indicates that minor personal injury or property damage can result if
proper precautions are not taken.
Note
draws your attention to particularly important information on the prod-
uct, handling the product, or to a particular part of the documentation.
!Warning
Only qualified personnel should be allowed to install and work on this
equipment. Qualified persons are defined as persons who are authorized
to commission, to ground, and to tag circuits, equipment, and systems in
accordance with established safety practices and standards.
!Warning
This device and its components may only be used for the applications
described in the catalog or the technical description, and only in connec-
tion with devices or components from other manufacturers which have
been approved or recommended by Siemens.
This product can only function correctly and safely if it is transported,
stored, set up, and installed correctly, and operated and maintained as
recommended.
Copyright ESiemensAG 1996 All rights reserved
The reproduction, transmission or use of this document or its contents is not permitted without
express written authority. Offenders will be liable for damages. All rights, including rights created
Disclaimerof Liability
We have checked the contents of this manual for agreement with the hardware and software
described. Since deviations cannot be precluded entirely, we cannot guarantee full agreement.
However, the data in this manual are reviewed regularly and any necessary corrections included
in subsequent editions. Suggestions for improvement are welcomed.
Welcome to LOGO!

iii
LOGO! manual
EWA 4NEB 712 6006-02
Contents
1 Getting to know LOGO! 1. . . . . . . . . . .
2 Installing and wiring LOGO! 3. . . . . . .
2.1 Installing/deinstalling LOGO! 4. . . . . . . . . . . . . . . . . . .
2.2 Wiring LOGO! 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.1 Connecting the power supply 5. . . . . . . . . . . . . . . . . . .
2.2.2 Connecting LOGO!’s inputs 6. . . . . . . . . . . . . . . . . . . .
2.2.3 Connecting outputs 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Switching LOGO! on/resumption of power supply 10
3 Programming LOGO! 12. . . . . . . . . . . . .
3.1 Circuit diagram 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Connectors and blocks 14. . . . . . . . . . . . . . . . . . . . . . . .
3.3 Connectors 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Basic functions 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.1 AND 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.2 OR 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.3 NOT 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.4 NAND 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.5 NOR 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.6 XOR 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 Special functions 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.1 Accuracy of the time 23. . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.2 On-delay 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.3 Off-delay 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.4 Pulse relay 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.5 Clock (time switch) 27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.6 Setting the clock (time switch) 29. . . . . . . . . . . . . . . . . .
3.5.7 Clock: examples 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.8 Latching relay 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.9 Clock pulse generator 32. . . . . . . . . . . . . . . . . . . . . . . . .
3.5.10 Retentive on-delay 33. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.11 Up and down counter 34. . . . . . . . . . . . . . . . . . . . . . . . . .

LOGO! manual
EWA 4NEB 712 6006-02
iv
3.6 Blocks (BN) 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.7 Memory required and size of a circuit 37. . . . . . . . . . .
3.8 The golden rules for working with LOGO! 40. . . . . . .
3.9 Overview of LOGO!’s menus 41. . . . . . . . . . . . . . . . . . .
3.10 Converting a circuit diagram to a block
representation 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11 Entering a program 43. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.1 Switching to programming mode 43. . . . . . . . . . . . . . . .
3.11.2 First program 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.3 Editing the program 45. . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.4 Second program 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.5 Deleting a block 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.6 Deleting a number of interconnected blocks 56. . . . . .
3.11.7 Correcting typing errors 57. . . . . . . . . . . . . . . . . . . . . . . .
3.11.8 ”?”on the display 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.11.9 Deleting a program 57. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.12 Using the program module/card 59. . . . . . . . . . . . . . . .
3.12.1 Removing the program module/card 60. . . . . . . . . . . . .
3.12.2 Copying a program from LOGO! to the program
module/card 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.12.3 Copying a program from the program module/card
to LOGO! 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.13 Connecting LOGO! to a PC 65. . . . . . . . . . . . . . . . . . . . .
4 Parameterizing LOGO! 66. . . . . . . . . . . .
4.1 Switching to parameterization mode 67. . . . . . . . . . . .
4.1.1 Parameters 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.2 Selecting a parameter 68. . . . . . . . . . . . . . . . . . . . . . . . .
4.1.3 Changing a parameter 69. . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Setting the time (LOGO! 230 RC) 71. . . . . . . . . . . . . . . .
5 Applications 72. . . . . . . . . . . . . . . . . . . . .
5.1 Stairway, hall or corridor lighting 73. . . . . . . . . . . . . . .
5.1.1 Demands on stairway lighting 73. . . . . . . . . . . . . . . . . . .
5.1.2 Previous solution 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.3 Lighting system with LOGO! 74. . . . . . . . . . . . . . . . . . . .
5.1.4 Special features and enhancement options 77. . . . . . .
Contents

v
LOGO! manual
EWA 4NEB 712 6006-02
5.2 Automatic door 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.1 Demands on an automatic door 78. . . . . . . . . . . . . . . . .
5.2.2 Previous solution 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.3 Door control system with LOGO! 79. . . . . . . . . . . . . . . .
5.2.4 Special features and enhancement options 82. . . . . . .
5.2.5 Enhanced LOGO! 230 RC solution 82. . . . . . . . . . . . . .
5.3 Ventilation system 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3.1 Demands on a ventilation system 85. . . . . . . . . . . . . . .
5.3.2 Advantages of using LOGO! 87. . . . . . . . . . . . . . . . . . . .
5.4 Industrial gate 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4.1 Demands on the door control system 89. . . . . . . . . . . .
5.4.2 Previous solution 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4.3 Enhanced LOGO! solution 92. . . . . . . . . . . . . . . . . . . . .
5.5 Fluorescent lamps 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5.1 Demands on the lighting system 93. . . . . . . . . . . . . . . .
5.5.2 Previous solution 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5.3 Fluorescent lamp control with LOGO! 230RC 95. . . . .
5.6 Rainwater pump 97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.6.1 Demands on the control system for a
rainwater pump 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.6.2 Previous solution 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.6.3 Rainwater pump with LOGO! 230RC 99. . . . . . . . . . . .
5.6.4 Special features and enhancement options 100. . . . . . .
5.7 Dereeler 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.7.1 Demands on a dereeler 101. . . . . . . . . . . . . . . . . . . . . . . .
5.7.2 Previous solution 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.7.3 Dereeler with LOGO! 24R 102. . . . . . . . . . . . . . . . . . . . . .
5.7.4 Advantages of the LOGO! solution 103. . . . . . . . . . . . . .
5.8 Additional application options 104. . . . . . . . . . . . . . . . .
6 Technical data 105. . . . . . . . . . . . . . . . . . .
Abbreviations 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents

LOGO! manual
EWA 4NEB 712 6006-02
vi
Contents

1
LOGO! manual
EWA 4NEB 712 6006-02
1Getting to know LOGO!
What is LOGO! ? –
LOGO! is the new universal logic module from Siemens.
With dimensions of 72 x 90 x 55 mm, LOGO! provides:
SControl functions
SAn operating and display unit
SA power supply
S6 inputs and 4 outputs
SAn interface for program modules and a PC cable
SReady-to-use basic functions that are often required in practice, such as
functions for on- and off-delays and pulse relays
SA time switch/clock (LOGO! 230RC)
L1 N I1 I2 I3 I4 I5 I6
Q1 Q2 Q3 Q4
SIEMENS
Inputs
Outputs
Power supply
Display panel
Keys
Shaft for
program
module and
PC cable
You can use LOGO! for domestic and installation engineering tasks (e.g.
stairway lighting, external lighting, sun blinds, shutters or shop window
lighting) and for mechanical and apparatus engineering (e.g. gate control
systems, ventilation systems or rainwater pumps).

LOGO! manual
EWA 4NEB 712 6006-02
2
Versions
The following different versions of LOGO! are available:
SLOGO! 230 RC
–Power supply and digital inputs: 115 V AC / 230 V AC
–Digital outputs: relays, max. 8 A
–4 time switches (clocks) with up to 3 on and off times each
SLOGO 230R
–Power supply and digital inputs: 115 V AC / 230 V AC
–Digital outputs: relays, max. 8 A
SLOGO! 24R
–Power supply and digital inputs: 24 V DC
–Digital outputs: relays, max. 8 A
SLOGO! 24
–Power supply and digital inputs: 24 V DC
–Digital outputs: transistor max. 0.3 A
LOGO! has UL, CSA and FM certification, carries CE marking, complies
with the VDE 0631 and IEC1131 standards and has interference suppres-
sion in accordance with EN 55011 (limit class B).
Getting to know LOGO!

3
LOGO! manual
EWA 4NEB 712 6006-02
2Installing and wiring LOGO!
You install LOGO! in a distribution box or cabinet, ensuring that the con-
nectors are covered. If they are not, there is a danger of touching live
parts.
LOGO! must be installed and wired by a trained technician who knows
and complies with both the universally applicable engineering rules and
the regulations and standards that apply in specific cases.
Dimensions
The dimensions of LOGO! comply with the DIN 43880 standard for the
dimensions of installation equipment.
LOGO! must be snapped onto a DIN rail with a width of 35 mm
(DIN EN 50022).
LOGO! is 72 mm wide, which corresponds to the size of 4 modules.

LOGO! manual
EWA 4NEB 712 6006-02
4
2.1 Installing/deinstallingLOGO!
You install LOGO! on a DIN rail as follows:
1. Place LOGO! on the rail.
2. Swivel it. The snap catch on the back of LOGO! must engage.
Depending on the type of DIN rail used, the snapping mechanism may be
a bit stiff. If it is too stiff and LOGO! will not snap on, you can pull the
snap catch down a little, as you do when deinstalling LOGO! as described
below.

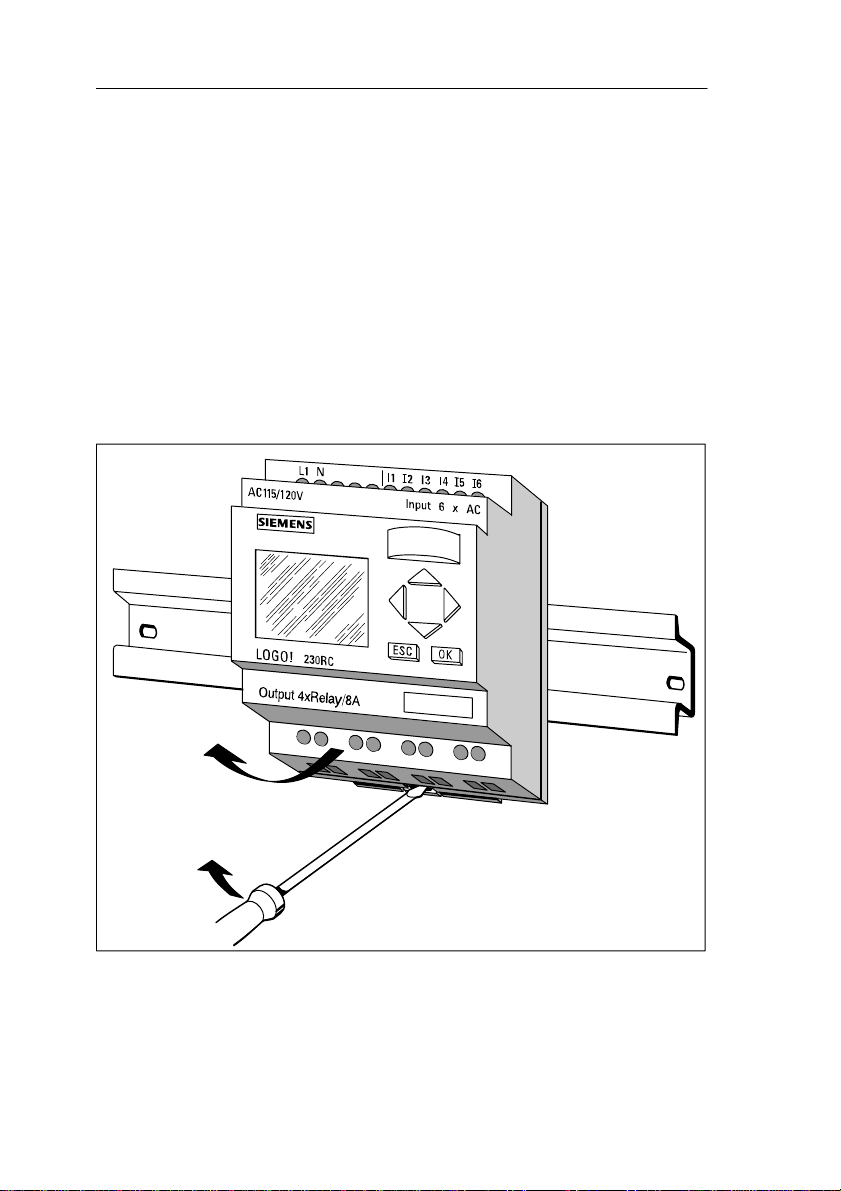

You deinstall LOGO! as follows:
1. Insert a screwdriver in the hole shown in the picture at the lower end of
the snap catch, and pull the snap catch downward.
1
2
RC–0049
2. Swivel LOGO! away from the DIN rail.
Installing and wiring LOGO!
