ACUSON S2000
System
Installation Instructions
US
2010
US15-101.812.01.02.02
Replaces: US15-101.812.01.01.02
English
Doc. Gen. Date: 05.10
n.a.
Part No.:
Ultrasound
System Delivery Procedure
This document is valid for:
ACUSON S2000

2 Revision / Disclaimer
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 2 of 40
1Revision / Disclaimer
Copyright
Copyright © 2010 by Siemens Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in retrieval systems, or translated into
any language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise, without the prior written permission of
Siemens Corporation. Siemens Corporation reserves the right to change its products and
services at any time. In addition, this manual is subject to change without notice. Siemens
Corporation welcomes customer input on corrections and suggestions for improvements to
this manual.Although Siemens Corporation has attempted to ensure accuracy throughout
this manual, Siemens Corporation assumes no liability for any errors or omissions, nor for
any damages resulting from the application or use of this information.
Trademarks
ACUSON, Sequoia, Cypress, AEGIS, Aspen, 128XP, XP, AcuNav, CV70, SONOLINE,
SONOVISTA, Adara, Antares, G20, G40, G50, G60S, P10, P50, S2000, S2000 ABVS,
SC2000, X150, X300, X500, SONOVISTA FX, syngo.fourSight Workplace,Omnia, Premier
and KinetDx are trademarks of Siemens Corporation registered in the U.S. Patent and
Trademark Office. CWS3000, DS3000, WS3000, and WebPro are trademarks of Siemens
Corporation.
Windows XP, 2000 and NT are registered trademarks of Microsoft Corporation. Internet
Explorer is a registered trademark of Microsoft Corporation. Netscape and Netscape Nav-
igator are registered trademarks of Netscape Communications Corporation. Java and the
JavaScript name are registered trademarks of Sun Microsystems, Inc. Adobe Acrobat is a
registered trademark of Adobe Systems, Inc.
Other products and brand names are trademarks of their respective owners.
Disclaimer
The service of equipment described herein is to be performed by qualified personnel who
are employed by Siemens or one of its affiliates or who are otherwise authorized by Sie-
mens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated with
or authorized by Siemens or one of its affiliates are directed to contact one of the local
offices of Siemens or one of its affiliates before attempting installation or service proce-
dures.
License Agreement
All computer programs copyright 1990-2010 by Siemens Corporation or its suppliers. Pro-
grams are licensed under the following agreement:
Siemens or its suppliers retain(s) ownership of and title to any computer program supplied
with the equipment and to the trade secrets embodied in such computer programs. Subject
to the Buyer’s acceptance and fulfillment of the obligations in this paragraph, Siemens
grants the Buyer a personal, non-transferable, perpetual, non-exclusive license to use any
computer program supplied with the Equipment that is necessary to operate the Equipment
solely on the medium in which such program is delivered for the purpose of operating the
equipment in accordance with the instructions set forth in the operator’s manuals supplied
with the Equipment and for no other purpose whatsoever. Buyer may not reverse-assem-
ble, reverse-compile or otherwise reverse-engineer such computer programs nor may

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
Revision / Disclaimer 3
Page 3 of 40
Buyer make a copy of such program or apply any techniques to derive the trade secrets
embodied therein. In the event of a failure by Buyer to comply with the terms of this license,
the license granted by this paragraph shall terminate. Further, because unauthorized use
of such computer programs will leave Siemens without an adequate remedy at law, Buyer
agrees that injunctive or other equitable relief will be appropriate to restrain such use,
threatened or actual. Buyer further agrees that (i) any of Siemens"s suppliers of software
is a direct and intended beneficiary of this end-user sublicense and may enforce it directly
against Buyer with respect to software supplied by such supplier, and (ii) No supplier of Sie-
mens shall be liable to buyer for any general, special, direct, indirect, consequential, inci-
dental or other damages arising out of the sublicense of the computer programs supplied
with the equipment.

4 Table of Contents
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 4 of 40
0Table of Contents
1 _______ System Delivery Procedure _______________________________________ 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Time Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Required Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Check for Shipping Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Set Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpack the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Inspect and Set Up the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Inventory the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Verifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Verify Control Panel Raises and Lowers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Verify Transducer Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Verify Color Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Verify Doppler Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verify M Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verify Printer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Verify DVD Recorder (DVR) Operation (if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power Down System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Customer Acceptance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Customer Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Crating the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Packaging the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 5
Page 5 of 40
1-1System Delivery Procedure
Overview 0
The System Delivery procedure provides instructions to power on and perform a courtesy
check of an ACUSON S2000 ultrasound imaging system at a customer site. This document
is confidential and to be used by authorized personnel only.
NOTE In the event that the uncrating or courtesy check cannot be
completed or the customer refuses the uncrating or courtesy
check, immediately contact the Siemens factory representa-
tive or the local Uptime Service Center.
The S2000 system power on and courtesy check requires approximately one hour to per-
form the following procedures:
•Uncrating the system and peripheral devices
•Set Up the System
•Verifications
•Verify Printer Operations
•Verify DVD Recorder Operations
•Power Down the System
•Crating the System
Time Required 0
Approximately 1 hour
Required Material 0
•9/16-inch wrench
•Utility knife
•Diagonal cutters
•Safety Glasses

6 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 6 of 40
Before You Start 1.1
This section applies to delivery personnel ONLY.
It will take approximately one hour to perform a courtesy check on the ultrasound system.
During the inspection and delivery process the tools needed include safety glasses, a utility
knife or a diagonal cutter, and a 9/16th inch socket wrench.
Delivery trucks with lift gates, and a two-person, uniformed team are required. Be sure to
unpack the system onsite at customer-designated locations. Talk with the shipping and
receiving manager to determine the desired locations, and perform a walk-through, while
the machine is still secured in your trailer, to verify the most direct route to the final delivery
location. Remember; DO NOT unpack the system inside the truck or on the lift gate. Once
you are in the delivery location, check to be sure that there is enough space to remove the
system from the shipping container.

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 7
Page 7 of 40
Check for Shipping Damage 1.2
Check the tip and tell on the crate and be sure that it has not been activated. Also check
to be sure that the shock indicator is not tripped. Contact Agent or Siemens immediately if
shipping damage indicators are activated, or if there appears to be any shipping damage.

8 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 8 of 40
Set Up the System 1.3
Unpack the System 0
NOTE Use Safety Glasses when cutting the two straps on the out-
side of the box.
Follow the instructions on the shipping package:
1. Remove the shipping label and the packing / unpacking instructions from the outside of
the shipping container. Set them aside for the customer.
2. Remove the outer packaging.
a) Cut the two straps (1/Fig.1/p.9)that secure the outer packaging.

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 9
Page 9 of 40
b) Remove the lid (2/Fig.1/p.9)and the outer sleeve (4/Fig.1/p.9).
c) Unfasten the three “Corro” clips (3/Fig.1/p.9)and remove the outer cardboard
wrap.
Fig. 1: S2000 Shipping Crate
Pos. 1 Shipping Straps
Pos. 2 Top Lid
Pos. 3 Coro Clips (3 places)
Pos. 4 Outer Sleeve
3. Remove all loose items from inside the packaging.
a) Remove the rear spacer and top accessory box (1,5/Fig.2/p.10), if necessary.
b) Remove the foam supports from the front and back of the monitor
(2,4/Fig.2/p.10).

10 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 10 of 40
4. Unfasten the eight “Corro” clips (6/Fig.2/p.10)and remove the inner cardboard wrap.
5. Lift the accessory box off the crate and set it aside.
Fig. 2: S2000 Shipping Crate -- Outer sleeve removed
Pos. 1 Spacer box
Pos. 2 Rear foam support
Pos. 3 S2000 Unit
Pos. 4 Front foam support
Pos. 5 Accessory box
Pos. 6 Coro clips (8 places)
Pos. 7 Inner sleeve
6. Carefully remove the plastic wrapping that secures the keyboard, peripherals, and fil-
ters to the system's frame.
7. Install the roll-out ramps.

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 11
Page 11 of 40
a) Unscrew the two 9/16 inch. bolts that secure the front ramp to the retainer bar, and
then remove both ramps from the crate.
b) Remove the two bolts that secure the rear bracket, and the four bolts that secure the
retainer bar to the front portion of the crate.
c) Attach the ramps to the bottom of the crate using the two Velcro strips. The wooden
guide strips should be on the outside, facing up.
8. Unlock the front and rear wheels and roll the system off the crate to its location.
CAUTION Equipment Damage May Occur!
¹This is a two-person operation. Keep control of the sys-
tem at all times will help prevent equipment damage by
tipping over or rolling away while using the ramps to
unload the system.
Fig. 3: S2000 -- Uncrating Positions
Pos. 1 Bolt (8 places)
Pos. 2 Rear Bracket
Pos. 3 Accessory Box “B”
Pos. 4 Ramp 2
Pos. 5 Ramp 1
Pos. 6 Front Bracket

12 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 12 of 40
Fig. 4: S2000 -- Crating/Uncrating Positions
Pos. 1 Rear Bracket
Pos. 2 Ramp 1
Pos. 3 Ramp 2
Pos. 4 Bolts (4 places)
Pos. 5 Front Bracket

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 13
Page 13 of 40
Inspect and Set Up the System 0
1. Verify all three positions of the brake pedal are functional:
Tab. 1 Brake Pedal Functions

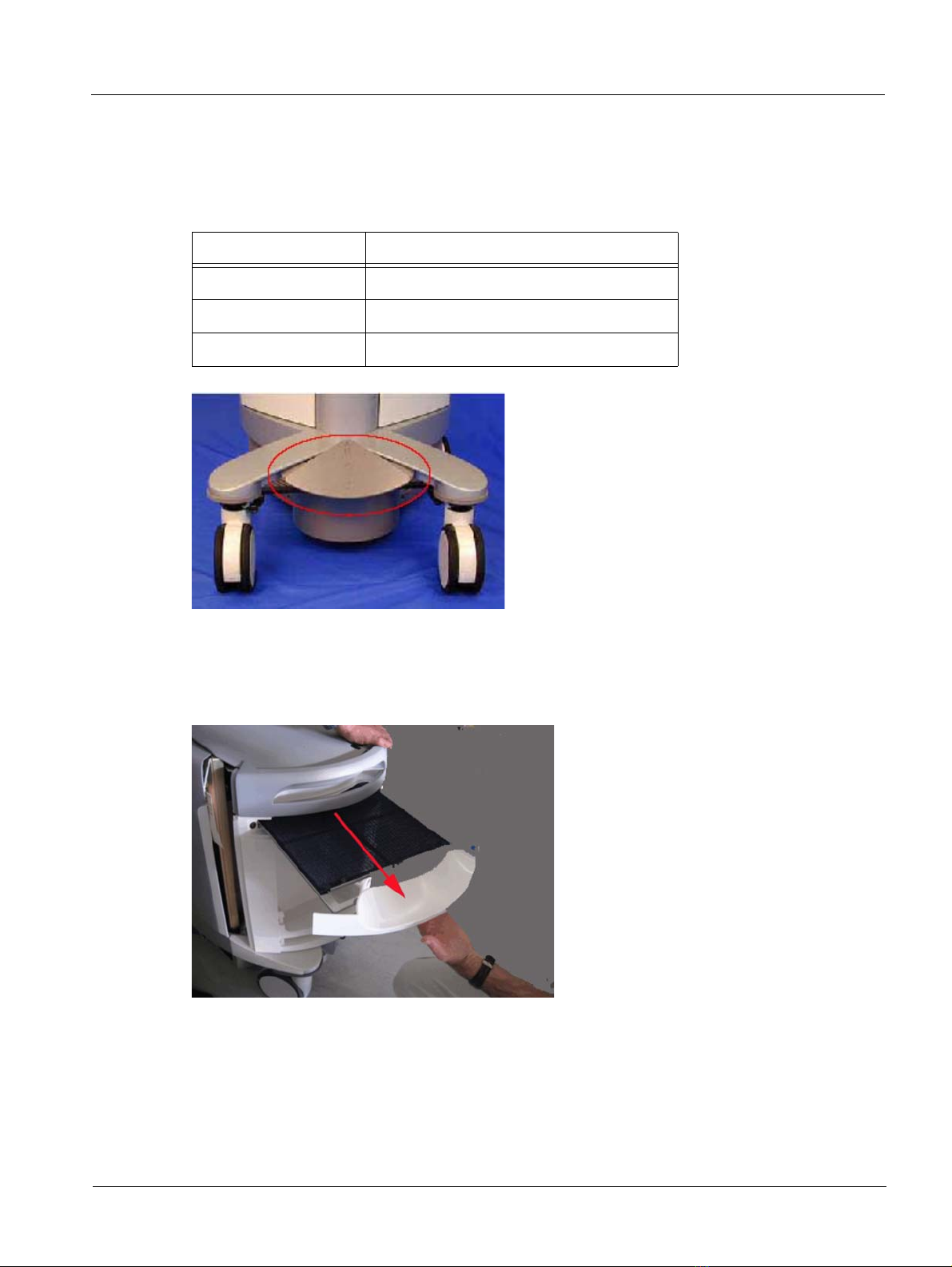

Fig. 5: Brake Pedal
2. Inspect the system for cosmetic damage. Verify there are no scratches or blemishes on
the system.
3. Verify filter is in place.
Fig. 6: S2000 Air Filter -- Pull to remove
Pull out the filter located at the rear of the system and check that the filter screen is in
place.
4. Position the ultrasound system in the office or exam room and set the brakes.
Pedal Position Condition
Up Front wheels locked straight.
Center All wheels pivot freely.
Down Front wheel brake engaged.

14 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 14 of 40
NOTE Always set the brakes once the system is in position. Never
leave the system without setting the brakes.
5. Inspect the front panel display (FPD) lock and swivel mechanism.
Inventory the System 0
Now that the system is in its final setup location, perform the following steps:
1. Unpack the accessories.
2. Inventory all items to ensure serial numbers match the packing list, and are present.
3. Contact Siemens immediately if the packing list and peripherals delivered do not match
or are missing.
Power Up the System 0
1. Connect the system AC power cord to an approved external power source. Ask the cus-
tomer is unsure which outlet to use.
2. Switch the MAIN circuit breaker to the on position.
- I = ON (up)
- 0 = OFF (down)
Fig. 7: AC Power Panel

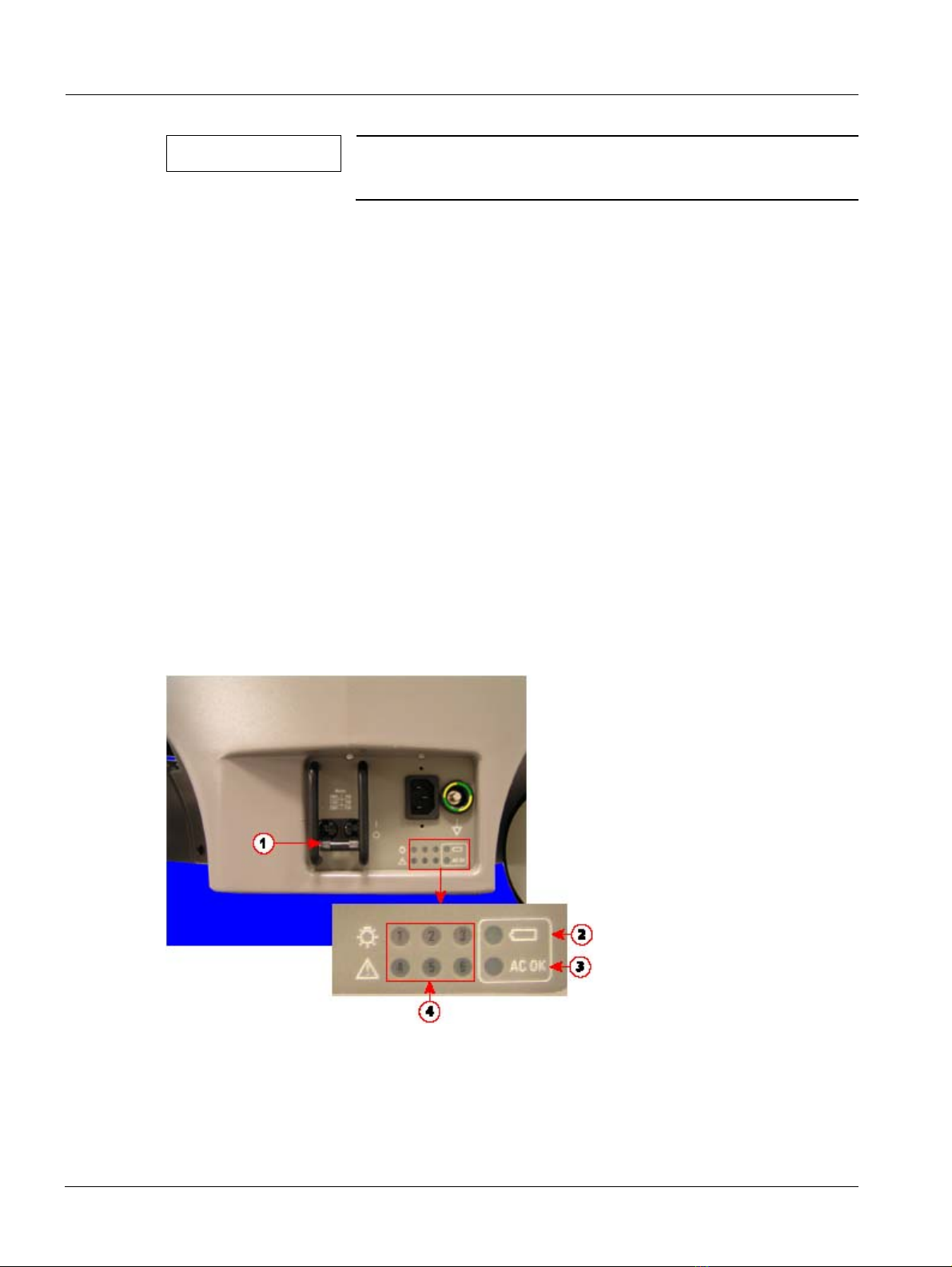

Pos. 1 MAINS Circuit Breaker (up = ON, down = OFF)
Pos. 2 Battery LED
Pos. 3 AC OK LED
Pos. 4 Bootup LEDS (all ON/green during bootup)

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 15
Page 15 of 40
3. Verify the following LED states:
a) Verify the Power Button flashes green.
Fig. 8: S2000 Control Panel Power Button
b) Verify the lower-rear panel AC OK LED illuminates green. Reference
(3/Fig.7/p.14).
c) Verify the lower-rear panel Battery LED (below the AC OK LED) illuminates green.
Reference (2/Fig.7/p.14).
4. Press the Power button. Reference (Fig.8/p.15).
5. Verify that the following occurs within the first four seconds of the boot sequence:
a) The lower-rear panel LEDs 1,2,3,4,5, and 6 illuminate green. Reference
(4/Fig.7/p.14)

16 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 16 of 40
b) Verify the Power Button illuminates green. Reference (Fig.8/p.15).
c) The control panel turns on, then off, indicating the completion of the power-on self
test (POST).
d) The I/O panel:
LEDs 1,3, 4, 5, 6, 7, 8, and 9 - illuminate green.
LED 2 - illuminates yellow.
Fig. 9: IO Panel -- LED Lights
6. Verify system completes the boot sequence to imaging without displaying any error
messages.
NOTE The boot sequence completes in approximately three to five
minutes.

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 17
Page 17 of 40
NOTE When the system completes the boot sequence to the imag-
ing screen and no transducers are connected to the system,
the system may display the following Transducer Error:
Transducer not connected. Perform any of the fol-
lowing to restore imaging:
a) Connect a transducer to “previously active”
port.
b) Select another transducer from the transducer
list.
This is normal. Roll the trackball to position the pointer over
the CLOSE on-screen button, then press the SELECT key.
NOTICE In the event that the system does not power up, the system is
in need of servicing to resolve the problem.
¹Contact the Siemens Factory Representative
¹For CSEs only, contact Siemens Uptime Service Cen-
ter,.

18 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 18 of 40
Verifications 1.4
Control Panel Overview 0
Refer to the following figures to locate the controls used throughout the verifications steps.
Fig. 10: Control Panel -- Lower UI

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 19
Page 19 of 40
Fig. 11: Control Panel controls
Pos. 1 M knob
Pos. 2 4D knob
Pos. 3 2D knob
Pos. 4 DVR store button
Pos. 5 Freeze/Gain/Cine
Pos. 6 Store button
Pos. 7 C knob
Pos. 8 Print button
Pos. 9 PW knob
Pos. 10 CW knob
Pos. 11 Select button
Pos. 12 Update button
Pos. 13 Next button
Pos. 14 Priority button
Verify Control Panel Raises and Lowers 0
NOTE If the S2000 system is configured for both a color printer and
a black and white printer, or a DVD Recorder, the control
panel will not raise or lower. Proceed to (Verify Transducer
Initialization / p. 20).

20 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 20 of 40
1. Press the control panel Release button at the middle of the control panel handle.
Fig. 12: Control Panel Movement
2. Verify the control panel can be raised and lowered.
- Raise the control panel to its highest position.
- Lower the control panel to its lowest position
3. Verify that the control panel can be swiveled from left to right.
- Swivel the control panel to the left.
- Swivel back to the center locked position.
- Swivel the control panel to the right.
- Swivel back to the center locked position.
Verify Transducer Initialization 0
Use the following process to verify the transducers and the transducer ports:
1. Verify one of the transducers work in the left transducer port, see (Verify the Left Trans-
ducer Port / p. 21) for instructions.
2. Using the same transducer that was verified in the left port, verify the function of the
center transducer port, see (Verify the Center Transducer Port / p. 24) for instructions.
3. Using the same transducer that was verified in the center port, verify the function of the
right transducer port (Verify the Right Transducer Port / p. 26).
4. Verify one at a time, each transducer shipped with the system in any of the verified
transducer ports.
5. Leave the last transducer being verified connected to the transducer port.
