Siemens Sonoline G20 User manual

© Siemens AG
The reproduction, transmission or use
of this document or its contents is not
permitted without express written
authority. Offenders will be liable for
damages. All rights, including rights
created by patent grant or registration
of a utility model or design, are
reserved.
Print No.:
Siemens Medical SolutionsUltrasound D ivisionejt
SONOLINE G20
System
Installation Instructions
US
2004
US06-101.812.01.02.02
Replaces: US06-101.812.01.01.02
English
Doc. Gen. Date: 10.04
n.a.
Part No.:
sd
SONOLINE G20 System Delivery Procedure
0864781508647831

2 Revision / Disclaimer
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 2 of 26 Medical Solutions USA, Inc.
1Revision / Disclaimer
Copyright
Copyright © 2004 by Siemens Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in retrieval systems, or translated into
any language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise, without the prior written permission of
Siemens Corporation. Siemens Corporation reserves the right to change its products and
services at any time. In addition, this manual is subject to change without notice. Siemens
Corporation welcomes customer input on corrections and suggestions for improvements
to this manual.Although Siemens Corporation has attempted to ensure accuracy through-
out this manual, Siemens Corporation assumes no liability for any errors or omissions, nor
for any damages resulting from the application or use of this information.
Trademarks
ACUSON, Sequoia, Cypress, AEGIS, Aspen, 128XP, XP, AcuNav, CV70, SONOLINE,
Adara, Antares, G20, G40, G50, G60S, Omnia and KinetDx are trademarks of Siemens
Corporation registered in the U.S. Patent and Trademark Office. CWS3000, DS3000,
WS3000, and WebPro are trademarks of Siemens Corporation.
Windows XP, 2000 and NT are registered trademarks of Microsoft Corporation. Internet
Explorer is a trademark of Microsoft Corporation. Netscape and Netscape Navigator are
registered trademarks of Netscape Communications Corporation. Java and the JavaScript
name are registered trademarks of Sun Microsystems, Inc. Adobe Acrobat is a registered
trademark of Adobe Systems, Inc.
Other products and brand names are trademarks of their respective owners.
Disclaimer
The service of equipment described herein is to be performed by qualified personnel who
are employed by Siemens or one of its affiliates or who are otherwise authorized by Sie-
mens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated
with or authorized by Siemens or one of its affiliates are directed to contact one of the
local offices of Siemens or one of its affiliates before attempting installation or service pro-
cedures.
License Agreement
All computer programs copyright 1990-2004 by Siemens Corporation or its suppliers. Pro-
grams are licensed under the following agreement:
Siemens or its suppliers retain(s) ownership of and title to any computer program supplied
with the equipment and to the trade secrets embodied in such computer programs. Sub-
ject to the Buyer’s acceptance and fulfillment of the obligations in this paragraph, Siemens
grants the Buyer a personal, non-transferable, perpetual, non-exclusive license to use any
computer program supplied with the Equipment that is necessary to operate the Equip-
ment solely on the medium in which such program is delivered for the purpose of operat-
ing the equipment in accordance with the instructions set forth in the operator’s manuals
supplied with the Equipment and for no other purpose whatsoever. Buyer may not
reverse-assemble, reverse-compile or otherwise reverse-engineer such computer pro-
grams nor may Buyer make a copy of such program or apply any techniques to derive the
trade secrets embodied therein. In the event of a failure by Buyer to comply with the terms

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
Revision / Disclaimer 3
Page 3 of 26
Medical Solutions USA, Inc.
of this license, the license granted by this paragraph shall terminate. Further, because
unauthorized use of such computer programs will leave Siemens without an adequate
remedy at law, Buyer agrees that injunctive or other equitable relief will be appropriate to
restrain such use, threatened or actual. Buyer further agrees that (i) any of Siemens"s
suppliers of software is a direct and intended beneficiary of this end-user sublicense and
may enforce it directly against Buyer with respect to software supplied by such supplier,
and (ii) No supplier of Siemens shall be liable to buyer for any general, special, direct, indi-
rect, consequential, incidental or other damages arising out of the sublicense of the com-
puter programs supplied with the equipment.

4 Table of Contents
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 4 of 26 Medical Solutions USA, Inc.
1- 0Table of Contents
1 _______ SONOLINE G20 System Delivery Procedure__________________________ 5
Uncrate the system and peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prior to Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpack the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Verify the Receipt of Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Inspect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power On the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

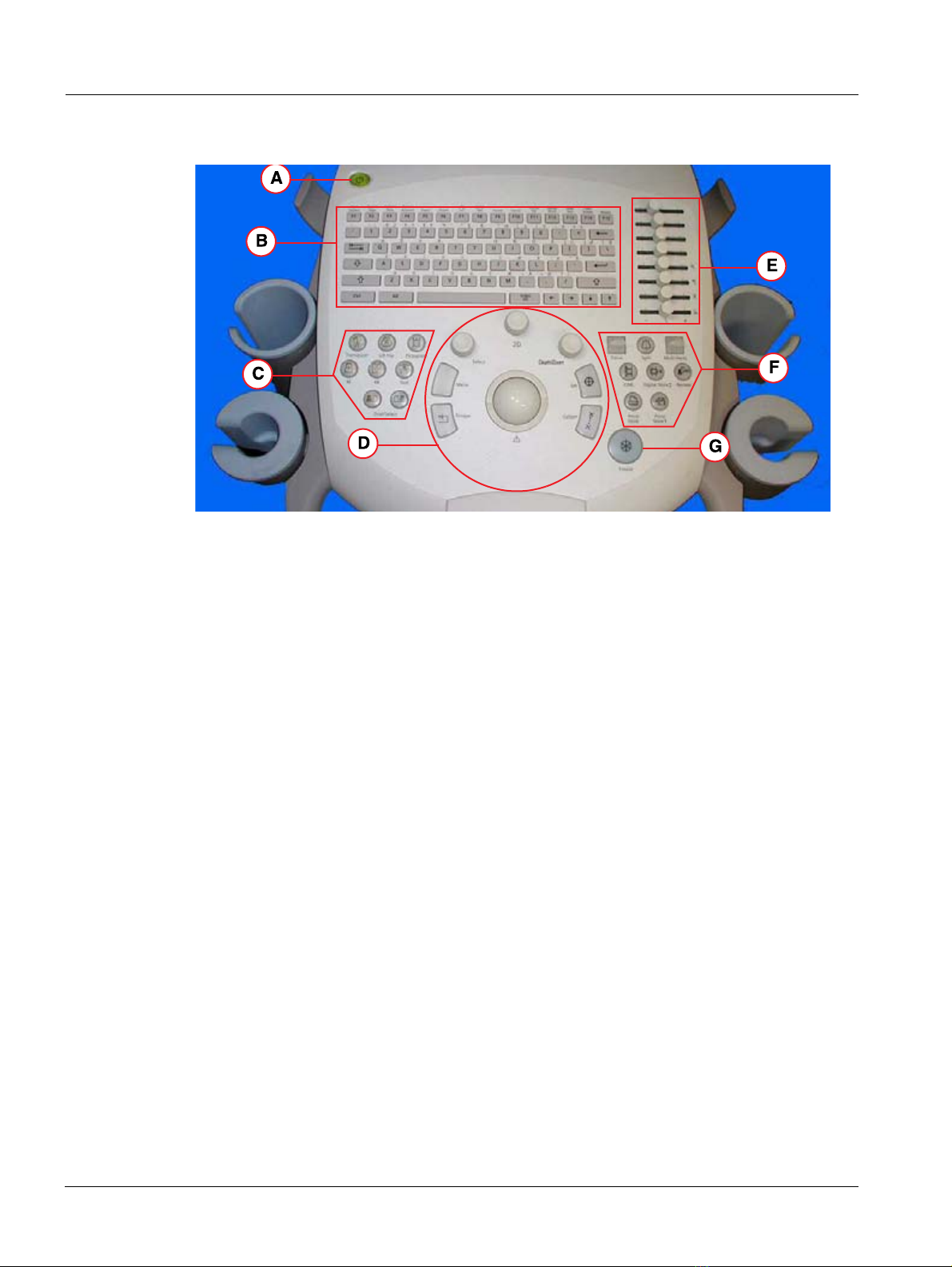

Front Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Verifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Verify the Monitor Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Verify Transducer Port Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Verify the Imaging Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Verify Printer Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Verify VCR Operation (if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 5
Page 5 of 26
Medical Solutions USA, Inc.
2-
1SONOLINE G20 System Delivery Procedure
This section provides instructions to perform a courtesy check for the SONOLINE G20™
ultrasound system. The courtesy check includes:
•Uncrate the System and Peripherals
•Power On the System
•Verifications
The time required to perform this procedure is approximately one hour.
NOTE In the event that the uncrating or courtesy check cannot be com-
pleted or the customer refuses the uncrating or courtesy check,
immediately contact the Siemens regional sales representative or
the local Uptime Service Center.

6 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 6 of 26 Medical Solutions USA, Inc.
Uncrate the system and peripherals 0
WARNING The G20 ultrasound system weighs 60 kg (133 lb.) and represents
a lifting hazard; the system including peripherals, crated for ship-
ment, weighs 83 kg (183 lb.). Attempting to lift this systems manu-
ally can cause serious injury.
¹Instructions for lifting the system, when enclosed in its
shipping container, are provided on the container. Once
the shipping container is removed from the system, the
G20 ultrasound system is not designed for lifting;
instead, transport it on its casters.
Prior to Starting 0
Allow sufficient space to remove the system from the crate.
Required Materials 0
•Utility knife
•Diagonal cutters
Unpack the System 0
1. Check the shipping container for damage caused during shipment.
NOTE Notify Siemens Uptime Service Center if damage to the shipping
container is found.
2. Remove the shipping documentation from the outside of the shipping container. Set
them aside for the customer.
3. Remove the shipping straps and tape from the shipping container.
- Use diagonal cutters to cut the two shipping straps that secure the outer packaging.
- Use a utility knife to cut the tape that secures the flaps at the top of the cardboard
shipping box, and then open the flaps.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 7
Page 7 of 26
Medical Solutions USA, Inc.
4. Release and remove the three Corro clips, located on the front of the shipping contain-
er.
- To release the clip, squeeze the two vertical bars together and then pull the top of the
bars down and away from the clip.
- To remove the clip, pull the clip away from the cardboard box.
Fig. 1: Corro Clip Removal
Pos. A Squeeze together to release lock
Pos. B Pull away from the shipping container
5. Unpack the shipping crate.
- Remove the accessory box.
- Remove the cardboard box from the G20 system.
- Remove and retain the screws that secure the two roll-out ramps to the cardboard
base; remove the two ramps.
Fig. 2: Shipping Base
Pos. A Roll-out ramp
Pos. B Ramp screws
Pos. C Cardboard Base

8 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 8 of 26 Medical Solutions USA, Inc.
6. Install the two roll-out ramps.
- Place the two ramps on the ramp studs.
The ramps studs are located on the front side of the shipping crate. The ramp planks
have one hole at the end that is placed on the floor and two holes at the end that is
placed on the ramp stud.
Fig. 3: Ramp Plank Placement
7. Unfold and lay flat the cardboard shipping base.
Fig. 4: Shipping Base Cardboard
8. Remove the plastic cover from the ultrasound system.
9. Roll the system off the shipping pallet.
- Disengage the brakes on each wheel.
- Carefully roll the system off the shipping pallet, down the ramps previously installed,
and on to the floor.
10. Go to the next section for instructions to power on and verify the ultrasound system.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 9
Page 9 of 26
Medical Solutions USA, Inc.
Verify the Receipt of Accessories 0
1. Inspect the accessories and other material in the accessory box.
2. Unpack and inventory all material against the packing list.
3. Check the accessories and other material for damage.
4. Move the accessories and other material to the customer-specified location.
Inspect the System 0
1. Verify the brake pedal is functional.
- Press the brake pedal down to engage the brakes.
- Press the brake pedal up to disengage the brakes.
Fig. 5: Brake Pedal
Pos. A Press the brake pedal up to disengage the brake
Pos. B Press the brake pedal down to engage the brake
2. Verify the system is free of cosmetic damage, including scratches and blemishes.
3. Position the ultrasound system in the office or exam room and engage the front and rear
brakes.
Quantity Accessory
1 Power Cord, 115 V
1 Power Cord, 230 V
1 Gel Bottle
1-container Gel
1-set CD-ROM, System Disk
CD-ROM, OS-System Disk
1 CD-ROM, Presets
10 CD-ROM, Blank

10 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 10 of 26 Medical Solutions USA, Inc.
Power On the System 0
1. Attach the power cord safety lock to the system.
- Verify that the MAINS power switch is off.
- Choose the correct power cord and safety lock for the system (100V/115V or 230V).
NOTE Two power cords and safety locks are provided; use only the ap-
propriate power cord and safety lock for the system.
•For 100 and 115V systems, use the white power cord (part num-
ber KP4819Y31AY3) with the small safety lock (part number
4H540092-0DB).
•For 230 V systems, use the gray power cord (part number
HG14A13V3.5M) with the large safety lock (part number
4H540070-0DB).
- Attach the safety lock to the system power inlet as shown in the figure below. Insert
the lower post of the safety lock first then the upper post.

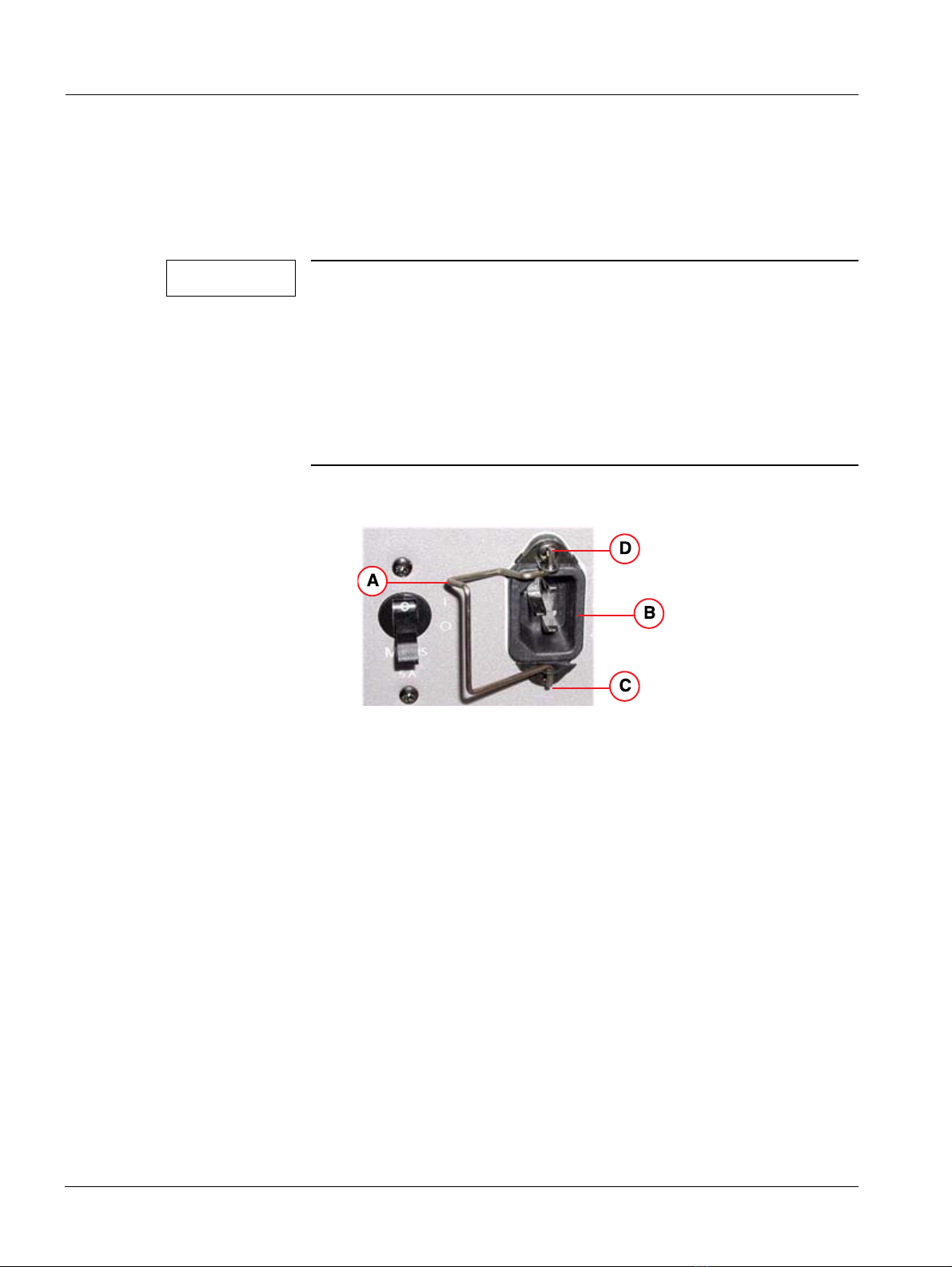

Fig. 6: Power cord Safety Lock
Pos. A Safety lock
Pos. B Power inlet
Pos. C Lower post of the safety lock
Pos. D Upper post of the safety lock
- Position the safety lock on the left side of the power inlet; plug the power cord into the
power inlet.
- Press the safety lock on to the power cord; the safety lock must snap into the locking
position.
2. Plug the other end of the AC power cord into an approved power source.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 11
Page 11 of 26
Medical Solutions USA, Inc.
3. Power on the MAINS power switch (up is on and down is off).
The Standby button is backlit with the color amber when the MAINS power is switched
to on.
Fig. 7: Back of the System -Power
Pos. A MAINS power switch
Pos. B Power cord
Pos. C Power cord safety lock
4. Press the Standby button on the front control panel.
Fig. 8: Front Control Panel
Pos. A Standby button

12 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 12 of 26 Medical Solutions USA, Inc.

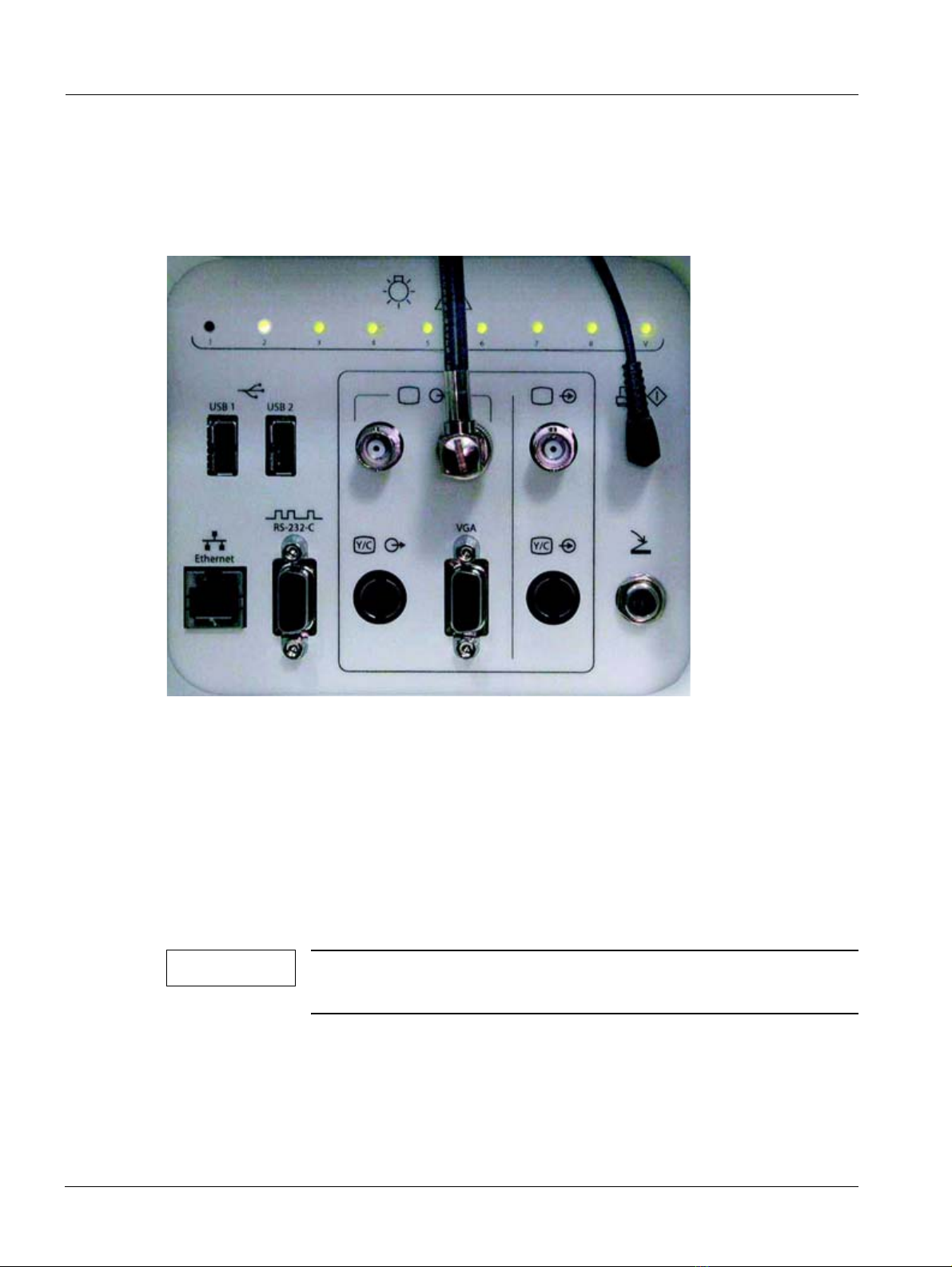

5. Verify the following startup sequence occurs:
- Verify the fan powers on.
-VerifytheStandby button changes to green.
- Allow the boot sequence to complete, and then verify the correct illumination of the
I/O module LEDs.
Fig. 9: Successful Boot - LED Illumination
Pos. 1 Off
Pos. 2 Blinking
Pos. 3 On
Pos. 4 On
Pos. 5 On
Pos. 6 On
Pos. 7 On
Pos. 8 On or off - depending on control panel status
Pos. V On
NOTE If the LEDs are not displayed as described, contact the Siemens
Uptime Service Center.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 13
Page 13 of 26
Medical Solutions USA, Inc.

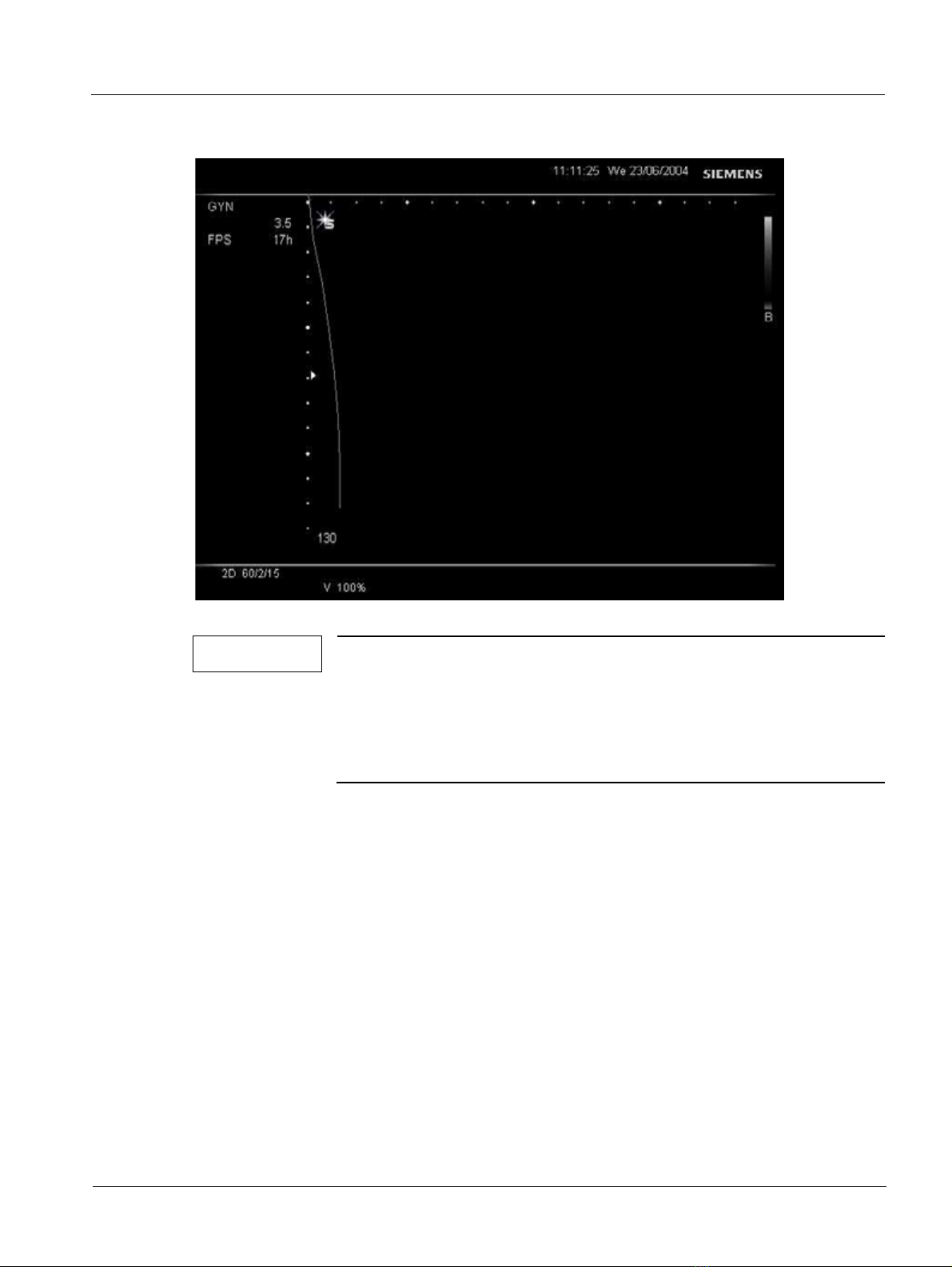

6. Verify that the system boots to a blank screen.
Fig. 10: Blank Screen
NOTE The boot sequence takes approximately 80 seconds, 150 seconds
if POST is set to run during the boot sequence. If the system does
not boot within 80 to 150 seconds, press STANDBY and wait for
the system to shut down. Verify that the power connections are
correct, and then boot the system. If system does not boot, report
this to the Siemens Uptime Service Center.

14 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 14 of 26 Medical Solutions USA, Inc.
Front Control Panel 0
Fig. 11: Front Control Panel (control descriptions - left to right and top to bottom)
Pos. A Standby button
Pos. B Keyboard, Function keys and Video I/O key
Pos. C Transducer selection, L/R Flip, Pictogram, M-mode, 4B display, Text, and Dual Display controls
Pos. D Escape, Menu, Select, 2D, Zoom/Depth, Set, Caliper, and the Trackball controls
Pos. E DGC sliders
Pos. F Focus, Split, Multi-Hertz, Cine, Digital Store 2, Review, Print/Store, and Digital/Store 1 controls
Pos. G Freeze button
See the User Manual for complete descriptions of the front control panel keys, buttons,
and knobs.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 15
Page 15 of 26
Medical Solutions USA, Inc.
Verifications 0
Verify the Monitor Configuration 0
1. Set the brightness and contrast controls of the monitor to the center tactile (default posi-
tion), and then adjust the monitor for viewing as follows:
- Turn the Contrast control clockwise to increase the display contrast, and counter-
clockwise to decrease the contrast.
- Turn the Brightness control clockwise for a brighter image with a lighter back-
ground, and counterclockwise to darken.
Fig. 12: Brightness and Contrast Controls
2. Verify the date and time shown in the upper right corner of the screen is accurate.
Reset the time or date if either are inaccurate.
-PressF6 to display the Preset Main menu.
-SelectDay / Time from the System Configuration submenu and press Set.
- Double-click the inaccurate field and type the correct time or date.
Press Tab to advance to the next field.
Fig. 13: Time and Date Fields
-PressSet.
-SelectSave to save the new settings and exit the Preset Main menu.

16 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 16 of 26 Medical Solutions USA, Inc.
Verify Transducer Port Operation 0
The transducer ports are located on the right side of the system. The SONOLINE G20
system provides two array transducer ports with an option to select a linear/convex trans-
ducer.
1. Slide the DGC knobs to the right.
2. Press Freeze.
The Freeze key is back lit in blue when the freeze function is activated.
CAUTION Freeze the imaging mode prior to connecting or disconnecting a
transducer.
¹Failure to do so may cause damage to the system or
transducer.
3. Plug one of the transducers shipped with the system into the upper transducer port. If
an image does not display, press the Transducer button to select the connected trans-
ducer.
- Position the transducer connector with the cable extending to the left.
- Press the connector into the transducer port.
Fig. 14: Transducer Connector Installed in the System Transducer Port
Pos. A Transducer lock

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 17
Page 17 of 26
Medical Solutions USA, Inc.
- Turn the transducer lock clockwise until it locks into position.
- Place the transducer in the transducer holder and lay the cable over the cable holder
so that the transducer cable does not touch the floor.
Fig. 15: Transducer Holder and transducer Cable Holder
Pos. A Transducer Holder
Pos. B Cable Holder
4. Press Freeze again to unfreeze the imaging mode.
5. Verify that the transducer initializes and that the transducer name is displayed on the
screen.
6. Repeat the above steps using the lower transducer port.
Verify the Imaging Modes 0
1. Press Freeze.
2. Connect a transducer to one of the transducer ports.
3. Press Freeze again to unfreeze the imaging mode.
4. Press Mto enter M-mode.

18 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 18 of 26 Medical Solutions USA, Inc.
Fig. 16: M-mode Screen
5. Press 2D to exit M-mode.
Fig. 17: 2D Mode Screen
6. Repeat the above steps for each transducer.

Siemens US06-101.812.01.02.02 SONOLINE G20
10.04 sd
SONOLINE G20 System Delivery Procedure 19
Page 19 of 26
Medical Solutions USA, Inc.
Verify Printer Operation 0
1. Verify that the printer cables are connected between the printer and the G20 system.
- Verify the AC power cord is connected between the printer and the OEM shelf outlet.
Fig. 18: Printer AC Power Connections
Pos. A Printer AC inlet
Pos. B OEM shelf AC outlet
2. Confirm that the printer BNC video and the remote cables are connected between the
printer and the I/O module.
Fig. 19: Printer BNC Video and Remote Cables
Pos. A BNC video cable
Pos. B Remote cable

20 SONOLINE G20 System Delivery Procedure
SONOLINE G20 US06-101.812.01.02.02 Siemens
10.04 sd
Page 20 of 26 Medical Solutions USA, Inc.
3. Confirm that the printer DIP SW is configured as follows:
- Switch 1 set to ON (up)
- Switches 2 through 6 set to OFF (down)
Fig. 20: Printer DIP SW Settings
4. Power on the G20 system and then the printer.
5. Press F6 to display the Preset Main menu.
6. Select Customize Keys from the Preset Main menu and press the Set key.
7. Select B/W Print for the Print Store key.
Fig. 21: Customize Keys Submenu
8. Click Save and press Set.
9. Press Print/Store.
Confirm that the 2D image displayed on the monitor prints correctly from the printer.
