Siemens SITRANS DA400 User manual

Introduction
1
General safety notes
2
Description
3
Assembly
4
Connecting
5
Operation
6
Evaluating and processing
signals
7
Starting up
8
Technical data
9
Dimension diagrams
10
PROFIBUS PA
11
SITRANS
Process monitoring
SITRANS DA400 with protection
against explosion
Operating Instructions
7MJ2400-2BA00 SITRANSDA400 with explosion
protection
7MJ2000-1B*00 Sensor with explosion protection
02/2006
A5E00684661-01

Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
Danger
indicates that death or severe personal injury will result if proper precautions are not taken.
Warning
indicates that death or severe personal injury may result if proper precautions are not taken.
Caution
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
Caution
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
Notice
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
Warning
This device may only be used for the applications described in the catalog or the technical description and only in
connection with devices or components from other manufacturers which have been approved or recommended by
Siemens. Correct, reliable operation of the product requires proper transport, storage, positioning and assembly
as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90437 NÜRNBERG
GERMANY
Order No.: A5E00684661-01
Edition 03/2006
Copyright © Siemens AG 2006.
Technical data subject to change

SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 1-1
Table of contents
1 Introduction............................................................................................................................................. 1-3
1.1 Purpose of this Documentation..................................................................................................1-3
1.2 Further information..................................................................................................................... 1-3
1.3 CE label...................................................................................................................................... 1-4
2 General safety notes............................................................................................................................... 2-1
2.1 General information ................................................................................................................... 2-1
2.2 Correct usage............................................................................................................................. 2-1
2.3 Laws and directives ................................................................................................................... 2-1
2.4 Measures ................................................................................................................................... 2-2
2.5 Qualified Personnel.................................................................................................................... 2-2
3 Description.............................................................................................................................................. 3-1
3.1 Applications................................................................................................................................ 3-1
3.2 Operation ................................................................................................................................... 3-1
3.3 Structure..................................................................................................................................... 3-2
3.3.1 Device structure ......................................................................................................................... 3-2
3.3.2 Structure of the nameplate......................................................................................................... 3-3
3.4 How It works............................................................................................................................... 3-4
3.4.1 Measuring principle.................................................................................................................... 3-4
3.4.2 Sensor operation........................................................................................................................ 3-4

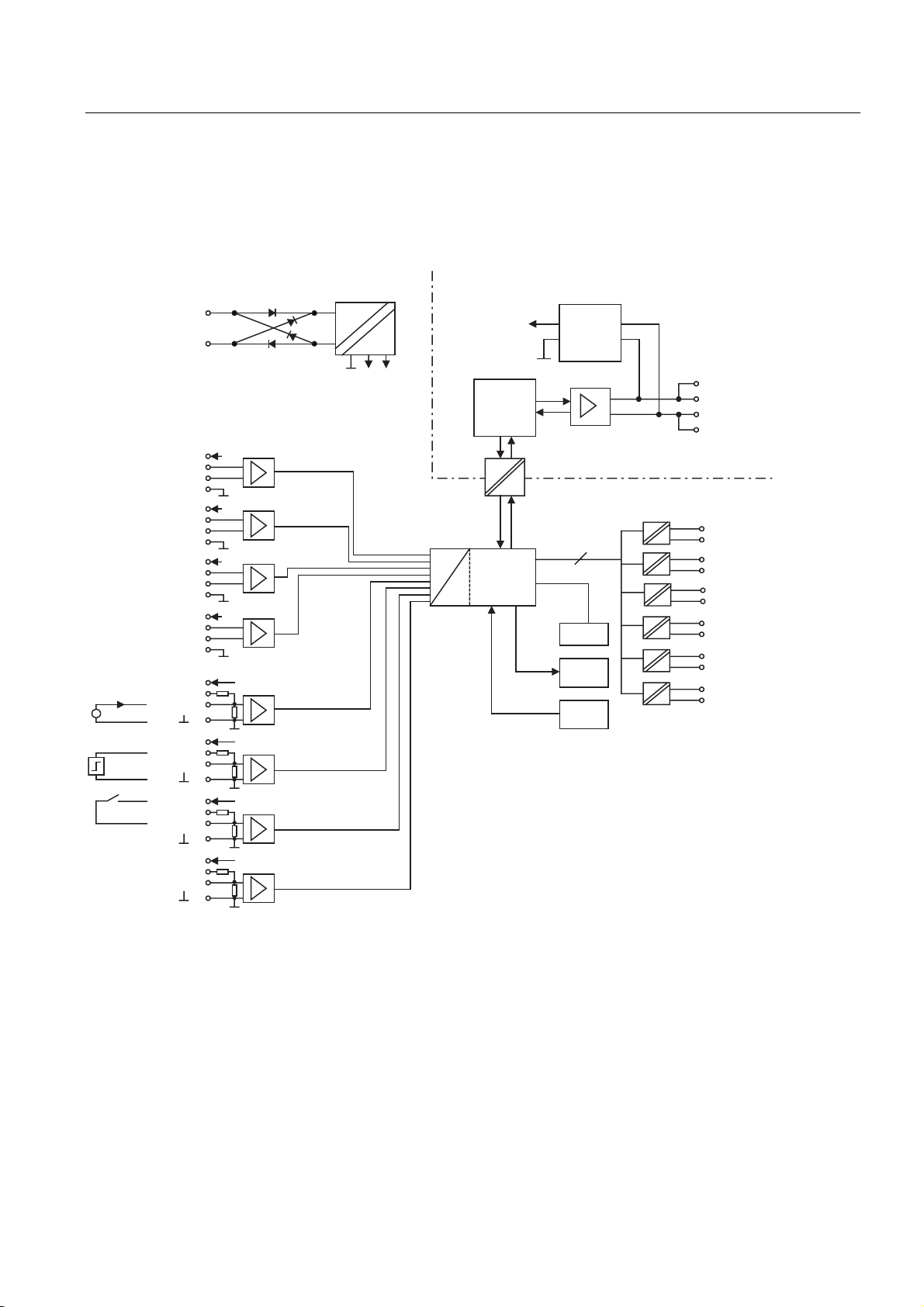

3.4.3 Operation of the electronics....................................................................................................... 3-5
4 Assembly................................................................................................................................................ 4-1
4.1 Safety information for installation............................................................................................... 4-1
4.2 Mounting .................................................................................................................................... 4-1
5 Connecting ............................................................................................................................................. 5-1
5.1 General information and procedures ......................................................................................... 5-1

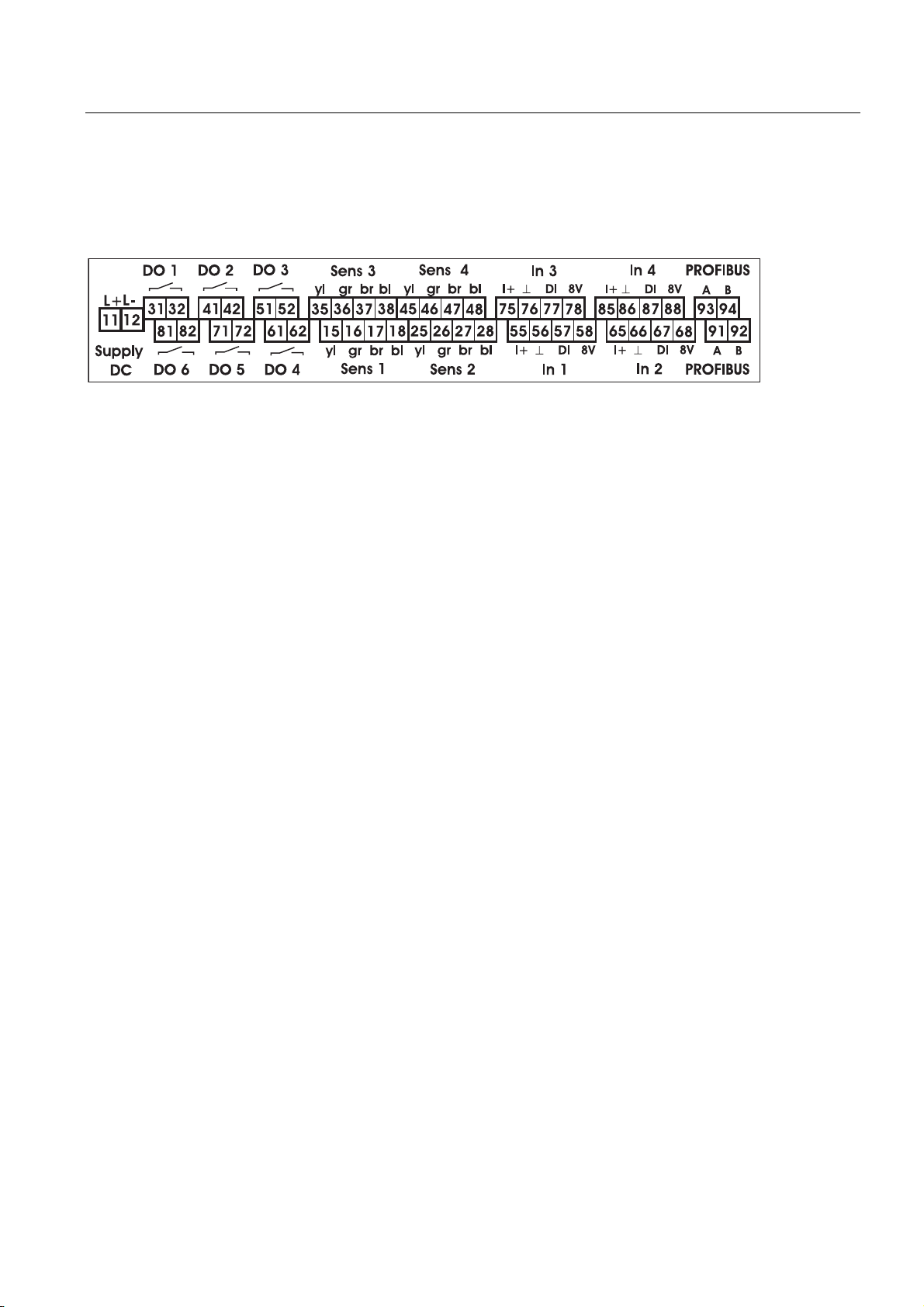

5.2 Terminal assignment.................................................................................................................. 5-3

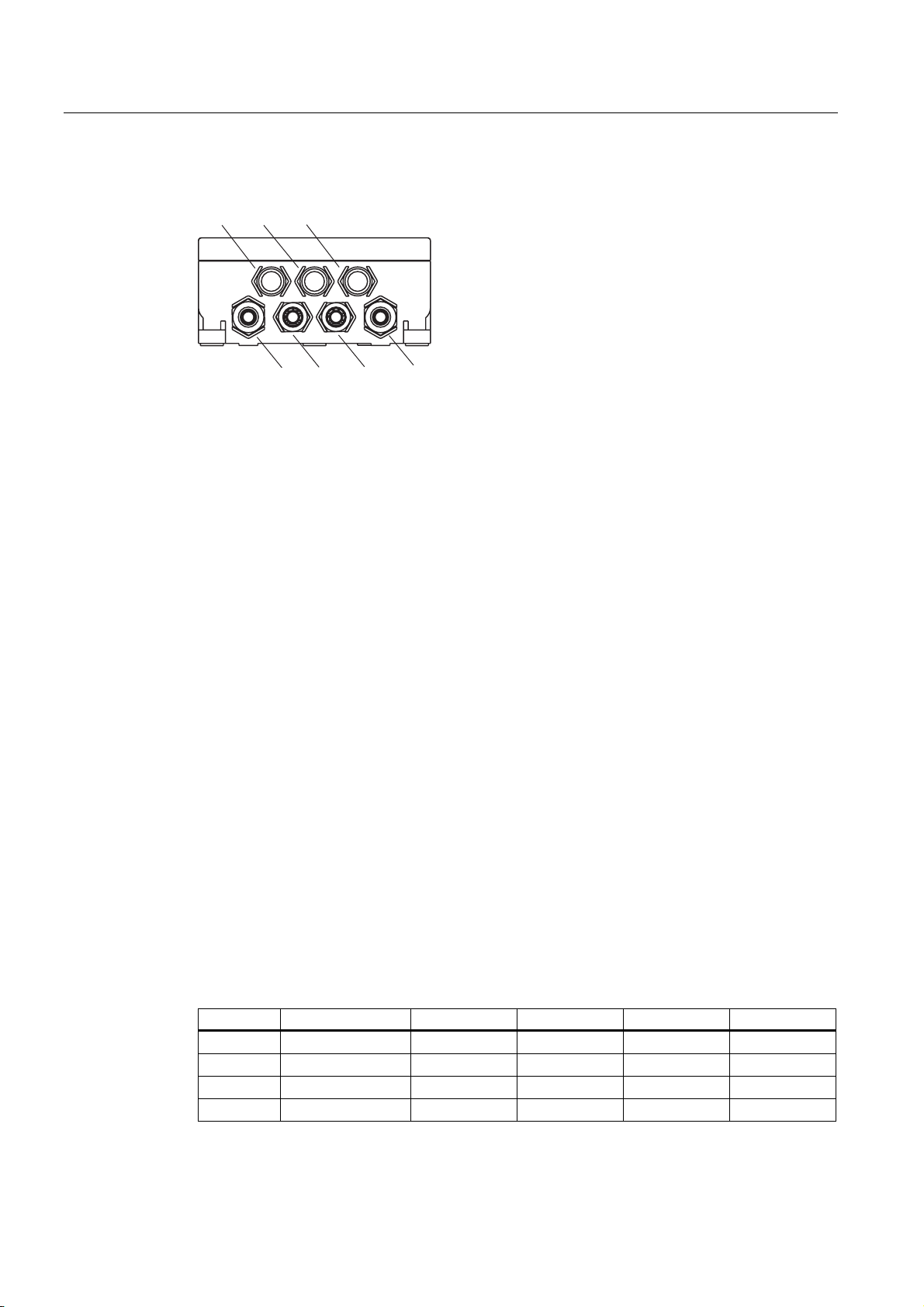

5.3 Cable gland................................................................................................................................ 5-3
5.4 Connecting the sensors ............................................................................................................. 5-4
5.5 Connecting the digital outputs.................................................................................................... 5-5
5.6 Connect the signal inputs........................................................................................................... 5-6
5.7 Connect PROFIBUS PA ............................................................................................................5-8
5.8 Connecting the power supply..................................................................................................... 5-9
5.9 Connect the ground ................................................................................................................. 5-10

Introduction
1.1 Purpose of this Documentation
SITRANS DA400 with protection against explosion
1-2 Operating Instructions, 02/2006, A5E00684661-01
6 Operation................................................................................................................................................ 6-1
6.1 Overview of operation ................................................................................................................ 6-1
6.2 Digital display ............................................................................................................................. 6-2
6.3 Measuring menu ........................................................................................................................ 6-3
6.3.1 Overview .................................................................................................................................... 6-3
6.3.2 Acoustic channels ...................................................................................................................... 6-3
6.3.3 Universal inputs.......................................................................................................................... 6-5
6.4 Parameter menu ........................................................................................................................ 6-7
6.4.1 Parameter table.......................................................................................................................... 6-7
6.4.2 Setting parameters..................................................................................................................... 6-8
6.4.3 Parameter lock ........................................................................................................................... 6-9
6.5 Trace menu .............................................................................................................................. 6-10
6.5.1 Trace menu table ..................................................................................................................... 6-10
6.5.2 Displaying and resetting the timer............................................................................................ 6-11
7 Evaluating and processing signals.......................................................................................................... 7-1
7.1 Evaluation of acoustic channels................................................................................................. 7-1
7.2 Evaluation of universal inputs .................................................................................................... 7-2
7.2.1 Universal input evaluation overview........................................................................................... 7-2
7.2.2 Evaluation of analog current signals .......................................................................................... 7-3
7.2.3 Evaluation of 24 V digital signals ............................................................................................... 7-4
7.2.4 Processing of input faults........................................................................................................... 7-5
7.2.5 Actuation of digital outputs......................................................................................................... 7-6
7.3 Trace function ............................................................................................................................ 7-8
7.4 Acknowledgement...................................................................................................................... 7-9
8 Starting up .............................................................................................................................................. 8-1
8.1 Overview .................................................................................................................................... 8-1
8.2 Commissioning after repairs ...................................................................................................... 8-3
9 Technical data ........................................................................................................................................ 9-1
9.1 Technical data for the device ..................................................................................................... 9-1
9.2 Sensor for technical data ........................................................................................................... 9-4
10 Dimension diagrams ............................................................................................................................. 10-1
10.1 SITRANS DA400...................................................................................................................... 10-1
10.2 Sensor...................................................................................................................................... 10-2
11 PROFIBUS PA...................................................................................................................................... 11-1
11.1 System integration ................................................................................................................... 11-1
11.2 Projection ................................................................................................................................. 11-1
11.3 Expanded diagnosis................................................................................................................. 11-4

Introduction
1.1 Purpose of this Documentation
SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 1-3
Introduction 1
1.1 Purpose of this Documentation
These instructions include all the information that you will need for starting up and using the
SITRANS DA acoustic diagnosis setup.
It is aimed both at persons mechanically installing the device, connecting it electronically,
configuring the parameters and putting it into operation, and at service and maintenance
engineers.
1.2 Further information
Information
The contents of these instructions shall not become part of or modify any prior or existing
agreement, commitment or legal relationship. All obligations on the part of Siemens AG are
contained in the respective sales contract which also contains the complete and solely
applicable warranty conditions. Any statements contained herein do not create new
warranties or modify the existing warranty.
The content reflects the technical status at the time of printing. We reserve the right to make
technical changes in the course of further development.
Offices
If you need more information or have particular problems which are not covered sufficiently
by the operating instructions, contact your local Siemens office. You will find your local
Siemens office on the Internet under:
www.siemens.com/processinstrumentation
Click on "Contact" and select the city closest to you.
Product information on the Internet
The instructions are included on the companion CD "sitrans da ACOUSTIC DIAGNOSTICS"
(Order number A5E00353277) and is available on the Internet on the home page under
www.siemens.com/sitransda
Click on "More Info" and "-> Instructions and Manuals".

Introduction
1.3 CE label
SITRANS DA400 with protection against explosion
1-4 Operating Instructions, 02/2006, A5E00684661-01
On the CD supplied, you will also find the technical data sheet containing the order dats, the
Device Install software for SIMATIC PDM for subsequent installation and the device master
file (GSD).
1.3 CE label
This device meets the requirement of EU guidelines:
•89/336/EEC Guideline of the Council on Aligning Legal Regulations of Member States on
Electromagnetic Compatibility (EMV). Revised by
–91/263/EEC
–92/31/EEC
–93/68/EEC
•94/9/EC Guideline of the European Parliament and the Council on Aligning Legal
Regulations of the Member States on Devices and Protective Systems for defined use in
areas subject to explosion.
This is communicated by the CE label.
D-76181 Karlsruhe

SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 2-1
General safety notes 2
2.1 General information
This device left the factory free from safety problems. In order to maintain this status and to
ensure safe operation of the device, please observe the safety information and warnings
contained in these instructions.
2.2 Correct usage
The device may only be used for the purposes specified in these instructions.
Insofar as they are not expressly stated in these instructions, all changes to the device are
the sole responsibility of the user.
2.3 Laws and directives
The regulations of the test certification valid in your country are to be observed.
Electrical connection in hazardous zones with explosive atmospheres
The national directives and laws for hazardous areas valid in your country must be observed
for electrical connection. Examples of these as found in Germany:
•Working reliability regulation
•Directive for the installation of electrical systems in hazardous areas DIN EN 60079-14
(previously VDE 0165, T1)

General safety notes
2.4 Measures
SITRANS DA400 with protection against explosion
2-2 Operating Instructions, 02/2006, A5E00684661-01
2.4 Measures
For the sake of safety, the following precautions must be observed:
Warning
"Intrinsically safe" protection type
"Intrinsically-safe" devices lose their certification as soon as they are operated on circuits
which do not correspond with the test certification valid in their country.
Protection type "limited energy" nL (zone 2)
Devices with "limited energy" may be connected and disconnected while in operation.
Protection type "non-sparking" nA (zone 2)
Devices with "non-sparking" protection may only be connected and disconnected when off
circuit.
Caution
Electrostatic Sensitive Devices (ESD)
This device contains electrostatic sensitive devices. Electrostatic sensitive devices may be
destroyed by voltages that are undetectable to a human. Voltages of this kind occur as soon
as a component or an assembly is touched by a person who is not grounded against static
electricity. The damage to a module as a result of overvoltage cannot usually be detected
immediately. It may only become apparent after a long period of operation.
2.5 Qualified Personnel
"Qualified personnel" means those who are familiar with the installation, mounting,
commissioning and operation of the product. They must have the following, appropriate
qualifications for their activities:
•Training or instruction/authorization in operating and maintaining devices and systems
according to the safety regulations for electrical circuits, high pressures and aggressive
as well as hazardous media.
•For explosion-proof devices: Training or instruction/authorization in carrying out work on
electrical circuits for hazardous systems.
•Training and instruction in maintenance and use of adequate safety equipment according
to safety regulations.
•Should be trained in first aid.

SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 3-1
Description 3
3.1 Applications
The SITRANS DA400 acoustic diagnostics unit acoustically measures the structure-borne
sound of oscillating displacement pumps.
The SITRANS DA400 allows continuous, simultaneous and independent monitoring of up to
four delivery valves in a pump for leaks. In addition, another four inputs are available for
monitoring standard signals (e.g. diaphragm and temperature monitoring). This means that
the condition of an oscillating displacement pump is monitored in every phase of its
operation.
The SITRANS DA400 is used in all industries where oscillating displacement pumps are
used.
3.2 Operation
You can operate and configure the SITRANS DA400 using the keys. In parallel, you can also
operate the SITRANS DA400 via a PROFIBUS connection.

Description
3.3 Structure
SITRANS DA400 with protection against explosion
3-2 Operating Instructions, 02/2006, A5E00684661-01
3.3 Structure
3.3.1 Device structure
(2)
(3)
(4)
(5)
(6)
(7)
(9)
(1)
(8)
Figure 3-1 Front view (closed and open)
(1) Screwable cover (6) Terminal connection diagram
(2) Nameplate (7) Terminal strip
(3) Digital display (8) Cable gland
(4) Keypad (9) Mounting plate
(5) Sensor

Description
3.3 Structure
SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 3-3
3.3.2 Structure of the nameplate
Device
(2)
(3)
(4)
(1) (5)
(7)
(9)
(8)
(6)
(1) Manufacturer (6) Technical data
(2) Product name (7) Serial number
(3) Order number (8) Explosion protection
(4) Place of manufacture (9) Address for information
(5) Product information
Sensor
(3)
(2)
(5)
(4)
(6)
(1)
(7)
(9)
(8)
(1) Manufacturer (6) Address for information
(2) Order number (7) Place of manufacture
(3) Product name (8) Product information
(4) Serial number (9) Explosion protection
(5) Product version

Description
3.4 How It works
SITRANS DA400 with protection against explosion
3-4 Operating Instructions, 02/2006, A5E00684661-01
3.4 How It works
3.4.1 Measuring principle
Leaks in the delivery valves of oscillating displacement pumps are flows in which cavitation
occurs. This results in sound waves that are transmitted to the valve housing, where they are
recorded by the structure-borne sound sensor in the SITRANS DA400 on the outside.
The SITRANS DA400 utilizes the fact that with both an open valve and a closed intact valve,
no cavitation occurs and the measured sound level thus corresponds to the operating noise
of the pump. By contrast, with a closed defective valve cavitation does occur, which can be
identified by a period increase in the sound level (see figures). The measured value from the
SITRANS DA400 corresponds exactly to this increase in the sound level.
The measurement is carried out exclusively in the ultrasonic range. This filters out the
operating noise of the pump and the closing noise of the valves.
Figure 3-2 Signal from structure-borne sound sensor with intact valve
Figure 3-3 Signal from structure-borne sound sensor with defective valve
3.4.2 Sensor operation
The structure-borne sound sensor works on the piezoelectric principle. The structure-borne
sound is injected into the sensor via the sensor base (mounting surface) and inside it is
converted into an electrical voltage by a piezoceramic element. This is amplified in the
sensor and transmitted via the cable.
The sensor frequency range lies in the ultrasonic range (>20 kHz). The sensor is non-
directional, i.e. the angle at which the sound wave is incident on the sensor base is not
important.

Description
3.4 How It works
SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 3-5
3.4.3 Operation of the electronics
Block diagram
$
%


9
9
9
9

















6HQVRU
6HQVRU
6HQVRU
6HQVRU




9
9
9
9












9
',
,
,Q
9
',
,
9
',
,
9
',
,
,Q
,Q
,Q
P$
12FRQWDFW
'LJLWDO9












'2
'2
'2
'2
'2
'2
Digital outputs
DO1 to DO6
PROFIBUS
PA
w&




$
'
w&

((3520
'LVSOD\
NH\V
3.3V
8.2V
/
/
3RZHU
VXSSO\
&LUFXLW
&LUFXLW
8
+
L+ Current (any polarity) I+ Analog current input +
L- Current (any polarity) ⊥ Mass
DO Digital output DI Digital input
Sensor Sensor A PROFIBUS PA (any polarity)
In Input B PROFIBUS PA (any polarity)
By using a bridge rectifier, the current from a suitable external feed splitter creates the
internal current voltage of 3.3 V and 8.2 V for circuit 2. The supplementary voltage UH is
obtained from the PROFIBUS-PA signal of an external coupler. Circuits 1 and 2 have split

Description
3.4 How It works
SITRANS DA400 with protection against explosion
3-6 Operating Instructions, 02/2006, A5E00684661-01
potential regarding the current and each other. Circuit 1 consists of a microcontroller (µC2)
that is responsible for PROFIBUS communications. It is connected to the micro-controller
(µC1) in circuit 2 via a serial, split potential coupler. At the heart of this circuit is a signal
processor with integrated analog-digital converter for high-speed recording and evaluation of
the available signals. Moreover, an EEPROM safe from a voltage drop is activated for
storing data and the display, and the key strokes are read in.
The six digital outputs are separated individually by potential and designed for connection to
a NAMUR connection hardener. The maximum four acoustic sensors are connected to the
four-pole "Sens1" to "Sens4" blocks. In each case, two terminals provide the supply for the
sensor electronics and two terminals are used to connect the sensor signal.
Different standard signals can be connected at each of the four universal inputs "In 1" to
"In 4". The switching of the four terminals is to be set up according to signal or sensor type
(0/4 to 20 mA, digital signal for 24 V, closing contact).

SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 4-1
Assembly 4
4.1 Safety information for installation
Ambient temperature
Warning
Ambient temperature
When installing the sensor, attention should be paid to the surface temperature at the
installation location. For example, if you are installing the sensor on a pump, there is a risk of
burns if the pump is too hot.
4.2 Mounting
Overview
The device and the sensor are mounted in different ways. In general:
Note
Protection against harmful outside influences
To protect the device against harmful outside influences, a casing should be fitted. Harmful
external influences can occur if you install the SITRANS DA in the open air, where it can be
influenced by intensive frost, heat or rain.
Mounting the device
To mount the device, you need three screws with a diameter of 6 mm. These are not
supplied with the device.

Assembly
4.2 Mounting
SITRANS DA400 with protection against explosion
4-2 Operating Instructions, 02/2006, A5E00684661-01
The position of the mounting holes and the mounting dimensions in millimeters are indicated
on the rear of the housing.
The device should preferably be mounted vertically with the cable gland pointing downwards.
Mounting the sensor
Each acoustic sensor should be individually mounted on the outside of the pump or valve
housing, close to the valve to be monitored, using the enclosed M6 hexagon socket screw
and positioning pin.
There is a good acoustic coupling if no elastic elements such as seals or similar are located
between the sensor and the valve, i.e. there are good metallic connections.
As the structure-borne sound is injected into the sensors via their base, the substrate on the
housing must be uniformly even and smooth, and at least as large as the sensor base. To
improve the coupling, in certain circumstances a viscous lubricant can be used (not
included).
Note
Mounting the sensor
On pumps that have good acoustic coupling between the delivery and intake side, it can be
sufficient to use just one sensor for a pump head (with two valves). However, in this case it is
not possible to distinguish which valve has a leak.
The acoustic sensors are mounted at an equal spacing to the valves.

SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 5-1
Connecting 5
5.1 General information and procedures
Safety information
Warning
To ensure safe operation of this device, it must be properly installed and commissioned by
qualified personnel in adherence to the warning information. This includes both the general
safety regulations for working on high voltage systems (e.g. DIN VDE) and the regulations
relating to proper use of tools and the use of personal protective equipment (goggles,
protective gloves etc.).
Caution - the current is to be shut off before opening the device. Non-compliance can result
in death, severe physical injury and/or significant damage.
Note
All connecting leads inside the device should be kept short.
To ensure the degree of protection according to IP65 for the device, only the permissible
cable diameters may be used.

Connecting
5.1 General information and procedures
SITRANS DA400 with protection against explosion
5-2 Operating Instructions, 02/2006, A5E00684661-01
Warning
Electrical connection in hazardous zones with explosive atmospheres
Connection and operation in hazardous zones with explosive atmospheres should be done
only specially qualified personnel.
The national directives and laws for areas subject to explosion valid in your country must be
observed for electrical connection. Examples of these as found in Germany:
•Working reliability regulation
•Directive for the installation of electrical systems in areas subject to explosion DIN EN
60079-14 (previously VDE 0165, T1)
If auxiliary power is required, check that it corresponds with that on the nameplate and with
the test certification valid for your country.
Warning
Grounding
As a matter of safety, shields on all shielded conduits should be two-sided, and the
associated functioning parts should be connected to the potential balance of the external
area.
Required tools
You will need the following screwdrivers:
•To open the housing: Screwdriver for M4 slotted screws
•For connecting terminals: Screwdriver for M2.5 slotted screws
•Shielding connections: T10 screwdriver for M3 Torx screws
•Grounding: T20 screwdriver for M4 Torx screws

Connecting
5.2 Terminal assignment
SITRANS DA400 with protection against explosion
Operating Instructions, 02/2006, A5E00684661-01 5-3
5.2 Terminal assignment
Terminal connection diagram
L+ Current (any polarity) br Brown
L- Current (any polarity) bl Black
DO Digital output I+ Analog current input +
Sens Sensor ⊥ Mass
In Input DI Digital input
yl Yellow A PROFIBUS PA (any polarity)
gr Green B PROFIBUS PA (any polarity)
5.3 Cable gland
General procedure
The leads are generally connected as follows:
1. Unscrew the cover and place it next to the device.
2. Loosen the cable gland.
3. Remove the sealing stopper.
4. Connect the desired lead.
5. Tighten the cable gland.

Connecting
5.4 Connecting the sensors
SITRANS DA400 with protection against explosion
5-4 Operating Instructions, 02/2006, A5E00684661-01
Arrangement of cable glands
(1) (2) (3)
(7) (6) (5) (4)
Figure 5-1 Arrangement of cable gland
(1) Cable gland for digital outputs "DO 1" to "DO 6"
(2) Cable gland for signal inputs "In 1" and "In 3"
(3) Cable gland for signal inputs "In 2" and "In 4"
(4) Cable joint for PROFIBUS
(5) Cable gland for sensors 2 and 4
(6) Cable gland for sensors 1 and 3
(7) Cable gland for power supply L+ and L- and grounding
5.4 Connecting the sensors
Procedure
The procedure for connecting the sensors is as follows:
1. Select the corresponding cable gland:
Sensor 1 and 3 through cable gland (6)
Sensor 2 and 4 through cable gland (5)
2. Completely loosen one screw on the mounting plate (Torx T10).
3. Use this screw to attach the cable lug for the shielding connection.
4. Connect the four lines to a four-way block, "Sens1" to "Sens4".
Observe the color scheme.
Cable color Terminal symbol Sensor 1 Sensor 2 Sensor 3 Sensor 4
Yellow yl 15 25 35 45
Green gr 16 26 36 46
Brown br 17 27 37 47
Black bl 18 28 38 48
