Siemens CERBERUS AlgoRex Series Instruction sheet

Specific national regulations are not integrated in this document
CERBERUS®AlgoRex
Installation guidelines for fire detection
systems collective, interactive,
AnalogPLUS
Planning and realization
Fire & Security Products
Siemens Building Technologies Group

Data and design subject to change
without notice. / Supply subject to
availability.
E Copyright by
Siemens Building Technologies AG
ir behalten uns alle Rechte an
diesem Dokument und an dem in ihm
dargestellten Gegenstand vor. Der
Empfänger anerkennt diese Rechte
und wird dieses Dokument nicht ohne
unsere vorgängige schriftliche
Ermächtigung ganz oder teilweise
Dritten zugänglich machen oder
ausserhalb des Zweckes verwenden,
zu dem es ihm übergeben worden ist.
e reserve all rights in this document
and in the subject thereof. By
acceptance of the document the
recipient acknowledges these rights
and undertakes not to publish the
document nor the subject thereof in
full or in part, nor to make them
available to any third party without our
prior express written authorization,
nor to use it for any purpose other
than for which it was delivered to him.
Nous nous réservons tous les droits
sur ce document, ainsi que sur l’objet
y figurant. La partie recevant ce
document reconnaît ces droits et elle
s’engage à ne pas le rendre
accessible à des tiers, même
partiellement, sans notre autorisation
écrite préalable et à ne pas
l’employer à des fins autres que
celles pour lesquelles il lui a été
remis.
Ci riserviamo ogni diritto relativo al
presente documento e sull’oggetto
illustrato in esso. La parte che riceve
il documento si impegna a non
renderlo accessibile a terzi, né per
intero né in parte, senza la nostra
previa autorizzazione scritta ed a non
usarlo per altri scopi di quello per il
quale è stato rilasciato.

12.2001
I
Fire & Security Products
Siemens Building Technologies Group
Scope 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Planning 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Wiring and planning symbols 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Basic wiring layout of a fire detection system 4. . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Fire detection system line network 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Installation 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 General 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Installing the equipment 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Wiring check 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Commissioning 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 System documentation 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Acceptance test and handing over the system to the customer 18. . . . . . .

II
Fire & Security Products
Siemens Building Technologies Group
12.2001

e1453b
1
Fire & Security Products
Siemens Building Technologies Group 12.2001
Scope
These planning instructions serve to ensure correct planning, installation and commis-
sioning of Fire Detection Systems (FDS). As a general rule, local national installation reg-
ulations must be complied with providing they do not impair the reliable operation of the
fire detection system. They are not listed here.
Explosion-proof detectors and line network
For detailed information concerning planning, installation and commissioning of systems
in explosion-hazard areas see document e1204, «Fire detection systems in explosion-
hazard areas».
This document is intended for planning engineers in all national sales organiza-
tions. Local standard practices, regulations, languages etc that vary from this doc-
ument must be taken into account and and documented by the national sales orga-
nizations.

e1453b
2
Fire & Security Products
Siemens Building Technologies Group 12.2001
1 Planning
1.1 Wiring and planning symbols
1.1.1 Symbols
Main distributor
Distribution box
Cable loop box (without terminals)
Line indicating larger number of wires
Line indicating number of wires
6
Ø 0,8
Symbol Designation Symbol Designation
Fuse
Line, with cross-section
Shielded line
Fig. 1 Wiring symbols
Special devices
(Model ...)
Visual, audible alarm device
(Model ...)
Door magnet
(Model ...)
External control relay
Fire control installation
Signal display panel of actuation
of extinguishing (Model ...)
Extinguishing system valve
Response indicator
Visual signal transmitter
(Model ...)
Audible alarm device
(Model ...)
Signalling, e.g. mimic panel,
terminal etc. (Model ...)
Fire detection system control unit
(Model ...)
Automatic alarm transmitter
for extinguishing systems
Manual call point
Linear light absorption
smoke detector
Flame detector
Heat detector
Smoke detector
Symbol Designation Symbol Designation
Fire detector general
Fig. 2 Planning symbols (ISO/DIS 6790.2)

e1453b
3
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.1.2 Conceptions and abbreviations
CT Operating terminal
DC1134 Control module
DC1135 Branching module (with max. 4 stub lines per DC1135)
DC1154 Control module
DC1152 Input / output module
EMC Electromagnetic compatibility
EMI Electromagnetic influence
FDS Fire detection system
FDC Fire detection system control unit
Ex Explosion hazard area
Extra low voltage Voltage <50V
Low voltage Voltage <1000V
SB Shunt-Zener-Diode barrier

e1453b
4
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.2 Basic wiring layout of a fire detection system
Extra-low voltage 16...30VDC Low voltage 110...240VAC
Alarm device line
Line to
control and
indication terminal
Door magnet line
Control unit
CC/CI..
Line to
remote transmission system
for alarms and faults
Detection line
Fire control installation
Mains supply
110...240VAC
Fuse ~
~
CT..
Door magnet
line
CC/CI...
FDC
Fig. 3 Basic fire detection system layout

e1453b
5
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.3 Fire detection system line network
1.3.1 Separate line network
The fire detection system must be basically operated via a separate line network. The
common use of a main cable (e.g. PTT) is not recommended.
Never use low voltages and extra low voltages in the same main cable.
1.3.2 Design
According to block diagram.
Maintain separation of low voltage and extra low voltage cables.
1.3.3 Wiring material
Basically, standard telephone and extra low voltage installation material can be used.
Twisted cable is preferred and is sometimes essential.
In order to ensure alarm activation in any situation, we recommend cables which are fire-
resistant over a longer period.
1.3.4 Existing line networks
These networks can be basically used if capacitances, line and insulation resistances
comply with the data specified.
1.3.5 Explosion hazard areas
For explosion-hazard areas, comply with the guidelines according to document e1204,
«Fire detection in explosion-hazard areas».
1.3.6 Electromagnetic influence (EMI)
All equipment is largely protected against EMI.
Nevertheless, the following precautions are necessary:
Maintain the greatest possible distances from thyristor control cables, high voltage
lines, lightning protection systems, transmitter cables etc.

e1453b
6
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.3.7 «Collective» detection lines
«Collective»detection lines can only be installed as stub lines. According to the type of
control unit or regulations, 20...32 fire detectors can be connected per stub line.
New systems: Twisted cable, in exceptional cases with very powerful electromagnetic
influence shielded and twisted.
Existing systems: Single and parallel conductors are permissible.
Line resistances and line capacitances see document e1508 «Connection factors, line
resistances and capacitances».
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
Type of cable
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Application
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
Twisted, min. 7 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Generally recommended
ÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁ
Shielded, twisted
min. 7 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Essential in areas where EMI is critical
e.g. X-ray rooms, radar systems, transmitter stations, proximity to thy-
ristor controls etc.
ÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁ
Non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Cable in existing systems can be utilized without difficulty with mini-
mum remaining risk
Not recommended for new systems
ÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁ
Shielded/non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Cable in existing systems can be utilized without difficulty with mini-
mum remaining risk
Not recommended for new systems
ÈÈÈÈÈ
ÈÈÈÈÈ
240V~/10A
1,5mm2
Ground floor
Basement level
Upper level
CC/CI..
SBEx
24VDC
CT..
L6
L1
L2
L3
L4
L5
L9
L10
L11
L8
L7
24V
24V
24V
FDC
DC1192
Fig. 4 Block diagram «collective»detection system

e1453b
7
Fire & Security Products
Siemens Building Technologies Group 12.2001
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ

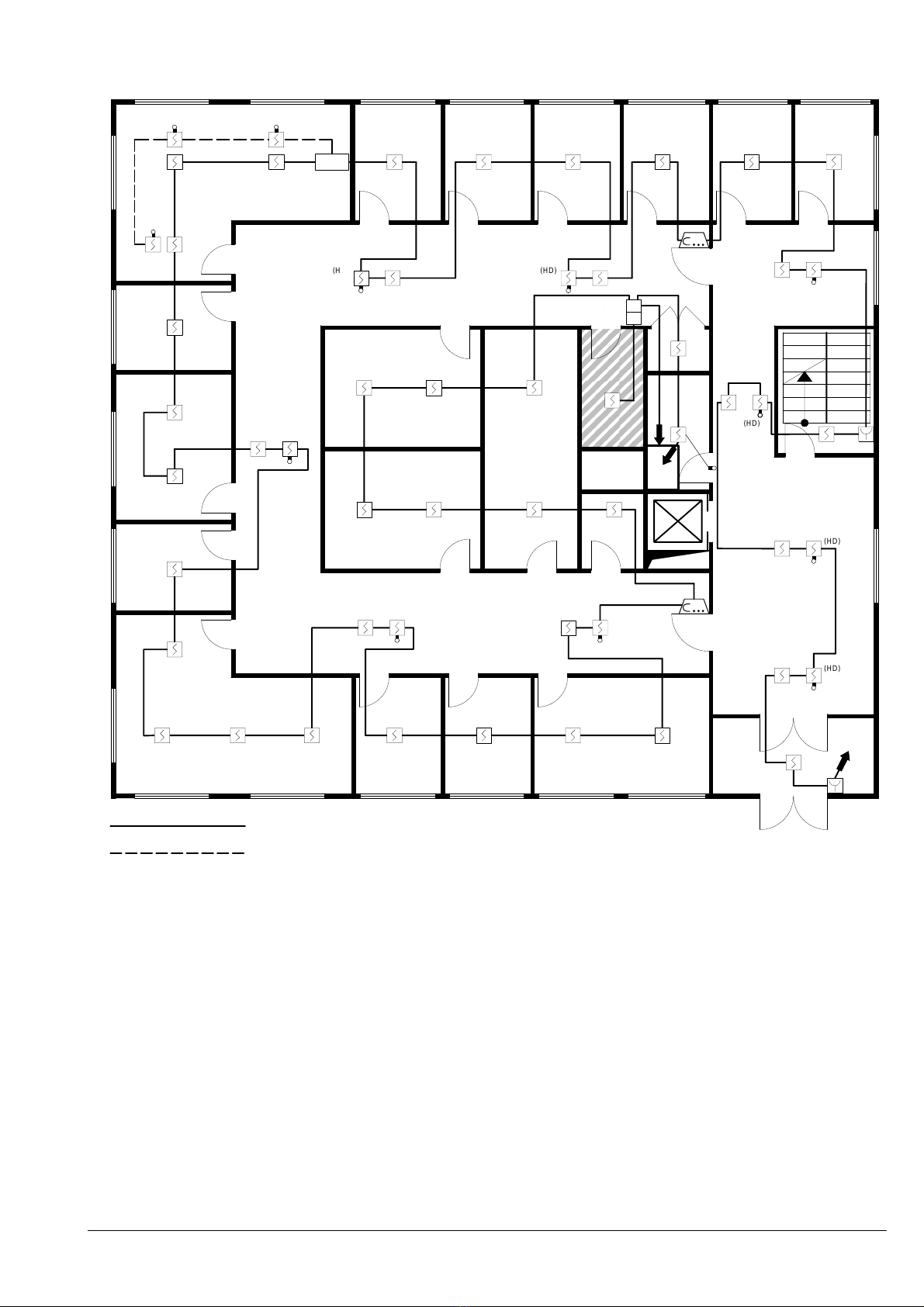

ÈÈÈ
(HD)
(HD)
(HD)
(HD)(HD)
(HD) (HD)
FDC
FDC
(HB)
(HB)
(HB)
Ex
Detection line
Response indicator line
FDC
FDC
FDC
(HD)
(HD)
L4
L6
FDC
L7
FDC
L5
L8
24V
Ground floor
(HD) false ceiling
(HB) raised floor
FDC Fire detection system
control unit
DC1192
SB
Fig. 5 Collective wiring

e1453b
8
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.3.8 AnalogPLUSdetection lines
AnalogPLUSdetection lines can be installed as stub or loop lines. A maximum of 128
fire detectors may be connected to a loop line and a maximum of 32 fire detectors may be
connected to a stub line. A DC1135 T-branch module is required for branch lines from the
loop. Up to 20 fire detectors can be connected to the DC1135 per stub line.
New systems: Twisted cable. With very powerful EMI shielded and twisted.
Existing systems: Single and parallel conductors are permissible.
For line resistances and line capacitances see document e1508, «Connection factors,
line resistances, capacitances».
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Type of cable
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Application
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Twisted, min. 7 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Generally recommended
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Shielded, twisted
min. 7 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Essential in areas where EMI is critical
e.g. X-ray rooms, radar systems, transmitter stations, proximity to
thyristor controls etc.
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Utilization of cable from existing systems with minimum remaining
EMI risk from adjacent areas
Not recommended for new systems
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Shielded/non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Utilization of cable from existing systems existing systems with
minimum remaining risk in areas where EMI is critical
Not recommended for new systems
Basement level
Ground floor
Upper level
1,5mm2
CC/CI..
DC1134
DC1135
DC1134
DC1135
DC1134
DC1135
CT.. 240V~/10A
L3
L2
L1
24V
24V
24V
FDC
ÈÈÈÈ
ÈÈÈÈ
Ex
24VDC DC1192
SB
Fig. 6 Block diagram detection system AnalogPLUS

e1453b
9
Fire & Security Products
Siemens Building Technologies Group 12.2001
FDC
FDC
Ground floor
Loop line
Stub line
(HD) false ceiling
(HB) raised floor
FDC Fire detection system
control unit
L2
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
(HD)
(HD)
(HD)
(HD)(HD)
(HD) (HD)
(HB)
(HB)
(HB)
Ex
DC1135
(HD)
(HD) L2
DC1192
SB
24V
Fig. 7 AnalogPLUSwiring

e1453b
10
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.3.9 «Interactive»detection lines
«Interactive»detection lines can be installed as stub or loop lines. According to equip-
ment configuration, a maximum of 100 or 128 fire detectors can be connected to a loop
line and a maximum of 32 fire detectors can be connected to a stub line (regulations).
Branch lines can be connected to the detector bus direct.
New systems: Twisted cable, minimum 7 turns per metre.
With powerful EMI: Twisted cable, minimum 10 turns per metre.
With extremely powerful EMI: Shielded and twisted cable
Existing systems: Takeover of existing wiring possible, with certain remaining risk that a
part would have to be replaced.
Line resistances and line capacitances see document e1508, «Connection factors, line
resistances, capacitances».
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Type of cable
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Application
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Twisted, min. 7 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Essential in areas where EMI is not critical
e.g. offices, hotels, homes, museums, computer rooms etc.
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Twisted, min. 10 turns
(generally preferred cable)
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Essential in areas where EMI is critical
e.g. X-ray rooms, radar systems, transmitter stations, proximity to
thyristor controls etc.
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Shielded, twisted
min. 10 turns
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Essential in areas where EMI is extremely critical
e.g. in the vicinity of thyristor controls, high voltage etc.
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Utilization of cable from existing systems with minimum remaining
EMI risk, if necessary with written protection for critical parts
Not recommended for new systems
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Shielded/non-twisted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Utilization of cable from existing systems with minimum remaining
EMI risk, if necessary with written protection for critical parts
Not recommended for new systems
Basement level
Ground floor
Upper level
1,5mm2
CC1140
DC1154
DC1154
DC1154
240V~/10A
CT..
L3
L2
L1
24V
24V
24V
FDC
ÈÈÈÈ
ÈÈÈÈ
24VDC
Ex
DC1192
SB
Fig. 8 Block diagram «interactive»detection system

e1453b
11
Fire & Security Products
Siemens Building Technologies Group 12.2001
L2
L2
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
ÈÈÈ
(HD)
(HD)
(HD)
(HD)(HD)
(HD) (HD)
FDC
FDC
(HB)
(HB)
(HB)
Ex
DC1192
(HD)
(HD)
Ground floor
SB
24V
Loop line
Stub line
(HD) false ceiling
(HB) raised floor
FDC Fire detection system
control unit
Fig. 9 Interactive wiring

e1453b
12
Fire & Security Products
Siemens Building Technologies Group 12.2001
1.3.10 Alarm devices
Twisted cables, note max. permissible voltage drop: Approximately max. 10%.
1.3.11 Terminals
Separately installed terminals to the control unit according to control unit specifications.
1.3.12 Mains / fire control installations with low voltage
Standard installation cable, as required by country concerned.
Cable fed into equipment as well as internal wiring must be in compliance with the instal-
lation documents for the equipment (cable separation).
1.3.13 Interfaces to non Cerberus systems
Remote transmission equipment or danger management systems mounted separately
from the control unit must be wired according to the corresponding manufacturer’s
instructions.
1.3.14 Standards
In general, the standard IEC 950 also applies
(International Electrical Commission)

e1453b
13
Fire & Security Products
Siemens Building Technologies Group 12.2001
2 Installation
2.1 General
2.1.1 Responsibility
The planning engineer is responsible for the correct installation of the fire detection sys-
tem. He is responsible for positioning equipment correctly and preparing the necessary
documentation.
The electrician is responsible for the line network and the wiring up of the equipment as
well as the permanent mounting of devices.
2.1.2 Storage of equipment on site
The installer is responsible for the storage and safety of equipment.
Store equipment in a dry, clean room.
Leave equipment in its original packing until required for use.
Only insert fire detectors, control unit modules etc. when commissioning the system.
2.1.3 Installation documentation
The following installation documentation must be provided by the planner for correct
installation:
Ground plans with equipment locations drawn in and/or
Lists of equipment indicating the location of equipment
Block diagrams with the architecture of the supply network.
Connection diagram for equipment, intermediate distribution frame, control unit and
terminal
Information on the use of special cables, explosion-hazard applications etc.
2.1.4 Marking of equipment
If required, two different designation plates are available for the marking of detectors.
They are attached under the detector base after installation.
As component parts of a fire detection system, terminal boxes, distributor boxes, loop-
ing-in boxes must be marked accordingly.

e1453b
14
Fire & Security Products
Siemens Building Technologies Group 12.2001
2.2 Installing the equipment
2.2.1 Mounting
Equipment must be solidly mounted.
When detectors are inserted, detector bases are subject to pushing, pulling and shearing
stress and must be mounted accordingly. There must be at least 50cm free space be-
neath the detector for test purposes.
Detector bases must lie flat on the ceiling (do not mount on bumps or hollows, concrete
ridges etc.).
Concrete ridge
Fig. 10 Detector base mounted on concrete ridge
= distorted detector base = system fault
Fire detectors must be easily accessible for regular servicing.
The response indicator in the base must be easily visible from the alarm investigation
route.
Response indicator
Fig. 11 Response indicator clearly visible
See product packing sheets, for further details.

e1453b
15
Fire & Security Products
Siemens Building Technologies Group 12.2001
2.2.2 Cable entry
Cables must be fed tightly through the rubber membrane in the base in order to prevent
condensation and air penetrating to the base/detector. Air «rinsing»arises due to differ-
ences in pressure in different rooms caused by air conditioning and ventilation systems.
Pressure compensation also arises through the cable conduit which to some extent
causes powerful air currents behind the base. This prevents smoke from properly enter-
ing the detector.
Smoke
Air current
Recess box
Fig. 12 Smoke is prevented from properly entering the detector if the rubber membrane
is not mounted air-tight.
ÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍ
Fig. 13 Making the rubber membrane air-tight
Important:
Push the cable through the rubber membrane, or make holes with an awl. Do not cut
holes or slits!

e1453b
16
Fire & Security Products
Siemens Building Technologies Group 12.2001
2.2.3 Wiring for damp environments
Equipment which is mounted in damp rooms must be provided with special cable entries
(screwed cable glands). Suitable adapter bases are available for this purpose.
Example:
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
ÍÍÍÍÍÍÍÍÍÍÍÍÍ
Fig. 14 Water-tight cable entry using adapter base and screwed cable gland
2.2.4 Line terminal
The DS11 base contains spring terminals. To ensure good contact, only one wire must be
connected per terminal. Auxiliary terminals are available for multiple connections. (see
connection diagram on product enclosure sheet.)
2.2.5 Earth connection
The control unit and terminal with power supply must be earthed according to local regu-
lations.
The other equipment in a normal fire detection system does not require an earth con-
nection.
Shielded cables must be earthed in a star-pattern at one point (control unit). Shielding
must be through-connected in all equipment using insulated auxiliary terminals. Shield-
ing must not come into contact with any external earth potential or metal parts of the
equipment.
Equipment for explosion-hazard areas must be installed and earthed according to docu-
ment e1204, «Fire detection in explosion-hazard areas».
