Siemens SIMATIC ET 200SP Technical Document

EQUIPMENT MANUAL
Edition
CPU 1512SP-1 PN
SIMATIC
ET 200SP
11/2022
support.industry.siemens.com
6ES7512-1DM03-0AB0

Introduction 1
Safety instructions 2
Product overview 3
Wiring 4
Interrupts, error messages,
diagnostics and system
alarms 5
Technical specifications 6
Dimension drawing A
SIMATIC
ET 200SP
CPU 1512SP-1 PN
(6ES7512-1DM03-0AB0)
Equipment Manual
11/2022
A5E33591411-AE

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E33591411-AE
Ⓟ 10/2022 Subject to change
Copyright © SiemensAG 2014 - 2022.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended or
approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of SiemensAG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

4
1 Introduction........................................................................................................................................ 5
1.1 ET 200SP Documentation Guide........................................................................................ 6
1.1.1 Information classes ET 200SP............................................................................................ 6
1.1.2 SIMATIC Technical Documentation.................................................................................... 7
2 Safety instructions.............................................................................................................................. 10
2.1 Security information......................................................................................................... 10
3 Product overview................................................................................................................................ 11
3.1 New functions.................................................................................................................. 11
3.2 Hardware properties......................................................................................................... 12
3.3 Firmware functions........................................................................................................... 15
3.4 Operating and display elements........................................................................................ 19

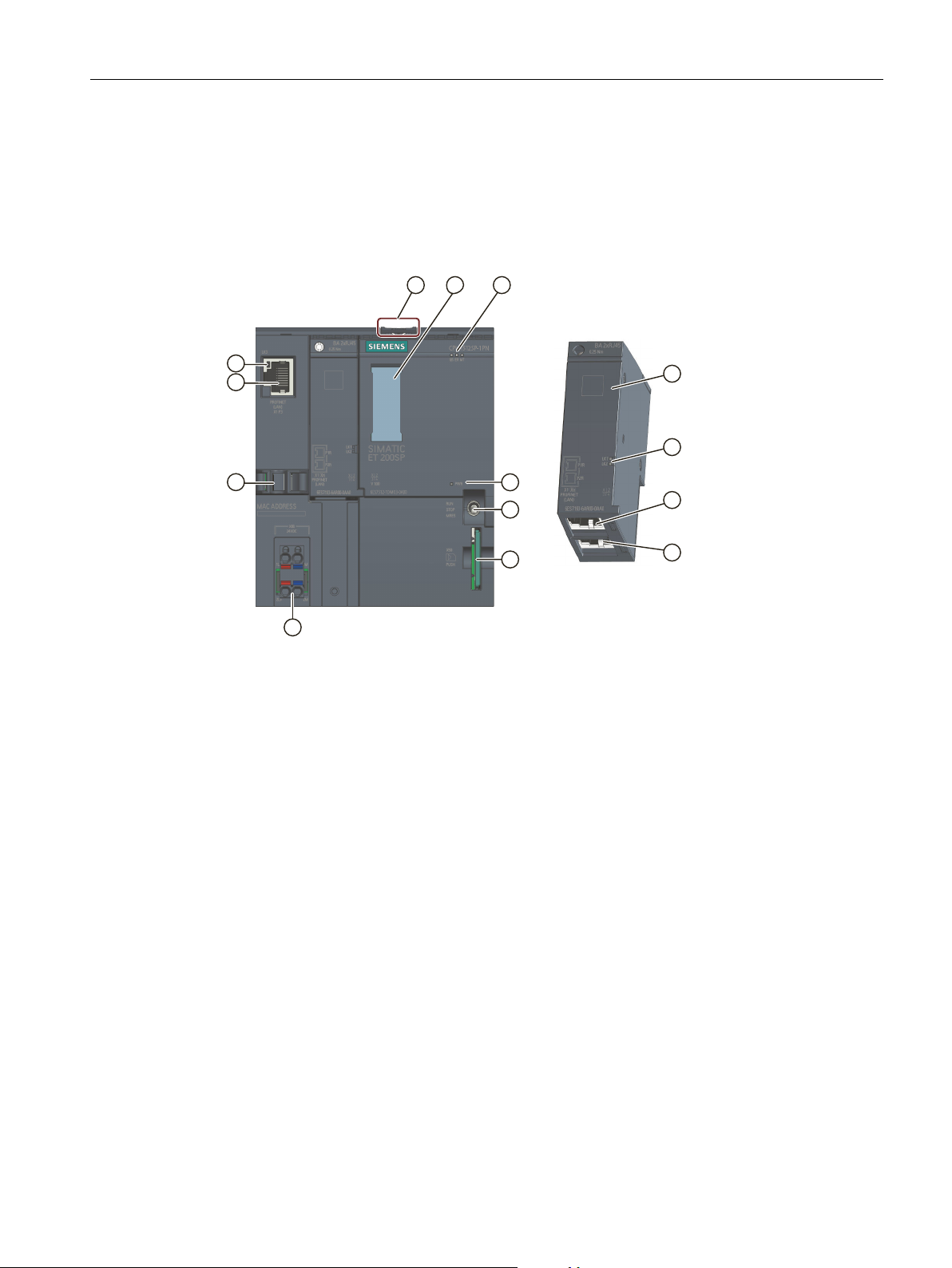

3.4.1 Front view of the module with BusAdapter........................................................................ 19
3.5 Mode switch..................................................................................................................... 19
4 Wiring................................................................................................................................................. 21
5 Interrupts, error messages, diagnostics and system alarms.............................................................. 25
5.1 Status and error display of the CPU.................................................................................... 25
6 Technical specifications...................................................................................................................... 28
A Dimension drawing............................................................................................................................ 42
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Table of contents

Introduction 1
Purpose of the documentation
This manual supplements the ET200SP distributed I/O system
(https://support.automation.siemens.com/WW/view/en/58649293) system manual as well as
the function manuals. This manual contains a description of the module-specific information.
The system-related functions are described in the system manual. All system-spanning
functions are described in the function manuals.
The information provided in this equipment manual and the system manual allows you to
commission the CPU.
Conventions
STEP7: In this documentation, "STEP7" is used as a synonym for all versions of the
configuration and programming software "STEP7 (TIAPortal)".
Please also observe the notes marked as follows:
NOTE
A note contains important information on the product described in the documentation, on
the handling of the product or on the section of the documentation to which particular
attention should be paid.
Recycling and disposal
For environmentally friendly recycling and disposal of your old equipment, contact a certified
electronic waste disposal company and dispose of the equipment according to the applicable
regulations in your country.
Industry Mall
The Industry Mall is the catalog and order system of Siemens AG for automation and drive
solutions on the basis of Totally Integrated Automation (TIA) and Totally Integrated Power
(TIP).
You can find catalogs for all automation and drive products on theInternet
(https://mall.industry.siemens.com).
5
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

1.1 ET 200SP Documentation Guide
1.1.1 Information classes ET 200SP
The documentation for the SIMATIC ET200SP distributed I/O system is arranged into three
areas.
This arrangement enables you to access the specific content you require.
You can download the documentation free of charge from the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109742709).
Basic information
The System Manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET200SP distributed I/O system.
The STEP7 online help supports you in the configuration and programming.
Examples:
•ET200SP System Manual
•System Manual ET200SP HA/ET200SP modules for devices used in a hazardous area
•Online help TIA Portal
Device information
Equipment manuals contain a compact description of the module-specific information, such
as properties, wiring diagrams, characteristics and technical specifications.
Examples:
•Equipment Manuals CPUs
•Equipment Manuals Interface Modules
•Equipment Manuals Digital Modules
•Equipment Manuals Analog Modules
•Equipment Manuals Motor Starter
•BaseUnits Equipment Manuals
•Equipment Manual Server Module
•Equipment Manuals Communications Modules
•Equipment Manuals Technology Modules
6CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Introduction
1.1 ET 200SP Documentation Guide

General information
The function manuals contain detailed descriptions on general topics relating to the SIMATIC
ET200SP distributed I/O system.
Examples:
•Function Manual ET200AL/ET200SP Mixed Configuration
•Function Manual Diagnostics
•Function Manual Communication
•PROFINET Function Manual
•PROFIBUS Function Manual
•Function Manual Designing Interference-free Controllers
•MultiFieldbus Function Manual
Product Information
Changes and supplements to the manuals are documented in a Product Information. The
Product Information takes precedence over the device and system manuals.
You can find the latest Product Information on the ET200SP distributed I/O system on the
Internet. (https://support.industry.siemens.com/cs/de/en/view/73021864)
Manual Collection ET200SP
The Manual Collection contains the complete documentation on the SIMATICET200SP
distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet.
(https://support.industry.siemens.com/cs/cn/en/view/84133942)
Manual Collection fail-safe modules
The Manual Collection contains the complete documentation on the fail-safe SIMATIC
modules, gathered together in one file.
You can find the Manual Collection on the Internet.
(https://support.industry.siemens.com/cs/ww/en/view/109806400)
1.1.2 SIMATIC Technical Documentation
Additional SIMATIC documents will complete your information. You can find these
documents and their use at the following links and QR codes.
The Industry Online Support gives you the option to get information on all topics. Application
examples support you in solving your automation tasks.
7
Introduction
1.1 ET 200SP Documentation Guide
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

Overview of the SIMATIC Technical Documentation
Here you will find an overview of the SIMATIC documentation available in Siemens Industry
Online Support:
Industry Online Support International
(https://support.industry.siemens.com/cs/ww/en/view/109742705)
Watch this short video to find out where you can find the overview directly in Siemens
Industry Online Support and how to use Siemens Industry Online Support on your mobile
device:
Quick introduction to the technical documentation of automation products per
video (https://support.industry.siemens.com/cs/us/en/view/109780491)
YouTube video: Siemens Automation Products - Technical Documentation at a
Glance (https://youtu.be/TwLSxxRQQsA)
mySupport
With "mySupport" you can get the most out of your Industry Online Support.
Registration You must register once to use the full functionality of "mySupport". After registra
tion, you can create filters, favorites and tabs in your personal workspace.
Support requests Your data is already filled out in support requests, and you can get an overview of
your current requests at any time.
Documentation In the Documentation area you can build your personal library.
Favorites You can use the "Add to mySupport favorites" to flag especially interesting or fre
quently needed content. Under "Favorites", you will find a list of your flagged
entries.
Recently viewed
articles
The most recently viewed pages in mySupport are available under "Recently viewed
articles".
CAx data The CAx data area gives you access to the latest product data for your CAx or CAe
system. You configure your own download package with a few clicks:
• Product images, 2D dimension drawings, 3D models, internal circuit diagrams,
EPLAN macro files
• Manuals, characteristics, operating manuals, certificates
• Product master data
You can find "mySupport" on the Internet. (https://support.industry.siemens.com/My/ww/en)
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
8CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Introduction
1.1 ET 200SP Documentation Guide

You can find the application examples on the Internet.
(https://support.industry.siemens.com/cs/ww/en/ps/ae)
9
Introduction
1.1 ET 200SP Documentation Guide
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
10
Safety instructions 2
2.1 Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be connected
to an enterprise network or the internet if and to the extent such a connection is necessary
and only when appropriate security measures (e.g. firewalls and/or network segmentation)
are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure to
cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed visit (https://www.siemens.com/cert).

Product overview 3
3.1 New functions
This section contains an overview of the most important new firmware functions of the CPU
compared to the predecessor CPU (V2.9).
New functions of the CPU in firmware version V3.0
New functions Applications Customer benefits
Communication of the CPU
Network Management Protocol
SNMP
A simple configuration option is available for
using the SNMP services. For new configura
tions, this is disabled by default in terms of
"Security-by-Default".
Can be enabled/disabled in the CPU proper
ties. Community strings can be configured.
OPC UA server – Reading the
diagnostic status of the own
address space
By using the OPC UA instruction for reading
("OPC_UA_ReadList"), the own namespace of
the OPC UA Server can be accessed.
This allows you to read out the following
statuses and react to them in the user program:
• Status of the own OPC UA server
• Status of the connections of OPCUA clients
• Status of the session
• Status of subscriptions
This allows connection problems to be
quickly detected, for example, and plant
availability to be increased.
OPC UA server – Time stamping
of the source time of nodes
By using the OPC UA instruction for writing
("OPC_UA_WriteList") it is possible to change
the "SourceTimestamp" as well as the status
code of an OPC UA variable (node).
Distinction between the "source" and "serv
er" time possible
OPC UA server – Increase of the
quantity structures
The following quantity structures have been
increased:
• Possible number of nodes in the server
interface
• Maximum possible number of subscriptions
per session
• For subscription, the recommendation for
observed values was increased.
Further applications for CPUs as OPC UA
servers
Web server of the CPU
New Web API methods: Many new API methods extend your access
options to the CPU via the Web API.
Additional applications for the web server
Dynamic management of certi
ficates
The web server certificate for HTTPS communic
ation can now also be managed via the OPC UA
GDS mechanism, without separate download of
the hardware configuration.
Flexible certificate management
11
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

New functions Applications Customer benefits
Allow data access only via Web
API
They limit the functionality of the web server to
the web API based functions. This means that
only encrypted communication via HTTPS is
possible.
Higher security of communication via web
server
Technology functions of the CPU
Save absolute encoder adjustment for device
replacement
Saving the adjustment values with the
"MC_SaveAbsoluteEncoderData" instruc
tion saves having to perform the absolute
encoder adjustment again after a device
replacement.
The "MC_Home" instruction supports the new
"Incremental encoder adjustment" homing
mode.
Extended scope of functions
Active homing of absolute encoders is possible. Extended scope of functions
The "MC_Power" instruction supports coasting-
down.
Extended scope of functions "MC_Power"
instruction
The hardware limit switches are configurable as
traversable/non-traversable.
Extended scope of functions
For axes in a synchronous system, the dynamic
filter enables dynamic adaptation of axes with
higher dynamic responses to the axis with the
lowest dynamic response.
With the dynamic filter, axes with different
inertia can be adjusted to each other.
Optimization of a synchronous system
Axis functions
Stop superimposed movements on the axis
with the instruction "MC_HaltSuperimposed"
Use the instruction to stop a superimposed
motion independently of the basic motion.
The S7-1500 CPU supports up to 64 configured
signals per trace.
Number of configurable signals per traceTrace functionality of the CPU
Long-term trace: The S7-1500 CPU supports the
cycle-granular recording of up to 64 different
tags in a .csv file for a long time (hours, days,
etc.)
Better diagnostic possibilities when analyz
ing the course of signals over a long period
of time
Reference
You can find an overview of all new functions, improvements and revisions in the respective
firmware versions on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109478459).
3.2 Hardware properties
Article number
6ES7512-1DM03-0AB0
12 CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Product overview
3.2 Hardware properties

View of the module
The figure below shows the CPU1512SP-1PN.
Figure 3-1CPU 1512SP-1 PN
Properties
The CPU1512SP‑1PN has the following technical properties:
Property Description Additional information
Supply voltage The 24VDC supply voltage is fed via a 4-pin
connection plug located at the bottom left on
the front panel of the CPU.
• Section Connecting (Page
21)
• ET 200SP System Manual
(https://support.industry.
siemens.
com/cs/ww/en/view/58649
293)
Standalone CPU You can also use the CPU1512SP-1PN in the
distributed I/O system ET 200SP as a "central
system" without a higher-level controller.
PROFINET IO
13
Product overview
3.2 Hardware properties
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

Property Description Additional information
PROFINET interface
(X1)
The interface has an integrated 3-port switch.
Port 1 and port 2 are located on the optionally
pluggable BusAdapter. Port 3 is integrated in
the housing of the CPU. You can connect the
PROFINETIO to the CPU via the BusAdapter.
You will find information on the BusAdapters
supported by the CPU in the section Connect
ing (Page 21).
In addition to PROFINET basic functionality, the
interface also supports PROFINET IO RT (real-
time) and IRT (isochronous real-time).
PROFINETIO communication or real-time set
tings can be configured. The basic functionality
of PROFINET supports HMI communication,
communication with the configuration system,
communication with a higher-level network
(backbone, router, Internet) and communica
tion with another machine or automation cell.
Port 1 and port 2 can also be used as ring ports
for the configuration of redundant ring struc
tures in Ethernet.
Operation of the CPU
as
• IO controller
• I-device
•IO controller:
As an IO controller, the CPU addresses the
connected IO devices
•I‑device:
As an I-device (intelligent IO device), the
CPU is assigned to a higher-level IO control
ler and is used in the process as an intelli
gent pre-processing unit of sub-processes
• PROFINET Function Manual
(https://support.industry.
siemens.
com/cs/ww/en/view/49948
856)
• ET 200SP System Manual
(https://support.industry.
siemens.
com/cs/ww/en/view/58649
293)
PROFIBUS DP
DP master To use the ET 200SP CPU as a DP master, you
need the CPU and the optional communication
module CM DP (PROFIBUS interface X2). When
used as a DP master, the ET 200SP CPU
exchanges data with the connected DP slaves
via PROFIBUS DP.
Intelligent DP slave (I-
slave)
To use the ET 200SP CPU as an intelligent DP
slave (I-slave), you need the CPU and the
optional communication module CM D
(PROFIBUS interface X2). As an I-slave, the ET
200SPCPU is connected via PROFIBUS DP to a
higher-level DP master and exchanges data
with it.
• PROFIBUS Function Manual
(https://support.industry.
siemens.
com/cs/ww/en/view/59193
579)
• Communication module CM
DP Equipment Manual
(https://support.industry.
siemens.
com/cs/ww/en/view/90156
526)
Accessories
NOTE
The CPU is delivered without a BusAdapter. You can find the article numbers of the supported
BusAdapters in the "Accessories/spare parts" section of the ET 200SP distributed I/O system
(https://support.industry.siemens.com/cs/ww/en/view/58649293) system manual.
14 CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Product overview
3.2 Hardware properties

NOTE
You must provide covers for unused BusAdapter interfaces. You can find the article no. of the
cover in the ET 200SP System Manual
(https://support.industry.siemens.com/cs/ww/en/view/58649293) in the "Accessories/spare
parts" section.
3.3 Firmware functions
Functions
The CPU supports the following functions:
Function Description Additional information
Integrated system
diagnostics
The system automatically generates the messages for the
system diagnostics and outputs these messages via a
programming device/PC, HMI device, the web server or
the integrated display. System diagnostics information is
also available when the CPU is in STOP mode.
Diagnostics function manual
(https://support.automation.siemens.
com/WW/view/en/59192926)
Integrated web server The web server lets you access the CPU data by means of
a network. Evaluations, diagnostics, and modifications
are thus possible over long distances. Monitoring and
evaluation is possible without STEP7, only a web
browser is required. Note that you must take appropriate
measures to protect the CPU from compromise (such as
restricting network access, using firewalls).
• Web server function manual
(https://support.automation.
siemens.
com/WW/view/en/59193560)
• Security with SIMATIC S7 control
lers system manual
(https://support.industry.siemens.
com/cs/ww/en/view/90885010)
Integrated trace
functionality
Trace functionality supports you in troubleshooting
and/or optimizing the user program.
You record device tags and evaluate the recordings with
the trace and logic analyzer function. Tags are, for
example, drive parameters or system and user tags of a
CPU.
The device saves the recordings. You can read out and
permanently save the recordings with the configuration
system (ES), if required. The trace and logic analyzer
function is therefore suitable for monitoring highly
dynamic processes.
The trace record can also be displayed through the web
server.
With the project trace, you record the variables of mul
tiple devices within a project, for example, a controller
and a drive.
With the long-term trace, you record up to 64 different
tags for each cycle in a .csv file over a long period (e.g.
hours, days).
Using the trace and logic analyzer
function function manual
(https://support.automation.siemens.
com/WW/view/en/64897128)
15
Product overview
3.3 Firmware functions
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

Function Description Additional information
OPC UA With OPCUA, you can exchange data via an open and
manufacturer-neutral communication protocol.
The CPU can act as OPC UA server. The CPU acting as the
OPCUA server can communicate with OPCUA clients.
In turn, as an OPC UA client, the CPU can access an OPC
UA server, allow the OPC UA server to run methods and
read out information from the OPC UA server.
Through OPC UA Companion Specification, methods can
be specified in a uniform and vendor-neutral way. Using
these specified methods, you can easily integrate devices
from various manufacturers into your plants and produc
tion processes.
Communication function manual
(https://support.industry.siemens.
com/cs/ww/en/view/59192925)
Configuration control You can use configuration control to operate different
real hardware configurations with a configured maxim
um configuration of the hardware. This means especially
in series machine manufacturing you have the option of
operating/configuring different configuration variants of
a machine with a single project.
ET200SP System Manual
(https://support.industry.siemens.
com/cs/ww/en/view/58649293)
PROFINETIO
RT (real time) RT prioritizes PROFINET IO telegrams over standard tele
grams. This ensures the required determinism in the
automation technology. In this process the data is trans
ferred via prioritized Ethernet telegrams.
IRT (isochronous real time) A reserved bandwidth within the send clock is available
for IRT data. The reserved bandwidth ensures that the IRT
data can be transmitted in time-synchronized intervals,
unaffected by other high network loading (e.g. TCP/IP
communication or additional real time communication).
Update times with maximum determinism can be real
ized through IRT. Isochronous applications are possible
with IRT.
Isochronous mode The Isochronous mode system property acquires meas
ured values and process data and processes the signals in
a fixed system clock. Isochronous mode thus contributes
to high control quality and hence to greater manufactur
ing precision. Isochronous mode reduces possible fluctu
ations of the process reaction times to a minimum. Time-
assured processing makes higher machine cycles pos
sible.
MRP (Media Redundancy
Protocol)
It is possible to establish redundant networks via the
Media Redundancy Protocol. Redundant transmission
links (ring topology) ensure that an alternative commu
nication path is made available if a transmission link fails.
The PROFINET devices that are part of this redundant net
work form an MRP domain.
RT operation is possible with the use of MRP.
MRPD (Media Redundancy
with Planned Duplication)
The advantage of the MRP extension MRPD is that, in the
event of a failure of a device or a line in the ring, all other
devices continue to be supplied with IO data without
interruption and with short update times.
MRPD is based on IRT and MRP. To realize media redund
ancy with short update times, the PROFINET devices par
ticipating in the ring send their data in both directions.
PROFINET function manual
(https://support.automation.siemens.
com/WW/view/en/49948856)
16 CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Product overview
3.3 Firmware functions

Function Description Additional information
The devices receive this data at both ring ports so that
there is no reconfiguration time.
Shared device The "Shared device" function allows you to divide the
modules or submodules of an IO device up among differ
ent IO controllers. Numerous IO controllers are often
used in larger or widely distributed systems. Without the
"Shared device" function, each I/O module of an IO
device is assigned to the same IO controller. If sensors
that are physically close to each other must provide data
to different IO controllers, several IO devices are
required. The "Shared device" function allows the mod
ules or submodules of an IO device to be divided up
among different IO controllers, thus allowing flexible
automation concepts. You can, for example, combine I/O
modules that are physically close to each other in one IO
device.
PROFIenergy PROFIenergy is a PROFINET-based data interface for
switching off consumers centrally and with full coordina
tion during pause times regardless of the manufacturer
or device type. The goal is that the process is only
provided with the energy that is absolutely required. The
majority of the energy is saved by the process; the
PROFINET device itself only contributes a few watts of
savings potential.
PROFINET function manual
(https://support.automation.siemens.
com/WW/view/en/49948856)
Integrated technology
Motion Control The CPUs support the S7-1500 Motion Control functions
via the technology objects speed axes, positioning axes,
synchronized axes, external encoders, cams, cam tracks
and measuring probes.
• Speed-controlled axis for controlling a drive with
speed specification
• Positioning axis for position-controlled positioning of
a drive
• Synchronous axis to interconnect with a master
value. The axis is synchronized to the master axis pos
ition.
• External encoder for detecting the actual position of
an encoder and its use as a master value for syn
chronous operation
• Cams, cam track for position-dependent generation
of switching signals
• Measuring input for fast, accurate and event-depend
ent sensing of actual positions
You program the technology objects with Motion Control
instructions according to PLCopen.
Motion Control topic page
(https://support.industry.siemens.
com/cs/ww/en/view/109751049)
Extended Motion Control
functions
The technology CPUs of the SIMATIC S7-1500 also sup
port extended Motion Control functions with the addi
tional technology objects cam, leading axis proxy and
kinematics:
Motion Control topic page
(https://support.industry.siemens.
com/cs/ww/en/view/109751049)
17
Product overview
3.3 Firmware functions
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

Function Description Additional information
• Advanced synchronization functions
– Synchronization with specification of the syn
chronous position
– Actual value coupling
– Leading value or following value shift in gearing
or camming
– Camming
– Synchronization to specified positions
– Cross-PLC synchronous operation
– Velocity gearing
• Up to 4 encoders or measuring systems as actual pos
ition for position control
• Controlling of kinematics, such as
– Cartesian portals
– Roller pickers
– Delta pickers
– SCARA
Integrated closed-loop con
trol functionality
• PID Compact (continuous PID controller)
• PID 3Step (step controller for integrating actuators)
• PID Temp (temperature controller for heating and
cooling with two separate actuators)
PID control function manual
(https://support.industry.siemens.
com/cs/ww/en/view/108210036)
Integrated safety
Know-how protection The know-how protection protects user blocks against
unauthorized access and modifications.
Copy protection Copy protection links user blocks to the serial number of
the SIMATIC memory card or to the serial number of the
CPU. User programs cannot run without the correspond
ing SIMATIC memory card or CPU.
Access protection Extended access protection provides high-quality protec
tion against unauthorized configuration changes. You
can use authorization levels to assign separate rights to
different user groups.
Integrity protection The CPUs feature an integrity protection function by
default. This helps to detect any manipulation of the
engineering data on the SIMATIC Memory Card or during
data transfer between the TIA Portal and the CPU, and to
check communication from a SIMATIC HMI system to the
CPU for possible manipulation of engineering data. The
user receives a corresponding message about manipula
tion of engineering data detected by the integrity protec
tion.
Password provider As an alternative to manual password input you can con
nect a password provider to STEP 7. A password provider
offers the following advantages:
• Convenient handling of passwords. STEP 7 reads the
password automatically for the blocks. This saves you
time.
• Optimum block protection because the users do not
know the password itself.
ET200SP System Manual
(https://support.industry.siemens.
com/cs/ww/en/view/58649293)
18 CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Product overview
3.3 Firmware functions

3.4 Operating and display elements
3.4.1 Front view of the module with BusAdapter
The figure on the left shows the CPU1512SP‑1PN including a plugged BA2xRJ45
BusAdapter. The figure on the right shows a separate view of the BA2xRJ45 BusAdapter.
10
9
8
① Mounting rail release
② Labeling strips
③ LEDs for status and error displays
④ LED for display of the supply voltage
⑤ Mode switch
⑥ Slot for the SIMATIC memory card
⑦ Connection for supply voltage (included in product package)
⑧ Cable support and attachment for port P3 of the PROFINET interface
⑨ LEDs for status displays of the PROFINET interface: LK1 and LK2 on BusAdapter, LK3 on CPU
⑩ Port P3 of the PROFINET interface: RJ45 socket
⑪ Separate view of the BusAdapter
⑫ Port P1R of the PROFINET interface: RJ45 socket on BusAdapter BA2×RJ45
R: Ring port for configuring a ring topology with media redundancy
⑬ Port P2R of the PROFINET interface: RJ45 socket on BusAdapter BA2×RJ45
R: Ring port for configuring a ring topology with media redundancy
Figure 3-2Front view of the CPU1512SP‑1PN with BusAdapter
3.5 Mode switch
Use the mode switch to set the CPU operating mode.
19
Product overview
3.5 Mode switch
CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE

The following table shows the position of the switch and the corresponding meaning.
Table 3-1Mode switch settings
Position Meaning Explanation
RUN RUN mode The CPU is executing the user program.
STOP STOP mode The user program is not being executed.
MRES Memory reset Position for CPU memory reset.
20 CPU 1512SP-1 PN (6ES7512-1DM03-0AB0)
Equipment Manual, 11/2022, A5E33591411-AE
Product overview
3.5 Mode switch
