Siemens SIMATIC RTLS4030G User manual

SIMATIC RTLS4030G
SIMATIC RTLS
Localization systems
SIMATIC RTLS4030G
Operating Instructions
05/2023
C79000
-G8976-C515-10
Introduction
1
Device description
2
Installation & Operation
3
Technical specifications
4
Approvals
5

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
C79000-G8976-C515-10
Ⓟ
05/2023 Subject to change
Copyright © Siemens AG 2023.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 3
Table of contents
1 Introduction........................................................................................................................................... 5
2 Device description ............................................................................................................................... 11
2.1 Characteristics ................................................................................................................... 11
2.2 Order data for RTLS4030G and accessories......................................................................... 12

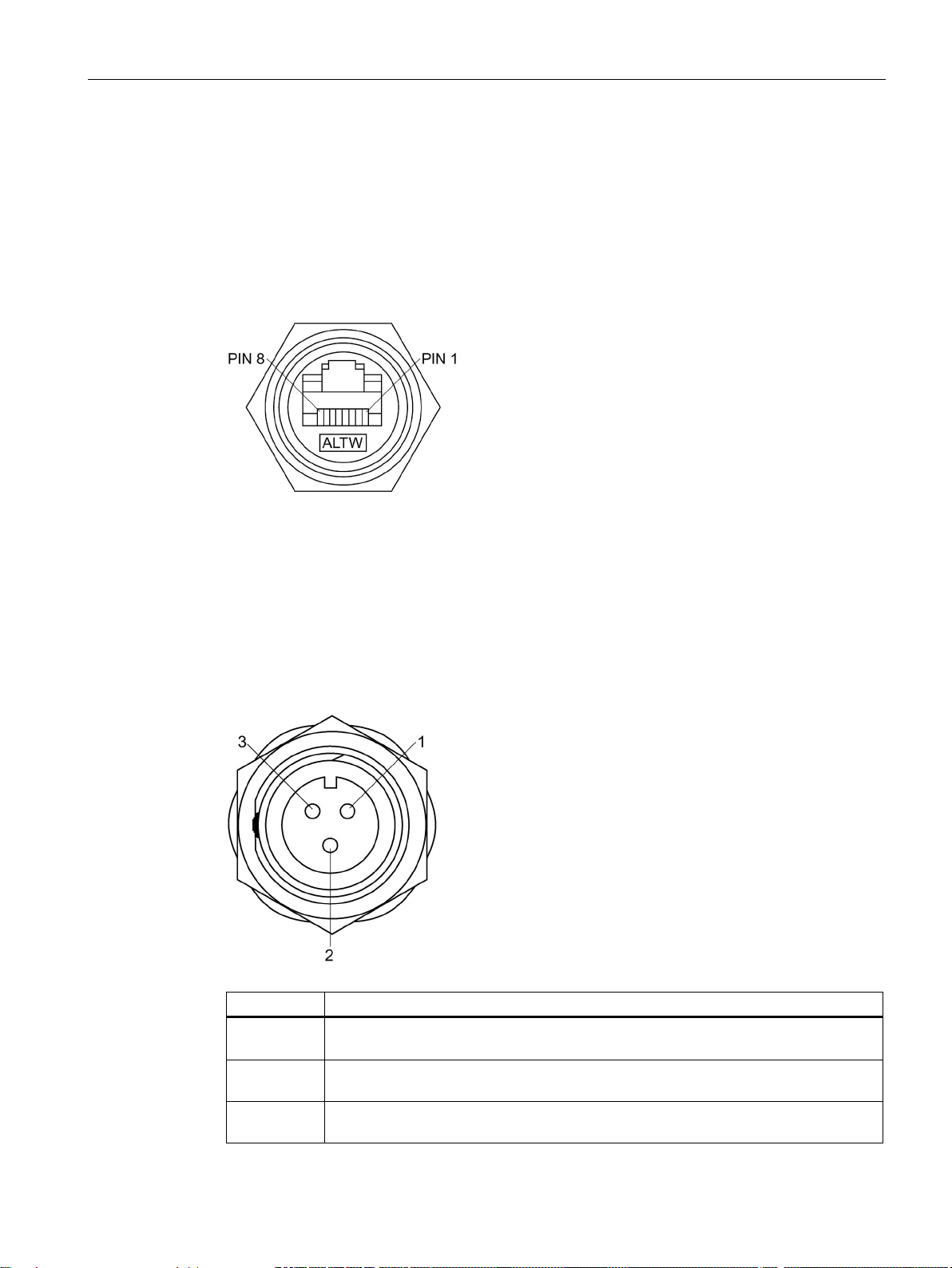

2.3 Pin assignment .................................................................................................................. 13
2.4 LED status indicator ........................................................................................................... 14
2.5 Dimension drawing............................................................................................................ 15
2.6 Troubleshooting ................................................................................................................ 15
3 Installation & Operation ...................................................................................................................... 17
3.1 Notes on installation.......................................................................................................... 17

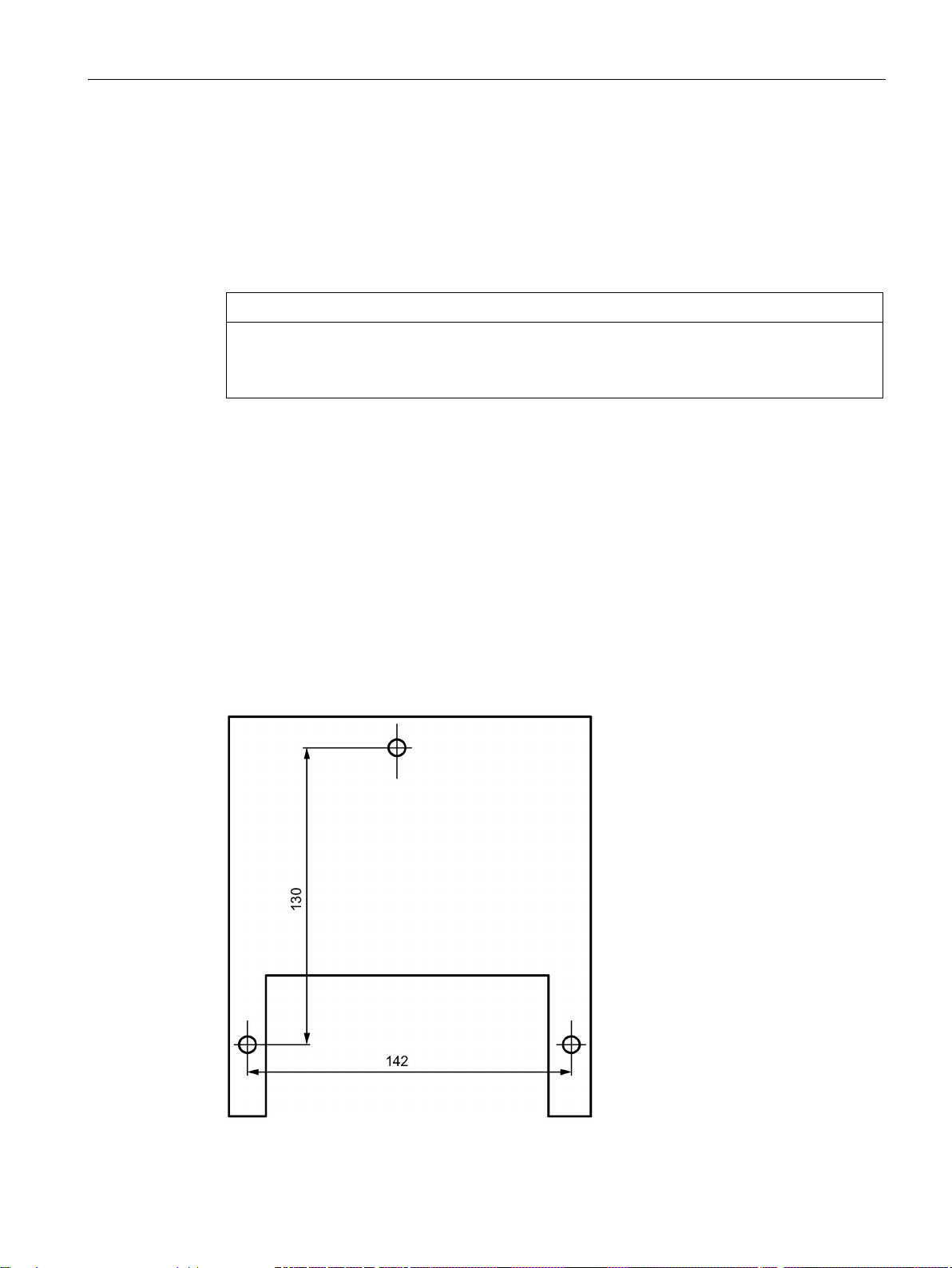

3.2 Mounting for ceiling holder with mounting plate ............................................................... 20
3.3 Mounting for corner and pole mount ................................................................................. 21
3.4 Ethernet ............................................................................................................................ 22
3.5 Operation.......................................................................................................................... 22
3.6 Cleaning and maintenance ................................................................................................ 22
4 Technical specifications....................................................................................................................... 25
5 Approvals............................................................................................................................................. 27

Table of contents
SIMATIC RTLS4030G
4Operating Instructions, 05/2023, C79000-G8976-C515-10

SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 5
Introduction
1
Purpose of the operating instructions
These operating instructions support you when installing and connecting the SIMATIC
RTLS4030G gateway.
The configuration and the integration of the gateways in a network are not described in these
operating instructions.
Scope of validity of the operating instructions
These operating instructions apply to the following gateways:
•RTLS4030G (CE; article number: 6GT2701-5DB03)
•RTLS4030G (FCC/NOM/ANATEL; article number: 6GT2701-5DB13)
•RTLS4030G (CMIIT; article number: 6GT2701-5DB23)
•RTLS4030G (ISED; order number: 6GT2701-5DB33)
Further documentation
You can find the complete documentation for all SIMATIC RTLS products at the following
address:
Link: (https://support.industry.siemens.com/cs/us/en/ps/25277/man)
Trademarks
The following and possibly other names not identified by the registered trademark sign ®are
registered trademarks of Siemens AG:
SIMATIC RTLS

Introduction
SIMATIC RTLS4030G
6Operating Instructions, 05/2023, C79000-G8976-C515-10
Industry Online Support
In addition to the product documentation, the comprehensive online information platform of
Siemens Industry Online Support offers support at the following Internet address:
(https://support.industry.siemens.com/cs/start?lc=en-US)
Apart from news, there you will also find:
•Project information: Manuals, FAQs, downloads, application examples etc.
•Contacts, Technical Forum
•The option submitting a support query: (https://support.industry.siemens.com/My/us/en/)
•Our service offer:
Right across our products and systems, we provide numerous services that support you in
every phase of the life of your machine or system - from planning and implementation to
commissioning, through to maintenance and modernization.
You will find contact information on the Internet at the following address:
(https://www.automation.siemens.com/aspa_app/?ci=yes&lang=en)
SITRAIN - Training for Industry
The training offer includes more than 300 courses on basic topics, extended knowledge and
special knowledge as well as advanced training for individual sectors - available at more than
130 locations. Courses can also be organized individually and held locally at your location.
You will find detailed information on the training curriculum and how to contact our
customer consultants at the following Internet address:
(https://new.siemens.com/global/en/products/services/industry/sitrain/personal.html)
RTLS Technology and Practice (ID-RTLS-TP)
Training and certification
After completing the RTLS certification training, you will be able to plan and implement small
and medium-sized RTLS projects and provide efficient and multifaceted support in large
projects. Your RTLS basics will be strengthened and, building upon them, you will receive
new tools of the trade in order to offer customers the optimal solution for them. The
complete project sequence is taken as a reference and important steps, resources and work
results for each phase are presented. Comprehensive practical exercises in connection with
troubleshooting techniques and a great deal of input from industrial projects allow you to
internalize a confident approach to working with different types of localization projects. With
the training documents, you also receive extensive reference material for your daily work.
Link: (https://www.sitrain-learning.siemens.com/EN/en/rw35251/Industrielle-Identifikation-
RTLS-Technologie-und-Praxis)

Introduction
SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 7
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines, and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions form one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. These systems, machines and components should only be
connected to the enterprise network or the Internet if and only to the extent necessary and
with appropriate security measures (firewalls and/or network segmentation) in place.
You can find more information on protective measures in the area of industrial security by
visiting: (https://www.siemens.com/industrialsecurity).
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends performing product updates as soon as they are
available and using only the latest product versions. Use of product versions that are no
longer supported, and failure to apply latest updates may increase customer’s exposure to
cyber threats.
To ensure that you are always informed about product updates, subscribe to the Siemens
Industrial Security RSS feed at: (https://www.siemens.com/cert)
Note on firmware/software support
Check regularly for new firmware/software versions or security updates and apply them. After
the release of a new version, previous versions are no longer supported and are not
maintained.

Introduction
SIMATIC RTLS4030G
8Operating Instructions, 05/2023, C79000-G8976-C515-10
Security recommendations
General
Note the following security recommendations to prevent unauthorized access:
•Keep the firmware up to date. Check regularly for security updates for the device. You can
find information on this at the Industrial Security
(https://new.siemens.com/global/en/products/automation/topic-areas/industrial-
security.html) website.
•Inform yourself regularly about security recommendations published by Siemens
ProductCERT (https://new.siemens.com/global/en/products/services/cert.html).
•Evaluate your plant as a whole in terms of security. Use a cell protection concept with
suitable products.
•This product requires an additional security concept to prevent unauthorized access.
•Transponder and infrastructure can be configured for radio channels according to IEEE
802.15.4-2015. You will find details in the section "Technical specifications".
•Ensure that the radio frequencies are not used for other purposes and are not affected by
other interfering signals. This should be ensured within the operating range of the
localization system.
•Interference in the frequency band used can impair the system and, in extreme cases, lead
to localization failure.
Physical access
•Restrict physical access to the device to qualified personnel.
•Disable unused physical interfaces of the device. Unused interfaces could be used to gain
access to the operating site.
Software - Safety functions
•Only use protocols that are required to operate the device.
•Restrict access to the device with a firewall or rules in an ACL (Access Control List).
•Using VLANs gives you good protection against DoS attacks. Check whether this is
practicable.
•Activate the access logging function (external). Use the central logging function to record
changes and access.
•Configure a SysLog server to save all logs to a central location.

Introduction
SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 9
List of available protocols
The following is a list of all available protocols and their ports through which the device can
be accessed.
Table 1- 1 List of available protocols
Service/
Protocol
Protocol/
port number
Default port
status
Configurable
port
Authentication Encryption
Ethernet/TFTP
UDP 69
Closed
Yes
No
No
Ethernet/HTTP
TCP 80
Closed
Yes
No
No
Ethernet/IP
TCP 1010
Open
Yes
No
No
Ethernet/IP
TCP 1011
Closed
Yes
No
No
Ethernet/Telnet
TCP 9999
Closed
Yes
No
No
Ethernet/IP
UDP/TCP 30704
Closed
Yes
No
No
Ethernet/IP
UDP/TCP 30718
Open*
Yes
No
No
* Port 30718 is open once for commissioning. It is then closed again.
•Service/protocol
Protocols supported by the device.
•Protocol/port number
Port number assigned to the protocol.
•Default port status
–Open
The port is open when you start configuring.
–Closed
The port is closed when you start configuring.
•Configurable port
Indicates whether the port can be configured.
•Authentication
Specifies whether authentication of the communication partner takes place.
•Encryption
Specifies whether the transfer is encrypted.
Recycling and disposal
The products are low in harmful substances, can be recycled and meet the requirements of
the Directive 2012/19/EU for disposal of waste electrical and electronic equipment (WEEE).
Do not dispose of the products at public disposal sites.
For environmentally compliant recycling and disposal of your electronic waste, please contact
a company certified for the disposal of electronic waste or your Siemens representative.
Note the different national regulations.

Introduction
SIMATIC RTLS4030G
10 Operating Instructions, 05/2023, C79000-G8976-C515-10

SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 11
Device description
2
2.1 Characteristics
SIMATIC RTLS4030G
Characteristics
Design
①Status indicators (LEDs)
②Connection for power supply
③Ethernet port;
Alternative power supply using Power over
Ethernet (PoE)
General The gateway is the home location for
localization in the RTLS localization system.
It can be connected to the local IT
infrastructure over Ethernet. This connection
sets up an exchange between the gateway,
the RTLS localization network and the
Locating Manager server.

Device description
2.2 Order data for RTLS4030G and accessories
SIMATIC RTLS4030G
12 Operating Instructions, 05/2023, C79000-G8976-C515-10
2.2 Order data for RTLS4030G and accessories
Table 2- 1 Order data RTLS4030G
Article number
SIMATIC RTLS4030G
CE
6GT2701-5DB03
FCC/NOM/ANA
TEL
6GT2701-5DB13
CMIIT
6GT2701-5DB23
ISED
6GT2701-5DB33
Table 2- 2 Accessories order data (not included in scope of delivery)
Article number
Connecting cable for gateway
Bulgin 400 Series Buccaneer® PX0410/03S, 3-pin, 5 m
6GT2791-2AH50
Protective jacket IP65 for RJ45 connector
made of plastic, for cable mounting (IP65) to gateway
6GT2790-0CB00
Holder for gateways for ceiling mounting
6GT2790-0BE20
Holder for gateways for corner and mast mounting
6GT2790-0BE30
Connecting cable for connection to wide-range power supply unit
for gateways, 5 m
6GT2791-2PH50
Wide-range power supply with power cable
EU
6GT2898-0AC00
UK
6GT2898-0AC10
US
6GT2898-0AC20
Wide-range power supply without power cable
6GT2898-0AC81
Power cable for wide-range power supply
EU
6GT2898-0AC01
UK
6GT2898-0AC11
US
6GT2898-0AC21
IE TP Cord RJ45 / RJ45, 4 x 2
1 m
6XV1870-3QH10
3 m
6XV1870-3QH30
6 m
6XV1870-3QH60
10 m
6XV1870-3QN10
20 m
6XV1870-3QN20
25 m
6XV1870-3QN25
50 m
6XV1870-3QN50

Device description
2.3 Pin assignment
SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 13
2.3 Pin assignment
Ethernet RJ45 port
The gateway may only be connected to the Ethernet via the plug-in connectors shown below.
When connecting the Ethernet cable, make sure that the twist-lock connector engages
correctly.
Figure 2-1 RJ45 connector Amphenol LTW PCP-00AMMA-TLM7001
Connection for power supply
•3-pin plug-in connector Buccaneer® PX0412/03P
•Connectors: SA3350/1
•Sealing cover: PX0480
The pins are occupied as illustrated below:
Pin
Description
1
Supply voltage (red)
8 ... 30 V DC
2
Digital output (brown)
Switched input voltage, max. current 200 mA
3
Grounding terminal (black)
GND (0 V)

Device description
2.4 LED status indicator
SIMATIC RTLS4030G
14 Operating Instructions, 05/2023, C79000-G8976-C515-10
2.4 LED status indicator
The operating states of the gateways are indicated by the LEDs. The LED states can be off ,
on and flashing .
LED
Meaning
RUN LED
Lights up for 1 second on system start
RUN LED
Lights up green when power is being supplied to the gateway
RUN LED
Flashes red (user LEDs flash) if you trigger flashing via the Locating Manager. You can
configure the duration and frequency of flashing via the Locating Manager.
RUN LED
Off if no power is being supplied to the gateway
RADIO LED
Lights up for 1 second on system start
RADIO LED
Flashes yellow when the radio signal of the gateway to other gateways or transponders is
active
RADIO LED
Off when the radio signal of the gateway to other gateways or transponders is inactive
LAN/SERVER LED
Lights up for 1 second on system start
LAN/SERVER LED
Lights up blue when the device has an Ethernet connection and a connection to the
Locating Manager
LAN/SERVER LED
Flashes blue once per second when the gateway has an Ethernet connection but no
connection to the Locating Manager server
LAN/SERVER LED
Off when the gateway has no Ethernet connection

Device description
2.5 Dimension drawing
SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 15
2.5 Dimension drawing
Figure 2-2 Dimension drawing SIMATIC RTLS4030G - All dimensions specified in millimeters
2.6 Troubleshooting
Error detection
Cause of the error
Troubleshooting
The gateway does not respond, all LEDs
are off The gateway is not connected or the power supply is not switched
on
Check power supply of the gateway
The blue LED (LAN/SERVER) is off The gateway has no Ethernet
connection
Check the local network and the firewall
The blue LED (LAN/SERVER) flashes once
per second
The gateway is not connected to
the
Locating Manager
Switch on Locating Manager

Device description
2.6 Troubleshooting
SIMATIC RTLS4030G
16 Operating Instructions, 05/2023, C79000-G8976-C515-10

SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 17
Installation & Operation
3
3.1 Notes on installation
WARNING
Power supply
The gateway is designed for operation with a directly connectable safety extra-low voltage
(SELV) from a limited power source (LPS). The power supply therefore needs to meet at
least one of the following conditions:
•Only safety extra low voltage (SELV) with limited power source (LPS) complying with IEC
61140 / EN 62368-1 can be connected to the power supply terminals.
•The power supply unit for the gateway must meet NEC Class 2 according to the National
Electrical Code (r) (ANSI / NFPA 70).
Note
Before
you install the gateways, read this section carefully to ensure problem-
free installation
and commissioning.
The gateways can only be used in conjunction with the RTLS localization system.
The gateway is intended for fixed installation on walls or ceilings. Installation is to be
performed by qualified and trained users according to the operating instructions. In addition,
installation must take place in accordance with the respective instructions for the installation
of electrical systems and utilities. The gateways must be installed so that they are accessible
for future maintenance, e.g., for opening the enclosure cover.
Note the specifications in the section "Technical specifications (Page 25)" during installation
and operation. Ensure that all screws are securely and firmly screwed into the wall/ceiling and
can support the weight of the gateway and its wiring.
Make sure that the ambient temperature does not exceed 50 °C and that the gateway is not
installed in a location where it is exposed to direct sunlight.

Installation & Operation
3.1 Notes on installation
SIMATIC RTLS4030G
18 Operating Instructions, 05/2023, C79000-G8976-C515-10
Reflections and interferences
The antenna fields are weakened by absorbing materials and reflected by conducting
materials. When electromagnetic fields are reflected or there are other radio sources, this will
result in interferences. These circumstances will result in incorrect measurements; however,
these can be largely detected and corrected with the appropriate software (e.g. SIMATIC RTLS
Locating Manager). We still recommend that you prevent these influences. Especially objects
that cannot be penetrated by radio waves can cause localization errors.
Note
Metal surfaces reflect radio waves more than any other types of surfaces.
Water, on the other
hand, attenuates radio waves. You should therefore evaluate your working environment and
integration fo
r these influences.
Coexistence and de-sensing
To prevent interfering with each other, radio applications will use different frequency
bands. Use of these frequency bands is subject to state regulation. Because a frequency range
is considered a finite good, technologies were developed over the years that enable a
coexistence of different radio applications in the same frequency band. These technologies
are also used by SIMATIC RTLS. However, interferences can still be caused by other radio
devices. Arrangements are being made here, too, so that these interferences do not impact
the operation of the RTLS localization system. To keep interferences to a minimum, the RTLS
infrastructure components must not be installed in the close vicinity of other radio
applications. Strong senders in close vicinity can interfere with the reception, even when they
are located in neighboring frequency bands (de-sensing). This is true, for example, for the
2.4 GHz ISM band and PULSE in the UWB channel 5.
Connection of the cables
Make sure that the Twist-Lock connectors are inserted correctly to prevent moisture from
entering the enclosure.
Make sure that the wiring is correct before you start up the gateway.
Only use the cables described in the order data, supplied with the device or otherwise
prescribed. Siemens AG is not liable for damage or functional limitations caused by the use of
other cables.
Protect the gateway from penetrating moisture by closing off connectors that are not in use
with suitable covers. These covers are installed on the gateway.

Installation & Operation
3.1 Notes on installation
SIMATIC RTLS4030G
Operating Instructions, 05/2023, C79000-G8976-C515-10 19
Power supply
When the power supply is connected to the power plug, all LEDs flash briefly for a moment.
The POWER LED lights up as soon as voltage is present.
You can supply the gateway with power via the Ethernet cable. In this case, the power plug
must be tightly sealed to prevent moisture from penetrating. The gateway has Class 0
according to PoE.
NOTICE
No simultaneous power supply
Do not supply the gateway with power through the power plug and the PoE connection at
the same time.
Check whether the rated voltage of the power supply corresponds to the values in the section
"Technical specifications (Page 25)".
Installation without holder
The screws and anchors are not supplied with the device.
Follow these steps to mount the gateway without holder to the wall:
1. Draw the bore holes on the wall according to the following drilling pattern.
2. Drill the holes with a suitable tool.
3. Insert the suitable anchors in the holes.
4. Mount the gateway to the wall using screws (M4).
Figure 3-1 Drilling pattern - All dimensions specified in millimeters

Installation & Operation
3.2 Mounting for ceiling holder with mounting plate
SIMATIC RTLS4030G
20 Operating Instructions, 05/2023, C79000-G8976-C515-10
3.2 Mounting for ceiling holder with mounting plate
If you want to secure the gateway to the ceiling, you can mount it on the ceiling using a
mounting bracket (90°) and the gateway holder for ceiling installation (6GT2790-0BE20).
Make sure that the gateway's connectors are facing the ground. The screws are supplied with
the device, but the mounting bracket and anchors are not.
Follow these steps to mount the gateway to the ceiling:
1. Mount the mounting bracket onto the ceiling.
–Drill the holes in the ceiling with a suitable tool.
–Insert the suitable anchors in the holes.
–Mount the mounting bracket onto the ceiling.
2. Screw the gateway holder for ceiling installation into the mounting bracket so that it is
aligned vertically; see figure.
3. Secure the gateway to the gateway holder for ceiling installation using screws (M4). Use the
supplied plastic screw for the upper opening on the rear of the gateway, see footnote on the
dimension drawing, and the metal screws for the fixings at the bottom of the gateway.
Figure 3-2 Gateway holder for ceiling installation - all dimensions specified in millimeters
* Use this hole for mounting with the supplied plastic screw
