Preface
Validity
This document applies to devices with the designation IPC277D/E 19" INOX PRO and
IFP1900 INOX PRO with the following article numbers:
Article number
Device
6AV7484-4AB00-0AA0 IPC277D 19" INOX PRO, stand mounting (with operator controls)
6AV7484-4AB10-0AA0
IPC277D 19" INOX PRO, support arm mounting (with operator controls)
6AV7484-5AB00-0AA0 IPC277E 19" INOX PRO, stand mounting (without operator controls)
6AV7484-5AB10-0AA0
IPC277E 19" INOX PRO, support arm mounting (without operator controls)
6AV7484-6AB00-0AA0
IFP1900 INOX PRO, stand mounting (with operator controls)
6AV7484-6AB10-0AA0
IFP1900 INOX PRO, support arm mounting (with operator controls)
6AV7484-6AB01-0AA0
IFP1900 INOX PRO, stand mounting (without operator controls)
6AV7484-6AB11-0AA0
IFP1900 INOX PRO, support arm mounting (without operator controls)
Conventions
The term "device" is also used instead of the product designation in this document.
Figures
This document contains figures of the device described. The figures can deviate from the
particularities of the delivered device.
Steps in the figures are identified with process numbers according to the sequence in which
they have to be executed: , , , ...
A device for stand mounting is shown as an example in the figures. The steps can be
executed in the same way for a device for support arm mounting.

SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
4Service Manual, 11/2017, A5E35751762-AC
Table of contents
Preface........................................................................................................................................ 3
1 Overview ..................................................................................................................................... 5
2 Safety instructions......................................................................................................................... 6
3 Replacing the seal of the compartment cover ................................................................................... 7
4 Extended maintenance work .......................................................................................................... 9
4.1 Overview............................................................................................................................10
4.2 Opening the device and loosening cables...........................................................................12
4.3 Replacing the seal of the rear panel ...................................................................................14
4.4 Replacing operator controls................................................................................................16
4.5 Changing the mounting type...............................................................................................19
4.6 Fastening the rear panel.....................................................................................................21
5 Accessories and spare parts ........................................................................................................ 23
A Technical support........................................................................................................................ 25
A.1 Service and support ...........................................................................................................25

SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 5
Overview
1

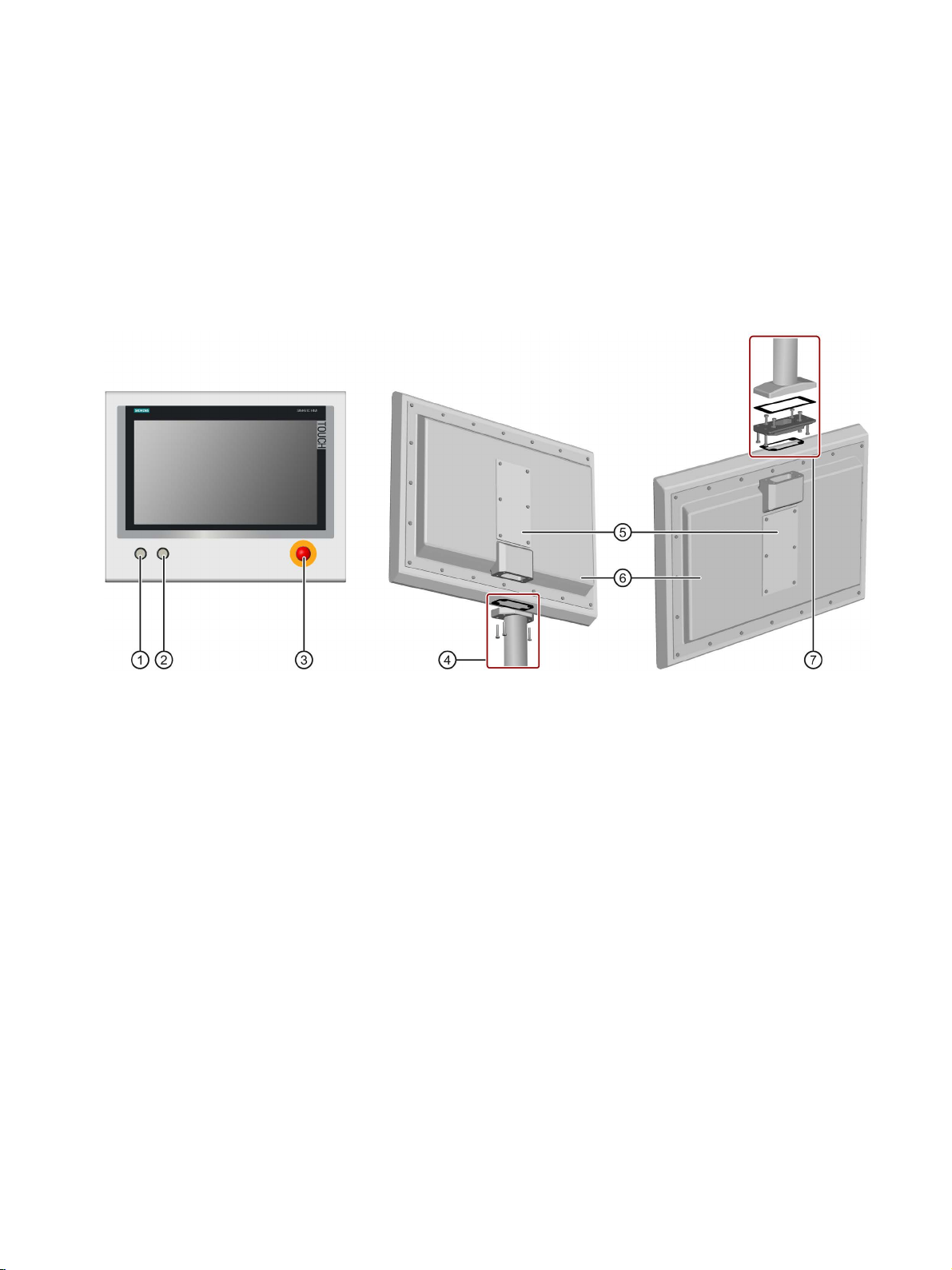

The INOX PRO devices are available with or without operator controls on the front and are
intended for "stand mounting" or "support arm mounting". The figure below shows the front
view using a device with operator controls as an example.
①
Illuminated pushbutton
1
"left" with green LED
⑤
Terminal compartment cover with seal
②
Illuminated pushbutton
1
"right" with red LED
⑥
Rear panel with seal
③
EMERGENCY OFF button
1
⑦
Mounting kit for support arm mounting
④
Mounting kit for stand mounting
This document describes the following maintenance work:
●Replacing the seal of the compartment cover
●Replacing defective operator controls in the device front and LEDs 1
●Replacing the seal of the rear panel
●Changing the mounting type, which means converting a device for stand mounting into a
device for support arm mounting and vice versa.
1Only for devices with operator controls

SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
6Service Manual, 11/2017, A5E35751762-AC
Safety instructions
2
WARNING
Extended maintenance work may only be carried out by qualified and correspondingly
trained personnel
The Service Manual describes extended maintenance work, among other things. The
device is opened as part of the extended maintenance work with work to take place on the
wiring or on electronic components inside the device. Injuries or material damage may
result if the work is not carried out correctly.
The maintenance work described in the Service Manual may only be carried out by
qualified specialist personnel who have been trained correspondingly by Siemens.
WARNING
IP66 degree of protection
The device has IP66 degree of protection when it is closed. If the seals are not inserted
correctly during maintenance work or if the device is not closed properly, IP66 degree of
protection is no longer guaranteed. Humidity may penetrate the device. The result may be
damage to the device and personal injury.
Make sure you follow the instructions in this document precisely when replacing the seals.
Make sure that the seals are inserted correctly and that the covers are fastened properly.
Storage and transport
NOTICE
Damage from condensation
If the device is subjected to extreme changes in temperature during transportation, for
example, in the case of cold weather, moisture can built up on and in the device. Moisture
can result in short-circuits in electrical circuits.
The device no longer works correctly.
In case of condensation, you need to store the device in a dry place and slowly warm it up
to room temperature. However, do not expose the device to direct heat radiation. Wait
12 hours before you switch on the device.

SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 7
Replacing the seal of the compartment cover
3
WARNING
IP66 degree of protection
The device has IP66 degree of protection when it is closed. If the terminal compartment
seal is not inserted correctly or if the terminal compartment is not closed properly, IP66
degree of protection is no longer guaranteed. Humidity may penetrate the device. The
result may be damage to the device and personal injury.
Make sure you follow the instructions in this document precisely when replacing the seal.
Make sure that the seal is inserted correctly and that the terminal compartment cover is
fastened properly.
Requirement
You need the service pack with article number 6AV7675-1JD20-0AA0.
Procedure
Note
The description below shows figures of a device
that is not mounted on the stand.
You can replace the seal of the terminal compartment cover even when the device is
mounted on a stand or support arm.

Replacing the seal of the compartment cover
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
8Service Manual, 11/2017, A5E35751762-AC
1. Remove the six screws of the terminal compartment cover.
2. Remove the terminal compartment cover.
CAUTION
Do not drop the terminal compartment cover
Dropping the terminal compartment cover may result in minor injuries or damages to the
device.
Prevent the terminal compartment cover from dropping, especially when it is mounted
on a stand or support arm.
3. Remove the seal of the terminal compartment cover.
4. Insert the spare seal as shown in the figure.
5. Check the seal for correct seat; make sure that the bore holes of the seal enclose the
collar of the press-fit components, see marked locations.
6. Place the terminal compartment cover on the terminal compartment and reinsert the
six screws.
7. Tighten all six screws with a torque of 3.5 Nm.

SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 9
Extended maintenance work
4
WARNING
Opening the device and working on the opened device may only be carried out by qualified
and correspondingly trained personnel
The service manual describes, amongst other points, the opening of the device and
working on the wiring or on electronic components in the inside of the device. Injuries or
material damage may result if the work is not carried out correctly.
The work described in the service manual may only be carried out by qualified specialist
personnel who have been trained correspondingly by Siemens.
WARNING
After opening the device, you must replace the seal of the rear panel
The device has IP66 degree of protection when it is closed. If the seal of the rear panel is
not replaced after opening the device, the tightness of the device is not guaranteed.
Humidity may penetrate the device. This can result in personal injury or material damage.
Always replace the seal of the rear panel when you open the device. Make sure you follow
the instructions in this document precisely when replacing the seals. Make sure that the
seals are inserted correctly and that the covers are fastened properly.
NOTICE
Use only approved spare parts
Installation of spare parts which are not approved for this device can damage the device,
machine or plant. The warranty becomes void if you use spare parts that are not approved.
Only use spare parts from a service pack, from a mounting kit or operator controls
according to the specification in section "Accessories and spare parts (Page 23)".
Devices with operator controls on the front
NOTICE
Placing the device on its front can damage operator controls
If you place the device on its front before or during the installation, the operator controls on
the front can be damaged.
Place the device on a soft and elevated surface so that the front operator controls do not
contact the working area and are not damaged.

Extended maintenance work
4.1 Overview
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
10 Service Manual, 11/2017, A5E35751762-AC
Components sensitive to electrostatic charge
Electrostatic sensitive devices are labeled with an appropriate symbol.
NOTICE
Electrostatic sensitive devices (ESD)
The device includes electrostatic sensitive devices. When you touch electrostatic sensitive
devices, you can destroy them through voltages that are far below the human perception
threshold.
When you open the device you must take appropriate ESD measures, for example:
•When handling electrostatic sensitive devices, make sure that persons, the workstation
and devices, tools and packaging used are properly grounded. This way you avoid static
charging.
•Discharge your body electrostatically before you take a measurement at a module. Do
so by touching grounded metallic parts. Always use grounded measuring instruments.
•Avoid direct contact.
•As a general rule, do not touch electrostatic sensitive devices, except in the case of
unavoidable maintenance work.
•Hold the modules at their edge so that you do not touch the connector pins or conductor
paths. This way, the discharge energy does not reach and damage the sensitive
components.
4.1
Overview
This section describes the following extended maintenance work:
●Replacing the seal of the rear panel
You need service pack 2 with article number 6AV7675-1JD21-0AA0.
●Changing the mounting type, which means converting a device for stand mounting into a
device for support arm mounting and vice versa.
You need service pack 2 with article number 6AV7675-1JD20-0AA0.
Note
When you change the mounting type, you need the corresponding mounting kit for
mounting, see section "
Accessories and spare parts (Page 23)".
●Only for devices with operator controls: Replacing defective operator controls in the
device front and LEDs
You need the corresponding spare parts, see section "Accessories and spare parts
(Page 23)".

Extended maintenance work
4.1 Overview
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 11
Flowchart
Perform the maintenance work according to the following flowchart:

Extended maintenance work
4.2 Opening the device and loosening cables
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
12 Service Manual, 11/2017, A5E35751762-AC
4.2
Opening the device and loosening cables
Requirement
●The device has been removed from the stand or support arm.
●The connection cables have been removed from the device interfaces.
●Required tool: Allen wrench, size 8 mm
Procedure
1. Place the device on its front. Use a soft and elevated surface so that the device front
does not contact the working area, and the front and any operator controls on the front, if
present, are not damaged.

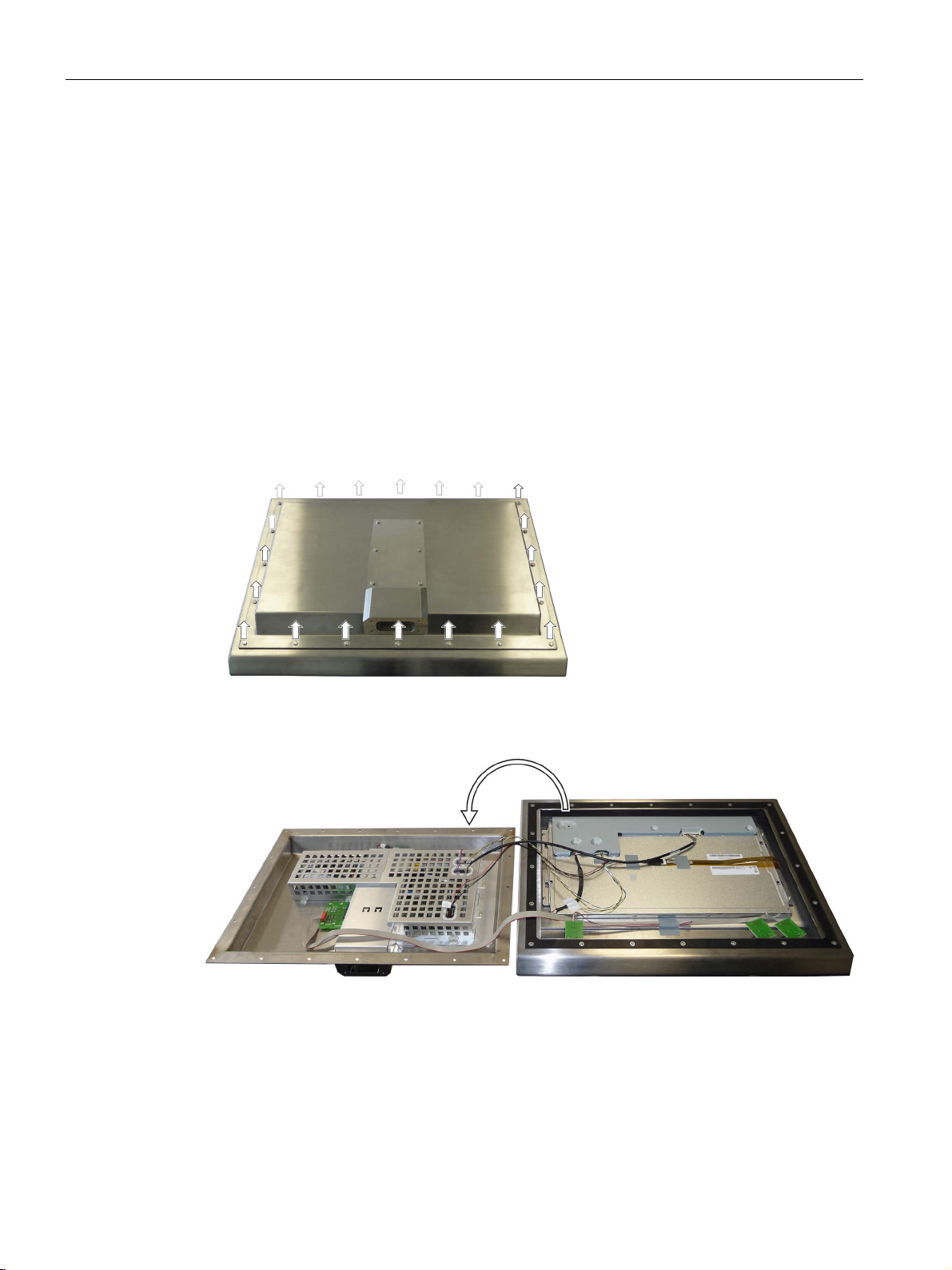

2. Remove the 20 screws that connect the rear panel with the device front.
3. Lift the rear panel on the right and fold it back to the left, as shown in the figure below.
Make sure that the rear panel seal remains in the device front.

Extended maintenance work
4.2 Opening the device and loosening cables
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 13

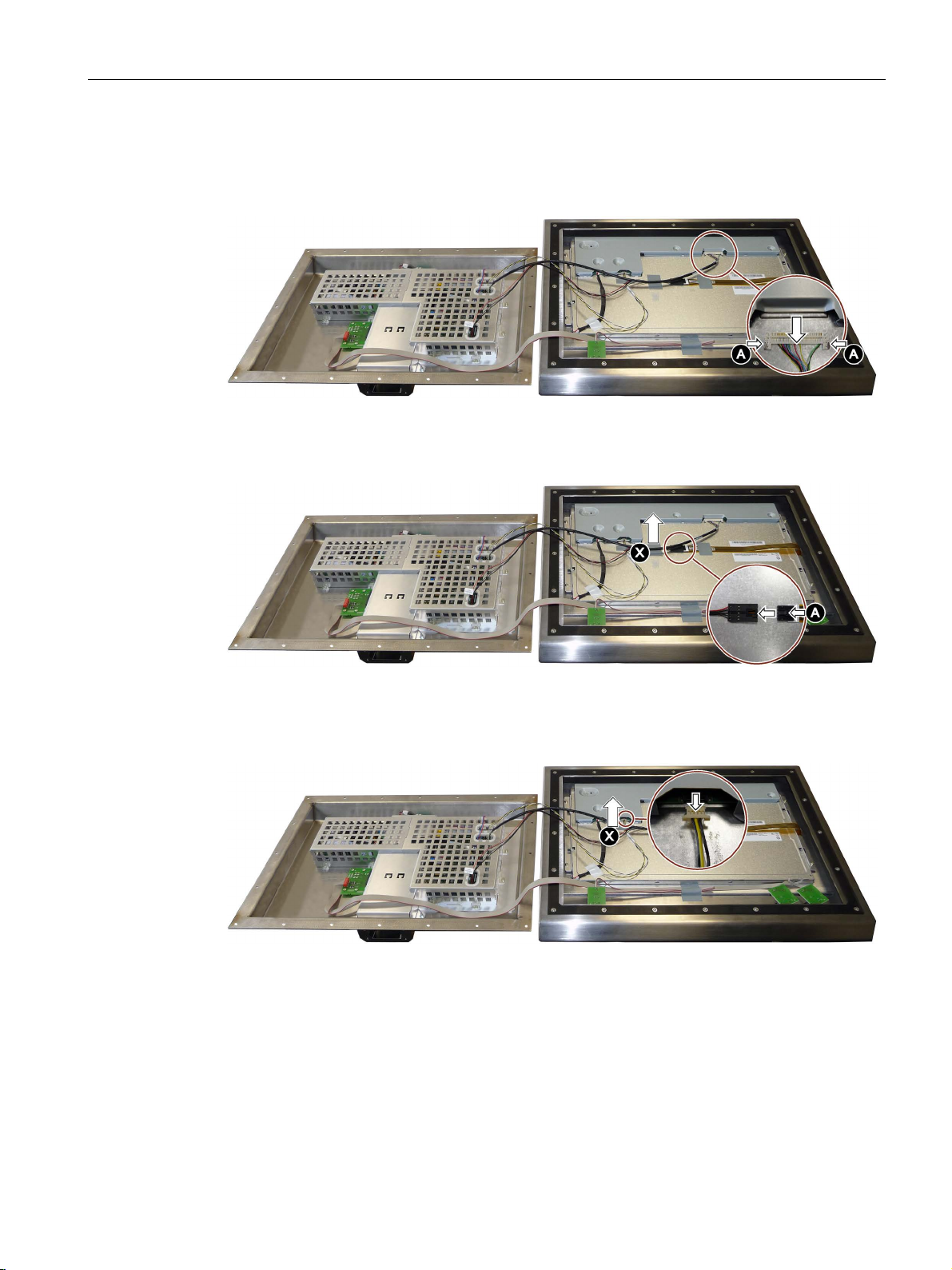

4. Loosen the plug of the LVDS display cable from the front electronic. To do so, press the
two locking mechanisms (A) on the side of the plug and pull out the plug as shown in the
figure below.
5. Remove the adhesive tape (X) and loosen the plug of the touch cable from the front
electronic. To do so, press the locking mechanism (A) of the plug and pull out the plug as
shown in the figure below.
Save the adhesive tape.
6. Remove the adhesive tape (X) and pull out the plug of the BLI cable from the front
electronic as shown in the figure below.
Save the adhesive tape.

Extended maintenance work
4.3 Replacing the seal of the rear panel
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
14 Service Manual, 11/2017, A5E35751762-AC
7. Only for devices with operator controls: Pull out the plug of the flat ribbon cable from the
rear panel electronic as shown in the figure below.
8. Place all cables whose plugs you have removed on the rear panel and the front as shown
in the figure below.
4.3
Replacing the seal of the rear panel
WARNING
IP66 degree of protection
The device has IP66 degree of protection when it is closed. If the rear panel seal is not
inserted correctly or if the device is not closed properly, IP66 degree of protection is no
longer guaranteed. Humidity may penetrate the device. The result may be damage to the
device and personal injury.
Make sure you follow the instructions in this document precisely when replacing the seal.
Make sure that the seal is inserted correctly and that the rear panel is fastened properly.
Requirement
●The device is open.
●The cables between the front and the rear panel have been removed.

Extended maintenance work
4.3 Replacing the seal of the rear panel
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 15
Procedure
1. Remove the seal from the front.
2. Insert the spare seal in the device front as shown in the figure. Make sure that the
positioning tabs of the seal are fully inserted into the corresponding bore holes of the
front.
3. Check the seal for correct seat, especially that all bore holes of the seal enclose the collar
of the press-fit components.
Connecting the cables and closing the device
Close the device when you are done with the maintenance work:
1. Connect the cables between the front and the rear panel. Perform steps 4 to 7 in section
"Opening the device and loosening cables (Page 12)" in reverse order.

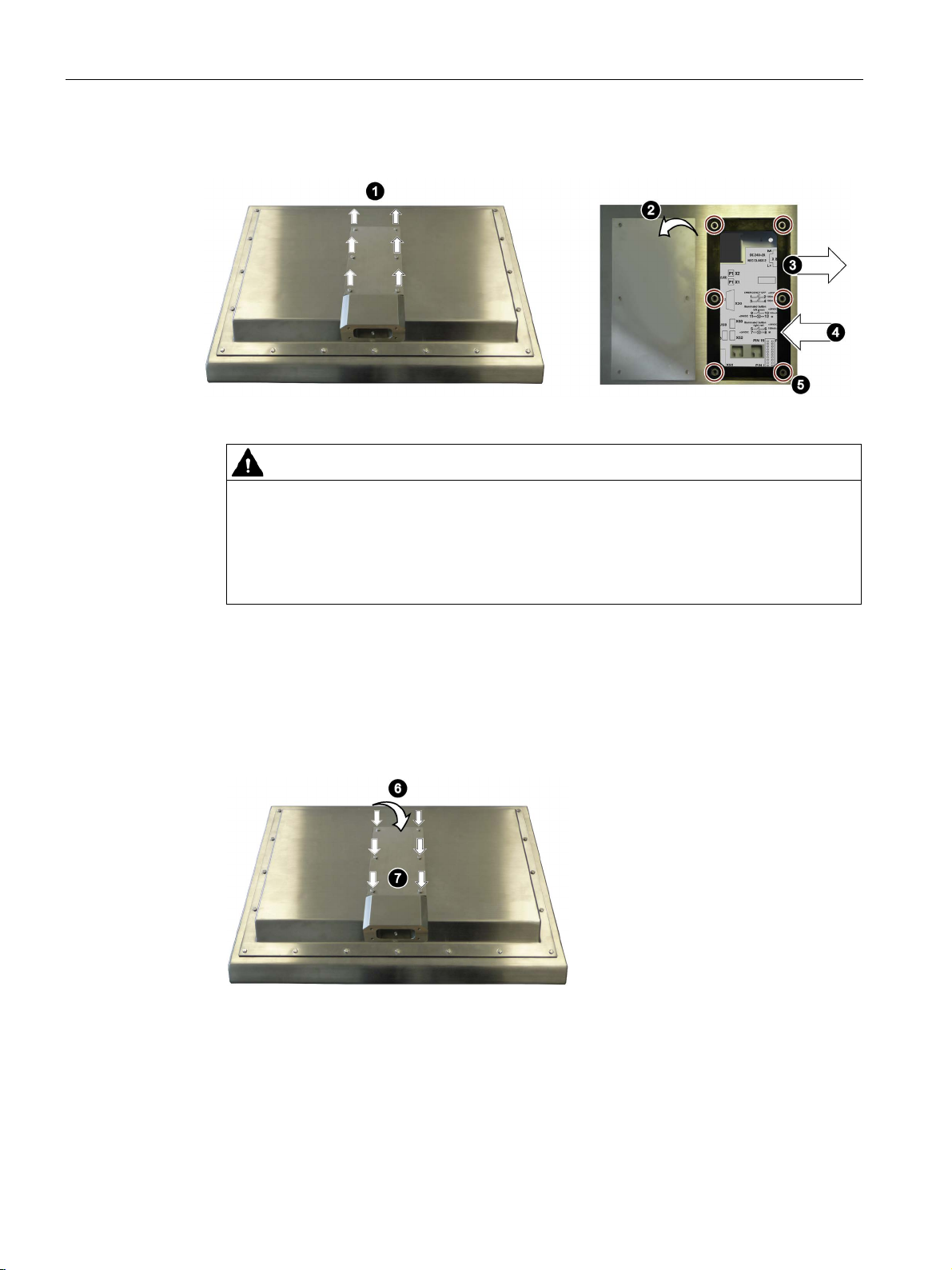

2. Close the device as shown in the figure below.
Make sure that you do not pinch the cables between the front and the rear panel.
3. Then fasten the rear panel according to the section "Fastening the rear panel (Page 21)".

Extended maintenance work
4.4 Replacing operator controls
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
16 Service Manual, 11/2017, A5E35751762-AC
4.4
Replacing operator controls
This section applies to devices with operator controls.
Note
Repairs, when modules are defective
The modules of the EMERGENCY OFF pushbutton and the illuminated pushbutton are not
available as spare part.
If one of the modules is defective, send in the device for repair.
Tool required
●Wrench, size 18 mm
Replacing the EMERGENCY OFF pushbutton
Removing the EMERGENCY OFF pushbutton
1. Carefully turn the module of the EMERGENCY OFF pushbutton to the left until it unlocks.
2. Remove the module from the EMERGENCY OFF pushbutton.
3. Loosen the highlighted nut and remove the EMERGENCY OFF pushbutton.
Installing the EMERGENCY OFF pushbutton
Proceed in the reverse order of the section "Removing the EMERGENCY OFF pushbutton".
1. Insert the new EMERGENCY OFF pushbutton from the outside through the opening on
the front.
2. Fasten the EMERGENCY OFF pushbutton with the associated nut, 1.5 Nm torque.
3. Place the module on the EMERGENCY OFF pushbutton.
4. Carefully turn the module to the right until you hear it click in place.

Extended maintenance work
4.4 Replacing operator controls
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 17
Replacing the illuminated pushbutton
Removing the illuminated pushbutton
1.
Carefully turn the module
of the illuminated
pushbutton you want to
remove to the right until
it is upright.
2.
Remove the module from
the illuminated pushbutton.
3.
Loosen the highlighted nut
and remove the illuminated
pushbutton.

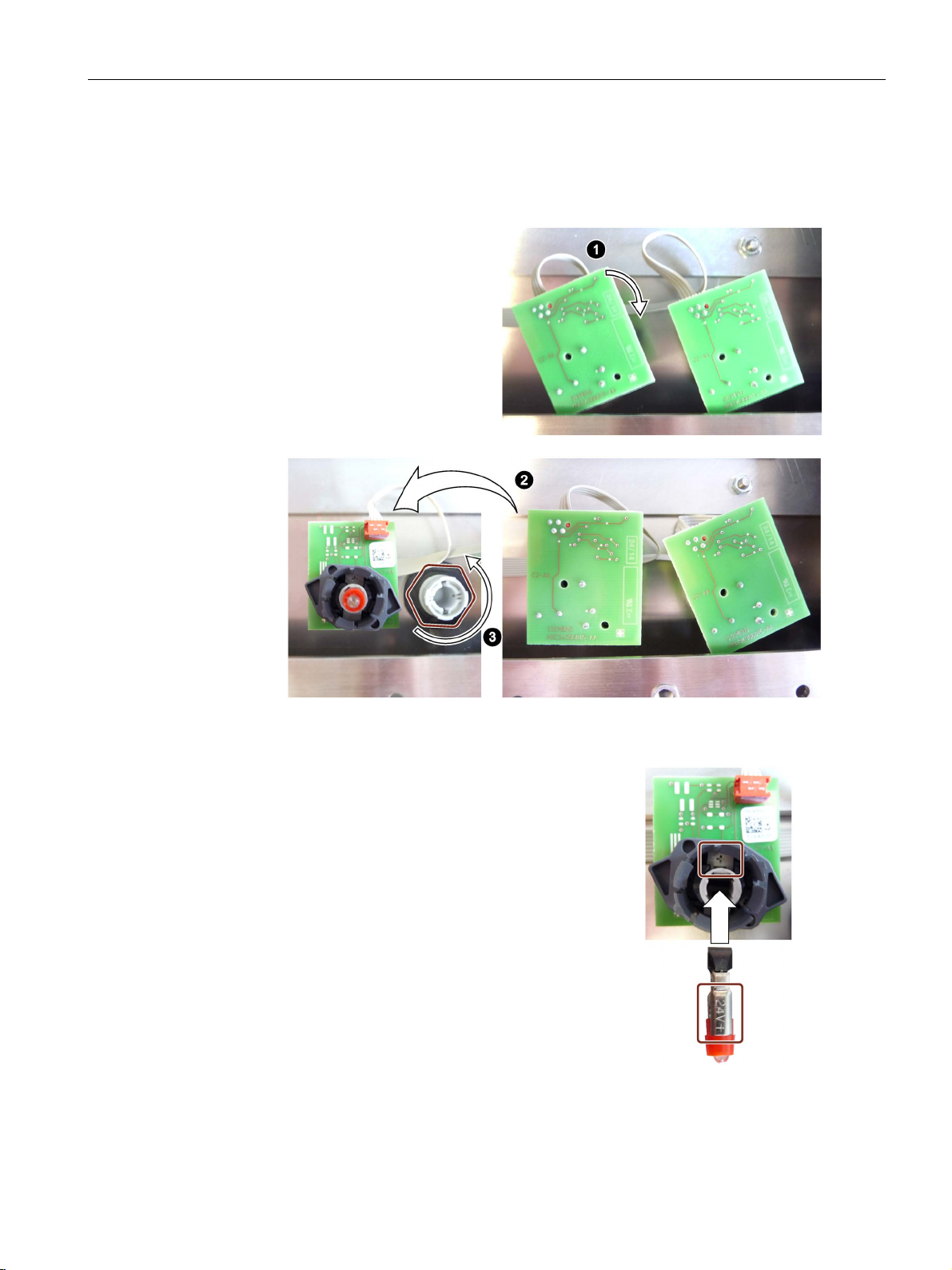

Replacing the LEDs of the illuminated pushbuttons
1.
Remove the LED from its socket on the
module.
2.
Insert the new LED. Make sure that the
"24V+" marking of the LED is aligned with
the "+" marking on the module as shown in
the figure on the right.

Extended maintenance work
4.4 Replacing operator controls
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
18 Service Manual, 11/2017, A5E35751762-AC
Installing the illuminated pushbutton
Proceed in the reverse order of the section "Removing the illuminated pushbutton".
1. Insert the new illuminated pushbutton from the outside through the opening on the front.
2. Fasten the illuminated pushbutton with the associated nut, 1.5 Nm torque.
3. Place the module on the illuminated pushbutton.
4. Carefully turn the module to the left until you hear it click in place.
Connecting the cables and closing the device
Close the device when you are done with the maintenance work:
1. Connect the cables between the front and the rear panel. Perform steps 4 to 7 in section
"Opening the device and loosening cables (Page 12)" in reverse order.
2. Close the device as shown in the figure below.
Make sure that you do not pinch the cables between the front and the rear panel.
3. Then fasten the rear panel according to the section "Fastening the rear panel (Page 21)".

Extended maintenance work
4.5 Changing the mounting type
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
Service Manual, 11/2017, A5E35751762-AC 19
4.5
Changing the mounting type
This section describes the conversion of a stand-mounted device into a support arm device.
The conversion of a support arm device into a stand-mounted device takes place in the
same manner.
Procedure
1. Swap the position of the front and rear panel as shown in the figure below.
2. Turn the rear panel by 180°.
3. Only for devices with operator controls: Remove the adhesive tape (X) of the flat ribbon
cable as shown in the figure below.
4. Only for devices with operator controls: Place the flat ribbon cable from the front on the
rear panel, and attach the adhesive tape (X) in its original position as shown in the figure
below.

Extended maintenance work
4.5 Changing the mounting type
SIMATIC IPC277D/E 19" INOX PRO, SIMATIC IFP1900 INOX PRO
20 Service Manual, 11/2017, A5E35751762-AC

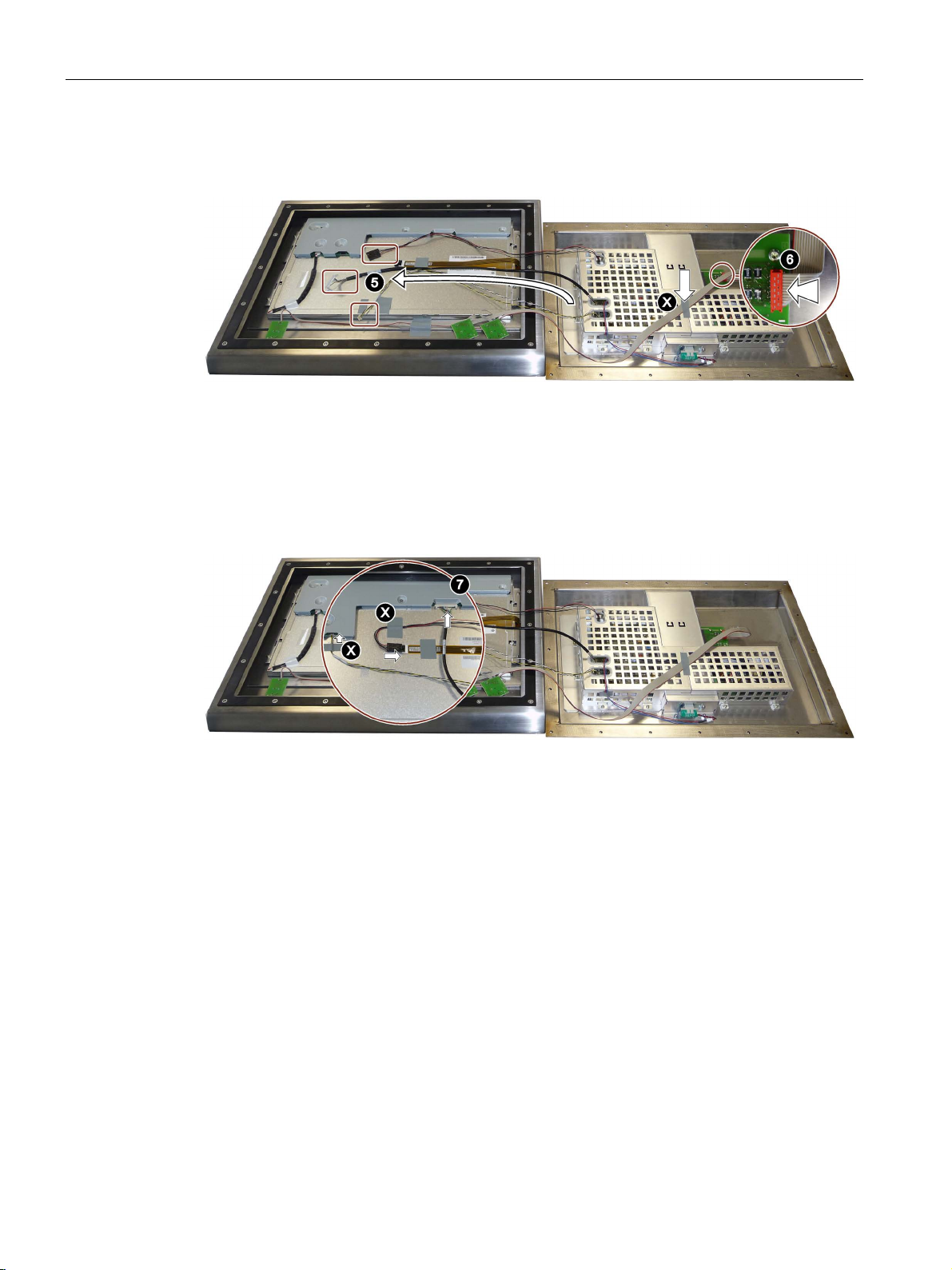

5. Reposition the LVDS display cable, the touch cable and the BLI cable from the rear panel
to the front as shown in the figure below.
6. Only for devices with operator controls: Connect the plug of the flat ribbon cable with the
rear panel electronic. Make sure that you do not reverse the polarity. Secure the flat
ribbon cable with a new piece of adhesive tape (X).
7. Connect the plugs of the LVDS display cable, the touch cable and the BLI cable with the
corresponding interface of the front electronic. Secure the touch cable and the BLI cable
with the adhesive tapes that you saved when you removed the cables as shown in the
figure below.
